This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Fabric Room Divide.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Fabric Room Divide.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

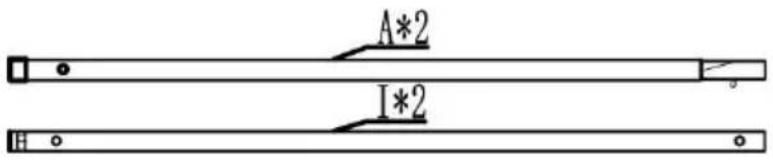

PARTS LIST

A+B		6
C		8
D		2
E		9
F		16+2
G		1
H		4
A+I		2
J		2
NOTE: H is the fabric of the screen, pay attention not to go when installing.

NOTE: H is the fabric of the screen, pay attention not to go when installing.

ASSEMBLY STEP

STEP 1

Pure mechanical diagram showing two parallel plates with supports and a central shaft, no text or symbols present

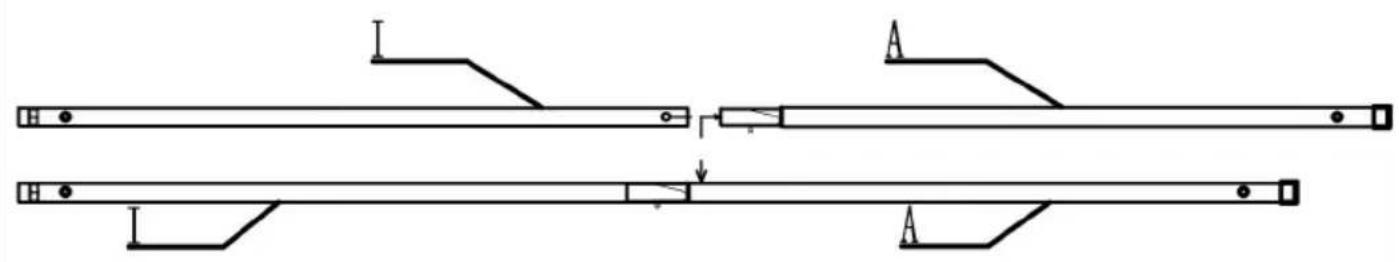

Connect material I and Material A (as shown in the figure) them together.

Total 2 groups

STEP 2

B A B A

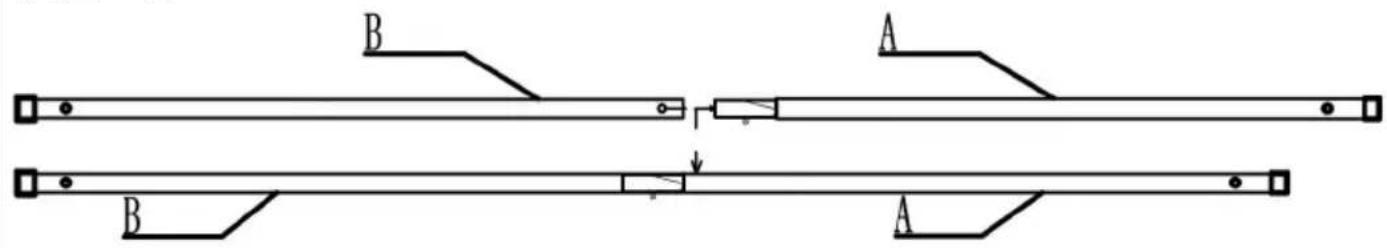

Connect material B and Material A (as shown in the figure) them together.

Total 6 groups

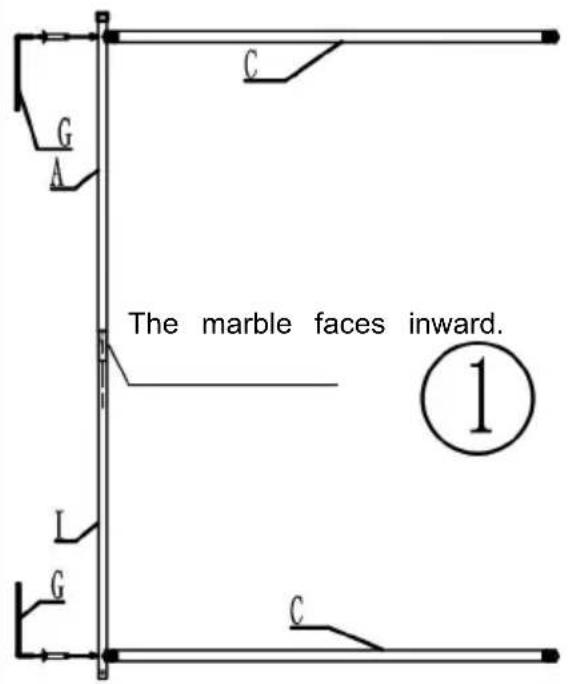

STEP 3

G A C The marble faces inward. ① L G C

Take 1 piece of material from steel and 2 pieces of material C, con them through long screws F (as shown in the figure), pay attention the position of the marble when combining them (as shown in the figure), and then tighten them with tool G. This group is No.1.

STEP 4

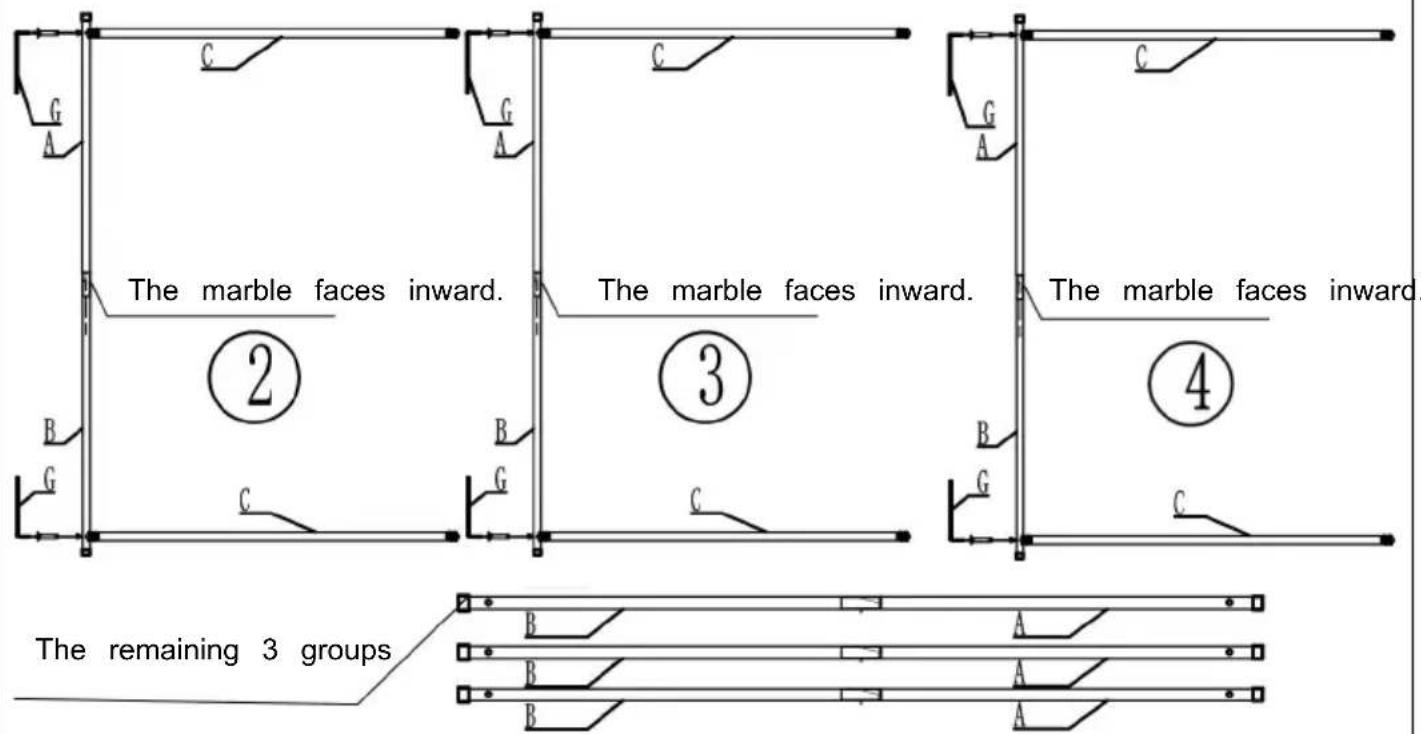

The marble faces inward. The marble faces inward. The remaining 3 groups

Take 1 piece of material from step 2 and 2 pieces of material C them through long screws F (as shown in the figure), pay attention position of the marble when combining them (as shown in the fig then tighten them with tool G. This group is No.2.

Follow the same steps to assemble 2 more groups, They're No.3-No.4.

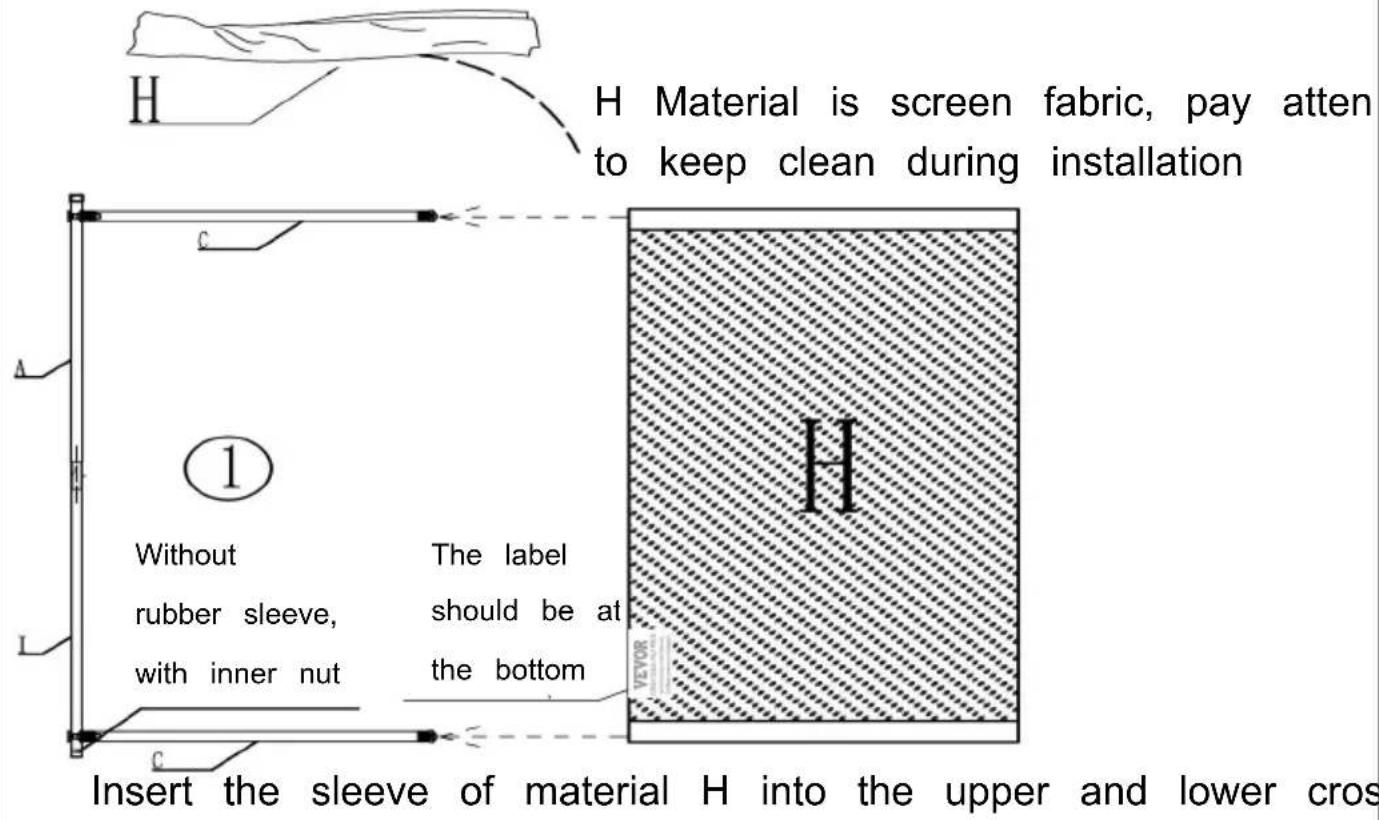

STEP 5

H Material is screen fabric, pay atten to keep clean during installation ① Without rubber sleeve, with inner nut The label should be at the bottom Insert the sleeve of material H into the upper and lower cros

STEP 6

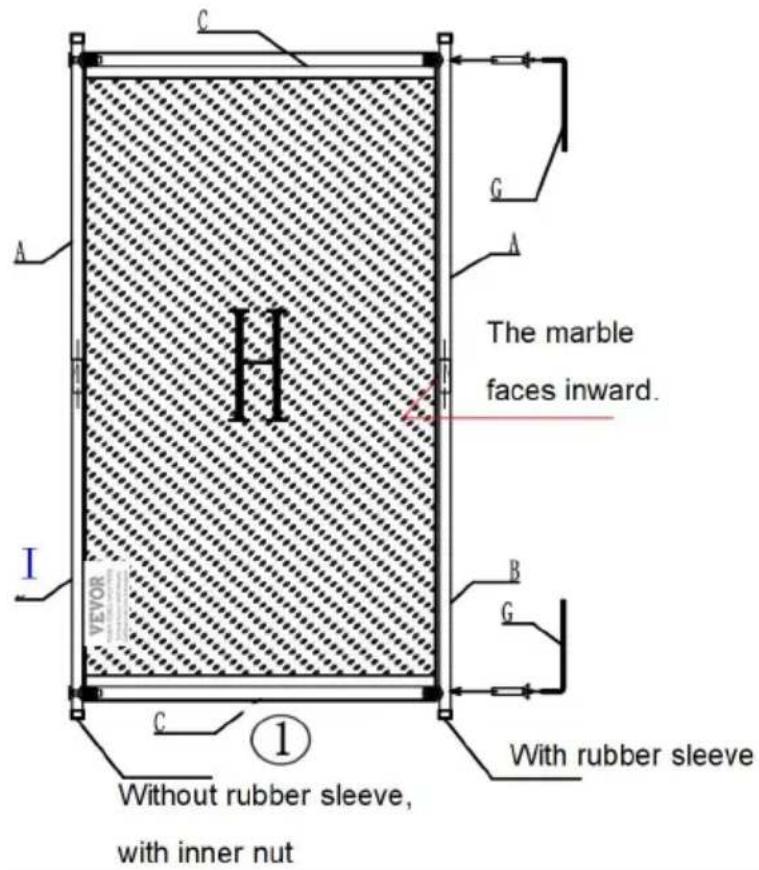

C A H The marble faces inward. I VEYOR B G C ① Without rubber sleeve, with inner nut With rubber sleeve

In the pipe of Step 2, ta sets, and then tighten with G tool, paying attention to the position of the marble

STEP 7

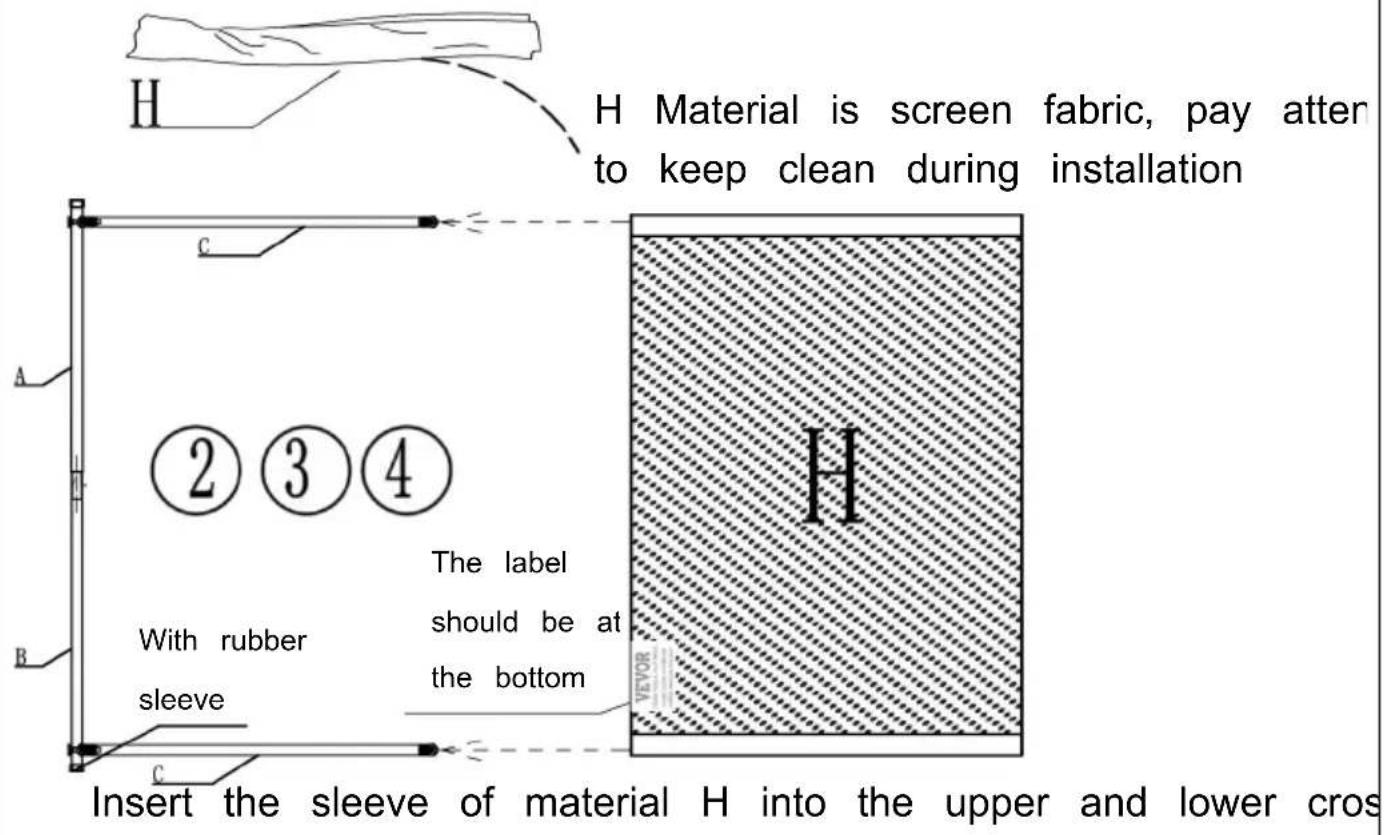

H H Material is screen fabric, pay atten to keep clean during installation ② ③ ④ With rubber sleeve The label should be at the bottom Insert the sleeve of material H into the upper and lower cros

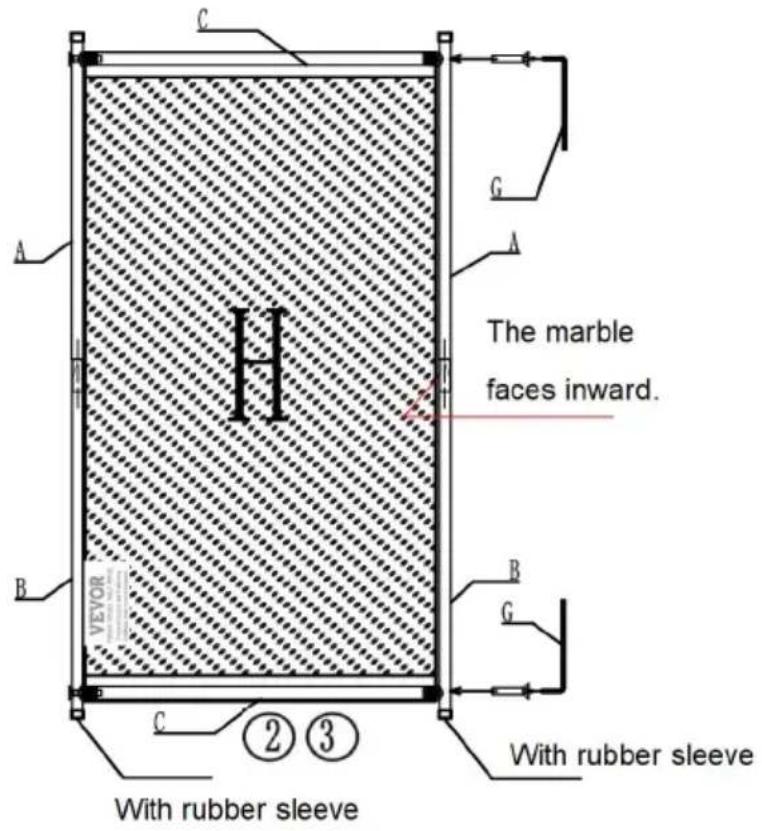

STEP 8

C A H G A The marble faces inward. B B G C ② ③ With rubber sleeve With rubber sleeve

In the pipe of Step 2, ta sets, and then tighten with G tool, paying attention to the position of the marble

STEP 9

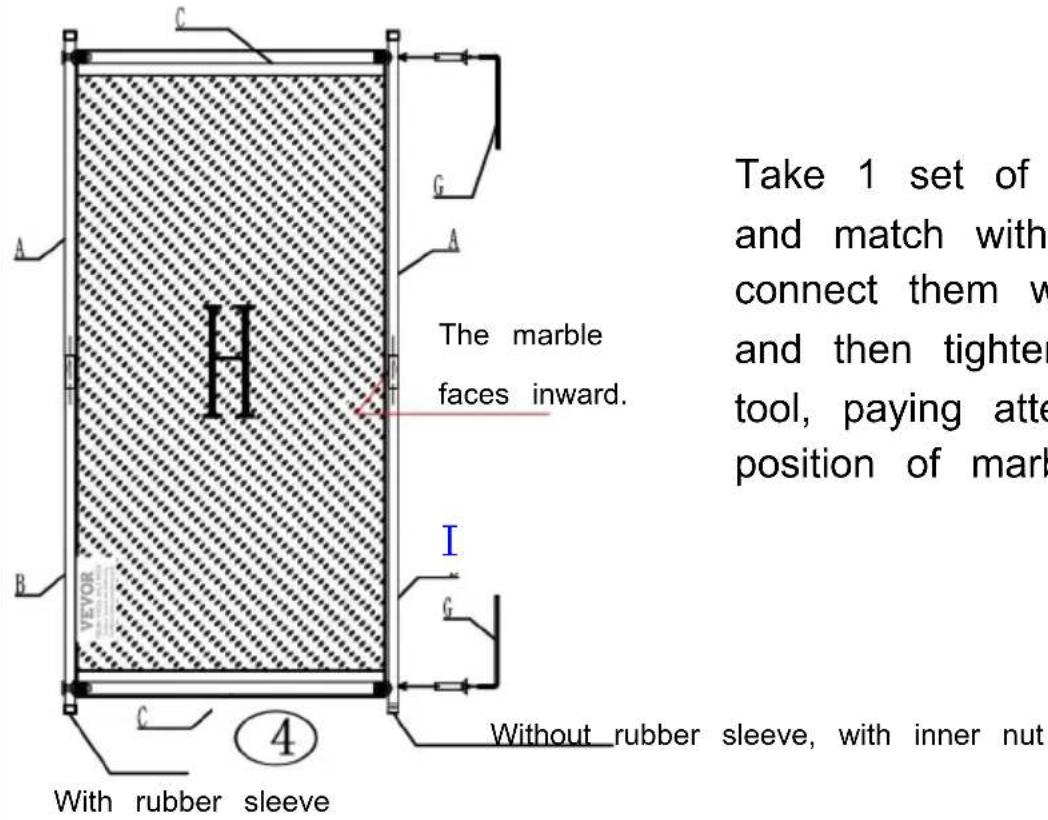

Take 1 set of and match with connect them w and then tighter tool, paying atte position of mark The marble faces inward. With rubber sleeve Without rubber sleeve, with inner nut

Take 1 set of pipes from Ste and match with No. 4 in step connect them with long screw and then tighten them with G tool, paying attention to the position of marbles.

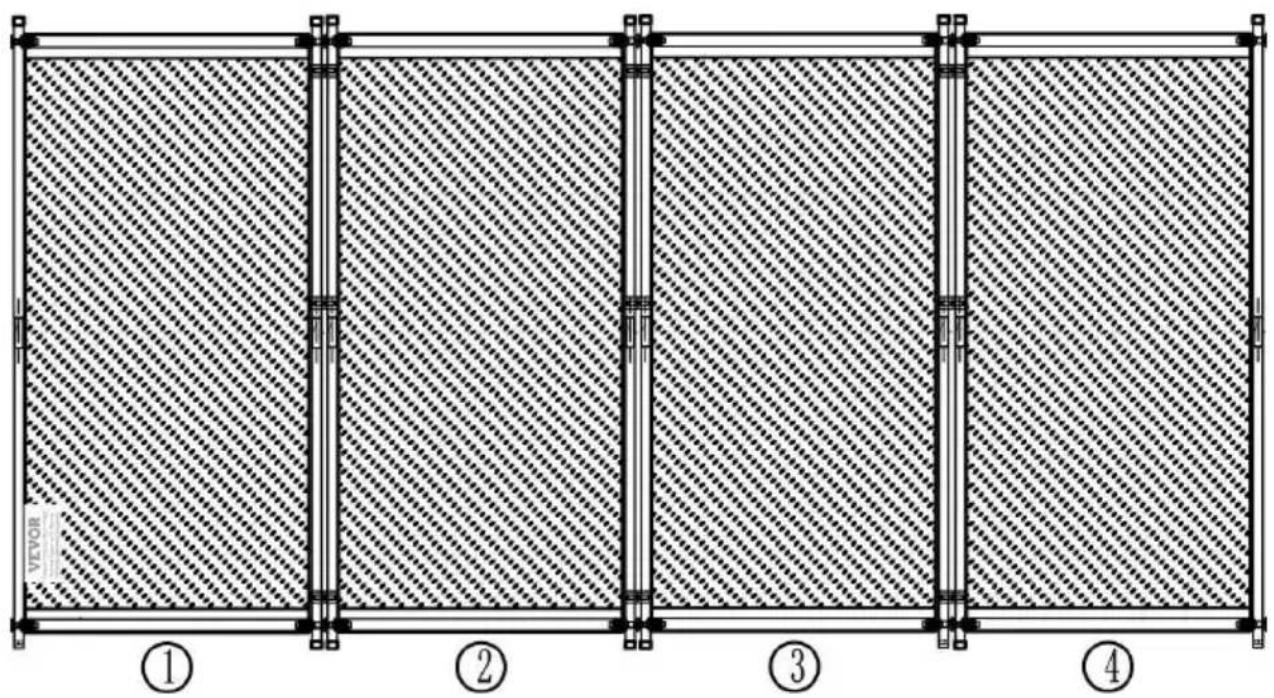

STEP 10

VEGOR ① ② ③ ④

Arrange the assembled shelves in order.

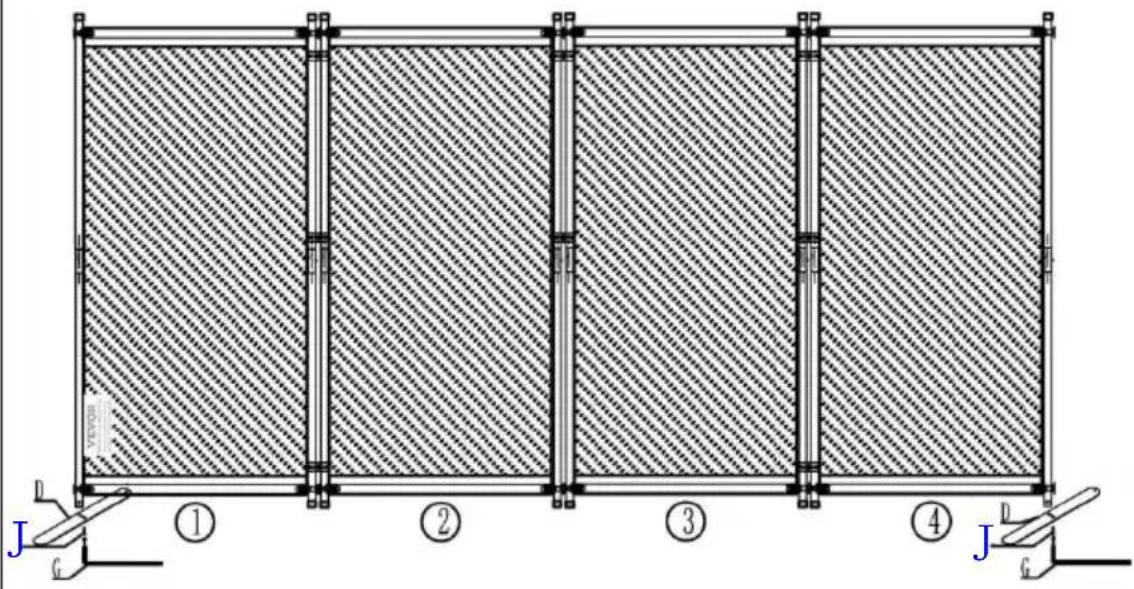

STEP 11

① ② ③ ④ J G J G

Combine material D with step 10, connect with short screw F, tighten with tool G.

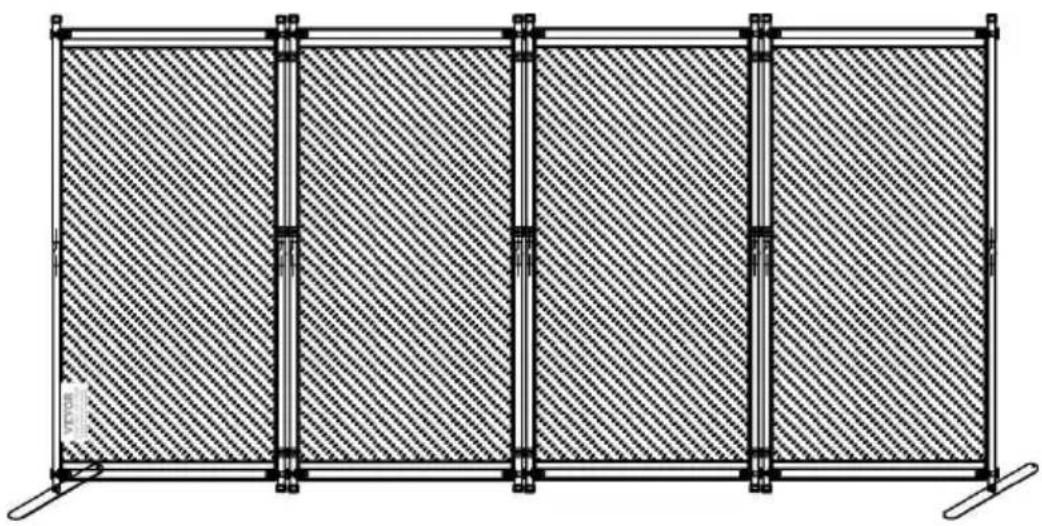

STEP 12

Technical diagram of a structural panel with four labeled components and hatched fill pattern

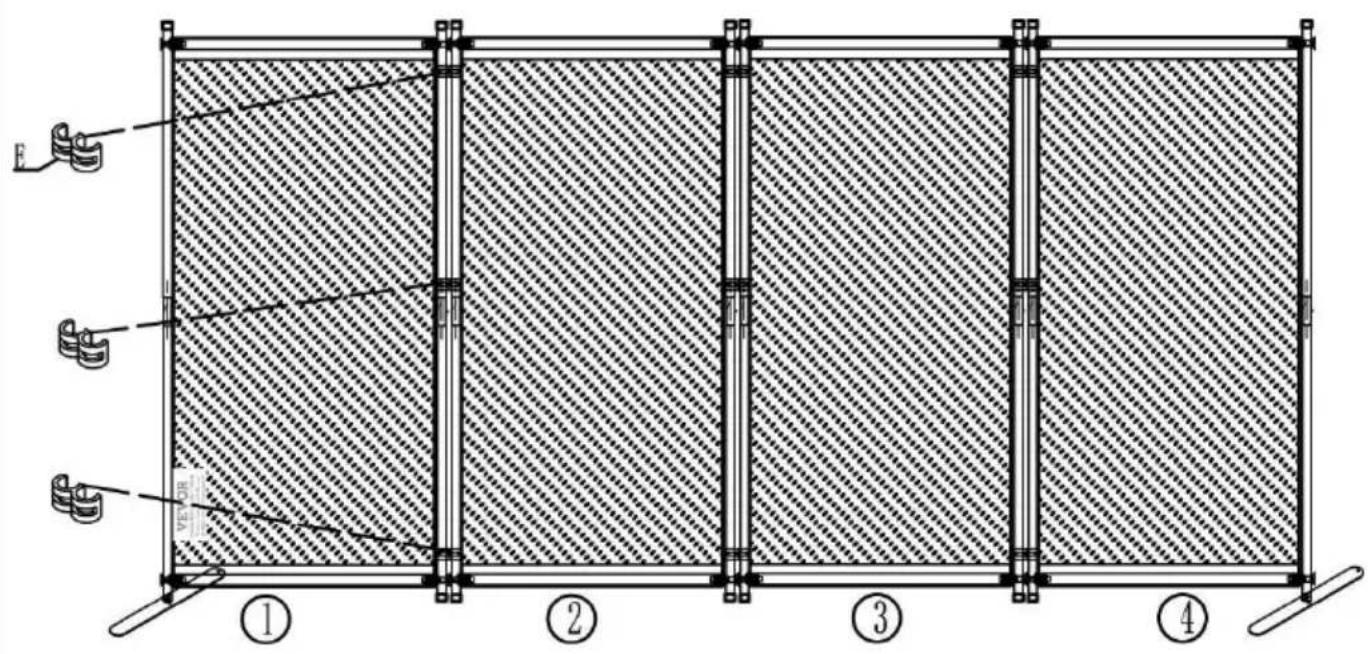

It is fixed and connected through material E. When connecting group of shelves, try to ensure that material E is in the same line. The middle of the two groups are connected with material

STEP 13

Diagram showing a person using a tool to clean or install a grid panel, labeled with four numbered sections.

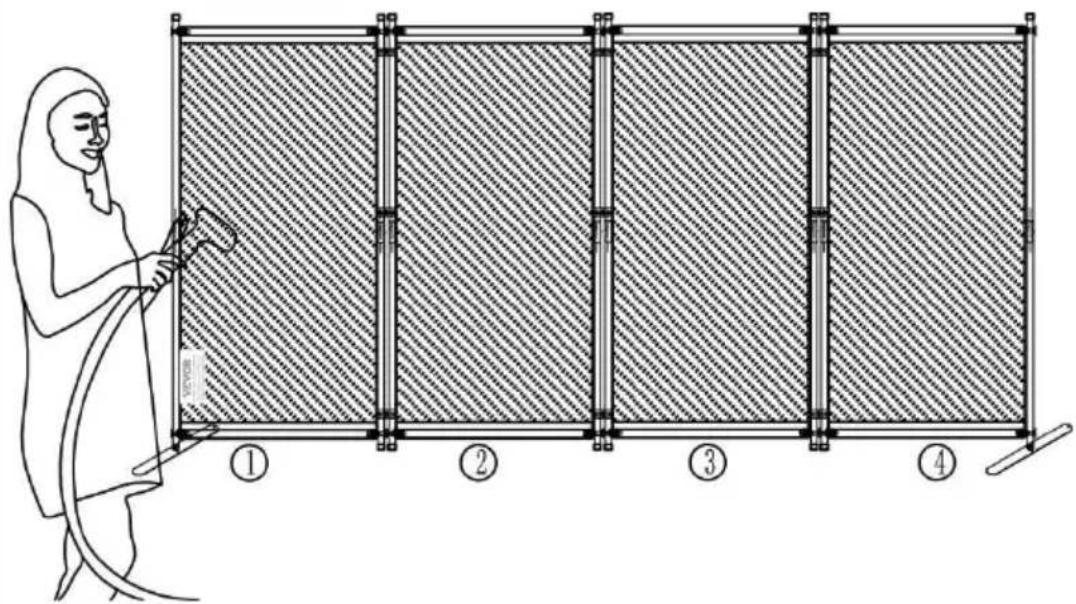

After the installation is completed, arrange the fabric to ensure that the fabric is smooth. If the fabric has when you can use a household hanging press to iron it.

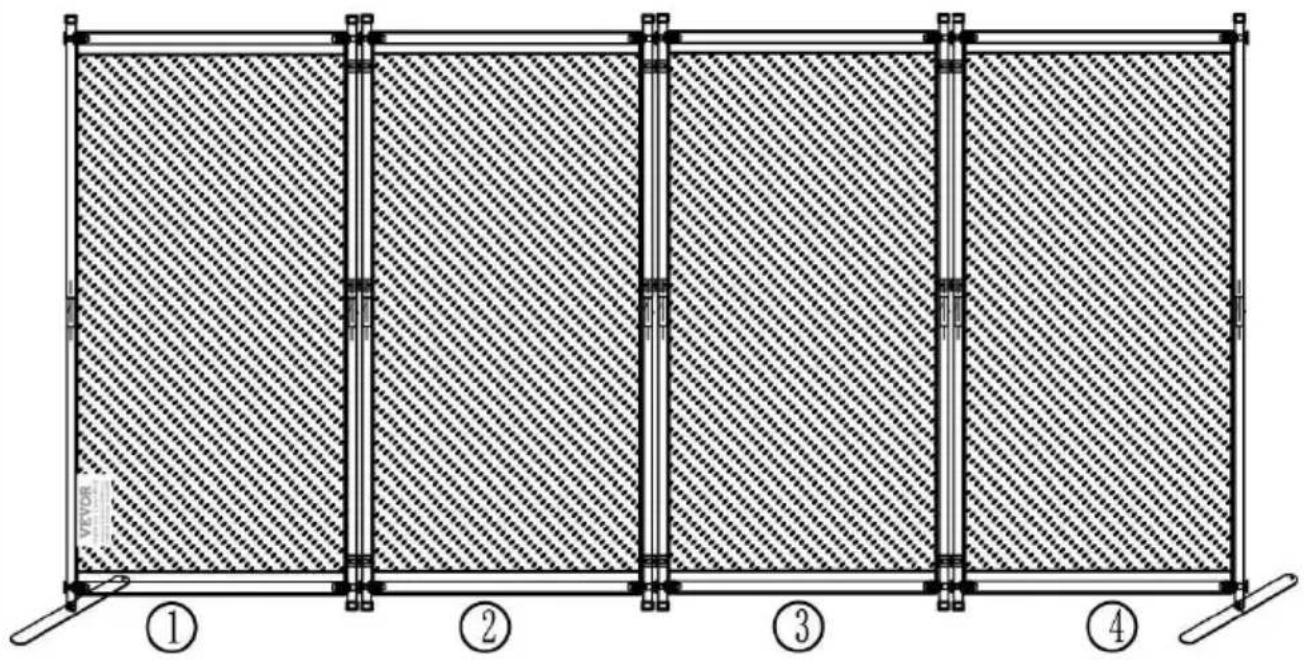

STEP 14

① ② ③ ④

PRODUCT PARAMETER
