This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so may result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly may create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Fabric Room Divide.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Fabric Room Divide.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

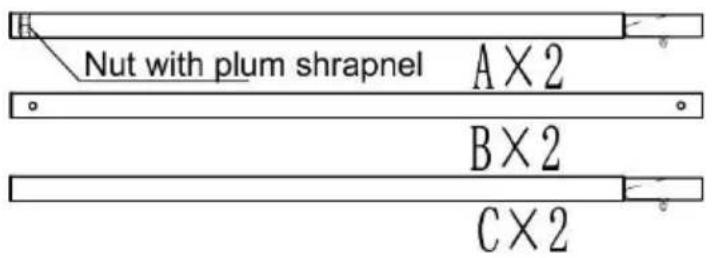

A+B+C		2
D		4
E		2
F		2
G		1
H		2+1
I		1
NOTE: H is the fabric of the screen, pay attention not to g when installing.

ASSEMBLY STEP

STEP 1

Nut with plum shrapnel A×2 B×2 C×2 A B C Nut with plum shrapnel Nut with plum shrapnel Nut with plum shrapnel ×2

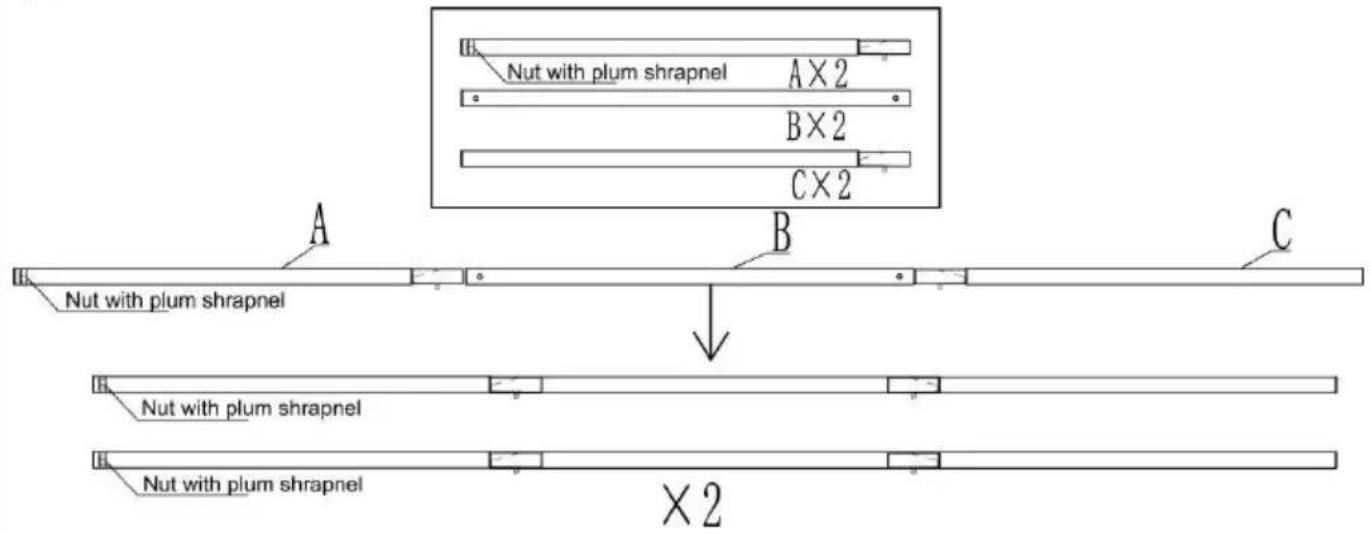

Take A+B+C material, and assemble three in order, a total of for 2 groups of vertical rods.

STEP 2

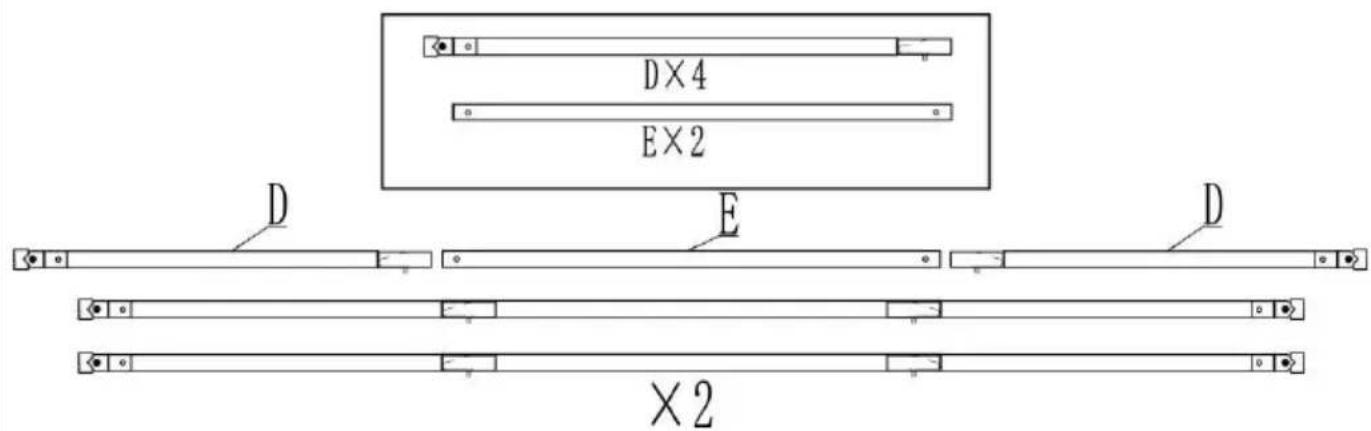

D×4 E×2 D E D ×2

Take D+E materials and assemble them in sequence. There are groups in total, which are 2 groups of cross bars.

STEP 3

Technical diagram showing mechanical assembly with labeled components and directional arrows

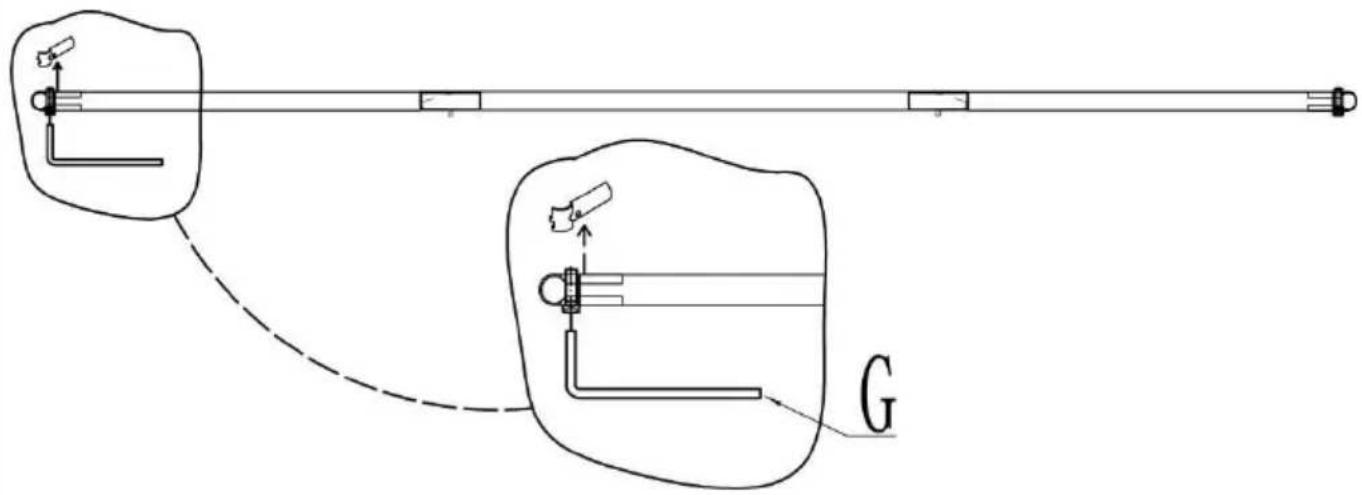

Take the two groups of cross bars in step 2 and disassembl sheets at both ends through tool G, as shown in the figure.

STEP 4

Pure electrical circuit lines without any symbols

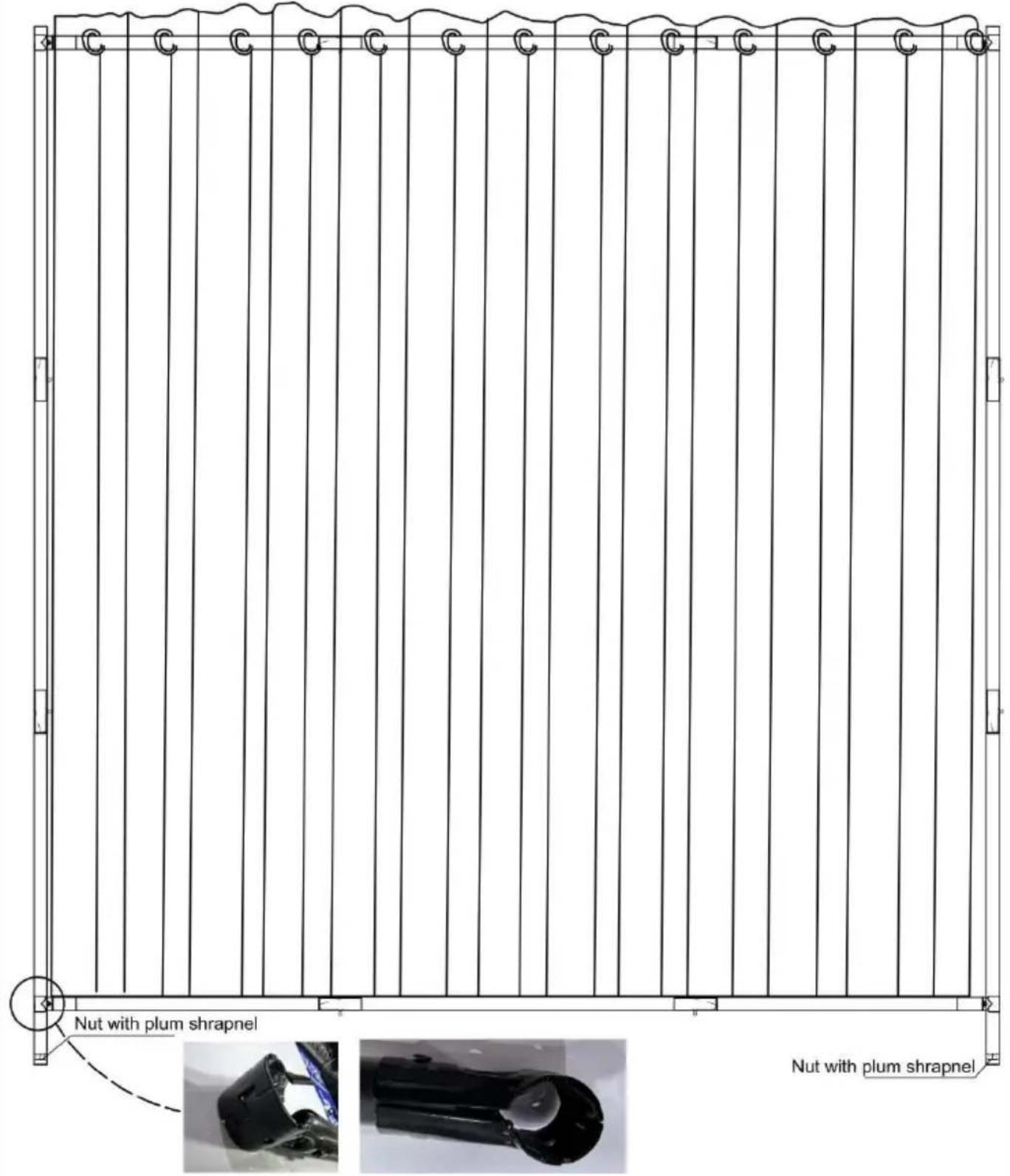

Take the first set of horizontal rods from Step 3 and insert into the horizontal rods, as shown in the figure.

STEP 5

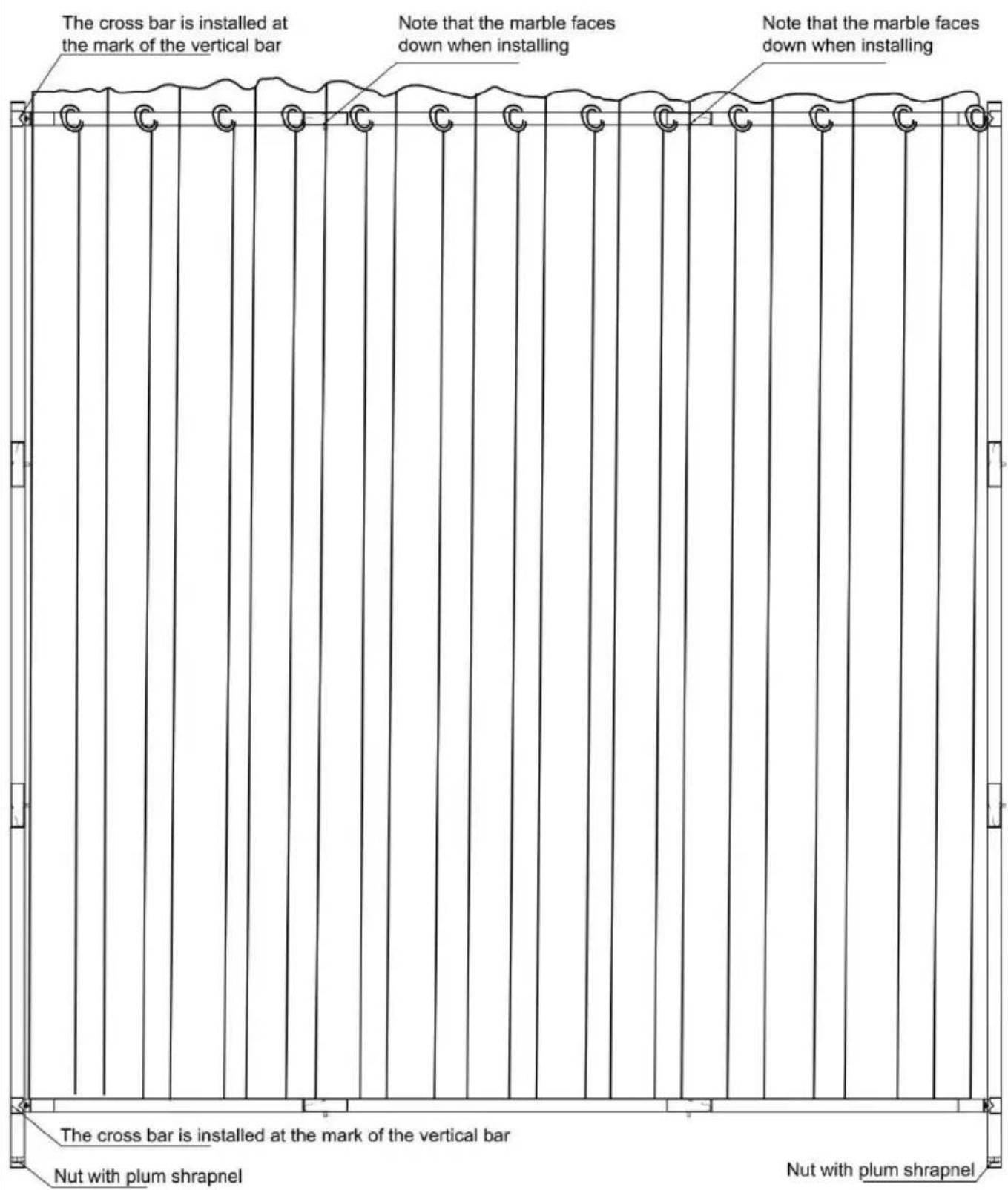

The cross bar is installed at the mark of the vertical bar Note that the marble faces down when installing Note that the marble faces down when installing The cross bar is installed at the mark of the vertical bar Nut with plum shrapnel Nut with plum shrapnel

Take the two sets of vertical rods from step 1, lay them flat on and place the bar with the curtain and the other set of horizonta the place where the vertical rods are marked, as shown in the

STEP 6

Nut with plum shrapnel Nut with plum shrapnel

Install the iron sheet taken out in step 3 as shown in the figure clasp should be stuck when closing), then insert the screw and through tool G.

STEP 7

Technical line drawing of a structural frame with vertical supports and mounting brackets (no text or symbols)

Take material F and insert it into the bottom of the vertical rod the picture, then insert the screw and tighten it through tool G, which is spare.

STEP 8

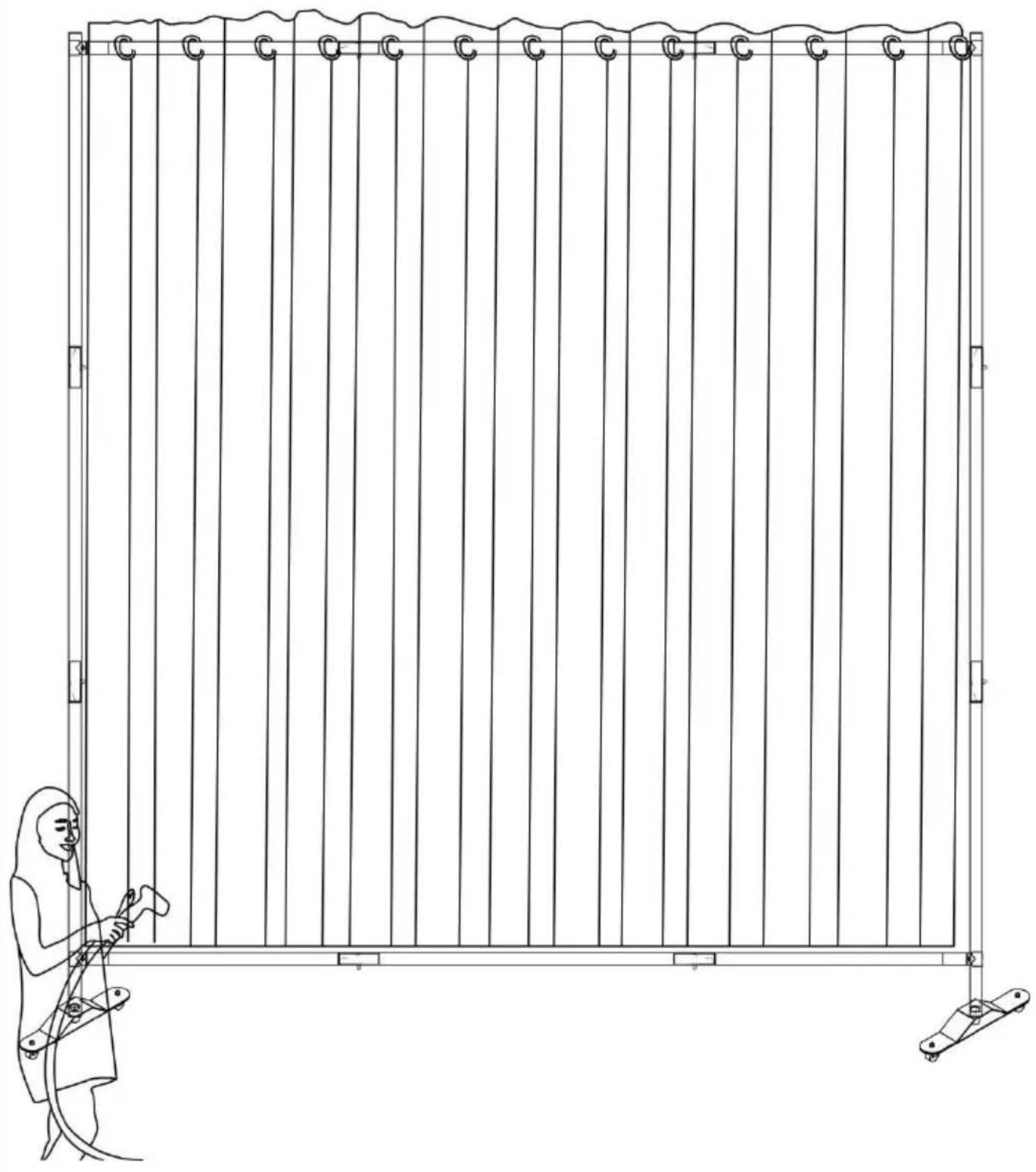

Line drawing of a person climbing a rope against a grid-patterned wall, with no text or symbols present.

STEP 9

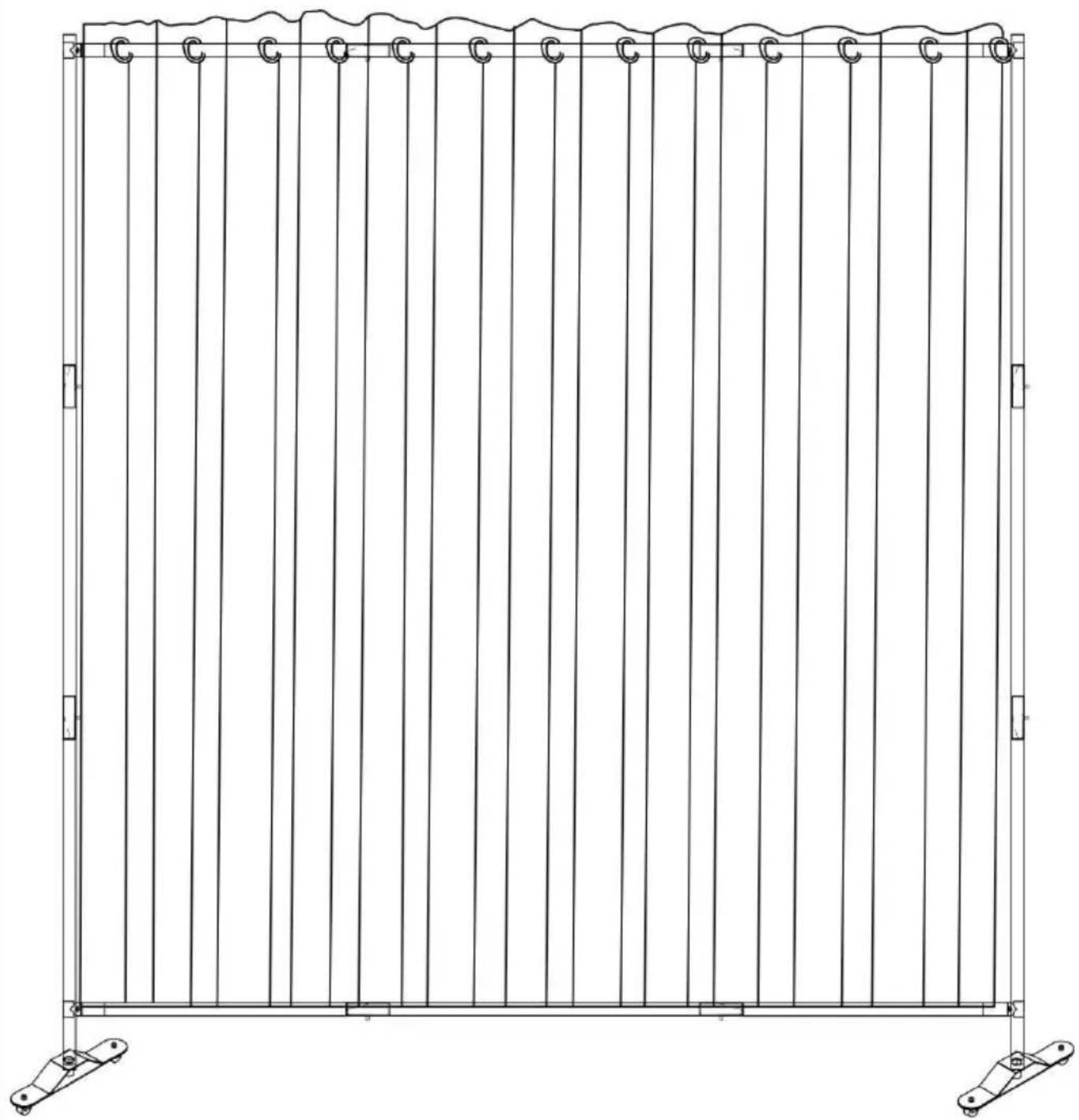

Technical line drawing of a structural frame with vertical supports and a horizontal support (no text or symbols)

PRODUCT PARAMETER

Model	Colour	Number of Panels	Product Size
CLDMFGMS01	Creamy White	1	3085*450*2455mm
CLDMFGBS02	Brownness
CLDMFGSH03	Gray
CLDMFGHS04	Black

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
