FABRIC ROOM DIVIDE

PFTSTGHS04 PFTSTGSH05 PFTSTGMS06

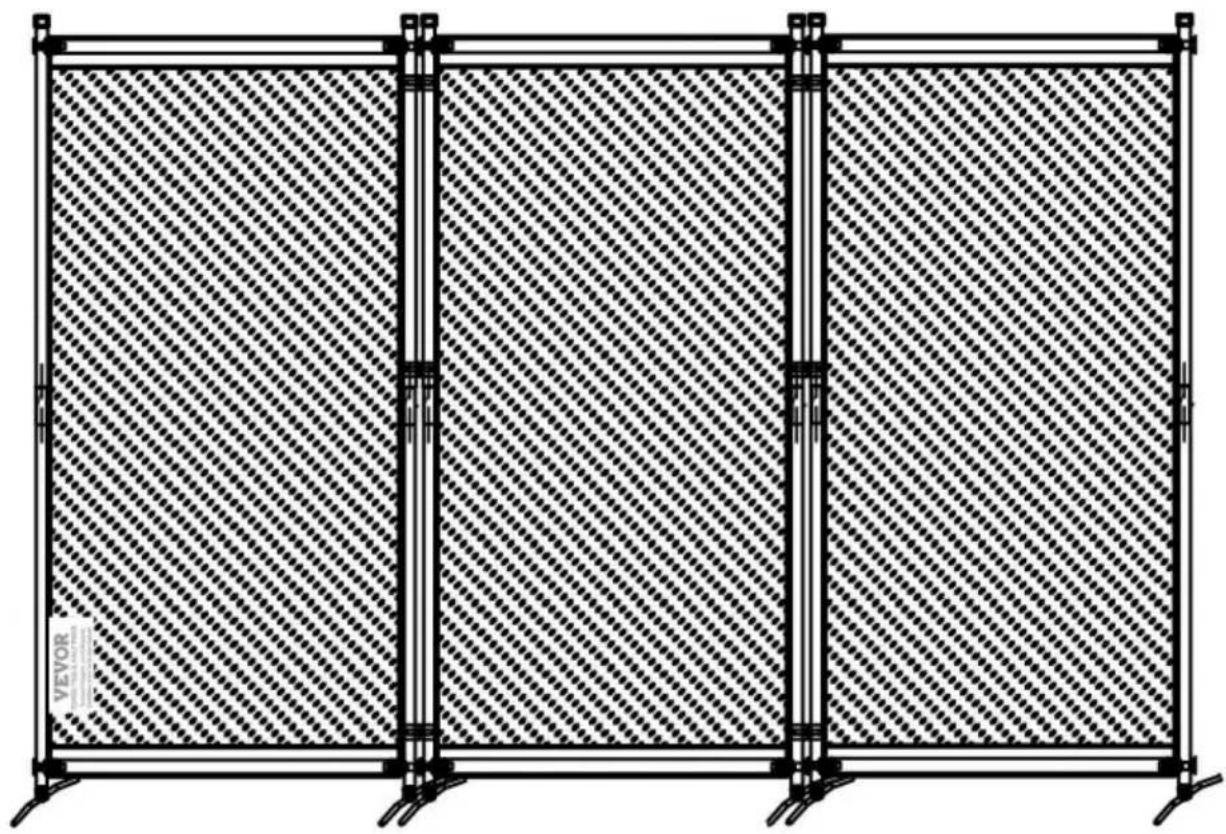

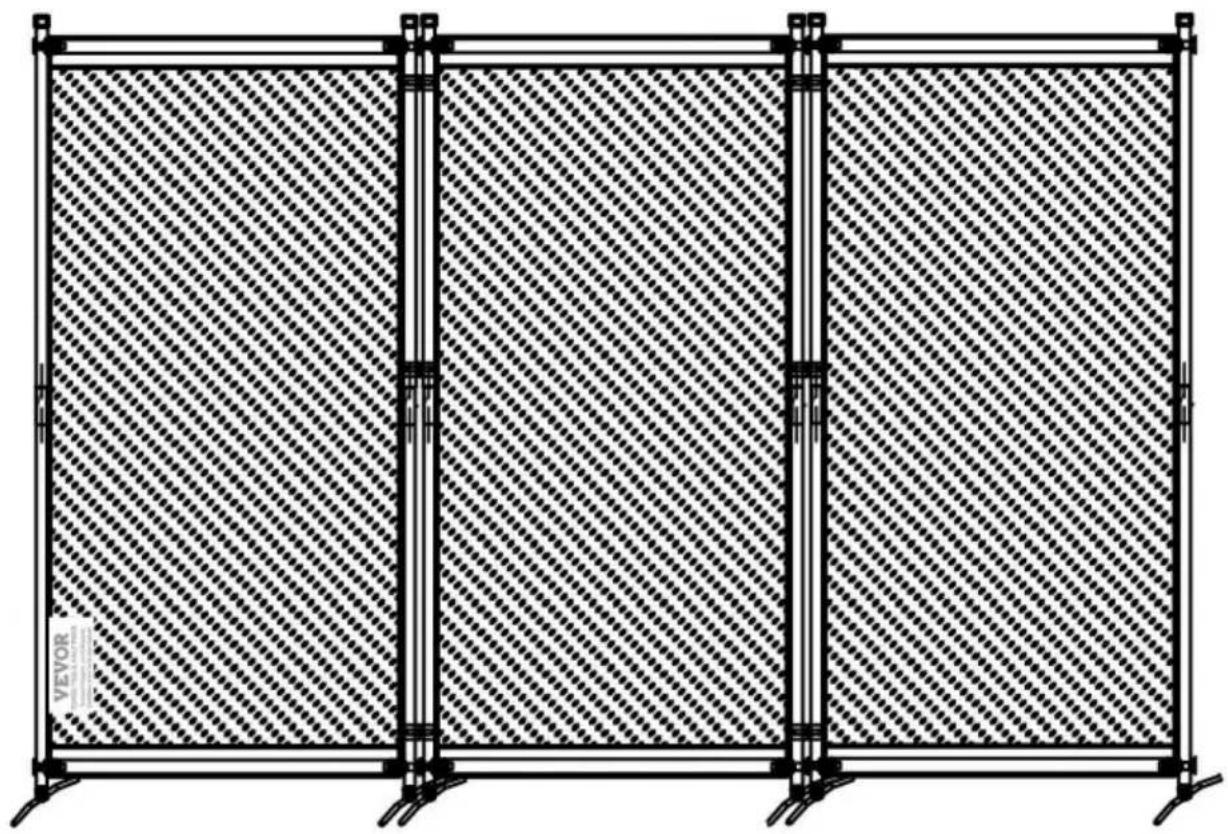

Diagram of a three-panel grid-patterned fence structure with vertical supports and diagonal hatching (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Fabric Room Divide.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Fabric Room Divide.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

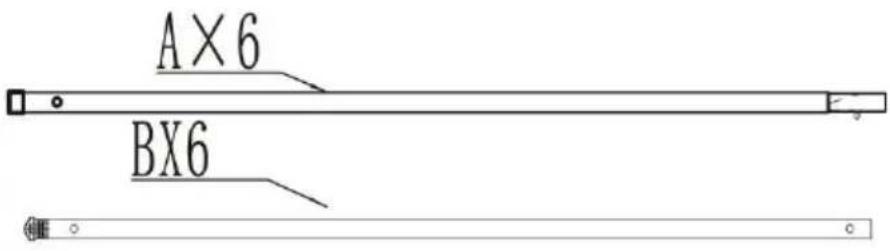

PARTS LIST

A+B		6
C		6
D		6
E		6
F		18+2
G		1
H		3
NOTE: H is the fabric of the screen, pay attention not to g when installing.

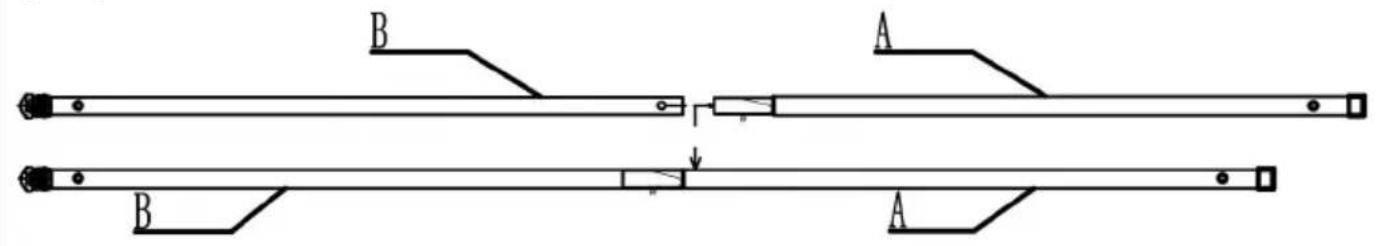

ASSEMBLY STEP

STEP 1

B A B A

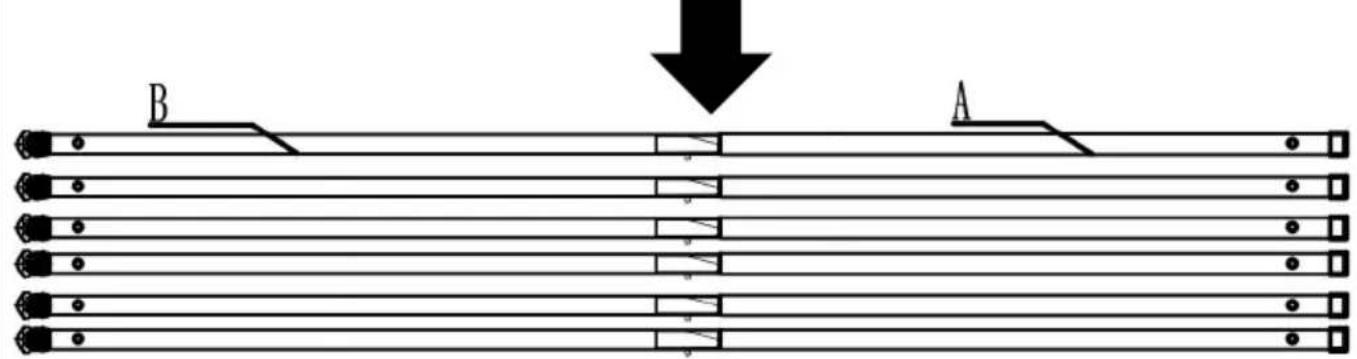

Connect material B and Material A (as shown in the figure)

them together.

B A

Total 6 groups

STEP 2

Take 1 material through figure), marble in the tool G. The marble faces inward. Follow remaining (as sho

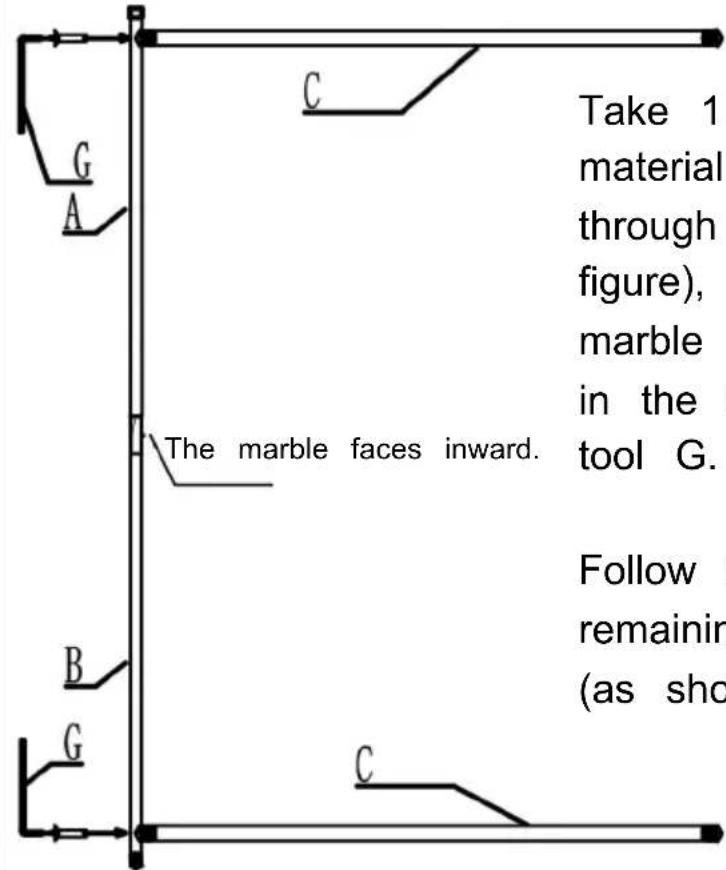

Take 1 piece of material and 2 piece material C from step 1, connect them through long screws F (as shown in figure), pay attention to the position o marble when combining them (as show in the figure), and then tighten them tool G.

Follow the same steps to connect the remaining 2 groups for a total of 3 (as shown)

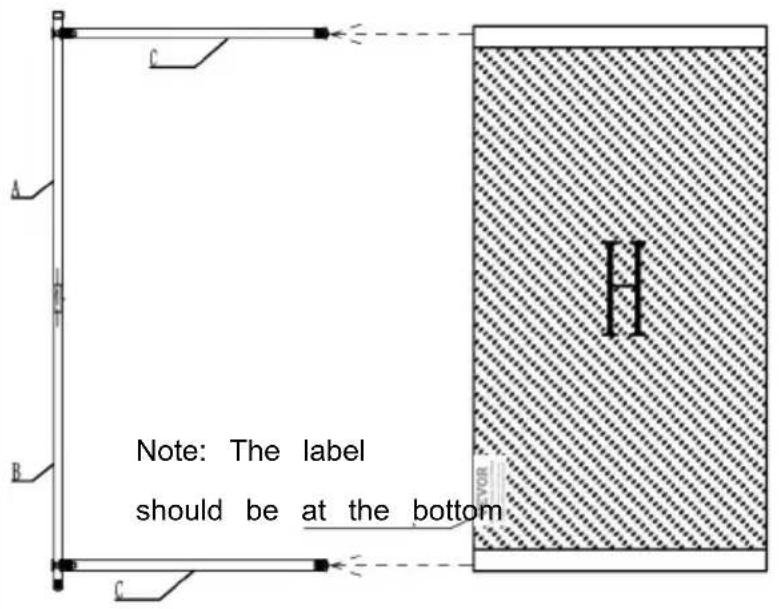

STEP 3

Simple line drawing of a curved surface with a labeled point H, no text or symbols present

H Material is screen fabric, pay attention to clean during installation

Note: The label should be at the bottom

Insert the sleeve of material H into the upper and lower cross

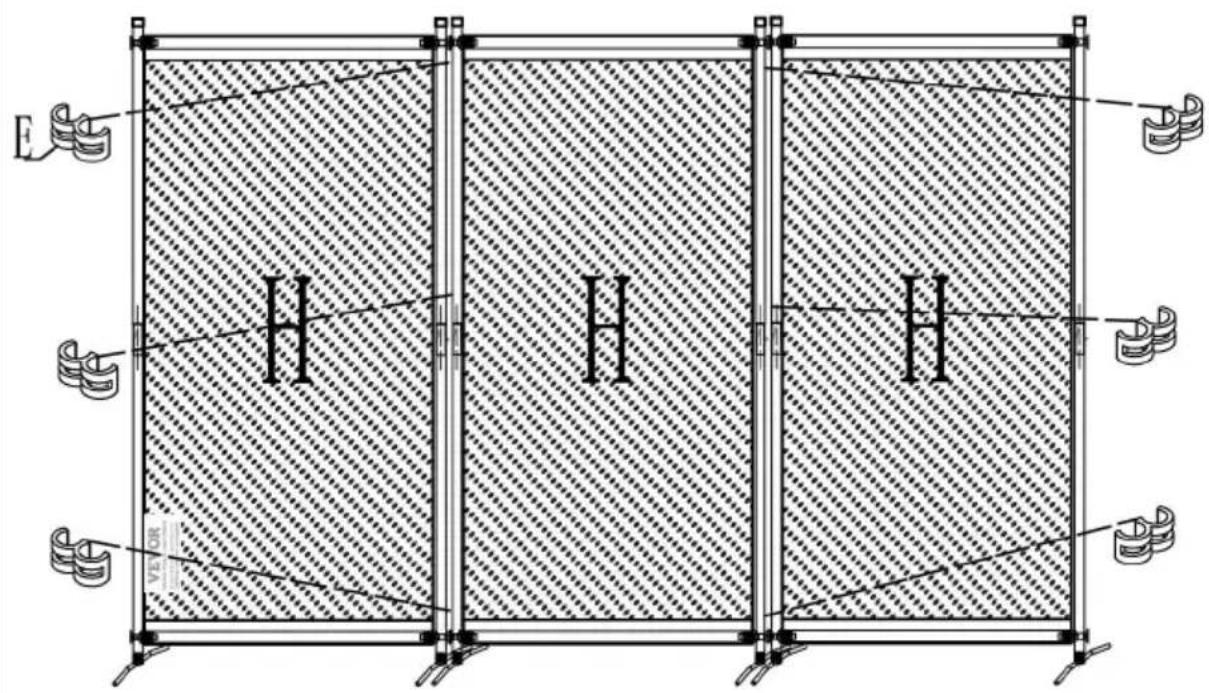

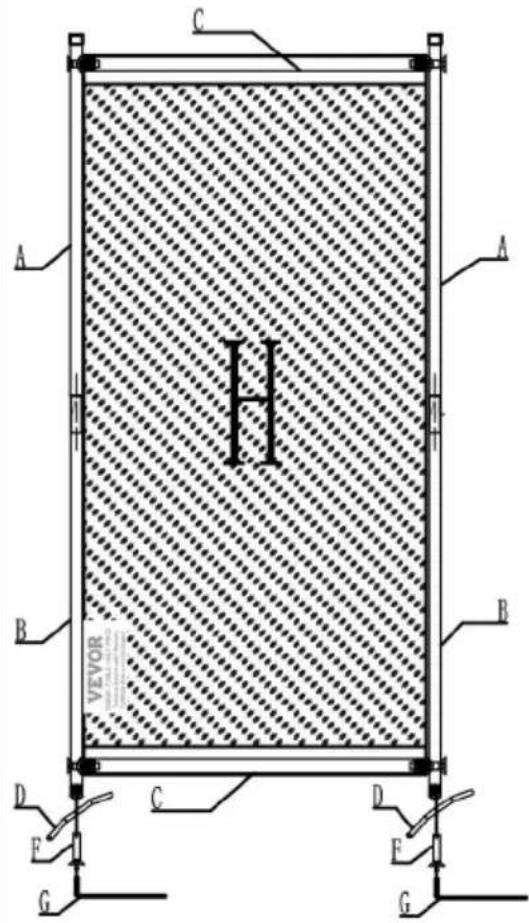

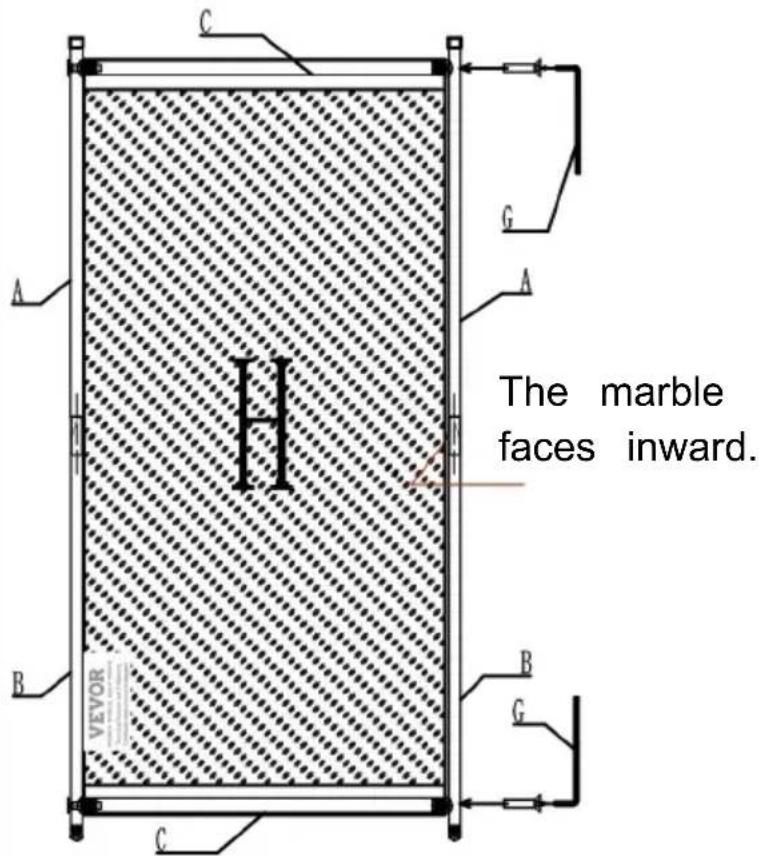

STEP 4

C A H The marble faces inward. B VEVOR G A B G C

From the remaining tubes in step 1, take a set of tubes, assemble them on the frame, unscrew the screws first, then connect them, and then tighten them with the G tool.

Do the same for the oth two groups. Note the position of the marble.

STEP 5

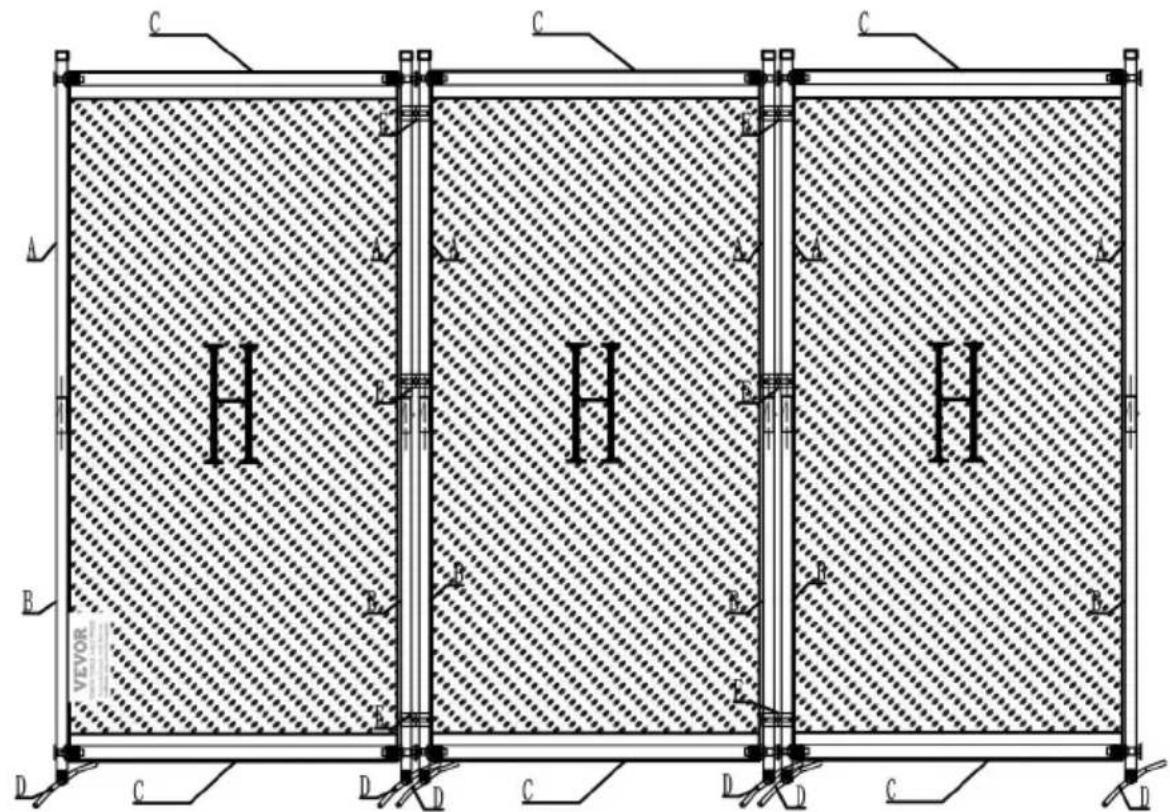

A B C D E F G H VEVOR A B C D E F G

Take material D and assemble it in the frame step 4. Unscrew the screw first, then connect it, and then tighten it with tool (

The remaining 2 groups complete the assembly with the same steps.

STEP 6

H H H REVE

Put the 3 groups of shelves neatly and connect them by mate

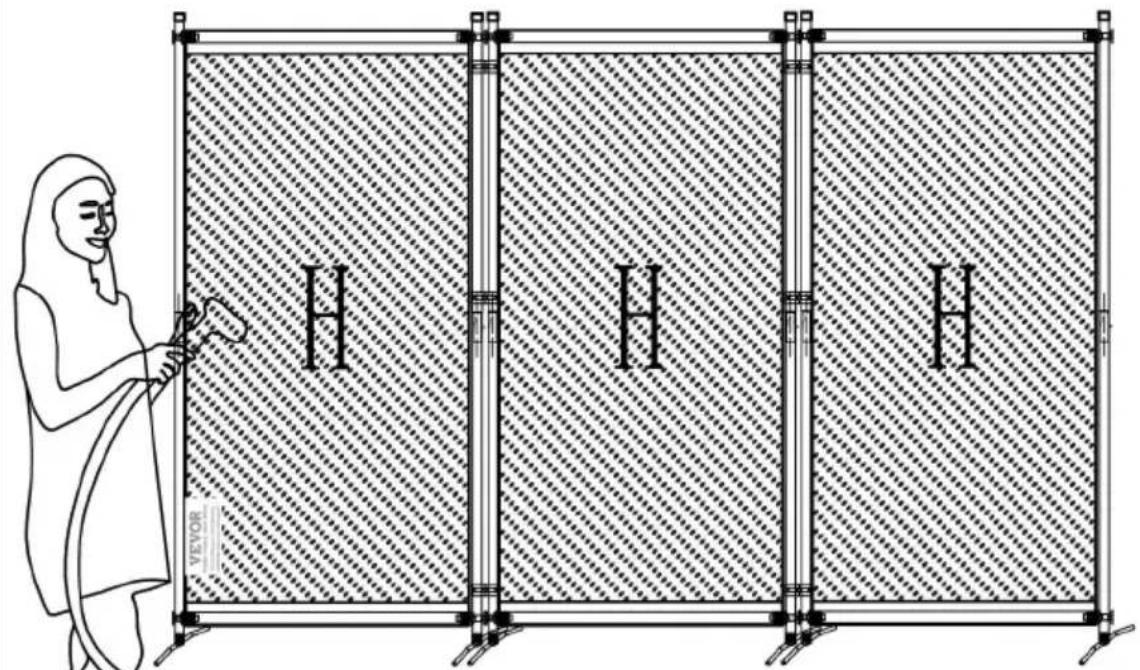

STEP 7

H H H YEVOR

After the installation is completed, arrange the fabric to ensure that the fabric is smooth. If the fabric has when you can use a household hanging press to iron it.

STEP 8

C C C A H H H B VEYOR D C D C D D C

PRODUCT PARAMETER

Model	Colour	Number of panels	Product Size
PFTSTGHS04	Black	3	2600*1840*520mm
PFTSTGHS04	Gray
PFTSTGMS06	Cream-Coloured
PFTSTGHS07	Black		2280*1840*520mm
PFTSTGSH08	Gray
PFTSTGMS09	White

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

PFTSTGHS04 PFTSTGSH05 PFTSTGMS06

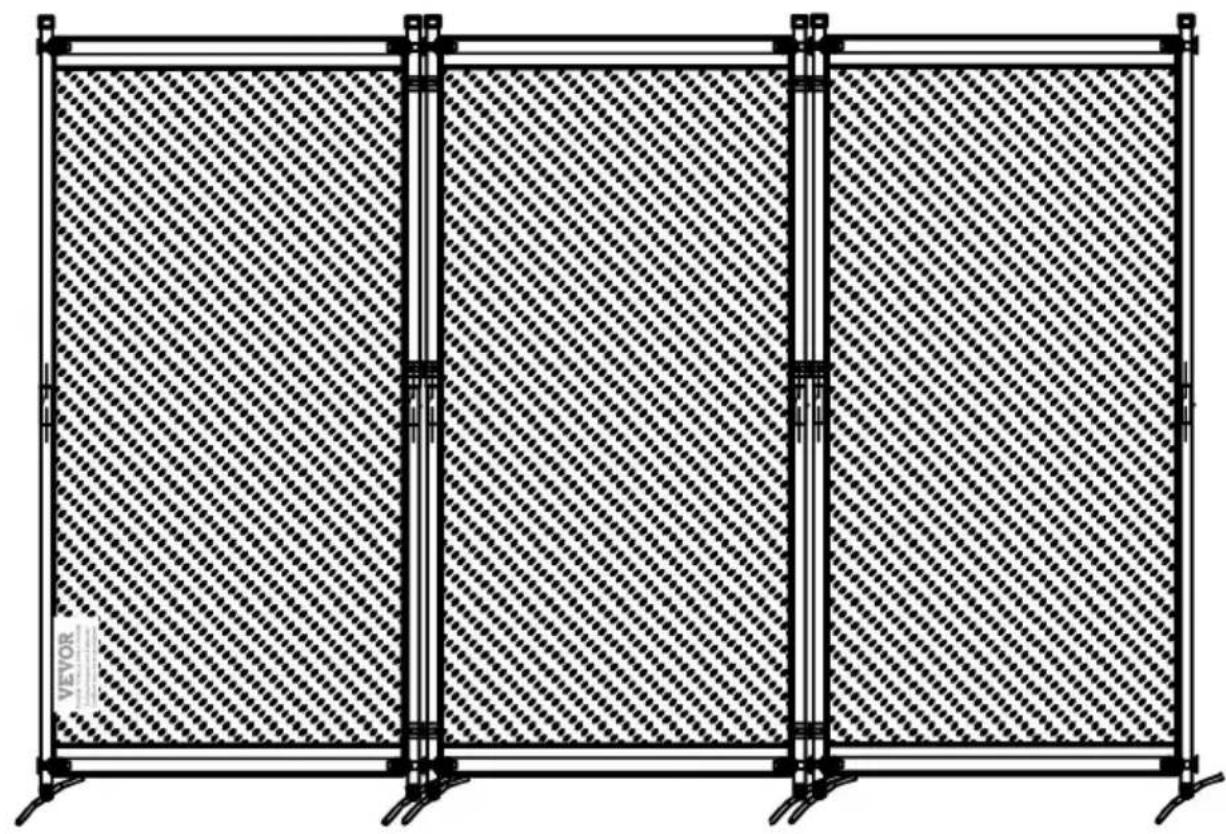

Diagram of a three-panel fence structure with diagonal hatching patterns, no text or symbols present
