USER MANUAL PB05-Q Vevor

Affordable. Reliable. Home Improvement.

BOX SPRINGS

MODEL:PB09-K

PB04-Q

PB05-Q

PB09-Q

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL:PB09-K; PB04-Q; PB05-Q; PB09-Q

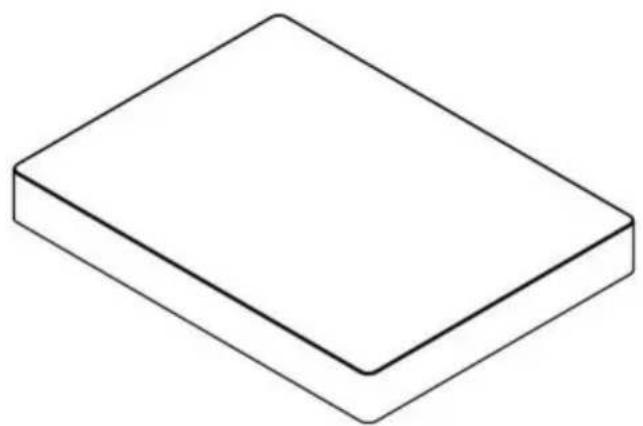

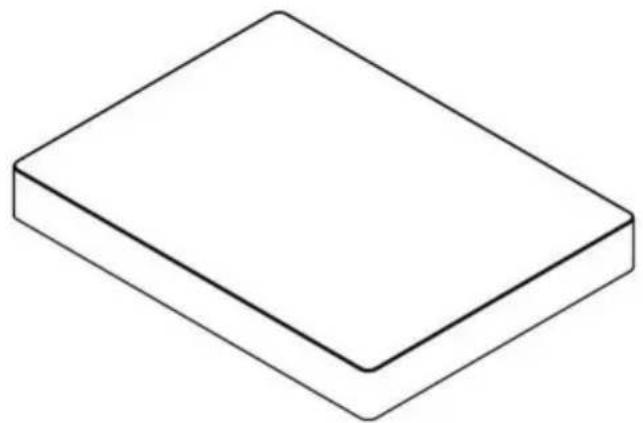

Simple line drawing of a 3D rectangular block with no text or symbols

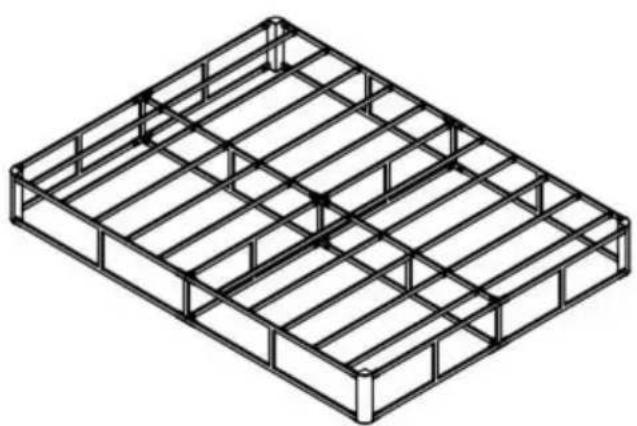

Isometric line drawing of a rectangular metal frame structure (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

WARNIND FOR YOUNG CHILDREN-This product contains small components, please ensure that they are kept away from small children while assembling.

NOTES:

1. Do not skip any step.
2. Do not fully tight screws until all the bed parts are assembled.

Thank you very much for choosing this Box Springs. Please read all instructions before using it. The information will help you achieve the b possible results.

SAVE THIS MANUAL

PARTS LIST

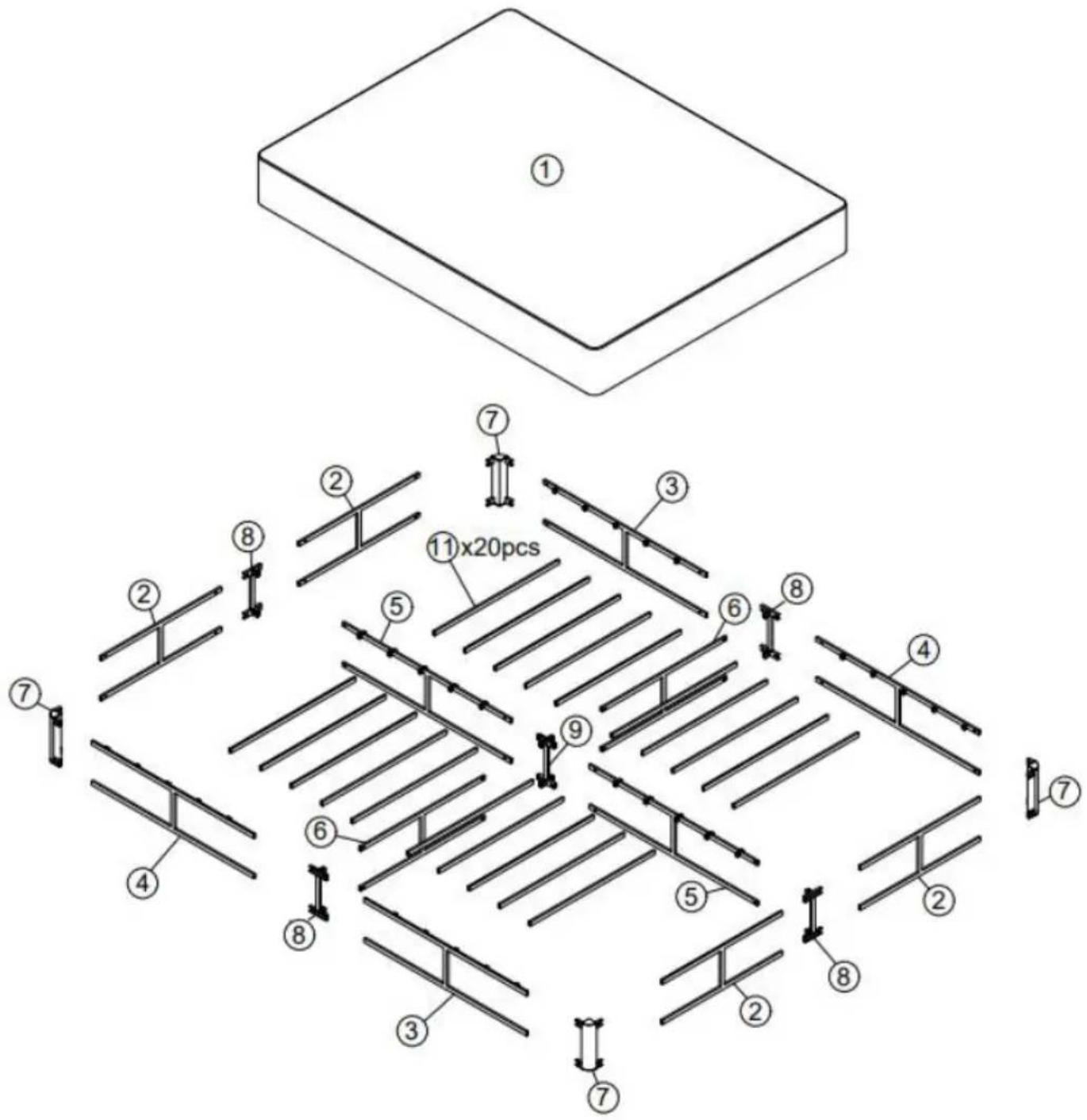

① ⑦ ② ⑧ ⑤ ⑥ ⑧ ④ ⑦ ⑦ ⑨ ⑥ ⑤ ② ④ ③ ③ ⑦ ⑧ ⑦

A x32+3 M6x10

B x16+1 M6x25

© x16+1 M6

⑭ x1 M4

E x1

1x1pc	2x4pcs	3x2pcs
4x2pcs	5x2pcs	6x2pcs
7x4pcs	8x4pcs	9x1pc
10x20pcs

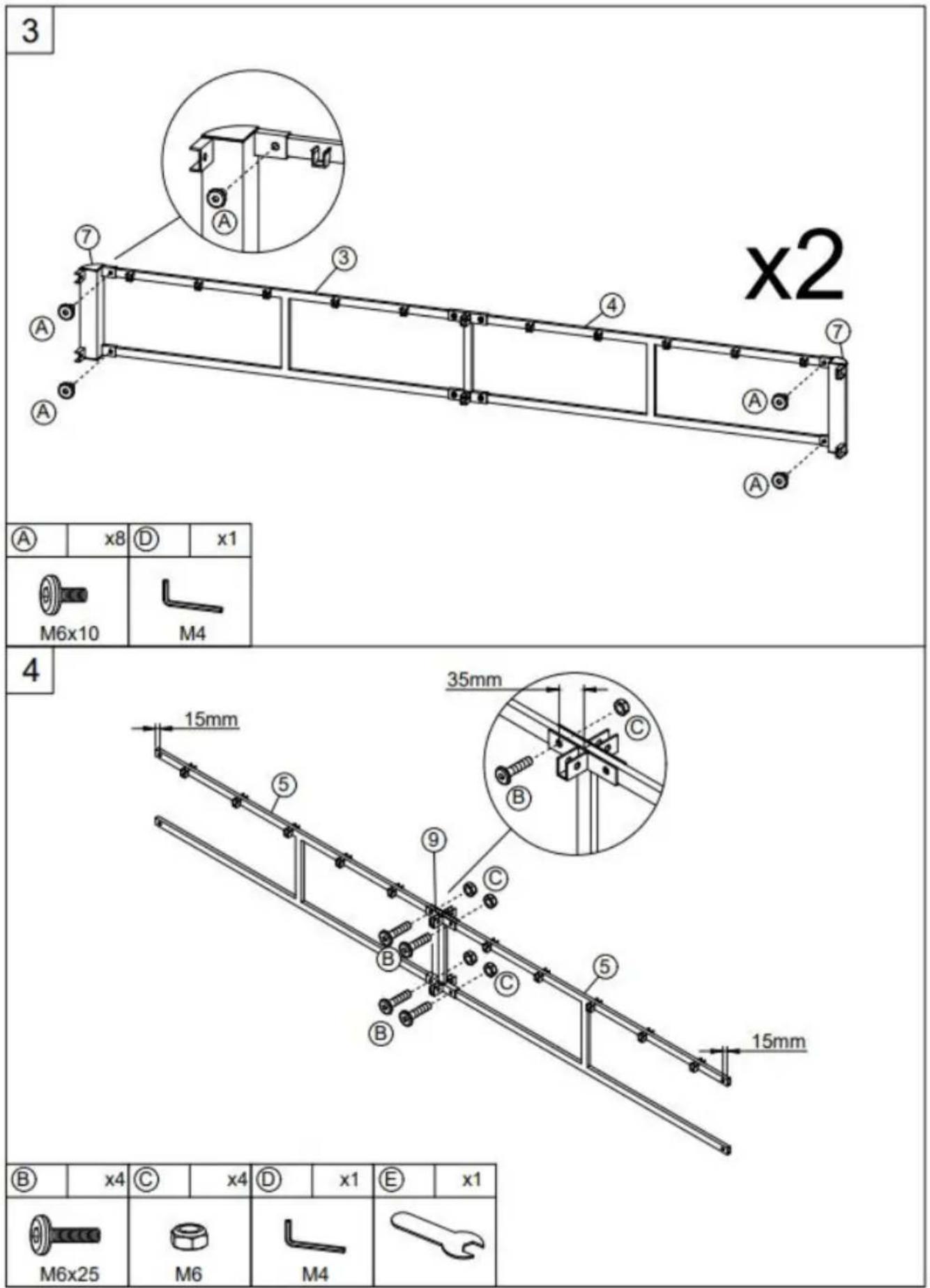

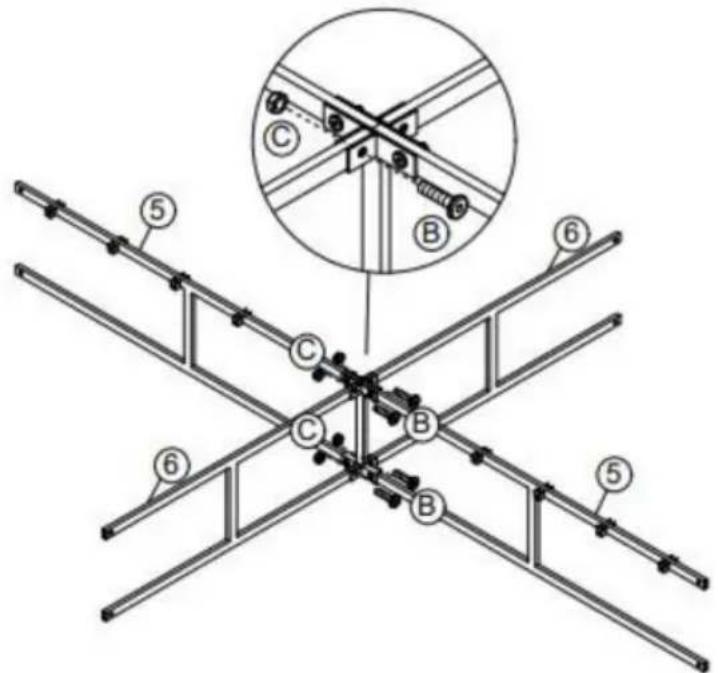

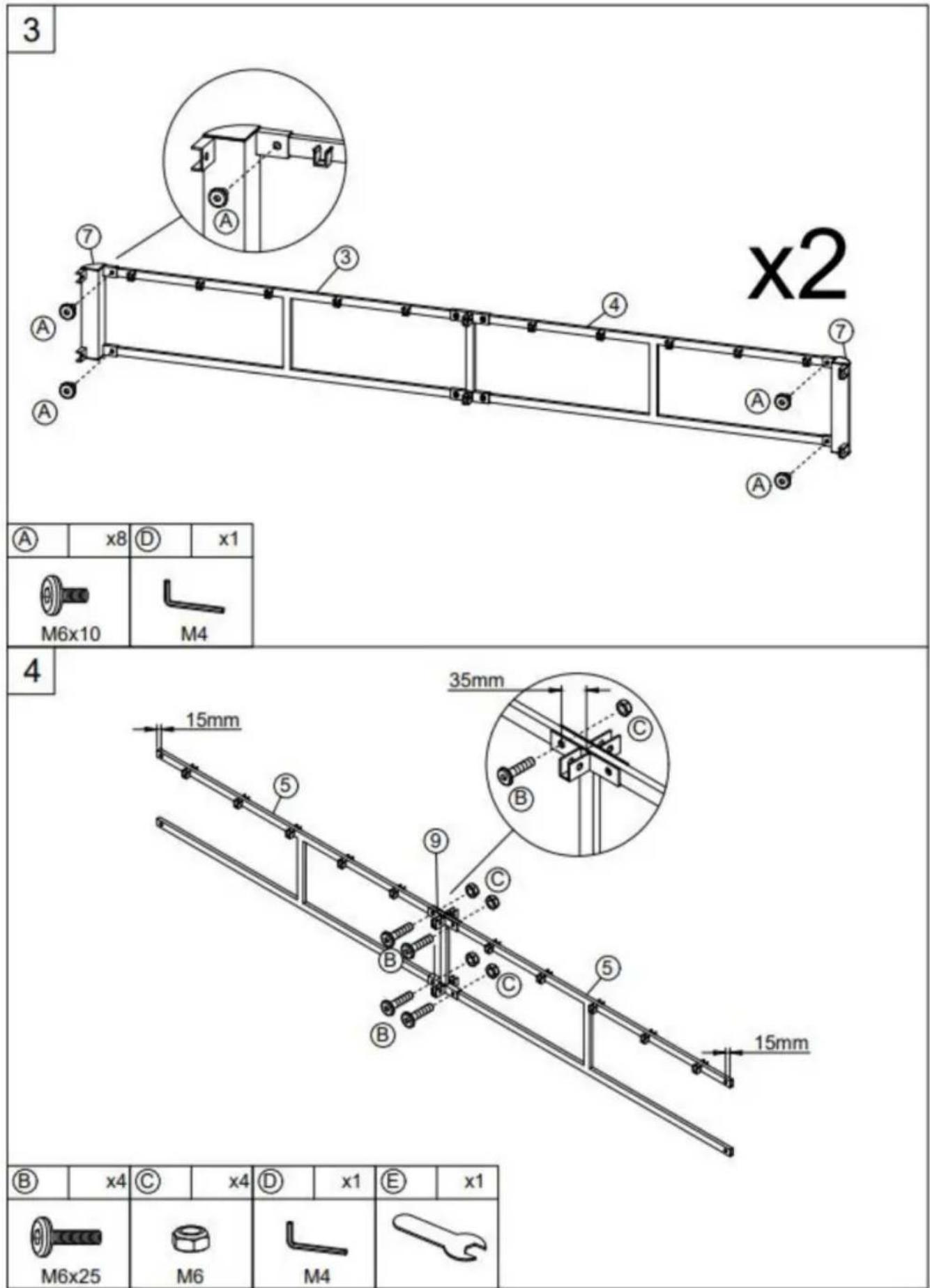

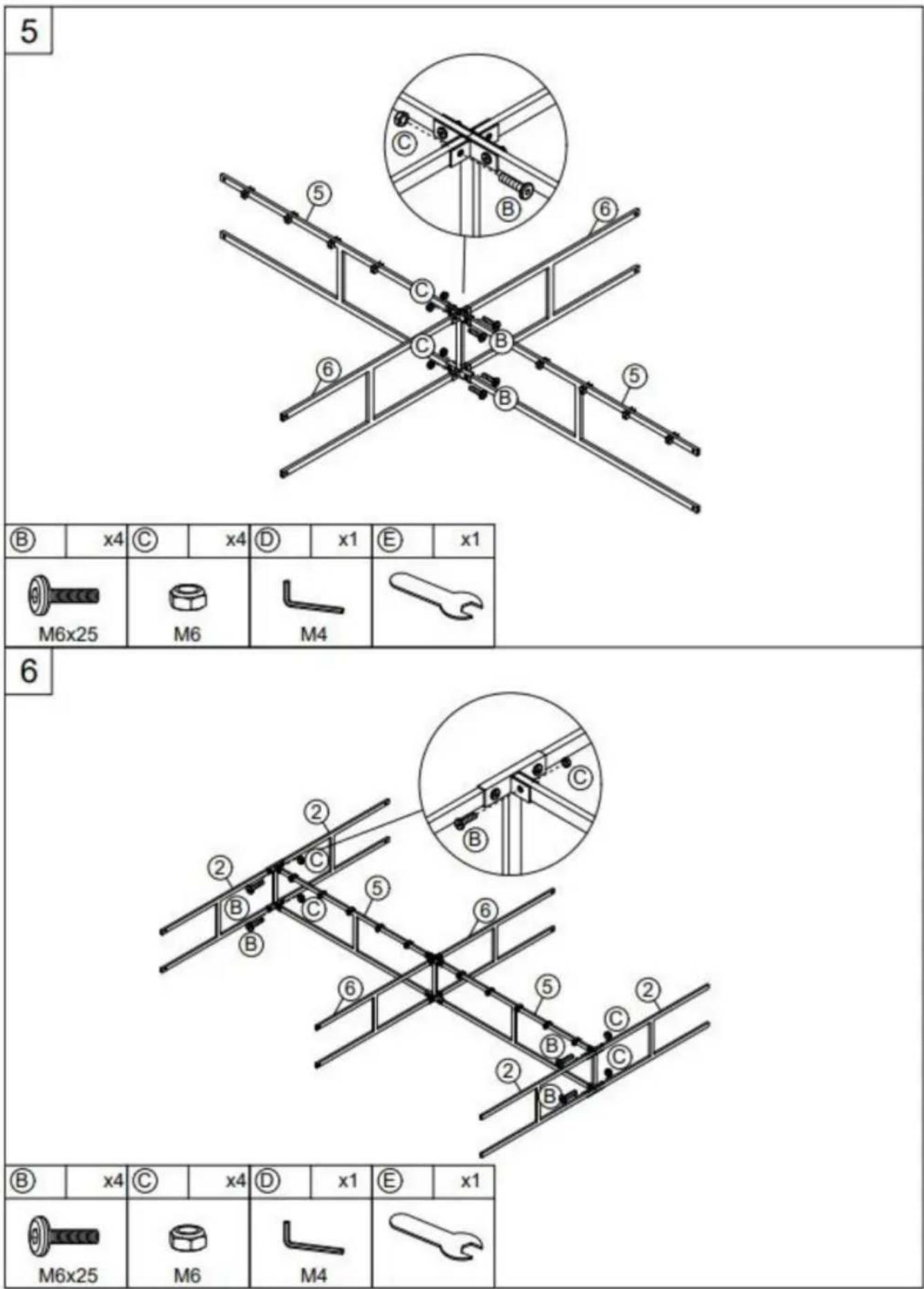

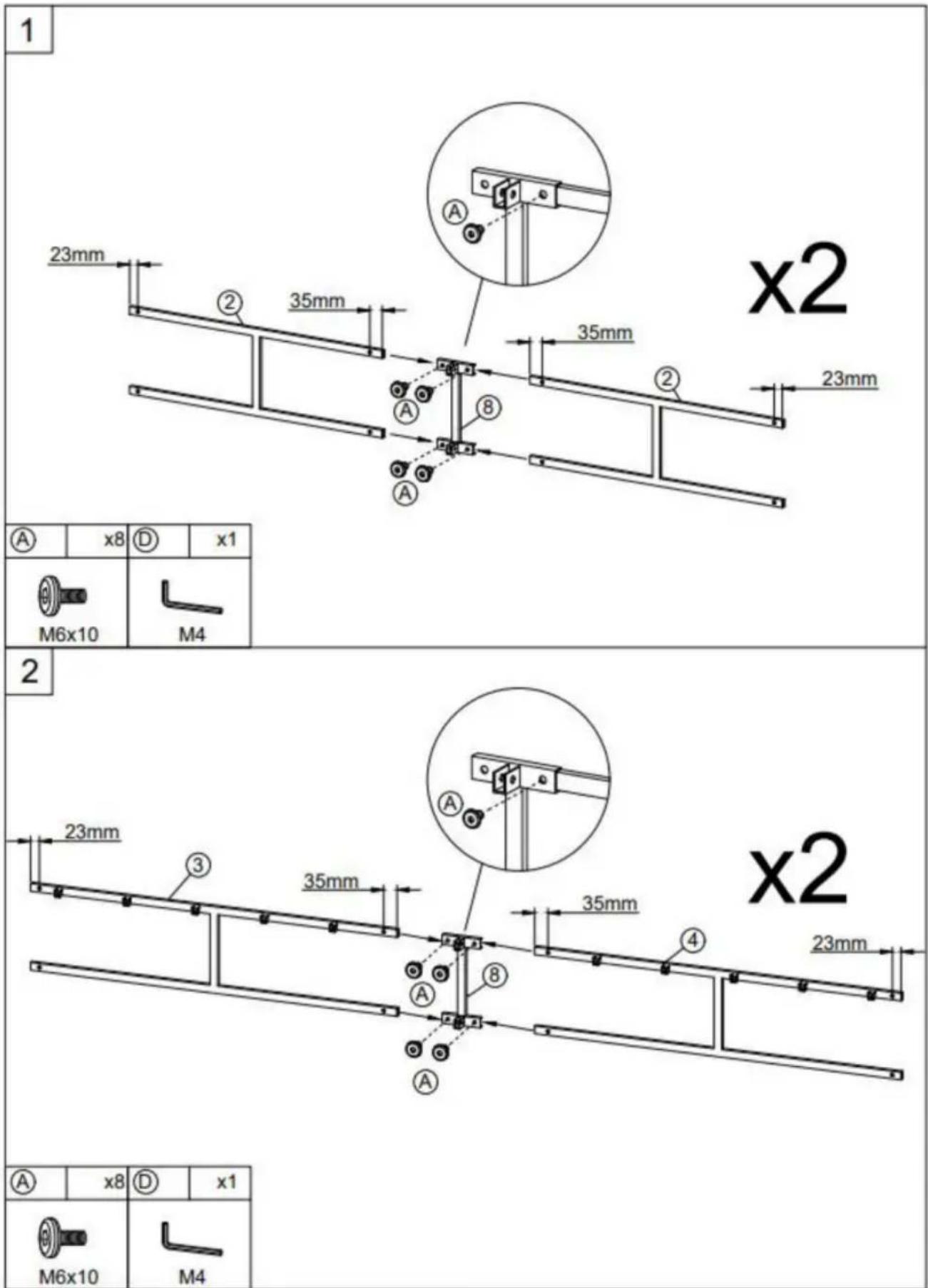

3 x2 A x8 D x1 M6x10 M4 4 35mm C B 15mm B C x4 x4 D x1 E x1 M6x25 M6 M4

B	x4	C	x4	D	x1	E	x1
M6x25		M6		M4

B	x4	C	x4	D	x1	E	x1
M6x25		M6		M4

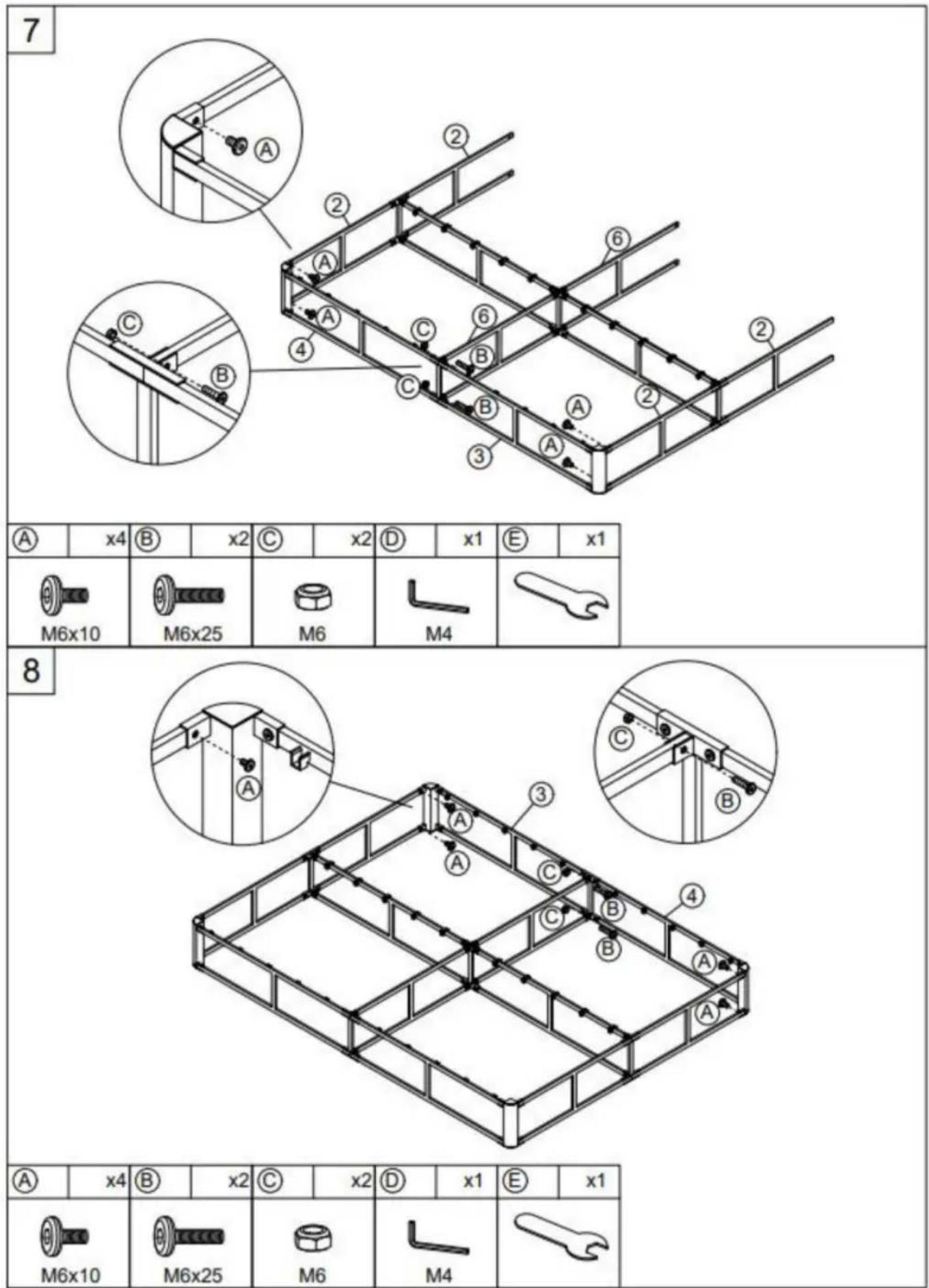

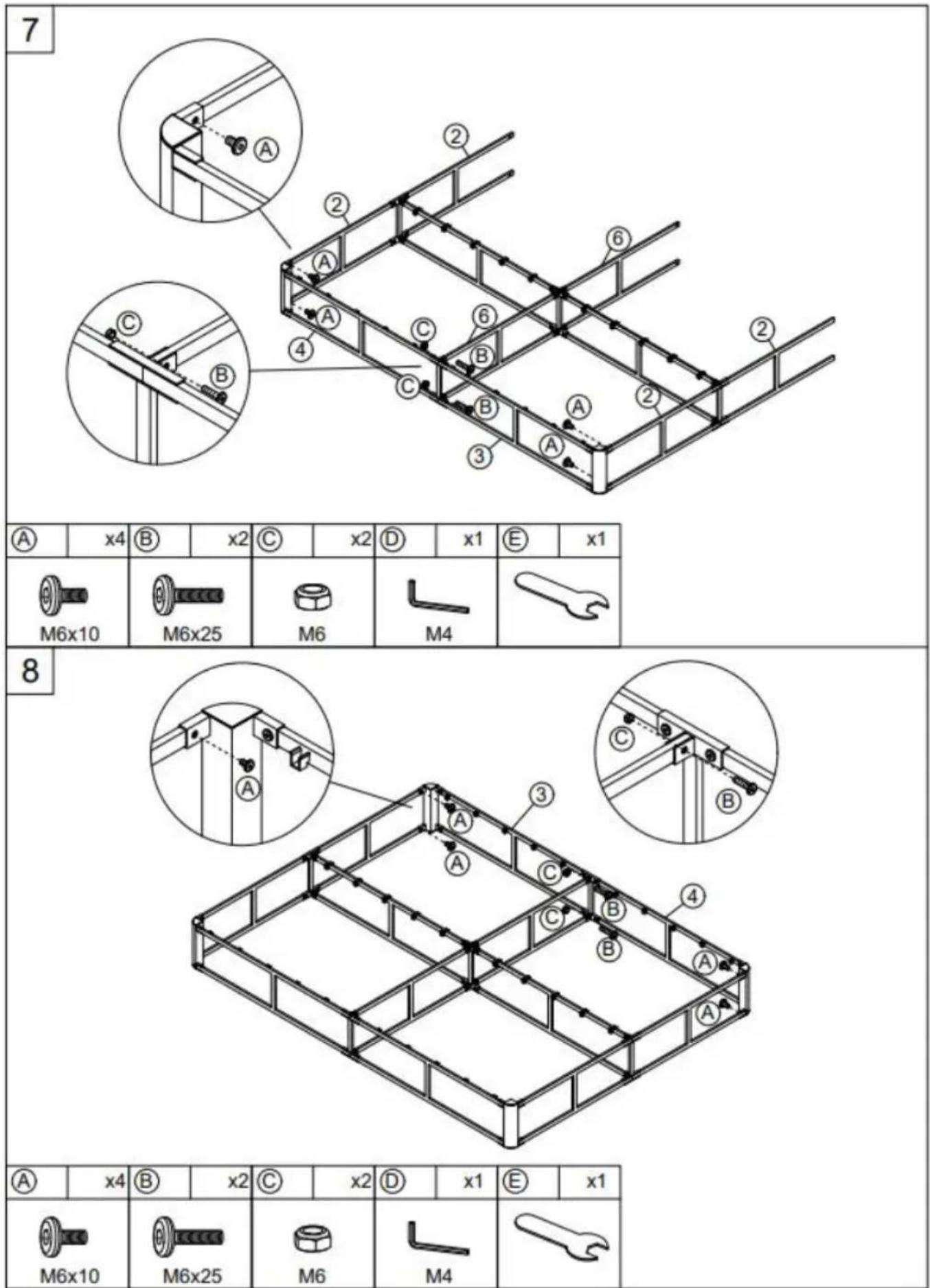

7 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4 8 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4

9

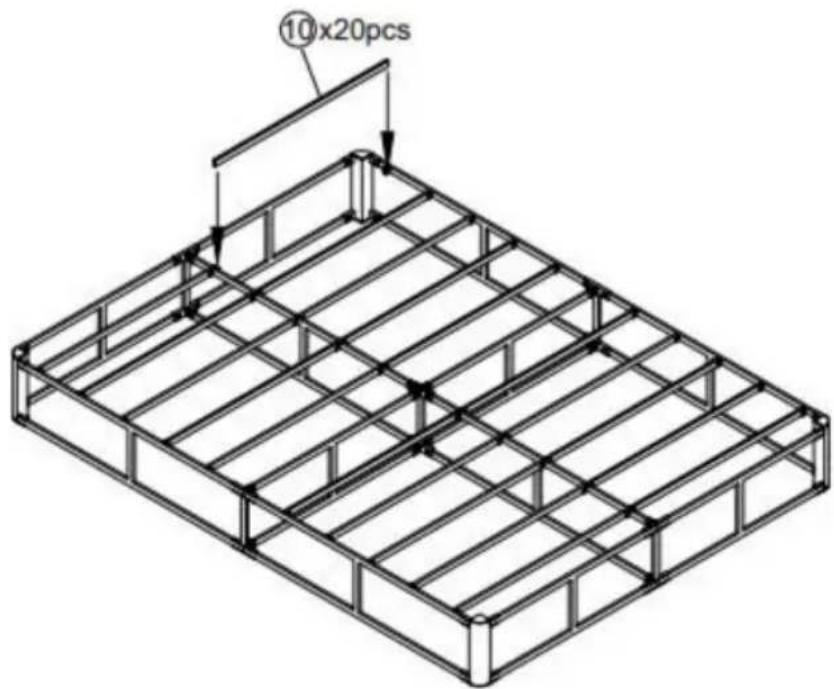

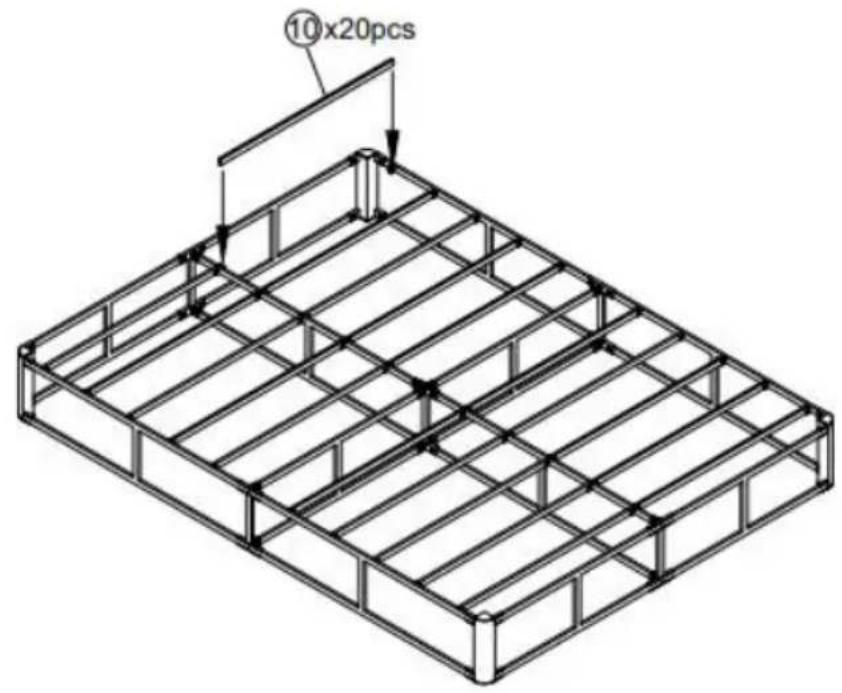

10x20pcs

10

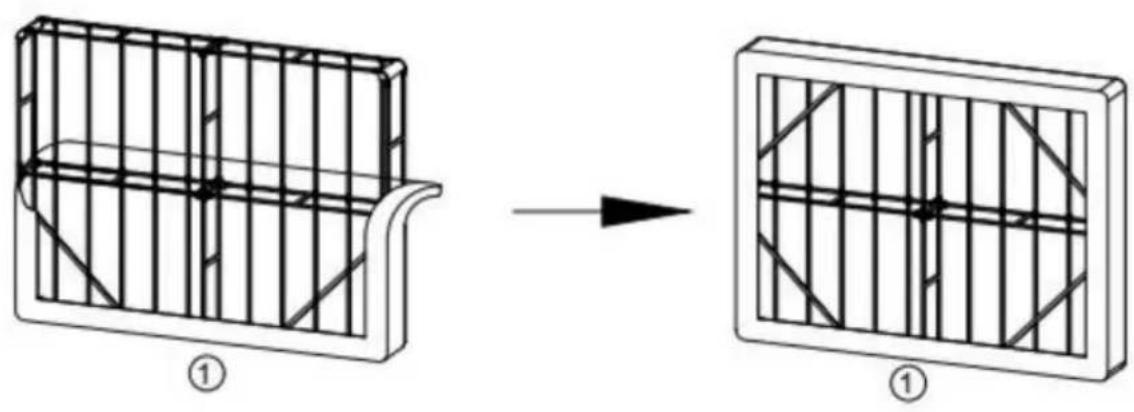

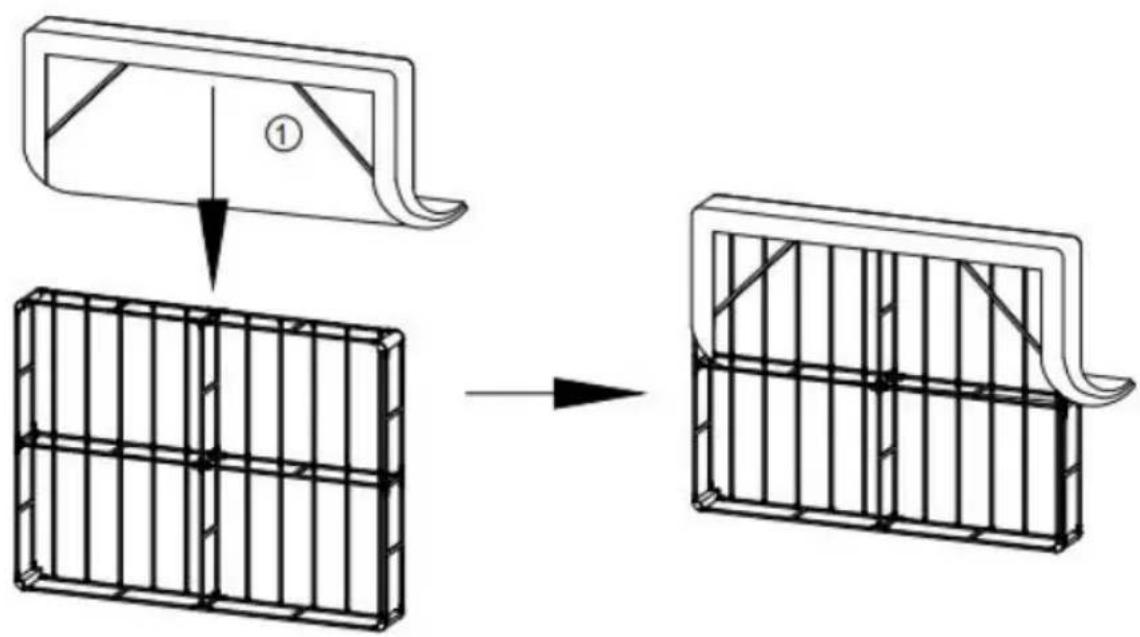

Diagram illustrating a structural modification process with labeled components and directional arrows

11

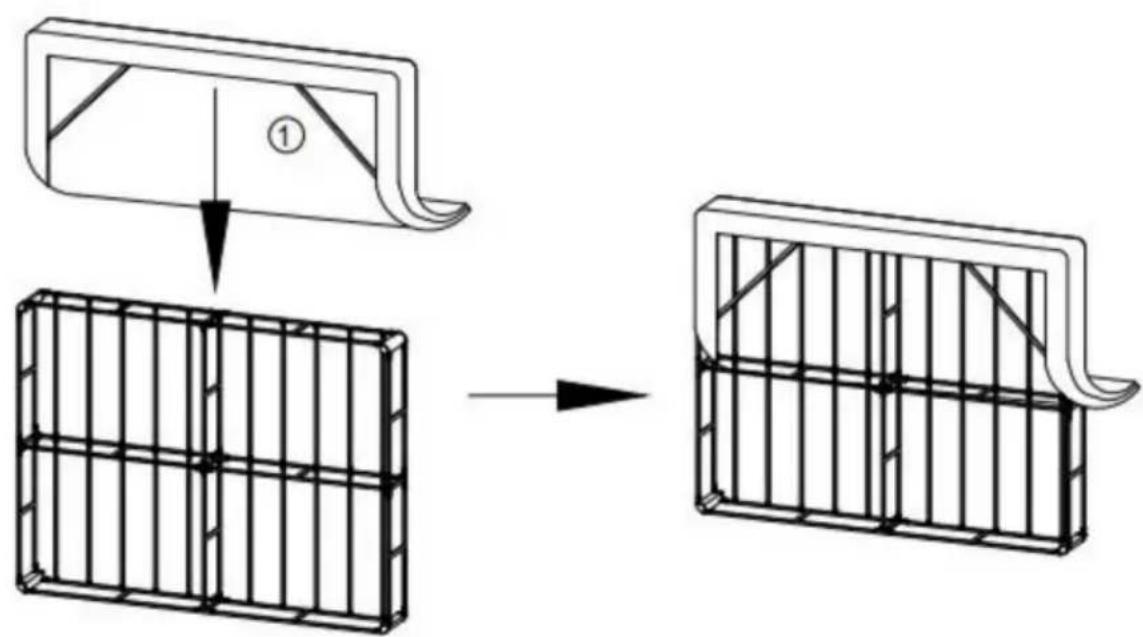

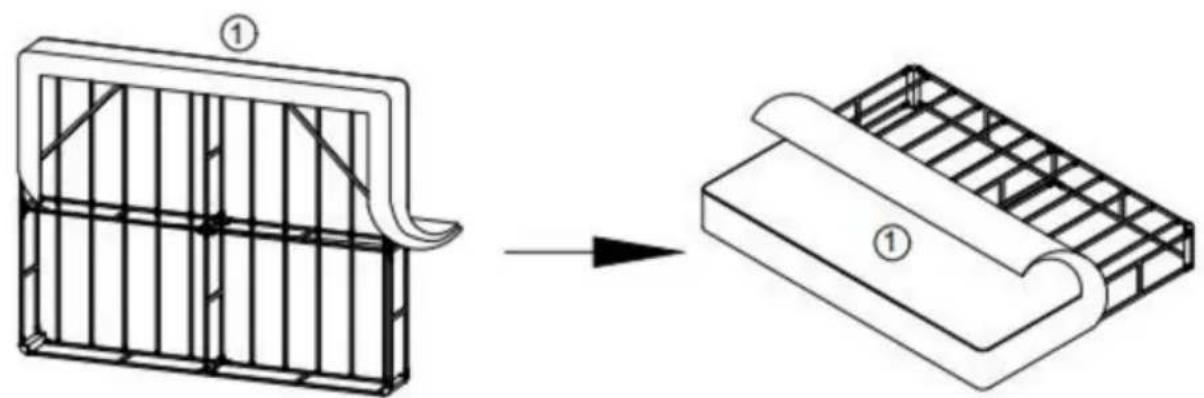

Diagram showing a structural frame being converted into a folded panel (no text or symbols present)

12

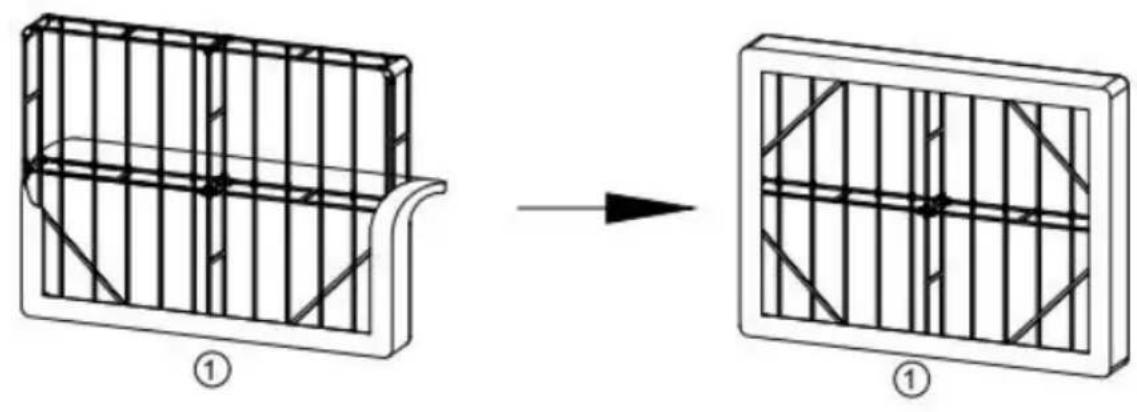

Diagram showing a wire fence structure transforming from a rectangular frame to a rectangular panel with diagonal bracing (no text or symbols)

OK

Simple line drawing of a 3D rectangular block with no text or symbols

PRODUCT PARAMETER

Model	PB09-K
Safe Loading Weight	≤slant 3500 lbs
Product Size	2010*1925*230mm

Model	PB05-Q
Safe Loading Weight	≤slant 3500 lbs
Product Size	2010*1515*130mm

Model	PB04-Q
Safe Loading Weight	≤slant 3500 lbs
Product Size	2010*1510*102mm

Model	PB09-Q
Safe Loading Weight	≤slant 3500 lbs
Product Size	2010*1515*230mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

SOMMIERS

MODÈLE : PB09-K

PB04-Q

PB05-Q

PB09-Q

Affordable. Reliable. Home Improvement.

SOMMIERS

Simple line drawing of a 3D rectangular block with no text or symbols

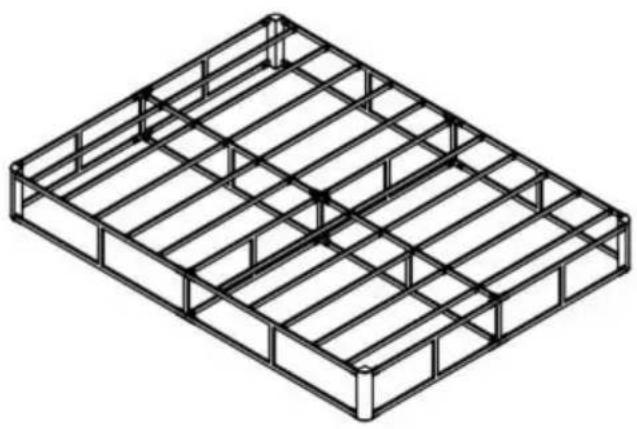

Isometric line drawing of a rectangular metal frame structure (no text or symbols)

① ⑦ ② ⑧ ③ ⑤ ⑥ ⑧ ④ ⑦ ⑨ ⑥ ⑤ ④ ④ ③ ② ⑧ ⑦ ⑦ ⑦ ⑦ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧

A x32+3 M6x10

B x16+1 M6x25

© x16+1 M6

D x1 M4

⑤ x1

1x1pc	2x4pcs	3x2pcs
4x2pcs	5x2pcs	6x2pcs
7x4pcs	8x4pcs	9x1pc
10x20pcs

ÉTAPE D'ASSEMBLAGE

3 x2 A x8 D x1 M6x10 M4 4 15mm 35mm C B 9 C B 5 15mm B x4 C x4 D x1 E x1 M6x25 M6 M4

5

Technical diagram of a structural framework with labeled components and an inset showing connection points C and B.

B	x4	C	x4	D	x1	E	x1
M6x25		M6		M4

6

Technical diagram of a structural framework with labeled components and an inset magnified view showing detail details.

B	x4	C	x4	D	x1	E	x1
M6x25		[WHAB]M6		M4

7 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4 8 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4

9

10x20pcs

10

11

Diagram showing a structural component before and after modification, labeled with parts ① and ②.

12

Diagram showing a wire fence structure before and after modification, labeled with components ①

OK

Simple line drawing of a 3D rectangular block with no text or symbols

PARAMÈTRE DU PRODUIT

YH CONSULTING LIMITED. A/S YH Consulting

Limited, bureau 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

BOXSPRINGS

MODELL:PB09-K

PB04-Q

PB05-Q

PB09-Q

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

BOXSPRINGS

MODELL:PB09-K; PB04-Q; PB05-Q; PB09-Q

Simple line drawing of a 3D rectangular block with no text or symbols

Isometric line drawing of a rectangular metal frame structure (no text or symbols)

© x16+1 M6

D x1 M4

⑤ x1

1x1pc	2x4pcs	3x2pcs
4x2pcs	5x2pcs	6x2pcs
7x4pcs	8x4pcs	9x1pc
10x20pcs

MONTAGESTRITT

3 x2 A x8 D x1 M6x10 M4 4 15mm 35mm C B 9 C B 5 15mm B x4 C x4 D x1 E x1 M6x25 M6 M4

5 B x4 C x4 D x1 E x1 M6x25 M6 M4 6 B x4 C x4 D x1 E x1 M6x25 M6 M4

7 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4 8 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4

9

10x20pcs

10

Diagram illustrating a structural modification process with labeled components and directional arrow

11

Diagram showing a structural frame being repressed into a rectangular panel (no text or symbols present)

12

Diagram showing a wire fence structure before and after modification, labeled with components ①

OK

Simple line drawing of a 3D rectangular block with no text or symbols

PRODUKTPARAMETER

YH CONSULTING LIMITED. C/O YH Consulting

Limited, Büro 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EG-Vertreter

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

MOLLE A BOX

MODELLO:PB09-K

PB04-Q

PB05-Q

PB09-Q

elettronica www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

MOLLE A BOX

MODELLO:PB09-K; PB04-Q; PB05-Q; PB09-Q

Simple 3D isometric view of a rectangular block with no text or symbols

Isometric line drawing of a rectangular metal frame structure (no text or symbols)

① ⑦ ② ⑧ ③ ⑤ ⑥ ⑧ ④ ⑦ ⑨ ⑥ ⑤ ④ ④ ④ ③ ② ② ⑧ ⑦ ⑦ ⑦ ⑦ ⑦ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧

A x32+3 M6x10

B x16+1 M6x25

© x16+1 M6

D x1 L M4

⑤ x1

1x1pc	2x4pcs	3x2pcs
4x2pcs	5x2pcs	6x2pcs
7x4pcs	8x4pcs	9x1pc
10x20pcs

FASE DI MONTAGGIO

3 x2 A x8 D x1 M6x10 M4 4 15mm 35mm C B 9 C B 5 15mm B x4 C x4 D x1 E x1 M6x25 M6 M4

B	x4	C	x4	D	x1	E	x1
M6x25		M6		M4

B	x4	C	x4	D	x1	E	x1
M6x25		M6		M4

7 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4 8 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4

9

10x20pcs

10

Diagram illustrating a structural modification process with labeled components and directional arrow

11

Diagram showing a structural component before and after modification, labeled with parts ① and ②.

12

Diagram showing a wire fence structure before and after modification, labeled with components ①

OK

Simple line drawing of a 3D rectangular block with no text or symbols

PARAMETRO PRODOTTO

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting

Limited Ufficio 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

SOFÁS

MODELO:PB09-K

PB04-Q

PB05-Q

PB09-Q

Affordable. Reliable. Home Improvement.

SOFÁS

MODELO: PB09-K; PB04-Q; PB05-Q; PB09-Q

Simple 3D isometric view of a rectangular block with no text or symbols

Isometric line drawing of a rectangular metal frame structure (no text or symbols)

© x16+1 M6

D x1 L M4

⑤ x1

1x1pc	2x4pcs	3x2pcs
4x2pcs	5x2pcs	6x2pcs
7x4pcs	8x4pcs	9x1pc
10x20pcs

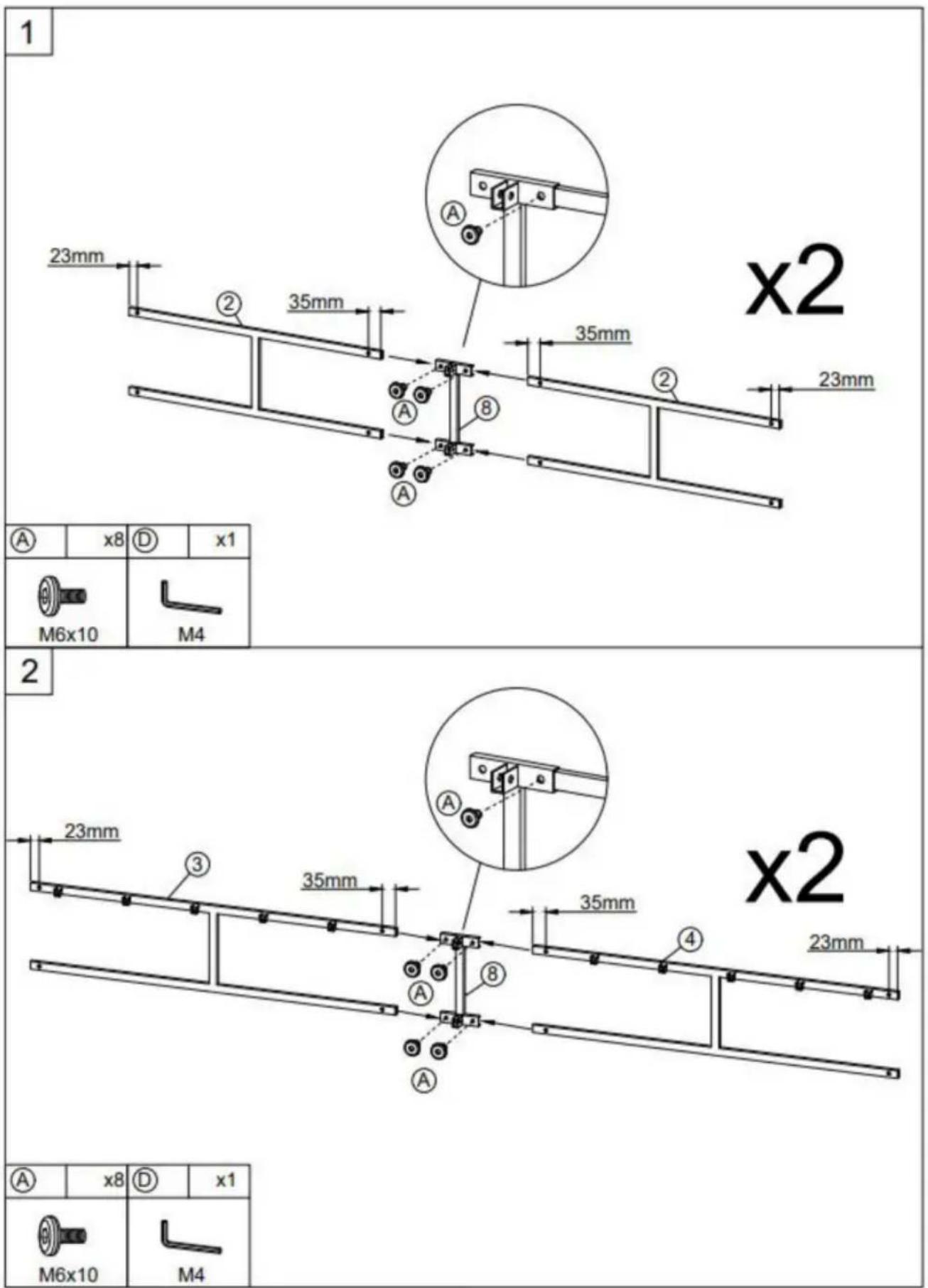

PASO DE MONTAJE

3 x2 A x8 D x1 M6x10 M4 4 15mm 35mm C B 9 C B 5 15mm B x4 C x4 D x1 E x1 M6x25 M6 M4

5

Technical diagram of a structural framework with labeled components and an inset showing connection points C and B.

B	x4	C	x4	D	x1	E	x1
M6x25		M6		M4

6

Technical diagram of a structural framework with labeled components and an inset magnified view showing detail details.

B	x4	C	x4	D	x1	E	x1
M6x25		M6		M4

7 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4 8 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4

9

10x20pcs

10

11

Diagram showing a structural component before and after modification, labeled with parts ① and ②.

12

Diagram showing a wire fence structure before and after modification, labeled with components ①

OK

Simple line drawing of a 3D rectangular block with no text or symbols

PARÁMETRO DEL PRODUCTO

Rancho Cucamonga, CA 91730

REPRESENTANT

DEL

REIND

UN

YH CONSULTING LIMITADA. A/C YH Consulting

Limited Oficina 147, Centurion House, London

Road, Staines upon Thames, Surrey, TW18 4AX

Representante

del

CE

E CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

SPRĘŻYNY SKRZYNKOWE

MODEL:PB09-K

PB04-Q

PB05-Q

PB09-Q

Affordable. Reliable. Home Improvement.

SPRĘŻYNY SKRZYNKOWE

MODEL:PB09-K; PB04-Q; PB05-Q; PB09-Q

Simple 3D isometric view of a rectangular block with no text or symbols

Isometric line drawing of a rectangular metal frame structure (no text or symbols)

© x16+1 M6

D x1 M4

E x1

1x1pc	2x4pcs	3x2pcs
4x2pcs	5x2pcs	6x2pcs
7x4pcs	8x4pcs	9x1pc
10x20pcs

KROK MONTAŻU

3 x2 A x8 D x1 M6x10 M4 4 15mm 35mm C B 9 C B 5 15mm B x4 C x4 D x1 E x1 M6x25 M6 M4

5

Technical diagram of a structural framework with labeled components and an inset showing connection points C and B.

B	x4	C	x4	D	x1	E	x1
M6x25		M6		M4

6

Technical diagram of a structural framework with labeled components and an inset magnified view showing detail details.

B	x4	C	x4	D	x1	E	x1
M6x25		M6		M4

7 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4 8 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4

9

10x20pcs

10

Diagram illustrating a structural modification process with labeled components and directional arrow

11

Diagram showing a structural component before and after modification, labeled with parts ① and ②.

12

Diagram showing a wire fence structure before and after modification, labeled with components ①

OK

Simple line drawing of a 3D rectangular block with no text or symbols

PARAMETR PRODUKTU

YH CONSULTING LIMITED. C/O YH Consulting Limited

Biuro 147, Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

Affordable. Reliable. Home Improvement.

BOXSPRING

MODEL:PB09-K

PB04-Q

PB05-Q

PB09-Q

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

BOXSPRING

MODEL: PB09-K; PB04-Q; PB05-Q; PB09-Q

Simple 3D isometric view of a rectangular block with no text or symbols

Isometric line drawing of a rectangular metal frame structure (no text or symbols)

① ⑦ ② ⑧ ③ ⑤ ⑥ ⑧ ④ ⑦ ⑦ ⑨ ⑥ ⑤ ④ ④ ⑧ ③ ② ② ⑦ ⑦ ⑦ ⑦ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧

A x32+3 M6x10

B x16+1 M6x25

© x16+1 M6

D x1 M4

E x1

1x1pc	2x4pcs	3x2pcs
4x2pcs	5x2pcs	6x2pcs
7x4pcs	8x4pcs	9x1pc
10x20pcs

MONTAGESTAP

3 x2 A x8 D x1 M6x10 M4 4 15mm 35mm C B 9 C B 5 15mm B x4 C x4 D x1 E x1 M6x25 M6 M4

5 B x4 C x4 D x1 E x1 M6x25 M6 M4 6 B x4 C x4 D x1 E x1 M6x25 M6 M4

7 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4 8 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4

9

10x20pcs

10

11

Diagram showing a structural frame being repressed into a rectangular panel (no text or symbols present)

12

Diagram showing a wire fence structure before and after modification, labeled with components ①

OK

Simple line drawing of a 3D rectangular block with no text or symbols

PRODUCTPARAMETER

Model	PB09-K
Veilig laadgewicht	ÿ3500 pond
Productgrootte	2010*1925*230mm

Model	PB05-Q
Veilig laadgewicht	ÿ3500 pond
Productgrootte	2010*1515*130mm

Model	PB04-Q
Veilig laadgewicht	ÿ3500 pond
Productgrootte	2010*1510*102mm

Model	PB09-Q
Veilig laadgewicht	ÿ3500 pond
Productgrootte	2010*1515*230mm

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting

Limited Kantoor 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

LÅDA FJÄDRAR

MODELL: PB09-K

PB04-Q

PB05-Q

PB09-Q

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

LÅDA FJÄDRAR

MODELL:PB09-K; PB04-Q; PB05-Q; PB09-Q

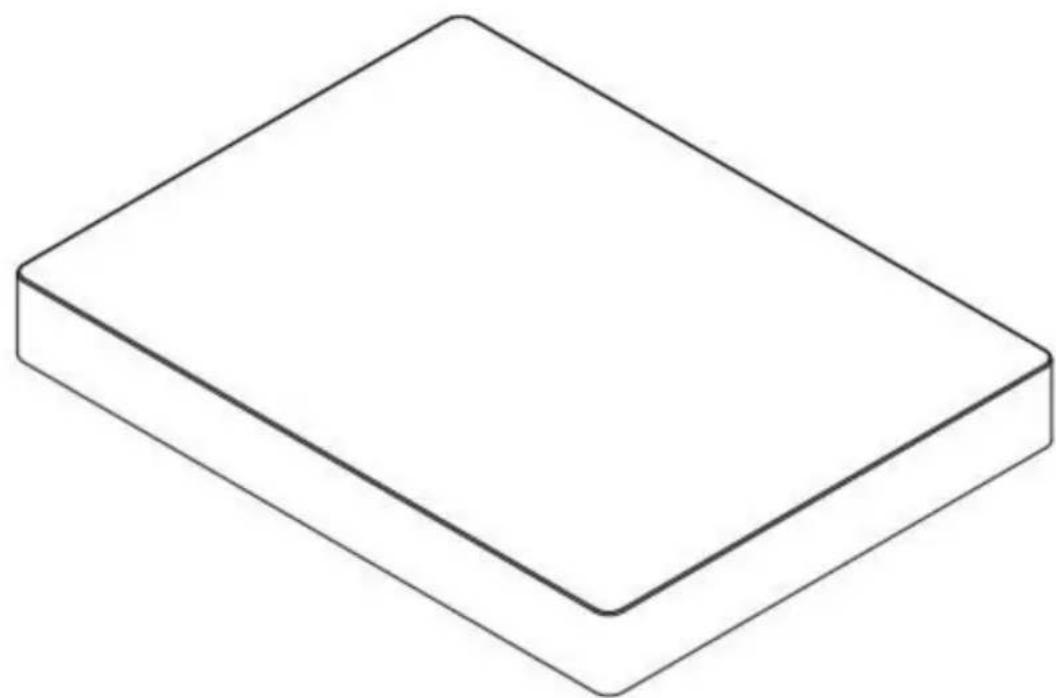

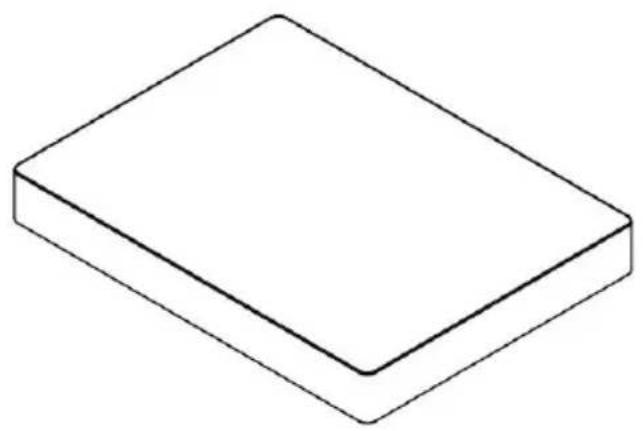

Simple 3D isometric view of a rectangular block with no text or symbols

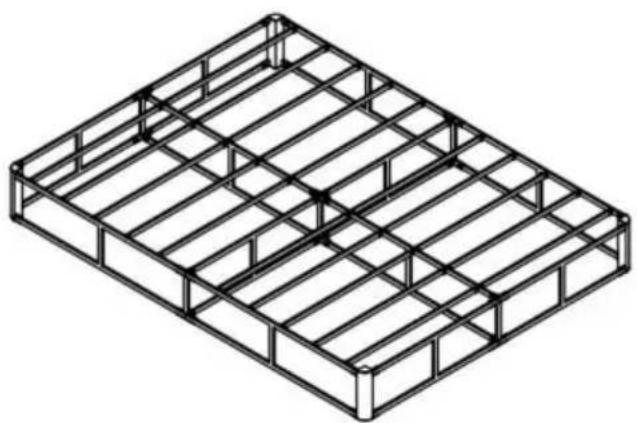

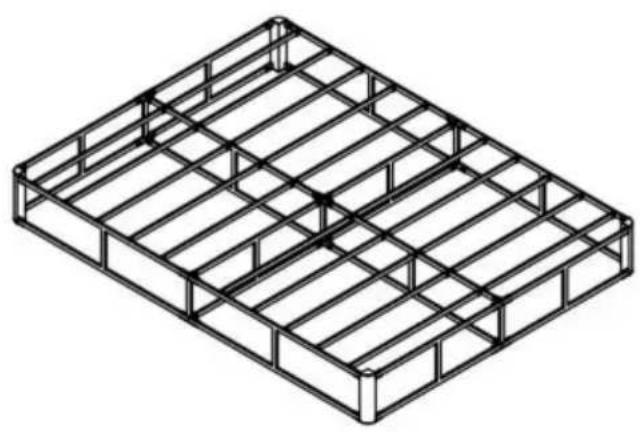

Isometric line drawing of a rectangular metal frame structure (no text or symbols)

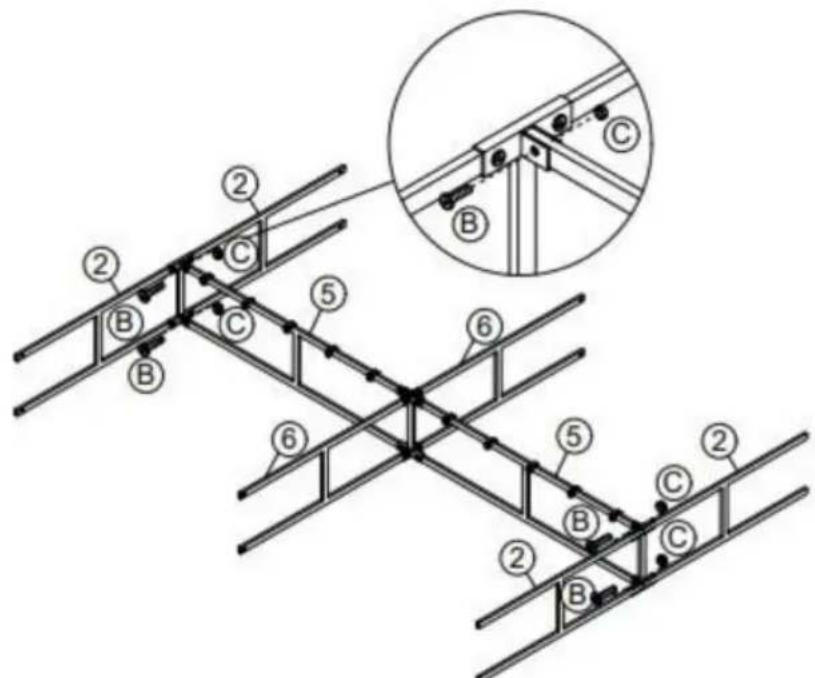

① ⑦ ② ⑧ ③ ⑤ ⑥ ⑧ ④ ⑦ ⑦ ⑨ ⑥ ⑤ ④ ④ ⑧ ③ ② ② ⑦ ⑦ ⑦ ⑦ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧ ⑧

A x32+3 M6x10

B x16+1 M6x25

© x16+1 M6

D x1 L M4

E x1

1x1pc	2x4pcs	3x2pcs
4x2pcs	5x2pcs	6x2pcs
7x4pcs	8x4pcs	9x1pc
10x20pcs

MONTERINGSTEG

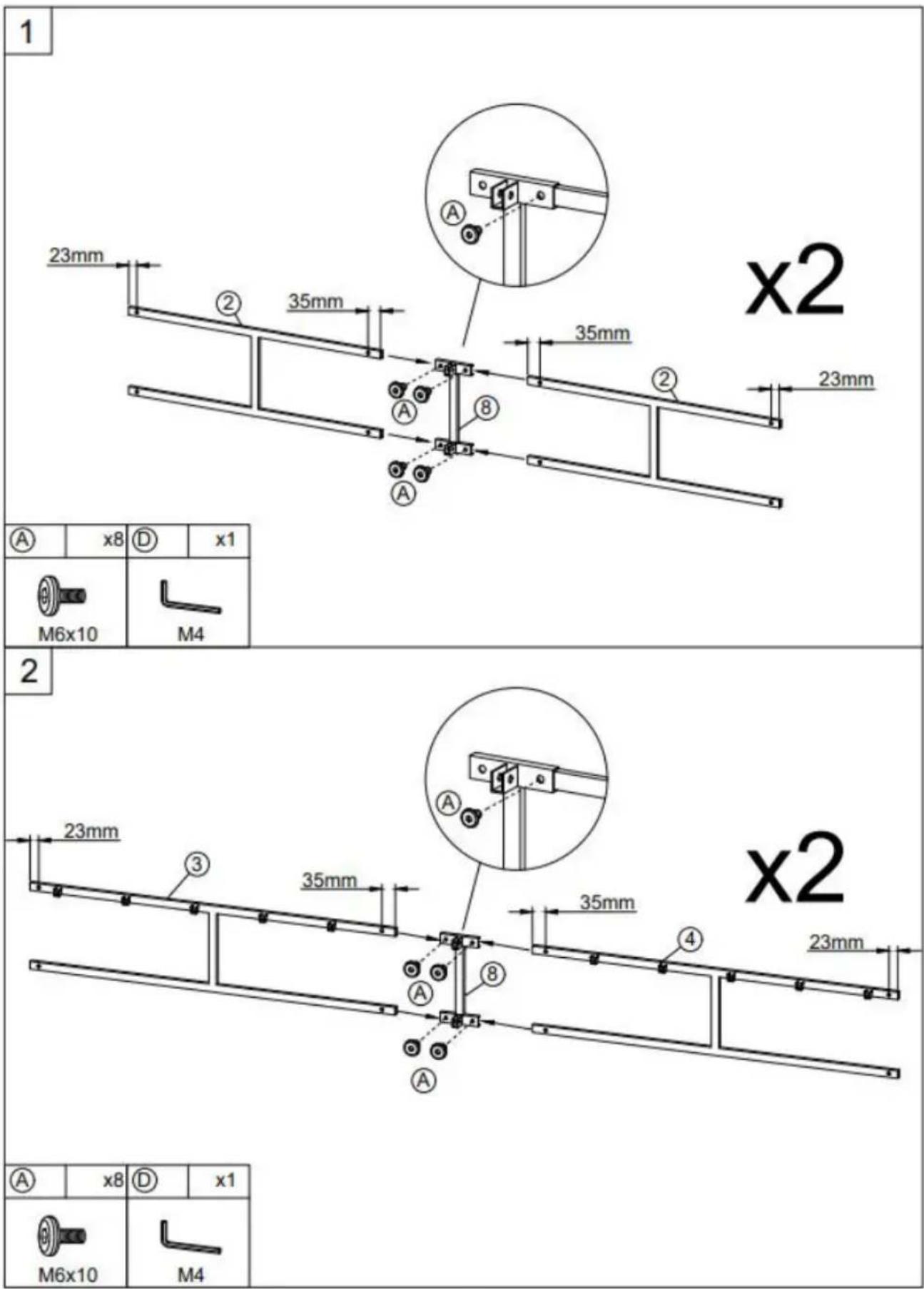

3 x2 A x8 D x1 M6x10 M4 4 15mm 35mm C B 9 C B 5 15mm B x4 C x4 D x1 E x1 M6x25 M6 M4

5 B x4 C x4 D x1 E x1 M6x25 M6 M4 6 B x4 C x4 D x1 E x1 M6x25 M6 M4

7 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4 8 A x4 B x2 C x2 D x1 E x1 M6x10 M6x25 M6 M4

9

10x20pcs

10

11

Diagram showing a structural component before and after modification, labeled with parts ① and ②.

12

Diagram showing a wire fence structure before and after modification, labeled with components ①

OK

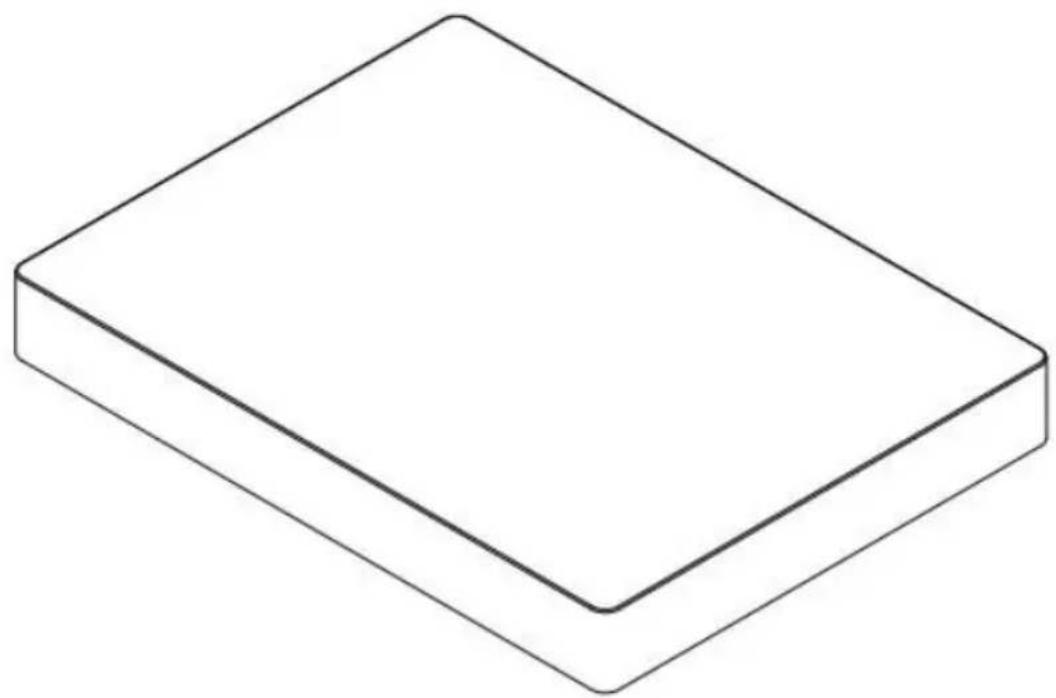

Simple line drawing of a 3D rectangular block with no text or symbols

PRODUKTPARAMETER

Modell	PB09-K
Säker lastvikt	ÿ3500lbs
Produktstorlek	2010*1925*230mm

Modell	PB05-Q
Säker lastvikt	ÿ3500lbs
Produktstorlek	2010*1515*130mm

Modell	PB04-Q
Säker lastvikt	ÿ3500lbs
Produktstorlek	2010*1510*102mm

Modell	PB09-Q
Säker lastvikt	3500 lbs
Produktstorlek	2010*1515*230mm

Tillverkare: Shanghaimuxinmuyeyouxiangongsi Adress:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

www.vevor.com/support
