Product Type	Hydraulic Clip-On One-Way Cabinet Hinge
Brand	Vevor
Model	PHS25001-60
Number of Pieces	60 Hinges
Cup Diameter	35 mm
Cup Depth	10.6 mm
Cup Type	45
Opening Angle	100°
Finish	Nickel Plated
Overlay	Full
K Factor	5
Max Dynamic Load	7.7 lb / 3.5 kg
Front/Rear Adjustment (D)	±1.0 mm
Up/Down Adjustment (E)	±2.0 mm
Screws Supplied	240 Screws 4x16 mm
Optional Nuts	120 Pieces
Optional Screws	120 Pieces
Installation Type	One-Way Fixing, Short Arms, Hydraulic Damping
Intended Use	Kitchen Cabinets, Furniture
Maintenance	Clean with a dry cloth, avoid harsh solvents

Frequently Asked Questions - PHS25001-60 Vevor

How to adjust the depth of the PHS25001-60 hinge?

Use the front/rear adjustment screw (D) to adjust the overlap. The adjustment range is ±1.0 mm. Turn the screw in the appropriate direction using a screwdriver.

What is the maximum opening angle of this hinge?

The opening angle is 100°, which allows standard opening for cabinet doors.

Is the hinge compatible with a full overlay door?

Yes, the PHS25001-60 model is designed for full overlay. The K factor is 5.

What is the maximum load that this hinge can support?

The maximum dynamic load is 7.7 lb (3.5 kg) per hinge. For heavier doors, use multiple hinges.

How to install the hinge on a cabinet door?

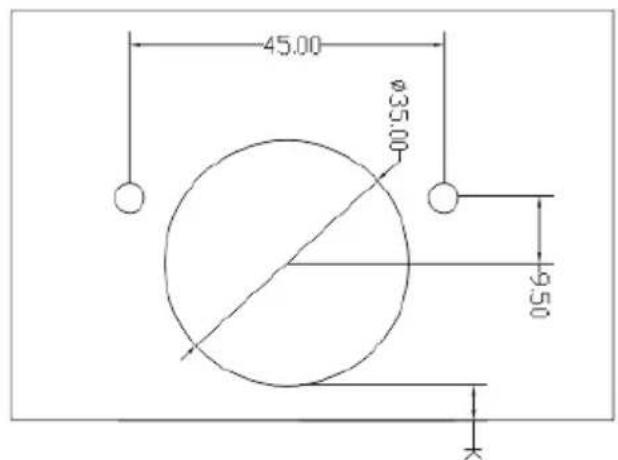

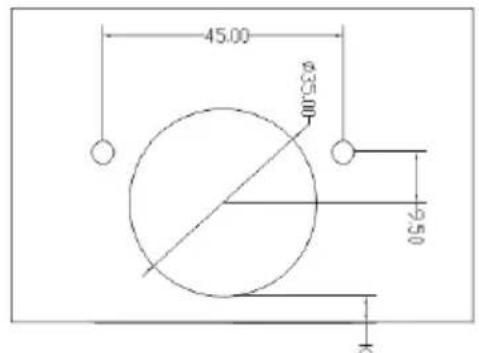

Drill a 35 mm diameter hole to a depth of 10.6 mm for the cup. Fix the hinge base to the frame using the provided 4x16 mm screws. Then clip the arm onto the base.

Can I adjust the height of the door after installation?

Yes, the hinge offers up/down adjustment (E) of ±2.0 mm. Adjust the corresponding screw to align the door.

What to do if the door does not close properly?

First check the door alignment with adjustments D and E. Make sure the screws are tightened. If the problem persists, the hydraulic mechanism may need replacement.

Is this hinge supplied with mounting screws?

Yes, the set of 60 hinges includes 240 4x16 mm screws. Additional nuts and screws are provided optionally.

How to clean and maintain the hinge?

Wipe with a soft dry cloth. Do not use harsh chemicals that could damage the nickel plating.

Where can I find the complete user manual?

The complete manual is available for free download in PDF format on the website notice-facile.com or directly via the QR code on the packaging.

USER MANUAL PHS25001-60 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CABINET HINGES

MODEL: PHS25101-40/ PHS23701-40/PHS25101-50

/PHS23701-50/PHS25001-60/PHS23601-60/PHS25201-20

/PHS25201-30/PHS24501-40/PHS24501-50/PHS25201-60

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Cabinet Hinges

MODEL: MODEL: PHS25101-40/ PHS23701-40/PHS25101-50

/PHS23701-50/PHS25001-60/PHS23601-60/PHS25201-20

/PHS25201-30/PHS24501-40/PHS24501-50/PHS25201-60

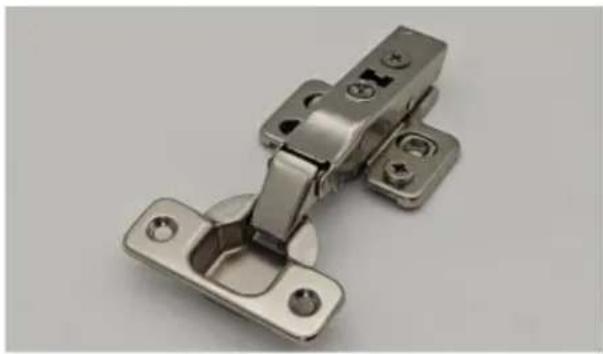

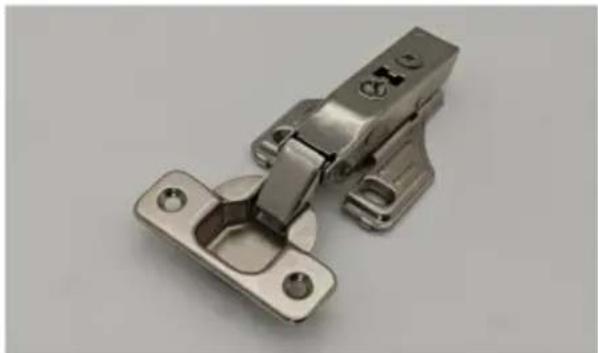

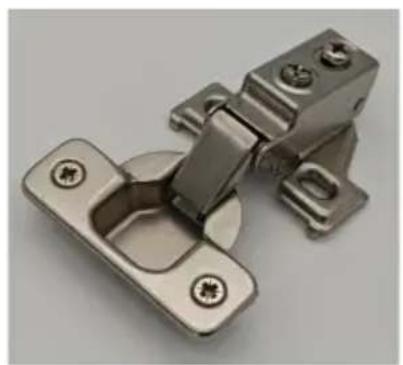

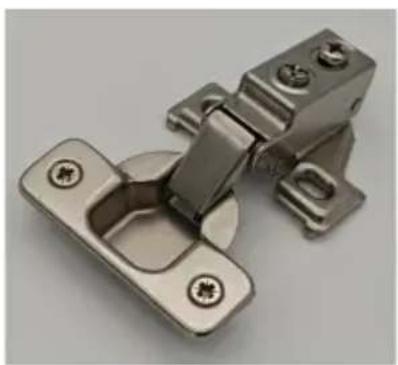

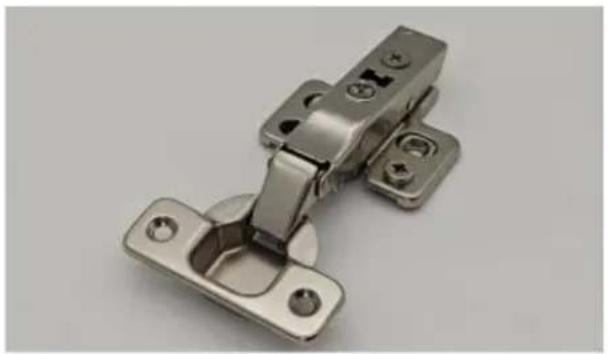

Metallic plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

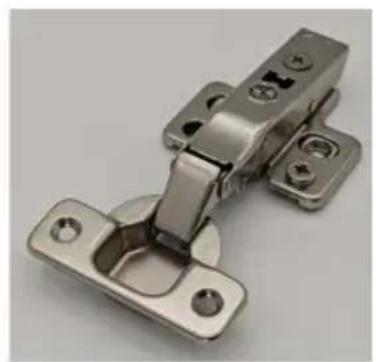

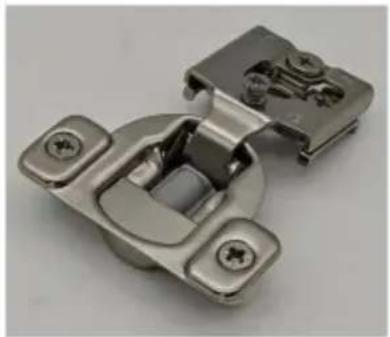

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25001-60

Close-up of a metallic glass hinge with mounting holes and a central handle (no text or symbols visible)

PHS23701-40/50

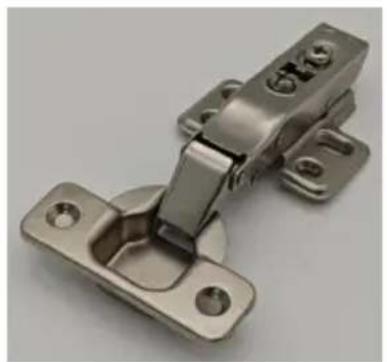

Metal-colored plastic hinge component with mounting holes and a small inset showing internal features (no text or symbols visible)

PHS25101-40/50

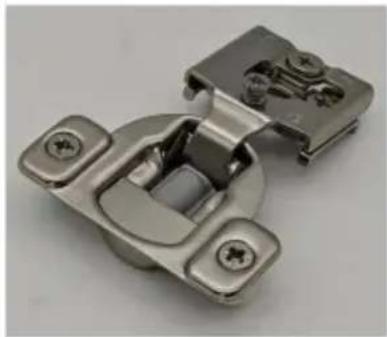

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

PHS25201-20/30/60

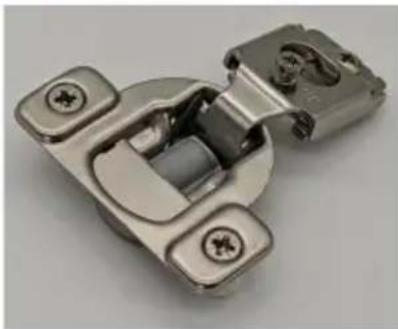

Close-up of a metallic glass plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

PARAMETER LIST

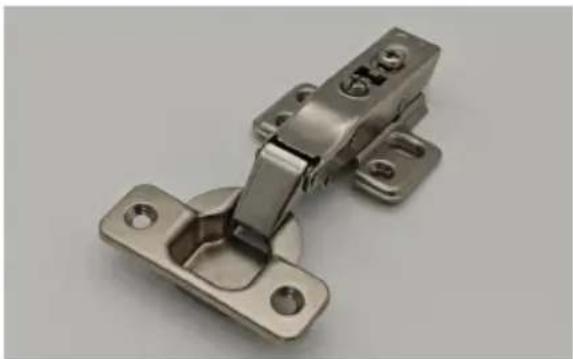

Φ35 CLIP ON ONE WAY HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Model	PHS23601
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
(K)	5
Overlay	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS23601-60
1		HINGES	60
2		4*16 SCREWS	12*30=360

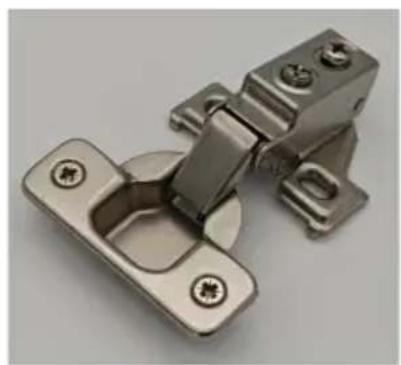

Φ35 FIXED ON ONE WAY SHORT ARMS HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS25001
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	Full Overlay
(K)	5
Max.Dynamic Load (lbs/kg)	7.7/3.5

Part List
Code	Picture	Name	PHS25001-60
1		HINGES	60
2		4*16 SCREWS	8*30=240
3		NUTS (Optional)	4*30=120
4		SCREWS (Optional)	4*30=120

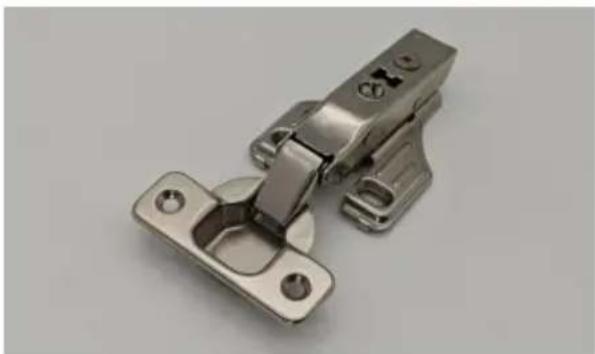

Φ35 CLIP ON ONE WAY (3D) SIX-WAY ADJUSATABLE HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS23701
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	5
(K)	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS23701-50	PHS23701-40
1		HINGES	50	40
2		4*16 SCREWS	10*25=250	10*20=200

Φ35 CLIP ON ONE WAY(2D)FOUR-WAY ADJUSATABLE HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS25101
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	5
(K)	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS25101-50	PHS25101-40
1		HINGES	50	40
2		4*16 SCREWS	8*25=200	8*20=160

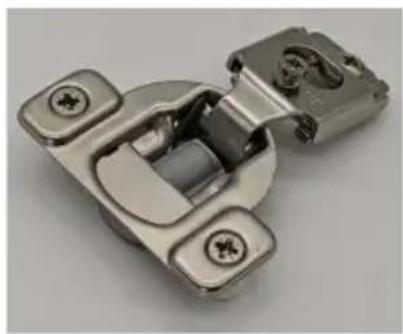

Φ35(3D)SIX-WAY ADJUSATABLE SOFT CLOSE FACE FRAME HINGE

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Model	PHS25201
Cup Diameter	35
Cup Depth	10.5
Cup Pattern	45
Opening	105 °
Finish	Nickel-plated
Overlay	3
(K)	1/2” / 12.7
Max.Dynamic Load (lbs/kg)	7.7/3.5

Part List
Code	Picture	Name	PHS25201-60	PHS25201-30	PHS25201-20
1		HINGES	60	40	20
2		4*16 SCREWS	6*30=180	6*15=90	6*10=60
3		4*20 SCREWS	2*30=60	2*15=30	2*10=20
3		NUTS (Optional)	4*30=120	4*15=60	4*10=40
4		SCREWS (Optional)	4*30=120	4*15=60	4*10=40

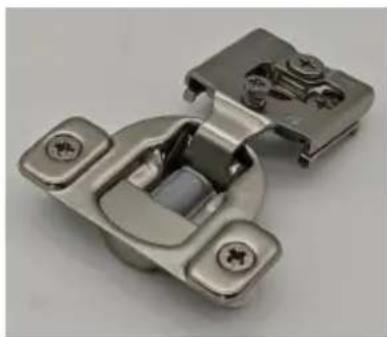

Φ35(2D)FOUR-WAY ADJUSATABLE SOFT CLOSE FACE FRAME HINGES

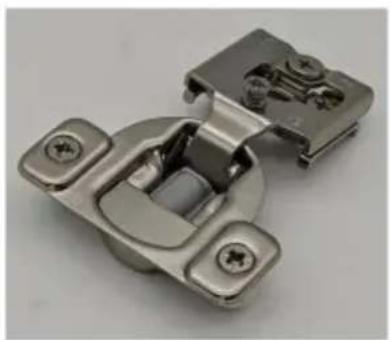

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS24501
Cup Diameter	35
Cup Depth	10.5
Cup Pattern	45
Opening	105 °
Finish	Nickel-plated
Overlay	3
(K)	1/2” / 12.7
Max.Dynamic Load (lbs/kg)	7.7 / 3.5

Part List
Code	Picture	Name	PHS24501-50	PHS24501-40
1		HINGES	50	40
2		4*16 SCREWS	4*25=150	4*20=120
3		4*20 SCREWS	2*25=50	2*20=40
4		NUTS (Optional)	4*25=100	4*20=80
5		SCREWS(Optional)	4*25=100	4*20=80

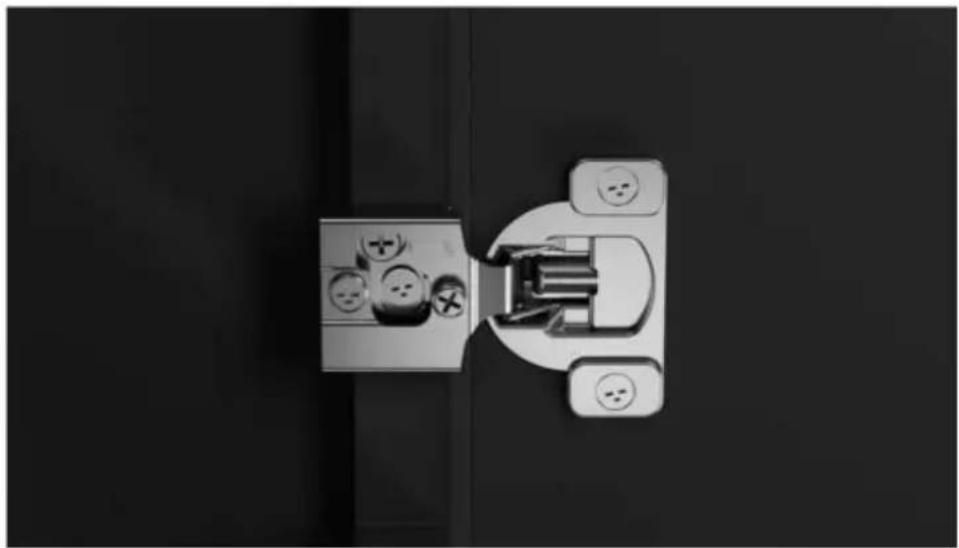

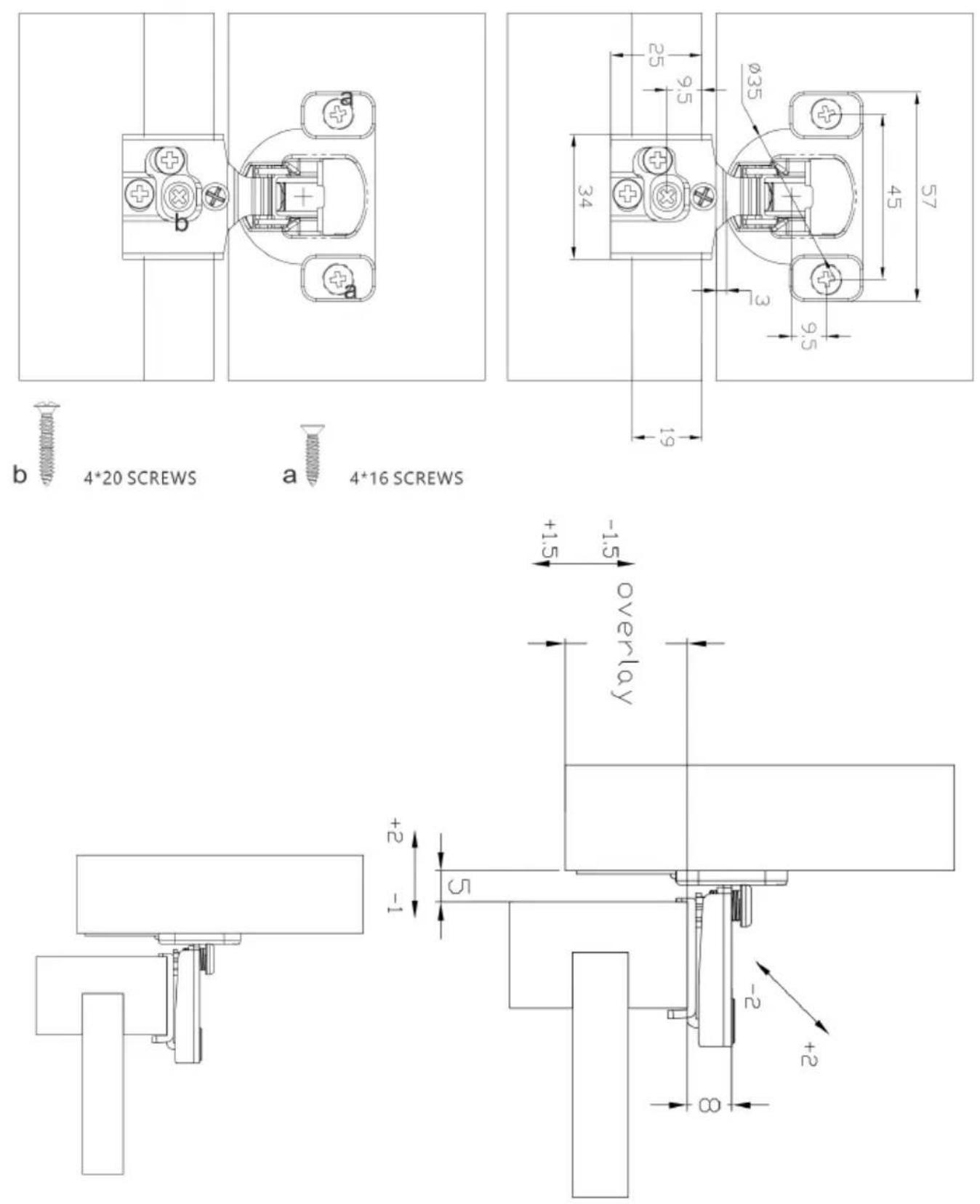

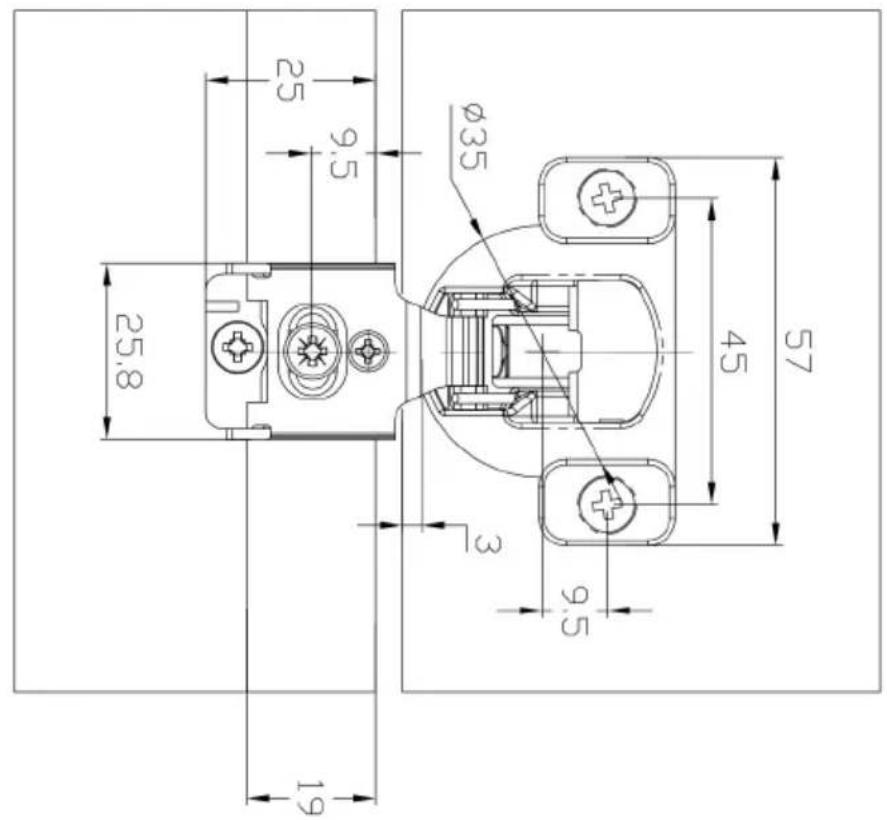

OPERATION

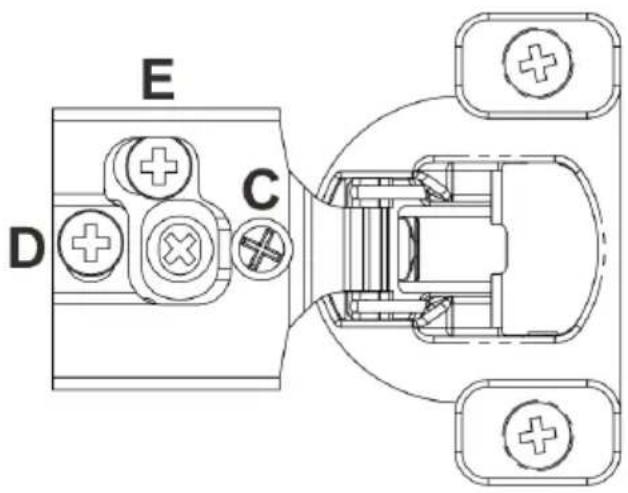

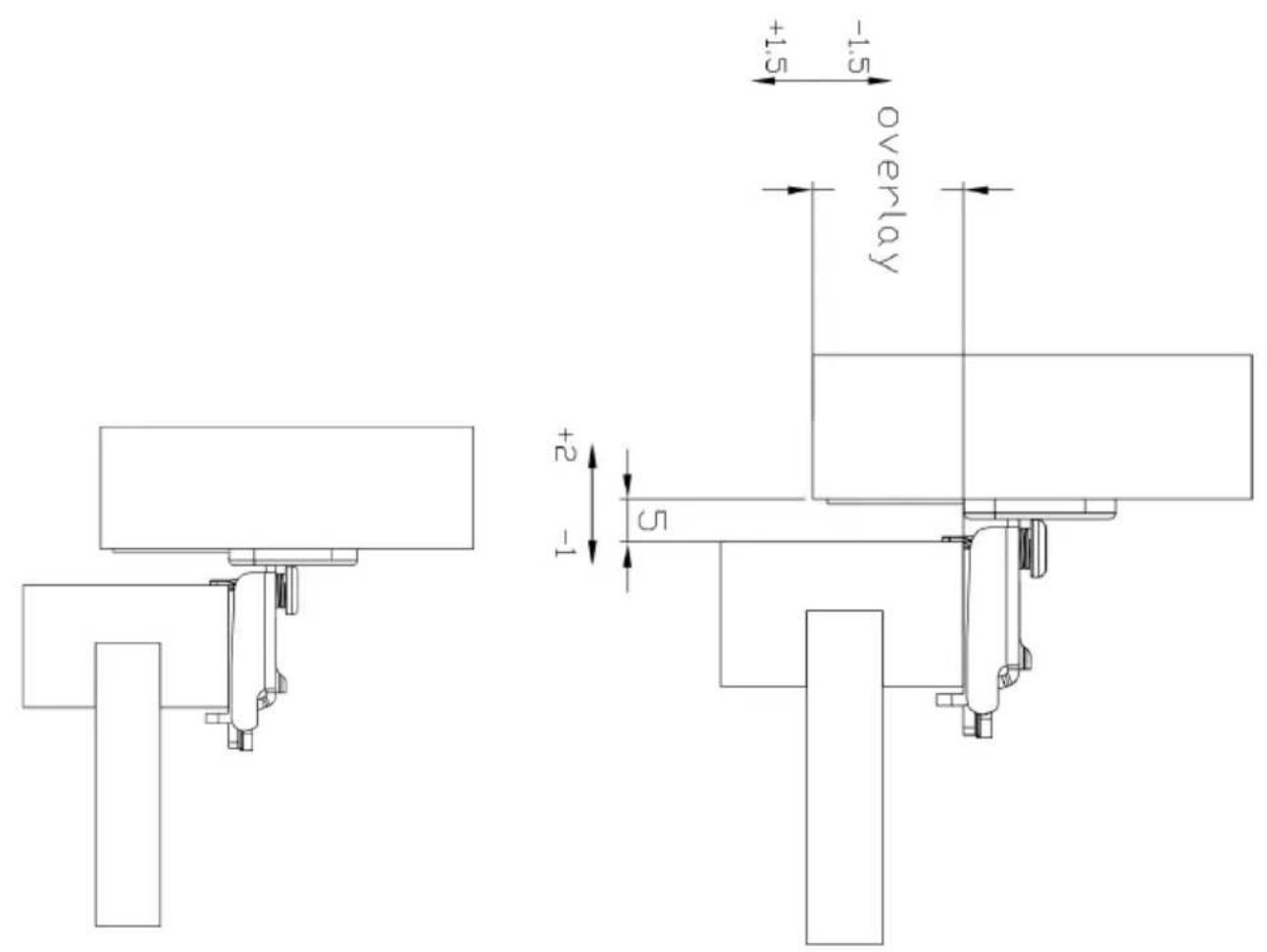

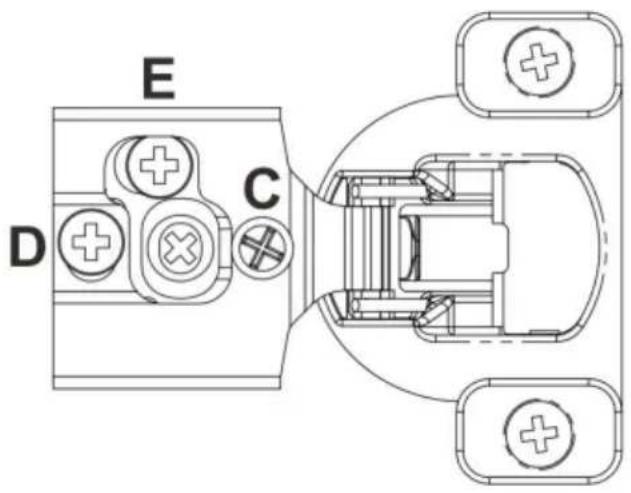

Φ35(3D)SIX-WAY ADJUSATABLE SOFT CLOSE FACE FRAME HINGE

Top-down view of a door with three switches and a highlighted electrical outlet (no text or symbols visible)

Adjustment Range:

C Overlay(Left/Right)

Adjustment:±1.8mm

D Overlay(Front/back)

Adjustment:±2.0mm

E Overlay(Up/down)

Adjustment:±1.5mm

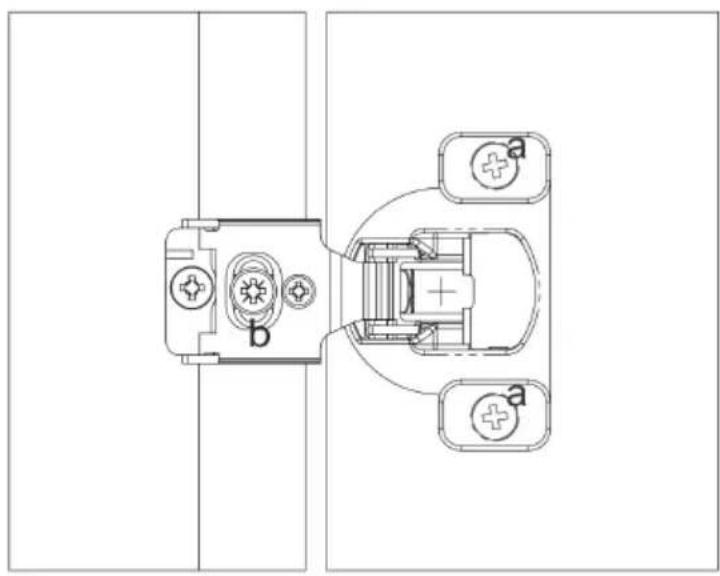

Installation instructions

Φ35(2D)FOUR-WAY ADJUSATABLE SOFT CLOSE FACE FRAME HINGES

Close-up of a metallic door handle assembly with cartoon figures on the handle (no text or symbols visible)

Adjustment Range:

C Overlay (Left/Right)

Adjustment:±1.8mm

D Overlay(Front/back)

Adjustment:±2.0mm

Installation instructions

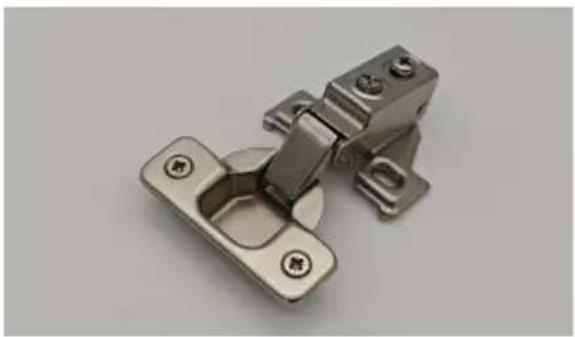

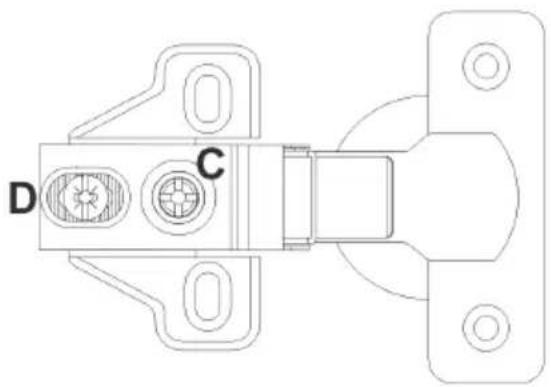

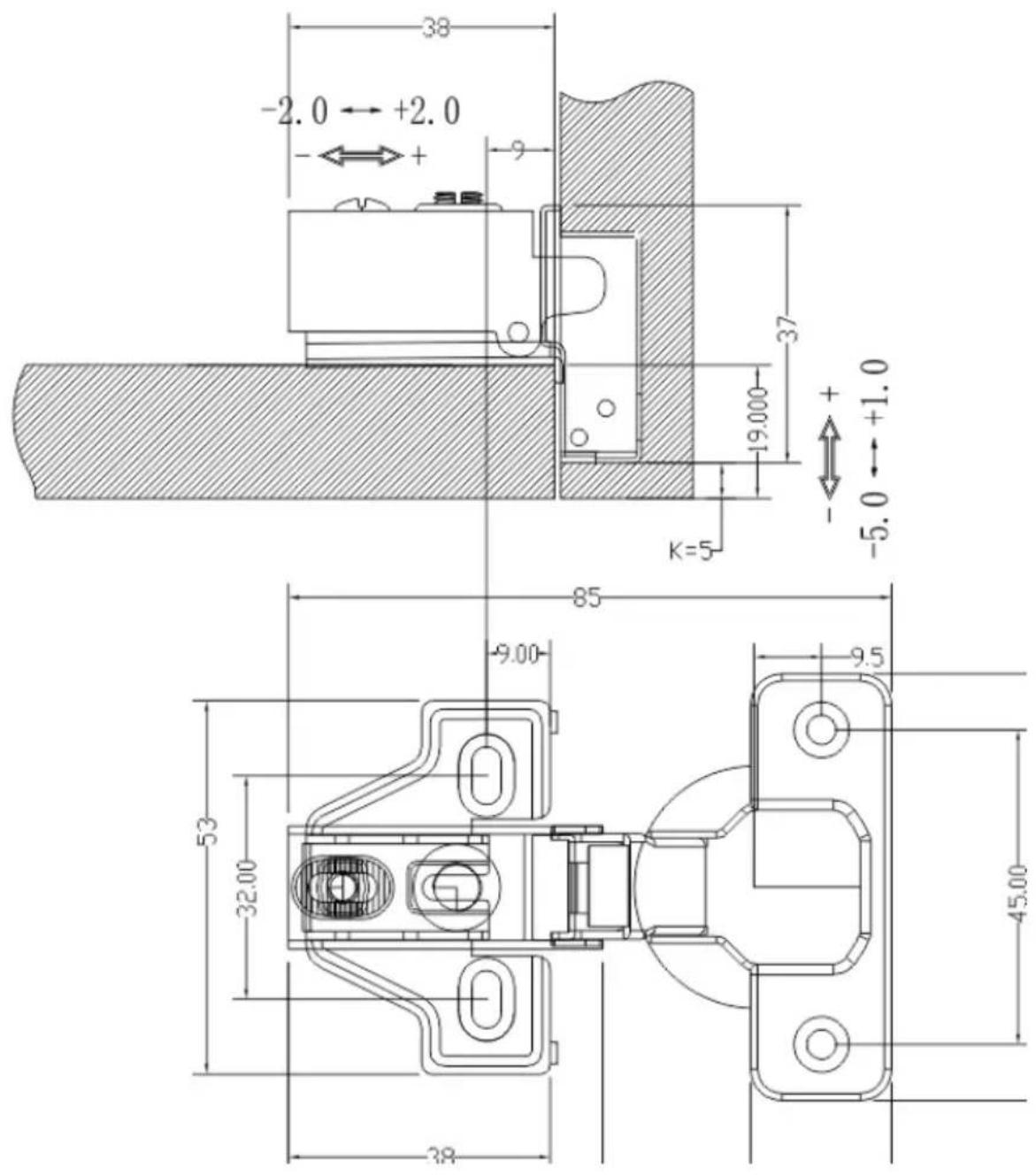

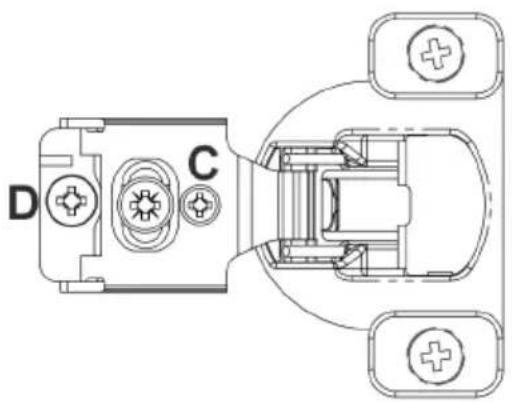

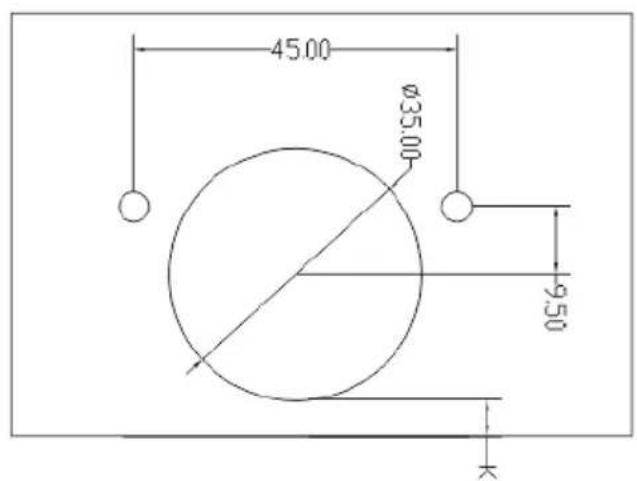

Φ35 FIXED ON ONE WAY SHORT ARMS HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Adjustment Range:

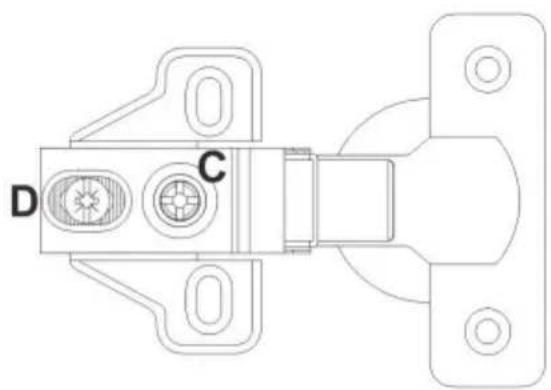

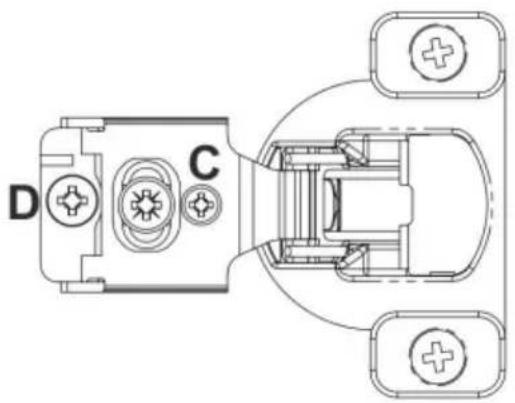

Technical line drawing of a mechanical hinge component with labeled points D and C (no text or symbols beyond labels)

C Overlay (Left/Right)

Adjustment:±1.0mm

D Overlay(Front/back)

Adjustment:±2.0mm

H\K	3	4	5	6
0	16	17	18	19

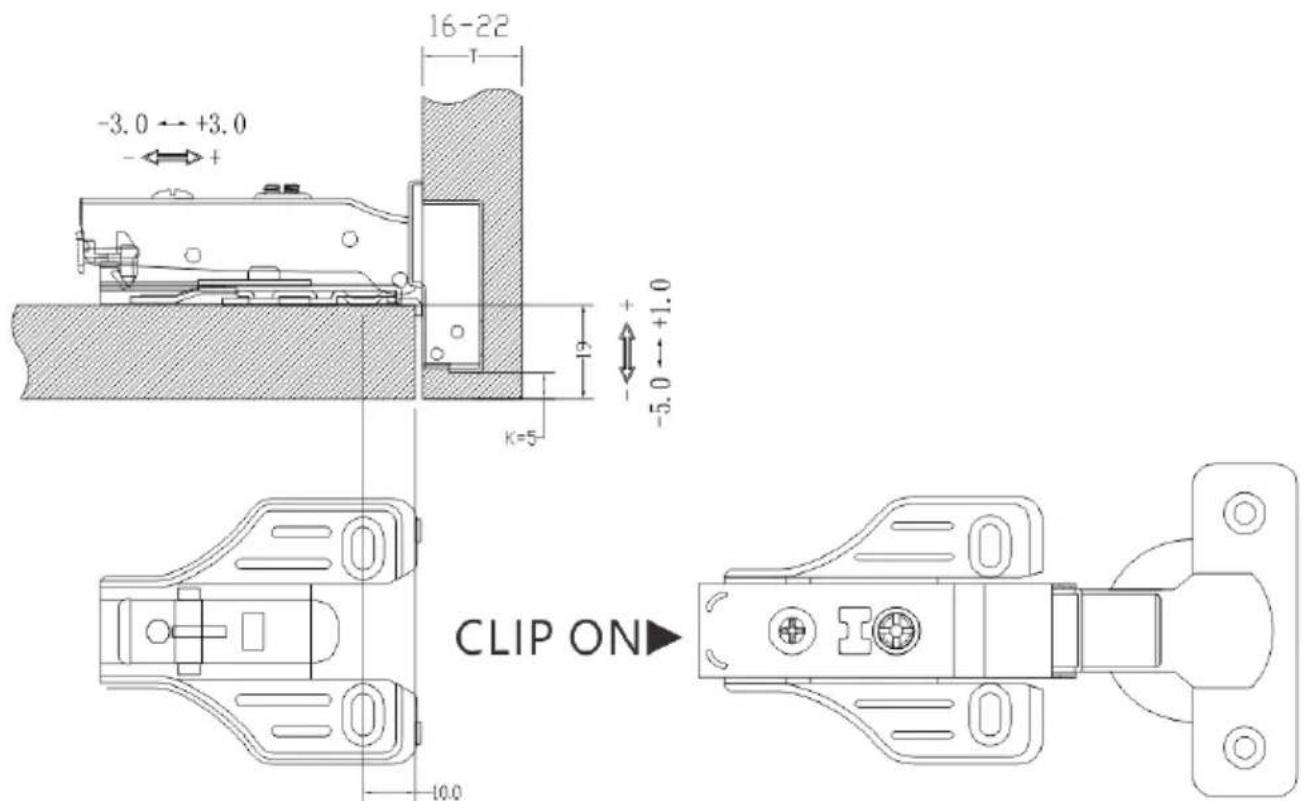

Φ35 CLIP ON ONE WAY HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

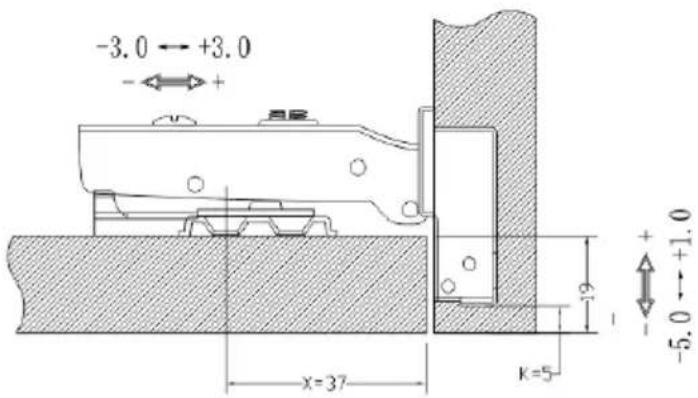

Adjustment Range:

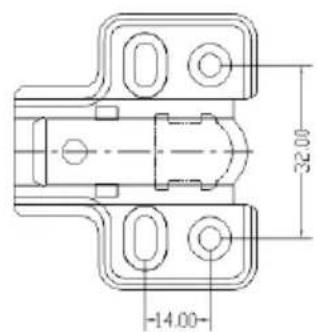

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

C Overlay(Left/Right)

Adjustment:±1.0mm

D Overlay(Front/back)

Adjustment:±3.0mm

H\K	3	4	5	6
0	16	17	18	19

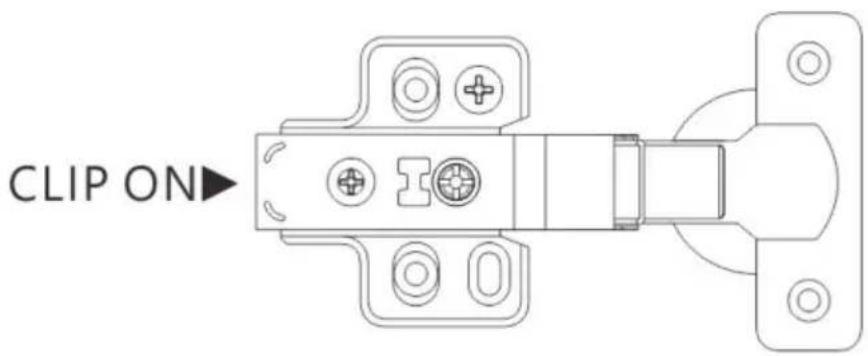

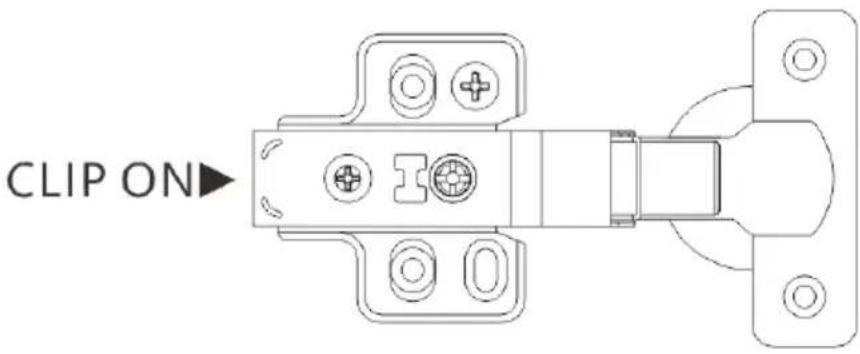

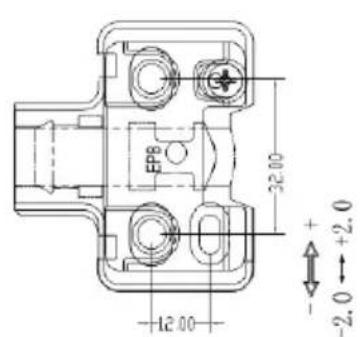

CLIP ON▶

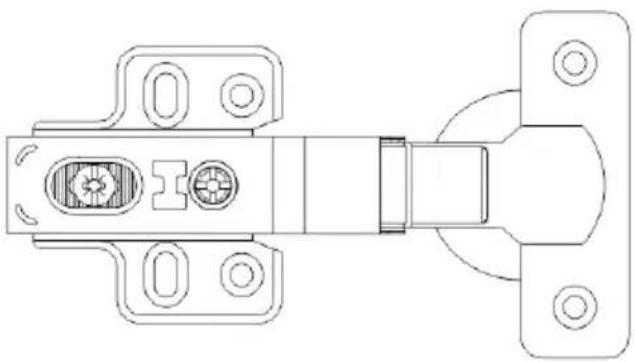

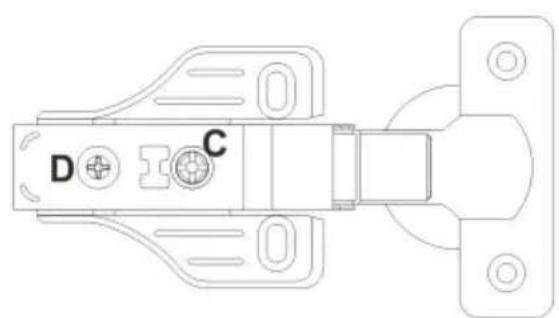

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

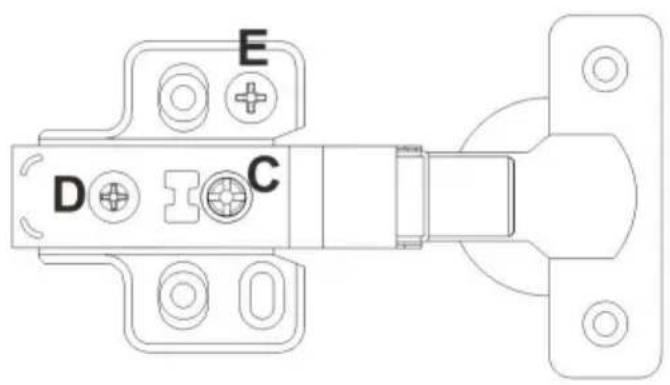

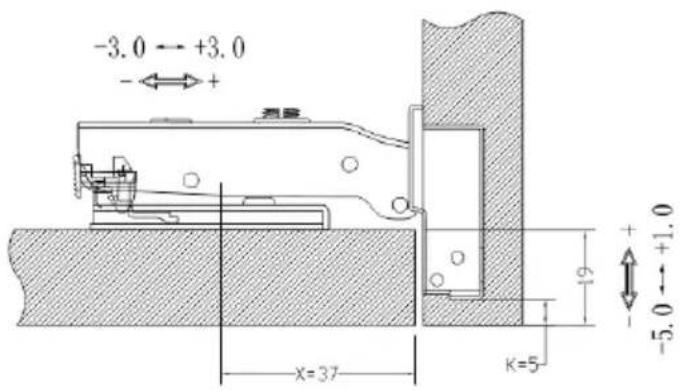

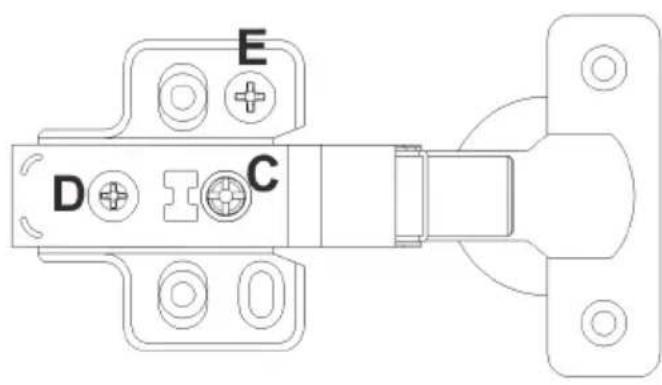

Φ35 CLIP ON ONE WAY (3D) SIX-WAY ADJUSATABLE HYDRAULIC BUFFERING HINGE

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Adjustment Range:

C Overlay(Left/Right)

Adjustment:±1.0mm

D Overlay(Front/back)

Adjustment:±3.0mm

E Overlay(Up/down)

Adjustment:±2.0mm

H\K	3	4	5	6
0	16	17	18	19

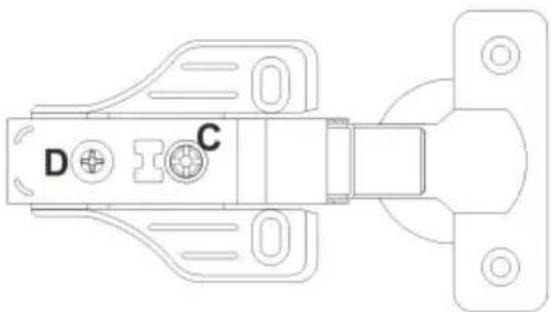

Φ35 CLIP ON ONE WAY(2D)FOUR-WAY ADJUSATABLE HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes and a small inset view (no text or symbols visible)

Adjustment Range:

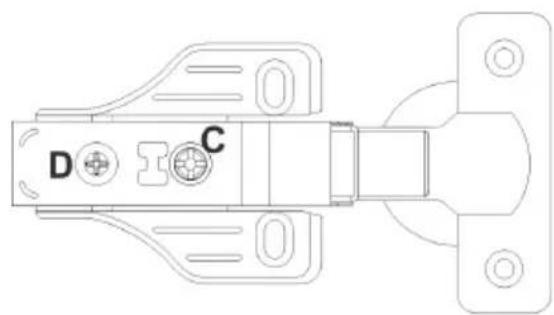

Technical line drawing of a mechanical component with labeled parts D and C (no text or symbols beyond labels)

C Overlay(Left/Right)

Adjustment:±1.0mm

D Overlay(Front/back)

Adjustment:±3.0mm

H\K	3	4	5	6
0	16	17	18	19

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Close-up of a metallic glass hinge with mounting holes and a central handle (no text or symbols visible)

Close-up of a metallic glass hinge with mounting holes and mounting holes (no text or symbols visible)

PHS23701-40/50PHS25001-60

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25101-40/50 PHS25201-20/30/60

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

Close-up of a metallic glass Tunisia coefficient with mounting holes (no text or symbols visible)

PHS24501-40/50

BESOIN D'AIDE? CONTACTEZ-NOUS!

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal double-hinged glass hinge component (no text or symbols visible)

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Close-up of a metallic mechanical component with mounting holes and internal cavity (no text or symbols visible)

Top-down view of a mechanical assembly with three circular components and a central bracket (no visible text or symbols)

Plage de réglage :

C Superposition (gauche/droite)

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Plage de réglage :

Superposition C (gauche/droite)

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Plage de réglage :

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

C Superposition (gauche/droite)

Metallic glass hinge component with mounting holes and a central cutout (no text or symbols visible)

Plage de réglage :

Technical line drawing of a mechanical assembly with labeled components D and C (no text or symbols beyond labels)

C Superposition (gauche/droite)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

Φ35 CLIP ON UNIQUE (3D) SIX VOIES RÉGLABLES HYDRAULIQUES CHARNIÈRE DE TAMPONNAGE

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Plage de réglage :

C Superposition (gauche/droite)

Φ35 CLIP SUR UNE VOIE (2D) QUATRE VOIES RÉGLABLE HYDRAULIQUE CHARNIÈRES TAMPONNANTES

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Plage de réglage :

Technical line drawing of a mechanical latch or connector with labeled parts D and C (no text or symbols beyond labels)

C Superposition (gauche/droite)

Fabricant : Shanghaimuxinmuyeyouxiangongsi Adresse :

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australie

YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Close-up of a metallic glass hinge component with mounting holes and a central handle (no text or symbols visible)

PHS25001-60 PHS23701-40/50

Close-up of a metallic glass intra-day hinge (DHS) with mounting holes and mounting holes (no text or symbols visible)

Metallic plastic hinge component with mounting holes and a square cutout (no text or symbols visible)

PHS25101-40/50 PHS25201-20/30/60

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

Close-up of a metallic glass Tunisia coefficient hinge (no text or symbols visible)

PHS24501-40/50

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal double-hinged glass hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Top-down view of a mechanical assembly with three circular components and a central bracket (no visible text or symbols)

Einstellbereich:

C- Overlay (links/rechts)

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Einstellbereich:

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Einstellbereich:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Metallic glass hinge component with mounting holes and a central cutout (no text or symbols visible)

Einstellbereich:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

C- Overlay (links/rechts)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

ÿ35 CLIP ON EINWEG (3D) SECHSFACH EINSTELLBAR HYDRAULISCH PUFFERSCHARNIER

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Einstellbereich:

C- Overlay (links/rechts)

ÿ35 CLIP ON EINWEG (2D) VIERWEGE EINSTELLBAR HYDRAULISCH PUFFERSCHARNIERE

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Einstellbereich:

Technical line drawing of a mechanical latch or connector with labeled parts D and C (no text or symbols beyond labels)

C- Overlay (links/rechts)

Hersteller: Shanghaimuxinmuyeyouxiangongsi Adresse:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Close-up of a metallic glass hinge component with mounting holes and mounting holes (no text or symbols visible)

Close-up of a metallic glass intra-day hinge (DHS) with mounting holes and mounting holes (no text or symbols visible)

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Modello PHS25101-40/50

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic glass Tunisia coefficient hinge (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal double-hinged glass hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Close-up of a metallic mechanical component with mounting holes and internal cavity (no text or symbols visible)

Top-down view of a mechanical assembly with three circular components and a central bracket (no visible text or symbols)

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Top-down schematic of a vehicle or car assembly with labeled components and directional arrows (no text or symbols)

4*20 SCREWS

4*16 SCREWS

ÿ35 FISSATO SU BRACCI CORTI MONODIREZIONALI AMMORTIZZATORE IDRAULICO CERNIERE

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Metal-colored plastic hinge component with mounting holes and a central cutout (no text or symbols visible)

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

ÿ35 CLIP ON UNIDIREZIONALE (3D) IDRAULICO REGOLABILE A SEI VIE CERNIERA DI TAMPONAMENTO

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

ÿ35 CLIP ON UNIDIREZIONALE (2D) IDRAULICO REGOLABILE A QUATTRO VIE CERNIERE TAMPONATE

Metallic stainless steel hinge component with mounting holes and a small circular feature (no text or symbols visible)

Technical line drawing of a mechanical latch or connector with labeled parts D and C (no text or symbols beyond labels)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Close-up of a metallic glass hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25001-60

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS23701-40/50

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25101-40/50

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50

www.vevor.com/support

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal double-hinged glass hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Top-down view of a mechanical assembly with three circular components and a central bracket (no visible text or symbols)

Rango de ajuste:

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Rango de ajuste:

Top-down schematic of a vehicle or car assembly with labeled components and directional arrows (no text or symbols)

4*20 SCREWS

4*16 SCREWS

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Rango de ajuste:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Metallic glass hinge component with mounting holes and a central cutout (no text or symbols visible)

Rango de ajuste:

Technical line drawing of a mechanical assembly with labeled components D and C (no text or symbols beyond labels)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Rango de ajuste:

Φ35 CLIP EN UNA VÍA (2D) CUATRO VÍAS AJUSTABLE HIDRÁULICO BISAGRAS AMORTIGUADORAS

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Rango de ajuste:

Technical line drawing of a mechanical latch or connector assembly (no text or symbols)

Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Close-up of a metallic glass hinge with mounting holes and a central handle (no text or symbols visible)

PHS25001-60 PHS23701-40/50

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25101-40/50

Close-up of a metallic glass hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50PHS25201-20,

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Close-up of a metallic mechanical component with mounting holes and internal cavity (no text or symbols visible)

Top-down view of a mechanical assembly with three circular components and a central bracket (no visible text or symbols)

Zakres regulacji:

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Zakres regulacji:

4*20 SCREWS

4*16 SCREWS

Φ35 MOCOWANE NA JEDNORAZOWYCH KRÓTKICH RAMIONACH BUFOROWO-HYDRAULICZNE ZAWIASY

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Zakres regulacji:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Metallic glass hinge component with mounting holes and a central cutout (no text or symbols visible)

Zakres regulacji:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

Φ35 ZACISK JEDNORAZOWY (3D) SZEŚCIOKROTNY REGULOWANY HYDRAULICZNY ZAWIAS BUFOROWANY

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Zakres regulacji:

Φ35 ZACISK JEDNORAZOWY (2D) CZTEROROKIERUNKOWY REGULOWANY HYDRAULICZNY ZAWIASY BUFOROWANE

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Zakres regulacji:

Producent: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP WIEL KIEJ BRYTANII

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Metal-colored plastic hinge with mounting holes and mounting screws (no text or symbols visible)

PHS25001-60

Close-up of a metallic glass intra-day hinge (DHS) with mounting holes and mounting holes (no text or symbols visible)

PHS23701-40/50

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS25101-40/50

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50

HULP NODIG? NEEM CONTACT MET ONS OP!

www.vevor.com/support

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS23601
Kopdiameter	35
Diepte van de beker	10.6
Koppatroon	45
Opening	100°
Finish	Vernikkeld
(K)	5
Overlappen	Volledige overlay
Max. dynamische belasting (pond/kg)	16,5/7,5

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS25001
Kopdiameter	35
Diepte van de beker	10.6
Koppatroon	45
Opening	100
Finish	Vernikkeld
Overlappen	Volledige overlay
(K)	5
Max. dynamische belasting (pond/kg)	7,7/3,5

Metal double-hinged glass hinge component (no text or symbols visible)

Model	PHS23701
Kopdiameter	35
Diepte van de beker	10.6
Koppatroon	45
Opening	100°
Finish	Vernikkeld
Overlappen	5
(K)	Volledige overlay
Max. dynamische belasting (pond/kg)	16,5/7,5

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS25101
Kopdiameter	35
Diepte van de beker	10.6
Koppatroon	45
Opening	100°
Finish	Vernikkeld
Overlappen	5
(K)	Volledige overlay
Max. dynamische belasting (pond/kg)	16,5/7,5

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

Model	PHS25201
Kopdiameter	35
Diepte van de beker	10.5
Koppatroon	45
Opening	105°
Finish	Vernikkeld
Overlappen	3
(K)	1/2" / 12,7
Max. dynamische belasting (pond/kg)	7,7/3,5

Onderdelenlijst
Code Afbeelding		Naam	PHS25201-60	PHS25201-30	PHS25201-20
1		SCHARNIEREN	60	40	20
2		4*16SCHROEVEN	6*30=180 6*15=90		6*10=60
3		4*20SCHROEVEN	2*30=60	2*15=30	2*10=20
3		NOTEN(Optioneel)	4*30=120 4*15=60		4*10=40
4		SCHROEVEN(Optioneel)	4*30=120 4*15=60		4*10=40

ÿ35(2D)VIER-WIJDIG VERSTELBAAR SOFT CLOSE FACE FRAME

SCHARNIEREN

Close-up of a metallic mechanical component with mounting holes and internal cavity (no text or symbols visible)

Model	PHS24501
Kopdiameter	35
Diepte van de beker	10.5
Koppatroon	45
Opening	105°
Finish	Vernikkeld
Overlappen	3
(K)	1/2” / 12,7
Max. dynamische belasting (pond/kg)	7,7 / 3,5

Onderdelenlijst
Code	Afbeelding	Naam PHS2	24501-50 PHS24501-40
1		SCHARNIEREN	50	40
2		4*16 SCHROEVEN	4*25=150	4*20=120
3		4*20 SCHROEVEN	2*25=50	2*20=40
4		NOTEN (Optioneel)	4*25=100	4*20=80

5 4*20=80

SCHROEVEN (Optioneel)

4*25=100

WERKING

ÿ35(3D) ZES-WIJZE VERSTELBARE SOFT CLOSE FRAME SCHARNIEREN

Top-down view of a door handle with two switches and three circular buttons, mounted on a black surface (no text or symbols visible)

Aanpassingsbereik:

Aanpassing: ±2,0 mm E

-overlay (omhoog/omlaag)

Aanpassing: ±1,5 mm

Installatie-instructies

ÿ35(2D)VIER-WIJDIG VERSTELBAAR SOFT CLOSE FACE FRAME
SCHARNIEREN

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Aanpassingsbereik:

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Aanpassingsbereik:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Metal-colored plastic hinge component with mounting holes and a central cutout (no text or symbols visible)

Aanpassingsbereik:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

ÿ35 CLIP OP EENWEG (3D) ZES-WEG VERSTELBARE HYDRAULISCHE BUFFERINGSCHARNIER

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Aanpassingsbereik:

Aanpassing: ±3,0 mm E

Overlay (omhoog/omlaag)

Aanpassing: ±2,0 mm

H\K	3	4	5	6
0	16	17	18	19

ÿ35 CLIP OP EENWEG (2D) VIERWEG VERSTELBARE HYDRAULISCHE BUFFERINGSCHARNIEREN

Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Aanpassingsbereik:

Technical line drawing of a mechanical latch or connector with labeled parts D and C (no text or symbols beyond labels)

C Overlay (links/rechts)
Aanpassing: ±1,0 mm D- overlay (voor/achter)
Aanpassing: ±3,0 mm

H\K	3	4	5	6
0	16	17	18	19

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Close-up of a metallic glass hinge component with mounting holes and mounting holes (no text or symbols visible)

PHS25001-60 PHS23701-40/50

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS25101-40/50

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50

BEHÖVER HJÄLP? KONTAKTA OSS!

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Metal double-hinged glass hinge component (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

Close-up of a metallic mechanical component with mounting holes and internal cavity (no text or symbols visible)

Top-down view of a mechanical assembly with three circular components and a central bracket (no visible text or symbols)

Justeringsområde:

Justering: ±2,0 mm E Overlay (upp/ner)

Justering: ±1,5 mm

Installationsanvisningar

ÿ35(2D)FYRVÄGS JUSTERBAR MJUK NÄRHETSRAM GÅNGJÄRN

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Justeringsområde:

4*20 SCREWS

4*16 SCREWS

ÿ35 FAST PÅ ENVÄGS HYDRAULISK BUFFERING KORTA ARMAR GÅNGJÄRN

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Justeringsområde:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Metallic glass hinge component with mounting holes and a central cutout (no text or symbols visible)

Justeringsområde:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Technical line drawing of a mechanical hinge component with mounting holes and internal features (no text or symbols)

ÿ35 CLIP ON ONE WAY (3D) SEX-VÄGS JUSTERBAR HYDRAULIK BUFFERINGSGJÄRN

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Justeringsområde:

Justering: ±3,0 mm E

Overlay (upp/ner)

Justering: ±2,0 mm

H\K	3	4	5	6
0	16	17	18	19

ÿ35 KLÄMPA PÅ ENVÄGS(2D)FYRVÄGS JUSTERBAR HYDRAULIK BUFFERADE GÅNGJÄRN

Metallic stainless steel hinge component with mounting holes and a small circular feature (no text or symbols visible)

Justeringsområde:

Technical line drawing of a mechanical latch or connector assembly (no text or symbols)

Justering: ±1,0 mm D

Overlay (fram/bak)

Justering: ±3,0 mm

H\K	3	4	5	6
0	16	17	18	19

Tillverkare: Shanghaimuxinmuyeyouxiangongsi Adress:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

www.vevor.com/support
