Name: PHS24501-40
Brand: Vevor
Rating: 9.5 (141 reviews)

Find the device manual for free PHS24501-40 Vevor in PDF.

📄 160 pages

EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs

View the manual :

Pick your language and provide your email: we'll send you a specifically translated version.

This manual is not available in your language

Desired language Your email address

Product Type	Soft-close cabinet hinge
Brand	Vevor
Model	PHS24501-40
Cup diameter	35 mm
Cup depth	10.5 mm
Cup type	45
Opening angle	105°
Finish	Nickel plated
Overlay	1/2" (12.7 mm)
K value	3
Maximum dynamic load	7.7 lb / 3.5 kg
Mounting type	Face frame
Forward/backward adjustment	±1.8 mm
Up/down adjustment	±2.0 mm
Number of hinges per package	40
Screws included	Screws 4x16 (120 pcs), screws 4x20 (40 pcs), optional nuts and screws
Main material	Nickel-plated steel
Soft close	Yes, built-in hydraulic damping
Maintenance	Clean with a soft, dry cloth. Avoid harsh solvents.
Safety	The soft close prevents slamming and reduces pinching risks.
Spare parts and repairability	Replacement screws available. The hydraulic mechanism is not repairable, but the hinge is replaceable.
General information	Compliant with EU and US standards. Technical support available at www.vevor.com/support.

Frequently Asked Questions - PHS24501-40 Vevor

What is the difference between models PHS24501-40 and PHS24501-50?

The main difference is the number of hinges included: the -40 model contains 40 hinges, while the -50 contains 50. The technical specifications are identical.

How to adjust the hinge overlay?

Use the forward/backward adjustment screw (D) to adjust the overlay by ±1.8 mm. Turn the screw clockwise to increase overlay, counterclockwise to decrease.

Are these hinges suitable for solid wood cabinet doors?

Yes, they are designed for face frame cabinets. The maximum load of 3.5 kg per hinge is suitable for most standard wood doors.

How to adjust the door height?

The up/down adjustment (E) is done with the designated screw. The adjustment range is ±2.0 mm. Turn the screw clockwise to raise the door, counterclockwise to lower it.

Do I need a special tool to install these hinges?

No, a simple drill and screwdriver are sufficient. Mounting screws (4x16 and 4x20) are provided. A drilling jig is recommended for precise alignment.

Does the soft close work on all doors?

Yes, the built-in hydraulic mechanism dampens the closing regardless of speed. Ensure the door is not too heavy (max 3.5 kg per hinge).

Can these hinges be used with frameless cabinets?

No, they are specifically designed for face frame cabinets. For frameless cabinets, choose the clip-on model (e.g., PHS25101).

How to clean the hinges?

Use a soft, dry cloth to remove dust. Avoid abrasive products or solvents that could damage the nickel-plated finish.

What to do if a hinge no longer closes smoothly?

Check that the adjustment screw is not too tight and the door is not misaligned. If the problem persists, the hinge may be defective; contact Vevor support for a replacement.

Warranty and technical support?

Vevor offers an electronic warranty. For any questions, visit www.vevor.com/support or contact the representative in the United Kingdom: 60329 Frankfurt am Main.

User questions about PHS24501-40 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Hinges in PDF format for free! Find your manual PHS24501-40 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PHS24501-40 by Vevor.

USER MANUAL PHS24501-40 Vevor

Cabinet Hinges

MODEL: PHS25101-40/ PHS23701-40/PHS25101-50

/PHS23701-50/PHS25001-60/PHS23601-60/PHS25201-20

/PHS25201-30/PHS24501-40/PHS24501-50/PHS25201-60

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Cabinet Hinges

MODEL: PHS25101-40/ PHS23701-40/PHS25101-50

/PHS23701-50/PHS25001-60/PHS23601-60/PHS25201-20

/PHS25201-30/PHS24501-40/PHS24501-50/PHS25201-60

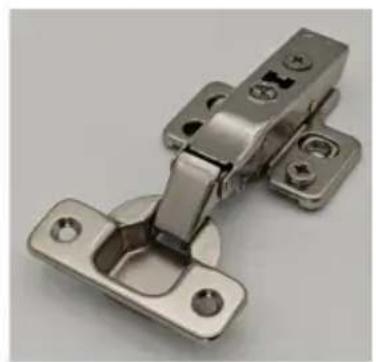

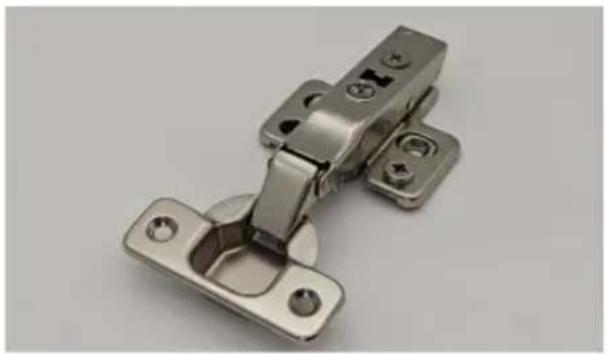

Metallic plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS23601-60

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

PHS25001-60

Close-up of a metallic glass hinge with mounting holes and a central handle (no text or symbols visible)

PHS23701-40/50

Metal-colored plastic hinge component with mounting holes and a small inset showing internal features (no text or symbols visible)

PHS25101-40/50

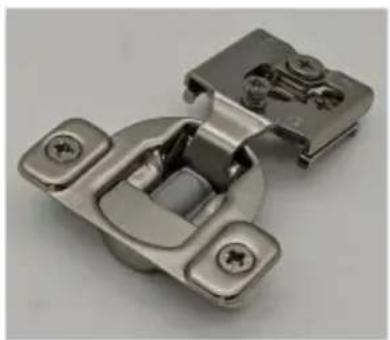

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

PHS25201-20/30/60

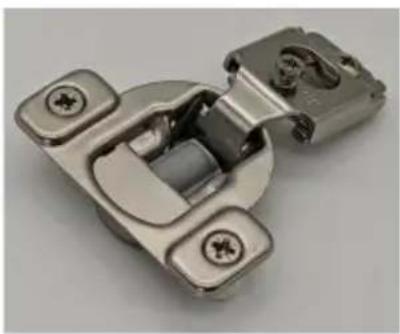

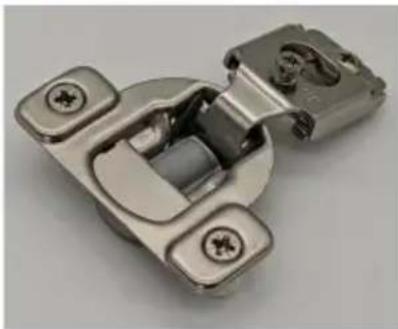

Close-up of a metallic glass plastic hinge component with mounting holes (no text or symbols visible)

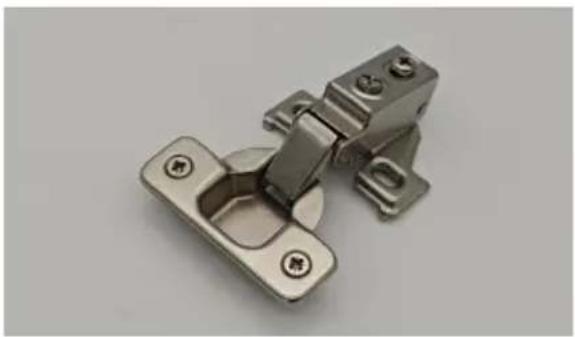

PHS24501-40/50

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

PARAMETER LIST

Φ35 CLIP ON ONE WAY HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

K φ35 9.5 45

Model	PHS23601
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
(K)	5
Overlay	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS23601-60
1		HINGES	60
2		4*16 SCREWS	12*30=360

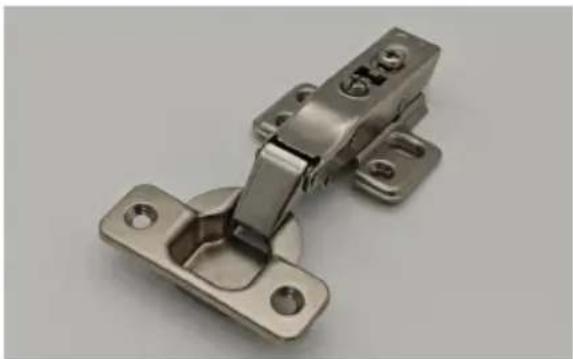

Φ35 FIXED ON ONE WAY SHORT ARMS HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

K φ35 9.5 45

Model	PHS25001
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	Full Overlay
(K)	5
Max.Dynamic Load (lbs/kg)	7.7/3.5

Part List
Code	Picture	Name	PHS25001-60
1		HINGES	60
2		4*16 SCREWS	8*30=240
3		NUTS (Optional)	4*30=120
4		SCREWS (Optional)	4*30=120

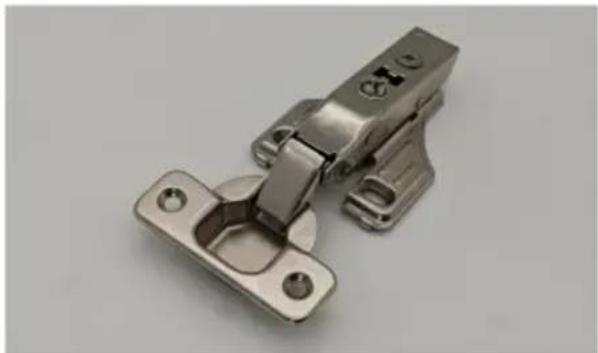

Φ35 CLIP ON ONE WAY (3D) SIX-WAY ADJUSTABLE HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

K φ35 9.5 45

Model	PHS23701
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	5
(K)	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS23701-50	PHS23701-40
1		HINGES	50	40
2		4*16 SCREWS	10*25=250	10*20=200

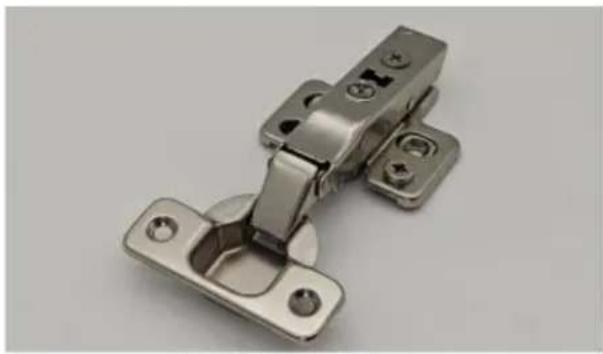

Φ35 CLIP ON ONE WAY (2D) FOUR-WAY ADJUSTABLE HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

K Ø35 9.5 45

Model	PHS25101
Cup Diameter	35
Cup Depth	10.6
Cup Pattern	45
Opening	100 °
Finish	Nickel-plated
Overlay	5
(K)	Full Overlay
Max.Dynamic Load (lbs/kg)	16.5/7.5

Part List
Code	Picture	Name	PHS25101-50	PHS25101-40
1		HINGES	50	40
2		4*16 SCREWS	8*25=200	8*20=160

Φ35 (3D) SIX-WAY ADJUSTABLE SOFT CLOSE FACE FRAME HINGE

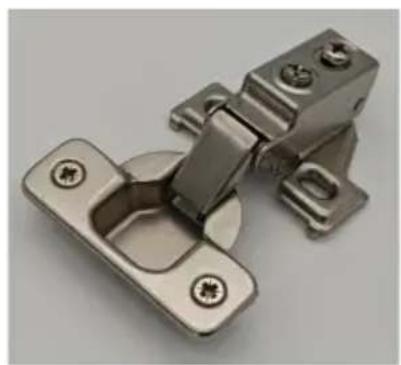

Close-up of a metallic glass plastic hinge component (no text or symbols visible)

K φ35 9.5 45

Model	PHS25201
Cup Diameter	35
Cup Depth	10.5
Cup Pattern	45
Opening	105 °
Finish	Nickel-plated
Overlay	3
(K)	1/2” / 12.7
Max.Dynamic Load (lbs/kg)	7.7/3.5

Part List
Code	Picture	Name	PHS25201-60	PHS25201-30	PHS25201-20
1		HINGES	60	40	20
2		4*16 SCREWS	6*30=180	6*15=90	6*10=60
3		4*20 SCREWS	2*30=60	2*15=30	2*10=20
3		NUTS (Optional)	4*30=120	4*15=60	4*10=40
4		SCREWS (Optional)	4*30=120	4*15=60	4*10=40

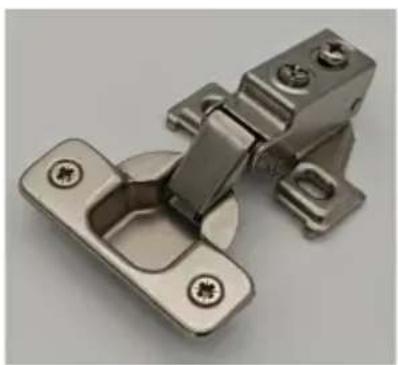

Φ35 (2D) FOUR-WAY ADJUSTABLE SOFT CLOSE FACE FRAME HINGES

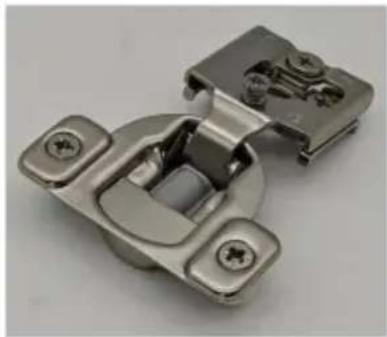

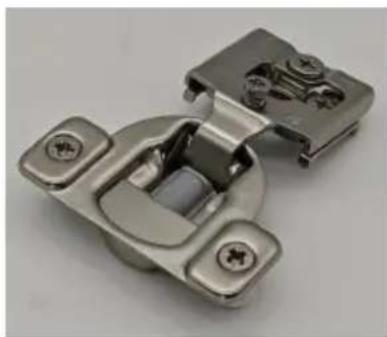

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

K Ø35 Ø5 45

Model	PHS24501
Cup Diameter	35
Cup Depth	10.5
Cup Pattern	45
Opening	105 °
Finish	Nickel-plated
Overlay	3
(K)	1/2” / 12.7
Max.Dynamic Load (lbs/kg)	7.7 / 3.5

Part List
Code	Picture	Name	PHS24501-50	PHS24501-40
1		HINGES	50	40
2		4*16 SCREWS	4*25=150	4*20=120
3		4*20 SCREWS	2*25=50	2*20=40
4		NUTS (Optional)	4*25=100	4*20=80
5		SCREWS(Optional)	4*25=100	4*20=80

OPERATION

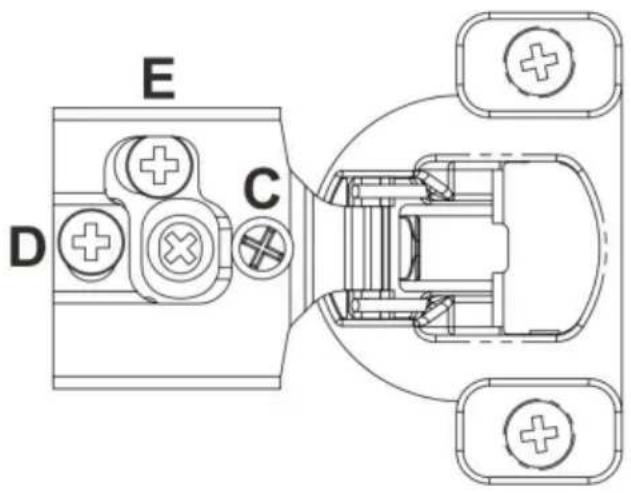

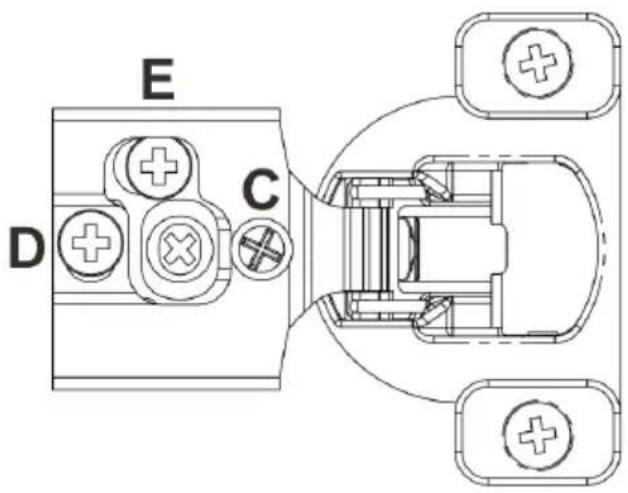

Φ35 (3D) SIX-WAY ADJUSTABLE SOFT CLOSE FACE FRAME HINGE

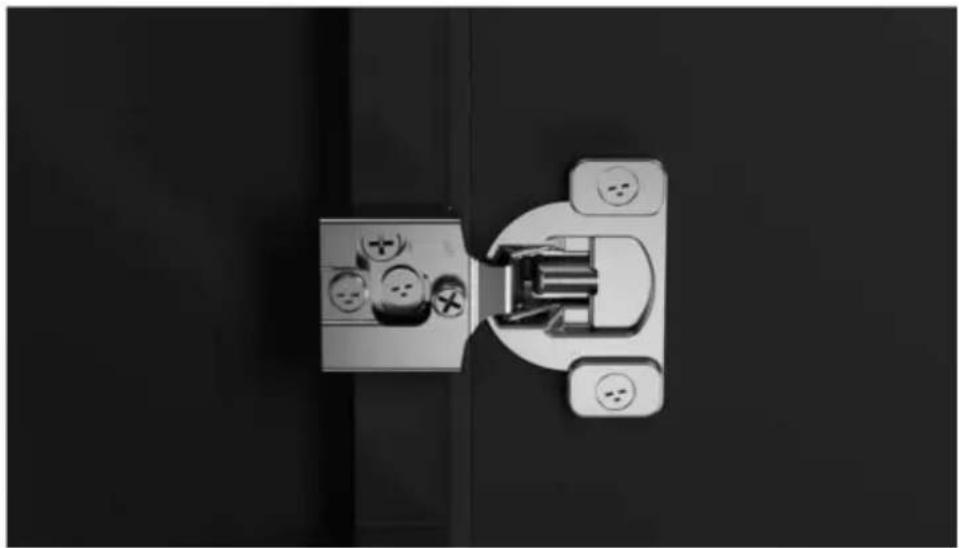

Top-down view of a door with three switches and a highlighted electrical outlet (no text or symbols visible)

Adjustment Range: E C D

C Overlay (Left/Right)

Adjustment: ±1.8mm

D Overlay (Front/back)

Adjustment: ±2.0mm

E Overlay (Up/down)

Adjustment: ±1.5mm

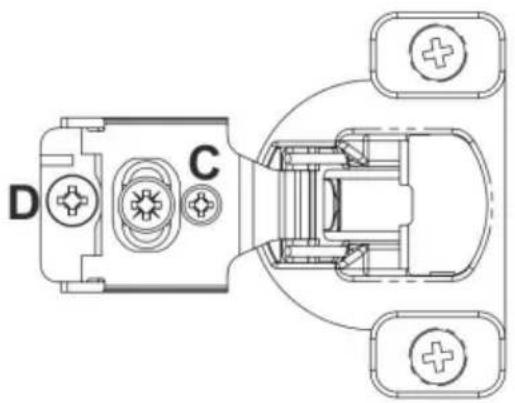

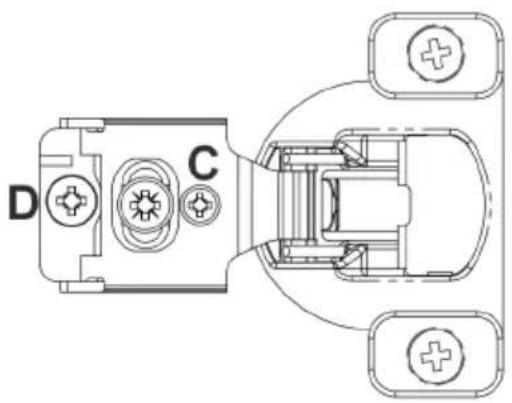

Installation instructions Φ35 (2D) FOUR-WAY ADJUSTABLE SOFT CLOSE FACE FRAME HINGES Vevor PHS24501-40 - OPERATION - 3

Close-up of a metallic door handle assembly with cartoon figures, mounted on a dark surface (no text or symbols visible)

Adjustment Range:

D C

C Overlay (Left/Right)

Adjustment: ±1.8mm

D Overlay (Front/back)

Adjustment: ±2.0mm

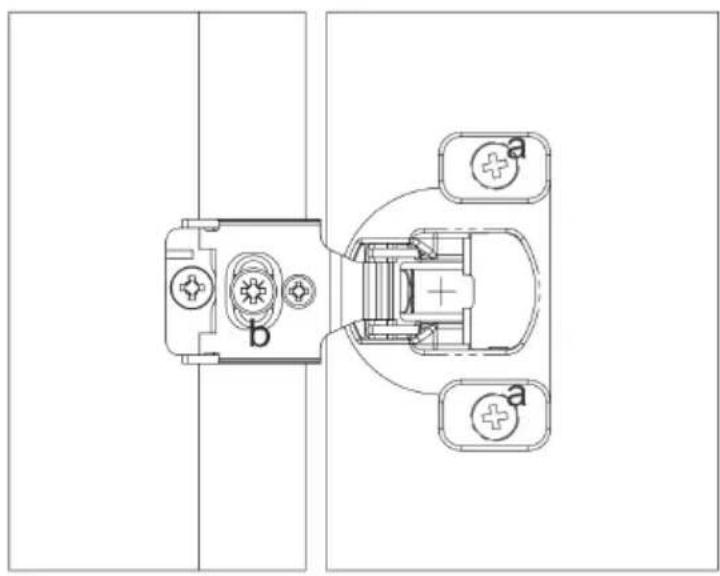

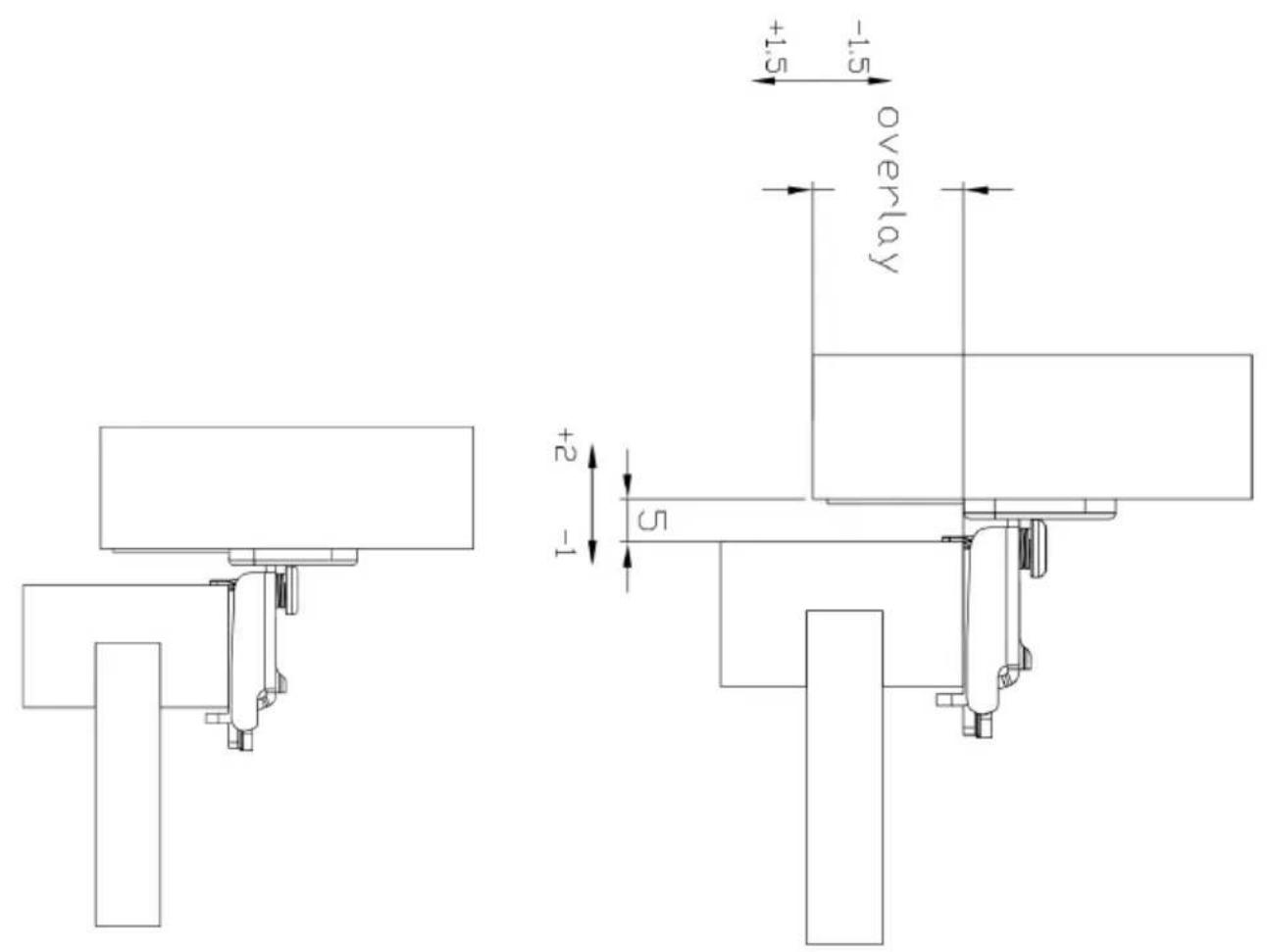

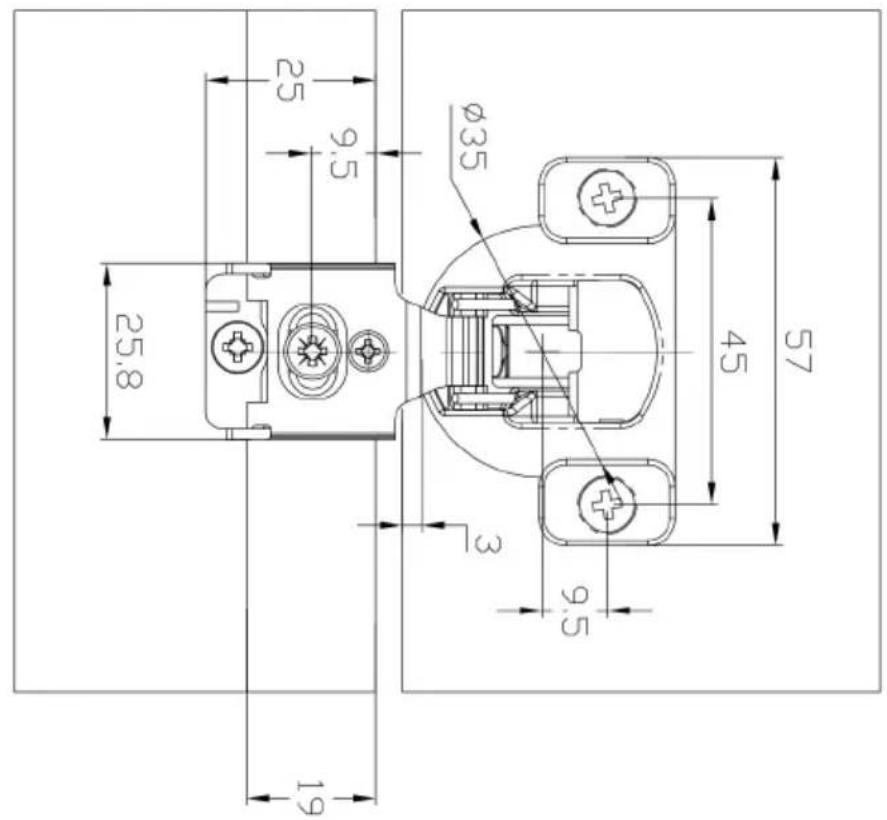

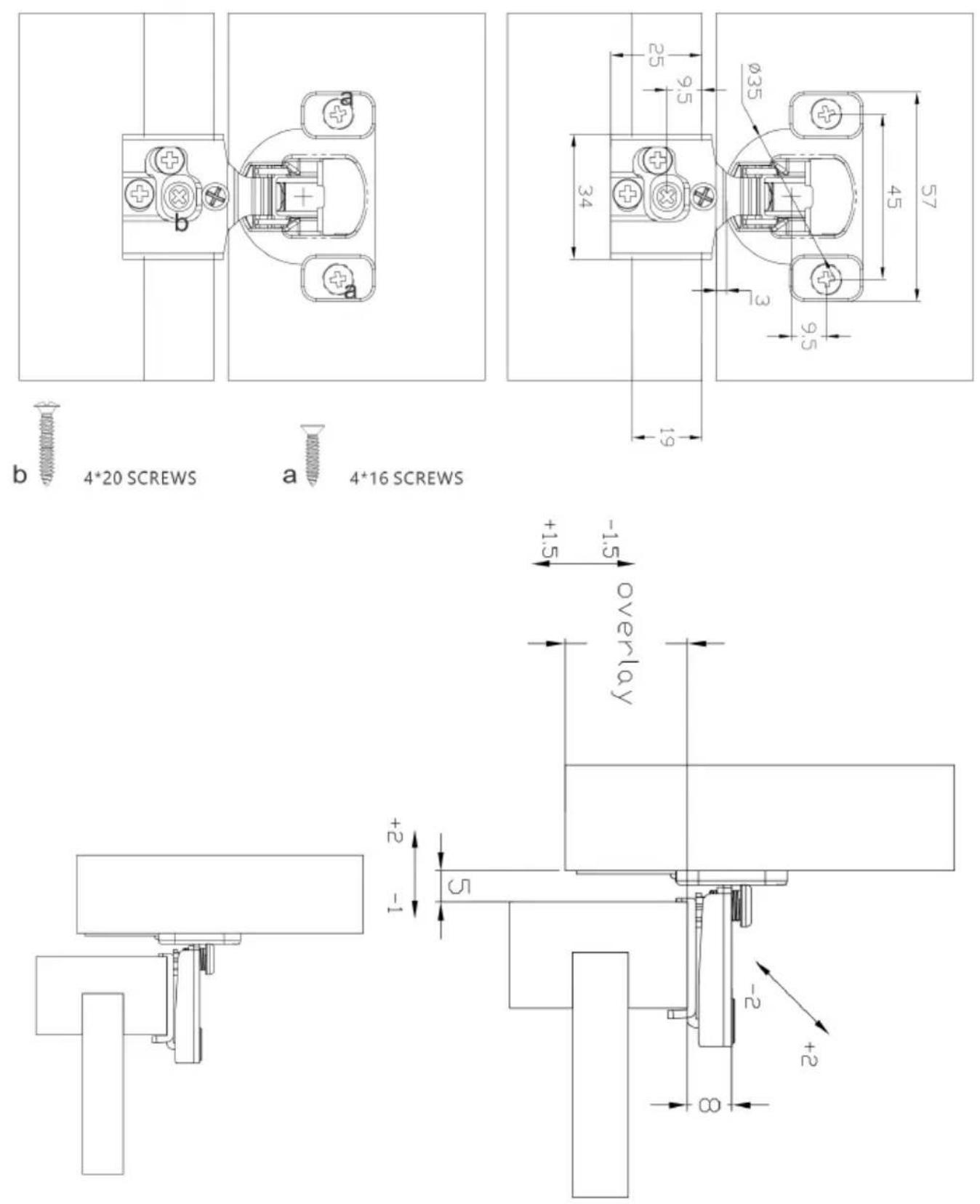

Installation instructions Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating flow or movement.

b 4*20 SCREWS a 4*16 SCREWS

25 9.5 Ø35 25.8 45 57 3 9.5 19

+1.5 -1.5 overlay +2 -1 5

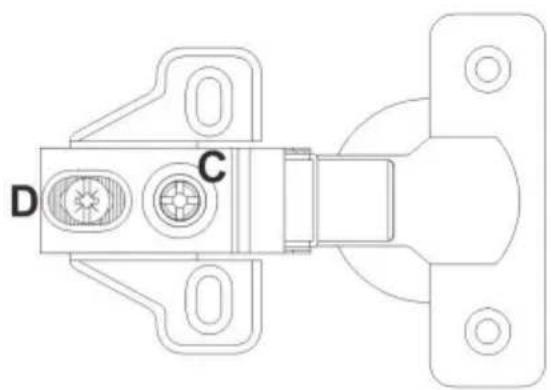

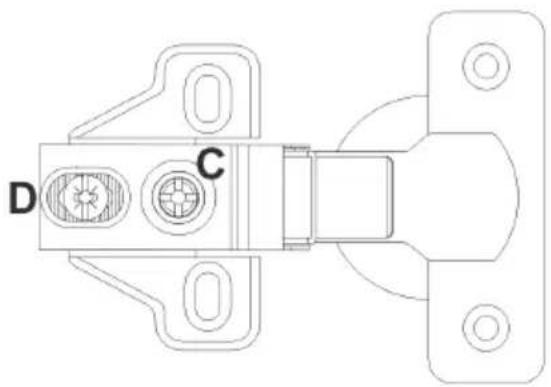

Φ35 fixed on one-way short arms hydraulic buffering hinges

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Adjustment Range:

Technical line drawing of a mechanical hinge component with labeled points D and C (no text or symbols beyond labels)

C Overlay (Left/Right)

Adjustment: ±1.0mm

D Overlay (Front/back)

Adjustment: ±2.0mm

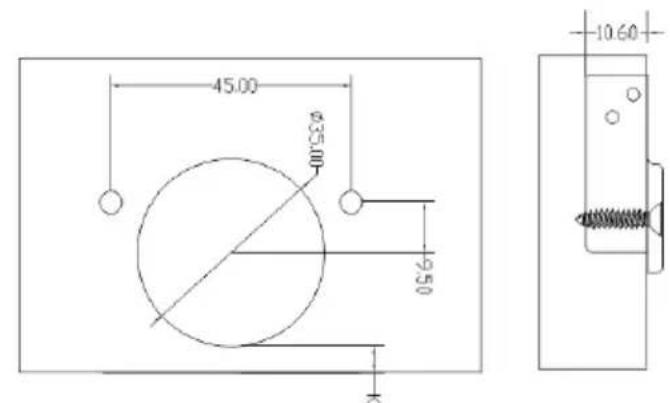

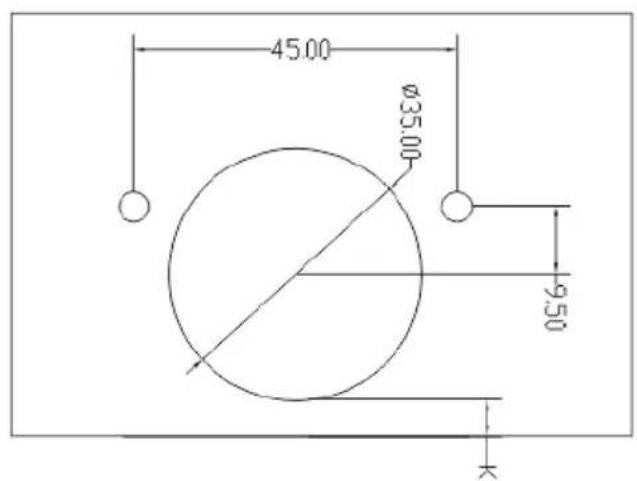

45.00 Ø35.00 9.50

10.60

H\K	3	4	5	6
0	16	17	18	19

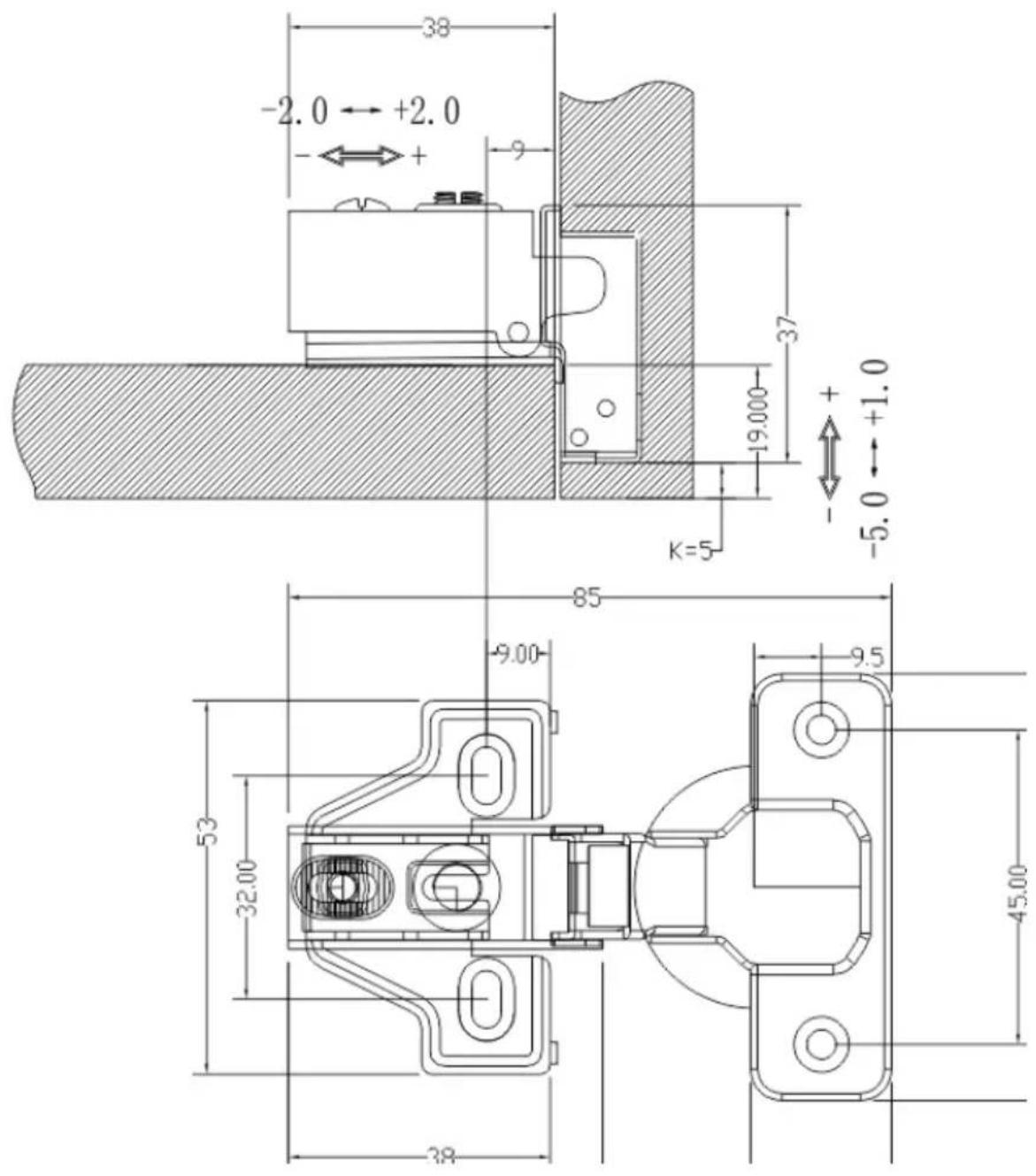

38 -2.0 ← +2.0 ← + + 9 37 19.000 + -5.0 ← +1.0 K=5 85 -9.00 53 32.00 9.5 45.00 39

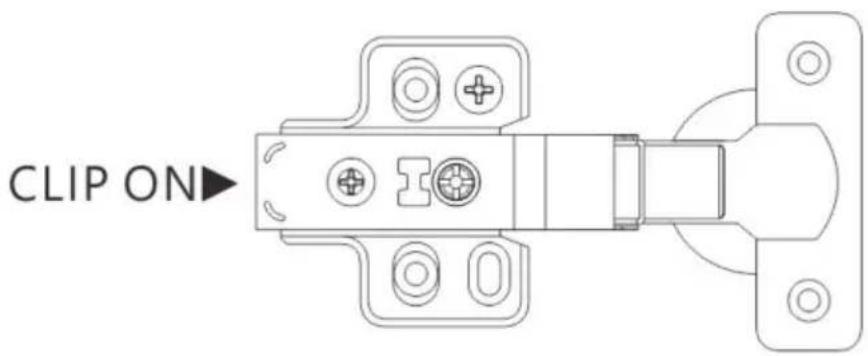

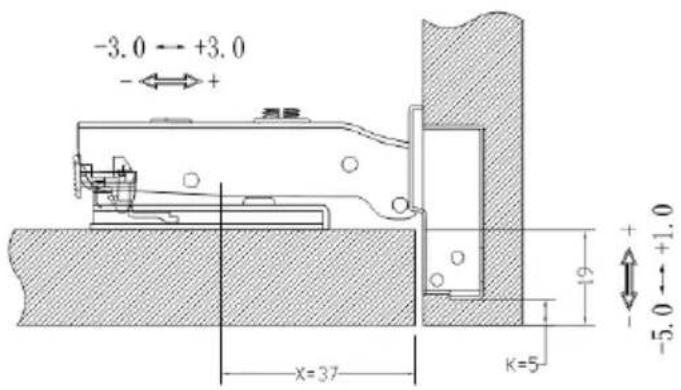

Φ35 clip on one-way hydraulic buffering hinges Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

Adjustment Range:

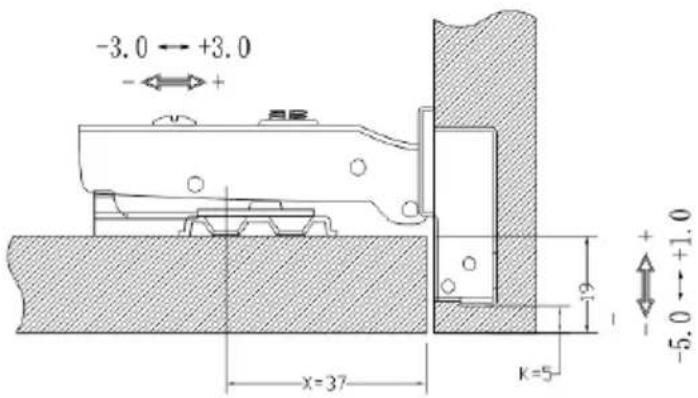

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

C Overlay (Left/Right)

Adjustment: ±1.0mm

D Overlay (Front/back)

Adjustment: ±3.0mm

45.00 950 950 10.60

H\K	3	4	5	6
0	16	17	18	19

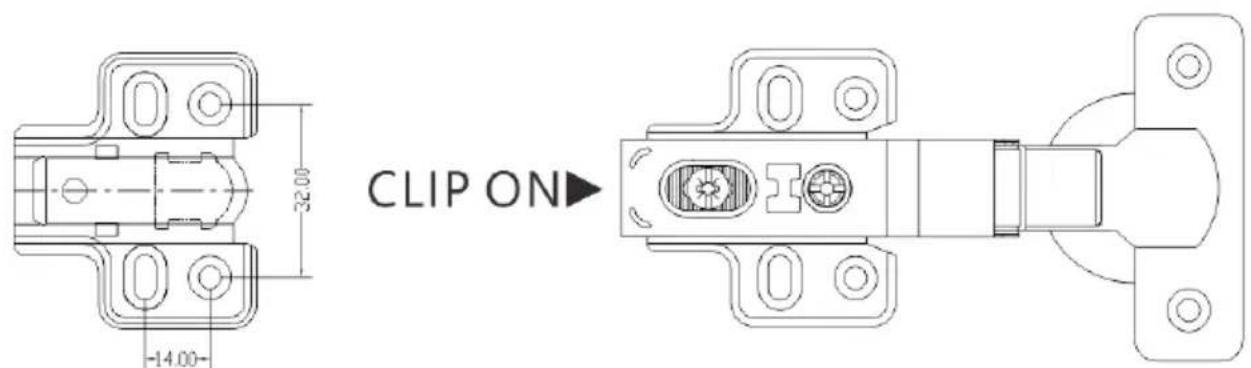

-3.0 ← +3.0 ← ← + X=37 K=5 + 1.0 -5.0 ← +1.0

32.00 -14.00 CLIP ON

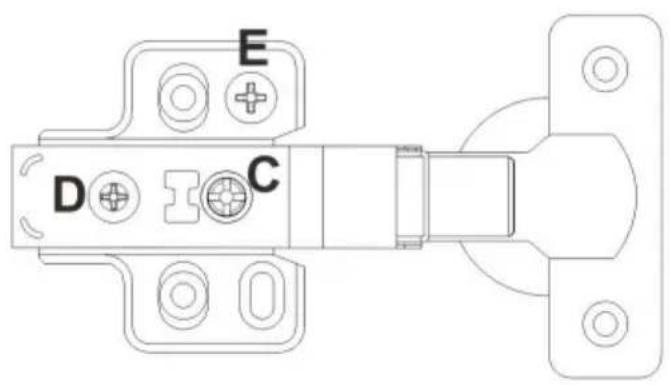

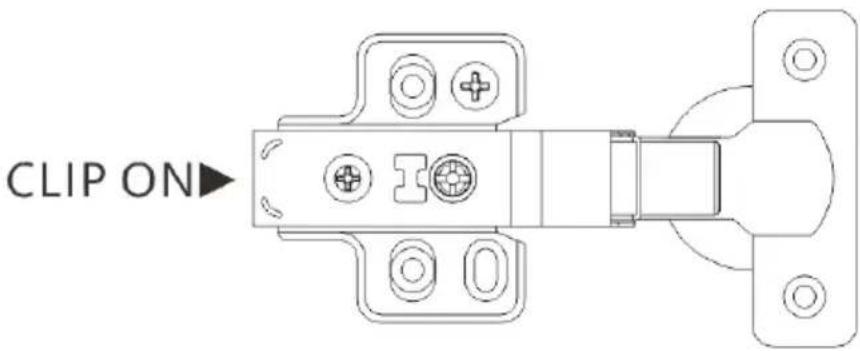

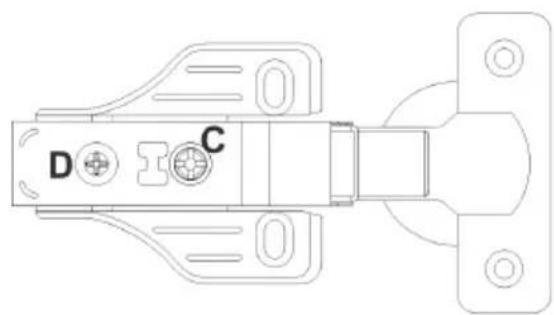

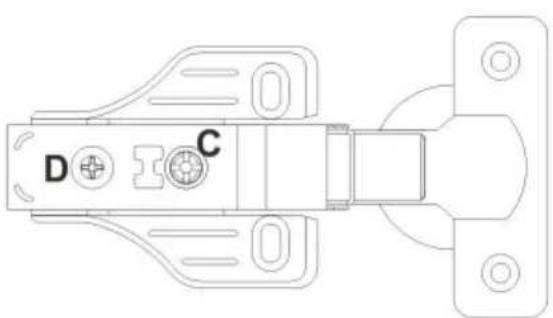

Φ35 clip on one-way (3D) six-way adjustable hydraulic buffering hinge

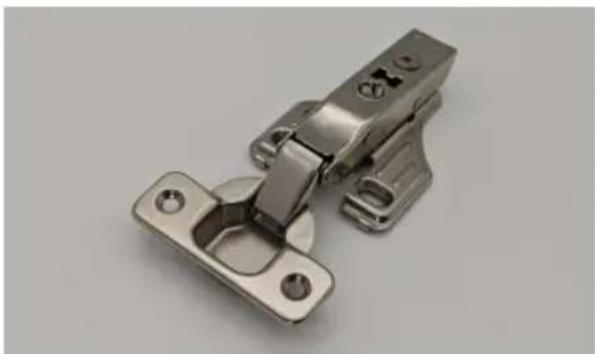

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

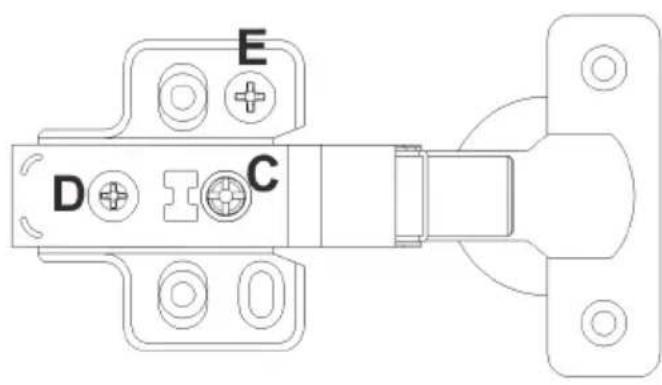

Adjustment Range:

E D C

C Overlay (Left/Right)

Adjustment: ±1.0mm

D Overlay (Front/Back)

Adjustment: ±3.0mm

E Overlay (Up/Down)

Adjustment: ±2.0mm

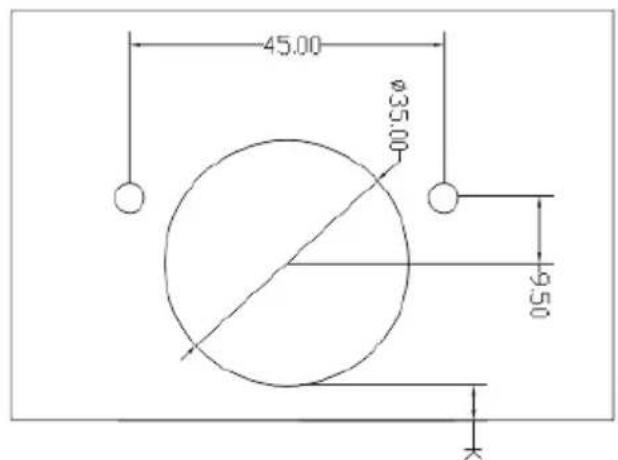

45.00 Ø35.00 950

10.60

H\K	3	4	5	6
0	16	17	18	19

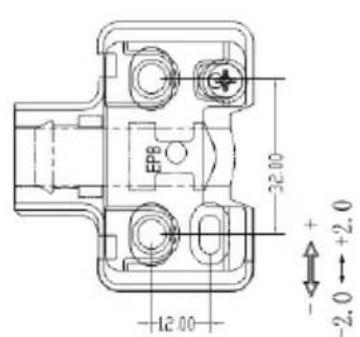

-3.0 ← +3.0 ← ← + Difference X=37 K=5 +19 -5.0 ← +1.0

EP8 32.00 -12.00 + -2.0 +2.0

CLIP ON

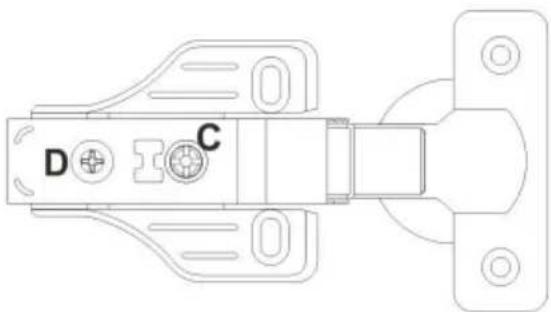

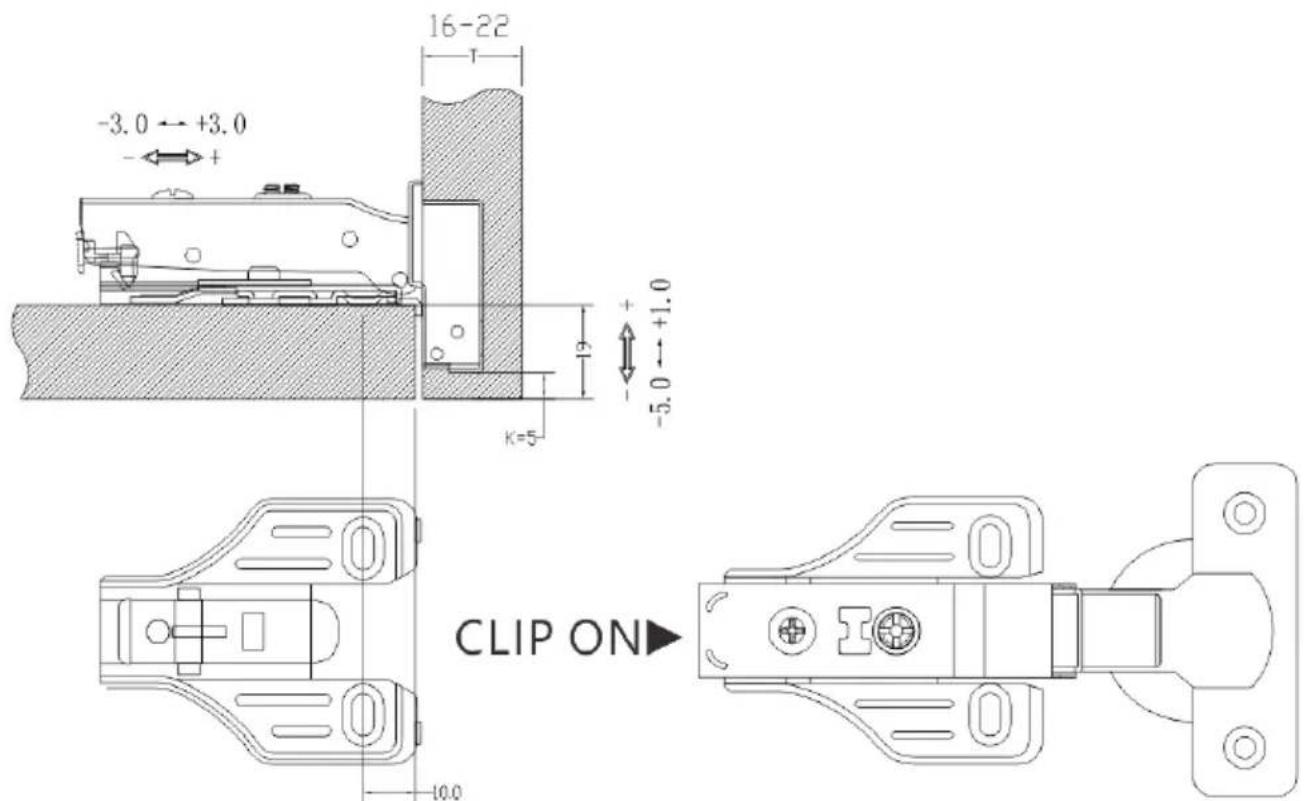

Φ35 CLIP ON ONE WAY (2D) FOUR-WAY ADJUSTABLE HYDRAULIC BUFFERING HINGES Metal-colored plastic hinge component with mounting holes and a small inset view (no text or symbols visible)

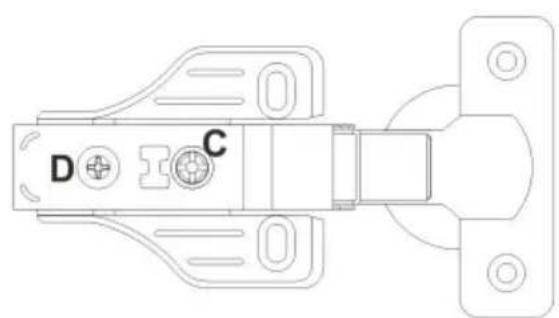

Adjustment Range:

Technical line drawing of a mechanical component with labeled parts D and C (no text or symbols beyond labels)

C Overlay (Left/Right)

Adjustment: ±1.0mm

D Overlay (Front/Back)

Adjustment: ±3.0mm

45.00 Ø35.00 9.50 10.60

H\K	3	4	5	6
0	16	17	18	19

16-22 -3.0 ← +3.0 ← + + K=5 + -5.0 ← +1.0 CLIP ON 10.0

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

PHS23601-60

Close-up of a metallic glass hinge with mounting holes and a central handle (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

PHS23701-40/50PHS25001-60

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

PHS25101-40/50 PHS25201-20/30/60

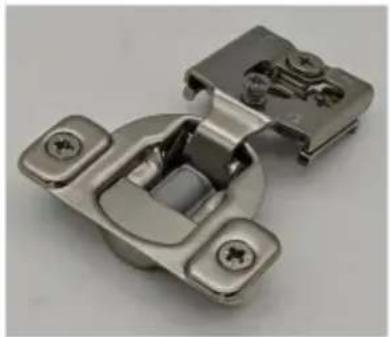

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50

NEED HELP? CONTACT US!

K φ35 9.5 45

Adjustment range:

E C D

C Overlap (left/right)

Adjustment range:

D C

Overlap C (left/right)

Adjustment range:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

C Overlay (left/right)

Adjustment range:

Technical line drawing of a mechanical assembly with labeled components D and C (no text or symbols beyond labels)

C Overlay (left/right)

Φ35 CLIP ON UNIQUE (3D) SIX-WAY ADJUSTABLE HYDRAULIC BUFFER HINGE

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Adjustment range:

E D C

C Overlay (left/right)

CLIP ON

Φ35 CLIP ON SINGLE (2D) FOUR-WAY ADJUSTABLE HYDRAULIC BUFFER HINGES Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Adjustment range:

Technical line drawing of a mechanical latch or connector with labeled parts D and C (no text or symbols beyond labels)

C Overlay (left/right)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported into Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

PHS23601-60

Close-up of a metallic glass hinge component with mounting holes (no text or symbols visible)

PHS25001-60 PHS23701-40/50

Close-up of a metallic glass intra-day hinge (DHS) with mounting holes (no text or symbols visible)

Metallic plastic hinge component with mounting holes and a central cutout (no text or symbols visible)

PHS25101-40/50 PHS25201-20/30/60

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

Close-up of a metallic glass Tunisia coefficient hinge (no text or symbols visible)

PHS24501-40/50

K φ35 9.5 45

Adjustment range: E D C + + + × + +

C- Overlay (left/right)

Adjustment range:

D C

Adjustment range:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Adjustment range: Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

C- Overlay (left/right)

35 CLIP ON EINWEG (3D) SIX-WAY ADJUSTABLE HYDRAULIC BUFFER HINGE

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Adjustment range:

E D C

C- Overlay (left/right)

CLIP ON

35 CLIP ON EINWEG (2D) FOUR-WAY ADJUSTABLE HYDRAULIC BUFFER HINGES Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Setting range:

Technical line drawing of a mechanical latch or latch component with labeled parts D and C (no text or symbols beyond labels)

C- Overlay (left/right)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Imported by AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported into the USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Vevor PHS24501-40 - CLIP ON EINWEG (3D) SIX-WAY ADJUSTABLE HYDRAULIC BUFFER HINGE - 6

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Model PHS25101-40/50

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic glass hinge component (no text or symbols visible)

K, φ35, 9.5, 45

Vevor PHS24501-40 - TOUGH TOOLS, HALF PRICE - 9

4*20 SCREWS

Vevor PHS24501-40 - TOUGH TOOLS, HALF PRICE - 10

4*16 SCREWS

25 9.5 Ø35 25.8 45 57 13 9.5 19

+1.5 -1.5 overlay +2 -1 5

35 FIXED ON SHORT ARMS UNIDIRECTIONAL HYDRAULIC DAMPER HINGE

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

35 CLIP ON UNIDIRECTIONAL (3D) HYDRAULIC ADJUSTABLE SIX-WAY HINGE FOR SEALING

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

CLIP ON

35 CLIP ON UNIDIRECTIONAL (2D) HYDRAULIC ADJUSTABLE FOUR-WAY HINGE FOR SEALING Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported into USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

electronics www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

PHS23601-60

Close-up of a metallic glass hinge component with mounting holes (no text or symbols visible)

PHS25001-60

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

PHS23701-40/50

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

PHS25101-40/50

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50

www.vevor.com/support

K φ35 9.5 45

Adjustment range:

E D C + + × +

Adjustment range: D C

Vevor PHS24501-40 - TOUGH TOOLS, HALF PRICE - 14

4*20 SCREWS

Vevor PHS24501-40 - TOUGH TOOLS, HALF PRICE - 15

4*16 SCREWS

25 9.5 Ø35 25.8 45 57 13 9.5 19

+1.5 -1.5 overlay +2 -1 5

Adjustment range:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Adjustment range:

Technical line drawing of a mechanical assembly with labeled components D and C (no text or symbols beyond labels)

Adjustment range:

E D C

CLIP ON

Φ35 CLIP IN ONE WAY (2D) FOUR WAY ADJUSTABLE HYDRAULIC DAMPING HINGES Metallic stainless steel hinge component with mounting holes and a small circular feature (no text or symbols visible)

Adjustment range:

D C

Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Mainzer Landstr.69,

PHS23601-60

Close-up of a metallic glass hinge component with mounting holes and a central handle (no text or symbols visible)

PHS25001-60 PHS23701-40/50

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

PHS25101-40/50

Close-up of a metallic glass hinge component with mounting holes (no text or symbols visible)

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50PHS25201-20,

NEED HELP? CONTACT US!

K φ35 9.5 45

Adjustment range:

E D C + + × +

Adjustment range:

D C

Vevor PHS24501-40 - TOUGH TOOLS, HALF PRICE - 38

4*20 SCREWS

Vevor PHS24501-40 - TOUGH TOOLS, HALF PRICE - 39

4*16 SCREWS

25 9.5 Ø35 25.8 45 57 13 9.5 19

+1.5 -1.5 overlay +2 -1 5

Φ35 MOUNTED ON DISPOSABLE SHORT ARMS BUFFER-HYDRAULIC HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Adjustment range:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Adjustment range:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Φ35 SINGLE-USE CLAMP (3D) SIX-WAY ADJUSTABLE HYDRAULIC BUFFERED HINGE

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Adjustment range:

E D C

CLIP ON

Φ35 SINGLE-USE CLAMP (2D) FOUR-WAY ADJUSTABLE HYDRAULIC BUFFERED HINGES Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Adjustment range:

Technical line drawing of a mechanical latch or valve component with labeled ports (D, C) and mounting holes (no text or symbols beyond labels)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported into USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP WIEL KIEJ BRYTANII

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

PHS23601-60

Metal hinge with mounting holes and a recessed plastic sheet (no text or symbols visible)

PHS25001-60

Close-up of a metallic glass hinge with mounting holes (no text or symbols visible)

PHS23701-40/50

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS25101-40/50

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50

NEED HELP? CONTACT US!

www.vevor.com/support

K φ35 9.5 45

Model	PHS23601
Kopdiameter	35
Diepte van de beker	10.6
Koppatroon	45
Opening	100°
Finish	Vernikkeld
(K)	5
Overlappen	Volledige overlay
Max. dynamische belasting (pond/kg)	16,5/7,5

K φ35 9.5 45

Model	PHS25001
Kopdiameter	35
Diepte van de beker	10.6
Koppatroon	45
Opening	100
Finish	Vernikkeld
Overlappen	Volledige overlay
(K)	5
Max. dynamische belasting (pond/kg)	7,7/3,5

K φ35 9.5 45

Model	PHS23701
Kopdiameter	35
Diepte van de beker	10.6
Koppatroon	45
Opening	100°
Finish	Vernikkeld
Overlappen	5
(K)	Volledige overlay
Max. dynamische belasting (pond/kg)	16,5/7,5

K φ35 9.5 45

Model	PHS25101
Kopdiameter	35
Diepte van de beker	10.6
Koppatroon	45
Opening	100°
Finish	Vernikkeld
Overlappen	5
(K)	Volledige overlay
Max. dynamische belasting (pond/kg)	16,5/7,5

K φ35 9.5 45

Model	PHS25201
Kopdiameter	35
Diepte van de beker	10.5
Koppatroon	45
Opening	105°
Finish	Vernikkeld
Overlappen	3
(K)	1/2" / 12,7
Max. dynamische belasting (pond/kg)	7,7/3,5

Onderdelenlijst
Code Afbeelding	Naam	PHS25201-60	PHS25201-30	PHS25201-20
1	SCHARNIEREN	60	40	20
2	4*16SCHROEVEN	630=180 615=90		6*10=60
3	4*20SCHROEVEN	2*30=60	2*15=30	2*10=20
3	NOTEN(Optioneel)	430=120 415=60		4*10=40
4	SCHROEVEN(Optioneel)	430=120 415=60		4*10=40

35(2D) FOUR-WAY ADJUSTABLE SOFT CLOSE FACE FRAME HINGES

OPERATION Close-up of a metallic mechanical component with mounting holes and internal cavity (no text or symbols visible)

K φ35 9.5 45

Model	PHS24501
Kopdiameter	35
Diepte van de beker	10.5
Koppatroon	45
Opening	105°
Finish	Vernikkeld
Overlappen	3
(K)	1/2” / 12,7
Max. dynamische belasting (pond/kg)	7,7 / 3,5

Onderdelenlijst
Code	Afbeelding	Naam PHS2	24501-50 PHS24501-40
1		SCHARNIEREN	50	40
2		4*16 SCHROEVEN	4*25=150	4*20=120
3		4*20 SCHROEVEN	2*25=50	2*20=40
4		NOTEN (Optioneel)	4*25=100	4*20=80

5 4*20=80

Vevor PHS24501-40 - 35(2D) FOUR-WAY ADJUSTABLE SOFT CLOSE FACE FRAME HINGES - 7

SCHROEVEN (Optioneel)

4*25=100

35(3D) SIX-WAY ADJUSTABLE SOFT CLOSE FRAME HINGES

Adjustment range:

Top-down view of a door handle with two switches and three circular buttons, mounted on a dark surface (no text or symbols visible)

Adjustment: ±2.0 mm E

E D C + + + × + +

-overlay (up/down)

Adjustment: ±1.5 mm

Installation instructions 35(2D) FOUR-WAY ADJUSTABLE SOFT CLOSE FACE FRAME HINGES

Adjustment range: Vevor PHS24501-40 - 35(3D) SIX-WAY ADJUSTABLE SOFT CLOSE FRAME HINGES - 3

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Adjustment range:

D C

Adjustment range:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

35 CLIP ON ONE-WAY (3D) SIX-WAY ADJUSTABLE HYDRAULIC BUFFERING HINGE Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Adjustment range:

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Adjustment range:

E D C

Adjustment: ±3.0 mm E

Overlay (up/down)

Adjustment: ±2.0 mm

45.00 Ø35.00 9.50

10.60

H\K	3	4	5	6
0	16	17	18	19

-3.0 ← +3.0 ← ← + X=37 K=5 +1.0 -5.0 ← +1.0

EP8 32.00 H2.00 +2.0

CLIP ON

35 CLIP ON SINGLE DOOR (2D) FOUR-WAY ADJUSTABLE HYDRAULIC BUFFERING HINGES Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Adjustment range:

Technical line drawing of a mechanical latch or connector with labeled parts D and C (no text or symbols beyond labels)

C Overlay (left/right) Adjustment: ±1.0 mm D- overlay (front/back) Adjustment: ±3.0 mm

45.00 Ø35.00 9.50 10.60

H\K	3	4	5	6
0	16	17	18	19

16-22 -3.0 ← +3.0 ← + + K=5 + -5.0 ← +1.0 CLIP ON 10.0

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

PHS23601-60

Close-up of a metallic glass hinge with mounting holes and a handle (no text or symbols visible)

PHS25001-60 PHS23701-40/50

Metal-colored plastic hinge component with mounting holes and mounting holes (no text or symbols visible)

Metal-colored plastic hinge component with mounting holes and a central handle (no text or symbols visible)

PHS25101-40/50

Close-up of two metallic plastic hinge clips with mounting holes (no text or symbols visible)

PHS25201-20/30/60

Close-up of a metallic plastic hinge component with mounting holes (no text or symbols visible)

PHS24501-40/50

NEED HELP? CONTACT US!

K φ35 9.5 45

Adjustment range:

E C D

Adjustment: ±2.0 mm E Overlay (up/down)

Adjustment: ±1.5 mm

Installation instructions ÿ35(2D) FOUR-WAY ADJUSTABLE SOFT CLOSE FRAME HINGE Vevor PHS24501-40 - NEED HELP? CONTACT US! - 8

Close-up of a door handle mechanism with cartoon figures and control buttons (no text or symbols visible)

Adjustment range:

D C

Vevor PHS24501-40 - NEED HELP? CONTACT US! - 11

4*20 SCREWS

Vevor PHS24501-40 - NEED HELP? CONTACT US! - 12

4*16 SCREWS

25 9.5 Ø35 25.8 45 57 13 9.5 19

+1.5 -1.5 overlay +2 -1 5

35 FAST ON ONE-WAY HYDRAULIC BUFFERING SHORT ARMS HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Adjustment range:

Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

Adjustment range: Technical line drawing of a mechanical hinge component with labeled parts D and C (no text or symbols beyond labels)

35 CLIP ON ONE WAY (3D) SIX-WAY ADJUSTABLE HYDRAULIC BUFFERING HINGES

Metal-colored plastic hinge component with mounting holes (no text or symbols visible)

Adjustment range: E D C

Adjustment: ±3.0 mm E

Overlay (up/down)

Adjustment: ±2.0 mm

45.00 Ø35.00 9.50

10.60

H\K	3	4	5	6
0	16	17	18	19

-3.0 ← +3.0 ← ← + X=37 K=5 +1.0 -5.0 ← +1.0

EP8 32.00 H2.00 +2.0

CLIP ON

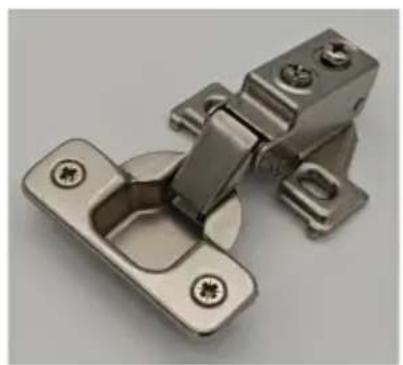

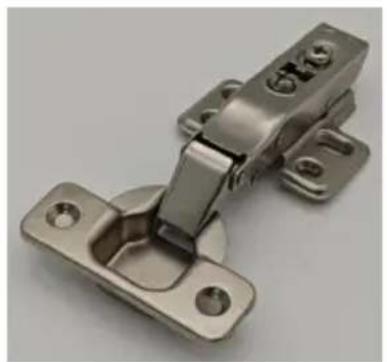

35 CLAMP ON ONE-WAY (2D) FOUR-WAY ADJUSTABLE HYDRAULIC BUFFERED HINGES Metallic stainless steel hinge component with mounting holes (no text or symbols visible)

Adjustment range:

Technical line drawing of a mechanical latch or connector with labeled parts D and C (no text or symbols beyond labels)

Adjustment: ±1.0 mm D

Overlay (front/back)

Adjustment: ±3.0 mm

45.00 Ø35.00 9.50 10.60

H\K	3	4	5	6
0	16	17	18	19

16-22 -3.0 ← +3.0 ← + + K=5 + -5.0 ← +1.0 CLIP ON 10.0

Manufacturer: Shanghaimuxinmuyeyouxiangongsi Address:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REP
