USER MANUAL JYG-33805 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SPORT SERIES

MODEL:JYG-33805

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SPORT SERIES

JYG-33805

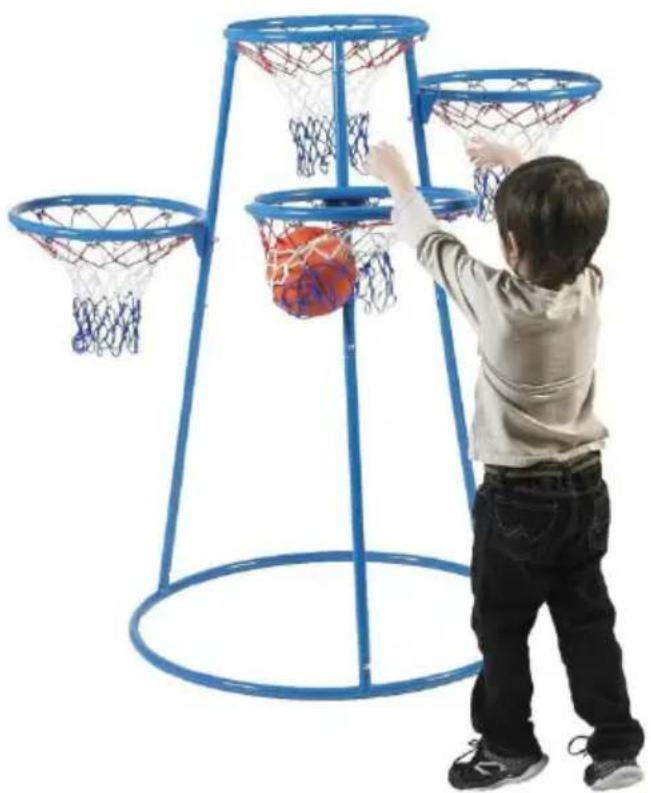

Child playing basketball on a blue hoop structure (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soi updates on our product.

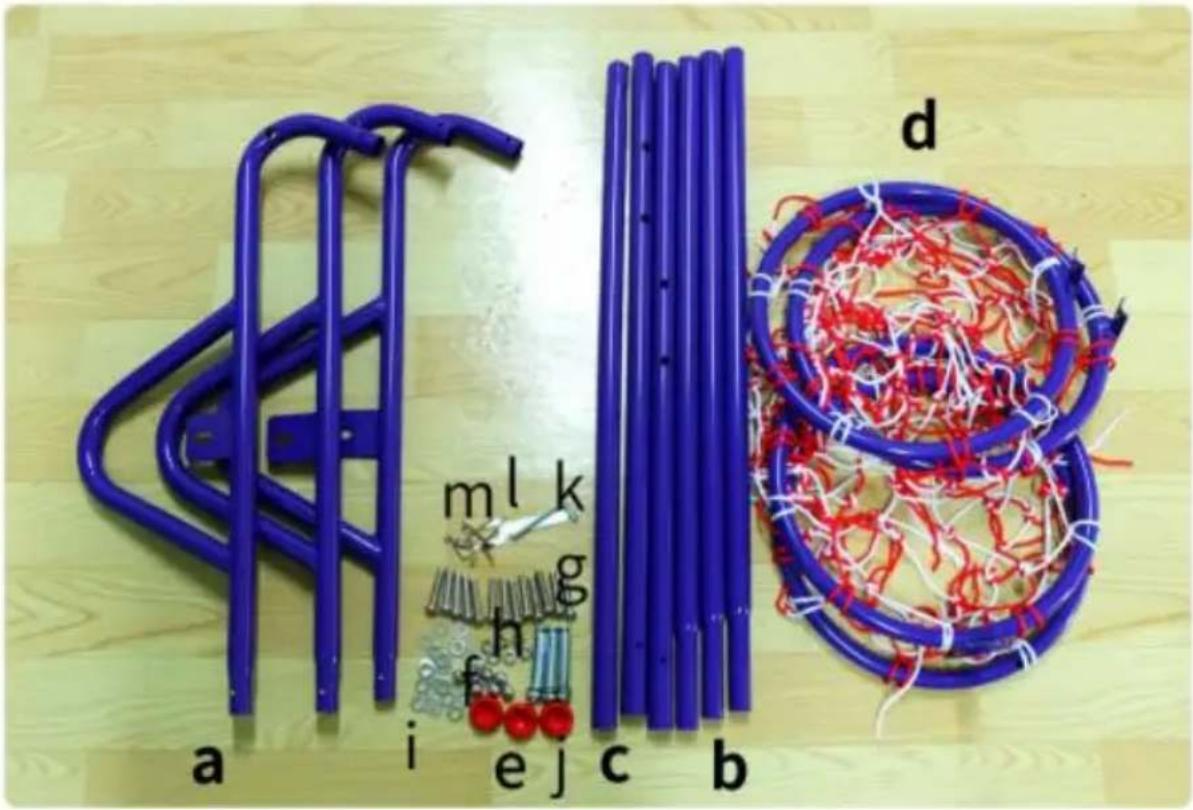

PARTS LIST

a i e j c b ml k g f h d

a. Basketball stand base x3	g. Long screw x12
b. Unperforated bracket x3	h. Spring washer x6
c. Perforated bracket x3	i. Flat washer x18
d. Basketball hoop x4	j. Expansion screw cap x3
e. Expansion screw x3	k. Allen wrench x1
f. Nut x6	l. Ordinary wrench x1

Note: pinch the gas tap of the basketball before inflating can make it get bett

INSTALLATION

Close-up of hands holding a blue plastic ring on a wooden surface (no text or symbols visible)

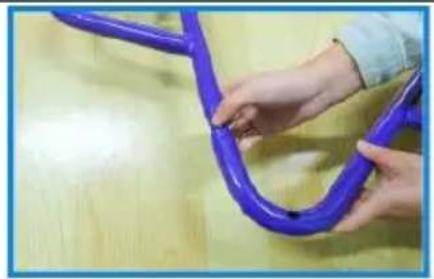

1. Place the basketball star base in position, press an hold the buckle to form the holes separately

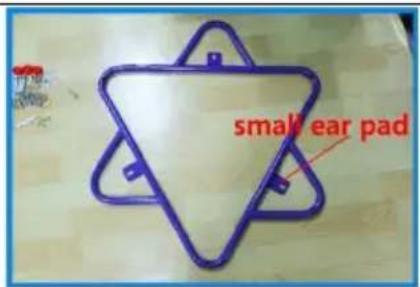

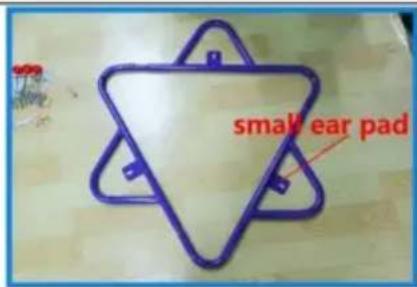

small ear pad

1. Pay attention to the direction: The small ear pads should be placed flu with the ground

Close-up of hands holding a purple cylindrical object on a light-colored surface (no text or symbols visible)

1. Insert the perforated bracket c and the unperforated bracket b one by one

Close-up of hands holding a blue plastic object with metal clamps, no visible text or symbols

Close-up of hands assembling a blue and red mechanical component with red ribbons (no visible text or symbols)

Close-up of a person adjusting a blue and red electrical circuit board (no visible text or symbols)

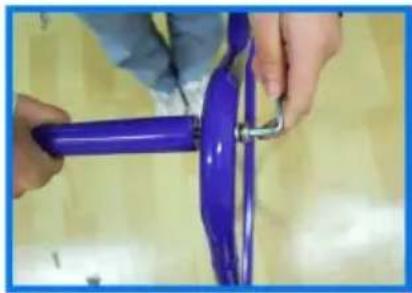

1. Use a long screw g, a washer i, and a spring washer h to insert and at the screw hole at the bot of the base and the insert upward perforated bracket c, and use an Allen wrench to secure them one by one. The other two are the same.

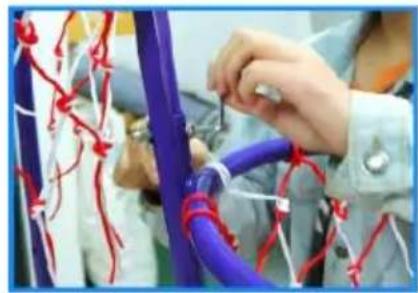

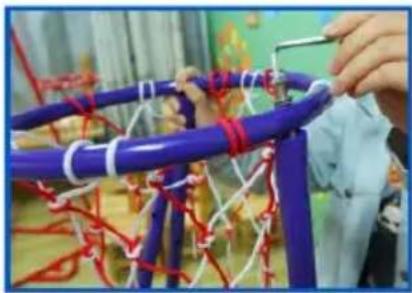

2. Install the basketball ho d without ears on the top the three brackets, and insert a long screw g, a washer i, and a spring washer h through the thre holes, and finally secure with an Allen wrench k

3. Install the basketball ho d with ears on the side ( three brackets, and insert long screws g, flat washer (one inside and one outside),and nuts f up and down, while using an Aller wrench k and an ordinary wrench to secure them.The other two are the same

Basketball hoop with red and white netting, displayed indoors with a red circular 'FRONT' sign in the background (no readable text on main subject)

BACK

Purple metal truss structure mounted on a grassy field, with yellow rope baskets and trees in the background (no text or symbols visible)

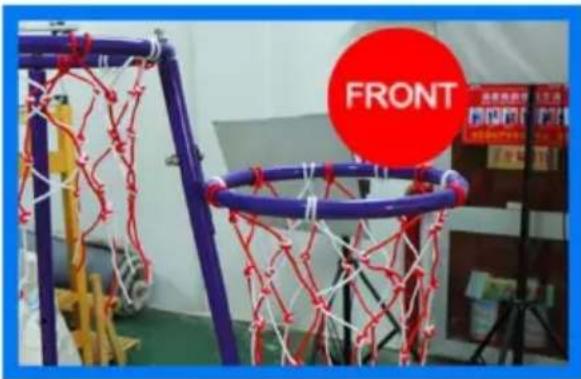

1. During the sixth step of installation, p attention. The flat one in this picture is front, and the tilted one is the back

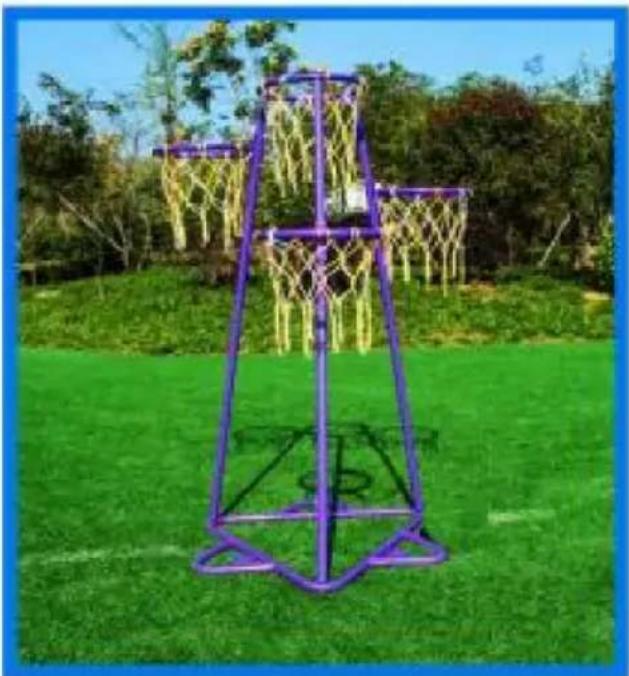

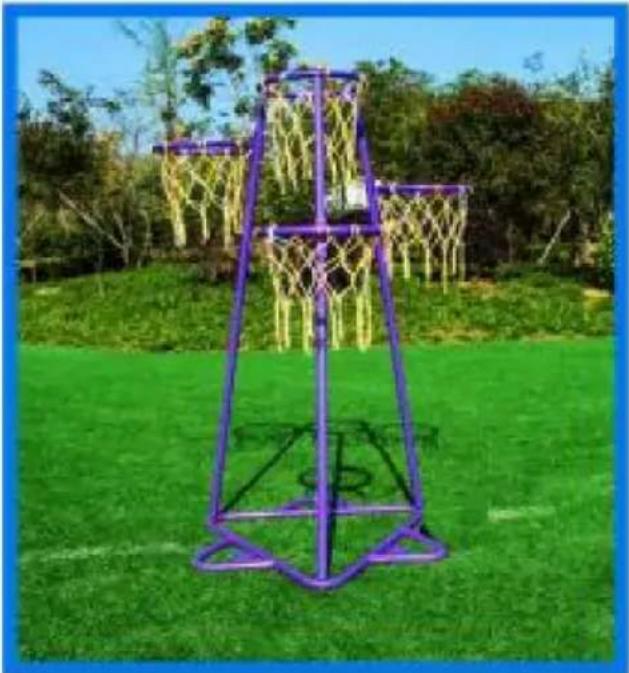

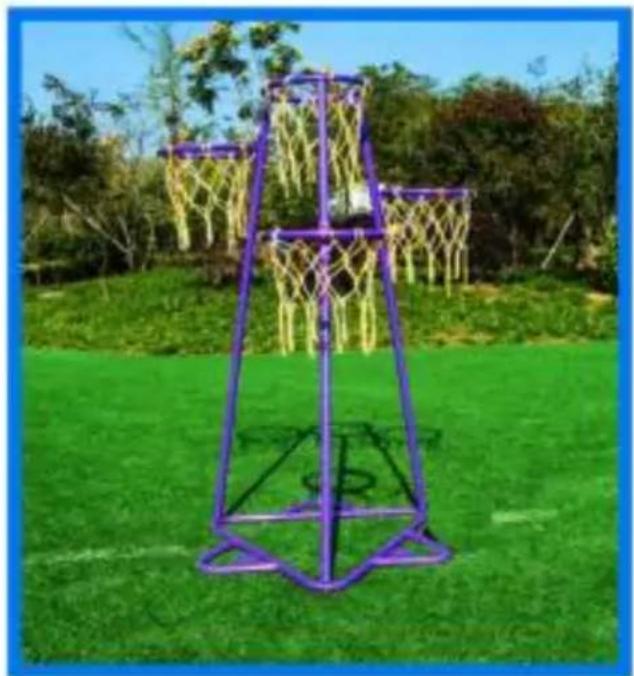

2. Installation completed (if fixing is require continue with steps 9 and 10)

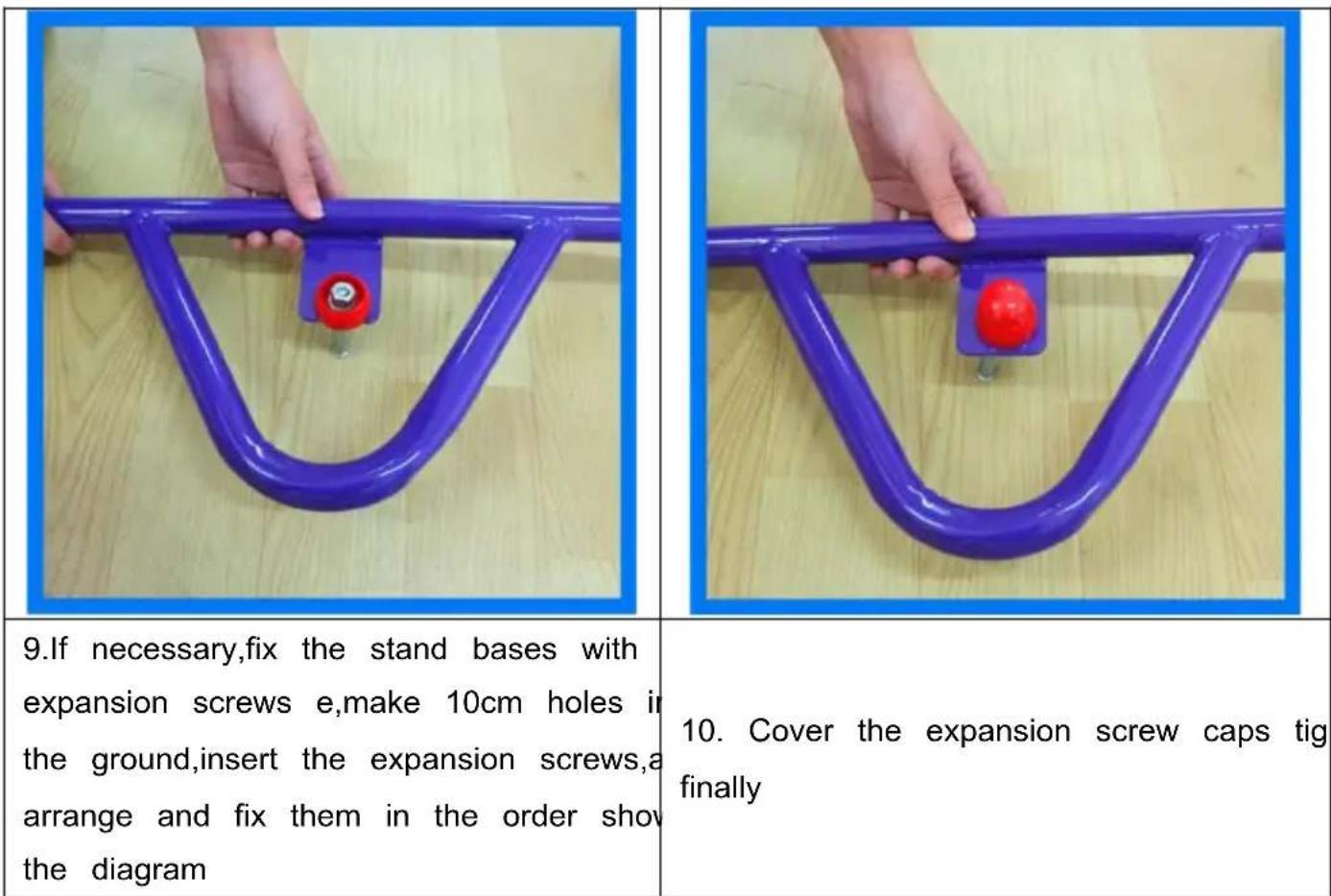

1. If necessary, fix the stand bases with expansion screws e, make 10cm holes in the ground, insert the expansion screws, a arrange and fix them in the order show the diagram

2. Cover the expansion screw caps tig finally

TIPS

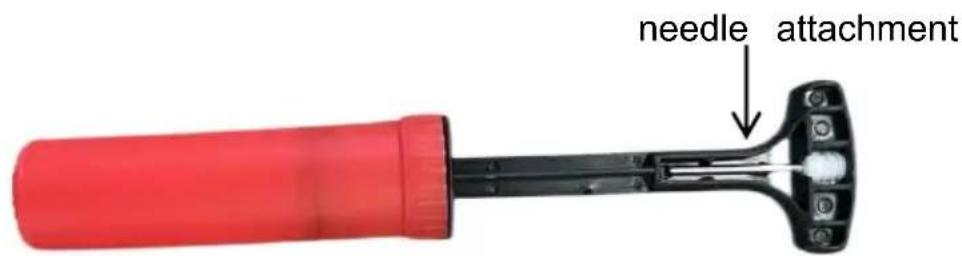

Your attention please.As shown in the following picture,the needle attachment laid in the top part of the pump.

needle attachment

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Roac Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
