MSCAR-004 - Car accessory Vevor - Free user manual and instructions

Product Type	Tailgate Pad (automotive accessory)
Brand	Vevor
Model	MSCAR-004
Compatible Bed Width	1350 mm
Transport Capacity	Up to 5 bicycles
Bicycle Securing Device	Not included
Surface Material	Coated PVC
Function	Waterproof
Net Weight	1.3 kg
Installation	Hanging on the tailgate with fixing straps
Maintenance	Clean with mild soap and water, avoid abrasives
Safety	Keep away from open flames, do not use if damaged
Storage	Store in a dry place after complete drying
Package Contents	Tailgate pad, fixing straps
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Color	Black (default)
Main Use	Tailgate protection when transporting bicycles or surfboards
Precautions	Do not install under the influence of substances, keep out of reach of children
Cleaning after rain	Dry before storing to prevent mold

Frequently Asked Questions - MSCAR-004 Vevor

How to install the Vevor MSCAR-004 tailgate pad?

Hang the pad on the tailgate with the cradles positioned on the lip. Clean the tailgate, lift the central flap to access the handle, partially open the tailgate, then thread the 3 straps through the bottom and tighten them into the buckles. Make sure the straps are well tensioned.

What is the transport capacity of the MSCAR-004?

This model can transport up to 5 bicycles simultaneously. It is compatible with truck beds of 1350 mm width.

Is the MSCAR-004 tailgate pad waterproof?

Yes, the pad is waterproof and protects your tailgate from rain and splashes. However, if it gets wet, it is recommended to dry it before storing to prevent mold.

How to clean the Vevor tailgate pad?

Use a mild soap and water with a sponge. Do not use abrasive cleaners or hard brushes that could damage the PVC coating.

Is the MSCAR-004 delivered with bicycle securing straps?

No, this model does not include a securing device for bicycles. The cradle straps are available separately to secure the lower tubes of the bicycles.

What safety precautions should be taken?

Keep the pad away from open flames as it is flammable. Inspect it before each use for any broken or loose parts. Do not let children play with it.

Can I use this pad to transport surfboards?

Yes, it can also be used to secure surfboards. Make sure they are well attached with the provided straps.

How to store the pad when not in use?

Fold it and store it in a dry and safe place, out of reach of children. If it has been wet, dry it completely before storing.

What is the warranty for the Vevor MSCAR-004 product?

Vevor offers technical support and an electronic warranty certificate. Visit www.vevor.com/support for more information.

Does this pad fit all types of tailgates?

It is designed for truck tailgates with a width of 1350 mm. Check the dimensions of your tailgate before purchase. Installation is universal for most pickup trucks.

USER MANUAL MSCAR-004 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TAILGATE PAD

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL:

Two technical line drawings of electronic components with pins and connectors, no text or symbols present

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warning and instructions can cause personal injury or damage to valuable property.

• While assembling and using this product, keep the work area clean and well-lighted, and keep spectators and children out of the work area.
• Use as intended only.
• Before each use, inspect the general condition of the product. Check for bit cracked, or bent parts, loose or missing parts, and any condition that may act the proper operation of the product.
• After every use, wipe with a clean cloth. Then, store the product in a safe location out of reach of children and other non-authorized people.
• This product is not a toy; avoid children using Tailgate Pad. Do not allow children to play.
• Keep away from sharp points, blades and other items.
• Keep away from open flame. This product will ignite and burn if brought in contact with an open flame.

INSTALLATION PRECAUTIONS

1. Installation only according to these instructions. Improper installation can create hazards.
2. Keep the installation area clean and well-lit.
3. Keep bystanders out of the area during assembly.
4. Do not install when tired or when under the influence of alcohol, drugs of medication.
5. Product capabilities apply to properly and completely installed products only
6. For additional information regarding the parts listed in the following pages, please refer to the Accessories package of this manual. Unwrap and separate parts in a clean work area. Please keep small spare parts out of children's

SAVE THESE INSTRUCTIONS

INSTALLATION

Illustration of three hands cleaning items: a sponge, a bucket, and a cloth (no text or symbols)

Line drawing of a pickup truck front view showing side panels and rear door (no text or symbols)

1. Clear up the Tailgate.

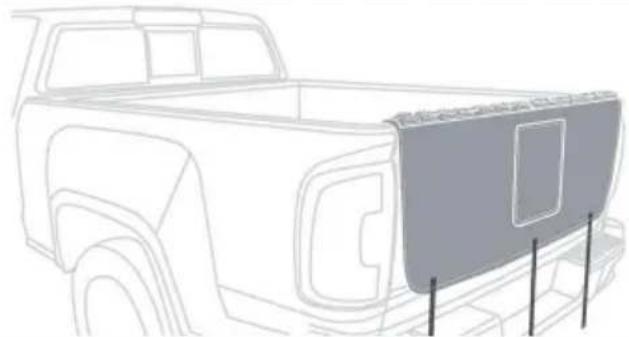

2. Hang pad over the tailgate with cradles positioned on the lip.

Sketch of a hand pressing down on a mechanical component (no text or symbols visible)

Diagram of a car interior showing curved and straight lines with directional arrows indicating movement or force (no text or symbols)

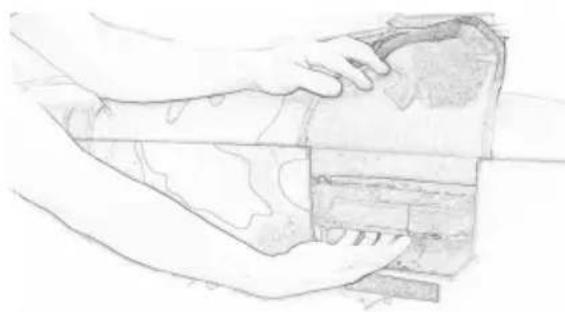

1. Lift up the center flap to ga access to the tailgate handle.

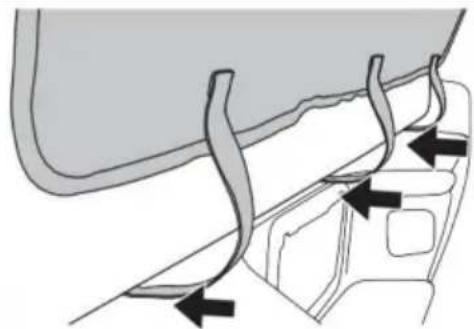

2. Partially open and hold the tailgate in pl Thread the 3 secure straps through the bo CAUTION: Beware not to have fingers caught in the gap.

A

Illustration of hands holding a small object, possibly a tool or device, with no visible text or symbols.

B

Illustration of a person's arm holding a belt, no text or symbols present

C

Illustration of two hands adjusting a belt or buckle (no text or symbols present)

D

1. Thread straps through buckle and tighten.

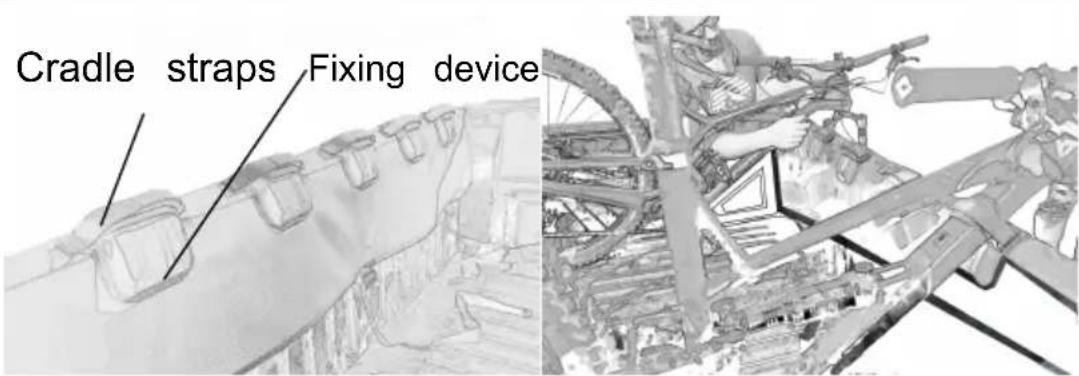

Cradle straps Fixing device

1. Cradle straps are available to secure bicycles. They are desire the down tubes of your bicycles.

Caution: When installing the bike, be careful that the bike scratch paint on other parts of the truck outside the tailgate pad cove

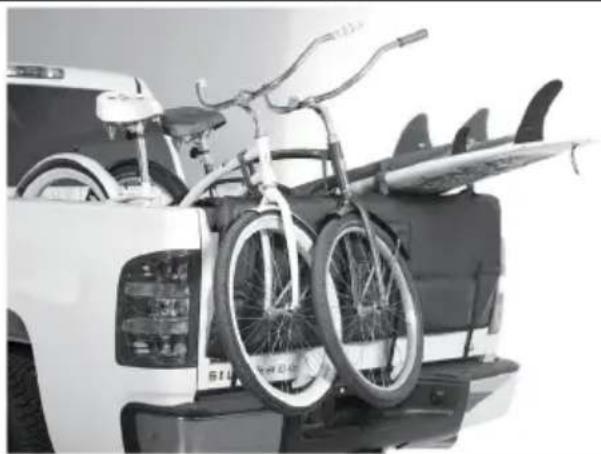

Side view of a white pickup truck with bicycles mounted on rear tractors (no visible text or symbols)

1. It can also be used to secure bicycles and surfboards

SPECIFICATIONS

Model	MSCAR-001	MSCAR-002	MSCAR-003
Truck box width(mm)	840	1350	1570
Number of bicycles carried	2	5	6
Fixing device	Yes	Yes	Yes
Surface Material	PVC gripper	PVC gripper	PVC gripper
Function	Waterproof	Waterproof	Waterproof
Net Weight (kg)	0.85	1.45	1.85

Model	MSCAR-004	MSCAR-005
Truck box width(mm)	1350	1570
Number of bicycles carried	5	6
Fixing device	No	No
Surface Material	PVC gripper	PVC gripper
Function	Waterproof	Waterproof
Net Weight (kg)	1.3	1.65

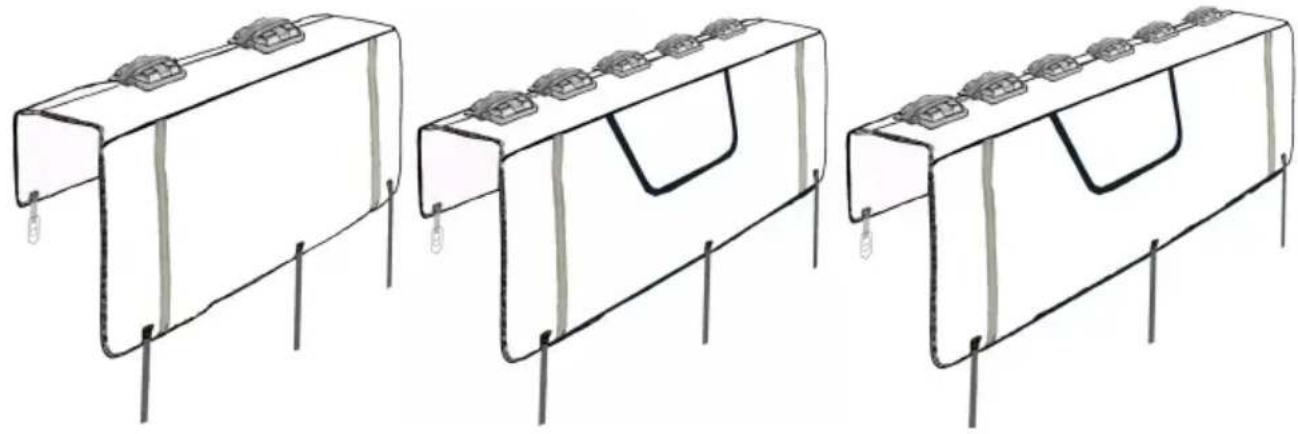

REINFORCED VERSION

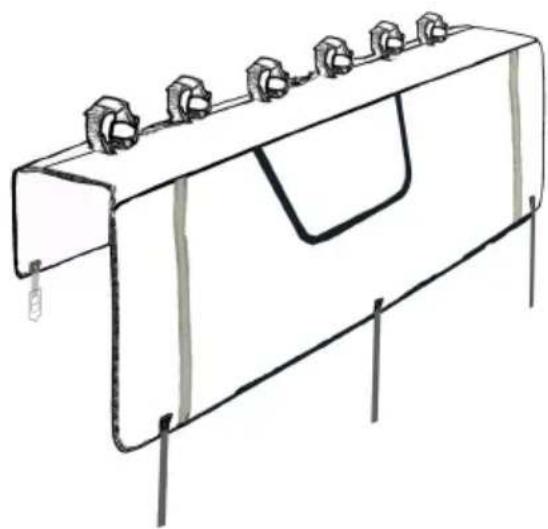

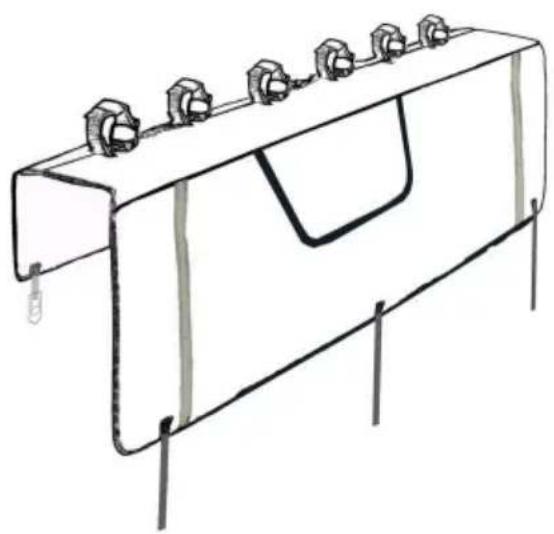

Model: MSCAR-003

Model: MSCAR-001
Model: MSCAR-002

Technical line drawing of a rectangular electronic component with four bolts and mounting brackets (no text or symbols)

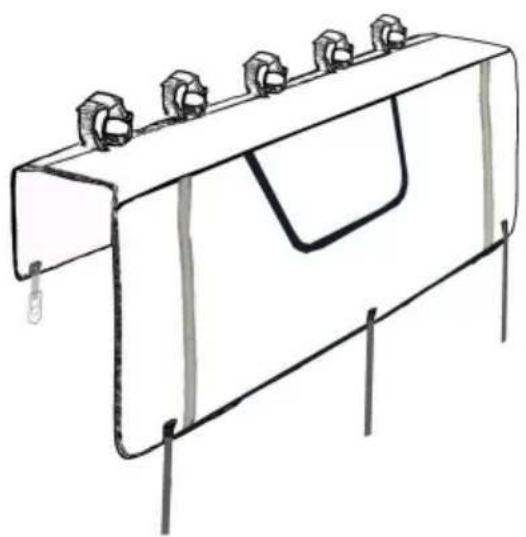

Model: MSCAR-004

Technical line drawing of a mechanical component with bolts and mounting holes (no text or symbols)

Model: MSCAR-005

USE AND STORAGE

Never store a wet tailgate pad in the confined area, as the pad can be damaged by mildew.

When not in use, please fold the truck mat and put it away. If it is heavy rain, it is recommended that you dry it and then put it away.

CLEANING AND MAINTENANCE

Use spot clean with water, a mild soap and a sponge. Don't use at cleaners or brushes, it may hurt your Tailgate Pad.

When not in use, please fold the Tailgate Pad and put it away. If it is heavy rain, it is recommended that you dry it and then put it away. Do not dispose of it carelessly where there may be sharp metal objects can damage your Tailgate Pad.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
