USER MANUAL MSCAR-005 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TAILGATE PAD

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL:

Technical line drawings of two electronic component enclosures with mounting holes and insulating surfaces (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warning and instructions can cause personal injury or damage to valuable property.

• While assembling and using this product, keep the work area clean and well-lighted, and keep spectators and children out of the work area.
• Use as intended only.
• Before each use, inspect the general condition of the product. Check for bit cracked, or bent parts, loose or missing parts, and any condition that may act the proper operation of the product.
• After every use, wipe with a clean cloth. Then, store the product in a safe location out of reach of children and other non-authorized people.
• This product is not a toy; avoid children using Tailgate Pad. Do not allow children to play.
• Keep away from sharp points, blades and other items.
• Keep away from open flame. This product will ignite and burn if brought in contact with an open flame.

INSTALLATION PRECAUTIONS

1. Installation only according to these instructions. Improper installation can create hazards.
2. Keep the installation area clean and well-lit.
3. Keep bystanders out of the area during assembly.
4. Do not install when tired or when under the influence of alcohol, drugs of medication.
5. Product capabilities apply to properly and completely installed products only
6. For additional information regarding the parts listed in the following pages, please refer to the Accessories package of this manual. Unwrap and separate parts in a clean work area. Please keep small spare parts out of children's

SAVE THESE INSTRUCTIONS

INSTALLATION

Illustration of three handwashing steps: covering a block, pouring granular material into a pot, and wiping a cloth (no text or symbols)

Line drawing of a pickup truck front view showing side panels and rear door (no text or symbols)

1. Clear up the Tailgate.

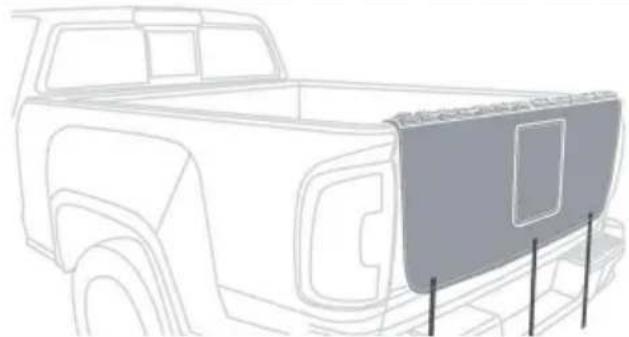

2. Hang pad over the tailgate with cradles positioned on the lip.

Sketch of a hand pressing down on a wooden object (no text or symbols visible)

Diagram of a car interior showing curved structural elements and directional arrows indicating movement or force (no text or symbols present)

1. Lift up the center flap to ga access to the tailgate handle.

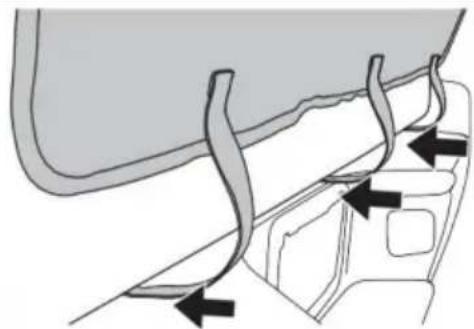

2. Partially open and hold the tailgate in pl Thread the 3 secure straps through the bo CAUTION: Beware not to have fingers caught in the gap.

A

Illustration of hands holding a small object, possibly a tool or device, with no visible text or symbols.

B

Illustration of a person's arm holding a belt, no text or symbols present

C

Illustration of two hands adjusting a belt or buckle (no text or symbols present)

D

Line drawing of a belt buckle and seatbelt (no text or symbols)

1. Thread straps through buckle and tighten.

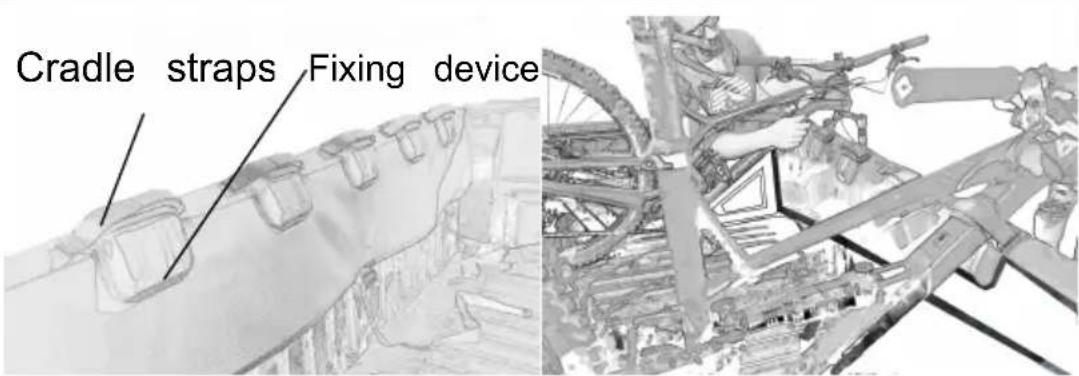

Cradle straps Fixing device

1. Cradle straps are available to secure bicycles. They are desire the down tubes of your bicycles.

Caution: When installing the bike, be careful that the bike scratch paint on other parts of the truck outside the tailgate pad cove

Side view of a white pickup truck with bicycles mounted on rear tractors (no visible text or symbols)

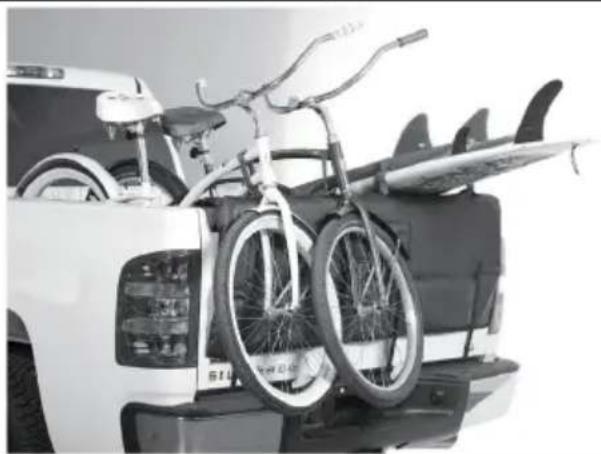

1. It can also be used to secure bicycles and surfboards

SPECIFICATIONS

Model	MSCAR-001	MSCAR-002	MSCAR-003
Truck box width(mm)	840	1350	1570
Number of bicycles carried	2	5	6
Fixing device	Yes	Yes	Yes
Surface Material	PVC gripper	PVC gripper	PVC gripper
Function	Waterproof	Waterproof	Waterproof
Net Weight (kg)	0.85	1.45	1.85

Model	MSCAR-004	MSCAR-005
Truck box width(mm)	1350	1570
Number of bicycles carried	5	6
Fixing device	No	No
Surface Material	PVC gripper	PVC gripper
Function	Waterproof	Waterproof
Net Weight (kg)	1.3	1.65

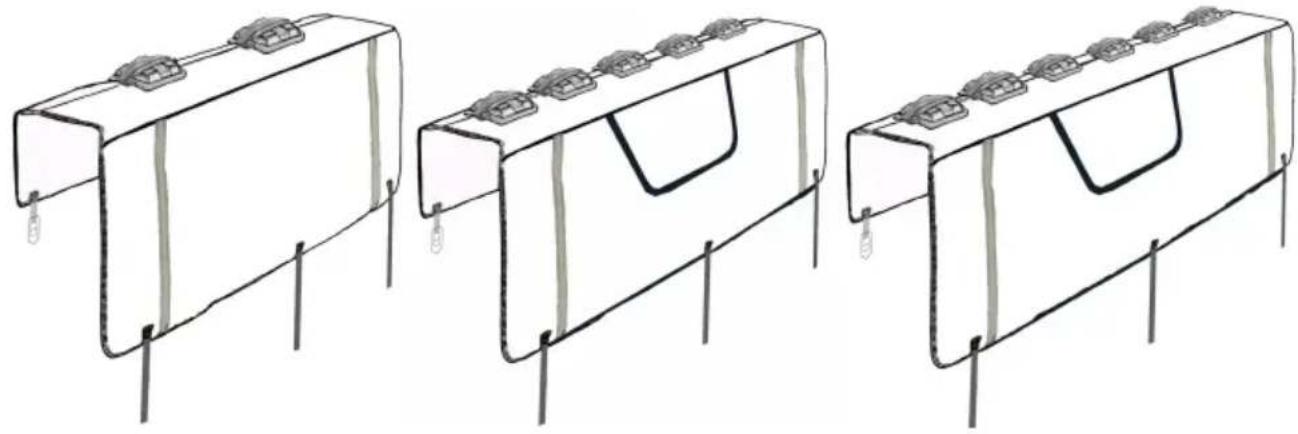

REINFORCED VERSION

Model: MSCAR-003

Model: MSCAR-001
Model: MSCAR-002

Technical line drawing of a rectangular electronic component with four bolts and mounting brackets (no text or symbols)

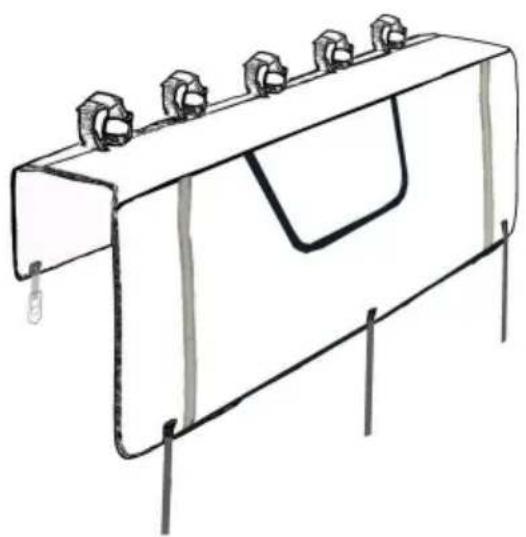

Model: MSCAR-004

Technical line drawing of a mechanical component with bolts and mounting holes (no text or symbols)

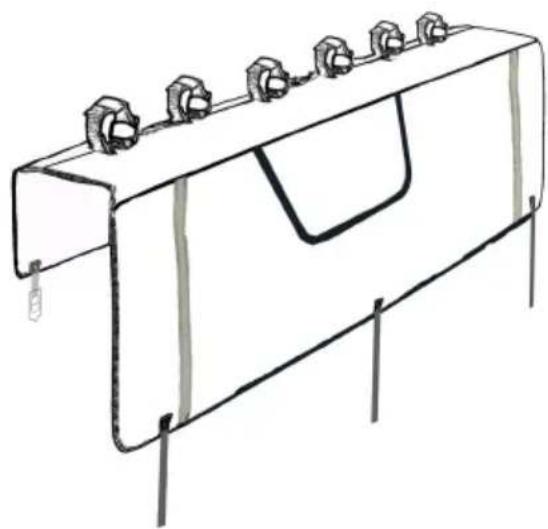

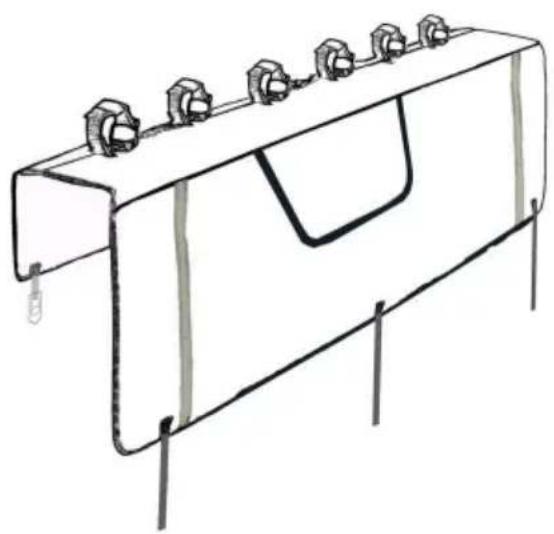

Model: MSCAR-005

USE AND STORAGE

Never store a wet tailgate pad in the confined area, as the pad can be damaged by mildew.

When not in use, please fold the truck mat and put it away. If it is heavy rain, it is recommended that you dry it and then put it away.

CLEANING AND MAINTENANCE

Use spot clean with water, a mild soap and a sponge. Don't use at cleaners or brushes, it may hurt your Tailgate Pad.

When not in use, please fold the Tailgate Pad and put it away. If it is heavy rain, it is recommended that you dry it and then put it away. Do not dispose of it carelessly where there may be sharp metal objects can damage your Tailgate Pad.
