DOG GROOMING TUB

MODEL: K1E01021/K1E01022

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOG GROOMING TUB

MODEL: K1E01021/K1E01022

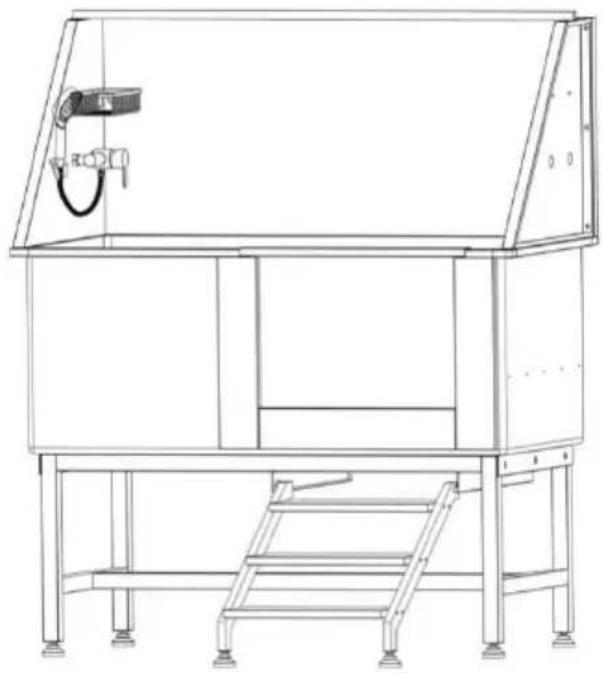

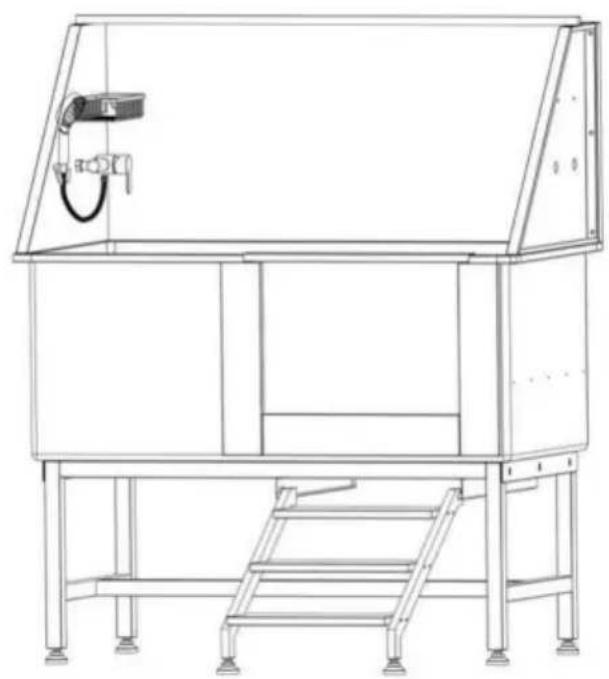

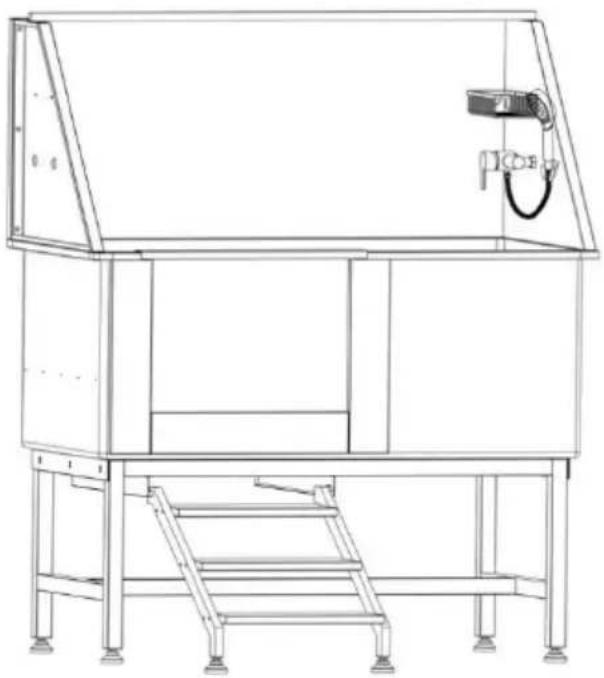

Technical line drawing of a mechanical assembly with ladder and support frame (no text or symbols)

Line drawing of a mechanical setup with a ladder and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using grooming tub. And this product is not a toy. allow children to play.
• Keep away from sharp points, blades and other items.

• Assembly precautions

• Assemble only according to these instructions. Improper assembly c create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol drugs or medication.
• Product capabilities apply to properly and completely assembled pro only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

PREPARATIONS BEFORE INSTALLATION

1. Recommended Tools:

Phillips screwdriver, M4 wrench, Spirit level,

1. Necessary safety equipment:

Gloves, goggles.

Caution: Before installing the product, wear gloves and goggles to avoid possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the possible results.

Parts List:

A*2	B*1	C*1	D*1
Bottom bracket	Tub	Right side panel	Left side panel
E*1	F*1	G*1	H*1
Door	Water filter plate	Back panel	Faucet switch
J*1	K*1	L*1	M*2 (600mm)
Storage basket	Shower head	Shower hose	Inlet pipe
N*1	P*4 (M4*15mm)	Q*4 (M4)	R*2
Strainer	Screw	Hex flange nut	Nut
S*1	T*1	U*6	V*2
Shower bracket	Comb	Adjustable foot	Sling
W*2	Y*20 (M6*15mm)	Z*12 (M6*35mm)	AA*1
Play ball	Screw	Screw	Gloves
		(DY05)
AB*1		AC*2	AD*2
Crossbar		Washer	Nut
AE*1	AF*1	AG*1	AH*3
Sealing tape	Handle	Wrench	Stair board
AJ*2
Ladder rod

Installation steps

U*4 A*1

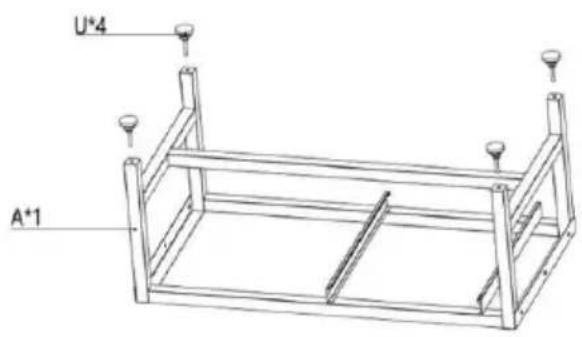

① Install the adjustable feet(U) the H rack(A).

Caution: Ensure that the depth adjustable feet is not less than 12mm, and try to make the fo adjustable feet screw in the sa depth. Please tighten the spare nut during the installation, and adjust it later.

Left Door Bracket

Simple line drawing of a structural frame with supports and a triangular support (no text or symbols)

Right Door Bracket

Simple line drawing of a structural frame with supports and a triangular load gauge (no text or symbols)

② Flip the bottom bracket, adjust the height of the feet to make height of water outlet side is 1-2 degrees lower than the other spirit level to show)

8" 2" 2" 2"

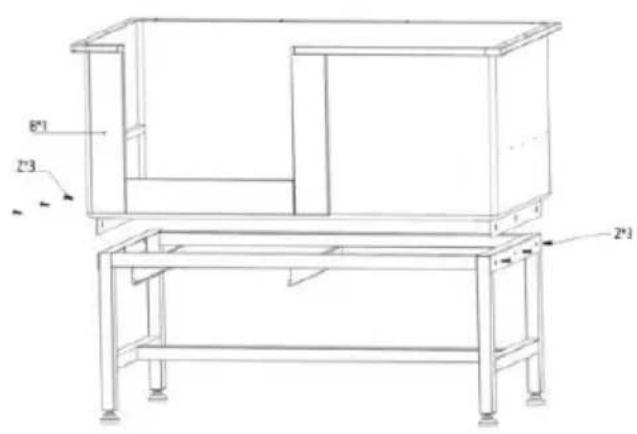

③ Use screw(Z) to fix the bo bracket and tub(B)

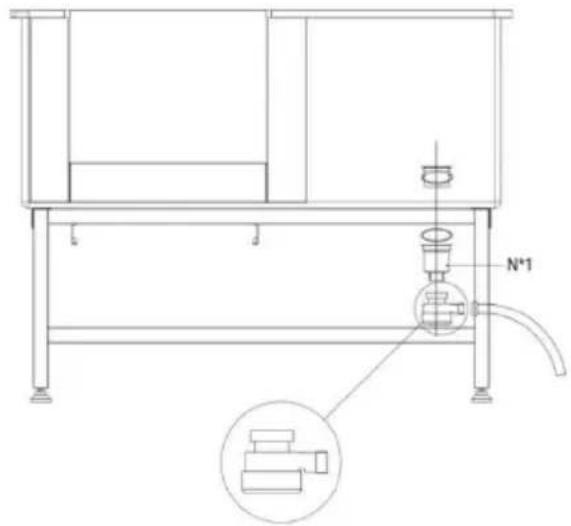

	4 Install the strainer(N),Ensure th the sealing ring is free of dislocal and wrinkles.Caution:When installing, please pa attention to whether the sealing ri is placed correctly,avoid water leakage due to incorrect seal installation.

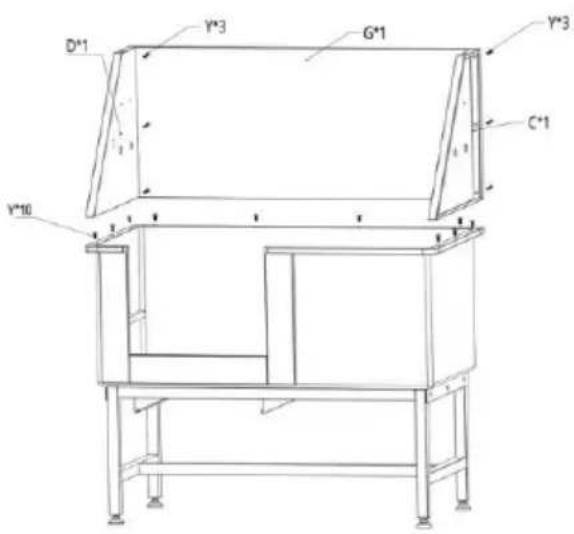

	5 Use screw(Y) to fix the left a right side board(D&C), then use screw(Y) to fix the back panel(G) to use screw(Y) to fix side board(D&C) and back board(G)

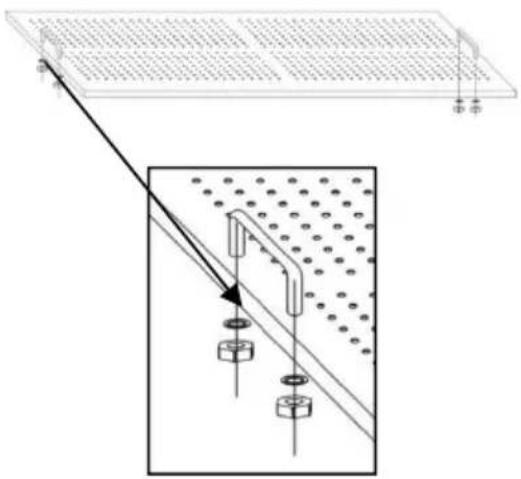

	6 Install the handle(AF) to the filter plate(F)

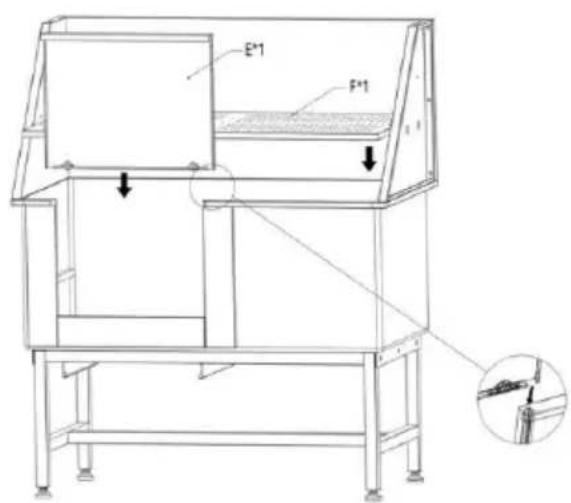

	7 Install door(E) and put the wa filter plate to the tub(B)

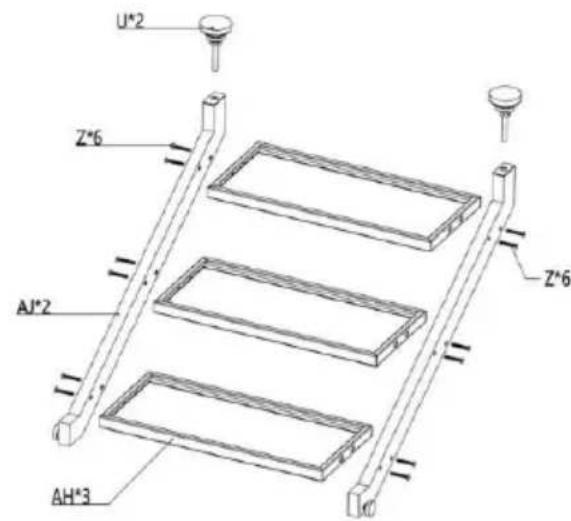

	8 Use screw(Z) to fix the stair board(AH) and ladder rod(AJ), the install the adjustable feet(U) on th bottom of the ladder rod(AH).Caution:Ensure that the depth of adjustable feet is not less than 12mm, and try to make the two adjustable feet screw in the same depth. and tighten the spare nut during the installation.
	9 Install the stairs into the chass rails

P*2 J*1 P*2 Q*4 x ε ε

⑩ Use screw(P) and hex flange (Q) to install the storage basket(J) and shower bracket(S) to the right side panel(C)

AG*1 R*2 H*1 AC*2 C H L*1 AD*2 M*2 K*1

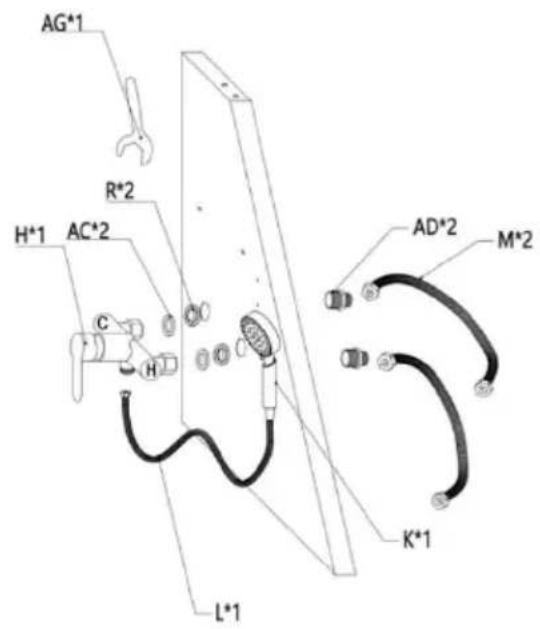

⑪ Install hot and cold shower s and water inlet. Caution: Before you do this, make sure that your water source is the left or right side of the ba and select the direction of installation of the tap switch.

Step1:Pass straight all-copper connector(AD) through side panel (1/2" end facing outside),screw nu R2 into the other end of the connector and use wrench(AG) screw down.

Step2: Align the faucet switch (H) with the connector (AD), then the two nuts on the switch (H), and note that the sealing ring nut is intact.

Step3: Connect the hose (M) at the water inlet end and the shower hose (L) at the faucet outlet. Also, when tightening the nut, pay atte whether the sealing ring inside the nut is intact.

Step4: The other end of the hose (M) is connected to the water source, pay attention to the hot and cold water mark on the faucet sv represents hot water, and connect the hose on this side to the source, while the other side is connected to the cold, also pay to whether the seal ring inside the hose end nut is intact.

Caution: The inlet hose is only 600mm long, if you want to let please purchase it separately (Caliber:20mm)

Caution: Optional use of sealing tape(AE) when installing the nut

can make the installation more sealed and help prevent water the joint.

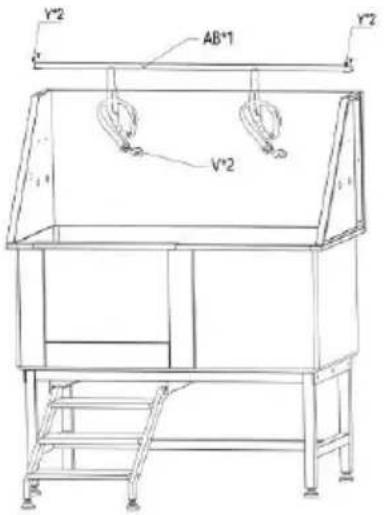

	13 Use screw(Y) to fix the cross (AB) to the left and right-side pa then install the sling(V)

DIMENSIONS AND PARAMETERS

Left Door

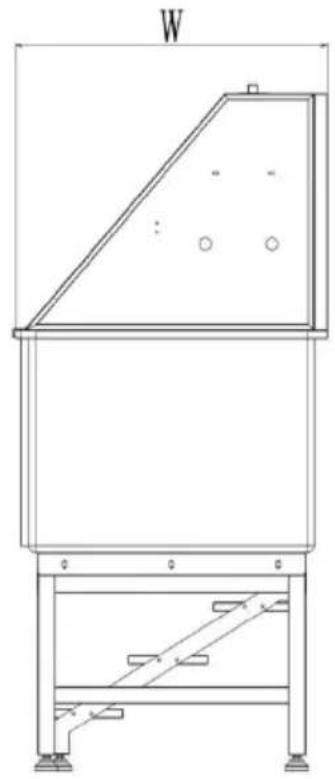

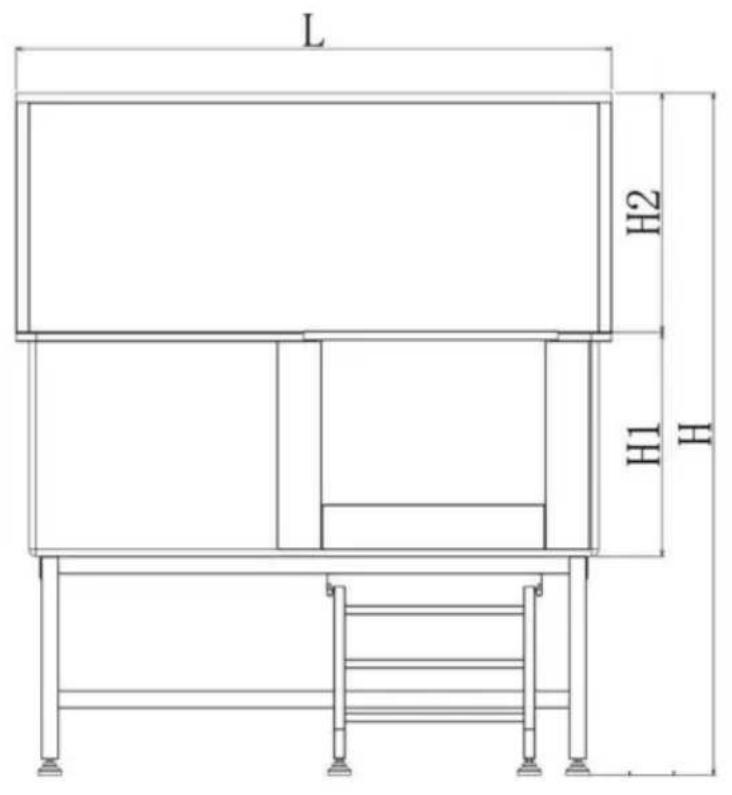

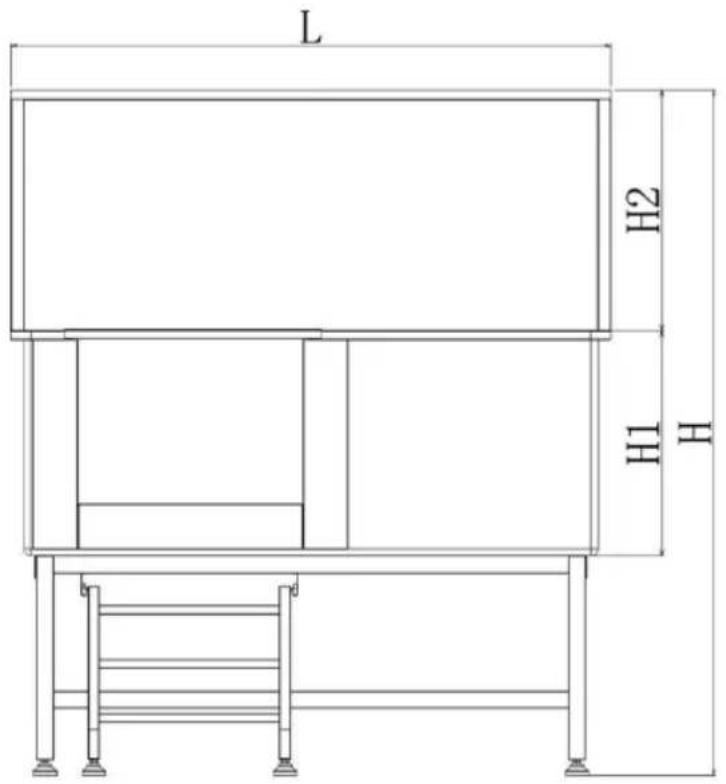

L H2 H1 H

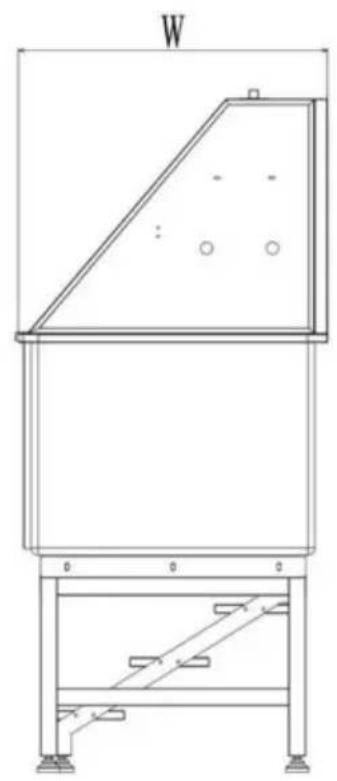

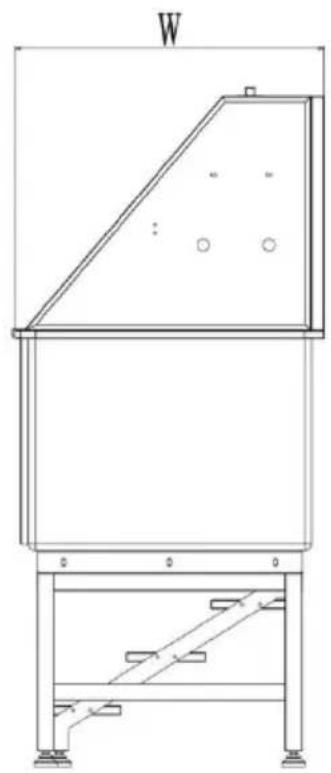

Technical line drawing of a mechanical device with a base and top views, no text or symbols present.

Right Door

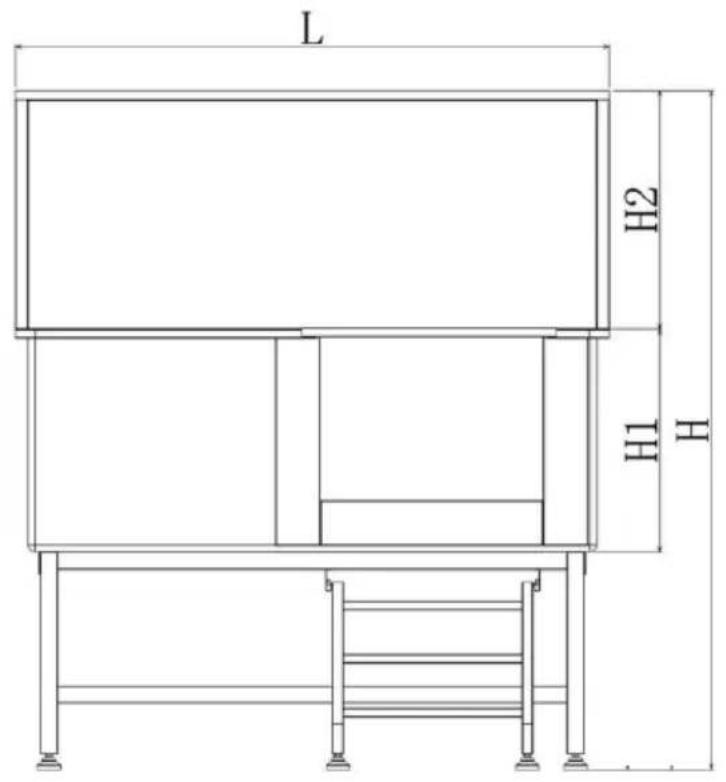

L H2 H1 H

Technical line drawing of a mechanical device with no visible text or symbols

Model#	L(mm)	H(mm)	H1(mm)	H2(mm)	W(mm)	N.W. (kg)
K1E01021	1270	1491	500	480	700	57.3
K1E01022	1270	1491	500	480	700	57.3

Model#	Volume (CBM)	Loading Capacity (lbs)	Recommended pet (in)
K1E01021	0.75	330	L×W×H:48×25×40
K1E01022	0.75	330	L×W×H:48×25×40

OPERATION

1. Make sure the water pipe connection is complete and the water is flowing normally. (Connect the hot and cold water pipes according to the hot and cold water signs of the faucet switch).

C H

"C": Cold water; "H": Hot water

1. Pull out the stairs and open the door, let the pet walk into the I itself or hold the pet inside the tub by yourself, then close the d
2. Start to bath.
3. After the bath, let the water out of the tub and take the animal
4. Clean the tub with a cloth.

MAINTENANCE

1. In between use, the tub should be cleaned with a soft cloth or sponge using a mild cleaning agent.
2. Pay attention to regularly clean the hair of the drain to avoid clogging.

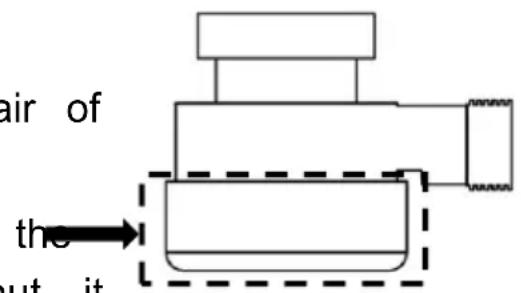

3. Please clean the transparent cover of the drain regularly, After disassembly like a nut, it can be easily cleaned, and be careful not to leave the seal ring when installing it back.

air of the out it

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

Don't overload the scale. This will permanently damage it!

COMMON MALFUNCTIONS

If the faucet leaks, please check whether the waterproof rubber plug installed. If it is damaged, it needs to be replaced in time.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical assembly with ladder, frame, and control panel (no text or symbols)

Technical line drawing of a mechanical assembly with ladder and control panel (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

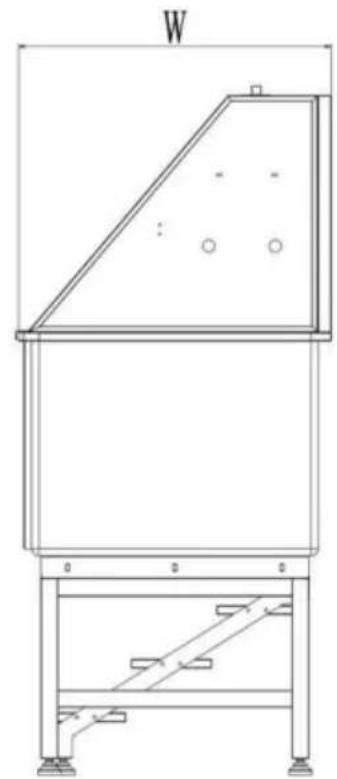

L H2 H1 H

Technical line drawing of a mechanical device with a top view and bottom view, no text or symbols present.

Porte droite

L H2 H1 H

Technical line drawing of a mechanical device with a base platform and top panel, no text or symbols present.

Modèle#	L(mm) H(mm) H1(mm)		H2(mm) L(mm)			Nord-Ouest(kg)
K1E01021	1270	1491 480	500		700	57.3
K1E01022		1491	5001270	480	700	57.3

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

INSTRUCTIONS D'ENTRETIEN

Route, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTAN DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Technical line drawing of a mechanical assembly with ladder, frame, and control panel (no text or symbols)

Technical line drawing of a mechanical assembly with ladder and control panel (no text or symbols)

Simple line drawing of a structural beam with supports and a triangular load gauge (no text or symbols)

Rechte Türhalterung

Simple line drawing of a structural frame with supports and a triangular load gauge (no text or symbols)

L H2 H1 H

Technical line drawing of a mechanical device with a top view and bottom view, no text or symbols present.

Rechte Tür

L H2 H1 H

Technical line drawing of a mechanical device with a base platform and top panel, no text or symbols present.

Modell#	L (mm) H	(mm) H1 (mm)	H2 (mm)	B (mm)		NW(kg)
K1E01021	1270	1491 700	500	480		57,3
K1E01022	1270	1491	500	480	700	57,3

Pure mechanical diagram showing a piston-cranked valve or pump assembly with no text, numbers, or symbols

PFLEGEHINWEISE

YH CONSULTING LIMITED. C/O YH Consulting

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical assembly with ladder, frame, and control panel (no text or symbols)

Technical line drawing of a mechanical assembly with ladder and control panel (no text or symbols)

L H2 H1 H

Technical line drawing of a mechanical device with a top view and bottom view, no text or symbols present.

Porta destra

L H2 H1 H

Technical line drawing of a mechanical device with a base platform and top panel, no text or symbols present.

Modello#	L(mm) A(mm) A1(mm) A2(mm) Larg(mm)					Nord-Ovest(kg)
K1E01021	1270	1491 700	500	480		57.3
K1E01022	1270	1491	500	480	700	57.3

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

ISTRUZIONI PER LA CURA

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Luogo, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

Strada, Staines-upon-Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

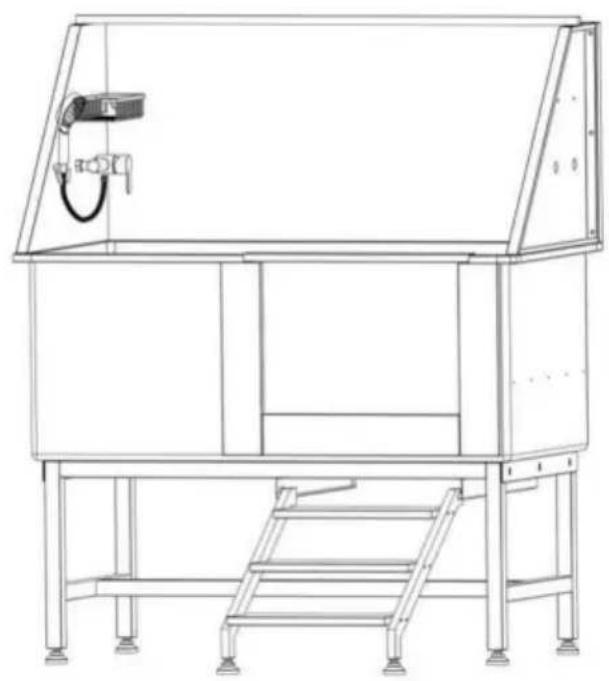

Technical line drawing of a mechanical assembly with ladder, frame, and control panel (no text or symbols)

Line drawing of a mechanical industrial machine with ladder and control panel (no text or symbols)

L H2 H1 H

Technical line drawing of a mechanical device with a top view and bottom view, no text or symbols present.

Puerta derecha

L H2 H1 H

Technical line drawing of a mechanical device with a top view and side view (no text or symbols)

Modelo#	Largo (mm)	Alto (mm)	Alto 1 (mm)	Alto 2 (mm)	Ancho (mm)	noroeste(kilogramo)
K1E01021	1270	1491 700	500	480		57.3
K1E01022	1270	1491	500	480	700	57.3

Modelo#	Volumen(10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000	Capacidad de carga (libras)	Mascota recomendada (en)
K1E01021	0,75 Largo × Ancho × Alto:380× 25 × 40
K1E01022	0,75 Largo × Ancho × Alto:380× 25 × 40

OPERACIÓN

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

YH CONSULTING LIMITADA. A LA CARGO DE YH Consulting

Carretera, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Technical line drawing of a mechanical assembly with ladder, frame, and control panel (no text or symbols)

Technical line drawing of a mechanical enclosure with ladder and support structure (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

L H2 H1 H

Technical line drawing of a mechanical device with a top view and bottom view, no text or symbols present.

Prawe drzwi

L H2 H1 H

Technical line drawing of a mechanical device with a base platform and top panel, no text or symbols present.

Model#	Dł. (mm)	Wys. (mm)	Wys. 1 (mm)	Wys. 2 (mm)	Szer. (mm)	Málnocy zachód(kg)
K1E01021		1491	5001270	480	700	57.3
K1E01022	1270	1491	500	480	700	57.3

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

YH CONSULTING LIMITED. C/O YH Consulting

Biuro Limited 147, Centurion House, Londyn

Droga, Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

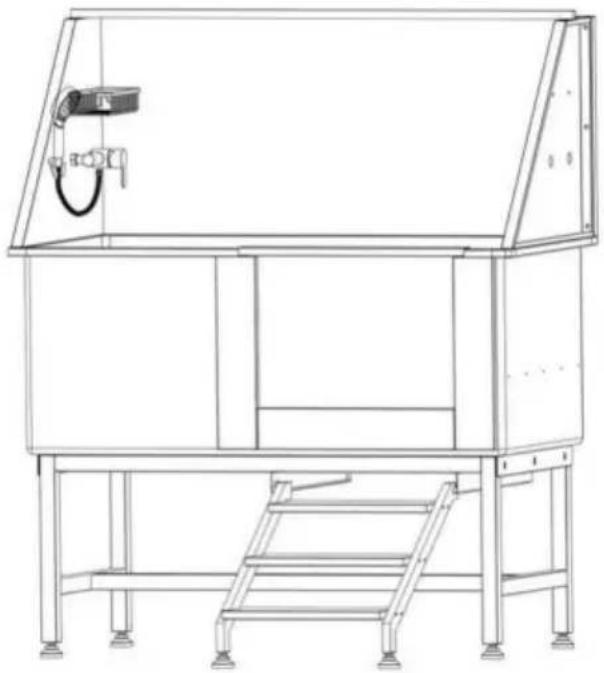

Technical line drawing of a mechanical assembly with ladder, frame, and control panel (no text or symbols)

Technical line drawing of a mechanical enclosure with ladder and support structure (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Simple line drawing of a structural frame with supports and a triangular load gauge (no text or symbols)

Rechter deurbeugel

Simple line drawing of a structural frame with supports and a triangular load gauge (no text or symbols)

L H2 H1 H

Technical line drawing of a mechanical device with a top view and side view (no text or symbols)

Rechter deur

L H2 H1 H

Technical line drawing of a mechanical device with a top view and side view (no text or symbols)

Model#	Lengte (mm)	Hoogte (mm)	H1 (mm)	H2 (mm)	Breedte (mm)	NW (kg)
K1E01021	1270	1491	500	480	700	57.3
K1E01022	1270	1491	500	480	700	57.3

Model#	Volume (CBM)	Laadvermogen (pond)	Aanbevolen huisdier (in)
K1E01021	0,75 L×B×	H:48×25×380
K1E01022	0,75 L×B×	H:48×25×380

WERKING

"C": Koud water; "H": Warm water

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

ONDERHOUDSINSTRUCTIES

YH CONSULTING LIMITED. C/O YH Consulting

Beperkt kantoor 147, Centurion House, Londen

Weg, Staines-upon-Thames, Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69,

Technical line drawing of a mechanical assembly with ladder, frame, and control panel (no text or symbols)

Technical line drawing of a mechanical assembly with ladder and control panel (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

FÖRBEREDELSER INNAN INSTALLATION

Simple line drawing of a structural frame with supports and a triangular load gauge (no text or symbols)

Höger dörrfäste

Simple line drawing of a structural frame with supports and a triangular load gauge (no text or symbols)

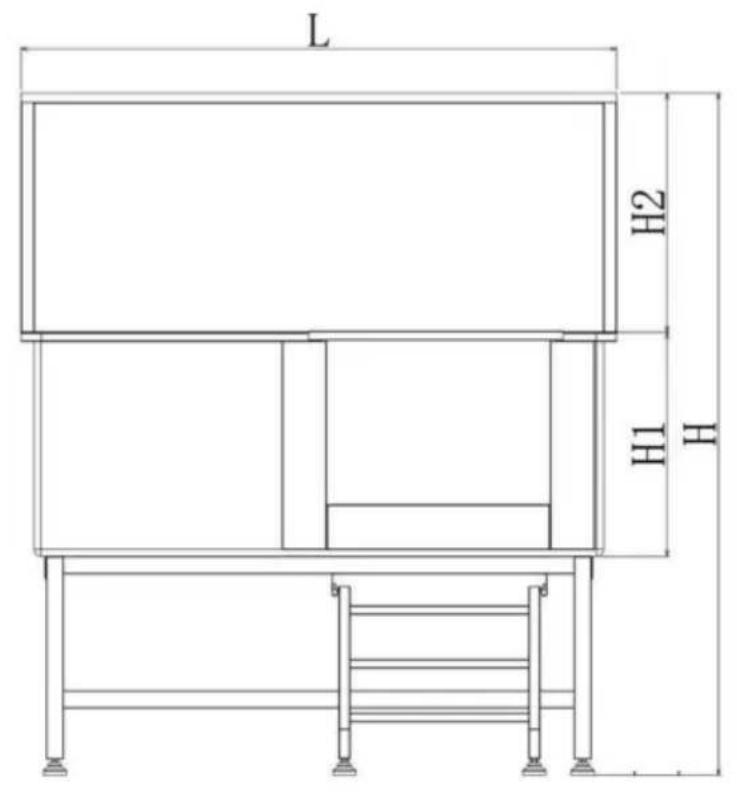

L H2 H1 H

Technical line drawing of a mechanical device with a top view and bottom view, no text or symbols present.

Höger dörr

L H2 H1 H

Technical line drawing of a mechanical device with a base platform and top panel, no text or symbols present.

Modell#	L(mm) H(mm) H1(mm)		H2(mm) B(mm)			NW(kg)
K1E01021	1270	1491 700	500	480		57,3
K1E01022	1270	1491	500	480	700	57,3

Modell#	Volym(CBM)	Lastkapacitet(lbs)	Rekommenderat husdjur(i)
	0,75 L×B×H:48×25×30K1E01021
K1E01022	0,75	330	L×B×H:48×25×40

DRIFT

Pure mechanical diagram showing a piston-cranked valve or pump assembly with no text, numbers, or symbols

SKÖTSELINSTRUKTIONER

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
