TECHNICAL SPECIFICATION

NAME	COMMERCIAL WATER BOILER
WATER-INPRESSURE	100~400(kpa)
VOLTAGE	110V~ 120V~			220V~ 240V~
HERTZ	60Hz			50Hz/60Hz
POWER	1500W	1500W	1500W	2500W	2500W	3000W
LITERS	10L	15L	20L	10L	15L	20L
RELATEDITEMS	KW-10SA,KW-15SA,KW-20SA

*Before installation and use, please use the voltage should be consist with the requirements of the machine voltage!

SAFETY INFORMATION

THIS TERM WARNS THE USER OF IMMINENT HAZARD THAT WILL RESULT IN SERIOUS INJURY OR DEATH. THIS REFERS TO POTENTIAL HAZARD OR UNSAFE PRACTICE WHICH COULD RESULT IN MINOR OR MODERATE INJURY. THIS REFERS TO HIGH TEMPERATURE WHICH COULD RESULT IN SERIOUS INJURY OR DEATH. THIS REFERS TO ELECTRIC DANGER WHICH COULD RESULT IN SERIOUS INJURY OR DEATH. Equipotential

To reduce risk of electrical shock, do not remove or open cover. no serviceable parts inside. Repair should be done by authorized service personal only.

The appliance is not intended for outdoor use.

Do not clean with pressurized water or use in an area where pressurized water may be used.

Cleaning and maintenance shall be made only by properly

Trained persons with supervision.

This appliance is not intended for use by persons with reduced physi sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with t appliance.

Do not alter or deform the power cord or plug in any way! altering deforming the plug may cause electrical shock, damage unit and will warranty.

To reduce risk of explosion or fire, do not use near combustibles.

SAFETY INFORMATION

For safe and proper operation, the appliance must be placed in a st

vertical position..

To reduce risk of serious burns or scalding, do not place hand or o body parts under dispenser or container while product isbrewing. Always unplug unit from power supply before servicing. Surfaces are hot and cause burns.

Use only on a circuit that is properly protected and capable of thermal load.

Electronically ground the chassis.

Follow national and local electrical codes. Do not use extension cord. This equipment must be installed in compliance with applicable federal state and /or local electrical codes having jurisdiction. do not use ext cords. make sure that the outlet the boiler plugs into is grounded.

Check rating marking on boiler nameplate to be sure electric lines match voltage, phase, and amperage requirements of boiler. select the proper cord and cord grip for electrical rating of the boiler.

Installation of this appliance should be performed by qualified service personnel only. improper installation could result in electrocution.

These urns are heavy pieces of equipment. It's recommended that mo or lifting the unit be done by two people to avoid injury.

PRODUCT INTRODUCTION

Stepping water machine, as the name suggests, is by the bottom step heating, gradually heating until the water is boiled energy-saving water boiling equipment. Can improve the separation of hot and cold and ensure a boiling healthy boiling machine, ease the degree of "yir yang water," intelligent control to ensure only one boiling, thus comp avoiding repeated heating; After a part of the water is heated and bo the water in the other part is heated from the bottom until the water full of water, and the stepper can continuously discharge boiling water avoiding the waiting time of the traditional boiling water machine after whole tank of water is boiled. The traditional boiling water machine is based on steam expansion from the heating box to the insulation box

which is equivalent to countless times of boiling; The stepper type bc water machine relies on electrode temperature measurement , accurate temperature control ,water temperature can be set and electronic temperature control to prevent dry burning without water.

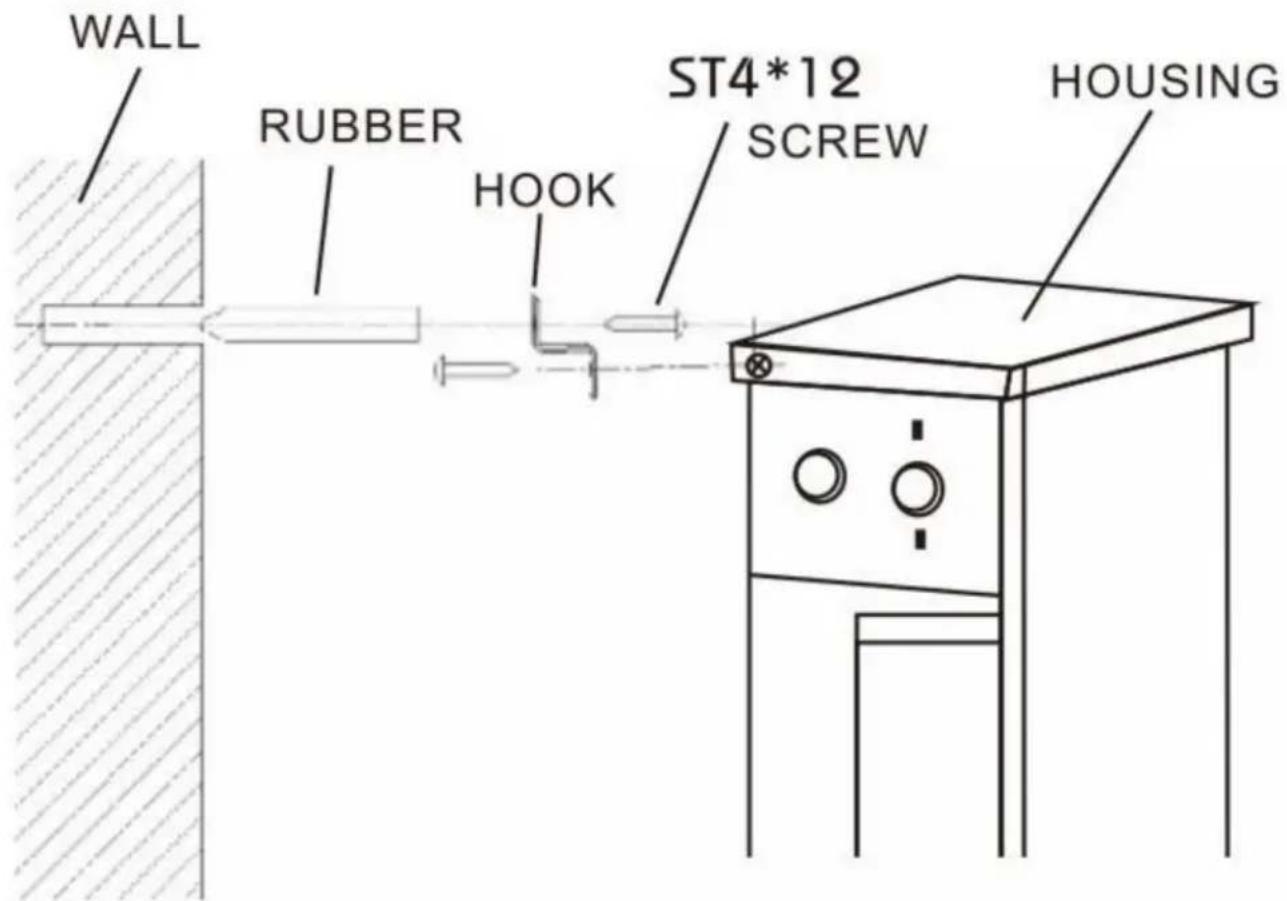

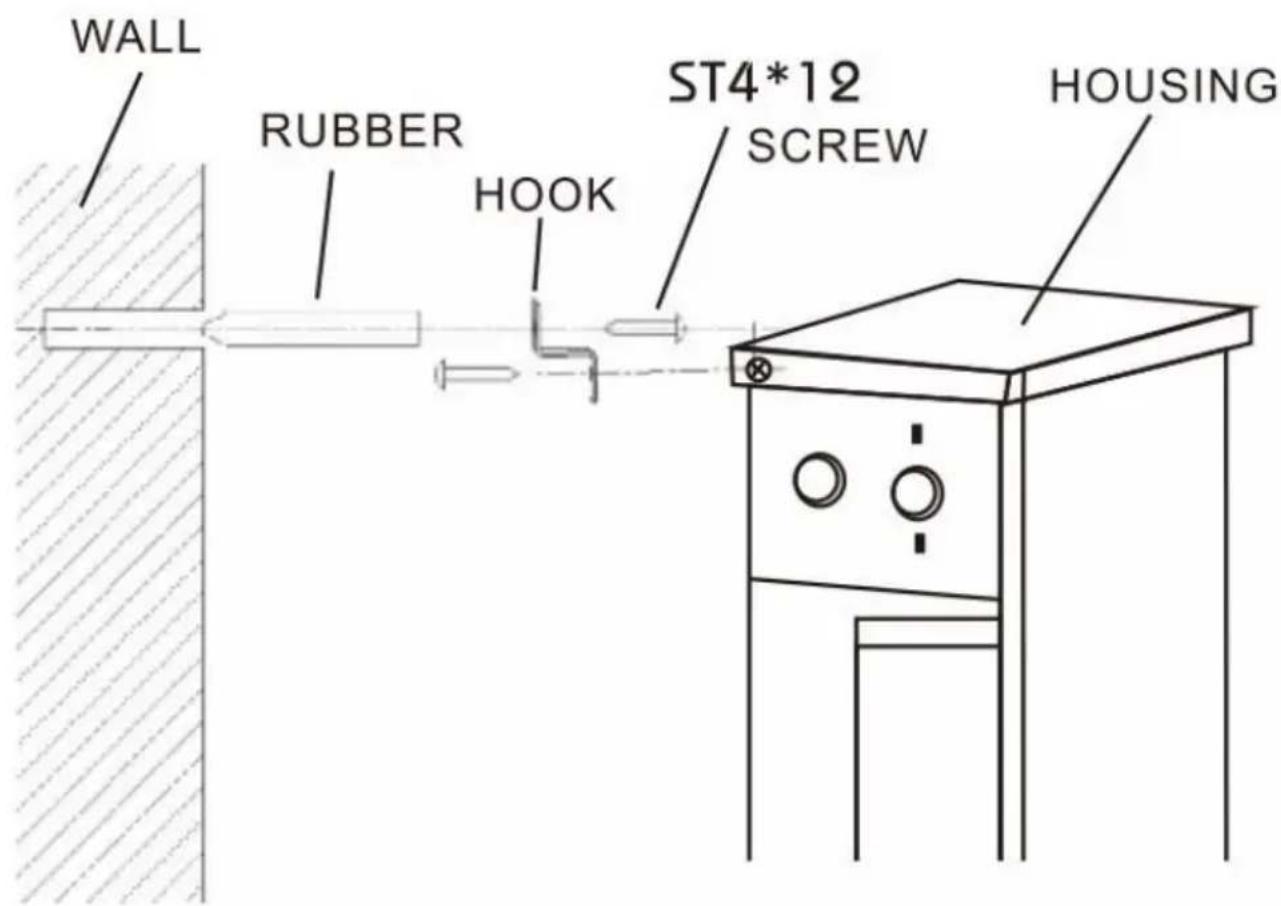

ANTI DUMPING INSTALLATION METHOD

WALL RUBBER HOOK ST4*12 SCREW HOUSING

Installation steps:

1. Unscrew the back plate,
   2.Add the hook,
2. Then screw and fix to the housing.

Installation Instructions:

If the equipment installation and use scenario is prone to dumping, it recommended to install this accessory!

PRODUCT PROFILE

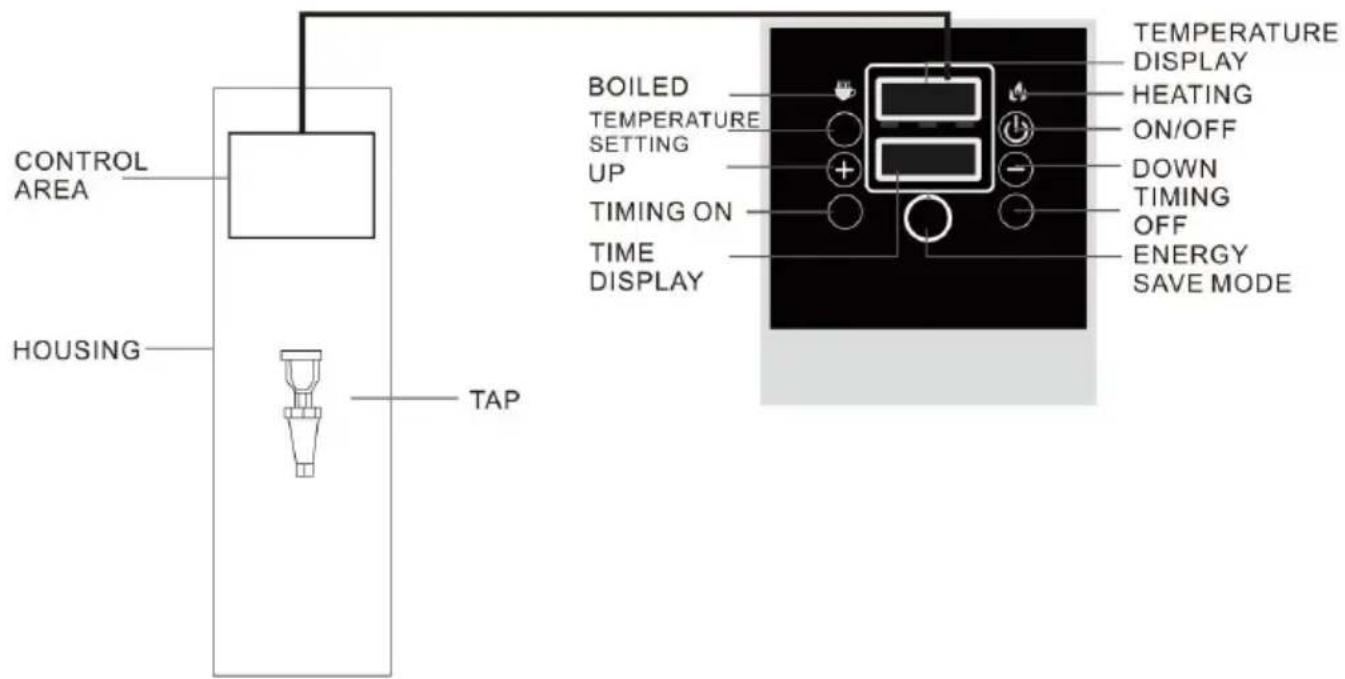

CONTROL AREA HOUSING TAP BOILED TEMPERATURE SETTING UP TIMING ON TIME DISPLAY TEMPERATURE DISPLAY HEATING ON/OFF DOWN TIMING OFF ENERGY SAVE MODE

1. Display -shows ELL which means Power on or water temperature .
2. Ready water boiled and ready for drinking.
3. Heating water is heating and not ready for drinking.
4. Water shortage water supply is not connected, stopped, or water pressure lower than 100kPa.
5. Water Shortage -Water inside shortage or water level below safety setting.
6. Fault-Check fault code in user manual and call professional technician repair.

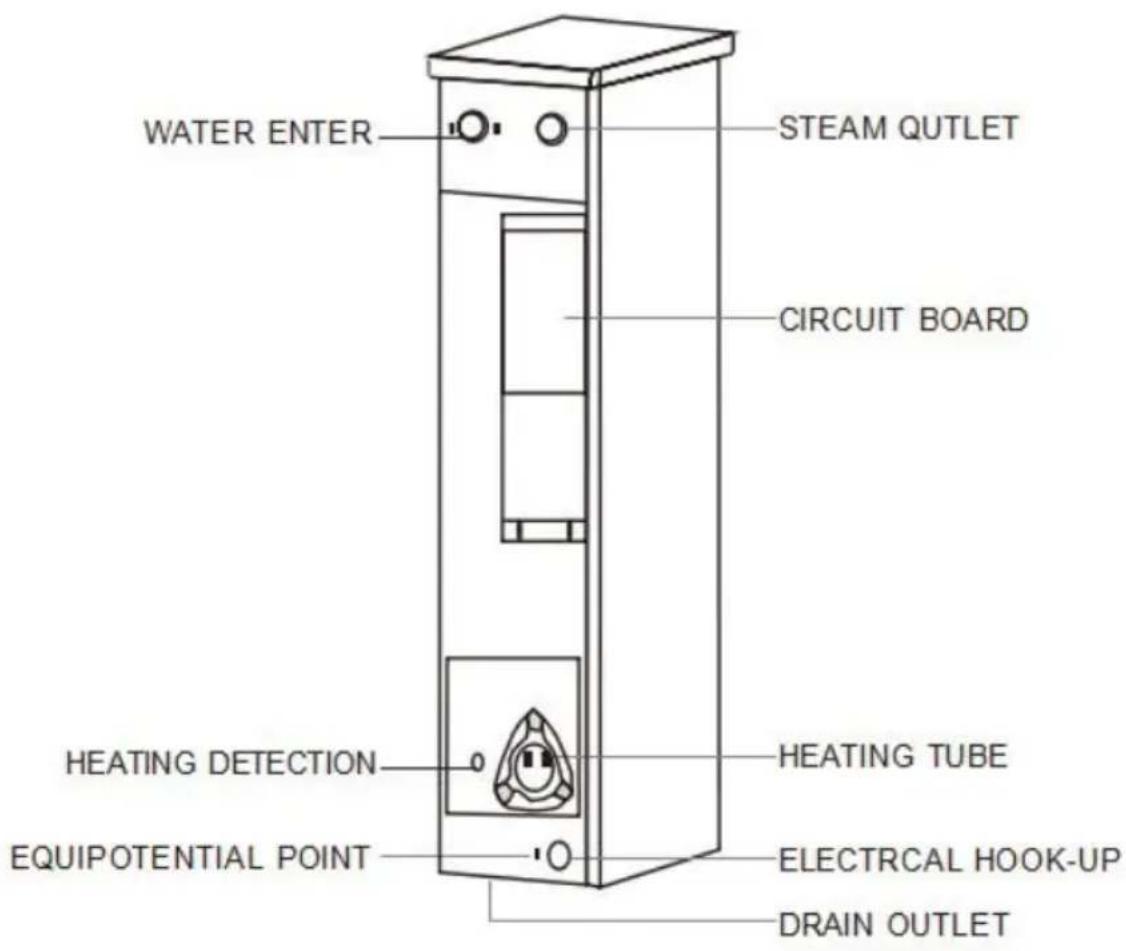

WATER ENTER STEAM OUTLET CIRCUIT BOARD HEATING DETECTION EQUIPOTENTIAL POINT HEATING TUBE ELECTRICAL HOOK-UP DRAIN OUTLET

OPERATING INSTRUCTIONS

1.Start: Connect the power, the machine automatically access the self-inspection mode for 5 sec, and will turn into heating mode, the w into the machine and be heated by then. Unwatered and water-in li the display will be

showed"ELL "which means the water in . When water reach the water level , the unwatered and water-in lights off. The display shows the time temperature. The heating light on and the water is heating.

1. Heating Temperature Setting: Press"Temp Set"mode for one time display will show heating temperature . Use“ + "/ “ - " to adjust the temperature of the water. Wait 10 sec after the setting is finished , return to the real time temperature . ( Note: when power cut off, the will recover to default setting)

2. Drink: When the water temperature reach the set temperature,

the" heating" light off", "boiled" light on, at that time the water is drink.

Recommend the temperature to be setting up from 95-100 °C(203-212)

1. Fault: When "Fault" light on, stop using

the heater. Do not operate the machine before checking.

FAULT DIAGNOSIS

Fault code	Reason	Reason
ELL	un water	1. Check if the water supply is connected;2. Check if the water switch is open on the water switch;3. Water supply cuts-turn on when the water in;Note: When under the minimum water level, it will also shows"ELL"when win. That's not under fault.
E2	overtime water-in	1. Error of sensor- contact the after-sales team to change the sens2. The tap is not open yet. Open
E4	sensor in error	1. sensor error, contactthestafftochang the sensor
E5	High,low water level needle failure	Limescale is clogged. Clean the high,low water level needles or repla

CLEANING AND MAINTENANCE

1. Please cut off the power and water before cleaning and maintainar
2. The machine in the use of the process should be managed by a

person, regularinspection . holidays or when not in use for a long pe time, should be turn off the power and water source and drain the v the water tank to prevent the aging of internal components , ensure safety of use and prolong the service life .

1. Pay attention to clean the sensor, to prevent scale affect the auto operation of the machine mechanism. there are special scale remover sales on the market please refer to the packaging guidelines and the situation, it is recommended to clean it once a quarter.
2. The machine with sewage device, should be based on the actual regular sewage cleaning, operation should be cut off all power supply; when the water temperature of the water tank drops to normal temperature, it begins to discharge.

It is strictly forbidden to knock or clean the scale inside the liner with metal tools.

1. When the over flow pipe appears cold water out flow or not heat work, should immediately stop using, overhaul the inlet valve is dir material is blocked or the electric heating pipe is damaged, and it be cleaned or replaced in time.
2. Clean the outer box, remember to cut off the power supply, wipe rag, do not use corrosive liquids, strictly prohibit water spray or in water for cleaning.
3. If you need to open the water pipe cleaning, the water pipe and should be dried before use again.
4. Due to the impact of water quality, calcium carbonate oxide deposits naturally occur during the heating water process, and must be removed regularly. Scale treatment, depending on the environment, must be true once every 1-2 months.

Method: Water and vinegar (the best high-purity white vinegar), acc to the ratio of 2:1 into the water tank heating, boil and leave for the next day the solution drained, and then boil with water to clear

1. Open the top cover of the water machine: first the four screws or screw out and then up Lift the lid.
2. Suggest to add carbon filter that takes chlorine out of water whe

©
