USER MANUAL K1E01028 Vevor

Affordable. Reliable. Home Improvement.

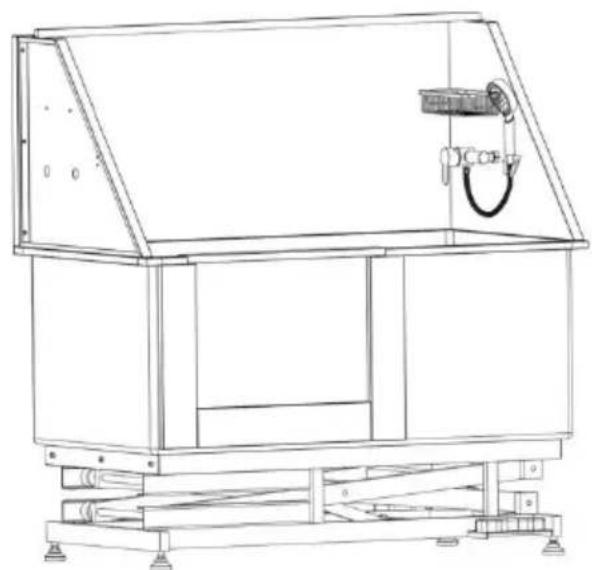

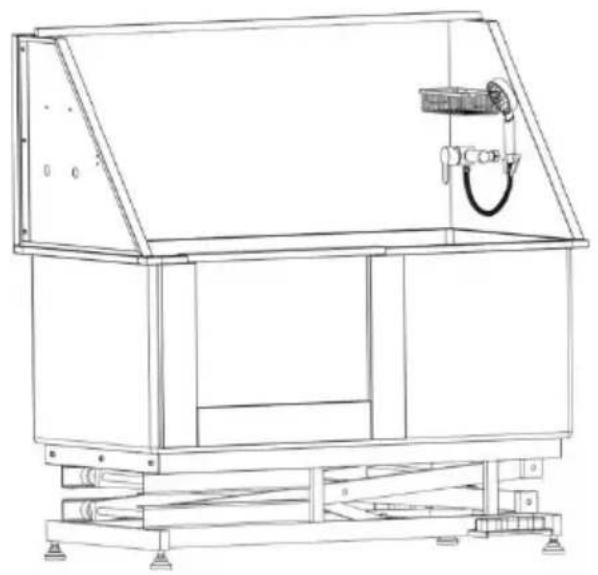

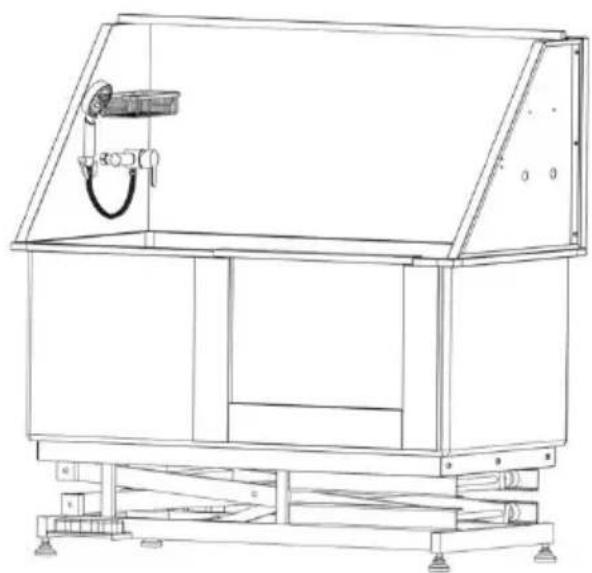

DOG GROOMING TUB

MODEL: K1E01027-U/K1E01027-E/K1E01027-A

K1E01028-U/K1E01028-E/K1E01028-A

MODEL: K1E01027-U/K1E01027-E/K1E01027-A K1E01028-U/K1E01028-E/K1E01028-A

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using grooming tub. And this product is not a toy. allow children to play.

• Keep away from sharp points, blades and other items.

• Please wipe the cylinder dry with a cloth after use to extend the life.

• Assembly precautions

• Assemble only according to these instructions. Improper assembly c create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol drugs or medication.
• Product capabilities apply to properly and completely assembled pro only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

FC	This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that m cause undesired operation.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

SAVE THESE INSTRUCTIONS

Simple line drawing of a standing dog (no text or symbols)

Warning!Products are only used for pet bathing.

PREPARATIONS BEFORE INSTALLATION

1. Recommended Tools:

Phillips screwdriver, M4 wrench, Spirit level,

1. Necessary safety equipment:

Gloves, goggles.

Caution: Before installing the product, wear gloves and goggles to av possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the possible results.

Parts List

1 pc	1 pc	1 pc	1 pc
1: Bottom bracket1-1: Control Box	2: Tub	3: Right side panel	4: Left side panel
1 pc	2 pcs	1 pc	1 pc
5: Door(Already Installedto the tub)	6-1: Small PlastiFloor Grate6-2: Big PlasticFloor Grate	7: Back panel	8: Faucetswitch
1 pc	1 pc	1 pc	2 pcs(600mm)
9: Storagebasket	10: Shower head	11: Showerhose	12: Inlet pipe
-1
1 pc	4 pcs(M4*16mm)	4 pcs	2 pcs
13: Strainer13-1: Drain Pipe13-2:TransparentCover	14: Screw	15: Hex flangenut	16: Nut
1 pc	1 pc	2 pcs	2 pcs
17: Shower bracket	18: Comb	19: Sling	20: Play ball
20 pcs (M6*16mm)	6 pcs (M8*40mm)	1 pc	2 pcs
21: Screw	22: Screw	23: Plastic Gloves	24: Washer
1 pc			2 pcs
25: Crossbar			26: Nut
1 pc	1 set	1 pc	1 pair

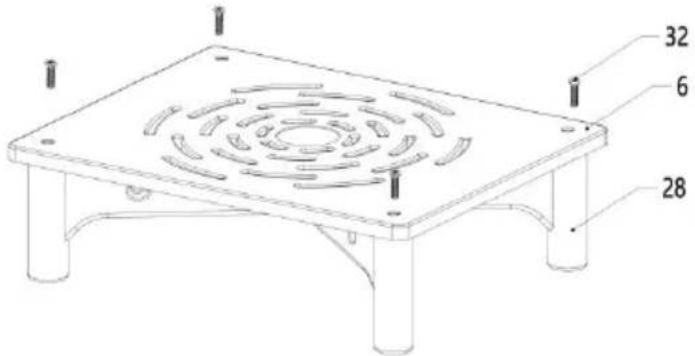

27: Sealing tape	28: Base 28-1: Down Bas 28-2: Up Base 28-3: Anti-slip Mat	29: Wrench	30: Nylon Gloves
1 pc	4 pcs(M8*20mm)	1 pc	2 pcs
31: Wiper	32: Screw	33: Scouring pad	38: Adapter(G1/2 to NPT9/16)

Installation Steps

Technical diagram of a structural beam with labeled components and force indicators

Technical line drawing of a mechanical assembly with no visible text or symbols

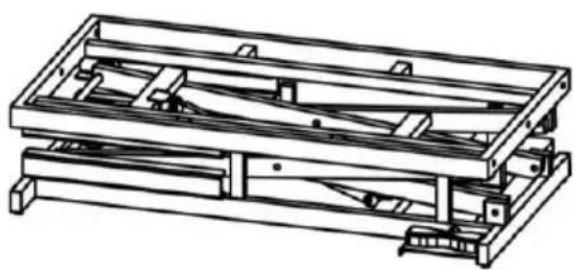

①Flip the bottom bracket, adjust the height of the feet to make height of water outlet side is 1-2 degrees lower than the other spirit level to show)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical structure with beams and supports, no text or symbols present

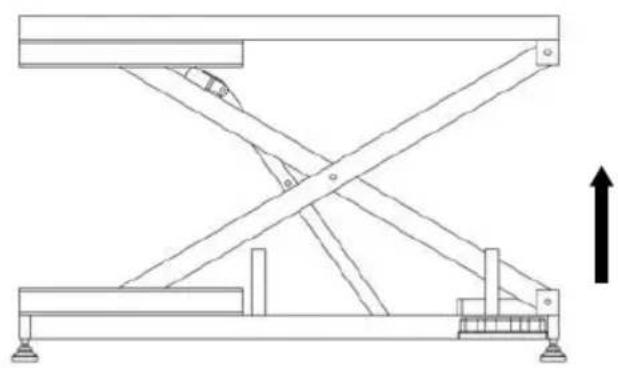

②Plug in and then press the “+” button of the pe and raise the stand to a height of 450-500mm

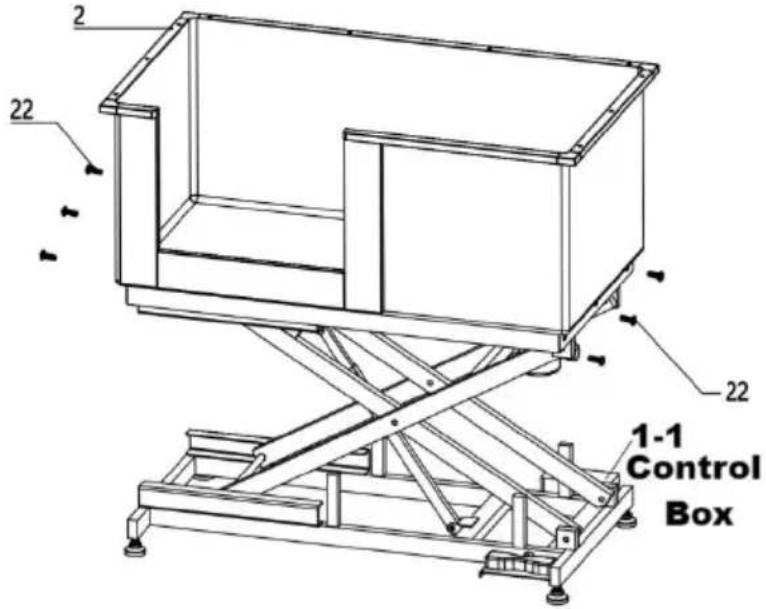

3 Flip the bottom brack and use screw to fix the bottom bracket and tub

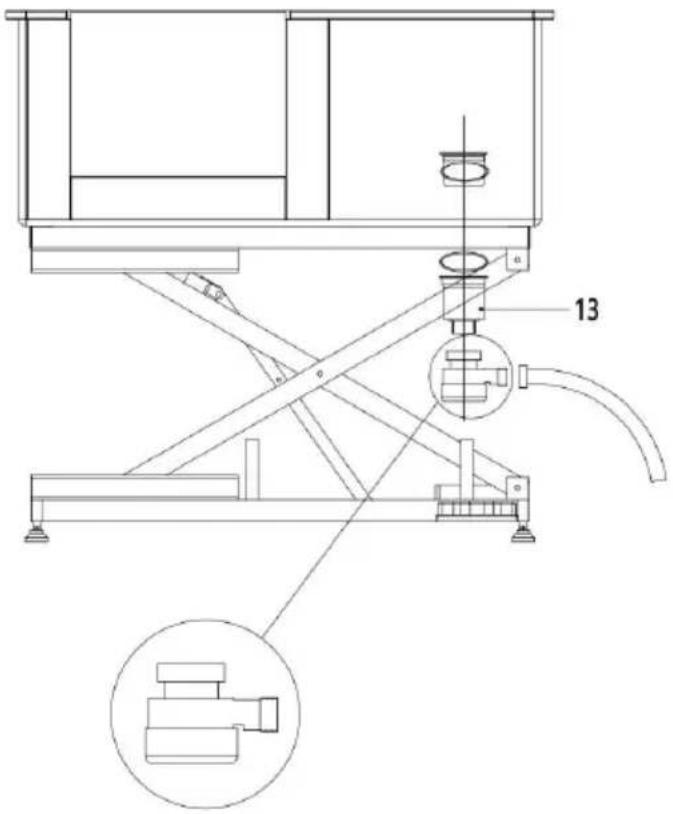

4 Install the strainer,Make sure the drainpipe is facing outwards so they are not compressed during the lowering of bottom bracket.Caution: Ensure that the depth of adjustable feet is not less than 12mm, and to make the four adjustable feet screw in the same depth. Please tighten the spare nut during the installation and adjust it later. And check whether the transparent cover of drain is tightened.

Technical diagram of a scissor lift assembly with numbered components and directional arrows indicating assembly steps.

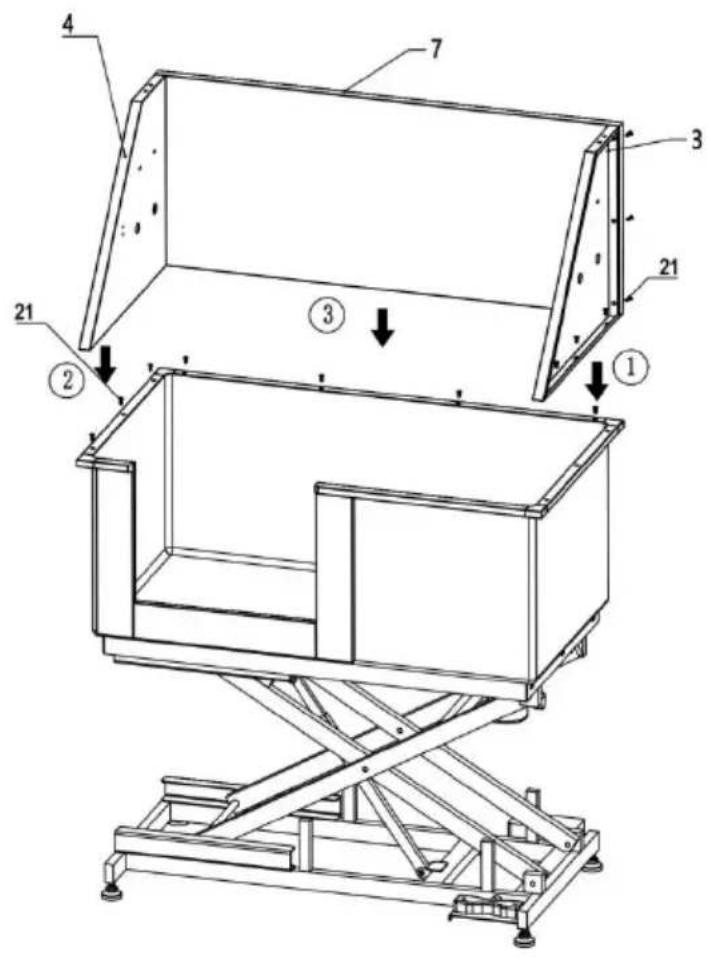

⑤ Use screw to fix the and right side board, the use screw to fix the back panel, last to use screw fix side board and back board

21 25 21 19

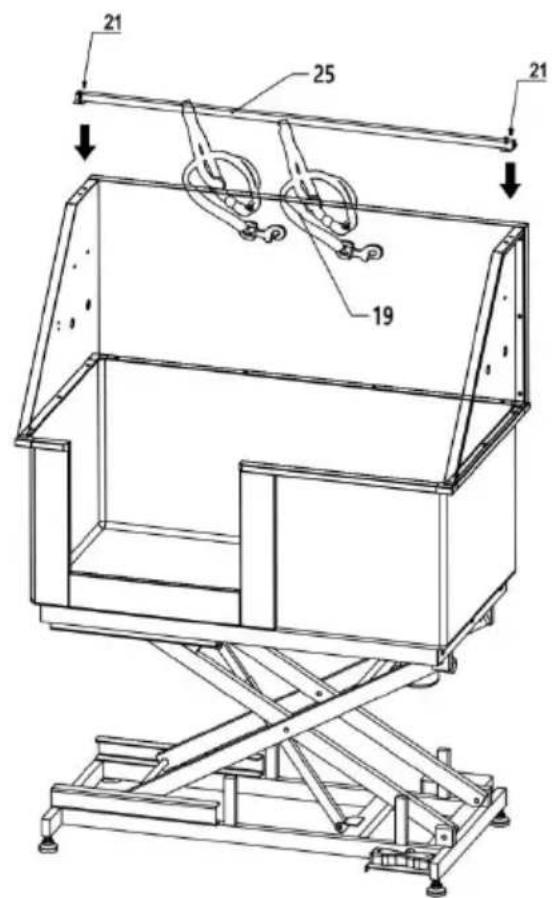

⑥ Use screw to fix the crossbar to the left and side panel, then install the sling

	7 Install the handle to th water filter plate

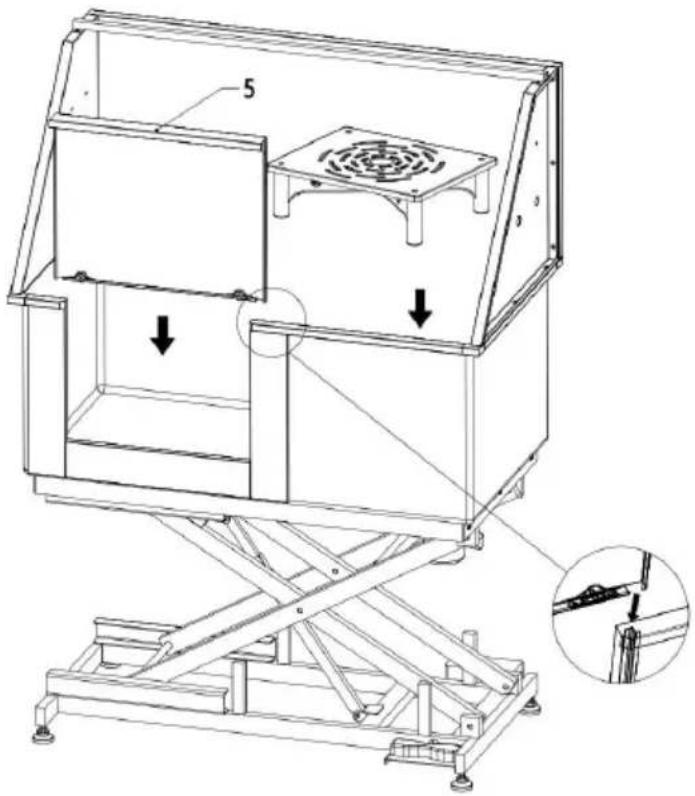

	8 Install door and water filter plate

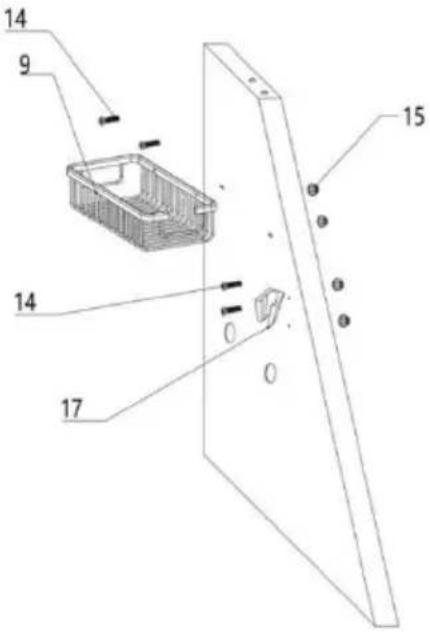

	9 Use screw and hex flange nut to install the storage basket and show bracket to the right side panel

29 16 24 8 C H 11 26 12 10

38

⑩ Install hot and cold shower switch and water inlet.

Caution: Before you do this, make sure that yo water source is on the or right side of the bathtub, and select the direction of installation the tap switch.

Step1: Pass straight all-copper connector through side panel (1/2" end facing outside), screw nut into the other end of the connect and use wrench screw down.

Step2: Align the faucet switch with the connector, then tighten nuts on the switch, and note that the sealing ring inside the n

Step3: Connect the hose at the water inlet end and the shower hose at the faucet outlet. Also, when tightening the nut, pay attention to the sealing ring inside the nut is intact.

Step4: The other end of the hose is connected to the water source, pay attention to the hot and cold water mark on the faucet switch, represents hot water, and connect the hose on this side to the source, while the other side is connected to the cold, also pay to whether the seal ring inside the hose end nut is intact.

Caution: The inlet hose is only 600mm long, if you want to le please purchase it separately (Caliber:20mm)

Caution: Optional use of sealing tape when installing the nut. It the installation more sealed and help prevent water leakage at

Caution: Please determine whether to install adapter according to actual water pipe specifications.

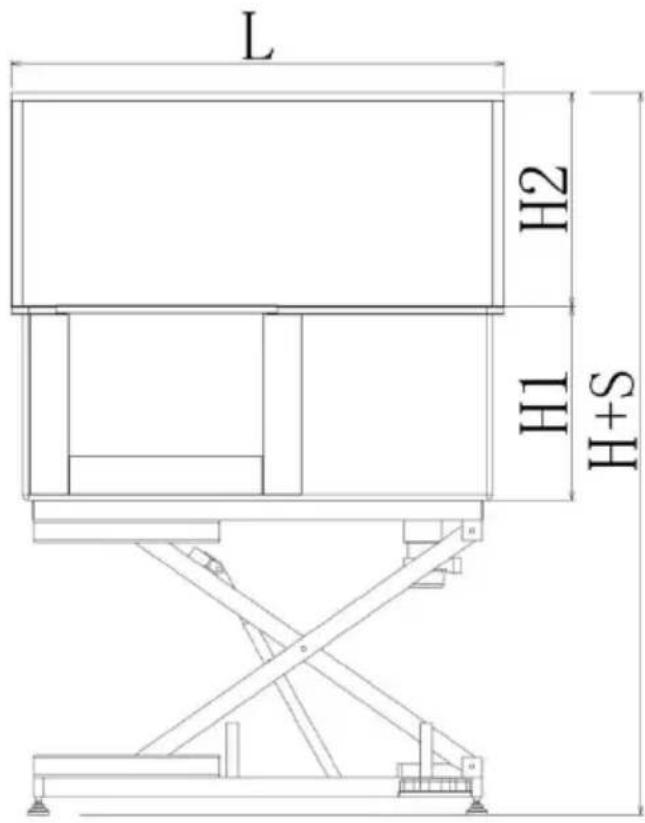

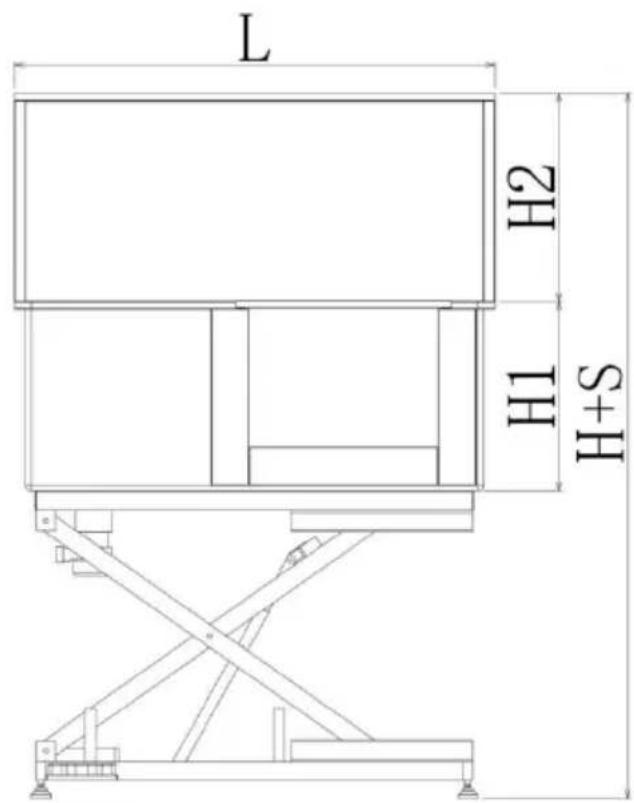

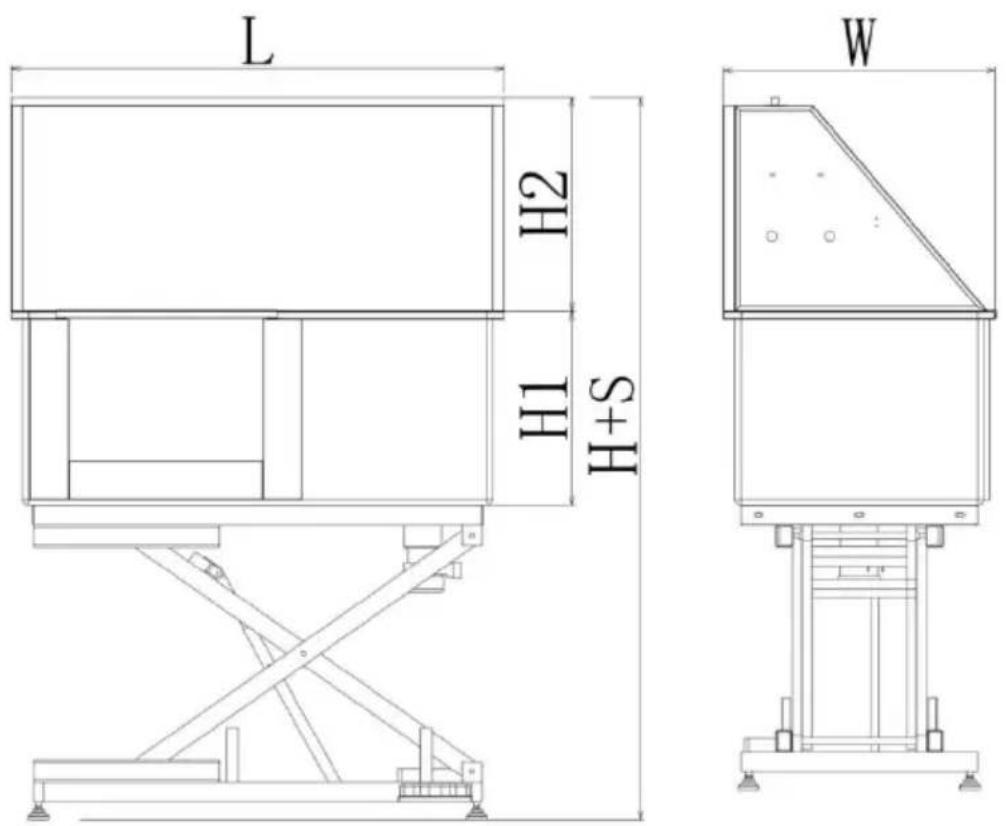

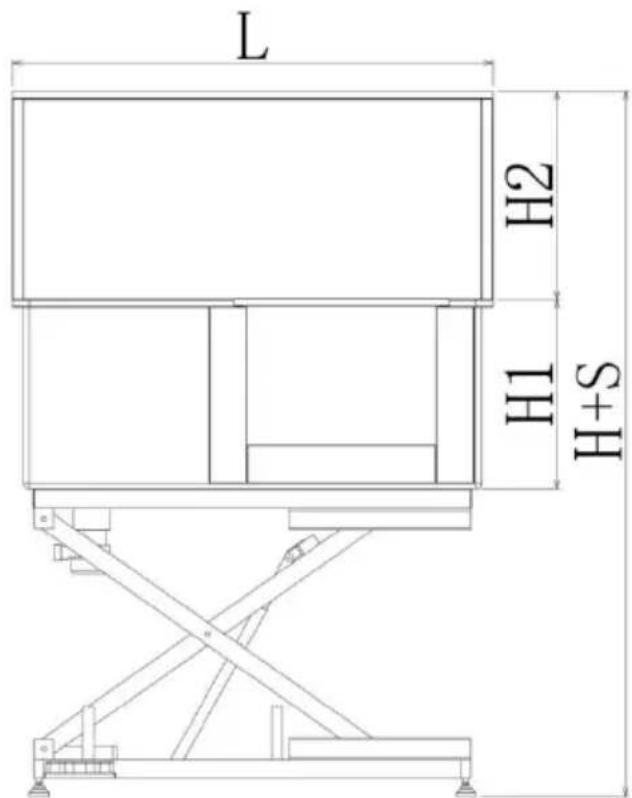

Left Door

L H2 H1 H+S

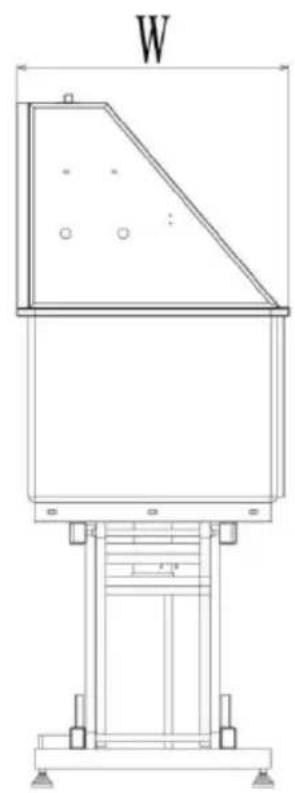

Technical line drawing of a mechanical device with labeled dimension W (no text or symbols beyond the label)

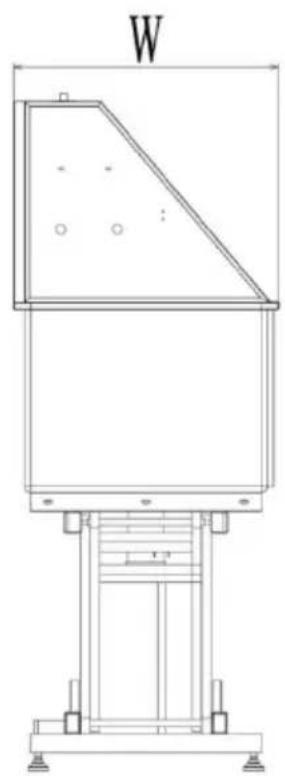

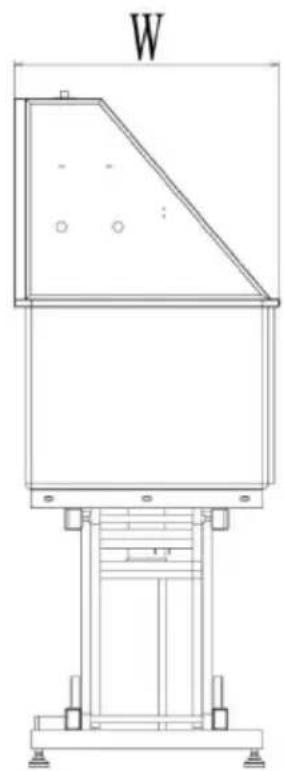

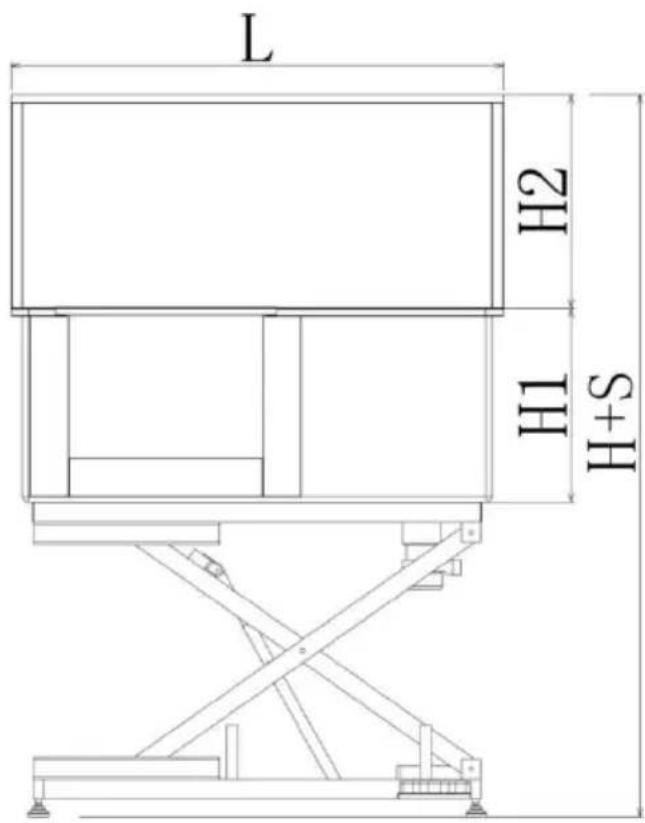

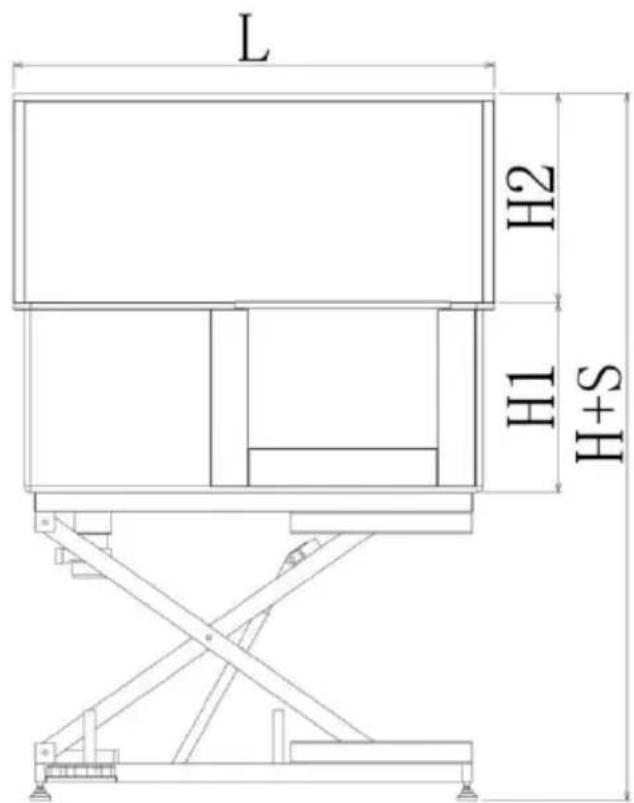

Right Door

L H2 H1 H+S H+S

Technical line drawing of a mechanical device with labeled dimension W (no text or symbols beyond label)

Model#	L(mm)	H(mm)	S(mm)	H1(mm)	H2(mm)	W(mm)	N.W.(kg)
K1E01027-U	1270	1295	565	500	530	700	79.7
K1E01028-U	1270	1295	565	500	530	700	79.7
K1E01027-E	1270	1295	565	500	530	700	79.7
K1E01028-E	1270	1295	565	500	530	700	79.7
K1E01027-A	1270	1295	565	500	530	700	79.7
K1E01028-A	1270	1295	565	500	530	700	79.7

Model	K1E01027-UK1E01028-U	K1E01027-EK1E01028-E	K1E01027-AK1E01028-A
Dimension:	L1270xW700xH1295(min)
Travel	560mm
LoadingCapacity:	150kg/330lb
Plug standard	American plug	europlug	Australian plug
Overloadindication	Yes	Yes	Yes
Power:	50W	90W	90W
Voltage:	AC120V	AC220-240V	AC220-240V

OVERLOAD INDICATION

The electric push rod is equipped with over-current and over-heat protection. When the current is too large or the temperature is too h control box will start the protection measures and stop working. After

system takes a rest, the control box will automatically return to normal. It is recommended to work for 2 minutes. Take a rest for 18 min which can prevent the system from entering the protection mode affect the normal work.

FOOT BUTTON FUNCTIONS

Button Functions

1. "+" Button: Pressing "+" button will rise the height.
2. "—" Button: Pressing "—" will reduce the height.

OPERATION

1. Make sure the water pipe connection is complete and the water is normally. (Connect the hot and cold water pipes according to the hot cold water signs of the faucet switch)

C H

"C": Cold water; "H": Hot water

1. Lower the bathtub to the lowest height, open the door, and let the walk into the bathtub by itself or hold the pet inside the tub by you close the door.
2. Start to bath.
3. After the bath, let the water out of the tub and take the animal oil
4. Clean the tub with a cloth.

MAINTENANCE

1. In between use, the tub should be cleaned with a soft cloth or sp

using a mild cleaning agent.

1. Pay attention to regularly clean the hair of the drain to avoid clogg
2. Please clean the transparent cover of the drain regularly, After disassembly like a nut, it can be easily cleaned, and be careful not the seal ring when installing it back.

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

Don't overload the scale. This will permanently damage it!

If the machine cannot be lifted normally, please disconnect the power supply and check whether the wiring port is loose.

The faucet is leaking, please check whether the waterproof rubber plu installed, if it is damaged, it needs to be replaced in time.

Safety Information

Warning

General Safety Instructions

- Improper installation and/or operation may result in property damage injury to yourself or your pet. Follow the instructions carefully and core customer service or a local contractor if any point is confusing, too close for you to do on your own, or requires special modification for your customers. Keep these instructions for future reference. Provide them to anyone will use this device and provide them with this device if it is ever given

sold to a third party.

- ONLY use this bathtub for its intended purpose, bathing medium-size pets such as cats and dogs.

- DO NOT use it with pets that exceed this product's weight capacity whose predisposition becomes violent upon contact with water, or who physiological features preclude safe regular bathing (e.g., chinchilla rat).

- NEVER use this bathtub for humans, especially children, or allow the play on or with it.

- DO NOT run or allow others to run in the area around this bathtub, allow children or pets to stay under the tub. Restrict access to the necessary.

- Ensure all components and fasteners are intact and securely tightened before use. Do not operate this bathtub if any part is damaged or signs of malfunction. Repair or replace problematic components before further use. NEVER replace any parts with nonidentical ones.

- Consult a veterinarian before use if your pet may have an illness or condition such as skin allergies that might be worsened by bathing. Only in compliance with the veterinarian's recommendations (e.g., using specially medicated shampoos).

- Be mindful of your pet's mood while using this bathtub. If unwillingness unavoidable, take precautions to prevent the pet from harming you, themselves, or others during bathing.

Provide a reward afterward.

- NEVER load this bathtub with more than 286 pounds (130 kg).

Particularly for larger animals, be careful to prevent them from jumping moving in such a way that causes violent impacts as this might exceed capacity.

- DO NOT leave this bathtub unattended during use.

Electrical Safety Instructions

- Ensure all electrical outlets and exposed electrical connections around are at least 10 feet (3 m) away from this bathtub or fully protected possible splashing during bathing. DO NOT use any chargers or exter cords closer than this distance without

similar protection.

• Electrical devices such as electrical transformers, televisions, lights, an telephones should be at least 6'7" (2 m) away from this bathtub at . In particular, never bring a chargingcell phone near the bathtub and allow any electrical device to be placed or used in such a way that fall into the water under any circumstance.
• For extra safety, install this bathtub at least 6'7" (2 m) away from conductive metal surfaces to reduce the risk of electric shock from splashing water. Any metal surface closer this should be permanently bonded to a dedicated terminal box with a solid copper conductor at gauge (3.3 m) thick.

Water Safety Instructions

• ONLY install this bathtub on firm, level, and nonslip surfaces that do its weight while filled with your pet and water. The surfaces must be impervious to damage from moisture and the surrounding area must be able to handle the expected humidity created by the water.
• An adequate drainage system should be provided to safely deal with overflow and to permit easy emptying of this bathtub.
• Make sure your water supply for this bathtub is turned off during installation.
• NEVER allow the water level to rise above the level of your pet's during use.
• DO NOT set up or leave this bathtub in temperatures below 32^ . Do not turn on the shower if there is any possibility water in its line frozen.
• DO NOT add chemicals other than standard mild soaps and pet shampoos to the bathingwater. After use, only apply nontoxic cleaning agent to the bathtub's internal surface and rinse it away completely. For sterilization, only use pet-safe and nontoxic disinfectants.
• DO NOT allow dirty and stagnant water to remain in this bathtub long period. Drain, clean, and dry the tub completely after each use.

Heat Safety Instructions

• Adequate ventilation should be provided to safely deal with the expected heat and humidity.
• The water temperature should be close to your pet's body temperat. Water that is either too cold or too hot will cause discomfort, may in your pet's skin, and may even cause injury or illness.Before use, lear about the appropriate water temperatures for bathing your pet.For best results, set your water heater's maximum temperature accordingly if possible.If adding preheated water, make sure it is within the tempera range appropriate for your pet before allowing your pet to enter.

VEVOR

Affordable. Reliable. Home Improvement.

BAIGNOIRE DE TOILETTAGE POUR CHIEN

MODÈLE : K1E01027 -U/ K1E01027 -E/ K1E01027 -A

K1E0102 8-U/ K1E0102 8-E/ K1E0102 8-A

MODÈLE : K1E01027 -U/ K1E01027 -E/ K1E01027 -A K1E0102 8-U/ K1E0102 8-E/ K1E0102 8-A

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical enclosure or enclosure with a central control panel and support structure (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Technical line drawing of a structural beam with supports and a suspended load (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical structure with beams and supports, no text or symbols present

Technical schematic diagram of a mechanical device with labeled components and cross-sectional views

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

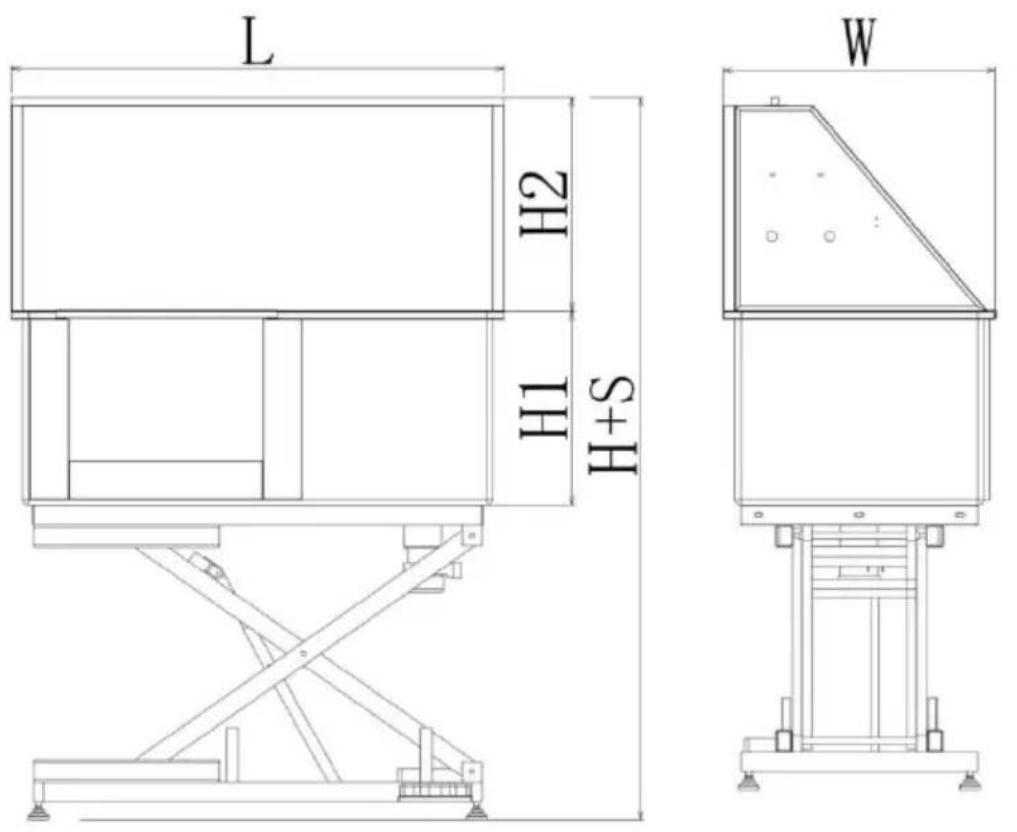

DIMENSIONS AND PARAMETERS

Porte de gauche

Porte droite

L H2 H1 H+S W

Modèle #	L (mm)	H (mm)	S (mm)	H1 (mm)	H2 (mm)	W (mm)	Poids net (kg)
K1E01 027-U	1270	1295	565	500	530	700	79,7
K1E01 028-U	1270	1295	565	500	530	700	79,7
K1E01 027-E	1270	1295	565	500	530	700	79,7
K1E01 028-E	1270	1295	565	500	530	700	79,7
K1E01 027-A	1270	1295	565	500	530	700	79,7
K1E01 028-A	1270	1295	565	500	530	700	79,7

FOOT BUTTON FUNCTIONS

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

Affordable. Reliable. Home Improvement.

HUNDEPFLEGEWANNE

MODELL: K1E01027 -U/ K1E01027 -E/ K1E01027 -A

K1E0102 8-U/ K1E0102 8-E/ K1E0102 8-A

MODELL: K1E01027 -U/ K1E01027 -E/ K1E01027 -A K1E0102 8-U/K1E0102 8-E/ K1E0102 8-A

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a standing dog (no text or symbols)

Technical line drawing of a mechanical support structure with no visible text or symbols

Technical line drawing of a mechanical support structure with no visible text or symbols

Technical schematic diagram of a mechanical device with labeled components and cross-sectional views

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

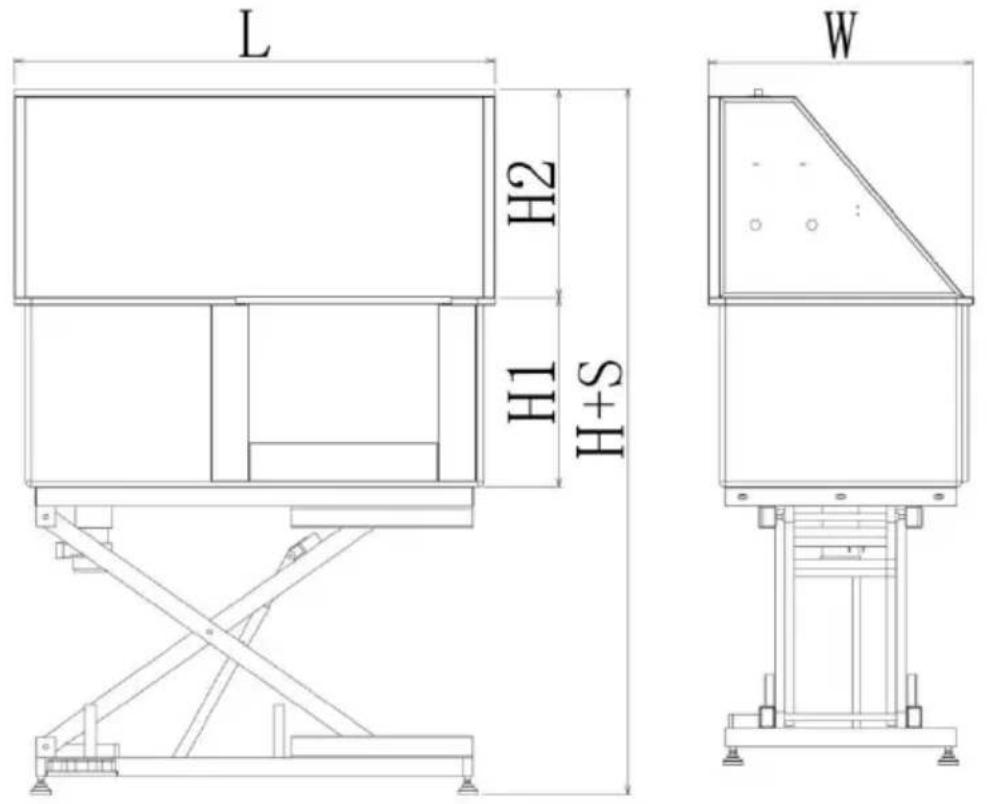

DIMENSIONS AND PARAMETERS

Linke Tür

L H2 H1 H+S

Technical line drawing of a mechanical device with no visible text or symbols

Rechte Tür

L H2 H1 H+S

Technical line drawing of a mechanical device with no visible text or symbols

Modell#	L(mm)	H(mm)	S(mm)	H1(mm)	H2(mm)	W(mm)	Nettogewicht(kg)
K1E01 027-U	1270	1295	565	500	530	700	79,7
K1E01 028-U	1270	1295	565	500	530	700	79,7
K1E01 027-E	1270	1295	565	500	530	700	79,7
K1E01 028-E	1270	1295	565	500	530	700	79,7
K1E01 027-A	1270	1295	565	500	530	700	79,7
K1E01 028-A	1270	1295	565	500	530	700	79,7

FOOT BUTTON FUNCTIONS

Tastenfunktionen

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

Affordable. Reliable. Home Improvement.

VASCA PER LA TOELETTATURA DEI CANI

MODELLO: K1E01027 -U/ K1E01027 -E/ K1E01027 -A

K1E0102 8-U/ K1E0102 8-E/ K1E0102 8-A

VEVOR

Affordable. Reliable. Home Improvement.

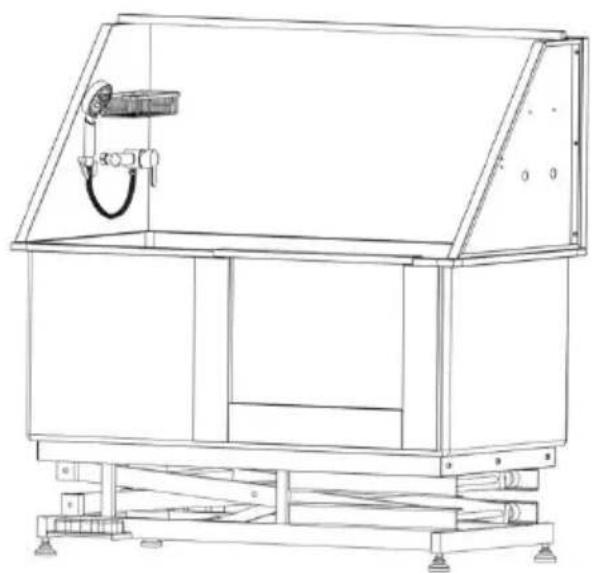

DOG GROOMING TUB

MODELLO: K1E01027 -U/ K1E01027 -E/ K1E01027 -A K1E0102 8-U/K1E0102 8-E/ K1E0102 8-A

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a dog with floppy ears and long tail (no text or symbols)

Technical diagram of a mechanical or structural assembly with labeled components and dimensions

Technical line drawing of a mechanical support structure with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical structure with beams and supports, no text or symbols present

Technical schematic diagram of a mechanical device with labeled components and an inset view showing a component labeled '13'

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

DIMENSIONS AND PARAMETERS

Porta sinistra

L H2 H1 H+S

Technical line drawing of a mechanical device with no visible text or symbols

Porta destra

Technical line drawing of a mechanical device with no visible text or symbols

Modello#	L(mm)	H(mm)	S(mm)	H1(mm)	H2(mm)	O(mm)	Peso netto(kg)
K1E01 027-U	1270	1295	565	500	530	700	79.7
K1E01 028-U	1270	1295	565	500	530	700	79.7
K1E01 027-E	1270	1295	565	500	530	700	79.7
K1E01 028-E	1270	1295	565	500	530	700	79.7
K1E01 027-A	1270	1295	565	500	530	700	79.7
K1E01 028-A	1270	1295	565	500	530	700	79.7

FOOT BUTTON FUNCTIONS

Pure mechanical diagram showing a valve or actuator without any text, numbers, or symbols

CARE INSTRUCTIONS

Affordable. Reliable. Home Improvement.

BAÑERA DE ASEO PARA PERROS

MODELO: K1E01027 -U/ K1E01027 -E/ K1E01027 -A

K1E0102 8-U/ K1E0102 8-E/ K1E0102 8-A

VEVOR

Affordable. Reliable. Home Improvement.

DOG GROOMING TUB

MODELO: K1E01027 -U/ K1E01027 -E/ K1E01027 -A K1E0102 8-U/K1E0102 8-E/ K1E0102 8-A

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a standing dog (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical structure with beams and supports, no text or symbols present

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

DIMENSIONS AND PARAMETERS

Puerta izquierda

Puerta derecha

L H2 H1 H+S W

Modelo #	L (milímetros)	H (milímetros)	S (milímetros)	H1 (milímetros)	H2 (milímetros)	O (milímetros)	NO (kg)
K1E01 027-U	1270	1295	565	500	530	700	79.7
K1E01 028-U	1270	1295	565	500	530	700	79.7
K1E01 027-E	1270	1295	565	500	530	700	79.7
K1E01 028-E	1270	1295	565	500	530	700	79.7
K1E01 027-A	1270	1295	565	500	530	700	79.7
K1E01 028-A	1270	1295	565	500	530	700	79.7

FOOT BUTTON FUNCTIONS

Pure mechanical diagram showing a piston-cranked valve with no text or symbols

CARE INSTRUCTIONS

Affordable. Reliable. Home Improvement.

WANNA DO PIELEGNACJI PSÓW

MODEL: K1E01027 -U/ K1E01027 -E/ K1E01027 -A

K1E0102 8-U/ K1E0102 8-E/ K1E0102 8-A

VEVOR

Affordable. Reliable. Home Improvement.

DOG GROOMING TUB

MODEL: K1E01027 -U/ K1E01027 -E/ K1E01027 -A K1E0102 8-U/ K1E0102 8-E/ K1E0102 8-A

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a standing dog (no text or symbols)

Technical diagram of a structural beam with labeled components and support symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical structure with beams and supports, no text or symbols present

Technical schematic diagram of a mechanical device with labeled components and an inset view showing a component labeled '13'

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

DIMENSIONS AND PARAMETERS

Lewe drzwi

Prawe drzwi

Model#	L(mm)	H(mm)	S(mm)	H1(mm)	H2(mm)	W(mm)	NW(kg)
K1E01027-U	1270	1295	565	500	530	700	79,7
K1E01028-U	1270	1295	565	500	530	700	79,7
K1E01027-E	1270	1295	565	500	530	700	79,7
K1E01028-E	1270	1295	565	500	530	700	79,7
K1E01027-A	1270	1295	565	500	530	700	79,7
K1E01028-A	1270	1295	565	500	530	700	79,7

FOOT BUTTON FUNCTIONS

Funkcje przycisków

Pure mechanical diagram showing a valve or actuator without any text, numbers, or symbols

CARE INSTRUCTIONS

Affordable. Reliable. Home Improvement.

HONDENTRIMBAK

MODEL: K1E01027 -U/ K1E01027 -E/ K1E01027 -A

K1E0102 8-U/ K1E0102 8-E/ K1E0102 8-A

MODEL: K1E01027 -U/ K1E01027 -E/ K1E01027 -A K1E0102 8-U/ K1E0102 8-E/ K1E0102 8-A

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a standing dog (no text or symbols)

Technical line drawings of two structural beam assemblies with supports and support columns (no text or symbols)

Technical schematic diagram of a mechanical assembly with labeled components and an inset view of a device.

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

DIMENSIONS AND PARAMETERS

Linkerdeur

Rechterdeur

Model#	L(mm)	H(mm)	S(mm)	H1(mm)	H2(mm)	W(mm)	NW(kg)
K1E01027-U	1270	1295	565	500	530	700	79,7
K1E01028-U	1270	1295	565	500	530	700	79,7
K1E01027-E	1270	1295	565	500	530	700	79,7
K1E01028-E	1270	1295	565	500	530	700	79,7
K1E01027-A	1270	1295	565	500	530	700	79,7
K1E01028-A	1270	1295	565	500	530	700	79,7

Model	K1E01027 -UK1E0102 8-U	K1E01027 -EK1E0102 8-E	K1E01027 -AK1E0102 8-A
Dimensie:	L1270xB700xH1295 ( min )
Reis	560 mm
Laadvermogen:	1 50 kg/330 lb
Stekker standaard	Amerikaanse stekker	eurostekker	Australische stekker
Overbelastingsindicatie	Ja	Ja	Ja
Stroom:	5 0W	9 0W	9 0W
Spanning:	AC1 20V	AC2 20 -240 V	AC2 20 -240 V

OVERLOAD INDICATION

FOOT BUTTON FUNCTIONS

Knopfuncties

"C": Koud water; "H": Warm water

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

Affordable. Reliable. Home Improvement.

HUNDTRIMNINGSBADKAR

MODELL: K1E01027 -U/ K1E01027 -E/ K1E01027 -A

K1E0102 8-U/ K1E0102 8-E/ K1E0102 8-A

MODELL: K1E01027 -U/ K1E01027 -E/ K1E01027 -A K1E0102 8-U/K1E0102 8-E/ K1E0102 8-A

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a standing dog (no text or symbols)

Technical diagram of a mechanical or structural assembly with labeled components and dimensions

Technical line drawing of a mechanical support structure with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical structure with beams and supports, no text or symbols present

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.

DIMENSIONS AND PARAMETERS

Vänster dörr

Höger dörr

L H2 H1 H+S W

Modell#	L(mm)	H(mm)	S(mm)	H1(mm)	H2(mm)	V(mm)	NV(kg)
K1E01027-U	1270	1295	565	500	530	700	79,7
K1E01028-U	1270	1295	565	500	530	700	79,7
K1E01027-E	1270	1295	565	500	530	700	79,7
K1E01028-E	1270	1295	565	500	530	700	79,7
K1E01027-A	1270	1295	565	500	530	700	79,7
K1E01028-A	1270	1295	565	500	530	700	79,7

Modell	K1E01027 -UK1E0102 8-U	K1E01027 -EK1E0102 8-E	K1E01027-AK1E01028-A
Dimensionera:	L1270xB700xH 1295 (min)
Resa	560 mm
Lastkapacitet:	1 50 kg/330 lb
Kontaktstandard	Amerikansk kontakt	eurokontakt	Australisk kontakt
Överbelastningsindikation	Ja	Ja	Ja
Driva:	50W	90W	90W
Spänning:	AC1 20V	AC2 20–240 V	AC2 20–240 V

OVERLOAD INDICATION

FOOT BUTTON FUNCTIONS

Knappfunktioner

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS
