Product Type	Ultrasonic Cleaner
Brand	Vevor
Model	KZ-S15
Capacity	15 Liters
Dimensions (L x W x H)	355 x 325 x 275 mm
Net Weight	7.6 kg
Ultrasonic Frequency	40 kHz
Ultrasonic Power	360 W
Heating Power	450 W
Temperature Range	0 – 80 °C
Timer	0 – 30 minutes
Tank Material	Stainless Steel
Housing Material	Stainless Steel
Power Supply	220-240 V ~ 50/60 Hz
Display	Digital (temperature and time)
Drain	Yes, with 1/2 inch fitting
Included Accessories	Cleaning basket, small basket, power cord
Lid	Yes
Safety	Overheat Protection
Compliance	FCC Part 15

Frequently Asked Questions - KZ-S15 Vevor

How to set the cleaning time and start the device?

Briefly press the Time button to select the desired time (0-30 minutes), then briefly press the ON/OFF button to start the cycle. To interrupt, press ON/OFF; to resume, press again.

Can I use the device without water in the tank?

No, never operate the device without liquid. Make sure the water level is between the minimum mark (7 cm depth) and the maximum mark (MAX).

What type of liquid can I use?

Use clean water preferably. Do not add toxic solvents, sterilizers, or acids as they can damage the resin and stainless steel. Also avoid flammable liquids.

Can I clean jewelry with gemstones?

It is not recommended to clean precious stones (opal, emerald, coral, etc.) or pearls, as they are fragile (hardness below 8). Rings and necklaces with diamonds may lose their stones. Limit cleaning time for jewelry.

How to maintain the cleaner?

After use, empty the dirty water, clean the tank with a soft sponge and rinse. Wipe the outside with a dry cloth. Be careful not to let water enter the electrical connections (switch and plug).

What is the maximum continuous use time?

Do not exceed one hour of continuous use, otherwise internal components may be damaged. After several cycles, the machine may enter self-protection and require 5 minutes of rest.

Why does the device stop during operation?

This may be due to overheating. The machine has a self-protection system that cuts off power in case of excessive temperature. Let it cool for about 5 minutes before restarting.

Can I use tap water directly?

It is recommended to use demineralized water or distilled water to avoid limescale deposits. Tap water may cause residues and affect operation, especially with heating.

Which items should not be cleaned?

Avoid items made of wood, soft stones (Morse hardness below 8), glued or inlaid items, and dentures with wax. Scratched or cracked items may worsen. Do not clean pearls, opals, emeralds, ivory, etc.

How to drain the water from the tank?

For models of 6 liters and above (like the KZ-S15), use the drain valve located at the back. Place a container under the drain hose, open the valve, and let the water flow out. Close the valve after draining.

USER MANUAL KZ-S15 Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

ULTRASONIC CLEANERS

USER MANUAL

MODEL NO.: KZ-S013, KZ-S2, KZ-S3, KZ-S6, KZ-S10, KZ-S15, KZ-S22, KZ-S30, JPS-08, JPS-10, JPS-20, JPS-30, JPS-40, JPS-60, JPS-80, JPS-100

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Ultrasonic Cleaners

MODEL NO.: KZ-S013, KZ-S2, KZ-S3, KZ-S6, KZ-S10, KZ-S15, KZ-S22, KZ-S30, JPS-08, JPS-10, JPS-20, JPS-30, JPS-40, JPS-60, JPS-80, JPS-100

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious injury. SAVE THIS MANUAL SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

Read all instructions carefully.

Keep it away from children!

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1) DO NOT run the cleaner continuously for more than one hour at a time, as doing so can damage the internal components. 2) DO NOT operate the unit without fluid in the tank. Always ensure fluid is no higher than the max mark, and always ensure there is a minimum depth of 7cm. 3) DO NOT drop any item into the tank as this may cause damage to the transducer. Always place the items gently into the tank and use the basket whenever possible. 4) The more items that you place in your cleaning bath, the less efficiently it will clean. It is not advised to overlap items. Always allow plenty of clearance space between the items. 5) Do keep the lid on during use. This will prevent splashes and re-evaporation of the fluid. 6) Never immerse the machine or power cord in water or other liquid. 7) DO NOT touch the power plug with wet hands, especially when inserting or removing the plug. 8) DO NOT touch the unit if the machine has fallen into water during

operation. Remove the power plug from the socket first.

9) DO NOT disassemble the machine, except by professionals. 10) UNPLUG the power source while filling or emptying the tank. 11) DO NOT spray water or liquid over the device and the control panel. 12) DO NOT operate the cleaner without proper grounding. 13) DO NOT place the device on a soft surface, where the vents can be blocked. 14) Upon completion of the cleaning cycle, turn the heater knob off and isolate the machine from the power source. 15) Take care when adding or removing items from the cleaning tank. The fluid is likely to be hot and displaced fluid can damage the internal components. Any displaced fluid must be dried up immediately. 16) In the event of a malfunction/emergency, disconnect the power supply by

removing the power plug from the electrical outlet.

17) When heating is required, the water level should not be less than full. 18) If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent. 19) The connector must be removed before the appliance is cleaned, and the appliance inlet must be dried before the appliance is used again. 20) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. When the machine is used several times continuously, in order to prevent damage and failure of parts caused by overheating, the machine may enter a system of self-protection. It can be resumed after

minutes.

1. Do not get water directly from the tap. Flooding of the device and switches will lead to malfunction.
2. Do not add anti-toxic, sterilizing, or acidic solvents into the cleaning water.
3. May cause deterioration of resin and damage of stainless steel.
4. Do not clean pearls and other low surface hardness articles (Morse hardness of less than 8).
5. Can cause damage, discoloration, or loss of luster.
6. Do not wash rings, necklaces with gems and diamonds for a long time.
7. May cause gems/diamonds to fall off.
8. DO NOT use the same socket as TV, radio, and computer.
9. Can affect the picture clarity or cause noise.
10. Prevent the device from falling and violent shaking. This can cause breakage, deformation, and malfunction.

TECHNICAL SPECIFICATIONS

Model	KZ-S30/JPS-100	KZ-S22/JPS-80	KZ-S15/JPS-60	KZ-S10/JPS-40
Product Dimensions (L*W*H)(mm)		530*330*2753	0*330*325 5	355*325*275 330*270
Packing Size (L*W*H) (mm)	635*405*380	425*380*32635	405*330 5 40	0*300*325
Net Weight (kg)	12 11.2	10.35 7.6/8.4	6
Gross Weight (kg)	13.55	12.5	8.6/9.2	6.7
Capacity (L)	30	22	15 10
Ultrasonic Frequency(KHz)	40
Ultrasonic power (W)	600	480	360	240
Heating power	600	600	450/400	300/400
(W)
Set time (min)	0-30
Set temperature (℃)	0-80

Model	KZ-S6/JPS-30	KZ-S3/JPS-20	KZ-S2/JPS-10	KZ-S013/JPS-08
Product Dimensions (L*W*H)(mm)	325*175*275	265*165*225	175*165*210	175*165*195
Packing Size (L*W*H) (mm)	395*225*325	310*210*280	23228028024260	0
Net Weight (kg)	4.6	3.15/2.95 2	25	1.9
Gross Weight (kg)	5.15 2.13	53/3.4 2.5 5
Capacity (L)	6/6.5 3	2	1.3
Ultrasonic Frequency(KHz)	40
Ultrasonic power (W)	180	120	60	60
Heating power (W)	300	150	150	100
Set time (m)n	0-30
Set temperature (℃)	0-80

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

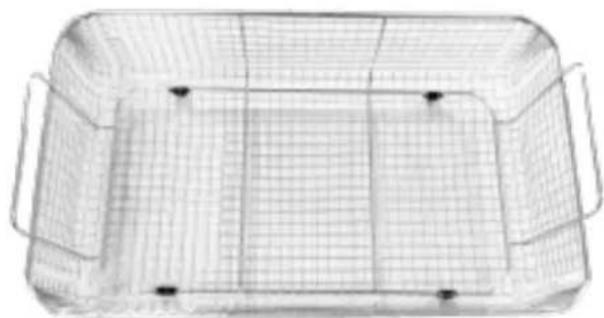

Cleaning basket (Except KZ-S013/JPS-08)

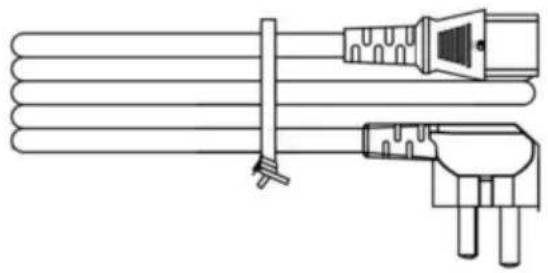

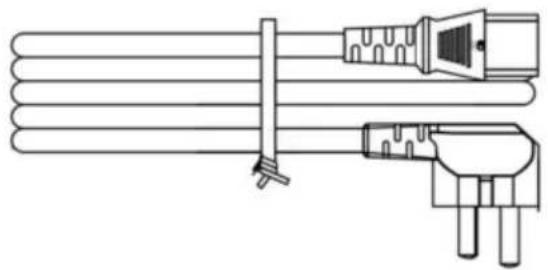

Power cord (The plug is for reference only, subject to the material object.)

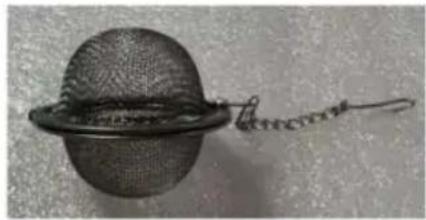

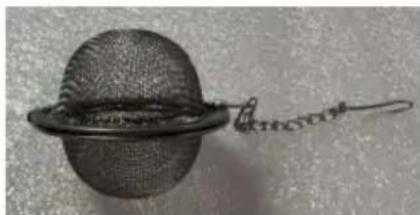

Small cleaning basket

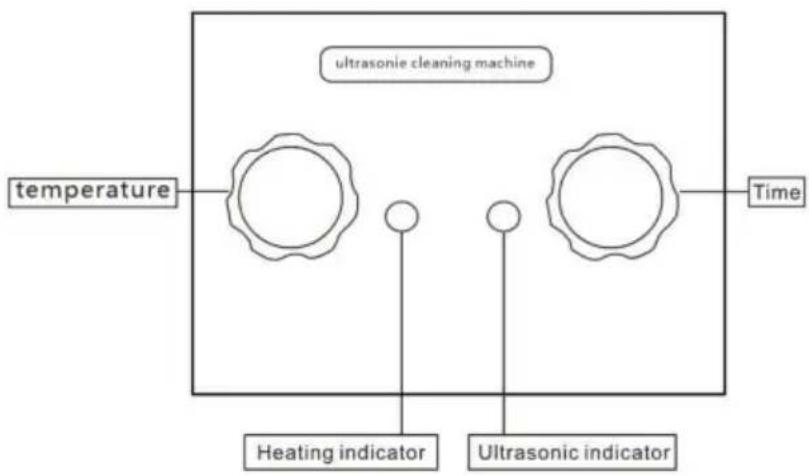

PRODUCT FUNCTIONS

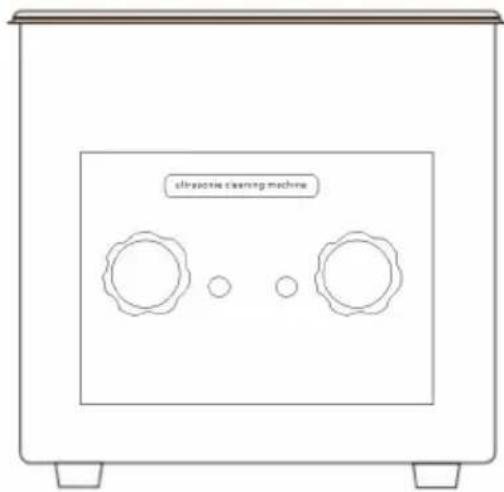

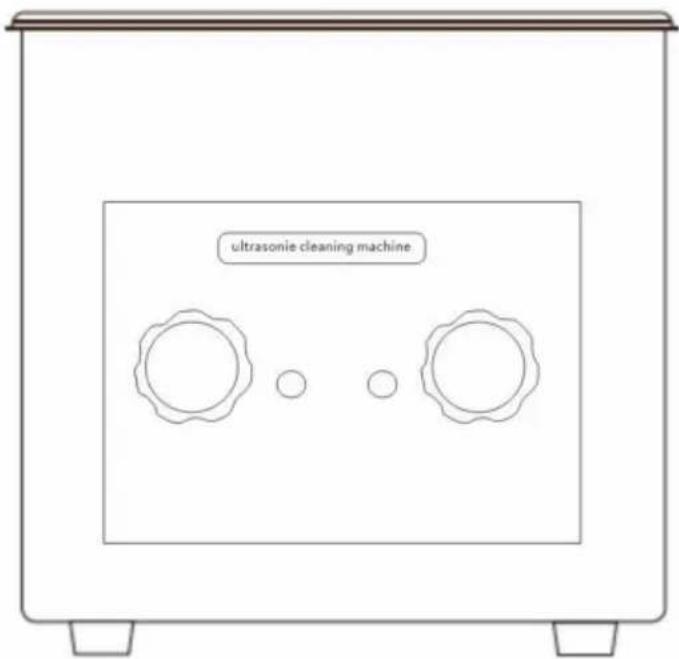

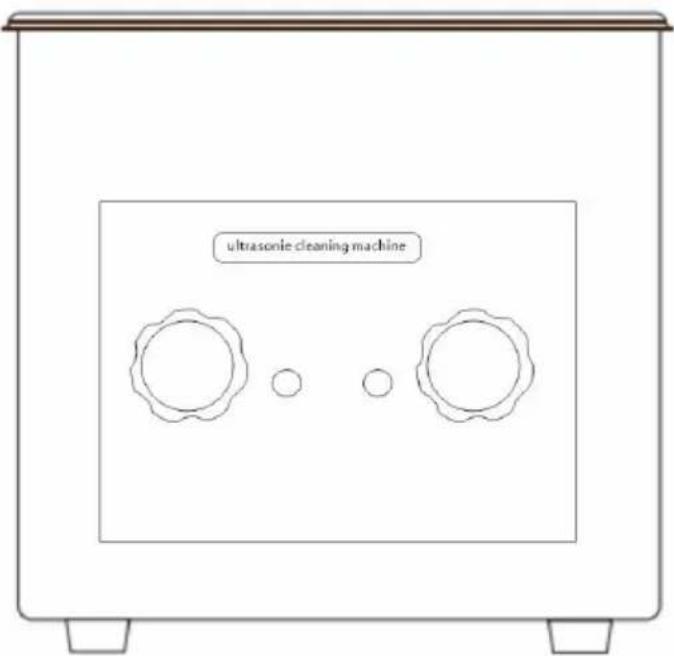

Digital Ultrasonic Cleaner

Features:

• Ultrasonic frequency of 40 kHz
• Digital display of temperature and time. Adjustable temperature from 0 - 80°C.
• Cleaning time individually adjustable from 0-30 min.
• All devices have a useful basket for cleaning parts.
• 6 liter and above size with 1/2" drainage.
• Material tank and casing: Stainless steel.

ITEMS TYPE

Items can be cleaned
Type	Specific Items
Glasses	Spectacles (without UV film) tortoise shell frame
Office supplies Ruler, scissors, pen seal etc
Daily supplies Toothbrush . razor blade comb etc
Jewelry Rings , necklaces , earrings , etc
Tableware Metal tableware.ceramic tableware dentures . etc

Items not suitable for ultrasonic cleaning
	Specific ItemsType
Wooden articles	Turtle shell frame , pearl , birthstone opal , emerald coral , ivory ,emerald, stone , Lacquer ware.
Gems with softer surfaces
Coating and finishing inferior products
Bonded gemstones
Items with scratches and cracks

It may not be possible to completely remove remaining dental stone, dental wax, yellow/black spots from smoking, etc.

It may not be possible to clean fixed sedatives in dentures.

Discoloration and rust of metals and precious metals cannot be removed.

To clean bonding jewels, diamond necklaces, and rings may cause them to fall off.

OPERATIONS

1. Open the lid, add clean water, put what you need into the tank, ensure the clean water is no higher than the "M" mark. Do not operate the unit without water in the tank.
2. Plug the adapter into the socket of the machine.
3. Plug the adapter power into the power socket.
4. Short press the "Time" button to switch to the desired time, then short press the "ON/OFF" button to start the work.
5. If you want to pause the cleaning, you can short press the OFF button to pause, the countdown on the display is paused. Short press the power button again to continue working.
6. If you want to reselect the time, long press the "ON / C" to return to the standby state, and press the "Time" to set the time.
7. When the cleaning work is finished, please unplug the power, open the lid, take cleaned items from the tank, throw dirty water clean and wipe the tank.

Note: Pour water from the side

DAILY MAINTENANCE

1. Pour water into the tank with the measuring cup, half of a standard line. After washing with a soft sponge, rinse with cleaning water.
2. Be careful not to seep water into the power connection at the bottom of the cleaning tank.

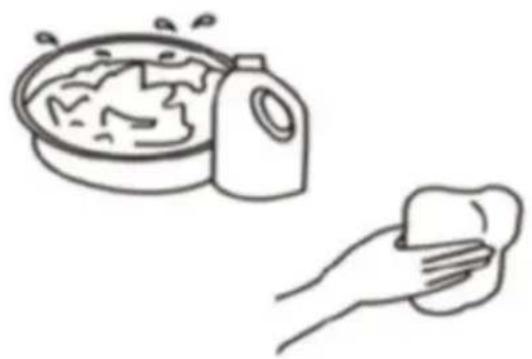

1. After cleaning, please rinse items with clean water once again. Don't seep water into the power connection when cleaning.
2. When the stains are difficult to remove, please wet a cloth with water, then wipe them. Be careful not to seep water into switch and power connection.
3. After wiping, dry the device with a dry cloth.

Disposal information: This product is subject to the provision of European Directi 2012/19/EC. The symbol showing a wheelie bin crossed th indicates that the product requires separate refuse collection. European Union. This applies to the product and all access marked with this symbol. Products marked as such may no discarded with normal domestic waste, but must be taken t collection point for recycling electrical and electronic devices

Manufacturer: Shanghaiuxinmuyeyouxiangonsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122

Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Made In China

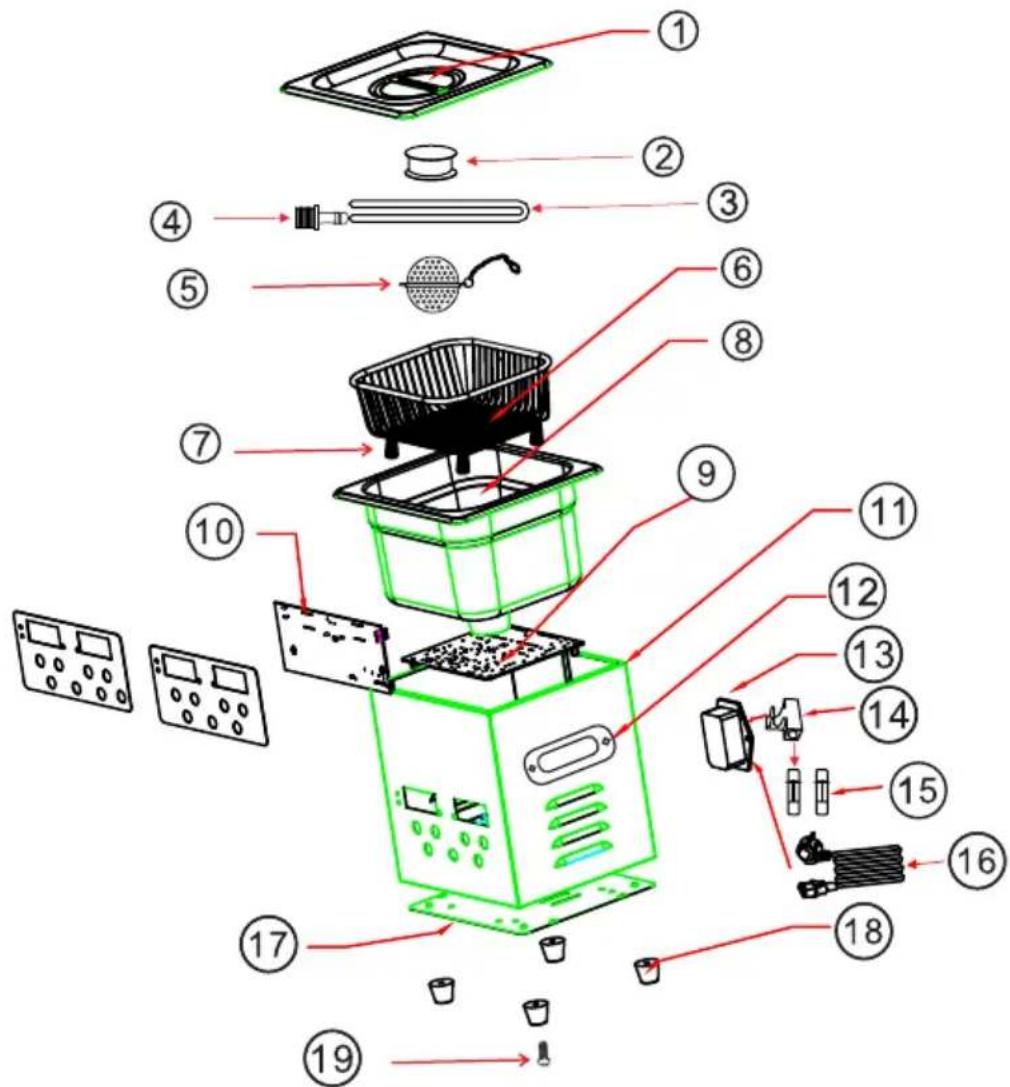

NO.	Name	Name	Le non	None
1	top cap	Oberkappe	capuchon supérieur	cappuccio superiore
2	ptee Tape	PTFE-Band	ruban PTFE	nastro PTFE
3	drain hose	Entwässerungsschlauch	Tuyau de vidange	tubo di scarico
4	Water pipe joint	Vasserrohrverbindung	Joint de tuyau d'eau	giunzione del tubo dell'acqua
5	Stainless steel	Edelstahl	Acier inoxydable	acciaio inox
6	Washing nesh basket	Waschgittarkorb	Panier à naille des lavages	esto a rete per lavaggio
7	foot pad	Fußpolster	Tapis de pied	cuscinetto per i piedi
8	Cylinder block	Zylinderblock	Bloc de cylindre	blocco cilindrico
9	Fever substrate	Leistungssubstrat	Substrat de puissance	sostrato di potenza
10	contra board	Steuerplatine	Carte de connande	schedai di controllo
11	casing	Gehäuse	Eoitier	custodia
12	handle	Griff	Poignée	naniglia
13	svitch	Schalter	Interrupteur	interruptatore
14	Safety seat	Sicherheitssitz	Siège de sécurité	seduta di sicurezza
15	fuse	Sicherung	Fusible	fusibile
16	Fever cord	Netzkelabel	Câble d'alimentation	cavo di alimentazione
17	base	Basis	Base	base
18	foot pad	Fußpolster	Tapis de pied	cuscinatto per i piedi
19	Screw	Schraube	Vis	vite
NO.	Nonre	De naam	-Eokstar	Narva i narvisko
1	tapa superior	bovenkap	toppika	wierzchnia elektryva
2	cinta de PTFE	PTFE-band	PTFE-band	taśna PTFE
3	nanguera de drenaje	afvoerschlauch	avloppsró	przewid od provadrajacy
4	unión de tuberia de agua	waterpijoverbinding	vattenörsleding	zhacze rury wodnej
5	acero inoxidable	roestvrij staal	rostfritt stál	stal niedrevna
6	canasta de nalla para lavado	wasschermand	tvätttnåtkorg	koszyk sitovy do mycia
7	alnochadilla para los pies	voetkussen	fatpall	podkhadka pod stope
8	bloque de cilindros	cilinderblok	cilindernblock	blok cylindrovy
9	sustrato de potencia	krachtsubstraat	kraftsubstrat	podboze zasilania
10	plaça de control	besturingsbord	kontrollpanel	plytka sterujaca
11	caja	behuiizing	hölje	obudova
12	asidero	handgreep	handtag	uchyvt
13	interruptor	schakelaar	svitch	przelacznik
14	asiento de seguidad	veiligheidstoel	sakerhetssäte	siedrisko berpiecrefstva
15	fusible	zekering	såkring	zasilacz
16	cable de alinentación	voedingskabel	strönbild	kabel zasilajacy
17	base	basis	bas	podstava
18	alnochadilla para los pies	voetkussen	fatpall	podkhadka pod stope
19	tornillo	schroef	skruv	srubka
