USER MANUAL KD-1151 Vevor

Affordable. Reliable. Home Improvement.

ELECTRIC MELTING FURNACE

MODEL:KD-1101\ KD-1102\ KD-1151\ KD-1152

MODEL:KD-1101/KD-1102

KD-1151/KD-1152

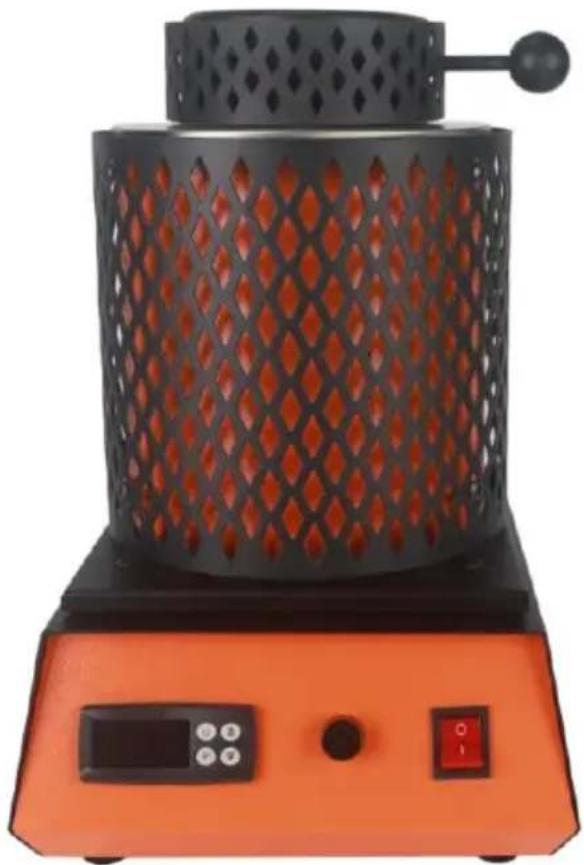

Exterior view of a black and orange portable electrical stove with a perforated lid and control panel (no text or symbols visible)

NOTE: Periodically check the intactness of the crucible, to avoid damages of the heating coil! Photos for reference.

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

	Warning - To reduce the risk of injury, the user must read the manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of european Directive 2012 The symbol showing a wheelie bin crossed through indicates that product requires separate refuse collection in the European Union. applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal dome waste, but must be taken to acollection point for recycling electrical electronic devices.
	FCC Information:CAUTION:Changes or modifications not expressly approved by the party resp for compliance could void the user's authority to operate the equip This device complies with Part 15 of the FCC Rules. Operation is the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the us authority to operate the product.Note: This product has been tested and found to comply with the Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interfere in a residential installation.This product generates, uses and can radiate radio frequency energy not installed and used in accordance with the instructions, may ca harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. product does cause harmful interference to radio or television reception,which can be determined by turning the product off and user is encouraged to try to correct the interference by one or mfollowing measures.• Reorient or relocate the receiving antenna.• Increase the distance between the product and receiver.• Connect the product to an outlet on a circuit different from that receiver is connected.• Consult the dealer or an experienced radio/TV technician for ass

SAFETY INSTRUCTIONS

1.1 ELECTRICAL SAFETY - CRITICAL RULES

WARNING: Failure to follow these instructions may cause electric shock or severe inju

READ FIRST: Thoroughly review all instructions before operation. Keep this manual accessible near the workstation.

POWER REQUIREMENTS:

√ Always use grounded current sources.
√ Verify proper grounding by a licensed electrician if uncertain.
√ Never operate with damaged power cords.

OPERATING ENVIRONMENT:

√ Keep unit indoors away from direct sunlight.
√ Maintain 12-inch clearance from heat sources.
√ Allow 3-hour cooldown after continuous operation.

CLEANING PROCEDURE:

Disconnect power before cleaning.

Wipe surfaces with damp microfiber cloth only.

NEVER use chemical cleaners or allow moisture ingress.

CHEMICAL WARNING:

Acid/alkali materials may corrode heating elements.

Always keep the heat dissipation hole open during melting.

USER MAINTENANCE PROHIBITION:

✗ Do not disassemble any internal components.
✗ Unauthorized repairs void warranty.

1.2 MELTING FURNACE SAFETY PROTOCOLS

WARNING: Failure to comply may cause severe burns or fire hazards.

MANUAL ACCESSIBILITY:

√ Keep this manual within arm's reach of the workstation
√ Train all operators using OSHA 1910.147 standards

WORK AREA REQUIREMENTS:

√ Maintain continuous ventilation (min. 4 air changes/hour).
√ Keep emergency exits clear of obstructions.

FIRE PREVENTION:

√ Keep ABC-type fire extinguisher visible and accessible.
√ NO combustible materials within 36 inches.

PERSONAL PROTECTION:

√ Wear ASTM F2675-certified gloves at all times.

OPERATIONAL SAFETY:

√ Never leave unattended during operation.
√ Fill crucible ≤80% capacity to prevent overflow.

MATERIAL HANDLING:

√ Add solid materials slowly to avoid splatter.

1.3 MELTING FURNACE OPERATIONAL SAFETY

CRITICAL WARNINGS

OPERATION DURATION

√ MUST cease operation after 2 hours of continuous use.
√ Allow minimum 30-minute cooldown before restarting.

TEMPERATURE LIMITS

NEVER exceed 1150°C (2102°F) maximum rated temperature.

√ Verify with calibrated thermocouple during operation.

RECYCLED METAL PROCESSING

√ Acidic/alkaline residues in recycled precious metals cause heating element corrosion
√ Mandatory ventilation protocol:

Fully open the hole on the top of chamber cover during melting.

Maintain minimum 4 air changes/hour workspace ventilation.

FCC Information

FCC REGULATORY NOTICE

WARNING:

Unauthorized modifications void FCC operating authorization per 47 CFR §15.21.

COMPLIANCE STATEMENT

This device complies with FCC Part 15 Subpart B. Operation requires:

1. Acceptance of all interference (including undesired operation).
2. Non-interference with licensed services.

CLASS B DEVICE CERTIFICATION

Tested to comply with Class B digital device limits under 47 CFR §15.107/109. These

√ Provide residential interference protection.
√ Do not guarantee interference-free operation.

INTERFERENCE MITIGATION

If causing RF interference to communications:

1. Power cycle to confirm source.
2. Implement all corrective measures:

Reposition antenna.

Increase device-receiver separation.

Use isolated circuit (NEC 210.11 compliant).

Contact certified RF technician.

WARNING:

Changes or modifications to this product not expressly approved by the party.responsib for compliance could void the user's authority to operate the product.

Note:

This product has been tested and found to comply with the limits for a Class B dig pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasona protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receipt connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

MODEL AND PARAMETERS

NOTE: Please correspond to the model you purchased.

Model	KD-1101	KD-1102
Input	AC 120V 60Hz	AC 230V 50Hz
Max. Power	1350W	1350W
Max. Temperature	1150°C	1150°C
Temperature Error	±5°C	±5°C
Working Temperature	0-50°C
Material	Steel
Color	Black & Orange

Model	KD-1151	KD-1152
Input	AC 120V 60Hz	AC 230V 50Hz
Max. Power	1500W	1500W
Max. Temperature	1150°C	1150°C
Temperature Error	±5°C	±5°C
Working Temperature	0-50°C
Material	Steel
Color	Black& Orange

1 2 3 4 5 6 7 8 9

11 10 12

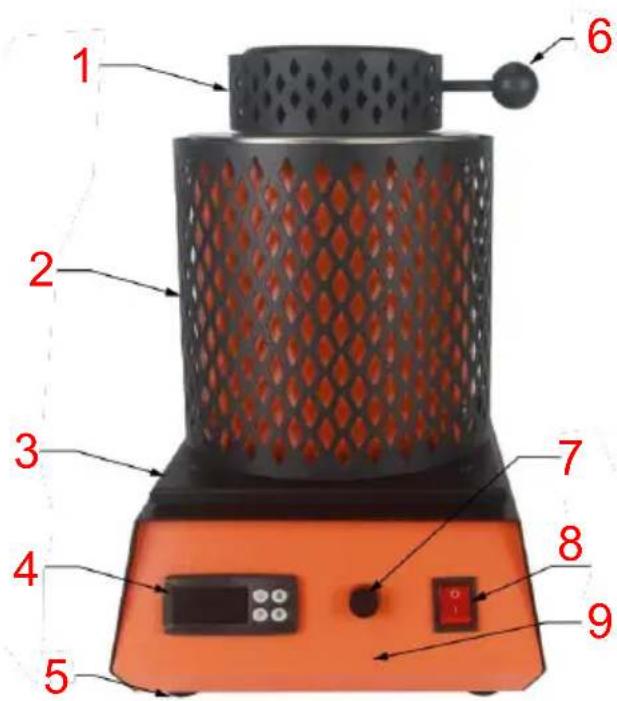

1.Cover Protective Cover
2. Protective Cover
3. Insulation
4. Temperature Control Meter
5.Foot Pads
6.Cover Opening Handle
7.Fuse
8.Power Switch
9. Machine Body

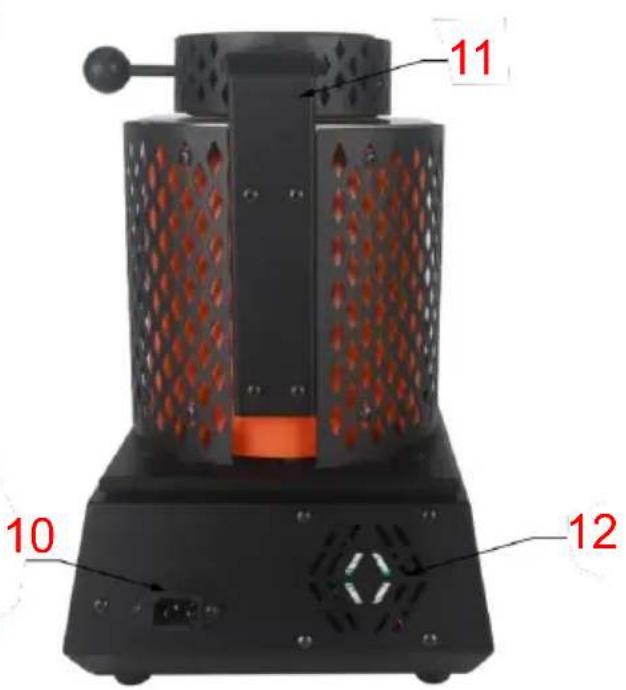

10.Power Outlet
11.Cover Auxiliary Rod
12.Cooling Fan

PARTS LIST

NOTE: Please correspond to the model you purchased.

MODEL:KD-1101 / KD-1102
Melting Furnace x1	Crucible Tong x1
Power Cord x1	Insulated Gloves x1
Oil Tank(100*50*25mm) x1	3kg Crucible x1
Fuse x2	User Manual x1

MODEL:KD-1151 / KD-1152
Melting Furnace x1	Crucible Tong x1
Power Cord x1	Insulated Gloves x1
Oil Tank (125*60*40mm)X1	5kg Crucible x1
Oil Tank x1	Fuse x2	User Manual x1

1 2 3 4 5 6 7 8 U P

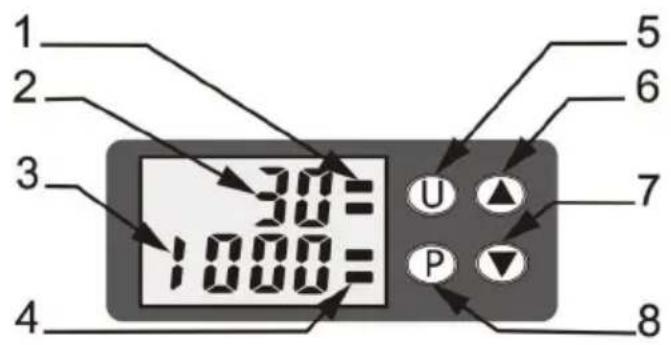

1. Heat display symbol
2. Show the actual temperature in the furnace
3. Display the set temperature
4. Heat preservation display symbol
5. U button to set the temperature (After pressing the button, the set temperature will blink.)
6. Add temperature (Display setting temperature flicker to add temperature
7. Reduce temperature (Display setting temperature flicker to reduce temperature.)
8. Start heating/Confirm setting temperature

Procedure:

1. The temperature on the display is the actual temperature inside the furnace.
2. Press the key U, the temperature number under the display will fl. When flashing, it means the temperature can be set.
3. Press the key to adjust the required temperature Short press the number will progressively increase by 1 degree, long press the number will speedily increase Short press the number will progressively decrease by 1 degree, long press the number will speedily decrease.
4. Press the key P to confirm the setting temperature.
5. Upside the display, the symbol = means heating and insulation.Upside the display, the symbol= flashing means increasing the temperature. Below the display, the symbol flashing means the holding temperature

MELTING PROCEDURE

Close-up of a metallic cylindrical component with a golden textured top emerging from its side (no text or symbols visible)

1. Put the metal to be melted into the crucible.

Circular mechanical component with evenly spaced radial slots, no visible text or symbols

1. Internal heating wire diagram, please do not fall into the metal material. It will cause the heating wire to burn.

Close-up of a mechanical component with a circular top and three attached wires (no visible text or symbols)

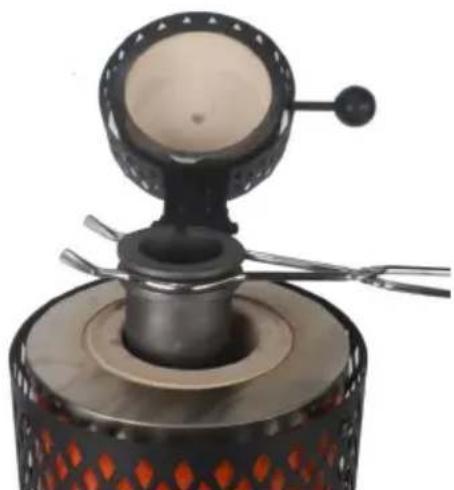

1. Put the crucible into the machine before starting.

NOTE: Periodically check the intactness of the crucible, to avoid damage to the heating coil!

10 1:00 U ▲ P ▼ Flashing

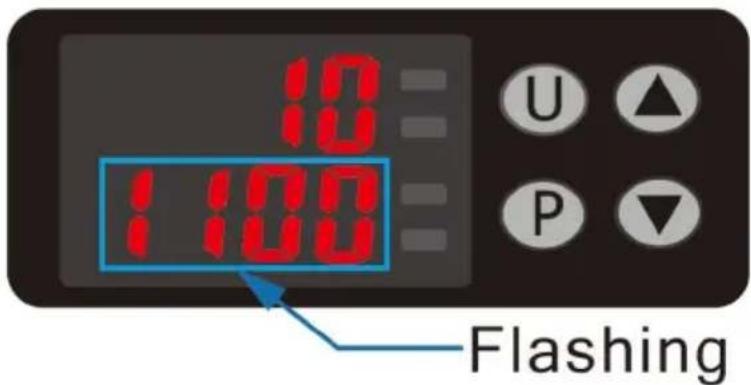

1. Press U to set the temperature. The number below blinks. Press adjust the temperature. Press P to confirm.

Flashing 10= 1:100- U ▲ P

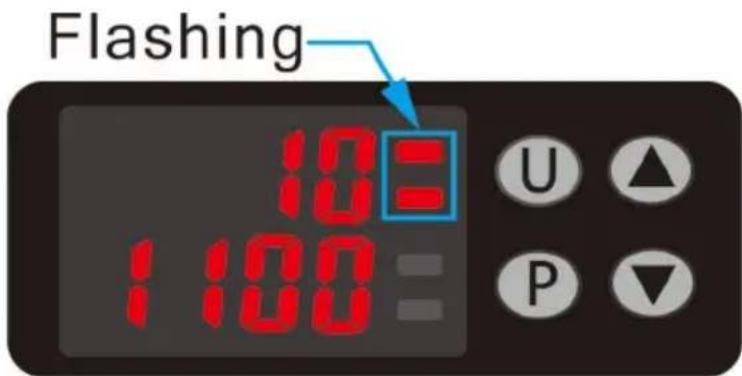

1. Press the P key and the “” blink for the start of heating.

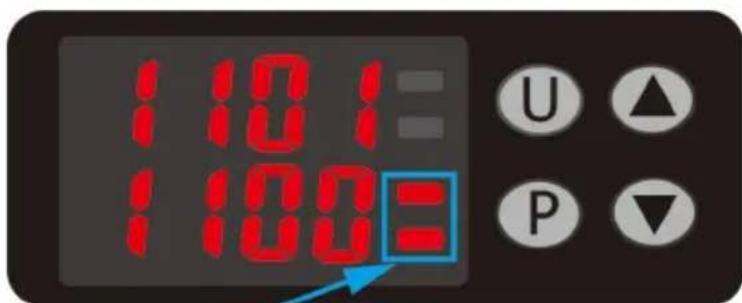

1101 1100=

Flashing hold

1. “=” blinking in the lower right corner indicates heat preservation.

INSTRUCTIONS FOR METALS MELTING

IMPORTANT: The crucible is only adapted to melt gold, Silver, copper and noble metals!

List of the metal types which can be molten in the crucible provided with the device:

Metal	Symbol	Density	Density Fusion Point
Copper	Cu	8.92g/cm3	1084.62°C(1984°F)
Silver	Ag	10.49g/cm3	962.78°C(1763.2°F)
Gold	Au	19.3g/cm3	1064.18°C(1947.52°F)
Aluminum	Al	2.7g/cm3	660.32°C(1220.58°F)
Magnesium	Mg	1.74g/cm3	650°C(1202°F)
Zinc	Zn	7.14g/cm3	419.53°C(787.15°F)
Lead	Pb	11.34g/cm3	327.5°C(621.5°F)
Tin	Sn	7.28g/cm3	231.93°C(449.47°F)
Calcium	Ca	1.55g/cm3	842°C(1548°F)

Please consider that the crucible shouldn't be completely filled to reach optimal result. If you overfill the crucible, the device won't be able to produce the heat needed to let the metal melt. Moreover, the melting process often produces vapors. If you overfill the crucible, it can lead over pressure and the use of the device gets dangerous for the use latest by opening the cover.

Please buy an adapted crucible to melt other metals. Always inform yourself about the production of vapors during the melting process to check the compatibility of the device with your intentions.

MATTERS NEEDING ATTENTION

Display error codes to determine machine problems.

• ERR1: The temperature measuring circuit on the board is broken.
• ERR2: The thermocouple is broken or not connected.
• ERR3: Thermocouple temperature measurement is out of range.
• ERR4: The temperature sensing element on the board is broken or fa
• ERR5:The fan is broken or falls off.

- ERR6:The temperature control element is high.

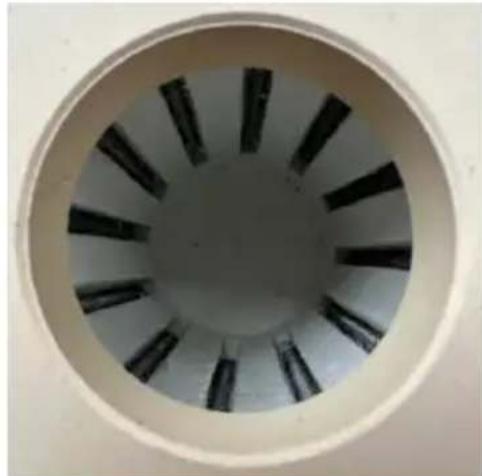

Circular mechanical component with radial slots, no visible text or symbols

NOTE:

1. Metal material falling into the heating wire cylinder short circuit, in work of the crucible broken metal flow heating wire cylinder burned o This you need to buy a replacement heating wire cylinder.

2. After pressing the P key, the upper right corner flashes on the bed of heating, and it can be judged that the heating wire is burned off heated within one minute.

MAINTENANCE

1. Clean the exterior and interior regularly to avoid impurities and me residues.

2. Before and after use, you need to check whether the device is n
