KD-Y5255 - Machine Tool Vevor - Free user manual and instructions

Product Type	Jewelry Rolling Mill
Brand	Vevor
Model	KD-Y5255
Maximum Opening	5.5 mm
Roller Diameter	54.5 mm
Flat Surface	57 mm
Square Wire Rollers (Grooves)	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5 mm
Oval Rollers	2.5x1 / 3x1.25 / 4x1.5 mm
Material	Steel
Color	Black and Orange
Power Supply	Manual (Handle)
Intended Use	Rolling precious and non-ferrous metals: gold, silver, copper, aluminum, etc.
Safety	Wear safety goggles, avoid loose clothing, keep children away
Maintenance	Oil moving parts, clean and oil rollers, store dry
Spare Parts	Contact after-sales service: www.vevor.com/support
Repairability	Replaceable rollers (additional cost)
Warranty	Electronic warranty certificate available on the Vevor website
Manufacturer	VEVOR, Shanghai, China
Importer (USA)	Sanven Technology Ltd., Rancho Cucamonga, CA
Importer (Australia)	SIHAO PTY LTD, ASTWOOD NSW
Country of Origin	China

Frequently Asked Questions - KD-Y5255 Vevor

How to reduce the thickness of a metal with this rolling mill?

Insert the metal between the rollers, then turn the T-bar clockwise to lower the top roller. Pass the metal through by turning the handle. Repeat by turning the T-bar half a turn each pass to gradually reduce thickness.

What types of metals can I roll?

You can roll precious metals (gold, silver) and non-ferrous metals like copper, aluminum, brass. Do not use hardened steel as it could damage the rollers.

How to use the grooves to form square wire?

Start with a uniform ingot or bar. Pass it through the V-grooves, then rotate 90° and pass again. Turn the T-bar half a turn each pass until the desired dimension is achieved.

What to do if the metal becomes rigid during rolling?

Metal hardens when rolled. It must be annealed: heat it to dull red, hold for one minute, then quench in water or let it cool in air. This will make it softer.

How to emboss patterns on metal?

Create a sandwich: metal to emboss at the bottom, texture element (lace, leaf) in the middle, and a copper or brass plate as protection. Pass it through the rollers with light pressure.

What is the recommended regular maintenance?

Oil all moving parts and rollers with light oil. Wipe the rollers after use. Store the device dry, with rollers slightly apart.

How to clean the rollers if they are marked?

Use a soft cloth with metal polish (like anti-rust). If necessary, very fine emery paper with oil can be used, but avoid harsh abrasives.

Can I roll steel with this rolling mill?

No, this rolling mill is designed for precious and non-ferrous metals. Hardened steel could permanently damage the rollers.

How to get perfect edges on my metal?

Work slowly and progressively. Rotate the metal between passes. If sharp edges appear, sand them with emery paper (wear gloves) and pass again through the V-groove with the edge facing up.

Where can I get spare parts or technical assistance?

Visit www.vevor.com/support for technical assistance and the electronic warranty certificate. Rollers are replaceable on request.

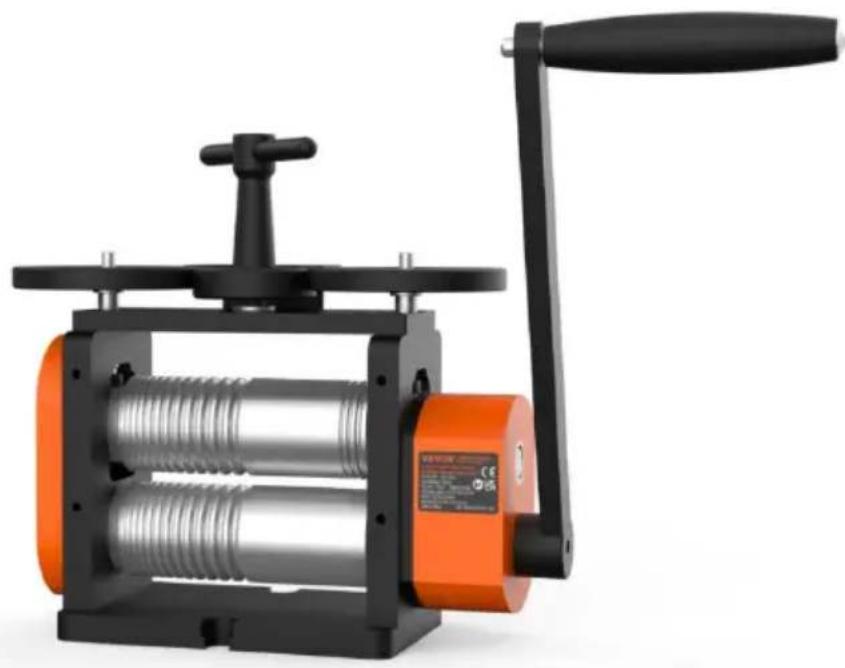

USER MANUAL KD-Y5255 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ROLLING MILL

MODEL: KD-Y5255

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: KD-Y5255

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING:

1. Read and understand the entire owner's manual before attempting assembly or operation.
2. Read and understand the warnings in this manual. Failure to comply with all of these warnings may cause serious injury.
3. This rolling mill is designed and intended for use by properly trained and experienced personnel only. If you are not familiar with the proper and safe operation of a rolling mill, do not use until proper training and knowledge have been obtained.
4. Do not use this rolling mill for other than its intended use.
5. Always wear approved safety glasses/face shields while using this press. Everyday eyeglasses only have impact resistant lenses; they are not safety glasses.
6. Do not operate this arbor press while tired or under the influence of drugs, alcohol, or any medication.
7. Check damaged parts. Before further use of the rolling mill, any part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced.
8. Provide adequate space surrounding the work area and non-glare, overhead lighting.
9. Keep visitors a safe distance from the work area. Keep children away. Use recommended accessories; improper accessories may be hazardous.
10. Make sure the work piece is securely attached or clamped to the
11. Remove loose items and unnecessary work pieces from the area before starting the machine.
12. Do not allow children to use. Beware of clamping hands!
13. Ensure that no loose clothing is worn and hair is safely tied back.
14. Check that there are no cables, ropes, or anything that can get in the rollers or the handle.
15. Applicable metals: Gold, K gold, sterling silver, 925 silver, copper, aluminum, and other ductile metals.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	KD-Y5255
Max Opening	5.5mm
Roll Diameter	Φ54.5mm
Flat Area	57mm
Roll Square Wire	1/1.5/2/2.5/3/3.5/4/4.5/ 5/5.5/6/6.5mm
Roll Oval	2.5x1/3x1.25/4x1.5mm
Material	Steel
Color	Black & Orange

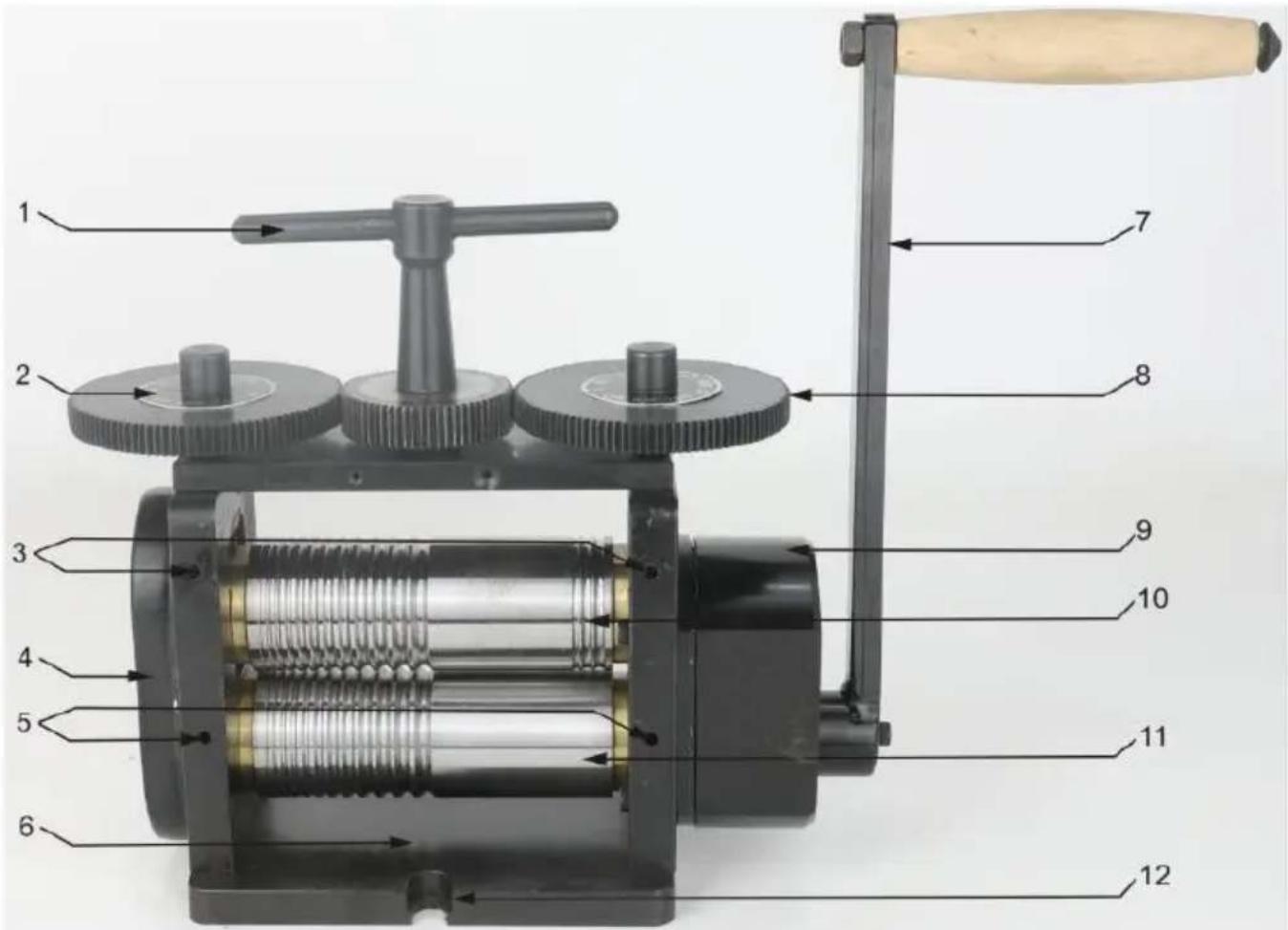

STRUCTURE DIAGRAM

1. Height-adjustable T-handle 2. Dial 3. Oil Part 4. End Gear Cover 5. Oil Part 6. Frame
2. Handle 8. Height adjusting gear 9. Gear box 10. Top roller 11. Bottom roller 12. Countertop mounting hole

COMPONENTS

No.	Picture	Name	Qty
1		Main Body	1
2		Handle	1
3		Handle(Including the bolt)	1
4		Height-adjustable T-handle	1
5		Lubricating Oil	1
6		Bolts	2
7		User Manual	1

OPERATION

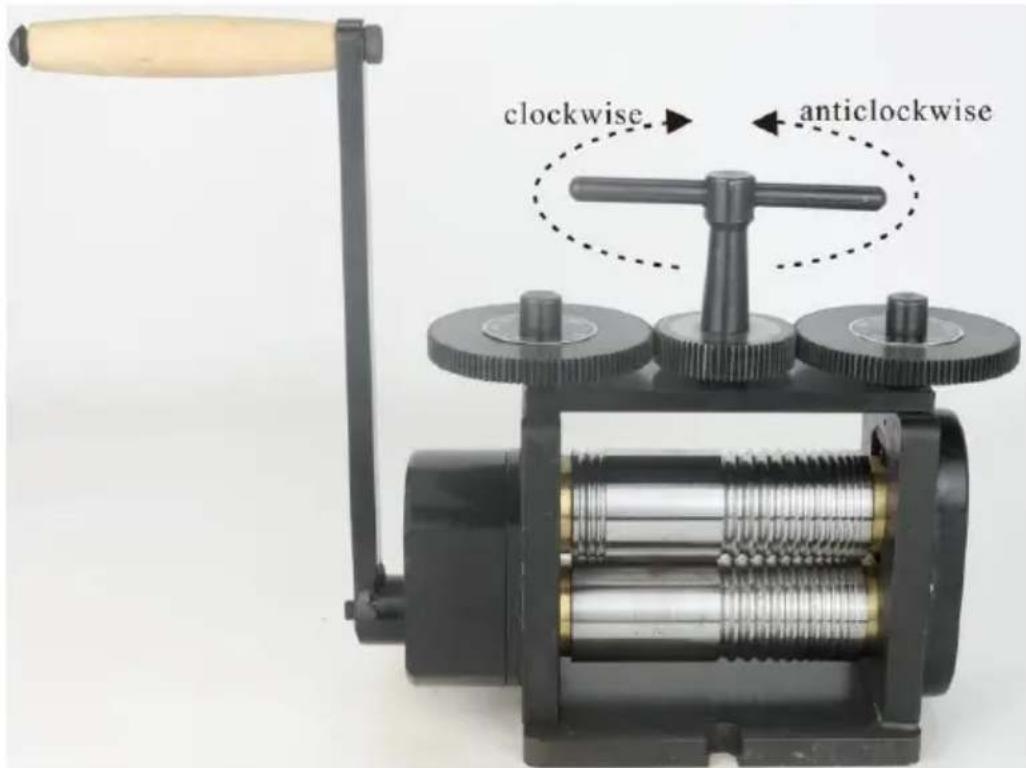

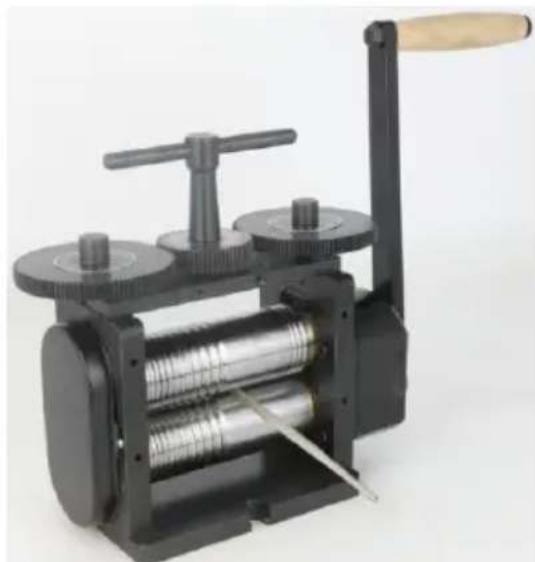

1. The T-bar on the mill top is used to lower or raise the top roller, adjusting the distance between the two rollers. Note that only the top one moves down, and the bottom roller remains fixed. Turning the T-bar clockwise (looked down from above) will lower the top roller and reduce the gap, resulting in thinner wire or sheet. Turning the T-bar anticlockwise will lift the top roller, increasing the gap for thicker material.

1. In normal operation, you begin by opening up the rollers and inserting

metal to be reduced. Turn the T-bar to lower the top roller until it touches the metal. Remove your metal and turn the T-bar a further 1/2 turn. Re-insert the metal and crank the handle, so that the rollers turn inwards and grab your metal, rolling it through away from you. Continue to turn the T-bar 1/2 a turn before each pass and this will slowly reduce the thickness of your material. Depending on the effect you want, you may wish to rotate your metal 90 degrees to create square or rectangular bars.

NOTE: When you reduce the thickness of your metal, it will typically increase in length quite dramatically. You may also see a slight increase in width, but this will be less noticeable. If you rotate after 90 degrees each pass, it will go thinner and longer. Consider this when cutting or casting your initial starting piece.

1. Take square wire using the V grooves. It is first important that your material is uniform and parallel. Starting from the cast ingot, roll it through the machine, rotate the material 90 degrees, then roll it through the machine again. Note: Each time the T-shaped rod rotates half a turn, allowing the top shaft to descend, and rolling the material through. After rotating the material 90 degrees, roll it through once more. This dual-channel process will shape the material into a square bar.
2. As soon as it fits, move on to the V-groove rollers. Start with the larger one again, and follow the same method of rolling the wire through, rotate 90° and pass through again. You may find it helpful to use a permanent marker to mark the side of the metal so you can see which way you are rotating it. When the rollers are getting close together, reduce the thickness by 1/4 turn and put the wire through several times, rotating each time before reducing any further. This will avoid any pinching as the rollers touch. Continue down to the roller until you have the desired dimensions. Note that the length will increase greatly during this operation. A small ingot a couple of inches can be transformed into many feet of thin wire.

TIPS AND TRICKS

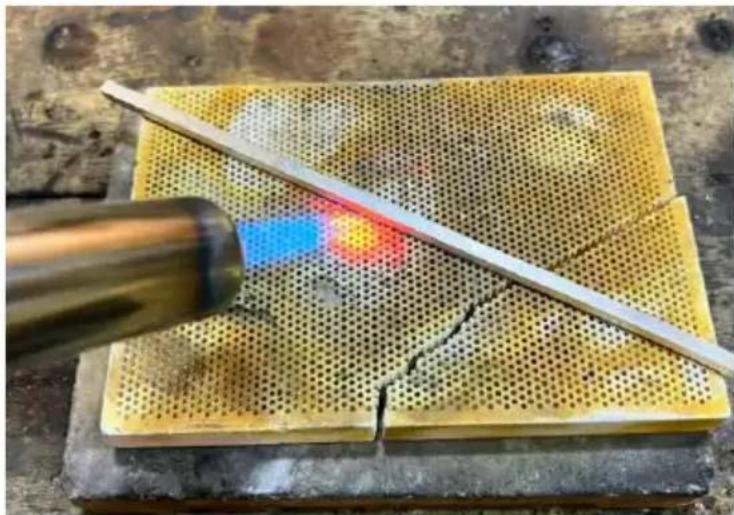

ANNEALING: As the metal is forced through the rollers and transformed, it will work-harden. When your material becomes hard to roll or feels stiff, it should be annealed. Annealing is the process of softening metal and reducing its stress, making it more pliable. If you are not already familiar with it, it is advisable to check the best method to anneal the metal you are working with. Usually this is done by heating it gently to a dull red heat, maintaining that for a minute or so, and then quenching it in water or leaving it to cool. This makes the metal more pliable, easier to work with, and less likely to crack. When working an ingot down into wire, you may need to anneal several times during this process. Tip: Work on several separate pieces at once. So, when one is heating or cooling, you can roll another.

NOTE: Always ensure your metal is dry before taking it through the rollers to avoid any moisture on the rollers.

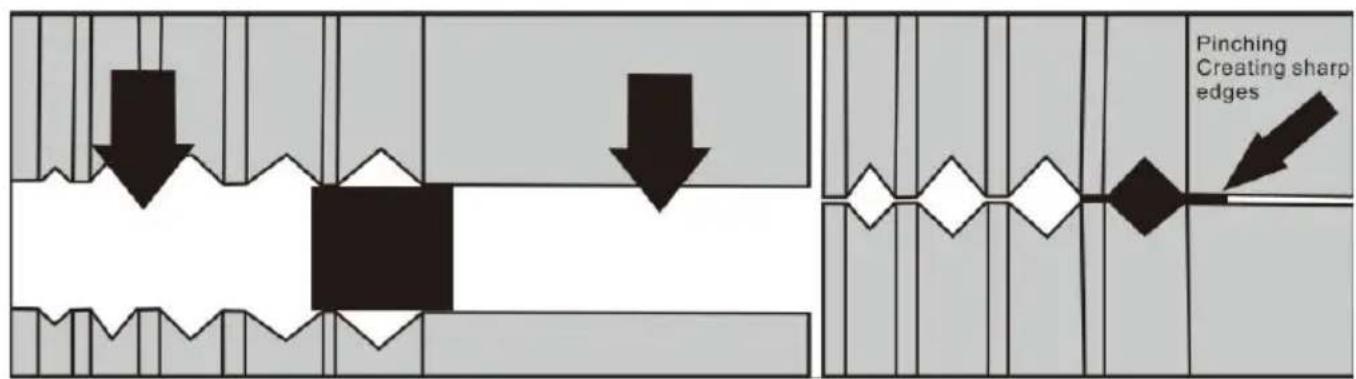

Creating Perfect Edges: Work your metal slowly and gradually, rotating as you go. Forcing the metal through in one direction with too much pressure can cause it to "pinch" the sides, creating thin and sharp edges. If this happens, rub the metal with emery paper to remove the edges (wear leather gloves). And pass it through the roller several times with the edge pointing upwards in the V-groove.

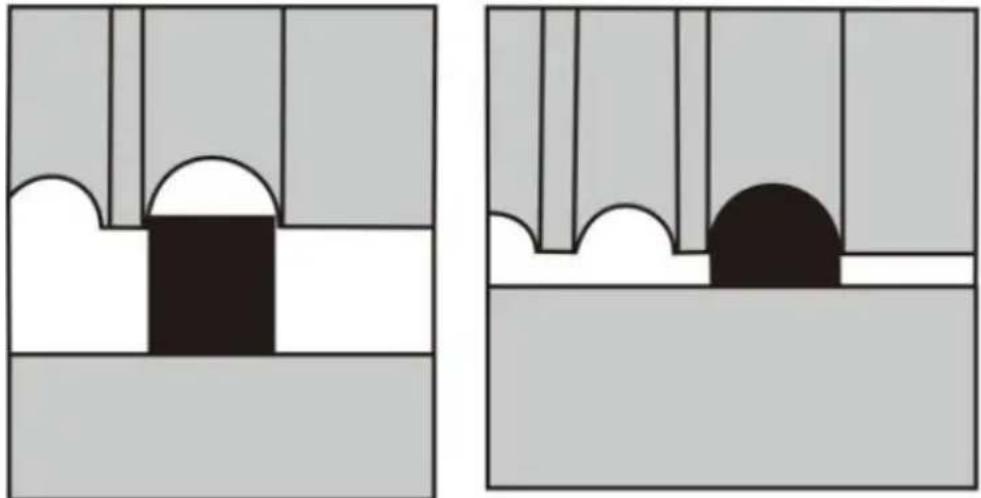

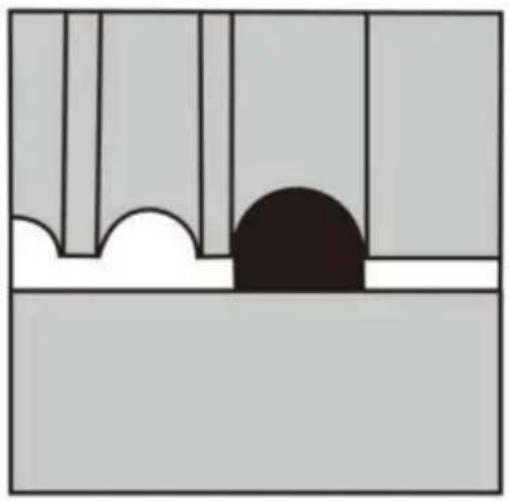

D-Shaped Wire: When using the flat/oval section of the combination roller, you can make a D-profile wire for ring shanks, etc. Start with well-annealed square wire a little narrower than the groove and gradually roll the wire through in several passes to dome the top surface.

EMBOSSING TIPS

1. Almost anything can be embossed into precious metal and non-ferrous metals, such as lace, leaves, fabric, paper cut-outs, wire, etc. This technique can be used to add interesting textures to your jewellery. However, you don't want to damage your rollers by embedding a pattern into the steel. For this reason, it is vitally important that you use a sacrificial piece of metal as a shield between your texturing item and the rollers.

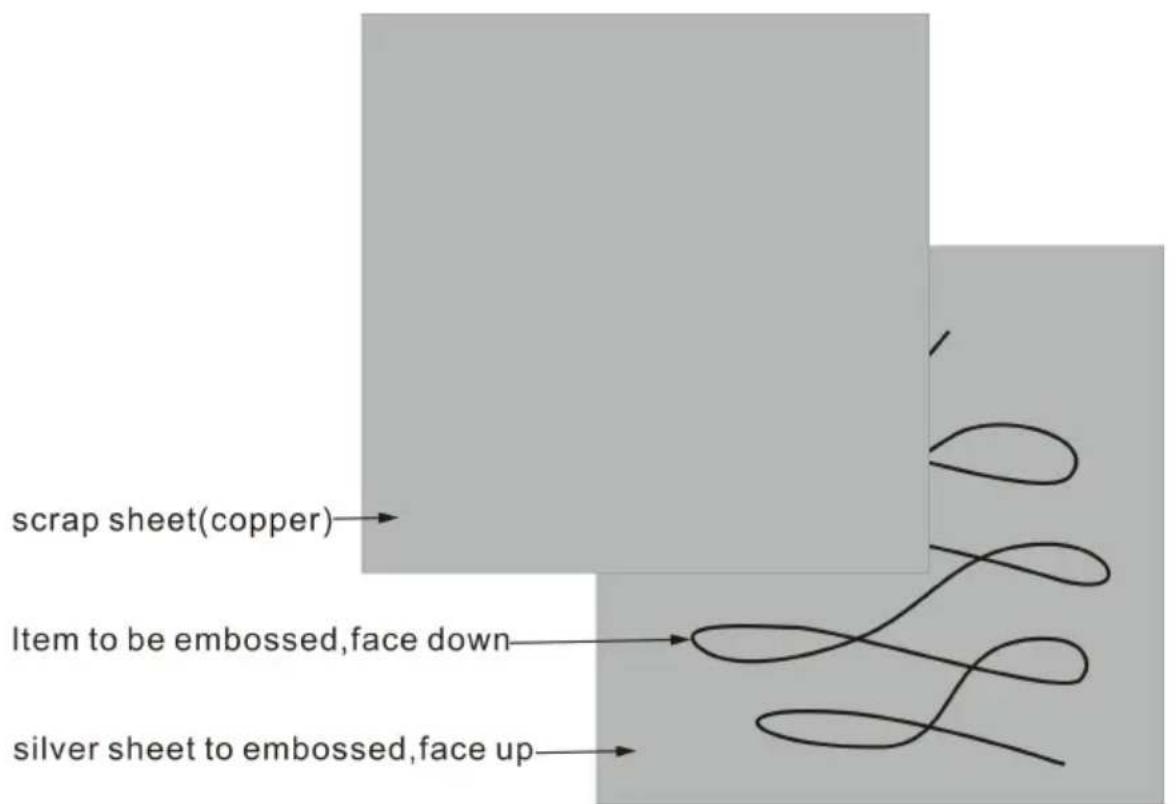

1. Create a sandwich as shown: On the bottom is your metal, flat and well annealed, e.g., silver sheet. The uppermost face will be embossed. On top of it is the item to be embossed, e.g., a leaf or loops of wire here. The side you want embossed should be face down onto the metal. Above it is a scrap sheet of copper or brass. This will protect your rollers. Use soft metals, do not use steel, as this may scratch your rollers. This is referred to as scrap; the pattern will also be embossed onto the sheet, so some interesting results can be obtained. But usually, this is a piece of flat scrap metal, which can be reused as a shield. Ensure the shield is larger than the silver to avoid embossing the edges into your silver.
2. Ensure that the sandwich is only passed through the flat part of the rollers. Passing it through the V rollers will leave flat parallel lines on the underside of your silver.
3. Place the sandwich between the rollers and lower the top roller until the sandwich is snug between them. Remove the sandwich and turn the handle 1/2 a turn or a little less. Pass the material through and this will provide enough pressure to emboss the item into the silver.

MAINTENANCE

Your rolling mill is a very robust piece of equipment and should give years of service. As with any mechanical item, a little maintenance will keep it in optimum condition for the best possible performance.

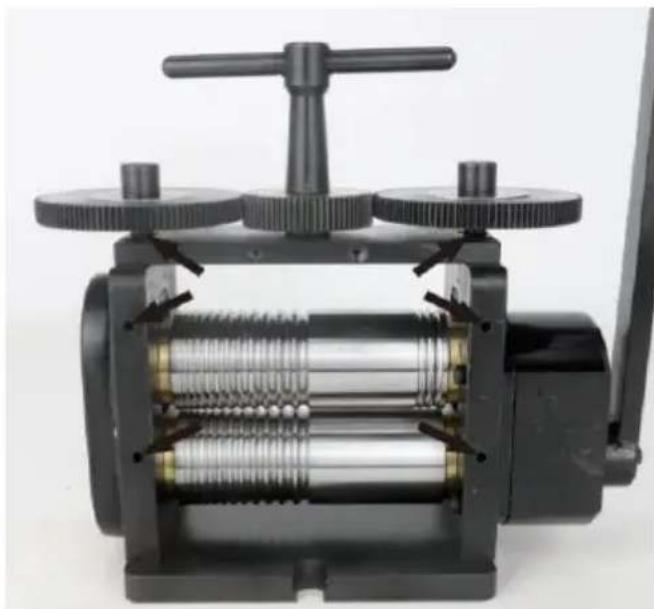

1. Oil All Moving Parts: It is important that the rollers do not become

Rusted, so be aware of condensation in damp areas. Wipe the rollers with a light coat of oil on a cotton cloth and store the mill with the rollers. If the unit is to be unused for a long period of time, oil all parts thoroughly and cover it, ensuring it is kept dry and free from moisture.

1. The gearbox should not require any special maintenance. Inside the frame, where the bushes move up and down, will benefit from a little grease or oil, but there is no need to dismantle any part of the unit for this. Simply close the rollers to apply grease around the bushes, then fully open and close several times to move the grease.
2. If the rollers obtain any superficial marks or stains, they can be polished by hand using a cloth and car metal polish such as rust remover. Very fine emery paper and oil can be used (if absolutely necessary) to remove superficial marks, but generally harsh abrasives should always be avoided. 4. The unit is designed for jewellery use with precious and nonferrous metals. Do not attempt to roll hardened steel, as this may damage the rollers. When annealing and pickling metal, always ensure that all items are dried thoroughly before passing through the rollers. After a busy day

of extensive use, a quick clean and wipe of oil on the rollers will be beneficial. Develop good working habits, look after your mill and it will provide years of service.

1. If the surfaces of the rollers become damaged through improper use, this may require replacement of the rollers, which may incur a cost.
