TRUCK TONNEAU COVERS

MODEL:

HTDG0957 HTTY1455 HTFD1555 HTGM1958 HTFD9968 HTTY1650 HTFD1565

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TRUCK TONNEAU COVERS

HTDG0957	HTTY1455	HTFD1555	HTGM1958	HTFD9968	HTTY1650	HTFD1565

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

ASSEMBLY PRECAUTIONS

1. Keep children and pets away during assembly.
2. Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
3. Separate and count all parts and hardware.
4. Prepare the following tool: Philips Head Screwdriver.
5. Follow the intended uses only.

BATTERY SAFETY INSTRUCTIONS

1. Because the product contains lithium batteries and this product has a waterorof design, it is prohibited to disassemble the product without permission
2. As the product contains batteries. Burning the product may cause an exol
3. Local regulations need to be followed for correct disposal (Refer to relevant chapters for instructions)

.Save the instruction.

PRODUCT PAREMETERS

Model	VEHICLE COMPATIBILITY	Color	Material	Voltage
HTDG0957	Dodge Ram 1500, 2019-2023, Sh	Black	Vinyl, Aluminum	DC 3V (Via R2450 Li-ion Battery)
HTTY1455	Toyota Tundra, 2021-2023, Short
HTFD1555	Ford F-150, 2015-2020/2021-2023, Short
HTGM1958	Silverado/Sierra, 2019-2023, Short
HTFD9968	Ford F250 F350, 1999-2023, Standard
HTTY1650	Toyota Tacoma, 2016-2023, Short
HTFD1565	Ford F-150, 2015-2020, Standard

©

INSTALLATION METHODS

Step1:1.Clean the bulkhead and bed ra before installation.2.For Ford truck stick the front s strip on the front of bed rail.

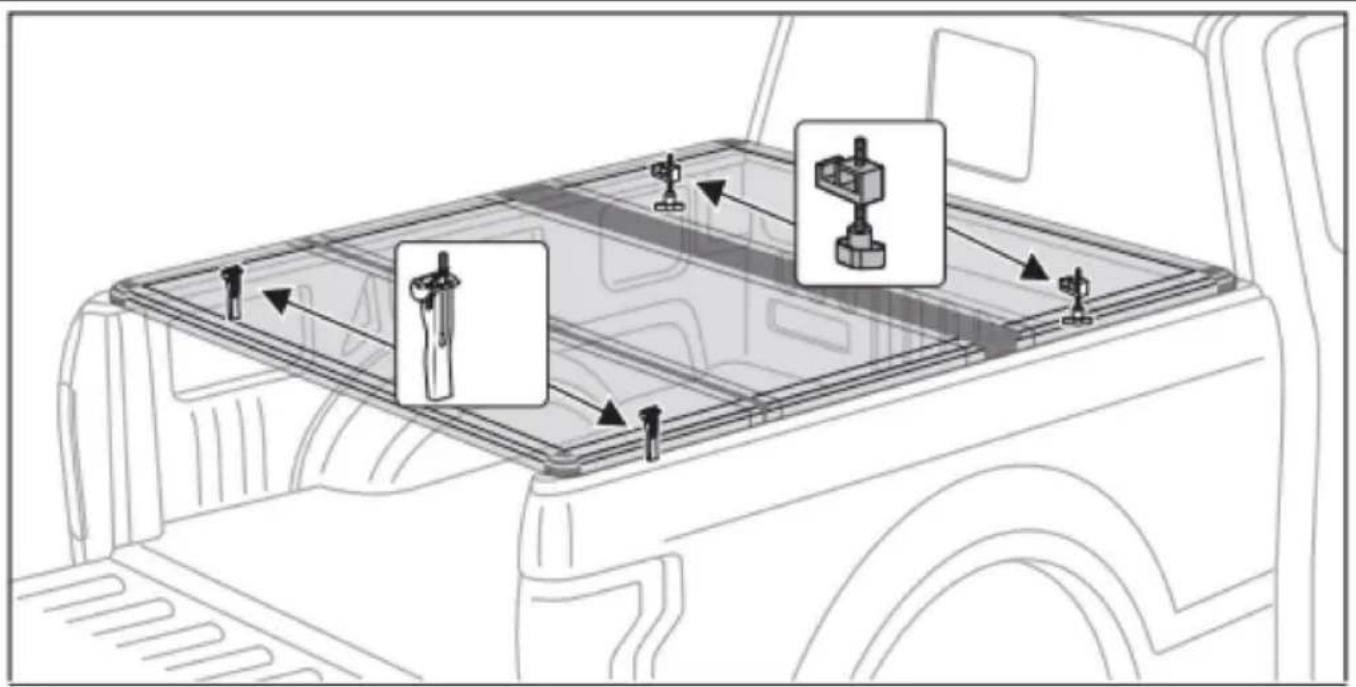

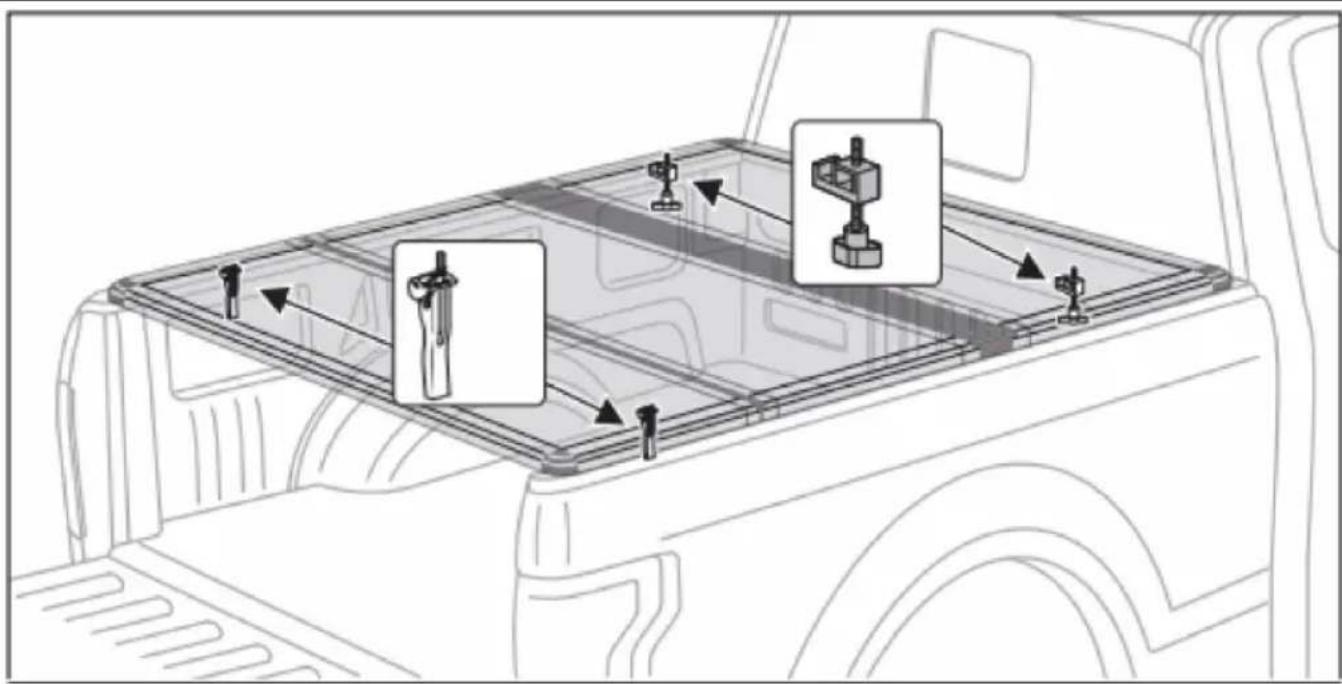

Step 2:1.Place cover assembly on both of front truck bed rail again the 2.Release safety buckles.

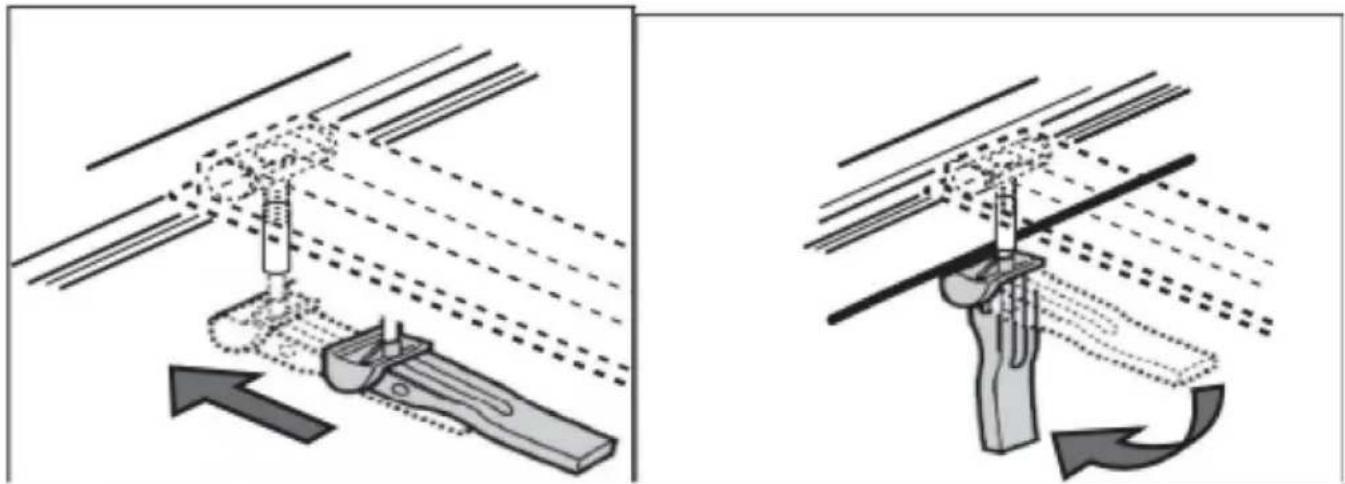

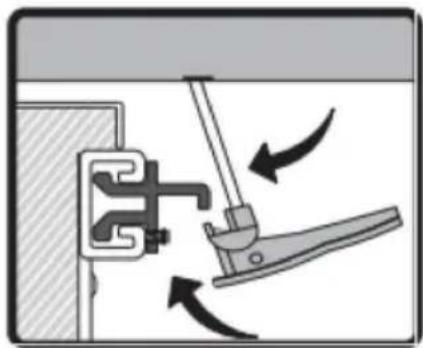

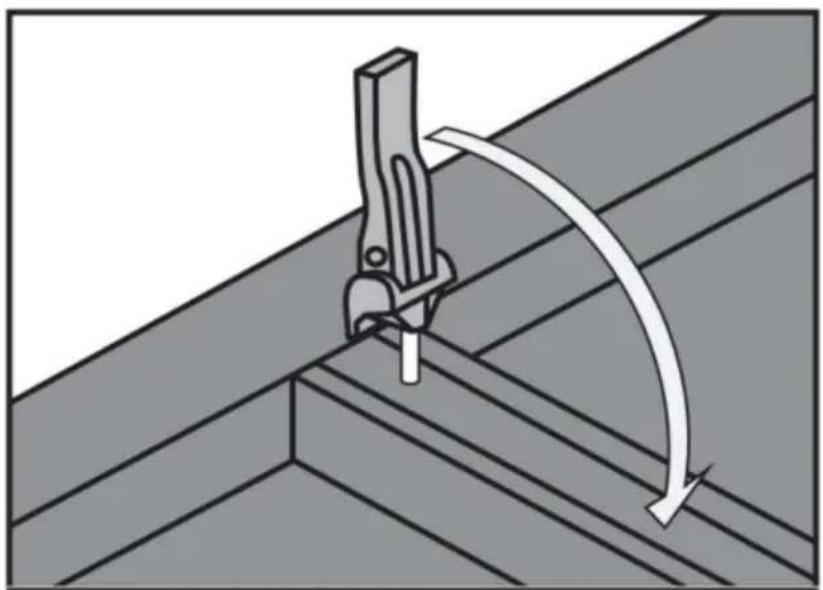

Step 3:1.Pull down the front clamp to vertical position.2.Loosen the knob and slide fron clamp to bed rail.3.Stick the clamp pad to mountin position on bed rail.4.Hook the J-shaped clamp under the metal bed rail lip and tighter knob.	Note:Hand tighten ONLY.DO NOT over tight

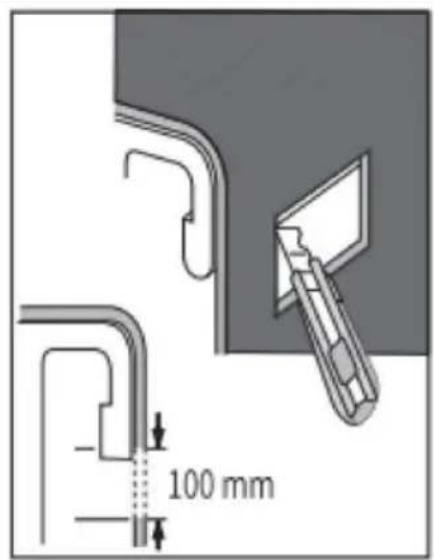

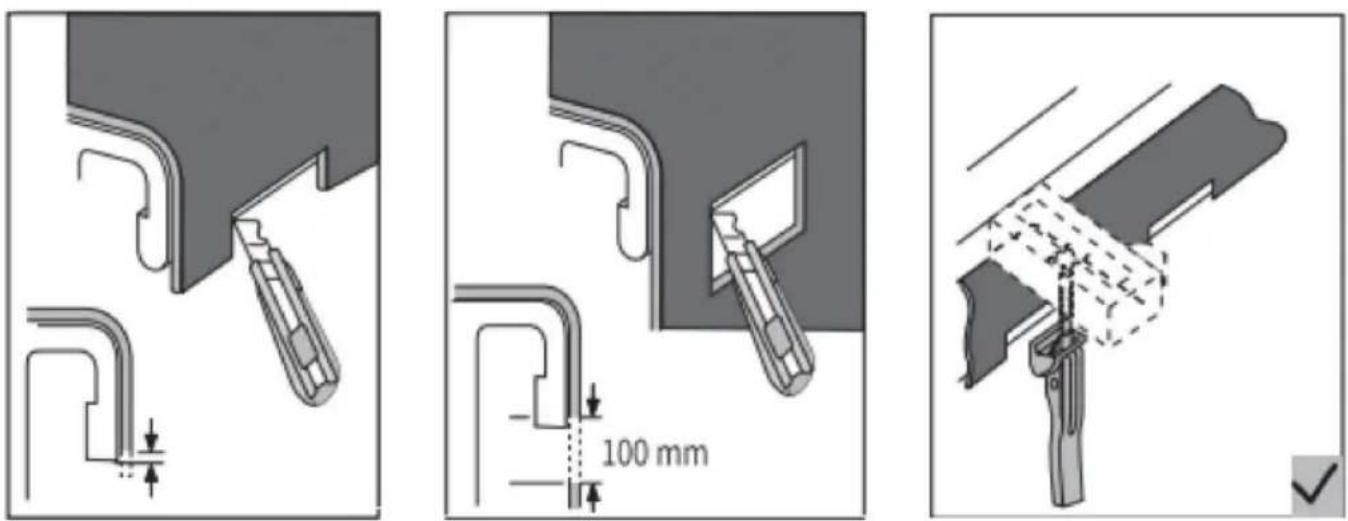

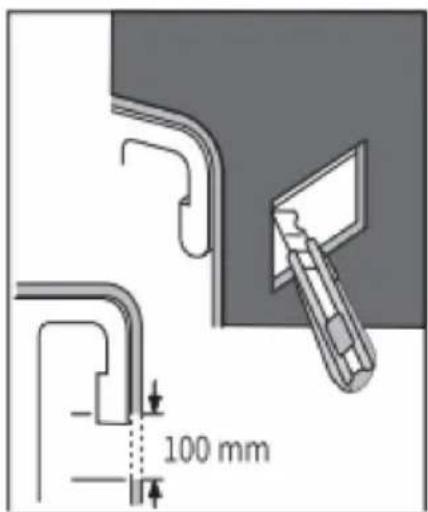

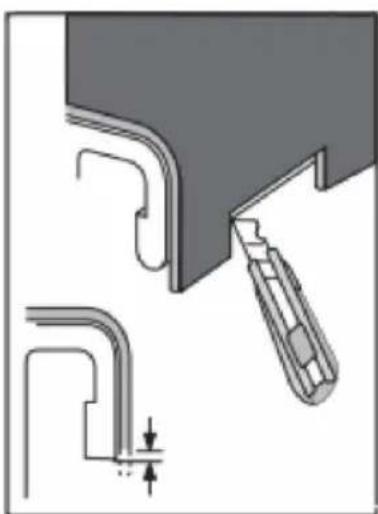

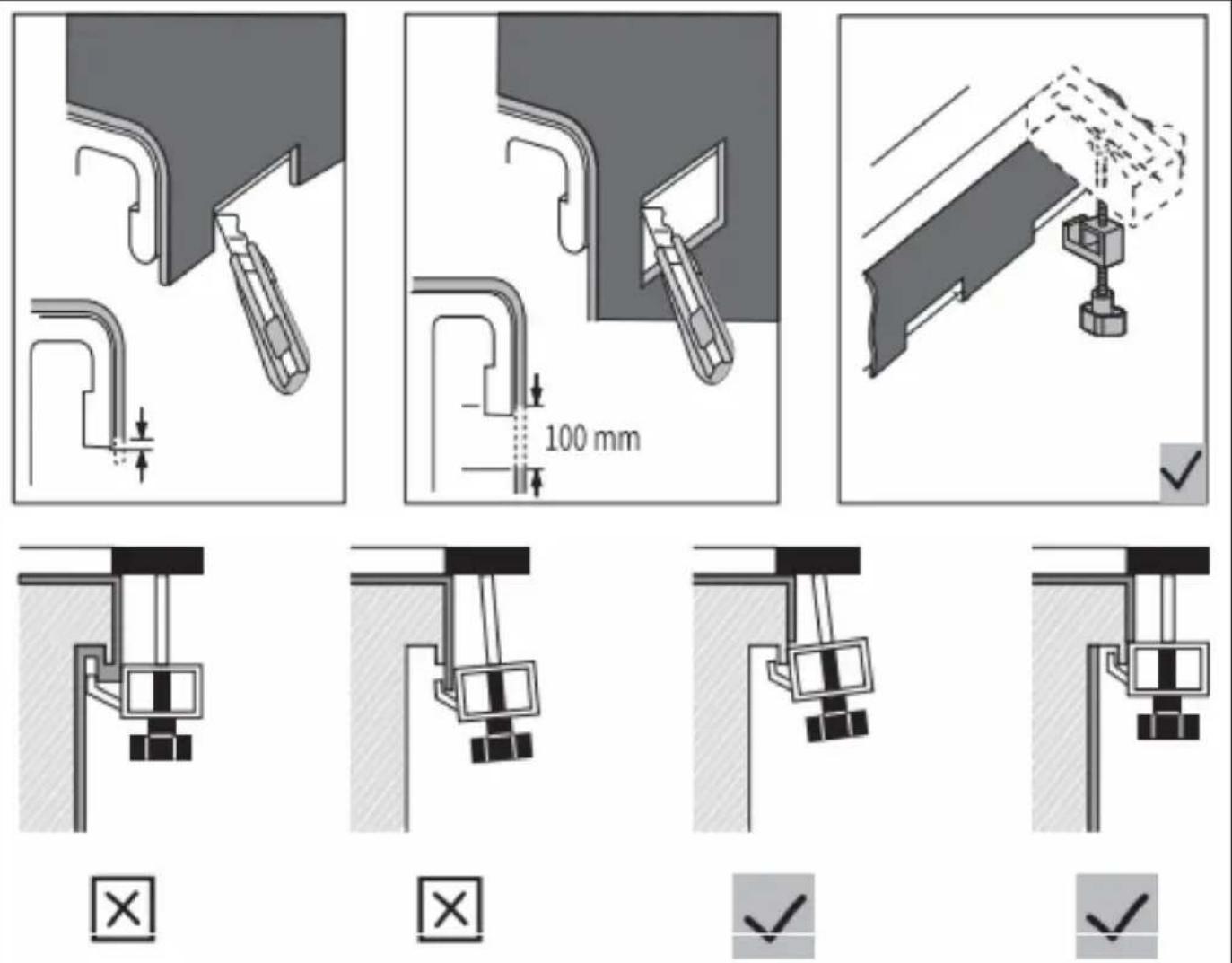

Cutting the bed liner is necessary.The clamps may not precisely vertical.

The clamps may not precisely vertical.

Step 4:

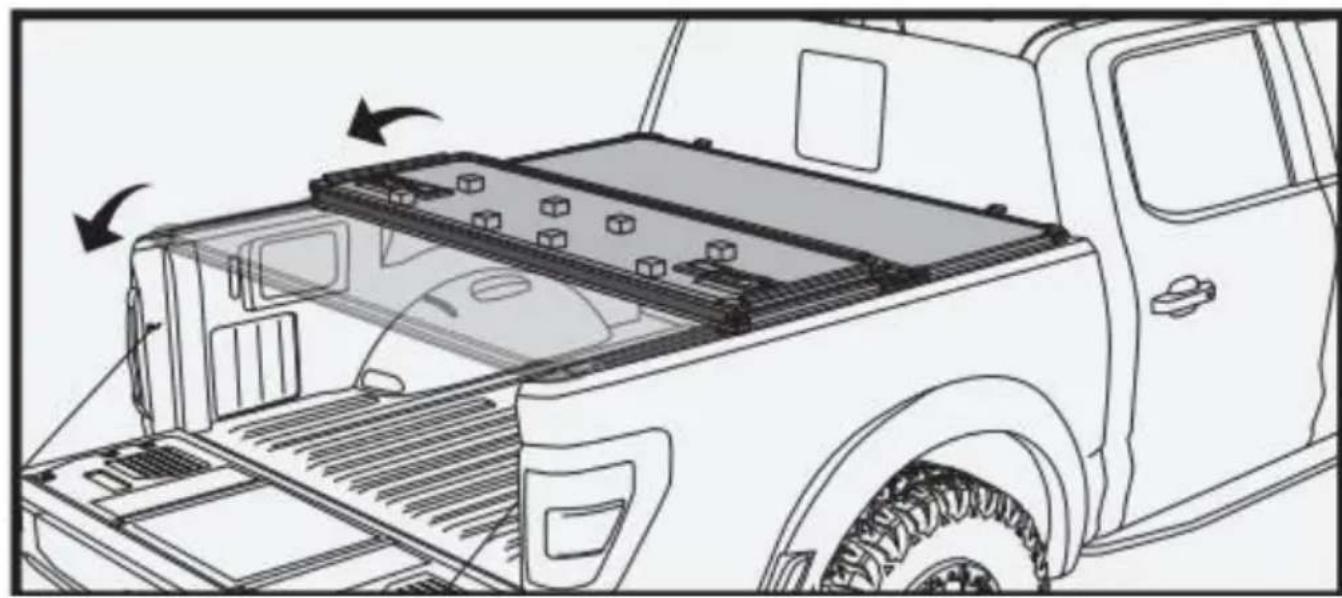

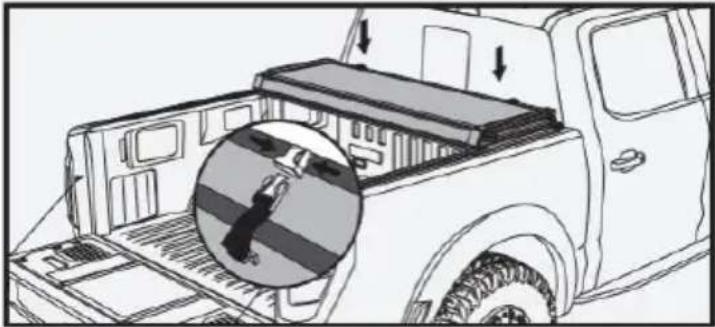

Fully unfold the cover and secure the rear clamps.

1. Pull down the rear clamp to vertical position.

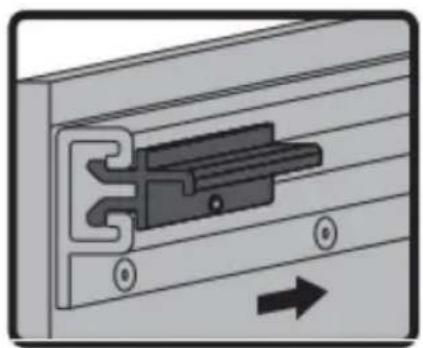

   2.Slide rear clamp to bed rail.
2. Stick the clamp pad to mounting position on bed rail.

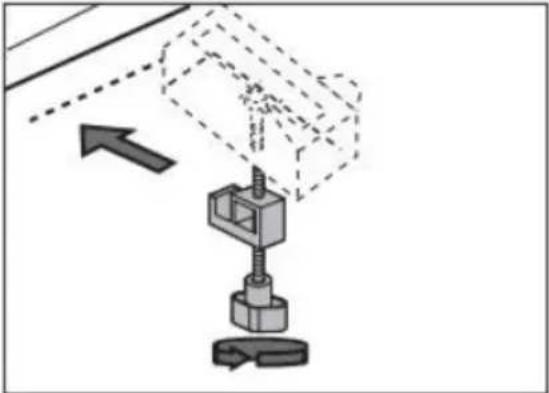

3. Turn the clamp handle to adjust rear clamp to proper length.
4. Hook the J-shaped clamp under the metal bed rail lip and push the d to vertical position.

Note:

The clamps may not precisely vertical.

Line drawing of a pickup truck showing internal battery pack assembly with arrows indicating components (no text or symbols)

Diagram of a mechanical assembly with motion lines and an arrow indicating direction (no text or symbols)

Diagram of a mechanical or fluidic device with directional arrows and dotted lines indicating flow or movement (no text or symbols)

Technical diagram showing pipe connection details with no visible text or symbols

100 mm

Diagram of a mechanical assembly with a tool and clamped parts, no visible text or symbols

Diagram of a vehicle back panel with mechanical components and directional arrows indicating assembly or movement (no text or symbols present)

Step 5:

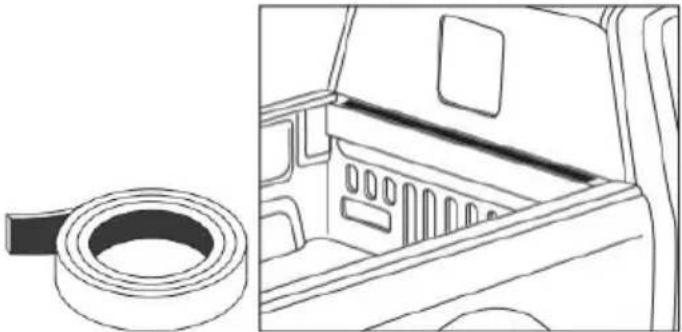

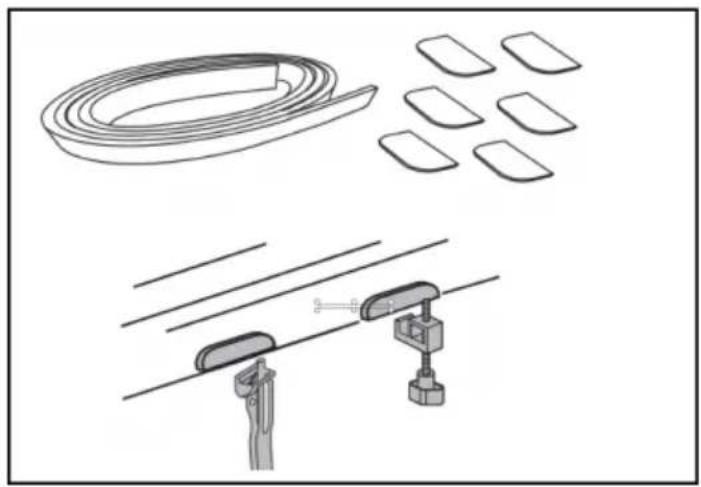

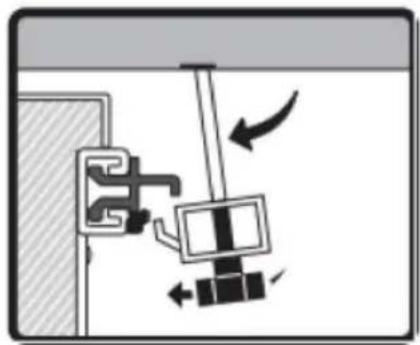

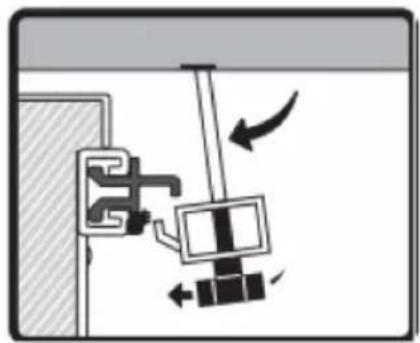

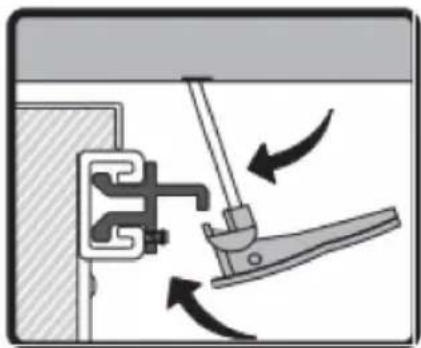

1.Seal the tailgate with seal foam strip.

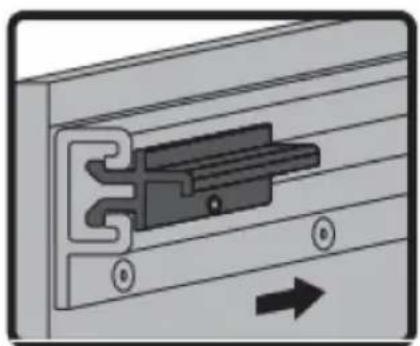

2. Stick the front seal trip on of bed rail.

Technical illustration of cable and support structures with no visible text or symbols

Diagram of a mechanical component with directional arrow indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram showing mechanical assembly with arrows indicating motion (no text or symbols)

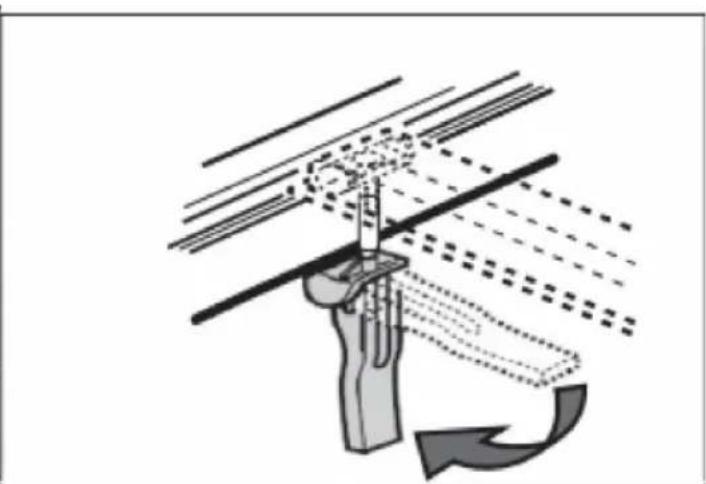

NOTE

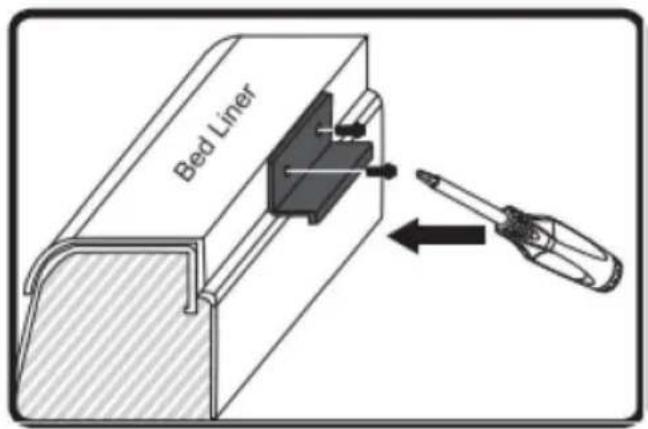

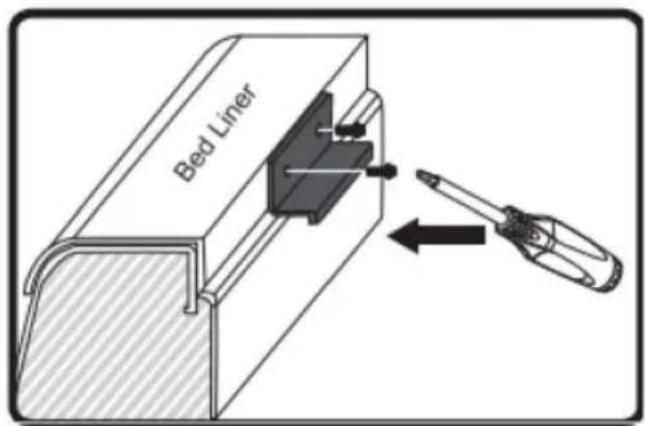

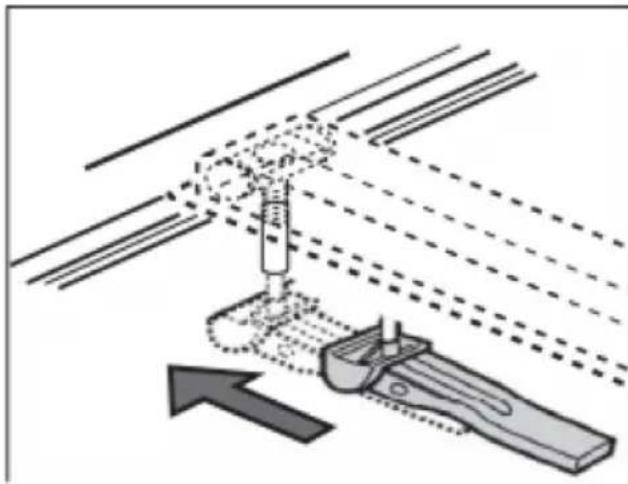

how to install extra bracket for Chevy

Bed Liner

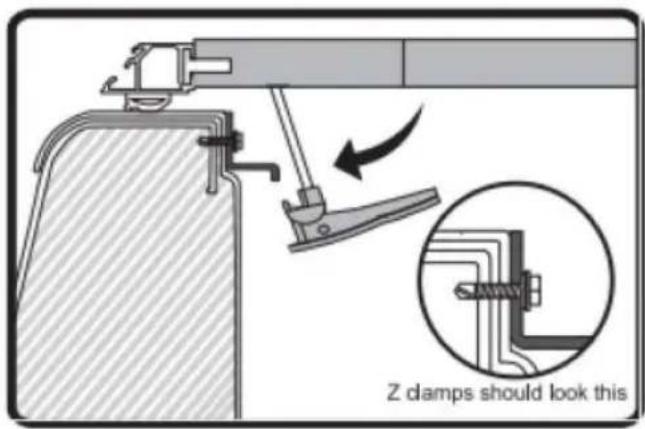

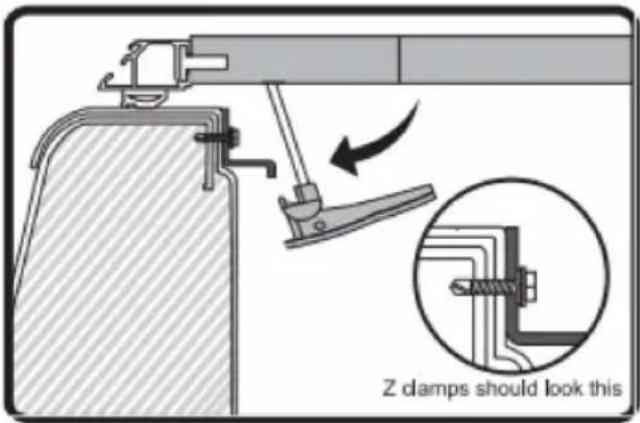

Z clamps should look this

SP-BC1003	SP-BC1004	SP-BC1005	SP-BC1006
Fit For Titar	Fit For Frontier	Fit For Tacoma/Tundra/Gladiator	Fit For Silverado

Step 6:

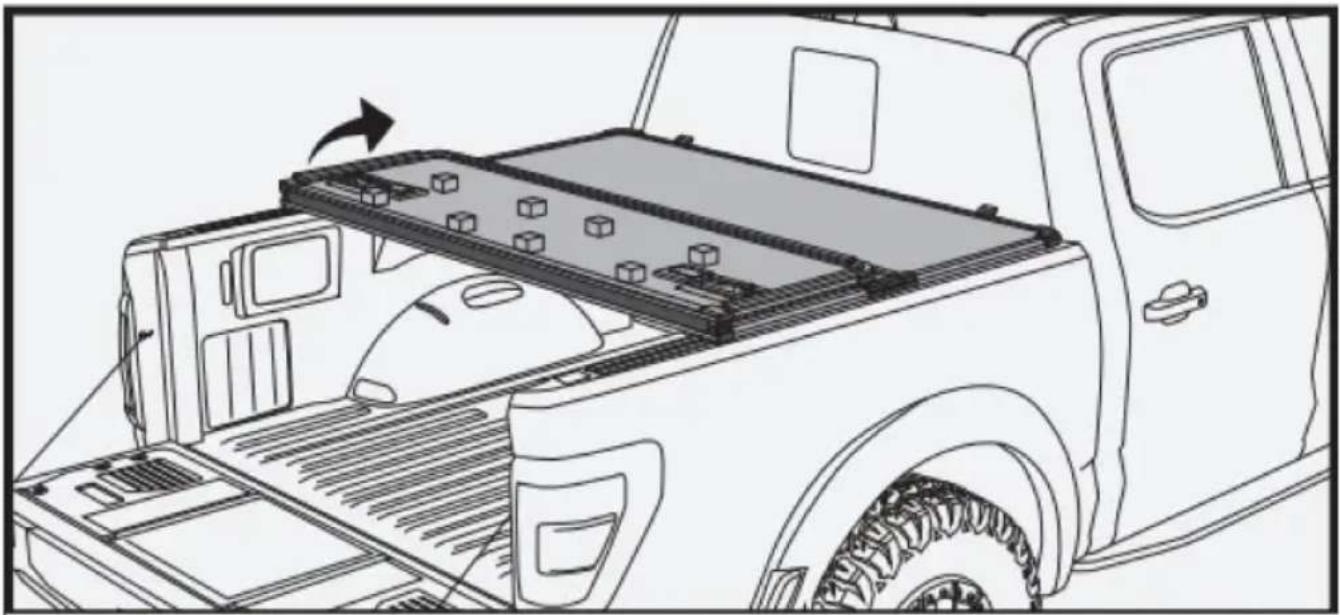

Fold up the cover

1. Open the tailgate and release the rear clamps.
2. Fold up the first panel.
3. Fold and secure the rear clamps back to original position.

Line drawing of a vehicle's front compartment showing battery pack and rear door assembly (no text or symbols)

Diagram of a mechanical clamp securing a wooden beam, with an arrow indicating direction (no text or symbols present)

Step 7:

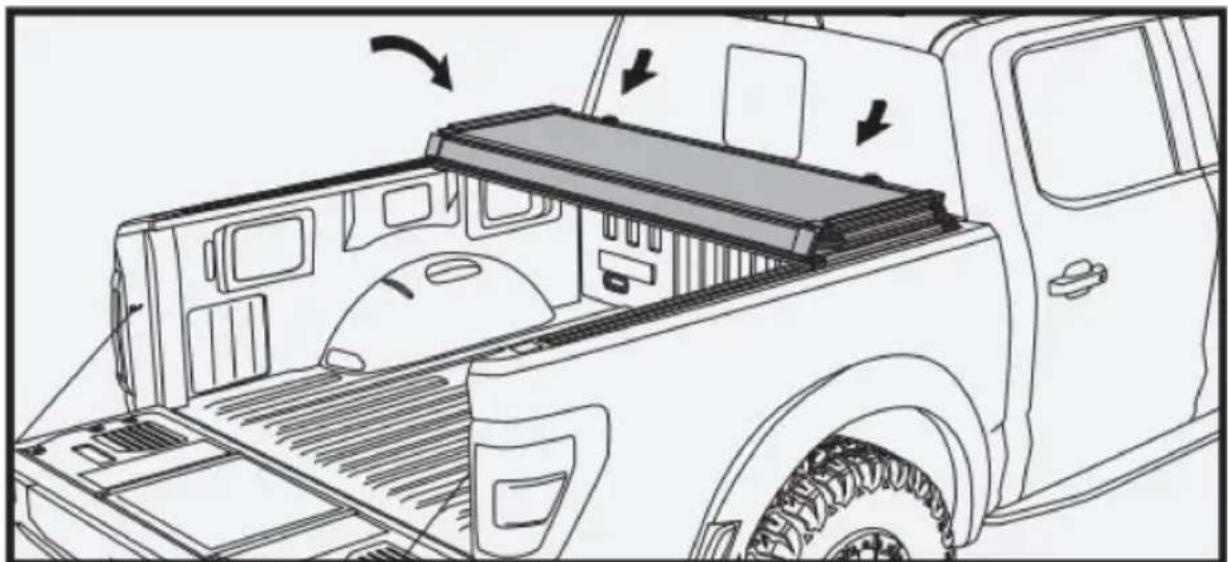

1. Fold up the second panel.

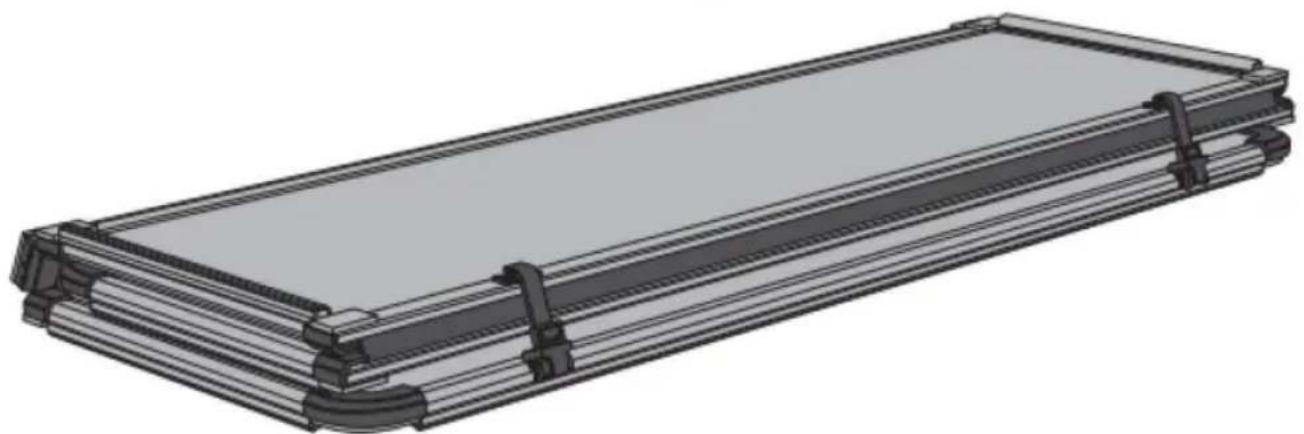

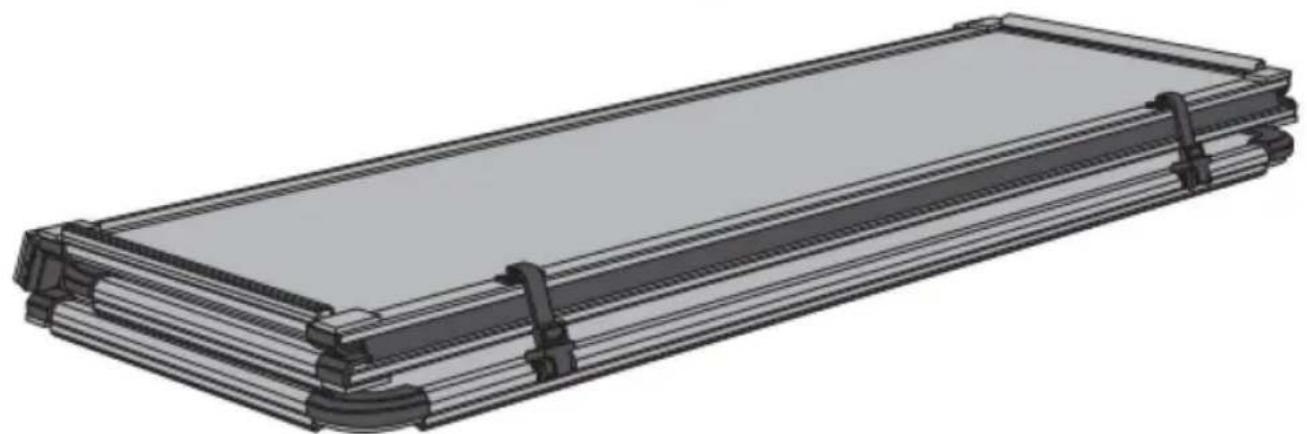

2. Secure safety buckles.

Line drawing of a vehicle's back panel with internal components and airflow arrows (no text or symbols)

3D technical illustration of a rectangular mechanical component with clamps (no text or symbols)

Please check clamps and secure straps are tight.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories ma

with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical electronic devices.

BATTERY DISPOSAL

To minimize hazards to health and the environment at the end of this produ laws dealing with Waste Electrical and Electronic Equipment (WEEE) and The Waste Battery Directive require you to dispose of this process at a suitable collection facility where it will be sent in order to remain batteries and for appropriate recycling. Please contact your local

authorities for more details on recycling and safe disposal of these in your a Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place,Rancho Cucamonga,CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

PARAMÈTRES DU PRODUIT

Modèle	COMPATIBILITÉ DES VÉHICULES	Matériau	de couleur	Tension
HTDG0957 Dodge Ram 1500, 2019-2023, court		Noir	Vinyle, Aluminium	C.C 3V(Via R2450 Li-ion Batterie)
HTTY1455 Toyota Tundra, 2021-2023, court
HTFD1555	Ford F-150, 2015-2020/2021-2023,Court
HTGM1958 Silverado/Sierra, 2019-2023, court
HTFD9968	Ford F250 F350, 1999-2023, Standard
HTTY1650 Toyota Tacoma, 2016-2023, court
HTFD1565 Ford	F-150, 2015-2020, Standard

LISTE DES PIÈCES

Technical diagram showing two mechanical components with a tool, no text or symbols present

100 mm

Technical diagram showing a mechanical assembly with a bracket and mounting base (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Line drawing of a pickup truck showing internal battery pack assembly with arrows indicating components (no text or symbols)

Two technical diagrams showing mechanical assembly with arrows indicating motion, no text or symbols present

Technical diagram showing three-step installation of a mechanical component with dimension annotation of 100 mm

Diagram of a vehicle back panel with mechanical components and directional arrows indicating assembly or movement (no text or symbols present)

Étape 5 :

Technical illustration showing a coiled cable, multiple rectangular components, and a mechanical clamp assembly (no text or symbols)

Diagram of a mechanical component with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Diagram showing mechanical components with directional arrows indicating motion (no text or symbols)

NOTE

how to install extra bracket for Chevy

Bed Liner

Z clamps should look this

SP-BC1003	SP-BC1004	SP-BC1005	SP-BC1006
Fit For Titar	Fit For Frontier	Fit For Tacoma/Tundra/Gladiator	Fit For Silverado

Étape 6 :

Line drawing of a vehicle's front compartment showing battery pack installation and tire assembly (no text or symbols)

Diagram of a mechanical clamp securing a wooden beam, with motion arrows indicating direction (no text or symbols)

Étape 7 :

Line drawing of a vehicle back panel with internal compartments and tire tracks (no text or symbols)

3D technical illustration of a rectangular electronic component with mounting brackets and connectors (no text or symbols)

Rancho Cucamonga, CA91730

REPRÉSENTANT DU ROYAUME-UNI

Pooledas Group Ltd Unité

5 Albert Edward House, The

INSTALLATIONSMETHODEN

Technical diagram showing two mechanical components with a tool, no text or symbols present

100 mm

Technical diagram showing a mechanical assembly with a bracket and mounting base (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Line drawing of a pickup truck showing internal battery pack assembly with arrows indicating components (no text or symbols)

Two technical diagrams showing mechanical assembly with arrows indicating motion, no text or symbols present.

Technical diagram showing three-step installation of a mechanical component with dimension annotation of 100 mm

Diagram of a vehicle back panel with mechanical components and directional arrows indicating assembly or movement (no text or symbols present)

Schritt 5:

Technical illustration showing a coiled cable, multiple rectangular components, and a mechanical clamp assembly (no text or symbols)

Diagram of a mechanical component with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Diagram showing mechanical components with directional arrows indicating motion (no text or symbols)

NOTE

how to install extra bracket for Chevy

Bed Liner

Z clamps should look this

SP-BC1003	SP-BC1004	SP-BC1005	SP-BC1006
Fit For Titar	Fit For Frontier	Fit For Tacoma/Tundra/Gladiator	Fit For Silverado

Schritt 6:

Line drawing of a vehicle back panel with battery pack and tire assembly (no text or symbols)

Diagram of a mechanical clamp securing a wooden beam, with motion arrows indicating direction (no text or symbols)

Schritt 7:

Line drawing of a vehicle's front compartment showing internal components and airflow direction (no text or symbols)

3D technical illustration of a rectangular electronic component with mounting brackets and connectors (no text or symbols)

Pooledas Group Ltd Unit 5

Albert Edward House, The Pavilions

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical diagram showing two mechanical components with a tool, no text or symbols present

100 mm

Technical diagram showing a mechanical assembly with a bracket and mounting base (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Line drawing of a pickup truck showing internal battery pack assembly with arrows indicating components (no text or symbols)

Two technical diagrams showing mechanical assembly with arrows indicating motion, no text or symbols present.

Technical diagram showing three-step installation of a mechanical component with dimension annotation of 100 mm

Diagram of a vehicle back panel with mechanical components and directional arrows indicating assembly or movement (no text or symbols present)

Passaggio

Technical illustration showing a coiled cable, multiple rectangular components, and a mechanical clamp assembly (no text or symbols)

Diagram of a mechanical component with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Diagram showing mechanical components with directional arrows indicating motion (no text or symbols)

NOTE

how to install extra bracket for Chevy

Bed Liner

Z clamps should look this

SP-BC1003	SP-BC1004	SP-BC1005	SP-BC1006
Fit For Titar	Fit For Frontier	Fit For Tacoma/Tundra/Gladiator	Fit For Silverado

Passaggio 6:

Line drawing of a vehicle's front compartment showing battery pack installation and tire assembly (no text or symbols)

Diagram of a mechanical clamp securing a wooden beam, with motion arrows indicating direction (no text or symbols)

Passaggio

Line drawing of a vehicle back panel with internal compartments and ventilation ducts (no text or symbols)

3D technical illustration of a rectangular electronic component with mounting brackets and connectors (no text or symbols)

Rancho Cucamonga, CA91730

REP. DEL

REGNO UNITO

5 Albert Edward House, The Pavilions

Preston, Regno Unito [e-mail]

01772418127

REP.CE

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical diagram showing two mechanical components with a dimension arrow (no text or symbols)

100 mm

Technical diagram showing a mechanical assembly with a bracket and mounting base (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Line drawing of a pickup truck showing internal battery pack assembly with arrows indicating components (no text or symbols)

Two technical diagrams showing mechanical assembly with arrows indicating motion, no text or symbols present.

Technical diagram showing three-step installation of a mechanical component with dimension annotation of 100 mm

Diagram of a vehicle back panel with mechanical components and directional arrows indicating assembly or movement (no text or symbols present)

Paso 5: 1.

Technical illustration showing a coiled cable, multiple rectangular components, and a mechanical clamp assembly (no text or symbols)

Diagram of a mechanical component with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Diagram showing mechanical components with directional arrows indicating motion (no text or symbols)

NOTE

how to install extra bracket for Chevy

Bed Liner

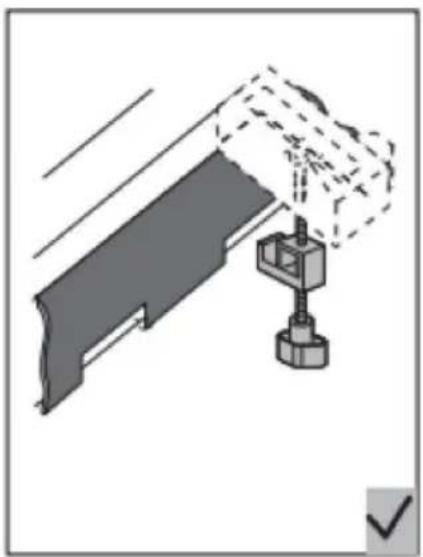

Z clamps should look this

SP-BC1003	SP-BC1004	SP-BC1005	SP-BC1006
Fit For Titar	Fit For Frontier	Fit For Tacoma/Tundra/Gladiator	Fit For Silverado

Paso 6:

Doblar la cubierta

Line drawing of a vehicle's front compartment showing battery pack installation and wheel assembly (no text or symbols)

Diagram of a mechanical clamp securing a wooden beam, showing motion direction (no text or symbols)

Paso 7: 1.

Line drawing of a vehicle back panel with internal compartments and ventilation ducts (no text or symbols)

3D technical illustration of a rectangular mechanical component with clamps and connectors (no text or symbols)

STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd. Suite 250,9166 Anaheim Place,Rancho

Cucamonga, CA91730

REPRESENTANTE DEL REINO UNIDO

Pooledas Group Ltd

Unidad 5 Albert Edward House, The

Pavilions Preston, Reino Unido [e-mail]

01772418127

REPRESENTANTE DE LA CE

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Linkenheim-Hochstetten, Alemania

[e-mail]

[phone]

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical diagram showing two mechanical components with a tool, no text or symbols present

100 mm

Technical diagram showing a mechanical assembly with a bracket and mounting base (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Line drawing of a pickup truck showing internal battery pack assembly with arrows indicating components (no text or symbols)

Two technical diagrams showing mechanical assembly with arrows indicating motion, no text or symbols present.

Technical diagram showing three-step installation of a mechanical component with dimension annotation of 100 mm

Diagram of a vehicle back panel with mechanical components and directional arrows indicating assembly or movement (no text or symbols present)

Krok 5:

Technical illustration showing a coiled cable, multiple rectangular components, and a mechanical clamp assembly (no text or symbols)

Diagram of a mechanical component with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Diagram showing mechanical components with directional arrows indicating motion (no text or symbols)

NOTE

how to install extra bracket for Chevy

Bed Liner

Z clamps should look this

SP-BC1003	SP-BC1004	SP-BC1005	SP-BC1006
Fit For Titar	Fit For Frontier	Fit For Tacoma/Tundra/Gladiator	Fit For Silverado

Krok 6:

Złóż pokrywę

Line drawing of a vehicle's front compartment showing battery pack installation and wheel assembly (no text or symbols)

Diagram of a mechanical clamp securing a wooden beam, showing motion direction (no text or symbols)

Krok 7:

Line drawing of a pickup truck showing internal components and airflow direction (no text or symbols)

3D technical illustration of a rectangular electronic component with mounting brackets and connectors (no text or symbols)

SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place,Rancho

Cucamonga, CA91730

Unit 5 Albert Edward House, The

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

TRUCK TONNEAU-HOEZEN

MODEL:

HTDG0957 HTTY1455 HTFD1555 HTGM1958 HTFD9968 HTTY1650 HTFD1565

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical diagram showing two mechanical components with a tool, no text or symbols present

100 mm

Technical diagram showing a mechanical assembly with a bracket and mounting base (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Line drawing of a pickup truck showing internal battery pack assembly with arrows indicating components (no text or symbols)

Two technical diagrams showing mechanical assembly with arrows indicating motion, no text or symbols present.

Technical diagram showing three-step installation of a mechanical component with dimension annotation of 100 mm

Diagram of a vehicle back panel with mechanical components and directional arrows indicating assembly or movement (no text or symbols present)

Stap 5:

Technical illustration showing a coiled cable, multiple rectangular components, and a mechanical clamp assembly (no text or symbols)

Diagram of a mechanical component with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Diagram showing mechanical components with directional arrows indicating motion (no text or symbols)

NOTE

how to install extra bracket for Chevy

Bed Liner

Z clamps should look this

SP-BC1003	SP-BC1004	SP-BC1005	SP-BC1006
Fit For Titar	Fit For Frontier	Fit For Tacoma/Tundra/Gladiator	Fit For Silverado

Stap 6:

Vouw de hoes op

Line drawing of a vehicle's front compartment showing battery pack installation and tire assembly (no text or symbols)

Diagram of a mechanical clamp securing a wooden beam, showing motion direction with no text or symbols

Stap 7:

Line drawing of a vehicle's front compartment showing internal components and airflow direction (no text or symbols)

3D technical illustration of a rectangular electronic component with mounting brackets and connectors (no text or symbols)

Pooledas Group Ltd Unit

5 Albert Edward House, The Pavilions

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical diagram showing two mechanical components with a tool, no text or symbols present

100 mm

Technical diagram showing a mechanical assembly with a bracket and mounting base (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Line drawing of a pickup truck showing internal battery pack assembly with arrows indicating components (no text or symbols)

Two technical diagrams showing mechanical assembly with arrows indicating motion, no text or symbols present.

Technical diagram showing three-step installation of a mechanical component with dimension annotation of 100 mm

Diagram of a vehicle back panel with mechanical components and directional arrows indicating assembly or movement (no text or symbols present)

Steg 5:

Technical illustration showing a coiled cable, multiple rectangular components, and a mechanical clamp assembly (no text or symbols)

Diagram of a mechanical component with a directional arrow indicating motion (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram showing mechanical components with directional arrows indicating motion (no text or symbols)

NOTE

how to install extra bracket for Chevy

Bed Liner

Z clamps should look this

SP-BC1003	SP-BC1004	SP-BC1005	SP-BC1006
Fit For Titar	Fit For Frontier	Fit For Tacoma/Tundra/Gladiator	Fit For Silverado

Steg 6:

Vik upp locket

Line drawing of a vehicle's front compartment showing battery pack installation and wheel assembly (no text or symbols)

Diagram of a mechanical clamp securing a wooden beam, with motion arrows indicating direction (no text or symbols)

Steg 7:

Line drawing of a vehicle back panel with internal compartments and tire tracks (no text or symbols)

3D technical illustration of a rectangular electronic component with mounting brackets and connectors (no text or symbols)

Pooledas Group Ltd Unit

5 Albert Edward House, The

Pavilions Preston, Storbritannien

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Linkenheim-Hochstetten, Tyskland

[e-mail]

[phone]

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
