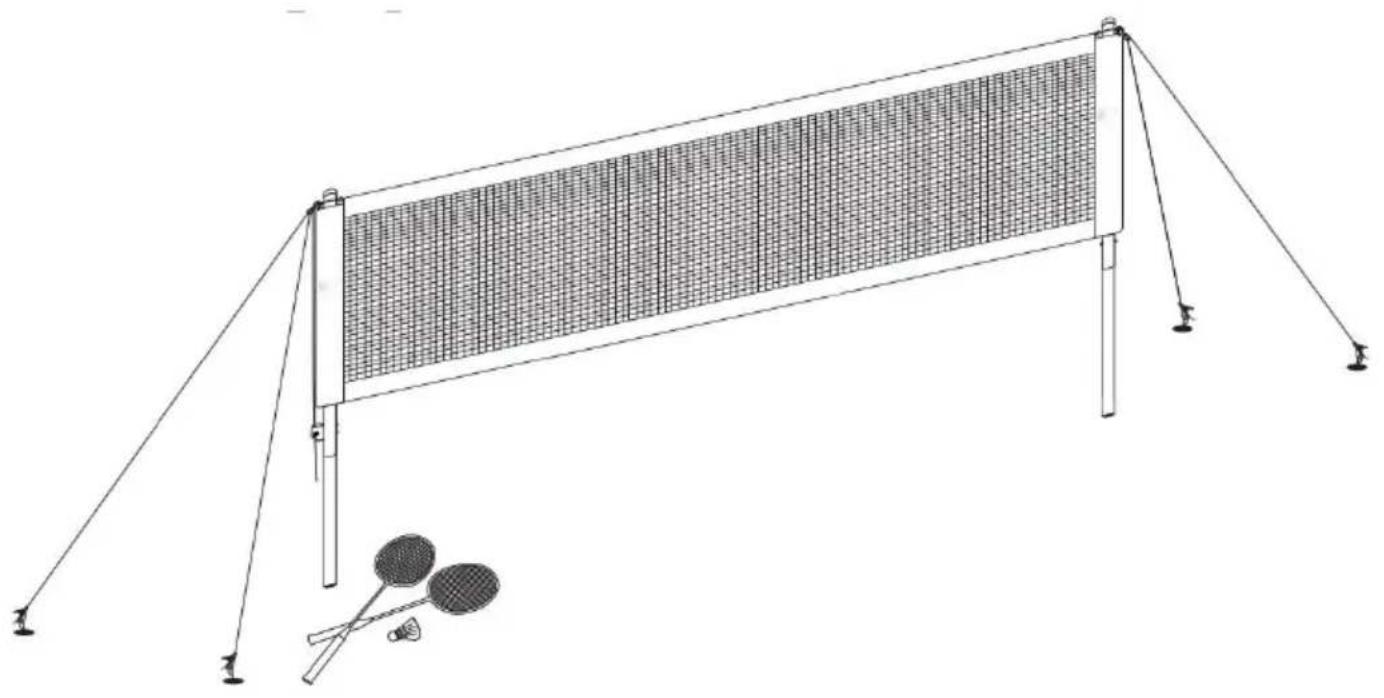

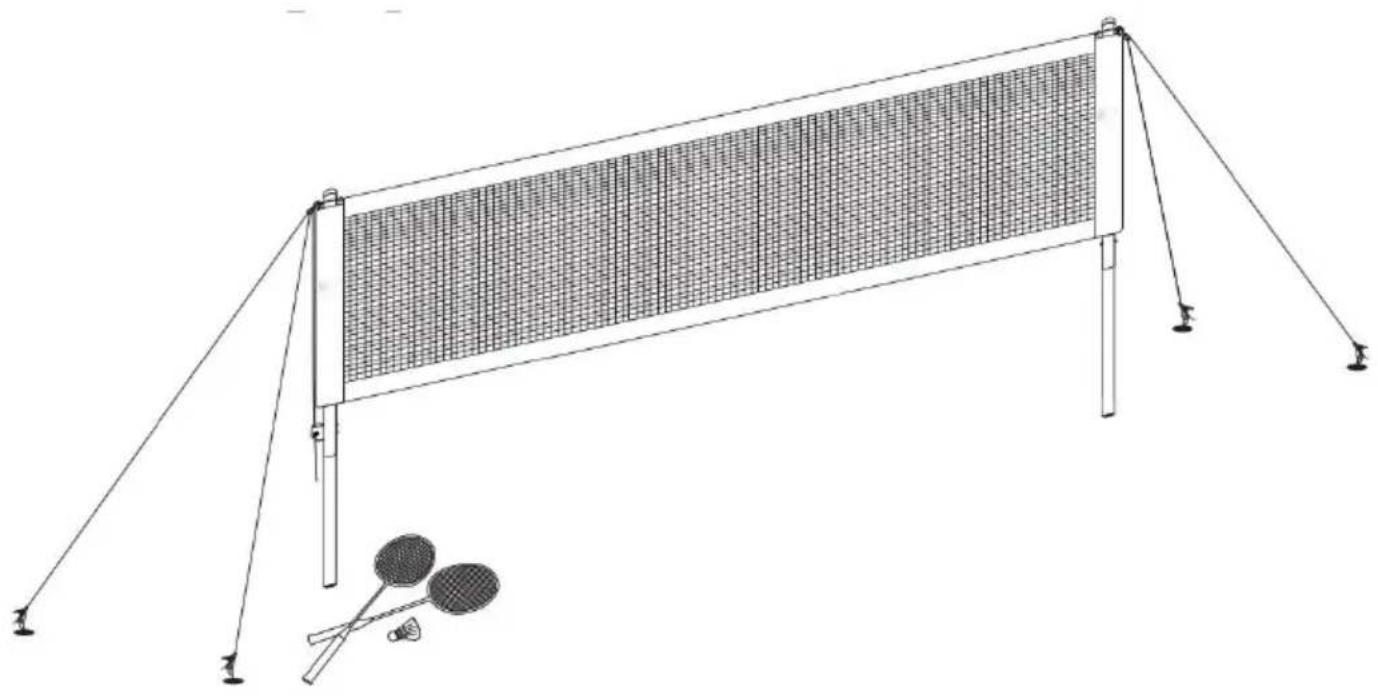

Line drawing of a badminton net with two badminton balls and support poles (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions of before operating. VEVOR reserves a clear interpretation of our user. The appearance of the product shall be subject to the product you. Please forgive us that we won't inform you again if there are any or software updates on our product.

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safe rules in this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions as situations that may occur. Caution and common sense are not built into this product, since we believe that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard. Wear heavy-duty work gloves during assembly.
2. Do not assemble when tired or when under the influence of alcohol, drug medication.
3. Weight, elastic, and other product properties only apply to correctly and wholly assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. This is a sports training equipment, not a toy, it needs to be used under guidance of a coach. Do not allow children and pets to play alone or approach item. Can't Climb Products.
7. Use as intended only. Do not sit or stand on the product.
8. Inspect before every use. Do not use it if parts are loose or damaged.
9. People or objects hanging on the product will cause the product to fall.
10. Pay attention to pedestrians and vehicles when using.
11. Do not apply this unit to any other purposes than the indicated usage.
12. Net cannot place items to avoid damage.
13. Do not use it for commercial purposes.
14. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
15. Never leave it unattended while in use.
16. Pet urine and feces can damage the product, please keep away.
17. Do not place the product on or near hot air, electric burners or heaters. Fireworks, cigarettes, flares, and other items can ignite the product. Please st away from them.
18. The product should be placed on a flat surface. And it should be install an open and safe place, avoiding places near windows, roads, railways, rivers etc.

WARNING:

1. This appliance is not intended for use by young or infirm persons to supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product. Do not use outdoors on rainy and cloudy days. Avoid lightning strikes falls. People or pets hanging on the product will cause injury or death.

Installation INSTRUCTIONS

1. Please dispose of all plastic bags carefully and keep them away from chi and pets.
2. Check all components provided according to the list in this manual.Make s you have all of the parts listed.
3. Although paying particular attention when manufacturing this product, you must be careful during the assembly process to avoid being scra by sharp edges.
4. Wear protective gloves, during assembly and use.
5. The product should be placed on a flat surface.
6. The product requires two people to assemble.

Attention: Ground nails must be used to fix the product on the ground ensure the reliability of the ground itself) to prevent it from falling.

Parts No.	Picture	Qty
1		2 PCS
2		1+1PCS
3		2 PCS
4		1 PCS
5		2 PCS
6		2 PCS
7		3 PCS
8		4 PCS
9		1 PCS
10		1 PCS

Installation Steps

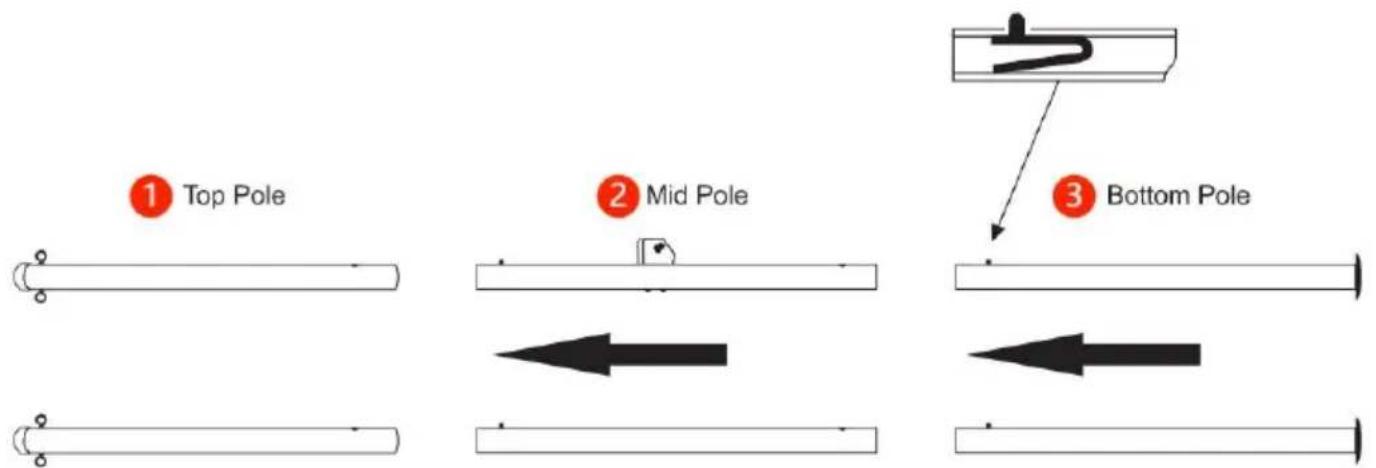

STEP 1: Connect the top, mid and bottom parts of the aluminum po

① Top Pole ② Mid Pole ③ Bottom Pole

STEP 2: Pass the top part of pole through the side of the net.

Line drawing of a simple folding table with grid and support legs, no text or symbols present

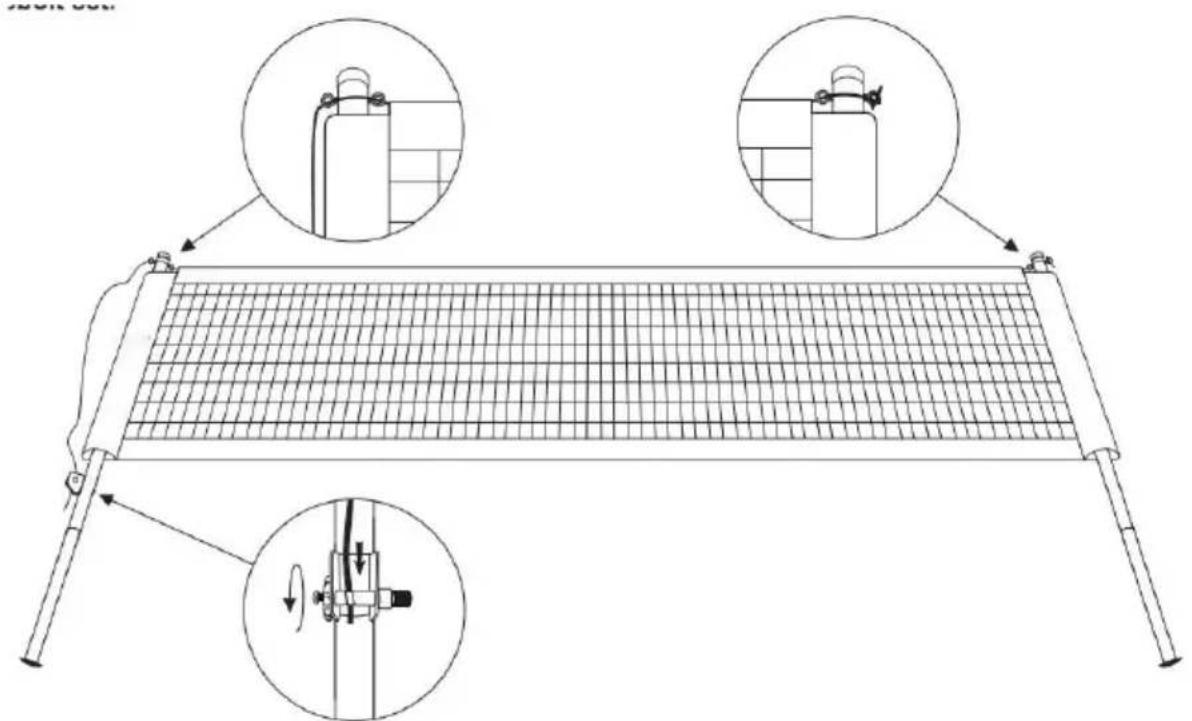

STEP3: Connect the upper and bottom parts of the aluminum pole, a pass one end of the pole on thenet side through the eyebolt set, an connect it to the tension adjuster. The other end is attached to the eye set.

Screw set.

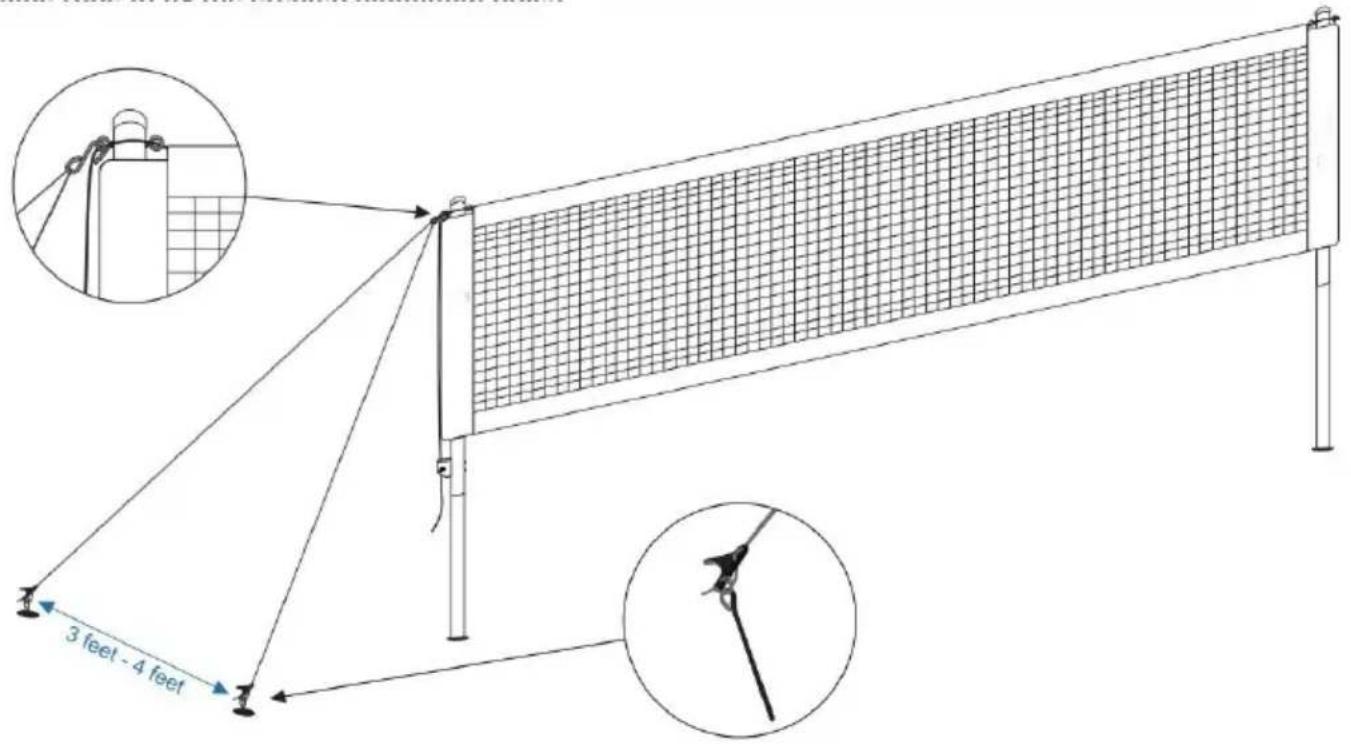

Step 4: Fasten the carabiner on the guide rope and the eyebolt set aluminum pole, and nail the needle on the guide rope to the ground make that the distance between the single guide rope and the two gro nails is 3 to 4 feet. Then, erect the aluminum poles, keep them ver adjust theguide rope to fix the erected aluminum poles.

3 feet - 4 feet

After the net is assembled, the net can be tightened by adjusting theTension handle.

Operation of tension adjuster as following.

1、Install the handle, pass the rope through the middle, and then tie end of the rope to prevent the rope from coming out

Mechanical assembly diagram showing a lever mechanism with a curved handle and a separate lever (no text or symbols)

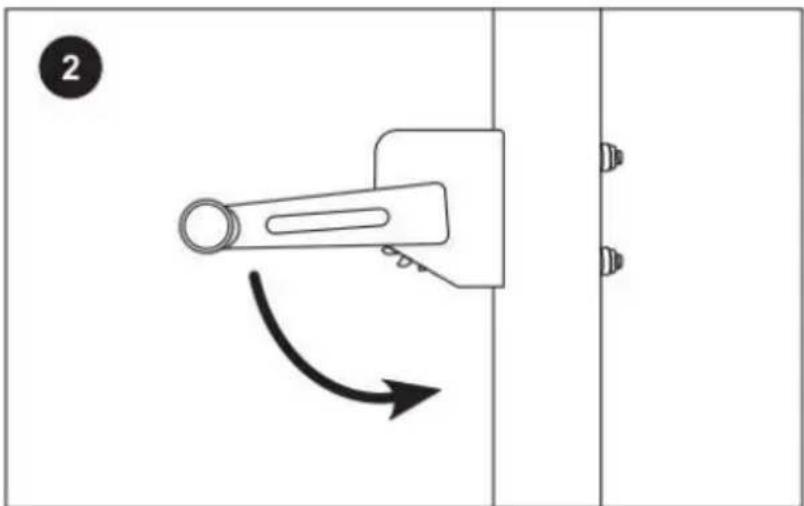

2、As shown here, rotate the handle counterclockwise, until adjusting the required tensioning force.

2

3、While shaking the handle tightly, push the baffle counterclockwise.

3

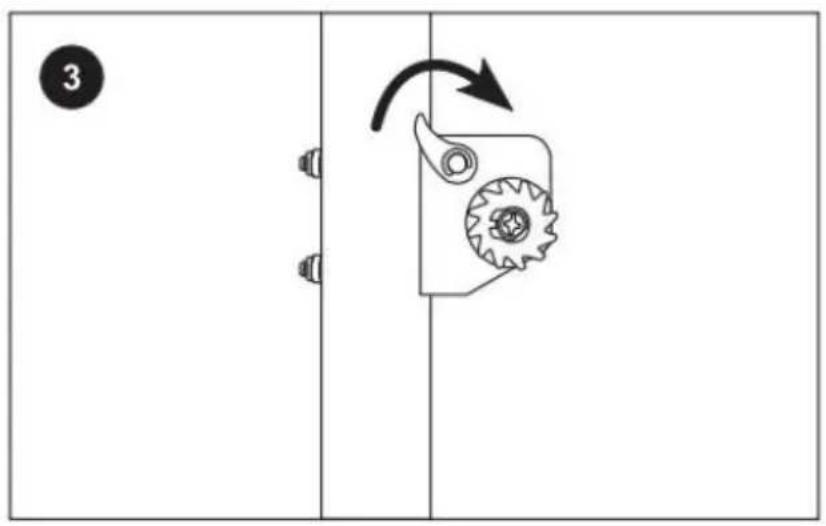

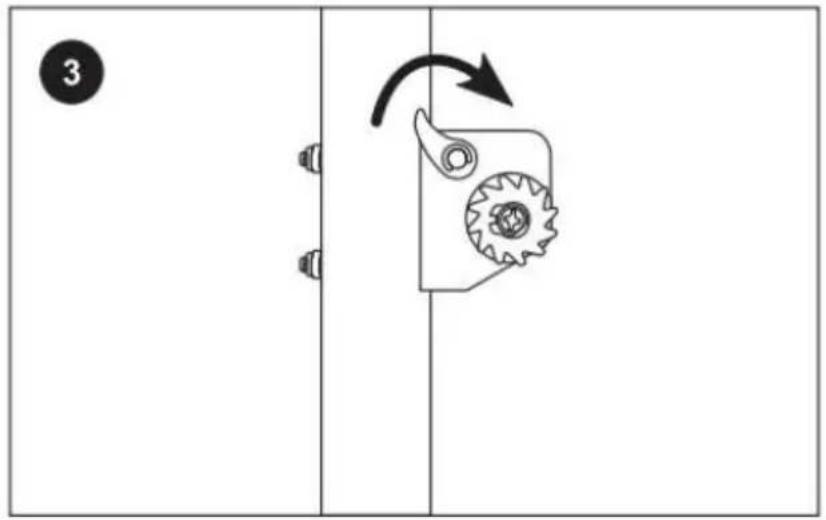

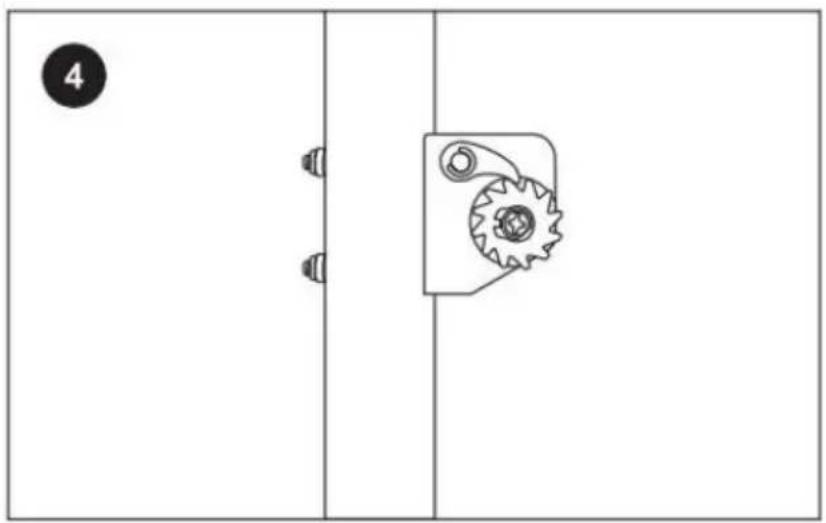

4、The ratchet is locked in the block and will not rotate back, so th adjustment is completed.

Technical diagram showing a gear mechanism inside a door panel, with no visible text or symbols.
