HM2907 - Fitness Equipment Vevor - Free user manual and instructions

USER MANUAL HM2907 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

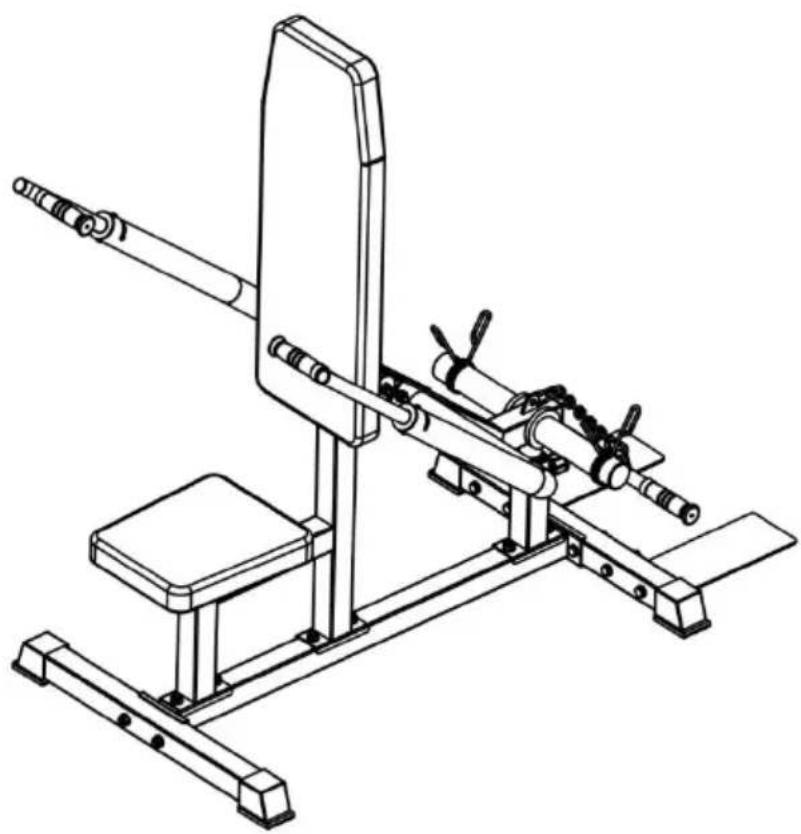

CHEST PRESS MACHINE

MODEL: HM2907

COMPLETE INSTALLATION GUIDE:

QR code image containing encoded data, no visible human-readable text

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: HM2907

Technical line drawing of a mechanical exercise machine with lever and support frame (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instru manual carefully.
	At NO time should pets or children under the age of 12 to the product than 3 m (10 feet). At NO time should ch under the age of 12 use the product. Children over the a should not use the product without adult supervision.

IMPORTANT SAFEGUARDS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safe rules in this page to ensure your safe use. This manual will outline safety warning and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Do not let children and minors and pet get close to or touch the produce leave it unattended while in use.
2. Do not apply this unit to any other purposes than the indicated usage.
3. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
4. Pet urine and feces can damage the product, please keep away.
5. Before using this product, consult with your physician or therapist to discuss appropriate exercise program.
6. If you experience any pain or difficulty with this equipment, stop using immediately and consult your healthcare provider.
7. Always inspect the product for any damage before each use.
8. To prevent muscle fatigue or injury, do not use this exercise equipment for extended periods of time at once.

9. Improper use of this climbing rope and excessive or incorrect training can to serious injuries.

10. Before use, the product's feet must be leveled and the product must be on a level surface.

11. Keep your body balanced on the product and do not make large movement
12. If you suffer from heart disease, high blood pressure or any other disease condition, consult your physician or therapist before beginning any workout.
13. Perform two exercises slowly and in a controlled manner, If you feel diza short of breath, please stop and rest as needed. If the problem persists, do this equipment and consult your doctor.
14. Use this product only as intended and demonstrated in these instructions workout!
15. Please take warm-up exercise before using the equipment. Be aware of physical ability and condition. Do not overuse.
16. Use the equipment on a solid, flat level surface. Suggest adding cushioning pads around the product (cushioning pads need to be purchased by oneself).
17. Before exercise, please carefully examine the equipment make sure it is good condition. If any defect, adjust and repair it before use. Ensure to wea proper outfit while using this equipment to avoid any possible dangerous circumstances.
18. Do not stand on the product.
19. The exerciser is intended for home use only.
20. Keep the exerciser indoors, away from moisture and dust. Place on a level surface, it is recommended to add a person for supervision when using this product to prevent dangerous situations from occurring.
21. The maximum load-bearing capacity of the seat is 205Kg (450 LBS). The maximum weight for placing dumbbells on one side is 100KG (220LBS).
22. Wear appropriate clothes while exercising. Do not wear loose clothes that could become caught in the exerciser. In addition, wear athletic shoes for foot protection while exercising.
23. Use the exerciser only as described in the manual.
24. It is recommended to use waist fitness protective equipment, hand fitness protective equipment, and leg protective equipment to protect your body.
25. If you feel pain or dizziness at any time while exercising, stop immediate begin cooling down.

26. Regularly lubricate the machine with lubricating oil.

27. WARNING: This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do play with the product. Pets should stay away from the product.

28. WARNING: Not all exercises are suitable for everyone, To reduce the rise injury, consult with your physician before using this exercise equipment and beginning this or any other exercise program. This product is not intended to diagnose any medical condition, or to replace the advice or treatment recommended by your healthcare professional.
29. WARNING: PLEASE KEEP A SAFE DISTANCE OF ONE METER ALL AROUNDTHE EQUIPMENT DURING EXERCISE
30. WARNING: If there is a physical defects or movement disorders. Please consult the physician and trainer before exercise. Please read the manual car before use. We will not responsible for personal injury and damage to the equipment which is caused by improper use.
31. Do not use this product after taking drugs, drinking, eating, or in a bad state, etc.
32. Indoor use only! The product should not come into contact with water! Only one person can use!
33. Please keep your hands dry and wipe off sweat in a timely manner.
34. Do not use it if you are pregnant.
35. Please do not exercise half an hour before /after meals or 1 hour before

INSTALLATION STEPS

Before using the appliance for the first time, peel off any promotional material packaging materials, and check that the cooking plates are clean and free of. If necessary, wipe them over with a damp cloth. Spread over with an absorb kitchen towel and wipe off any excess oil. When your product is heated for time, it may emit slight smoke or odor, which is normal for many products, a not affect the safety of your product.

ATTENTION! Ensure that the product is placed on a horizontal and sturd platform, or secured to the wall with screws.

ATTENTION! Before each use, the handle must be checked for looseness and the handle and screws must be kept tight.

PARTS LIST
A1	A2	A3	A4	A
A61PCS	A72PCS	B11PCS	B21PCS	B31PCS
C11PCS	C21PCS	C32PCS	C41PCS	C52PCS
C61PCS	C72 PCS	D11PCS	D21PCS	1. Square Neck BOLT (1 PCS) S
2. BOLT (M10×95)	3. BOLT (M10×75)	4. BOLT (M10×70)S	5. BOLT (M8×75)∠ PCS	6. BOLT (M8×25)4 PCS
7. Washer (M10)28 PCS	8. Locknut (M10)17 PCS	9. Washer (M8)6 PCS	10. Tool(14-17)2 PCS	11. Tool(M10)1 PCS

NOTE: The quantity of parts shown in the manual is the actual usage of unused parts are spare parts.

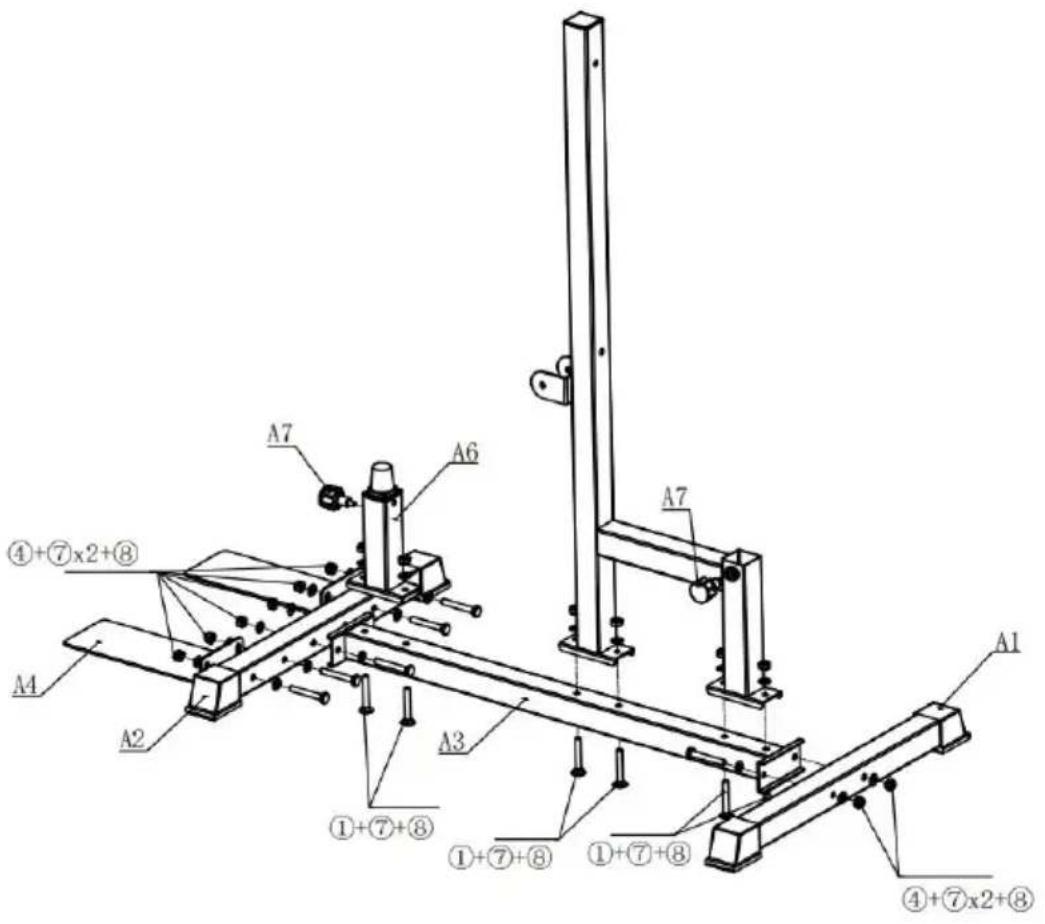

STEP1:
A11PCS	A21PCS	A31PCS	A42PCS	A11PCS
A6[STC6]1PCS	A72PCS	1. Square Neck BOLT (M	4. BOLT (M10×70)	7. Washer (M10)22 PCS
8. Locknut (M10)14 PCS	10. Tool(14-17)2 PCS

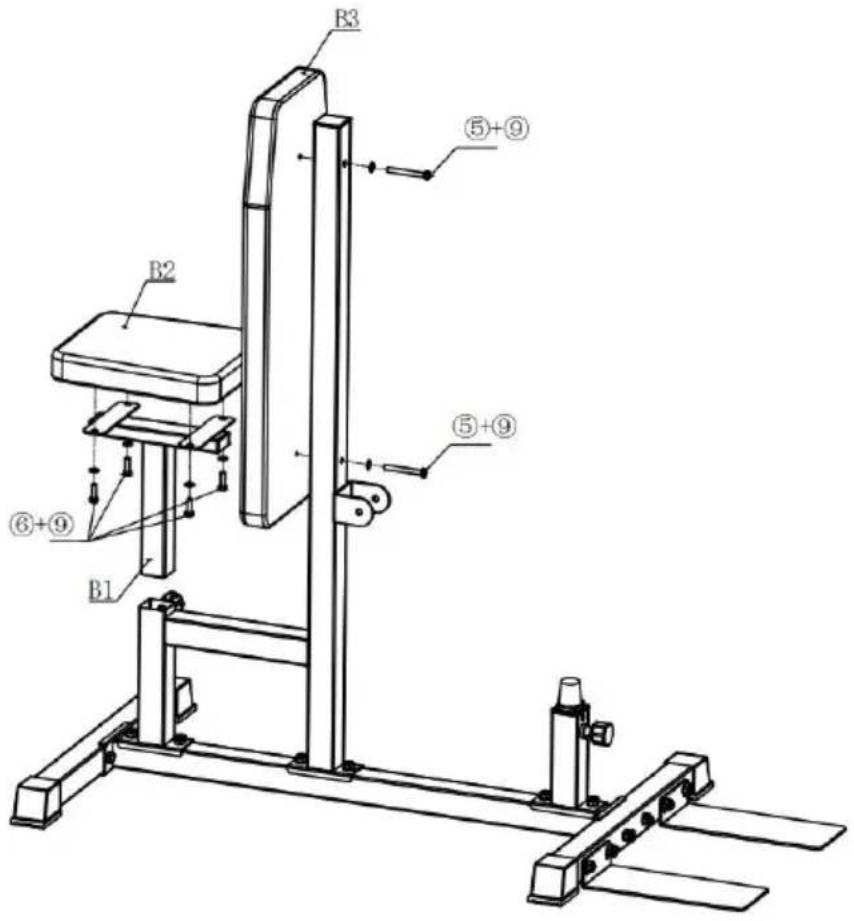

STEP2:
B1PCS	B21PCS	B31PCS	5. BOLT (M8 × 75)S	6. BOLT (M8 × 25)4 PCS
9. Washer (M8)6 PCS	10. Tool(14-17)1 PCS

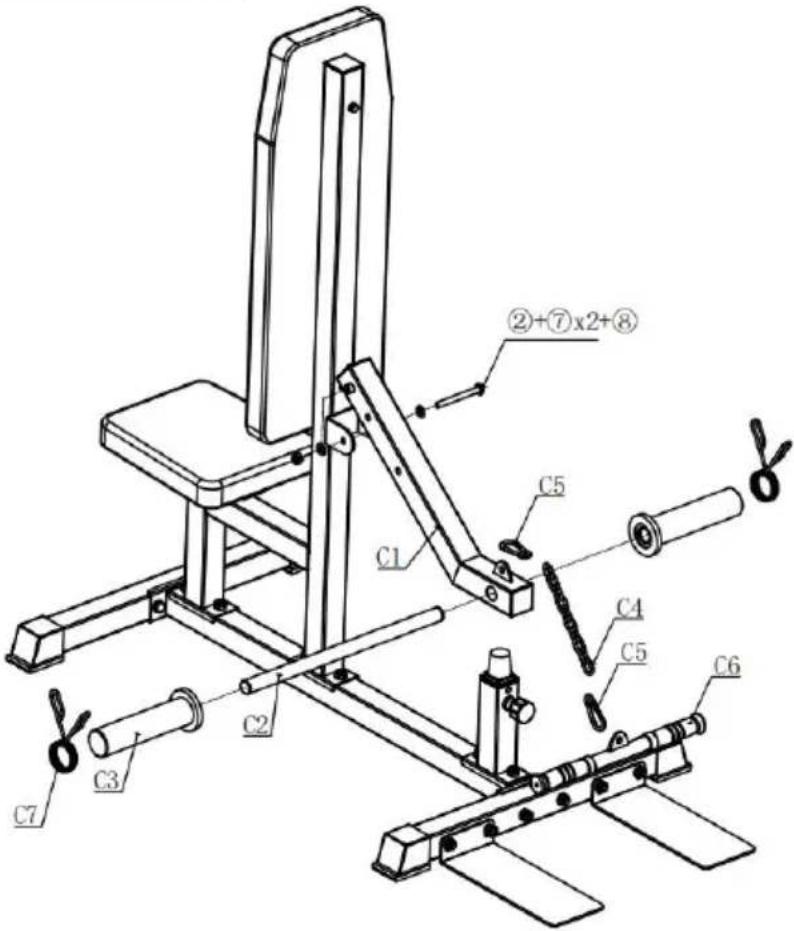

STEP3:
C11PCS	C21PCS	C32PCS	C41PCS	C52PCS
C61PCS	C71PCS	2. BOLT (M10×95)S	7. Washer (M10)2 PCS	8. Locknut (M10)1 PCS
10. Tool(14-17)[IMAGE]2 PCS	11. Tool(M10)1 PCS

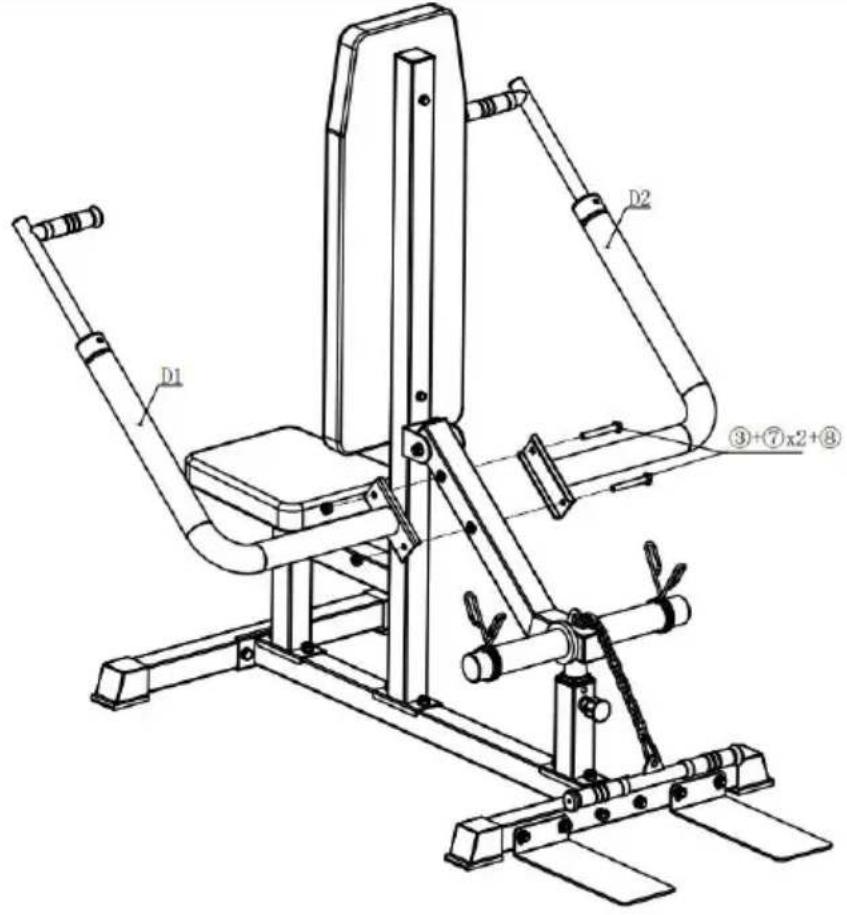

STEP4:
D11PCS	D21PCS	3. BOLT (M10×75)S	7. Washer (M10)4 PCS	8. Locknut (M10)2 PCS
10. Tool(14-17)2 PCS
Attention: The maximum weight for placing dumbbells one side is 100KG (220LBS).Warning: The number of dumbbells placed should not too many to avoid falling beyond the dumbbell bracke

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh packet to keep the product dry
2. Children are not allowed to wipe the product to avoid tipping and falling
3. Check the screws regularly every months for loosening and tighten the sci

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

QR code image containing encoded data, no visible human-readable text

Technical line drawing of a mechanical exercise machine with lever and support structure (no text or symbols)
