MOBILE BASE

MODEL: GZB88094

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: GZB88094

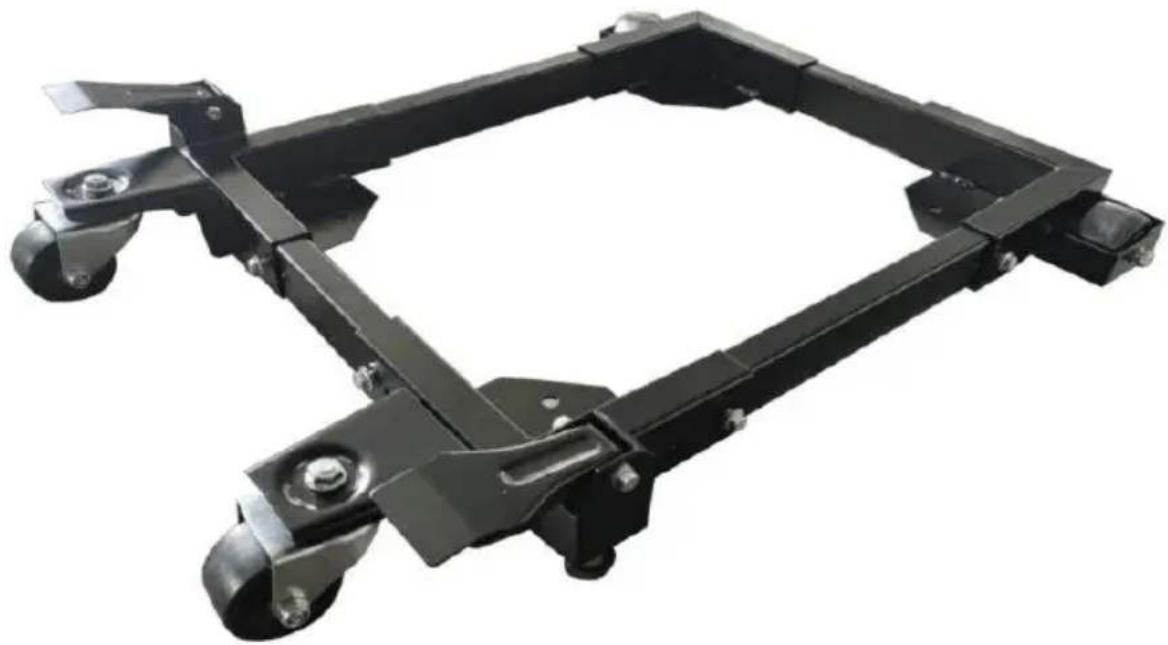

Mechanical frame component with four wheels and mounting feet (no text or symbols visible)

Photo for reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING: Read and understand this manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can caus death, personal injury, or damage to valuable property.

1. Please do not put it near flammable materials.
2. It is forbidden to carry people under any condition.
3. This product cannot be used to go up or down stairs.
4. Overload is strictly prohibited.
5. Don't move too fast when passing pothole areas.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Material: Q235

Product size: Minimum 18x24 inches, maximum 26.5x31.5 inches Load capacity: 1500 lbs max.

Note: When adjusting the mobile base to the maximum installation size cannot be used with the maximum load capacity.

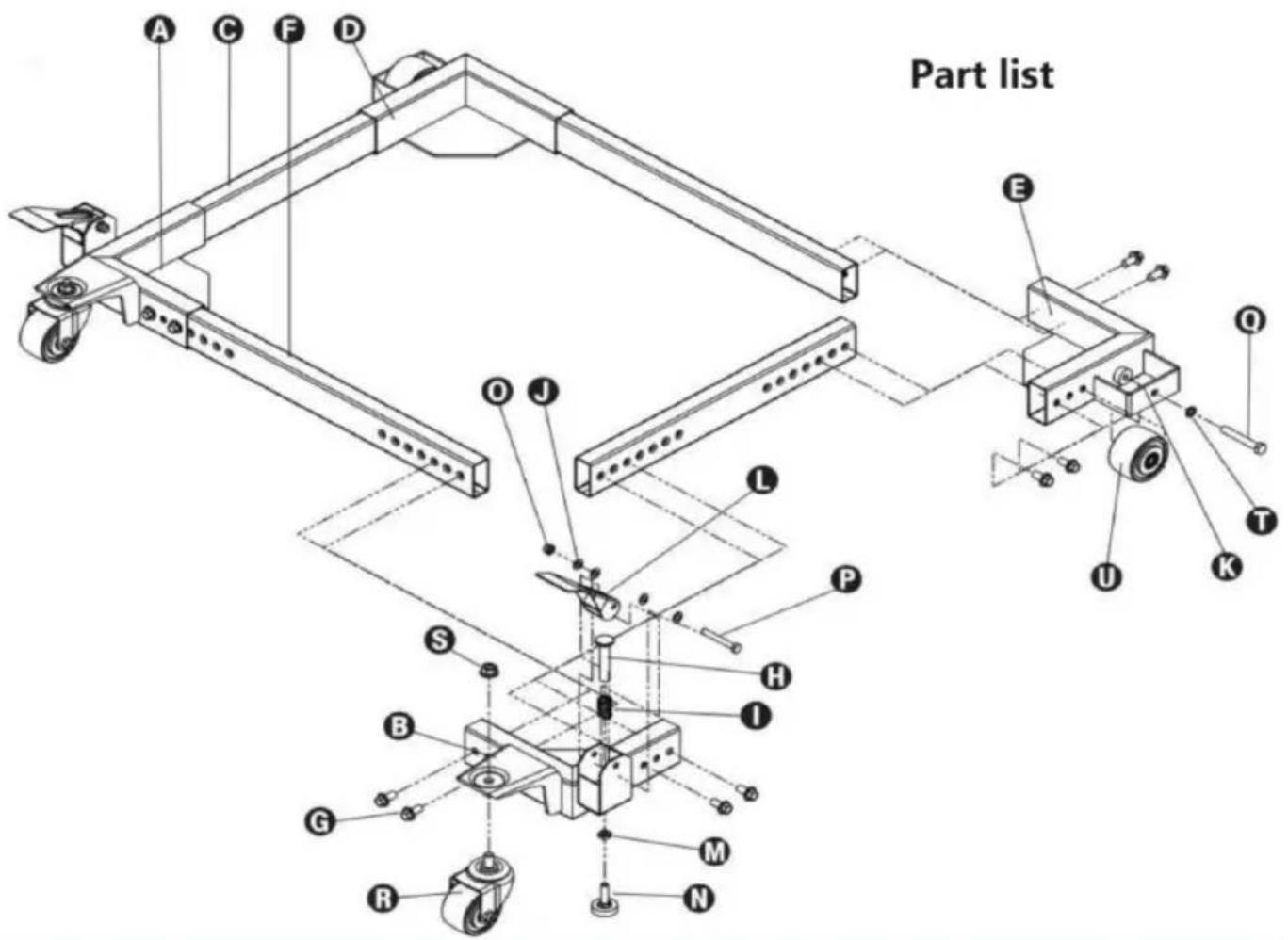

Part list:

Part list A C F D E O T K U P L H I B G M R N

Parts List
S/N	Description	Qty	S/N	Description	Qty
Ⓐ	Front Left Corner	1	eners	Foot Lever	2
Ⓑ	Front Right Corner	1	®	M10 Jam Nut	2
©	Short Side Tube	2	®	Rubber Glide Foot	2
Ð	Rear Left Corner	1	◎	M8 Nyloc Nut	2
Œ	Rear Right Corner	1	®	8x60-15Hex Bolt	2
fifth	Lon9 Side Tube	2	®	10x 70 Hex Bolt	2
G	M10x20 Flanged Hex Bolt	16	®	3" Swivel Caster	2
H	Foot Lever Plunger	2	®	M12 Flange Nut	2
I	Foot Lever Spring	2	®	M10 Lock Washer	2
J	M8 Flat Washer	8	®	3" wheel	2
K	M10 Flat Washer	2

Safety Instructions for Mobile Bases

1. Be careful when moving to limit any finger pinch points.
2. Place base on a level surface and adjust levelers before placing the machine in position. This should keep the machine from rocking, while testing it for stability.
3. Test the stability in both the up (on the casters) and the down positions. Exercise caution when testing the stability of top heavy machines (drill presses, band saws, etc.).
4. Unplug any power tool before moving or repositioning your tool.
5. Always test your set-up for stability and safety after repositioning.
6. Care should be taken when planning the orientation of the machine onto the Universal Mobile Base. Transfer the weight off of the levelers to the casters will result in the machine tilting 1/2" toward the fixed wheels. When positioning top heavy tools such as a drill press or band saw, take advantage of the center of gravity, and position so that it will remain stable while on casters.
7. Never use your machine without engaging the floor locks and foot locks. Always lower the machine onto the non-skid levelers before operating.
8. When moving, always push the base, not the machine.

Assembly Examples

Be sure to follow safety and assembly instructions. Keep in mind the actual operation of your machine and the effect it has on overall stability.

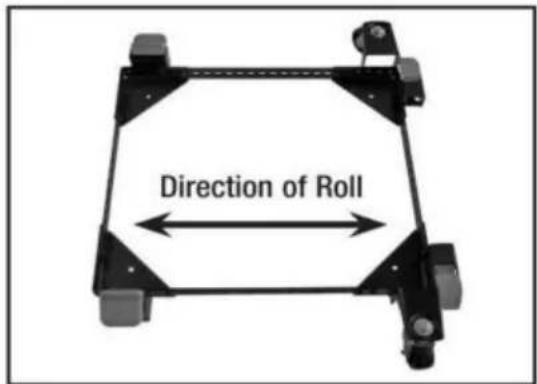

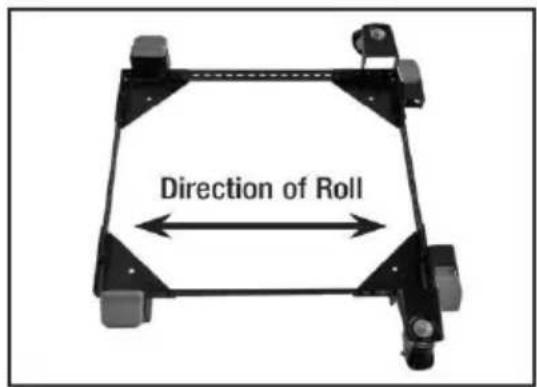

Direction of Roll

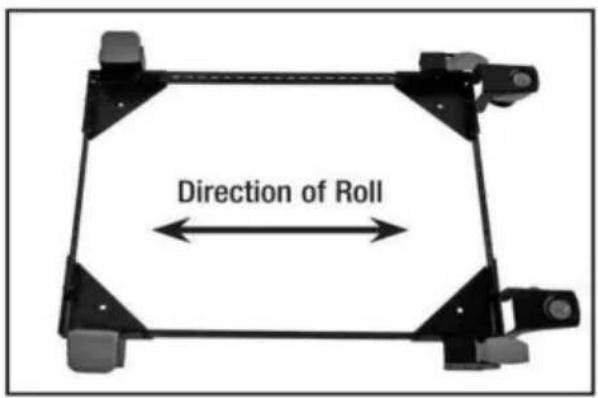

A long narrow base, such as on a jointer, would benefit from this arrangement. Most machines may be arranged to the convenience of the user.

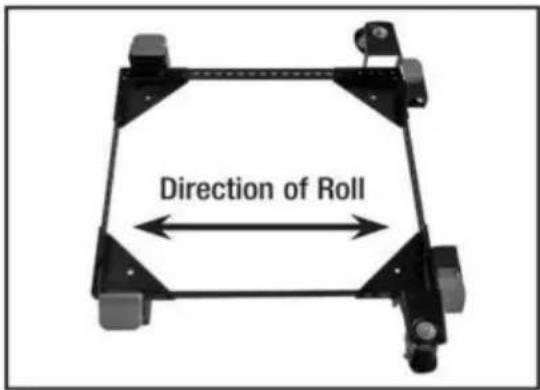

Direction of Roll

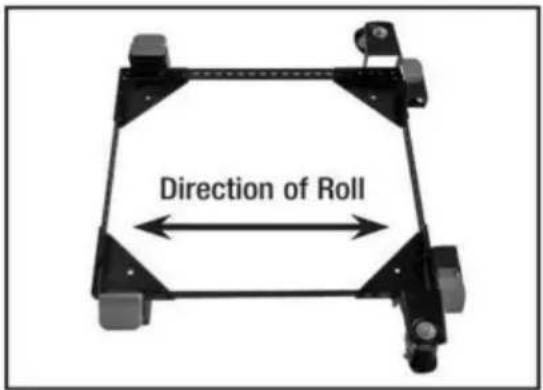

A short narrow base, such as found on a drill press or bandsaw may benefit from this arrangement. Due to swivel rotation, base may sit out of level. Rotate swivel wheel away from base to correct.

Safety Instructions for Mobile Bases

1. Be careful when moving to limit any finger pinch points.
2. Place base on a level surface and adjust levelers before placing the machine in position. This should keep the machine from rocking, while testing it for stability.
3. Test the stability in both the up (on the casters) and the down positions. Exercise caution when testing the stability of top heavy machines (drill presses, band saws, etc.).
4. Unplug any power tool before moving or repositioning your tool.
5. Always test your set-up for stability and safety after repositioning.
6. Care should be taken when planning the orientation of the machine onto the Universal Mobile Base. Transfer the weight off of the levelers to the casters will result in the machine tilting 1/2" toward the fixed wheels. When positioning top heavy tools such as a drill press or band saw, take advantage of the center of gravity, and position so that it will remain stable while on casters.
7. Never use your machine without engaging the floor locks and foot locks. Always lower the machine onto the non-skid levelers before operating.
8. When moving, always push the base, not the machine.

Assembly Examples

Be sure to follow safety and assembly instructions. Keep in mind the actual operation of your machine and the effect it has on overall stability.

Direction of Roll

A long narrow base, such as on a jointer, would benefit from this arrangement. Most machines may be arranged to the convenience of the user.

Direction of Roll

A short narrow base, such as found on a drill press or bandsaw may benefit from this arrangement. Due to swivel rotation, base may sit out of level. Rotate swivel wheel away from base to correct.

Assembly Instructions

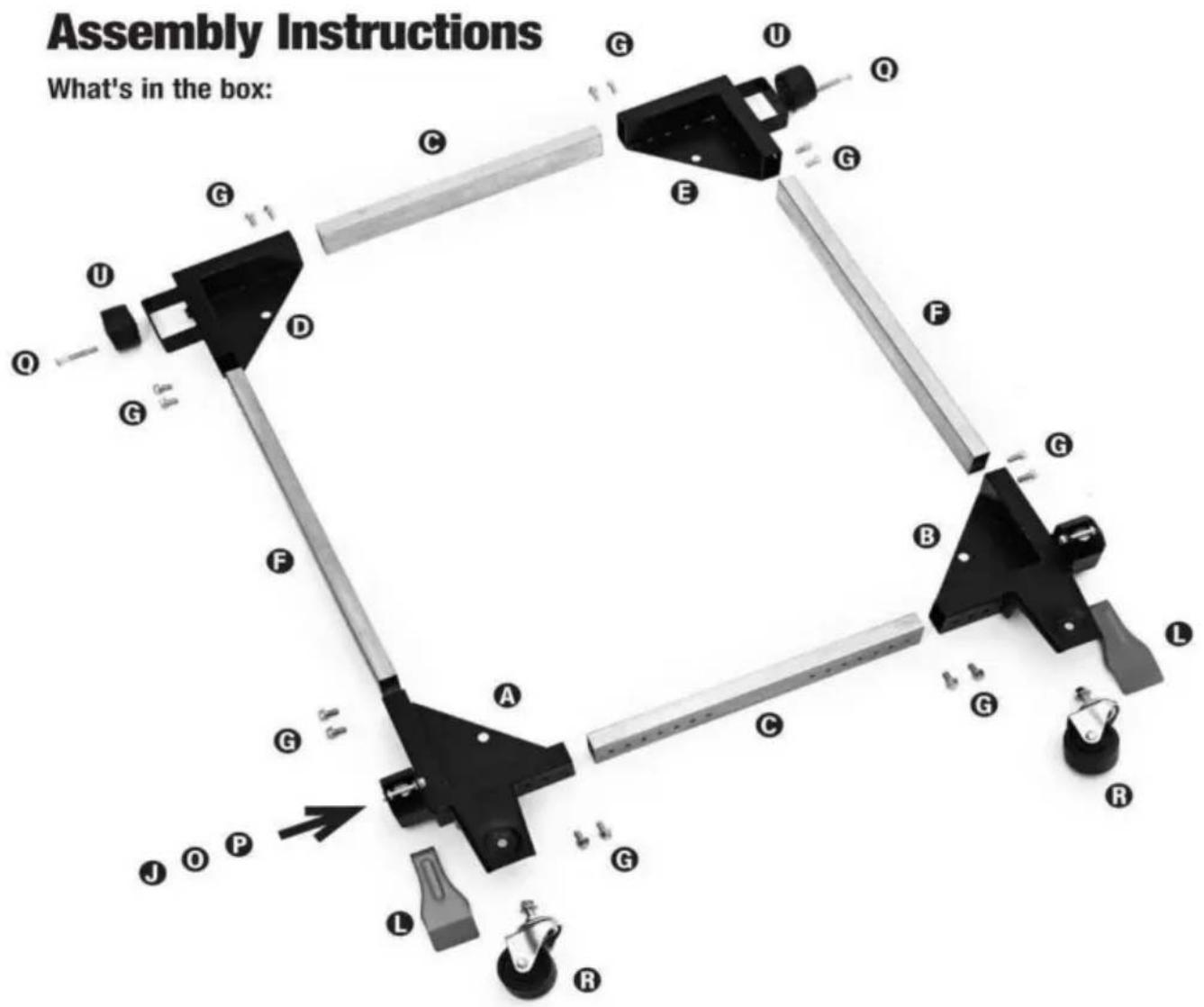

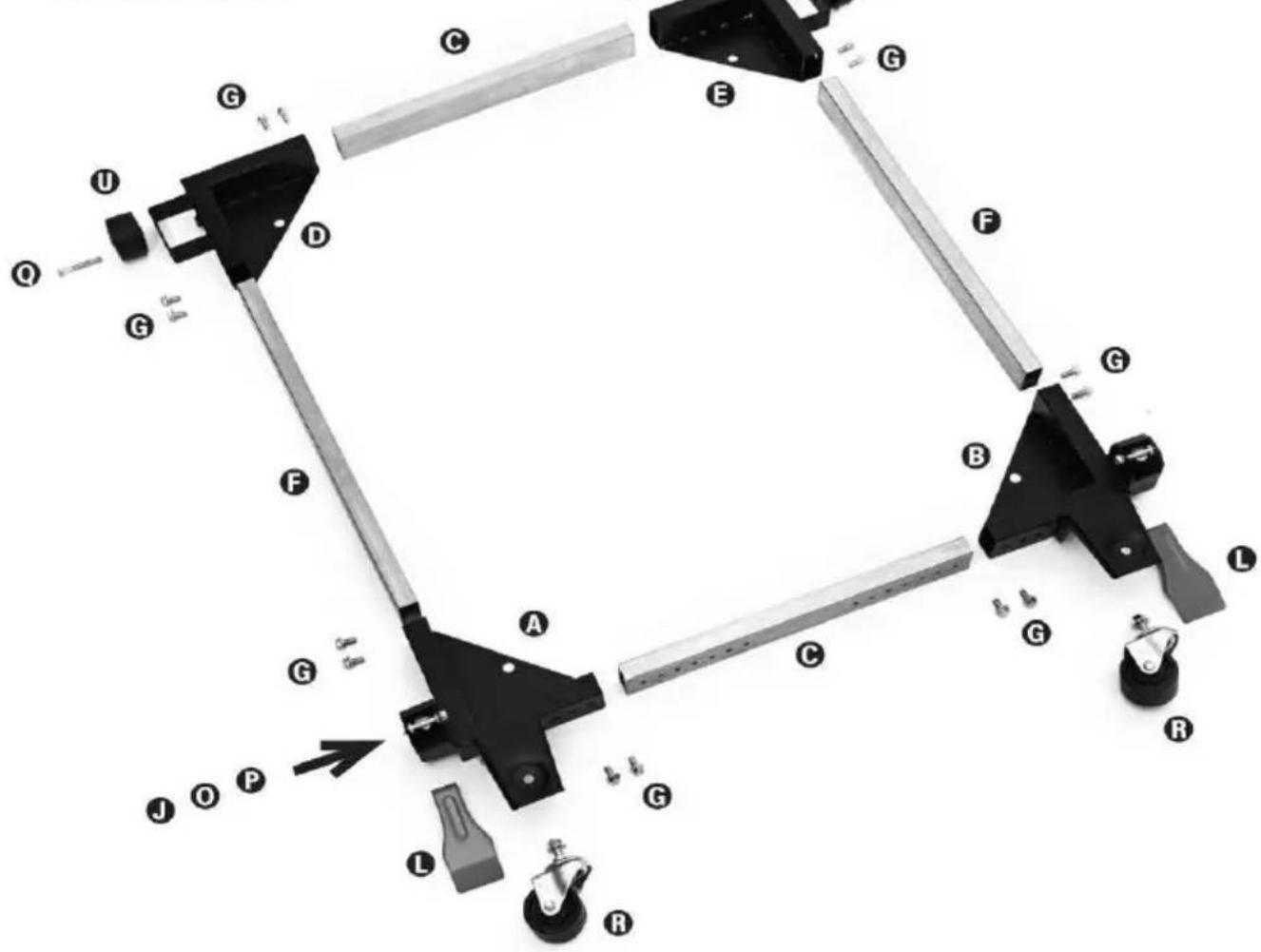

What's in the box:

Diagram of a mechanical linkage system with labeled components (A–P) and directional arrows indicating movement or assembly.

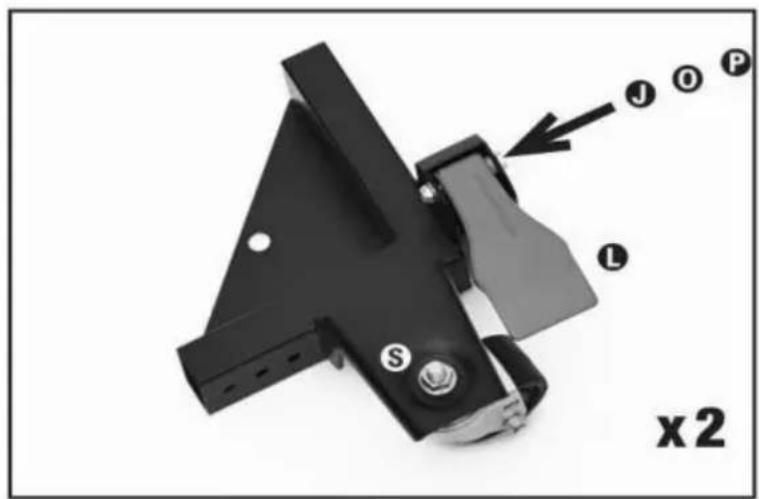

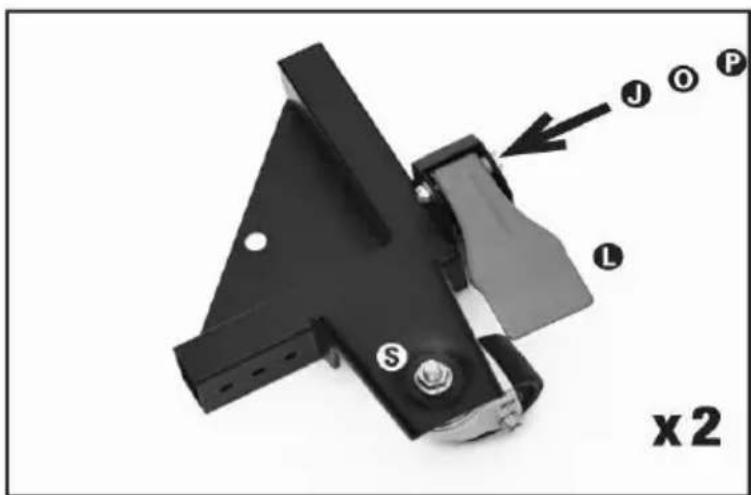

Step 1. Assemble front corners

1. Bolt foot lever Ⓛ to base using part Ⓙ, Ⓞ, & ₽
2. Bolt swivel caster to base using part Ⓢ

J O P x2

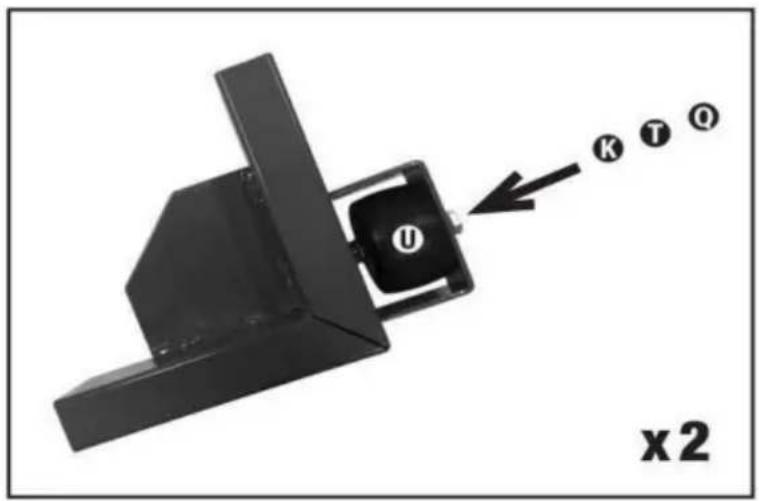

Step 2. Assemble back corners

1. Bolt wheel ⬆ to base using parts Ⓔ, Ⓣ, & Ⓞ

U K T Q x2

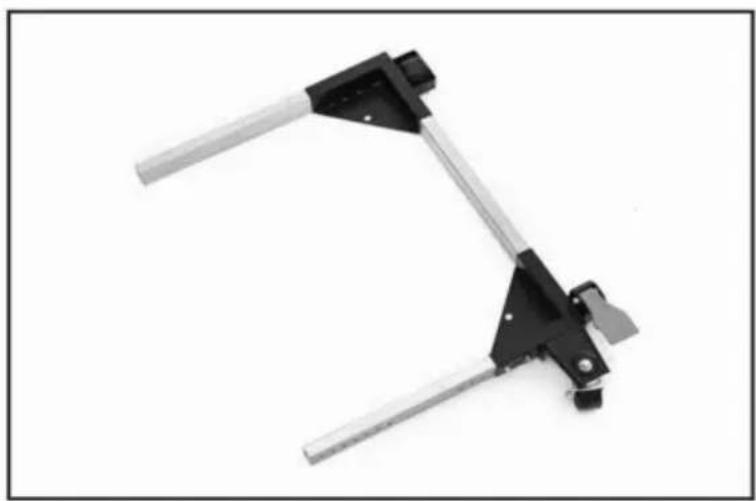

Step 3. Assemble side tubes

1. Bolt side tube between the front and back right corners using 4x part G
2. Bolt the tube out of the side of the front and back corner using 2x part G each

Mechanical clamp or bracket component with black and white parts, no visible text or symbols

Step 4. Slide the machine onto the base

1. Slide your machine onto the mobile base before connecting the remaining corners

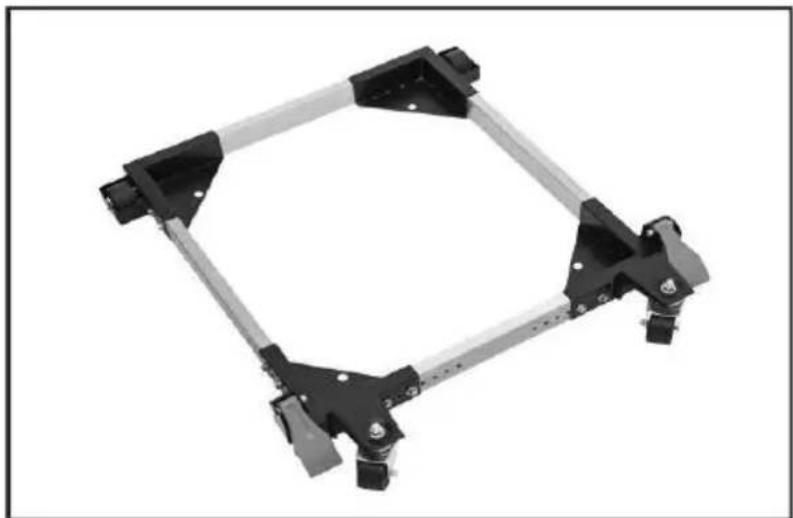

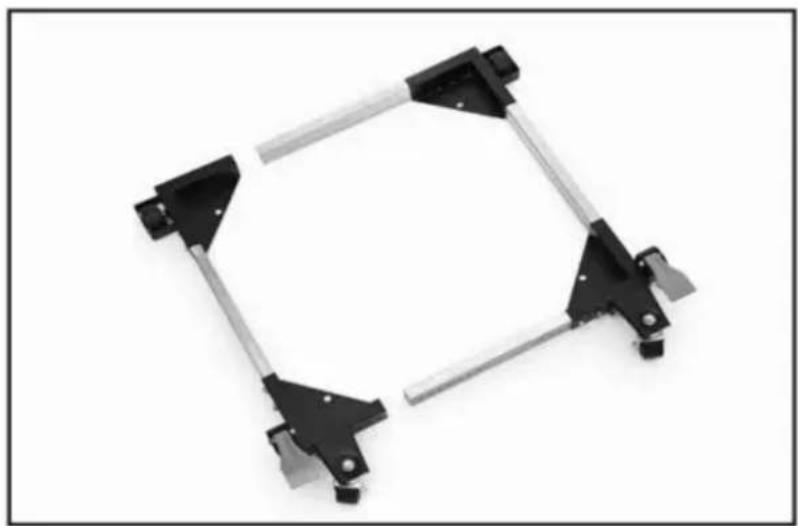

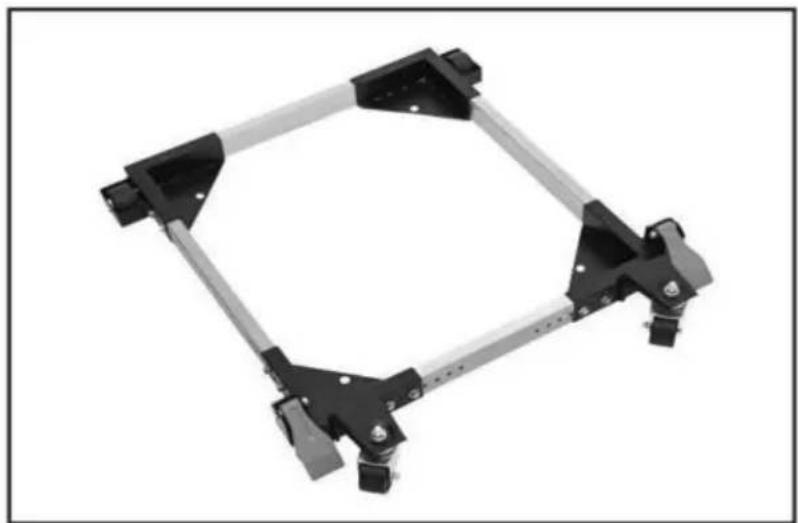

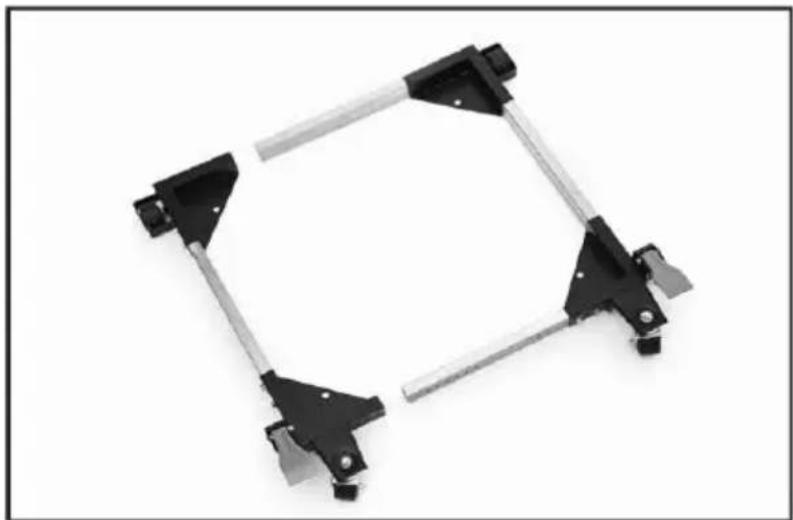

Step 5. Connect the remaining corners

1. Bolt side tube between the front and back right corners using 4x part G

Mechanical bracket component with four black mounting feet and a central square frame (no text or symbols)

1. Slide the left assembly onto the front and back rail - bolt it together using 4x part G

Mechanical linkage component with four black components and a central square frame (no text or symbols visible)

MAINTENANCE

1. Avoid prolonged exposure to the sun to avoid aging.
2. Inspect accessories for wear, cracks, and other damage before use, replace defective accessories immediately.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730
