USER MANUAL E01-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PEDAL KART USER MANUAL

Model:E01-1

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually sa half in comparison with the top major brands.

MODEL:E01-1

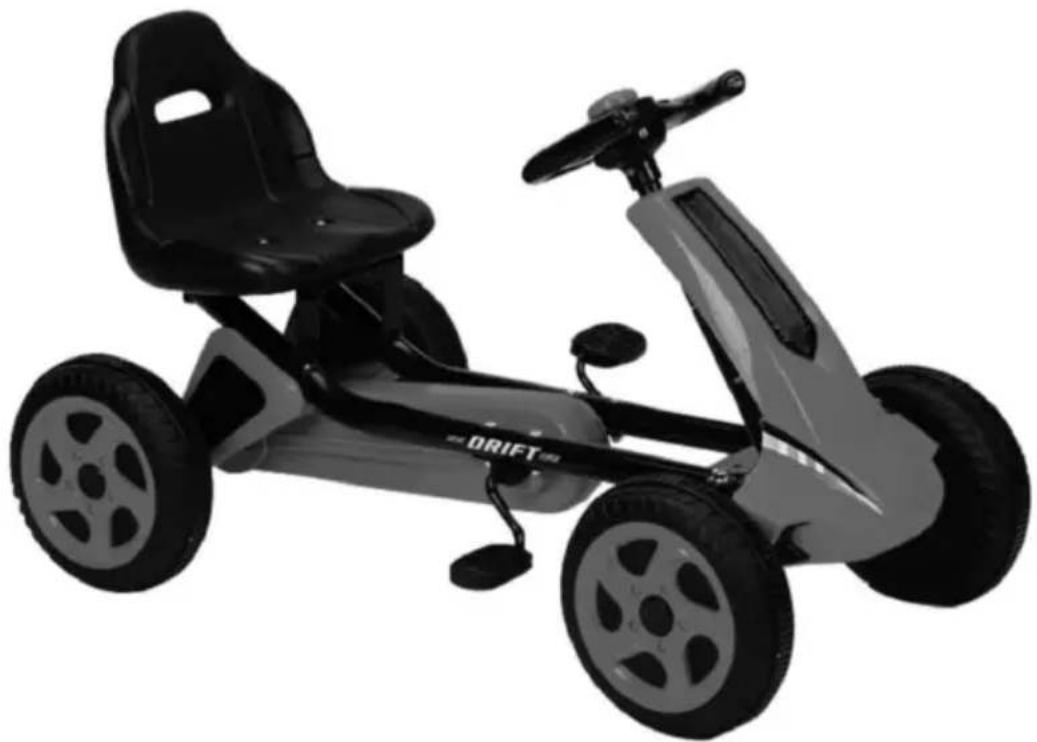

Black and white photo of a modern electric motor with wheels and a 'DRIFT' branding (no visible text or symbols on the vehicle itself)

Note: The actual product you receive determines its look.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

1. Notice

Safety warning: Users and guardian must read the instructions carefully before use, And please properly keep it for future reference. Not used in accordance with the instructions may affect the safety of children.

1. This product must be assembled by adult.
2. In order to ensure a safe use, install and connect the riser and saddletightly, Tightening torque in back connection bolt is >= 70N.
3. When a child is on bike, pushing by other children is not allowed

2. Warning

1. This product is suitable for 3-8 years old children. Maximum load is 66lbs.
2. Child should be accompanied by adult when using this product.
3. Adults must check and ensure all the parts are fine and connected firm before using.
4. Not allowed to use this product on stairs, thresholds, steps and similar places. Please use this produce on flat place with obstacles.
5. Not allowed to place any load on this product. Otherwise, product stability will be affected.
6. In order to avoid suffocation, please keep the plastic cover/film away from children.
7. This product is made of plastic and metal

3.Main Parameter

1. Model:E01-1
2. Load limited: 66lbs.
3. No brakes and seat belts
4. The seat can be adjusted forward and backward
5. Suggested age range: 3-8 years old

4. Pait List

No.	Name	Picture	No.	Name	Picture
1	Main frame		5	Head stock
2	Steering wheel		6	Head stock
3	Steering rod		7	Wheel
4	Seat		8	Parts package

5. Assembly process

P1:	P2:

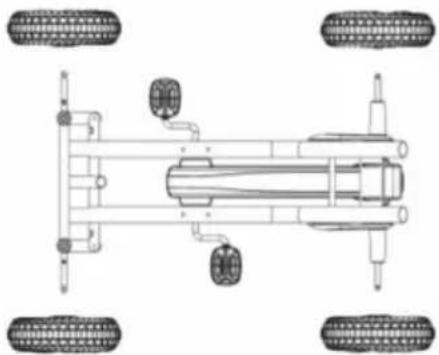

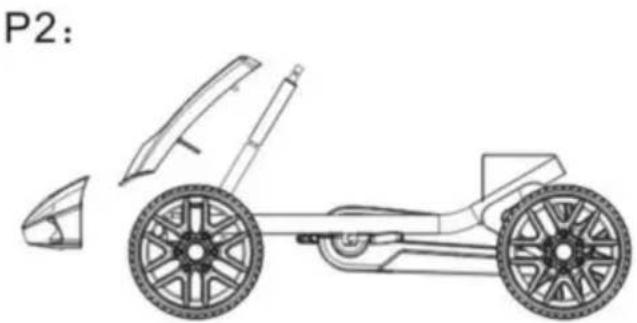

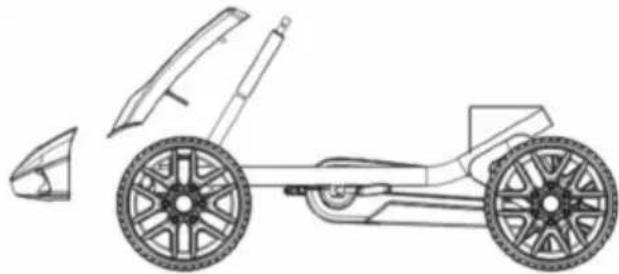

Fit a 10 cm meson into each sid the front axle, then fit the front a rear wheels	Firstly, the steering rod is inserted to the steering pipe from bottom to top of the frame. Then insert the steering elongation tube(in the part package)and steering wheel in to the steering rod.Finally, the steering rod is locked with M5*25screw and 5cm self-locking nut.

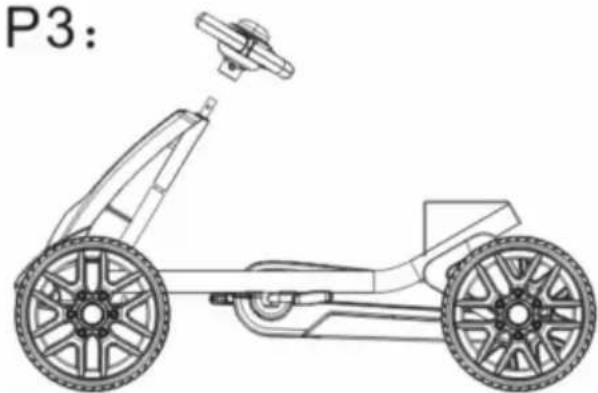

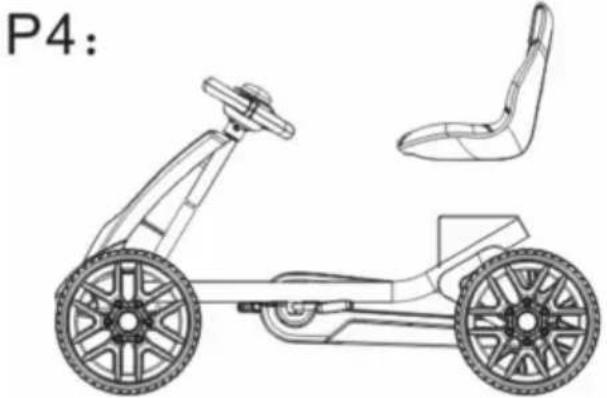

Firstly, Install Headstock and lock with two M4*12 flat tapping screws.Secondly,Put the headstock into the headstock, place the iron plate(part package)into corresponding screw position, and lock it with four 4*12 flat tapping screws. Finally,Put the backrest in the frame and lock it with two M24*12 flats.	Install the seat and lock it with two pieces of M6*30 flat machine three and two pieces of M6 self-locking nuts. Assembly complete!

6. Maintenance

In order to ensure children's safety, regular checking and maintenance should be taken;

1. Place lube oil on rotating parts and bearing regularly for longer product useful life.
2. Avoid using or storing this product in a moist ,cold or hot environment long term.
3. Please maintain and store this product in safe place when not using.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House London Road, Staines-upon-Thames, Surrey, TW18 4A
