BEE HIVE

MODEL: FX2+2

VEVOR

Affordable. Reliable. Home Improvement.

BEE HIVE

MODEL: FX2+2

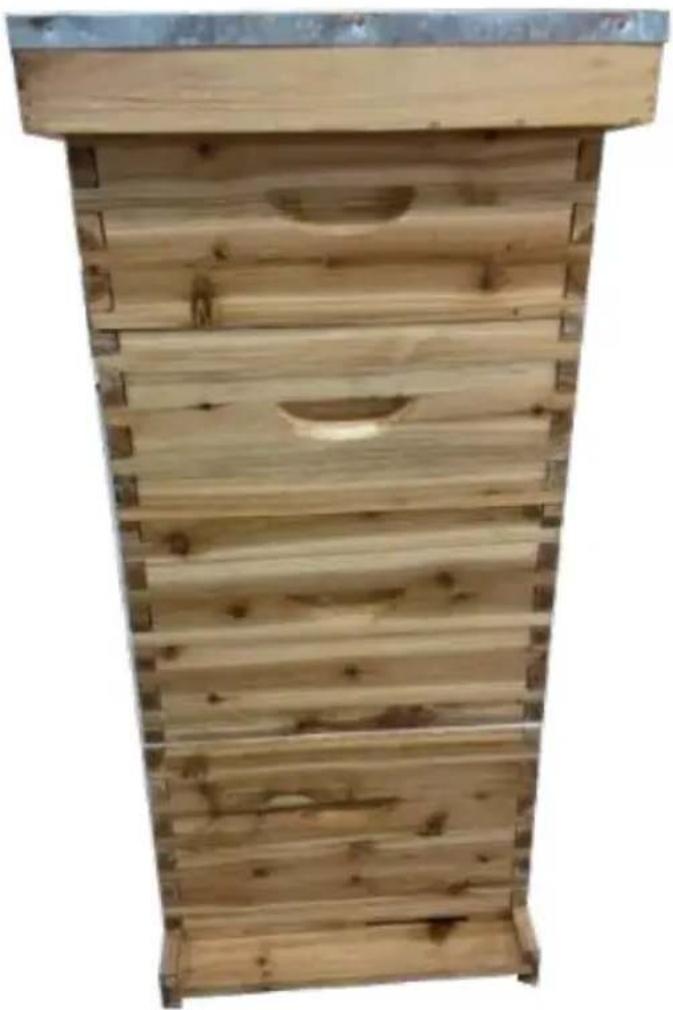

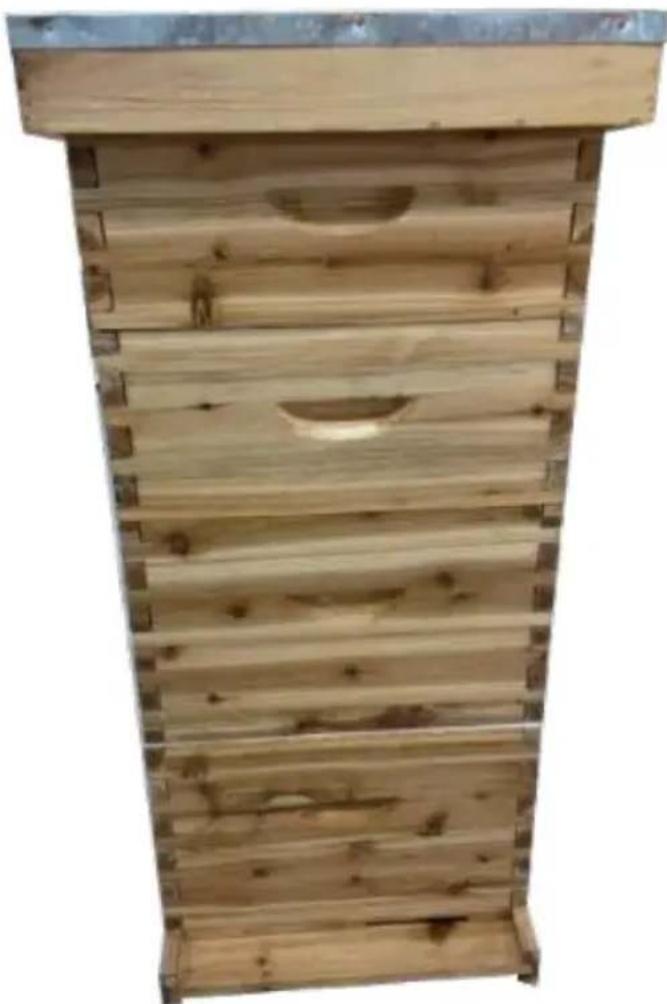

Wooden structure with metal frame and raised base, no visible text or symbols

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read ins manual carefully.

INSTALLATION NOTES

NOTES:

1. Try to choose hard ground for installation.
2. Prepare installation tools in advance (Rubber hammer and wood).
3. Carefully read this installation manual and confirm the quantity of accessories according to the list.

MODEL AND PARAMETERS

Model	FX2+2
Product size	562*462*930mm
Cabinet material	Fir wood
Surface treatment	Wax boiling process

COMPONENTS

Wooden rectangular block with visible grain texture and a small hole, placed on a concrete floor (no text or symbols)

A1 240 Coaming 1(×4)

Wooden rectangular block with a rounded square cutout on top, no visible text or symbols

B1-1(×2)

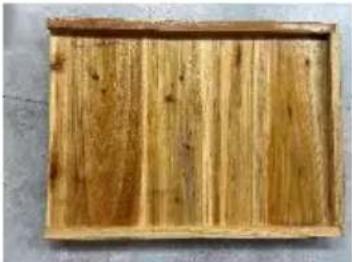

Wooden rectangular slab with visible grain and knots, placed on a plain surface (no text or symbols)

B1-2 (×2)

Close-up of wooden planks on a plain surface (no text or symbols visible)

A2 170 Coaming 1(×4)

Close-up of a wooden plank with a rectangular metal component embedded in it (no text or symbols visible)

B2-1 (×2)

Close-up of a wooden plank with visible grain and knots, resting on a tiled surface (no text or symbols)

B2-1 (×2)

C 170/240 Mainframe bar 1(×40)	D 170/240 Main frame 2(×40)	E1 240 Frame ba (×40)
E2 170 Frame bar (×40)	F1 240 Foundation sheet (×20)	F2 170 Foundation sheet (×20)
G Handle (×4)	H Screw M4x30 (×4)	I-1 I-2I Window pane (×4)
J Self-tapping screw M4x20 (×8)	K Small plank (×8)	L Top Cover (×1)
M Inner Cover (×1)	N Bottom Board(x1)	O Queen Excluder (x1)

A wooden stick resting on a tiled floor, no visible text or markings.

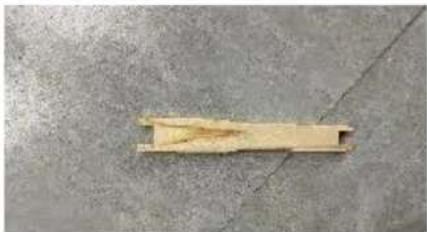

P Entrance Reducer(x1

Pile of thin, elongated metal rods on a light surface (no text or symbols visible)

Q iron nails (x160)

Close-up of four metallic screw fasteners on a textured surface (no visible text or markings)

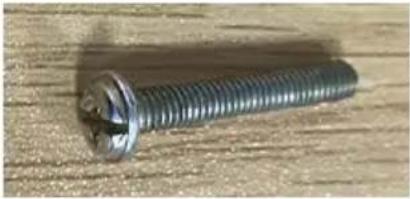

R Self-tapping screw M3x12 (×16)

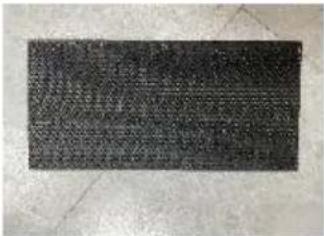

Scanned document with faint Chinese text and a grid of small characters on the right side.

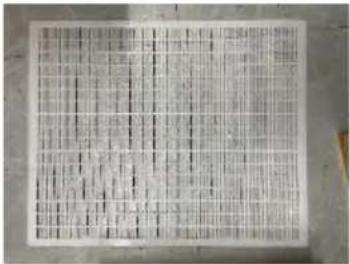

S Acrylic panel window (x4)

ASSEMBLY

240 BOX

1. Installation of 240 box

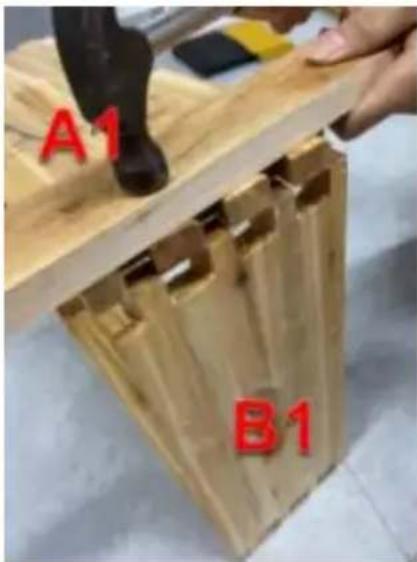

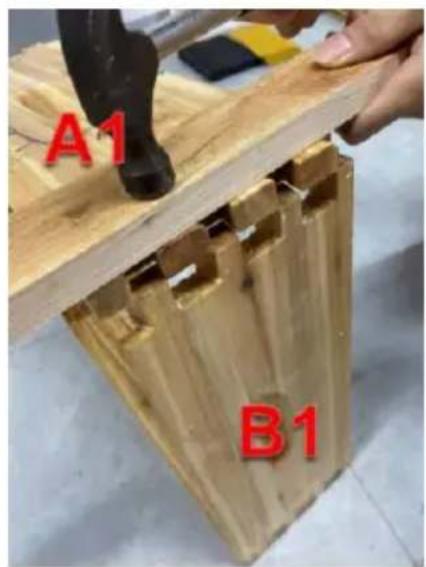

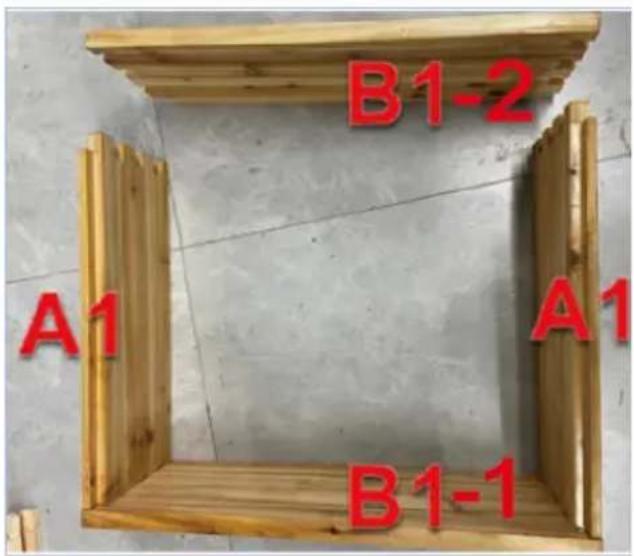

Step 1: Take two pieces of A1 and two pieces of B1(B1-1&B1-2)

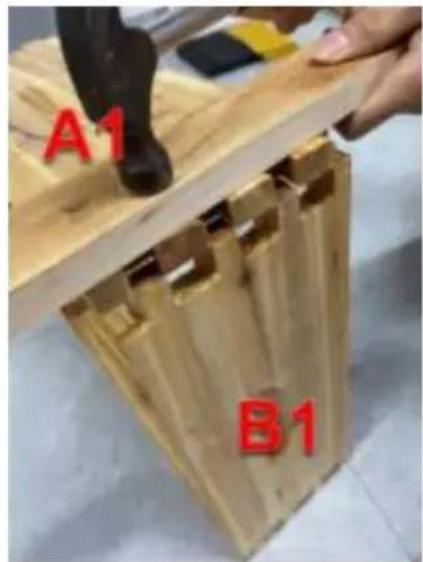

respectively, and connect them with a rubber hammer (note that it is allowed to knock them directly, but put a board or cardboard on their knock them in evenly).

B1-2 A1 A1 B1-1

A1 B1

2. Installation of 240 frame

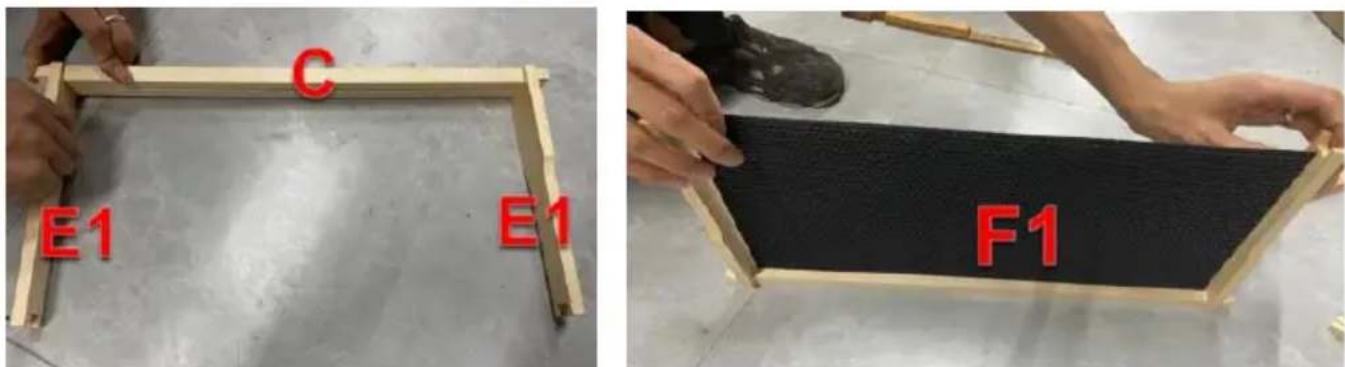

Step 1: Take 2 pieces of E1 and 1 piece of C, insert them into the card slot to connect them, then take 1 piece of F1 and insert it into the slot, finally take 1 piece of D and insert it into the slot to complete a set of frames.

C E1 E1 F1

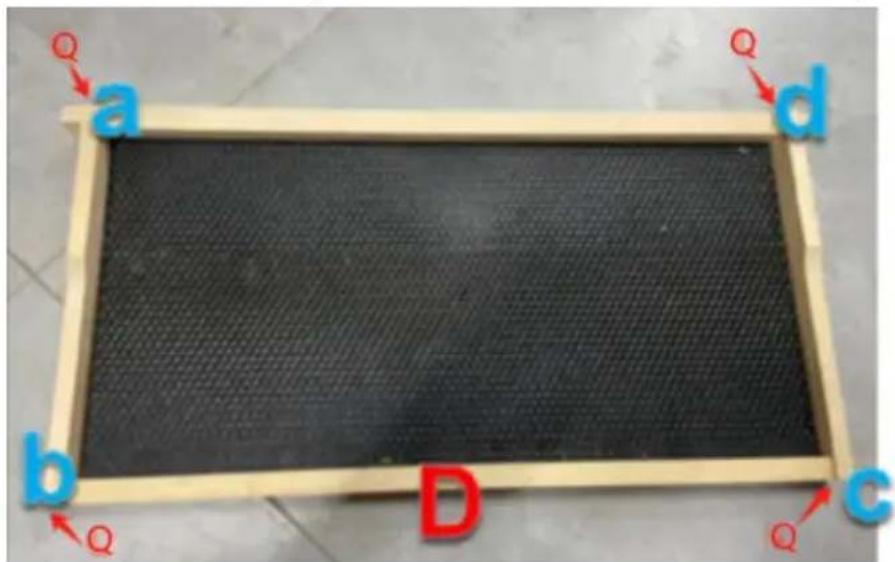

Step 2: Connect with 4 pieces of Q at a/b/c/d 4 positions.

a b c D d Q Q

3. Installation of the window

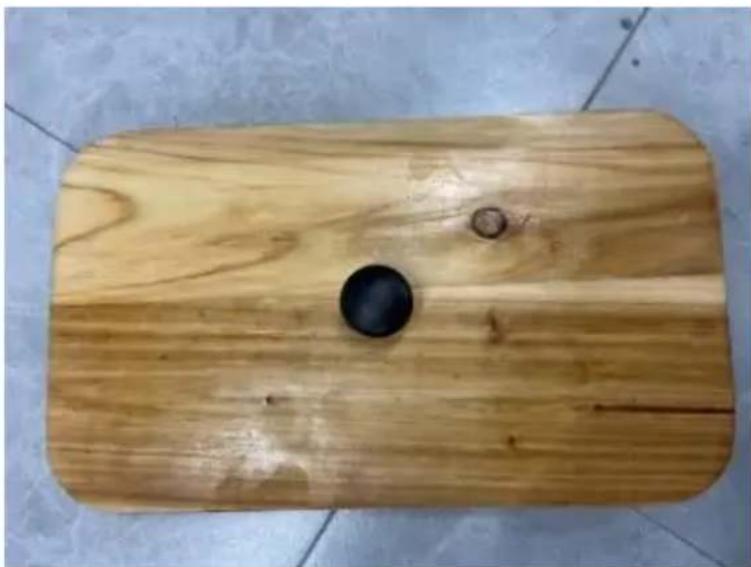

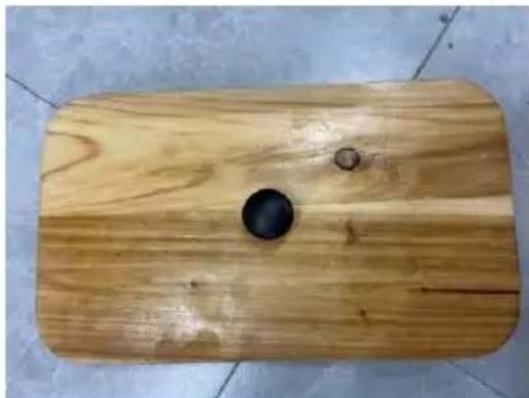

Step 1: Take G, H and I-1 to assemble the cover plate.

Wooden rectangular plate with a central hole and two small holes, placed on a tiled floor (no text or symbols visible)

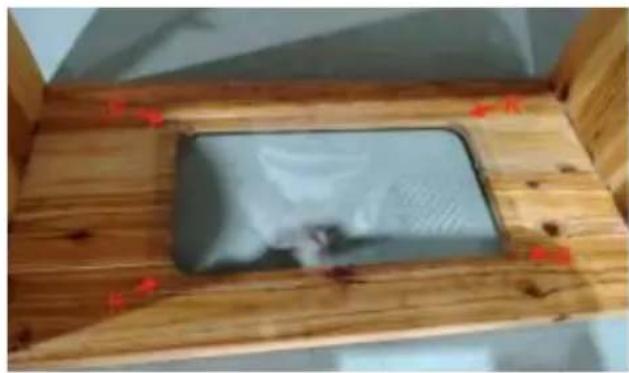

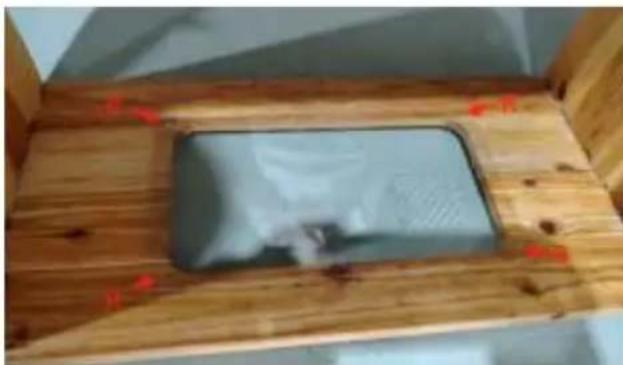

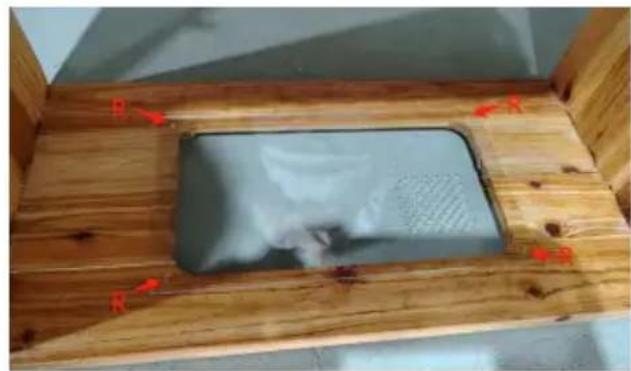

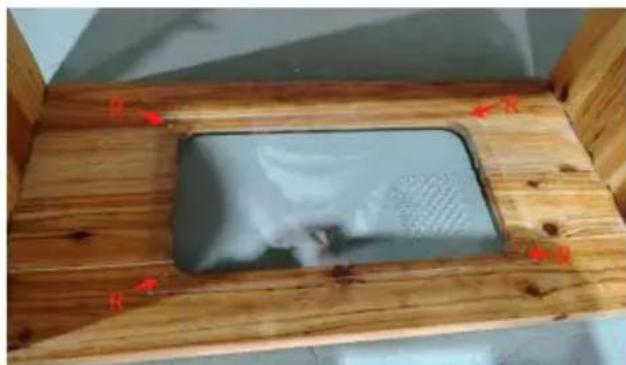

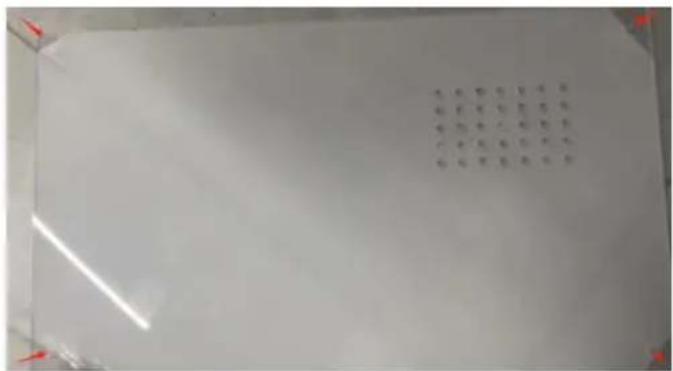

Step 2: Take S and Peel off the film from the corners, then Take S and R to assemble the Coaming.

Whiteboard with a grid of handwritten Chinese characters arranged in rows, likely a form or checklist.

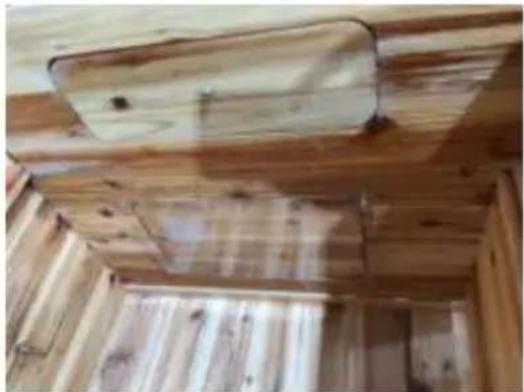

Interior view of a wooden floor with a rectangular object on the wall, marked with red arrows indicating direction (no text or symbols visible)

Interior view of a wooden structure with exposed beams and supports (no text or symbols visible)

Wooden tray with a rectangular frame and two wooden clips, no visible text or symbols on the tray itself.

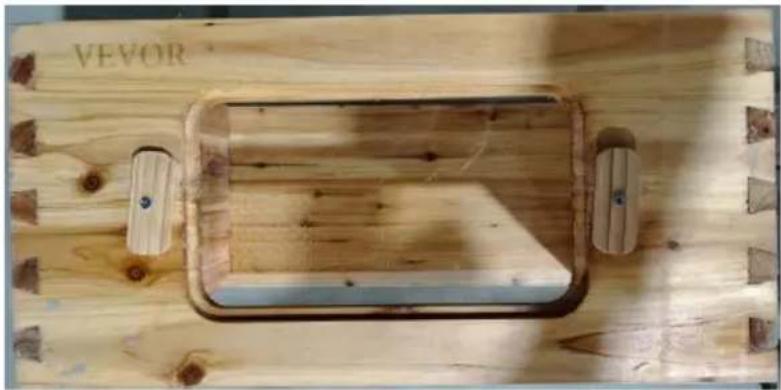

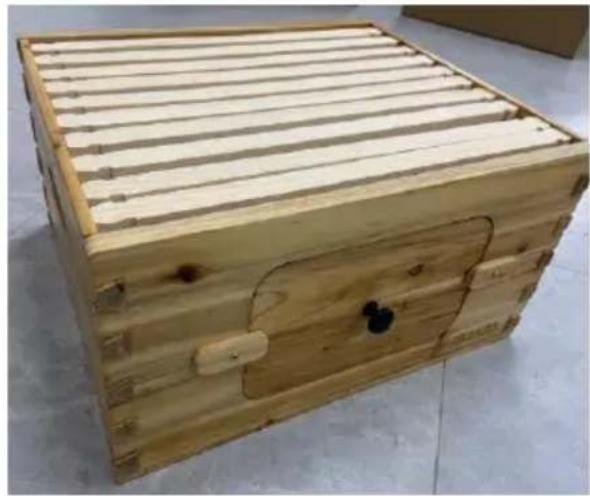

Step 3: Take J and K to assemble the window pressing plates on both sides and put 10 sets of foundations and frames into the box.

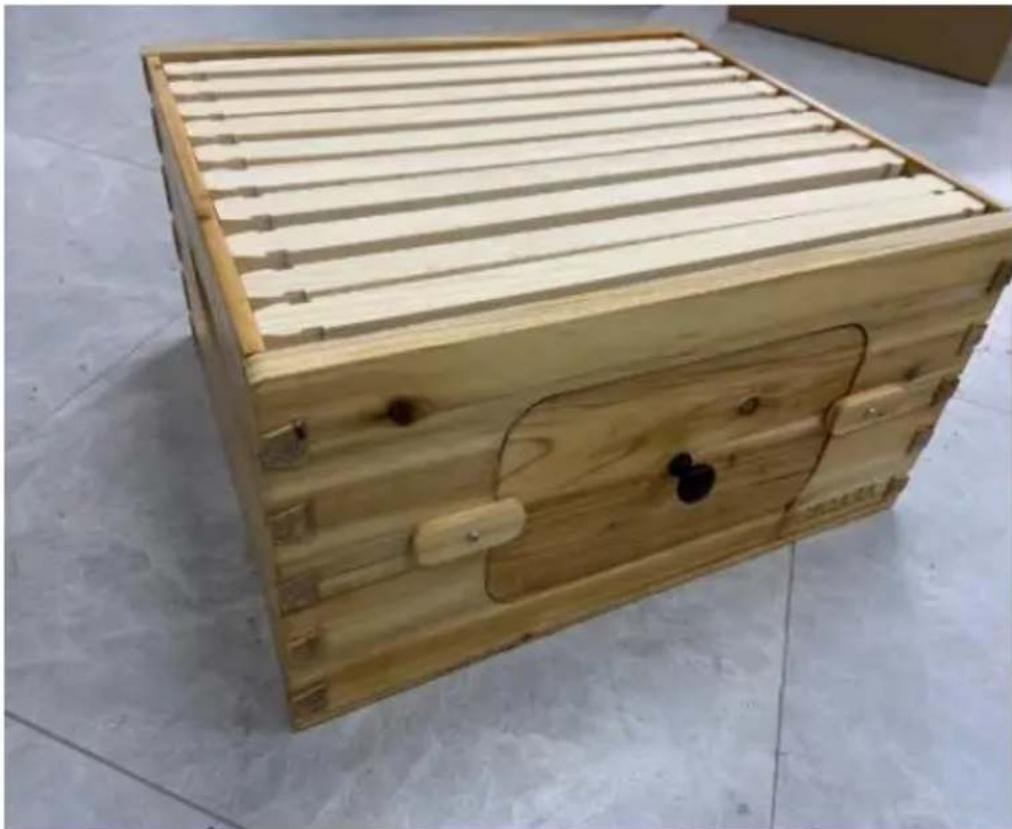

Wooden box with slatted metal frame and closed door, placed on tiled floor (no text or symbols visible)

170 BOX

4. Installation of 170 box

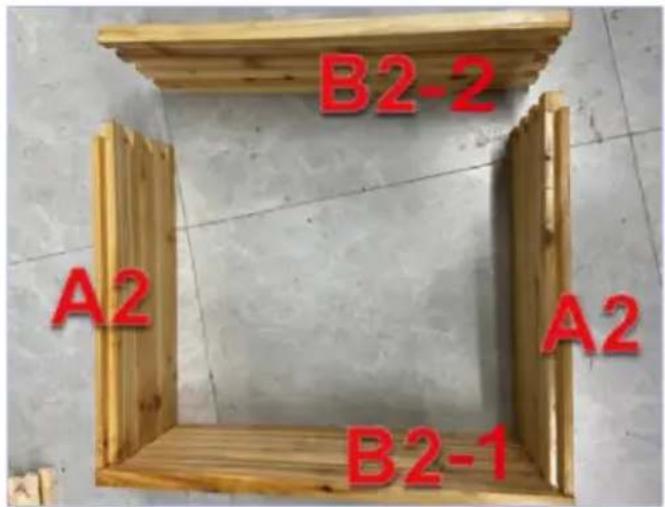

Step 1: Take two pieces of A2 and two pieces of B2(B2-1&B2-2)

respectively, and connect them with a rubber hammer (note that it is allowed to knock them directly, but put a board or cardboard on their knock them in evenly).

B2-2 A2 A2 B2-1

A2 B2

5. Installation of 170 frame

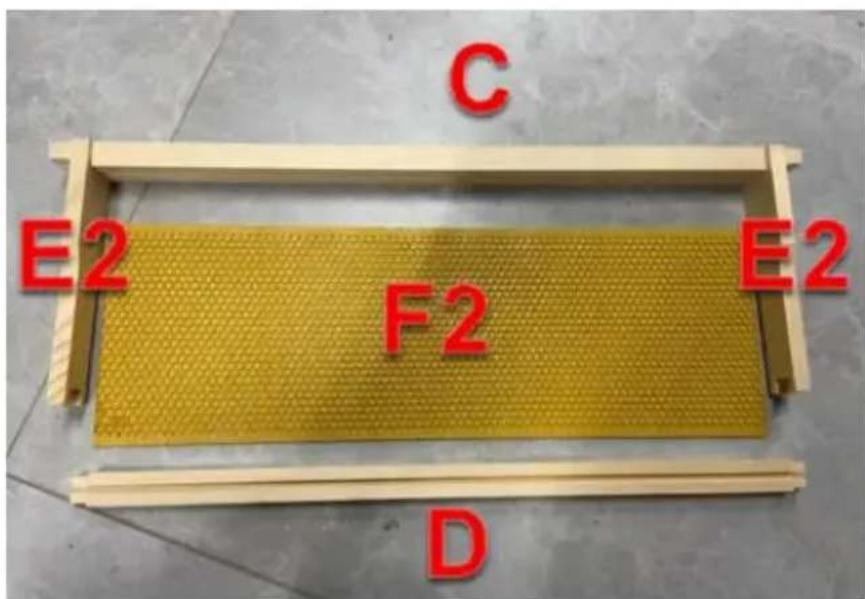

Step 1: Take 2 pieces of E2 and 1 piece of C, insert them into the card slot to connect them, then take 1 piece of F2 and insert it into the slot, finally take 1 piece of D and insert it into the slot to complete a set frames.

C E2 F2 E2 F2 D

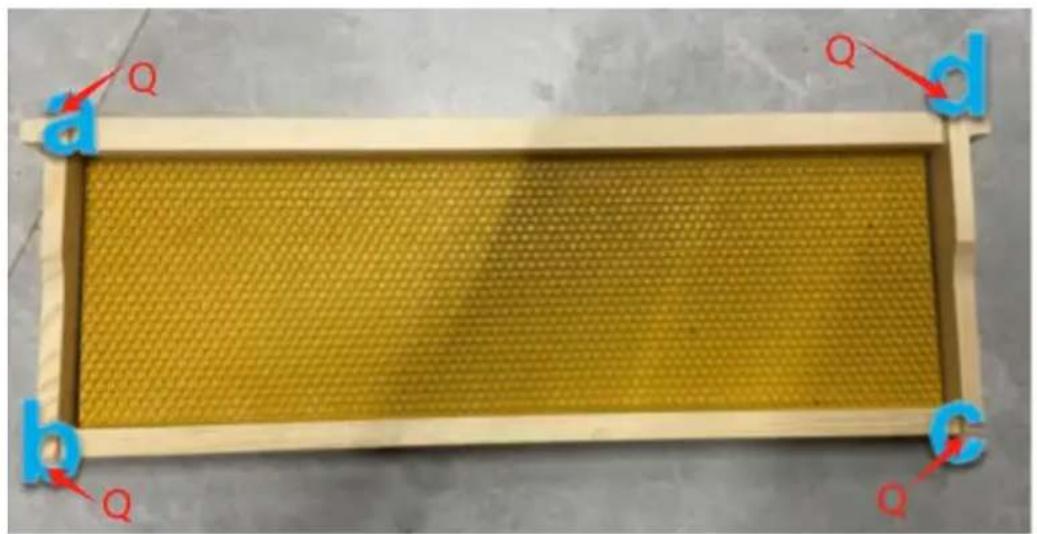

Step 2: Connect with 4 pieces of Q at a/b/c/d 4 positions.

a b c d Q Q Q

6. Installation of the window

Step 1: Take G, H and I-2 to assemble the cover plate.

Top-down view of a wooden plank with two small holes on a tiled floor (no text or symbols visible)

Step 2: Take N and Peel off the film from the corners, then Take N and M to assemble the Coaming.

Whiteboard with a grid of Chinese characters arranged in rows, surrounded by red corner markers.

Wooden interior with a rectangular vent or lid on a wooden surface, marked with red arrows and 'R' annotations (no readable text or symbols)

Interior view of a wooden structure showing exposed beams and insulation layers (no text or symbols)

Wooden tray with a rectangular frame and two wooden clips, no visible text or symbols on the tray itself.

Step 3: Take J and K to assemble the window pressing plates on both sides and put 10 sets of foundations and frames into the box.

Wooden box with slatted top and internal compartments, placed on a plain floor (no text or symbols visible)

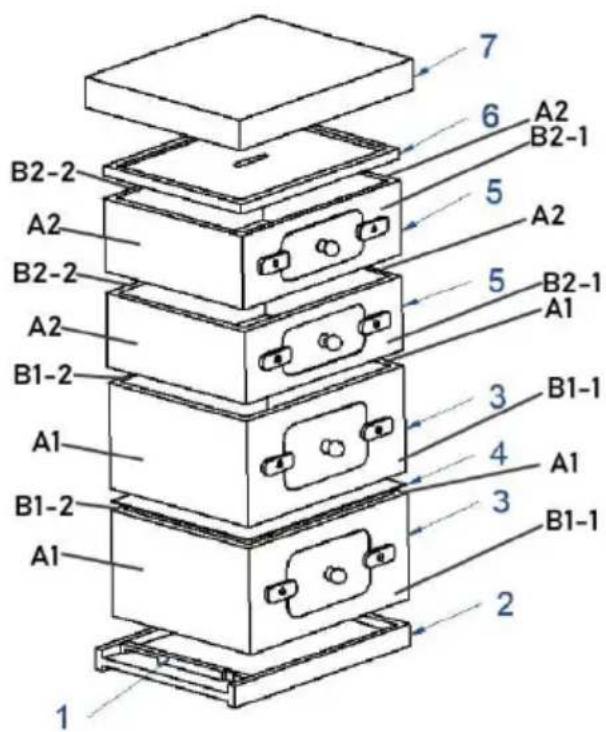

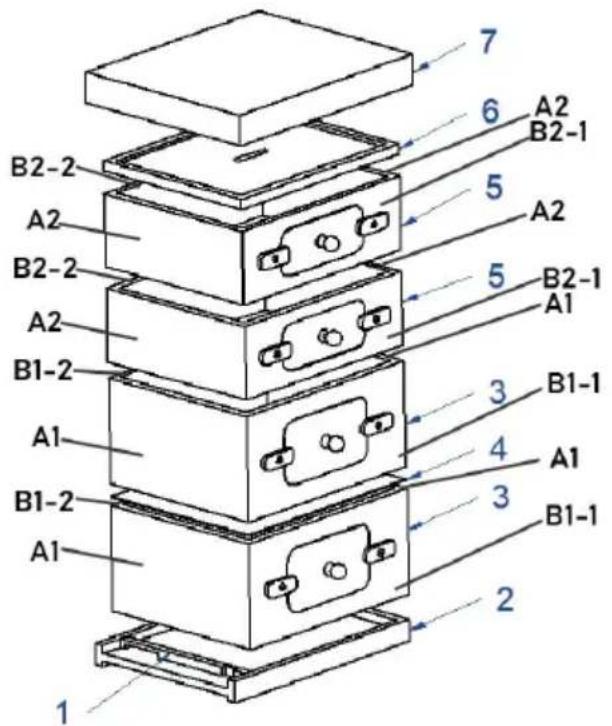

Finally, please assemble according to the following figure:

7 6 A2 B2-1 5 A2 B2-2 5 B2-1 A1 B1-2 3 B1-1 4 A1 3 B1-1 2 1

Indes	Name	Qty
1	Entrance Reducer	1
2	Bottom Board	1
3	240 Box	2
4	Queen Excluder	1
5	170 Box	1
6	Inner Cover	1
7	Top Cover	1

Details of beehive enclosure boa
Indes	Name	Qty
A1	Lower side panel	4
B1-1	Lower front panel	2
B1-2	Lower back panel	2
A2	Upper side panel	4
B2-1	Upper front panel	2
B2-2	Upper back panel	2

MAINTENANCE

1. Please use beeswax regularly for maintenance.
2. Close the bee window in cold, rainy, and windy weather.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR

Affordable. Reliable. Home Improvement.

UL

MODEL: FX2+2

MODEL: FX 2+2

Wooden structure with horizontal slats and a metal frame at the top (no text or symbols visible)

B1-2 A1 A1 B1-1

A1 B1

8. Montaż ramy 24 0

Top-down view of a wooden rectangular plate with a central hole and two small holes, placed on a tiled floor (no text or symbols visible)

Cropped image showing a grid of handwritten or printed text on a white surface, possibly a form or document with red corner markers.

Wooden interior with a small rectangular object on a wooden floor, no visible text or symbols

Interior view of a wooden cabin with exposed ceiling and floor panels (no text or symbols visible)

Wooden tray with a transparent rectangular frame and two side clips, no visible text or symbols on the tray itself.

Wooden box with slatted metal frame and closed door, placed on tiled floor (no text or symbols visible)

17 0 PUDEŁKO

Rectangular yellow honeycomb structure with blue lettering labels (a, b, c, d) at corners, no text or symbols on the main body.

12.Montaż okna

Wooden rectangular plate with two circular holes and a central hole, placed on tiled floor (no text or symbols)

Cropped image showing a grid of handwritten or printed symbols on a white surface, possibly a form or diagram.

Wooden interior with a rectangular vent or slide on a wooden deck, marked with red arrows and numbers (no readable text or symbols)

Interior view of a wooden structure with exposed ceiling and floor panels (no text or symbols visible)

Wooden wall-mounted device with a transparent rectangular frame and two side clips, no visible text or symbols on the device itself.

Wooden box with slatted top and closed lid, no visible text or symbols

B2-2 A2 B2-2 A2 B1-2 A1 B1-2 A1 7 6 5 5 5 3 4 3 2 A2 B2-1 A1 B1-1 A1 B1-1

C/O YH Consulting Limited Biuro 147, Centurion House, London Road Staines-upon-Thames, Surrey, TW18 4AX

Importowane do AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, CA 9173

VEVOR

Affordable. Reliable. Home Improvement.

BIENENSTOCK

MODELL: FX2+2

MODELL: FX 2+2

Wooden structure with horizontal slats and a metal frame at the top (no text or symbols visible)

B1-2 A1 A1 B1-1

A1 B1

Wooden rectangular object with a central hole and two small holes, placed on a tiled floor (no text or symbols visible)

Cropped image of a whiteboard with grid of handwritten Chinese characters, likely a form or checklist.

Interior view of a wooden structure with a dark rectangular object on a wooden floor, marked with red arrows indicating direction (no text or symbols visible)

Interior view of a wooden cabin with exposed ceiling and floor panels (no text or symbols visible)

Wooden interior with a transparent rectangular frame and two side clips, no visible text or symbols

Wooden box with slatted metal frame and closed lid, placed on tiled floor (no text or symbols visible)

17 0 BOX

Rectangular yellow honeycomb frame with blue letter labels (a, b, c, d) at corners, no text or symbols on the main structure.

Wooden rectangular plate with two circular holes and a central hole, placed on tiled floor (no text or symbols)

Cropped image of a whiteboard with grid of handwritten Chinese characters arranged in rows, likely a form or checklist.

Wooden interior with a rectangular vent or slide on a wooden deck, marked with red arrows and numbers (no readable text or symbols)

Interior view of a wooden cabin with exposed ceiling and floor panels (no text or symbols visible)

Wooden wall-mounted device with a transparent rectangular frame and two side clips, no visible text or symbols on the device itself.

Wooden box with slatted metal frame and internal compartments (no text or symbols visible)

C/O YH Consulting Limited Office 147, Centurion House, London Roac

Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 9173 0

VEVOR

Affordable. Reliable. Home Improvement.

RUCHE D'ABEILLES

MODÈLE : FX2+2

MODÈLE : FX 2+2

Wooden structure with horizontal slats and a metal frame at the top (no text or symbols visible)

B1-2 A1 A1 B1-1

A1 B1

Top-down view of a wooden rectangular plate with a central hole and two small holes, placed on a tiled floor (no text or symbols visible)

Cropped image showing a grid of handwritten or printed text on a white surface, possibly a form or label.

Interior view of a wooden structure with a rectangular panel and red markings (no visible text or symbols)

Interior view of a wooden cabin with exposed ceiling and floor panels (no text or symbols visible)

Wooden interior with a transparent rectangular frame and two side clips, no visible text or symbols

Wooden box with slatted metal frame and closed lid, placed on tiled floor (no text or symbols visible)

17 0 BOÎTE

22.Installation de 170 box

Rectangular yellow honeycomb frame with blue lettering and red directional arrows on sides (no text or symbols on the mesh itself)

Wooden rectangular plate with two circular holes on a tiled floor (no text or symbols)

Cropped image showing a grid of handwritten or printed symbols on a white surface, possibly a form or diagram.

Wooden interior with a rectangular object on a wooden floor, marked with red arrows and numbers (no readable text or symbols)

Interior view of a wooden cabin with exposed ceiling and floor panels (no text or symbols visible)

Wooden wall-mounted device with a transparent rectangular frame and two side clips, no visible text or symbols.

Wooden box with slatted top and internal compartments, no visible text or symbols

A/S YH Consulting Limited Bureau 147, Centurion House, London Roa Staines-upon-Thames, Surrey, TW18 4AX

Importé en AUS : SIHAO PTY LTD.

1 ROKEVA STREET, EASTWOOD, NSW 2122, Australie

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 9173 0

VEVOR

Affordable. Reliable. Home Improvement.

BIJENKORF

MODEL: FX2+2

VEVOR

Affordable. Reliable. Home Improvement.

BEE HIVE

MODEL: FX 2+2

Wooden structure with horizontal slats and a metal frame at the top (no text or symbols visible)

B1-2 A1 A1 B1-1

A1 B1

Top-down view of a wooden rectangular plate with a central hole and two small holes, placed on a tiled floor (no text or symbols visible)

Cropped image showing a grid of handwritten or printed text on a white surface, possibly a form or document with red corner markers.

Wooden interior with a small rectangular object on a wooden floor, no visible text or symbols

Interior view of a wooden cabin with exposed ceiling and floor panels (no text or symbols visible)

Wooden tray with a transparent rectangular frame and two side clips, no visible text or symbols on the tray itself.

Wooden box with slatted metal frame and closed door, placed on tiled floor (no text or symbols visible)

17 0 DOOS

Rectangular yellow honeycomb frame with blue letter labels (a, b, c, d) at corners, no text or symbols on the main structure.

Wooden rectangular plate with two circular holes and a central hole, placed on tiled floor (no text or symbols)

Cropped image of a whiteboard with grid of handwritten Chinese characters arranged in rows.

Wooden interior with a recessed metal panel and red arrows pointing to the surface (no text or symbols visible)

Interior view of a wooden structure with exposed ceiling and floor panels (no text or symbols visible)

Wooden wall-mounted device with a transparent rectangular frame and two side clips, no visible text or symbols on the device itself.

Wooden box with slatted metal frame and closed lid, displayed on a plain floor (no text or symbols visible)

B2-2 A2 B2-2 A2 B1-2 A1 B1-2 A1 7 6 5 5 5 3 4 3 2 A2 B2-1 A1 B1-1 A1 B1-1

T.a.v. YH Consulting Limited Kantoor 147, Centurion House, London R Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 9173 0

VEVOR

Affordable. Reliable. Home Improvement.

BIKUPA

MODELL: FX2+2

MODELL: FX 2+2

Wooden structure with horizontal slats and a metal frame at the top (no text or symbols visible)

A wooden stick resting on a tiled floor, no visible text or symbols.

Close-up of a pile of thin, elongated metal rods or wires on a plain surface (no text or symbols visible)

Q -järnspik (x160)

Close-up of four metallic screw fasteners on a textured surface (no text or markings visible)

Scanned document with faint handwritten Chinese characters and a diagonal line, likely a form or table header.

S Fönster med akrylpanel ( x4)

ASSEMBLY

240 LÅDA

B1-2 A1 A1 B1-1

A1 B1

Top-down view of a wooden rectangular plate with a central hole and two small holes, placed on a tiled floor (no text or symbols visible)

Cropped image showing a grid of handwritten or printed text on a white surface, possibly a form or document with red corner markers.

Wooden interior with a small rectangular object on a wooden floor, no visible text or symbols

Interior view of a wooden cabin with exposed ceiling and floor panels (no text or symbols visible)

Wooden tray with a transparent rectangular frame and two side clips, no visible text or symbols on the tray itself.

Wooden box with slatted metal frame and closed door, placed on tiled floor (no text or symbols visible)

17 0 LÅDA

Rectangular yellow honeycomb frame with blue letter labels (a, b, c, d) at corners, no text or symbols on the main structure.

Wooden rectangular plate with two circular holes and a central hole, placed on tiled floor (no text or symbols)

Cropped image showing a grid of handwritten or printed Chinese characters on a white surface, likely a form or document.

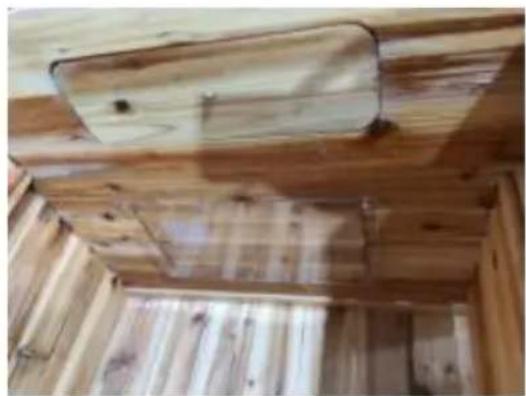

Wooden interior with a rectangular vent or slide on a wooden deck, marked with red arrows and numbers (no readable text or symbols)

Interior view of a wooden structure with exposed ceiling and floor panels (no text or symbols visible)

Wooden wall-mounted device with a transparent rectangular frame and two side clips, no visible text or symbols on the device itself.

Wooden box with slatted metal frame and closed lid, displayed on a plain floor (no text or symbols visible)

B2-2 A2 B2-2 A2 B1-2 A1 B1-2 A1 7 6 5 5 5 3 4 3 2 A2 B2-1 A1 B1-1 A1 B1-1

Svit 250, 9166 Anaheim Place, Rancho Cucamonga, CA 9173 0

VEVOR

Affordable. Reliable. Home Improvement.

COLMENA DE ABEJAS

MODELO: FX2+2

MODELO: FX 2+2

Wooden structure with horizontal slats and a metal frame at the top (no text or symbols visible)

B1-2 A1 A1 B1-1

A1 B1

Top-down view of a wooden rectangular plate with a central hole and two small holes, placed on a tiled floor (no text or symbols visible)

Cropped image showing a grid of handwritten or printed text on a white surface, possibly a form or label.

Interior view of a wooden structure with a rectangular panel and red markings (no visible text or symbols)

Interior view of a wooden cabin with exposed ceiling and floor panels (no text or symbols visible)

Wooden tray with a transparent rectangular frame and two side clips, no visible text or symbols on the tray itself.

Wooden box with slatted metal frame and closed door, placed on tiled floor (no text or symbols visible)

17 0 CAJA

Rectangular yellow honeycomb frame with blue lettering labels (a, b, c, d) at corners, no text or symbols on the main structure.

Wooden rectangular plate with two circular holes and a central hole, placed on tiled floor (no text or symbols)

Cropped image showing a grid of handwritten or printed symbols on a white surface, possibly a form or diagram.

Wooden interior with a rectangular vent or slide on a wooden deck, marked with red arrows and numbers (no readable text or symbols)

Interior view of a wooden structure with exposed ceiling and floor panels (no text or symbols visible)

Wooden wall-mounted device with a transparent rectangular frame and two side clips, no visible text or symbols on the device itself.

Wooden box with slatted metal frame and closed lid, displayed on a plain floor (no text or symbols visible)

B2-2 A2 B2-2 A2 B1-2 A1 B1-2 A1 7 6 5 5 5 3 4 3 2 A2 B2-1 A1 B1-1 A1 B1-1

Affordable. Reliable. Home Improvement.

ALVEARE

MODELLO: FX2+2

MODELLO: FX 2+2

Wooden structure with horizontal slats and a metal frame at the top (no text or symbols visible)

B1-2 A1 A1 B1-1

A1 B1

Top-down view of a wooden rectangular plate with a central hole and two small holes, placed on a tiled floor (no text or symbols visible)

Cropped image showing a grid of handwritten or printed text on a white surface, possibly a form or label.

Interior view of a wooden structure with a rectangular panel and red markings (no visible text or symbols)

Interior view of a wooden cabin with exposed ceiling and floor panels (no text or symbols visible)

Wooden tray with a transparent rectangular frame and two side clips, no visible text or symbols on the tray itself.

Wooden box with slatted metal frame and closed door, placed on tiled floor (no text or symbols visible)

17 0 SCATOLA

Rectangular yellow honeycomb frame with blue lettering and red directional arrows, no text or symbols present

Top-down view of a wooden board with two circular holes on a tiled floor (no text or symbols)

Cropped image showing a grid of handwritten or printed symbols on a white surface, possibly a form or diagram.

Wooden interior with a recessed metal panel and red arrows pointing to the surface (no text or symbols visible)

Interior view of a wooden structure with exposed ceiling and floor panels (no text or symbols visible)

Wooden wall-mounted device with a transparent rectangular frame and two side clips, no visible text or symbols on the device itself.

Wooden box with slatted top and closed lid, no visible text or symbols

7 6 A2 B2-1 5 A2 B2-2 5 B2-1 A1 B1-2 3 B1-1 4 A1 3 B1-1 2 1

RAPPRESENTANTE DEL REGNO UNITO: YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road Staines-upon-Thames, Surrey, TW18 4AX Importato in AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 9173 0
