USER MANUAL FBL570323 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CRUTCH

MODEL: FBL570323

Two black plastic tool holders with handles and brackets, no text or symbols visible

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

PART LIST

When unpacking this product, check to make sure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or u product.

NO	PICTURE	Name	QTY	NO	PICTURE	Name	QTY
1		Armpit Support	2	2		scaffolding	2
3		Footrest	2

OPERATION

1. Installation Procedures

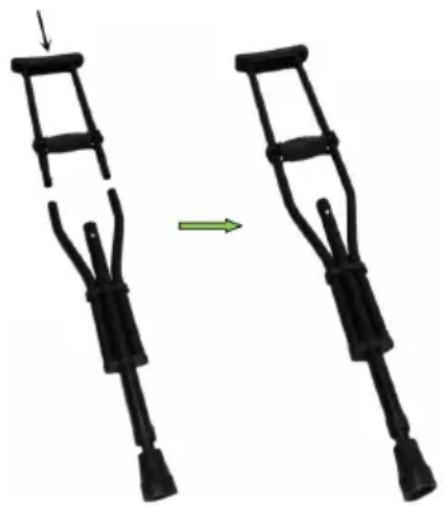

1) Insert the inner tube of the armpit bracket the upper port of the tripod, so that the ba inner tube of the armpit bracket pops out n from the ball hole of the upper port of the shown in the picture on the right after mouri (Note: Make sure that both the left and right the tripod pop out normally)

Two black mechanical clamps with a green arrow indicating transformation (no text or symbols)

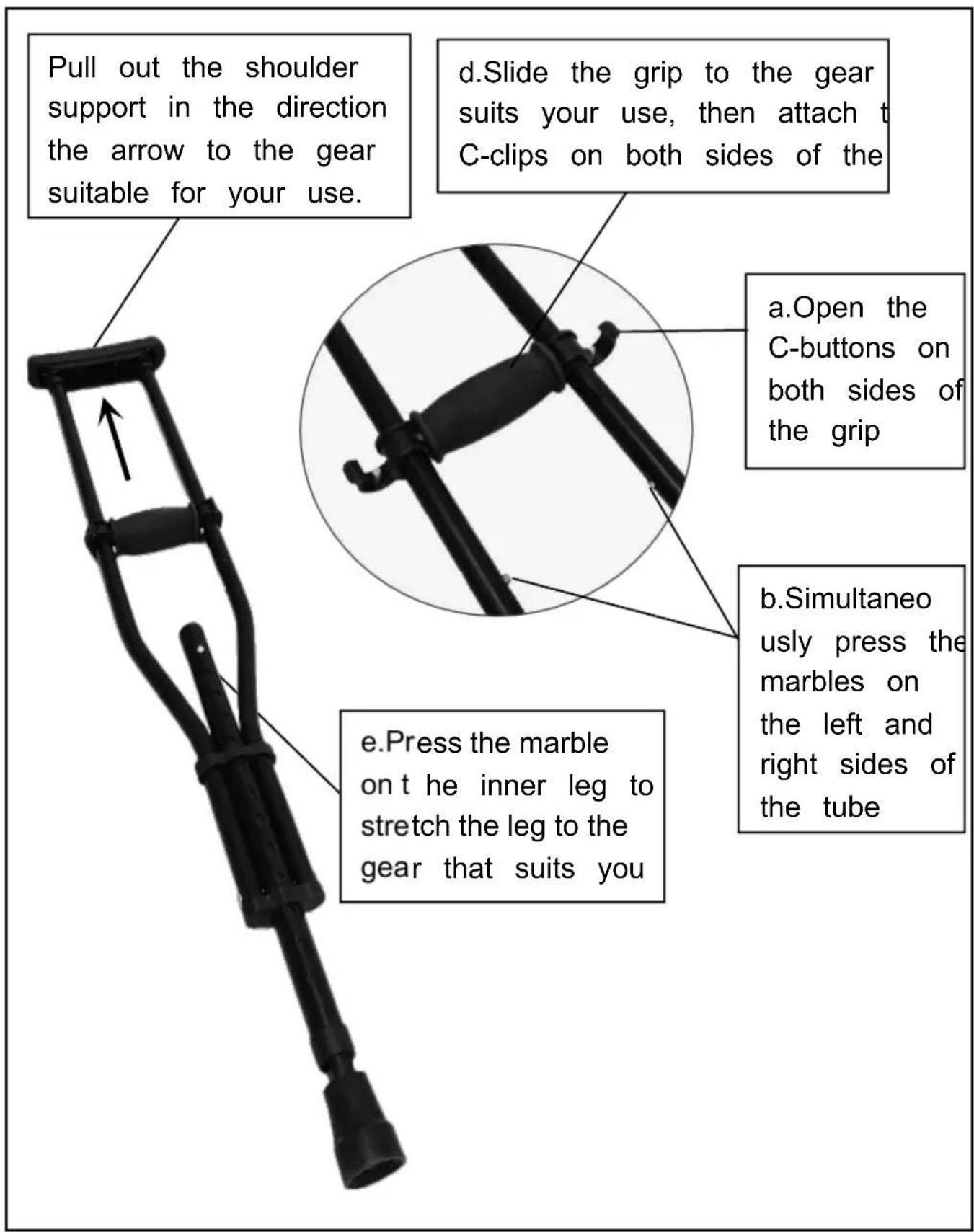

2) Users can adjust the armpit support, handles and legs to the appropriate according to their height, as illustrated in the diagram below.

Pull out the shoulder support in the direction the arrow to the gear suitable for your use. d.Slide the grip to the gear suits your use, then attach t C-clips on both sides of the a.Open the C-buttons on both sides of the grip b.Simultaneously press the marbles on the left and right sides of the tube e.Press the marble on t he inner leg to stretch the leg to the gear that suits you
