Product Type	Chain Sling
Brand	Vevor
Model	DL10mmx3m-4A
Chain Length	3 meters (10 feet)
Chain Diameter	10 mm (3/8 inch)
Working Load Limit (WLL)	18,400 lb (G80)
Material	Alloy Steel
Number of Legs	4 legs
Main Components	Lifting ring, connecting links, chain, hook, adjusting hook
Recommended Use	Lifting loads with chain sling (not for overhead lifting)
Lifting Angle	Greater than 40° for maximum load; 20° to 40°: half load; below 20°: prohibited
Safety Precautions	Do not exceed WLL, do not stand under load, check for cracks or deformations before each use
Storage	Clean and dry after use, store in a dry and ventilated place
Maintenance	Visual inspection before each use; maintenance by qualified technician if necessary
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - DL10mmx3m-4A Vevor

What is the maximum load of the DL10mmx3m-4A chain sling?

The working load limit (WLL) is 18,400 lb (grade G80) for a 4-leg sling used with an angle greater than 40°.

Can I use this sling for overhead lifting?

No, this chain sling is not approved for overhead lifting. It is designed for ground lifting only.

How should I check the condition of the sling before each use?

Visually inspect the chain for any deformation, crack, corrosion or widening of the hook opening. Ensure the links are not twisted.

What to do if the chain is knotted or twisted?

Never knot the chain. If knots appear, gently straighten it before use. A twisted chain reduces load capacity.

What lifting angle is safe?

An angle greater than 40° allows maximum load. Between 20° and 40°, capacity is halved. Below 20°, lifting is prohibited.

How to maintain the sling after use?

Clean it with a dry cloth, dry it completely and store it in a dry and ventilated place to prevent rust.

Can I repair a damaged sling myself?

No, any repair must be done by a qualified technician. Never use the sling if damaged.

What accessories are included with this model?

The product includes the complete chain sling with a lifting ring, links, hooks and an adjusting hook.

Where can I find the warranty certificate?

The electronic warranty certificate is available on the website www.vevor.com/support.

Can I use this sling for irregularly shaped loads?

Yes, but ensure the load is evenly distributed across each leg and the angle is respected. Avoid sharp edges that could damage the chain.

USER MANUAL DL10mmx3m-4A Vevor

NOTE: The shown is for illustration purposes only. Please refer to your purchase

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

1. Read this material before using this product. Failure to do so can serious injury.
2. The bridle chain sling must be used flexibly, and it is strictly prohibit use it compulsorily when individual connections are inflexible.
3. Do not exceed WLL (working load limit) for bridle chain sling. Not approved for overhead lifting.
4. After use, please dry before storage to avoid rusting of bolts affected use.
5. Procedures not specifically explained in this manual must be performed only by a qualified technician.

To prevent serious injury from tool failure, do not use When it is damaged:

1) Please check the overall condition of the product before each us. Does the opening of the hook widen?

Is the bridle chain deformed?

Whether there are cracks in all parts.

Before each use, check whether the bridle chain works properly before actual use. If the bridle chain doesn't work properly, please follow the inspection instructions to see if the problem occurs.

2) To prevent serious injury, be carefully when troubleshooting the fair bridle chain, solve all problems before use. If the solution provided troubleshooting guide cannot be solved problem, please ask qualified technicians to check the bridle chain before use.

3) Make sure that the bridle chain is safe enough to continue to wish that the bridle chain can bring you convenience at work.

CAUTION:

1. Carefully read instructions and procedures for safe operations.
2. Carefully INSPECTIONS:

1) Before each use: Each time the bridle chain is used, a visual inspection should be carried out to determine whether there are abnormal conditions, such as cracking, bending, deformation, etc.
2) After each use: After each use, if the bridle chain is strained abnormally, the manufacturer or the supplier's authorized maintenance personnel should be advised to check immediately.

Suggestions for Safe Use of The Bridle Chain

• Do not knot the chain when using the bridle chain.
• When using the bridle chain, make sure that the bridle chain is stra without folding and twisting.
• Due to the shipping(handing) or transportation, the bridle chain may have knots at the connection between the ring and the hook. P smooth them before use.
• NO one is allowed to stand below when hoisting goods by bridle
• When using the bridle chain, please confirm whether the goods can be lifted with the chain and whether the hardness of the chain will be your goods.

Save This Manual

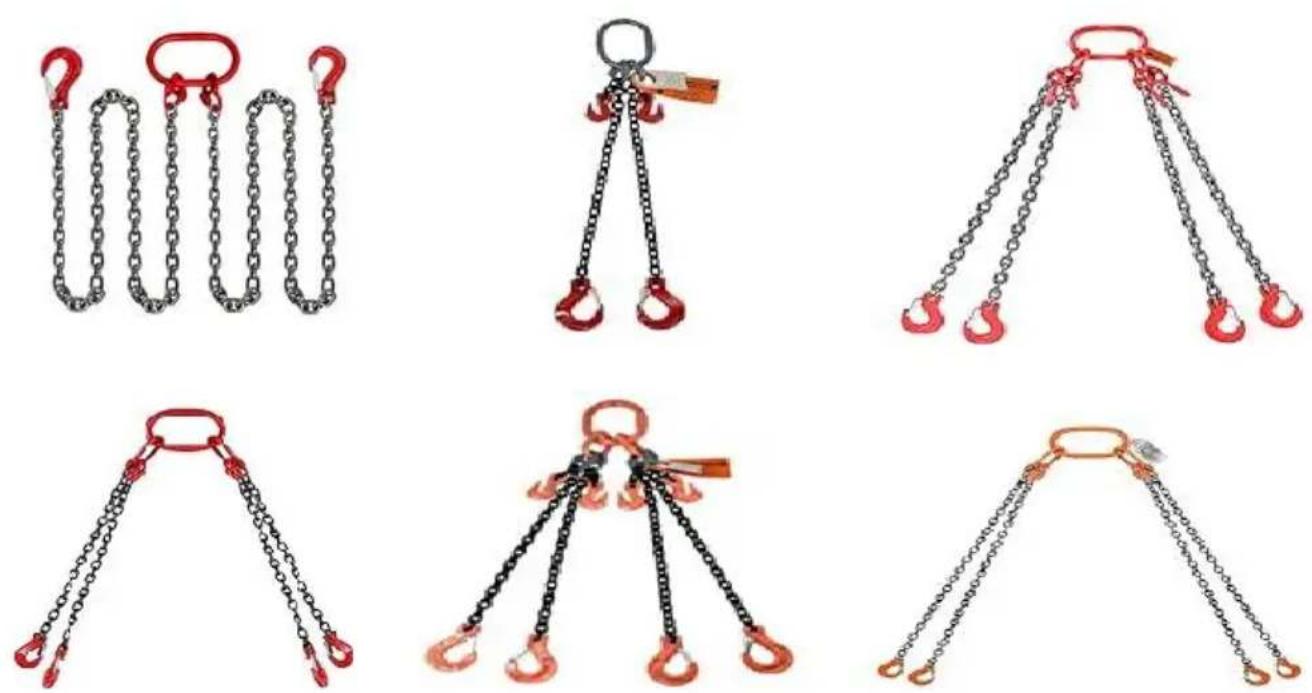

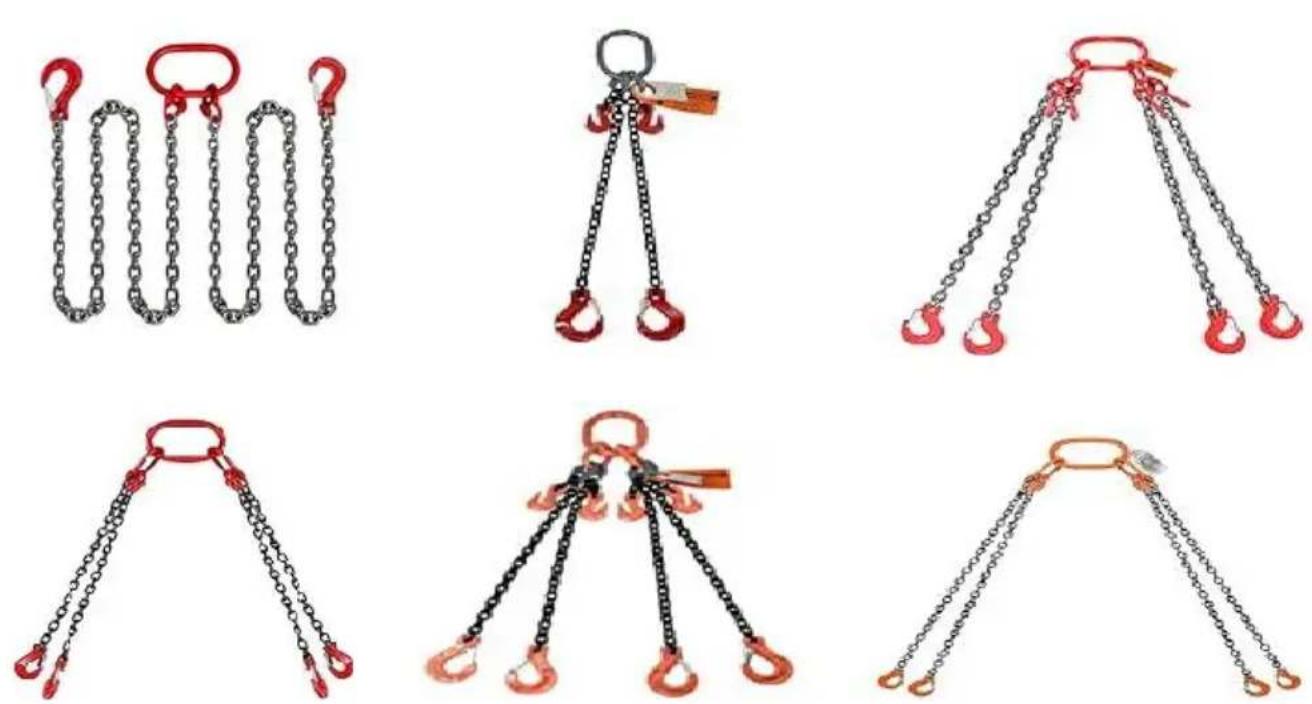

MODEL AND PARAMETERS
NOTE: Please match your purchase.

Model	10×1.5m-A4	DL10mmx1.8m-2B
Working Load Limi(All parts are used as a whole	11000lbs (G80)	11000lbs (G80)
Chain Size	10mm(3/8inch)	10mm(3/8inch)
Chain Length	5ft(150cm)	6ft(180cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*	Chain Sling*1+User Manual*
Model	DL8mmx1.5m-2A	DL8mmx1.8m-2A
Working Load Limi(All parts are used as a whole	6600lbs (G80)	6600lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	5ft(150cm)	6ft(180cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*	Chain Sling*1+User Manual*

Model	DL6mmx1.5m-4A	8×3m-B
Working Load Limi(All parts are used as a whole	6600lbs (G80)	11000lbs (G80)
Chain Size	6mm(1/4inch)	8mm(5/16inch)
Chain Length	5ft(150cm)	10ft(300cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*1	Chain Sling*1+User Manual*1

Model	DL8mmx3m-4B	8×1.5m-A
Working Load Limi(All parts are used as a whole	11000lbs (G80)	11000lbs (G80)
Chain Size	8mm(1/4inch)	8mm(5/16inch)
Chain Length	10ft(300cm)	5ft(150cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*1	Chain Sling*1+User Manual*1
Model	8×1.5m-C	DL10mmx3m-4A
Working Load Limi(All parts are used as a whole	11000lbs (G80)	18400lbs (G80)
Chain Size	8mm(1/4inch)	10mm(3/8inch)
Chain Length	5ft(150cm)	10ft(300cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*1	Chain Sling*1+User Manual*1

Model	8×2m-A2	8×1m-A3
Working Load Limi(All parts are used as a whole	11000lbs (G80)	11000lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	6.5ft(200cm)	3.2ft(100cm)
Material	Alloy Steel	Alloy Steel
Package Content	Chain Sling*1+User Manual*	Chain Sling*1+User Manual*

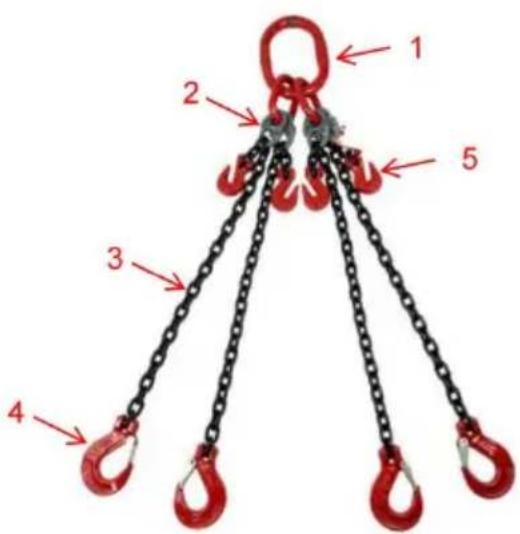

STRUCTURE DIAGRAM

1. Lifting Ring
2. Butterfly buckle
3. Chain
4. Hook
5. Adjusting Hook

NOTE: The shown is for illustrat purposes only. Please refer to your purchase!

INSTRUCTIONS

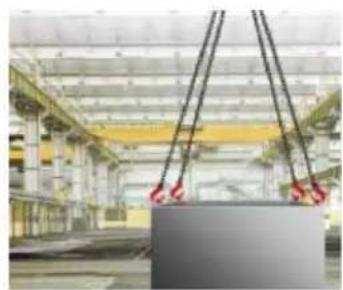

How to use the chain sling:

1. The crane hooks up the lifting ring.
2. The hook of the chain sling hooks the goods at four corners.
3. Make sure the chain is not twisted or knotted.
4. Make sure the weight is evenly distributed on each chain.
5. Lift slowly when lifting; do not let the goods tilt.
6. When lifting the goods, no one is allowed to stand below.
7. The angle between the chain and the goods must comply with the following rules:

1) > 40^ , it is recommended to hoist in this way, which shall not exceed the Working Load Limit.

2) 20^ < < 40^ , it can bear only half of the Working Load Limit.

3) < 20^ , it is not allowed to hoist in this way, which is very unsafe

1. Each leg contains adjusting hooks at the top of each leg, providing precise chain length

1) > 40^ , it is recommended to hoist in this way, which shall not exceed the Working Load Limit.
2) 20^ < < 40^ , it can bear only half of the Working Load Limit.
3) < 20^ , it is not allowed to hoist in this way, which is very unsafe.
8. Each leg contains adjusting hooks at the top of each leg, providing precise chain length

adjustment.

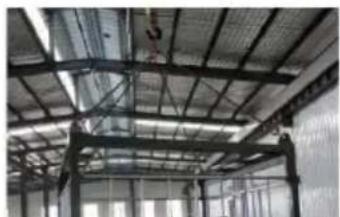

Exterior view of a modern industrial building with overhead crane lifting a beam (no visible text or symbols)

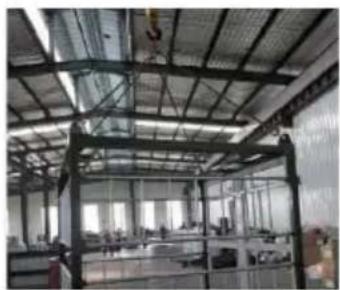

Interior view of a large industrial factory with steel framework and overhead crane (no visible text or symbols)

MAINTENANCE

• Do not exceed WLL (working load limit) .
  ● After use, please clean and dry the product and store it in a dry, ventilated place.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

AVERTISSEMENT:

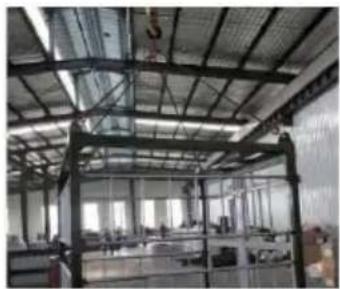

Exterior view of a modern industrial building with overhead crane lifting a large concrete beam (no visible text or symbols)

Interior view of a large industrial factory with metal framework and structural beams (no visible text or symbols)

MAINTENANCE

Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNUNG:

Exterior view of a modern industrial building with suspended cranes lifting a large concrete beam (no visible text or symbols)

Interior view of a large industrial factory with metal framework and overhead crane (no visible text or symbols)

MAINTENANCE

Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ADVERTENCIA:

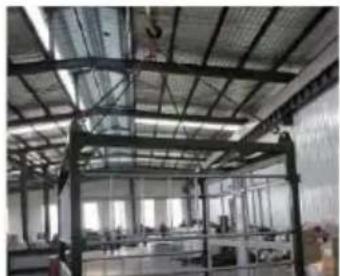

Interior view of an industrial facility with overhead crane lifting a large cylindrical component (no visible text or symbols)

Interior view of a large industrial factory with metal framework and overhead crane (no visible text or symbols)

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

OSTRZEŻENIE:

Exterior view of a modern industrial facility with overhead crane lifting a large concrete beam (no visible text or symbols)

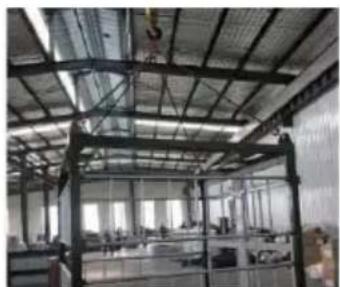

Interior view of a large industrial factory with metal framework and overhead crane (no visible text or symbols)

MAINTENANCE

Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

KETTINGSLING

GEBRUIKERSHANDLEIDING

Model: 10 x 1,5 m-A4 ; DL10mmx1,8m-2B ; DL8mmx1,5m-2A ; DL8mmx1,8m-2A ; DL6mmx1,5m-4A ; 8×3m-B ; DL8mmx3m-4B ; 8×1,5mA ; 8×1,5mC ; DL10mmx3m-4A ; 8×2m-A2 ; 8×1m-A3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAARSCHUWING:

Interior view of a large industrial facility with overhead cranes lifting a concrete beam (no visible text or symbols)

Interior view of a large industrial factory with metal framework and overhead crane (no visible text or symbols)

MAINTENANCE

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIN SLING

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Construction site with cranes lifting a beam, no visible text or symbols

Interior view of a large industrial warehouse with metal beams and structural beams (no visible text or symbols)

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
