USER MANUAL TP13A Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

TELEPROMPTER

USER MANUAL

MODEL:TP13A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TELEPROMPTER

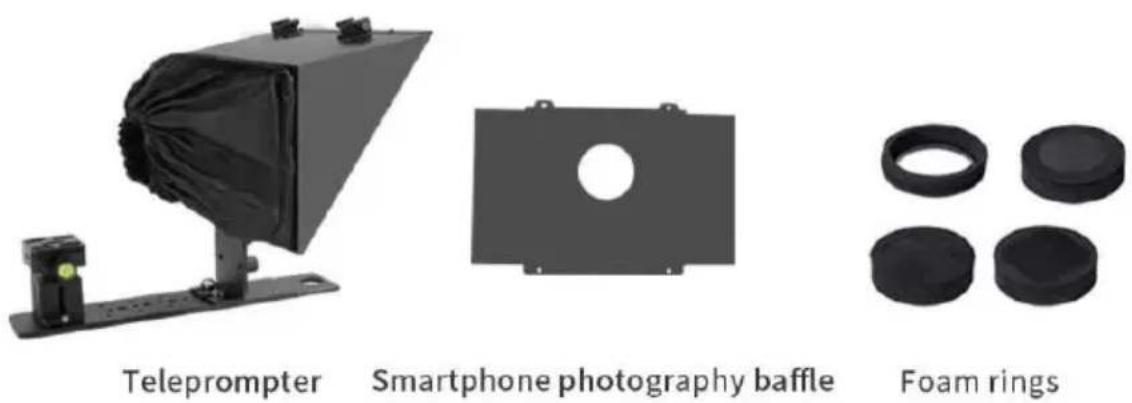

Packaging List

Black plastic mechanical component with two side handles and a central shaft (no text or symbols visible)

Tablet/smartphone clamp

Black remote control device with buttons and a scroll wheel (no text or symbols visible)

Remote controller

Black plastic mechanical component with mounting brackets and a central hole (no text or symbols visible)

Magnetic smartphone clamp

Two overlapping sheets of paper or plastic sheet, no visible text or symbols

Microfiber cloth

Yellow and black screwdriver with a metal screw (no text or symbols visible)

Screw Driver

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	This device complies with Part 15 of the FCC Rules. C is subject to the following two conditions:(1)This device cause harmful interference, and (2)this device must acce interference received, including interference that may caus undesired operation.
	This product is subject to the provision of European Dir 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pr and all accessories marked with this symbol. Products n as such may not be discarded with normal domestic wa must be taken to a collection point for recycling electric electronic devices

PARAMETERS

Beam splitter glass size: 225x255mm

Main material: Metal

Farthest reading range: 10FT

Transmission/ reflection ratio: 70/30

Shooting focal length: More than 24mm

INSTRUCTIONS

1. Setup for camera shooting

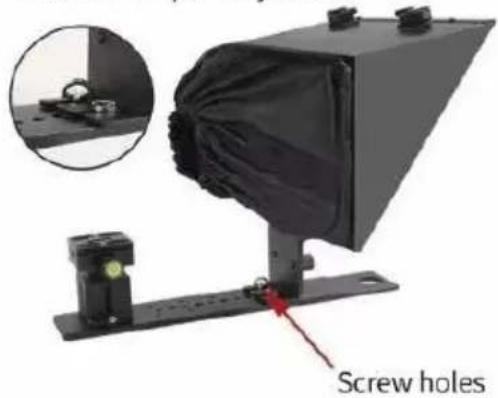

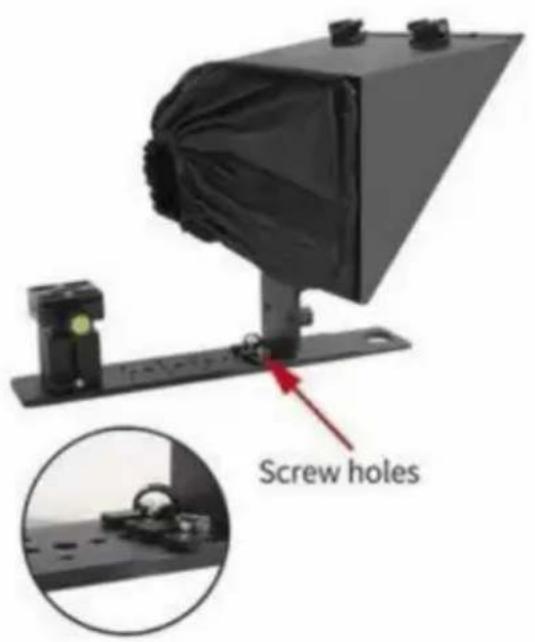

1 Lock the teleprompter body on the main plate by screw

Mechanical setup with a black hard drive mounted on a base, showing a close-up inset of a component (no text or symbols visible)

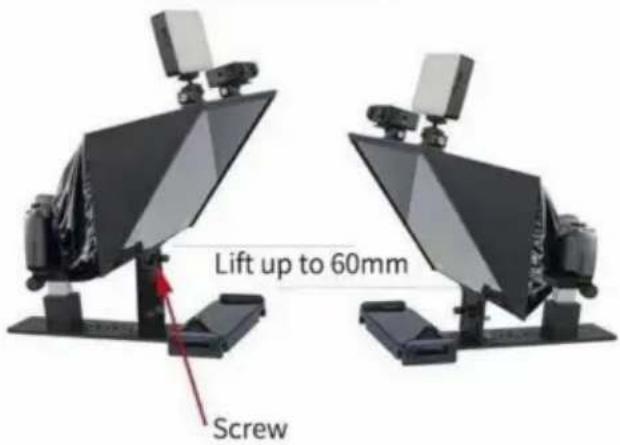

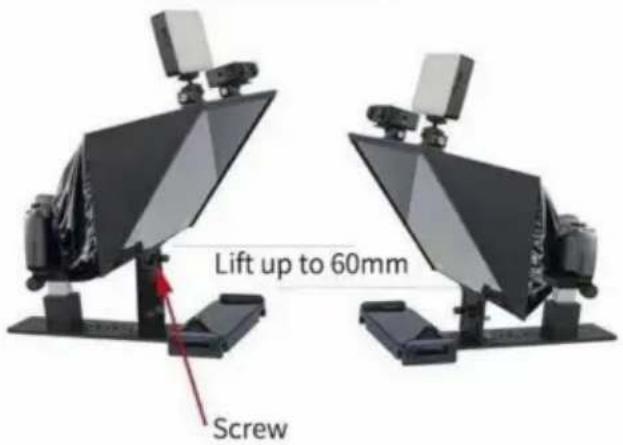

③ By adjusting the screw to fix the highth of the teleprompter body

Lift up to 60mm Screw

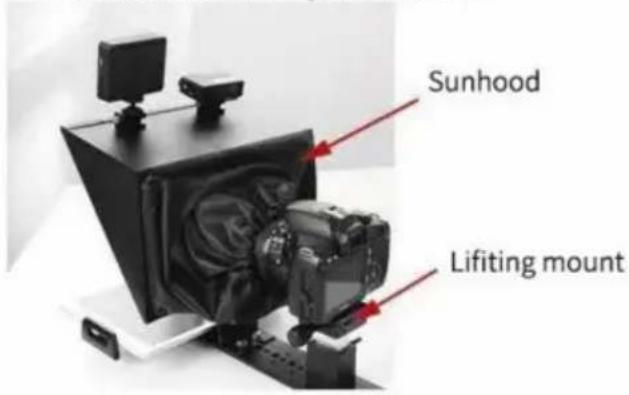

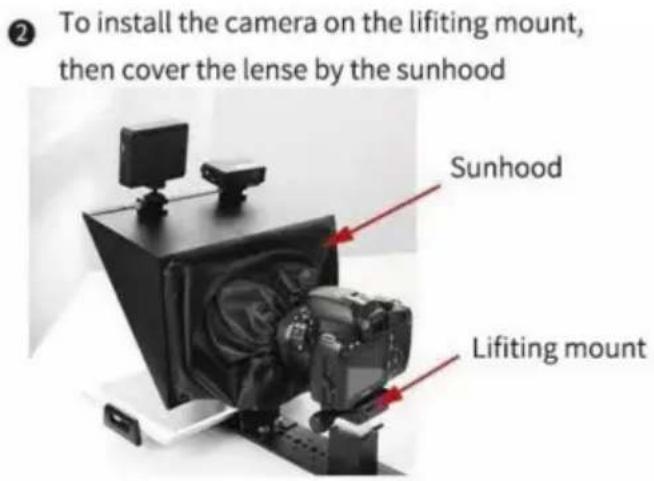

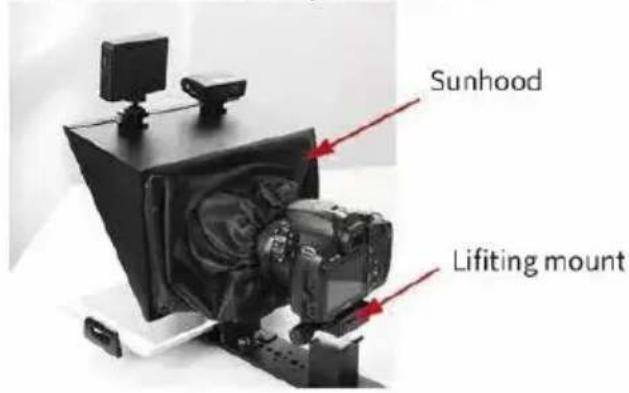

② To install the camera on the lifting mount, then cover the lens by the sunhood

Sunhood Lifiting mount

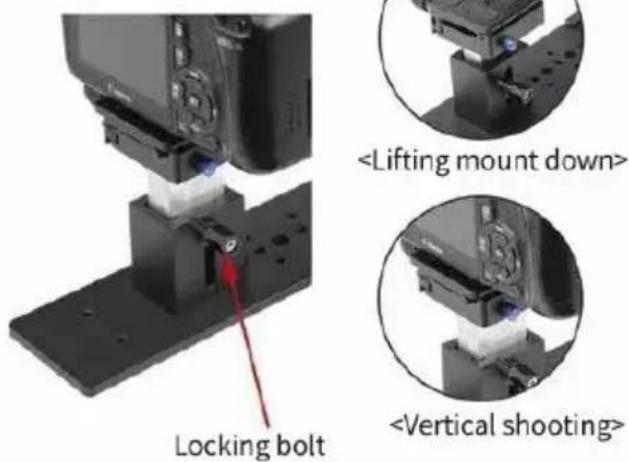

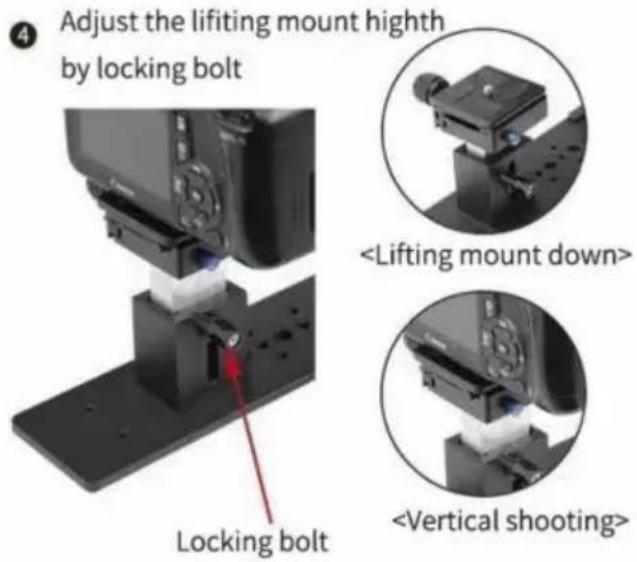

4 Adjust the lifting mount highth by locking bolt

Locking bolt

2. Setup for smartphone shooting

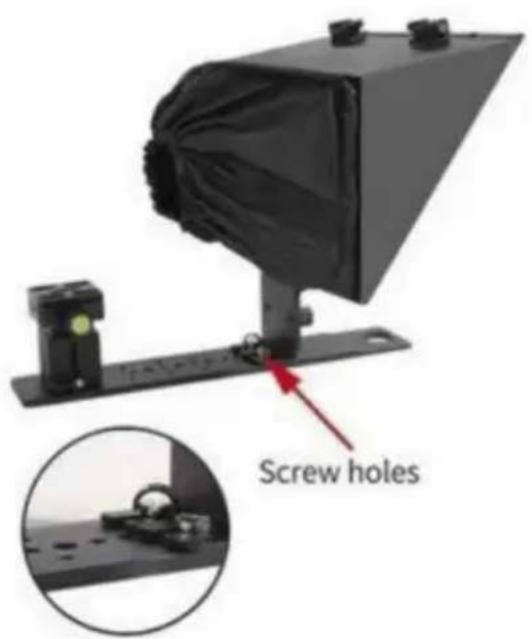

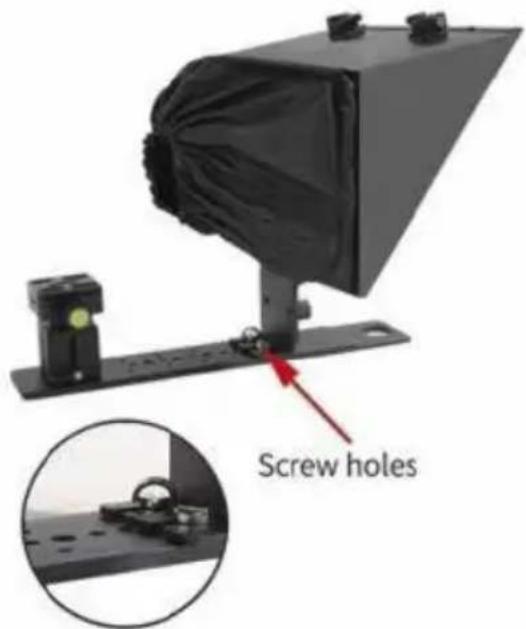

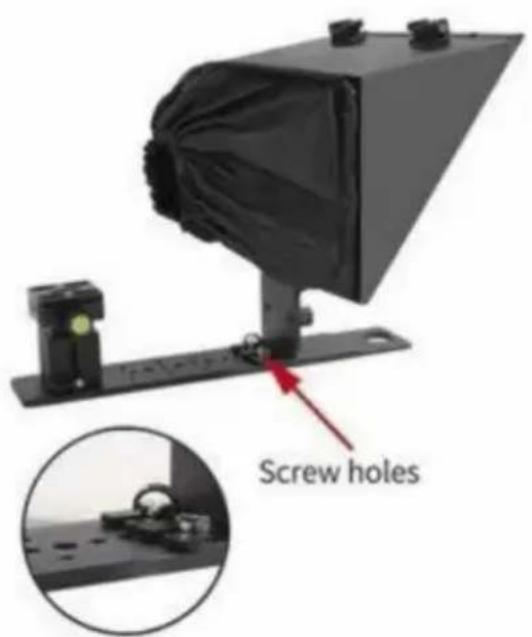

① Lock the teleprompter body on the main plate by screw

Screw holes

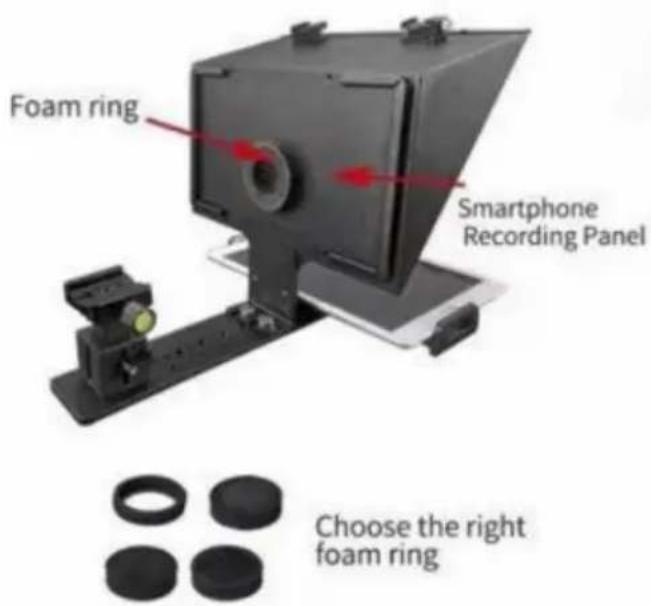

2 Remove the sunhood, and put on the panel and foram ring

Foam ring Smartphone Recording Panel Choose the right foam ring

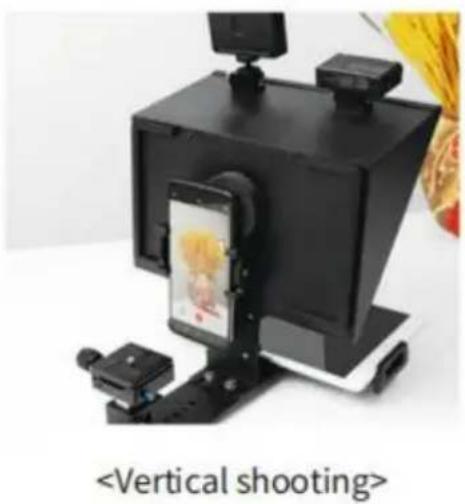

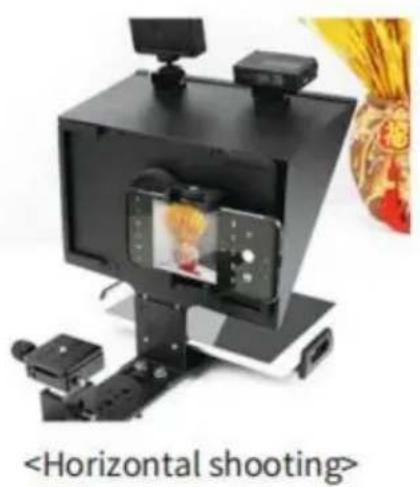

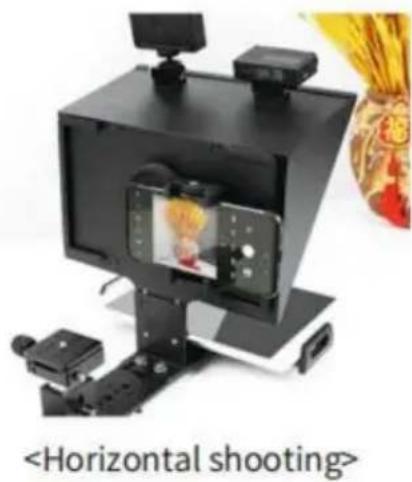

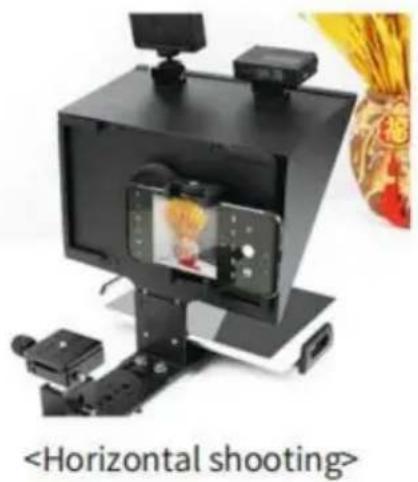

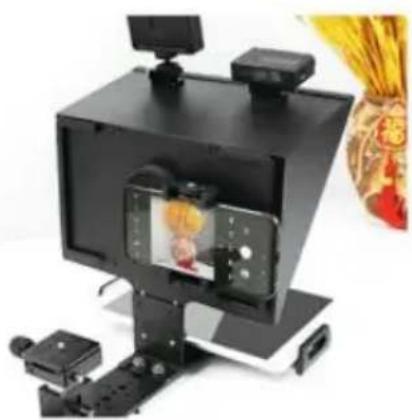

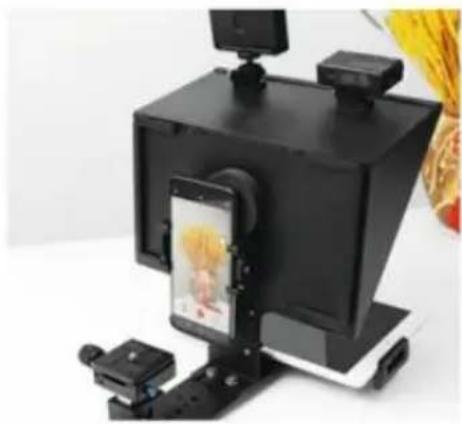

③ Use the magnetic clamp to hold the cellphone, and affix on the panel

Black-and-white photo of a small digital camera setup with a central display and support components, next to a decorative golden ribbon (no text or symbols visible)

Black square camera setup with a smartphone mounted on a stand, next to a small display and a small stand (no visible text or symbols)

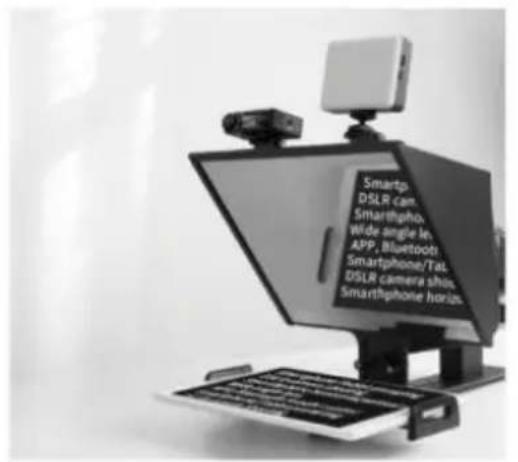

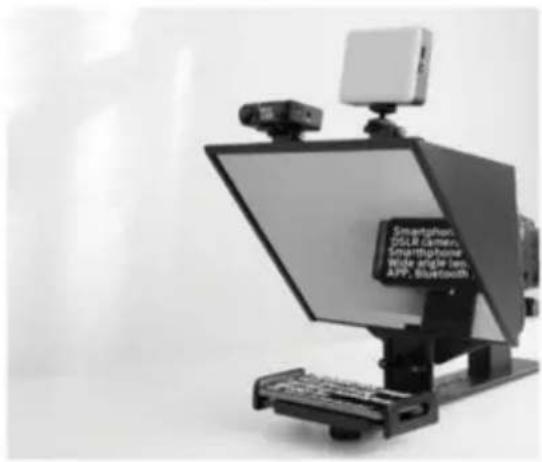

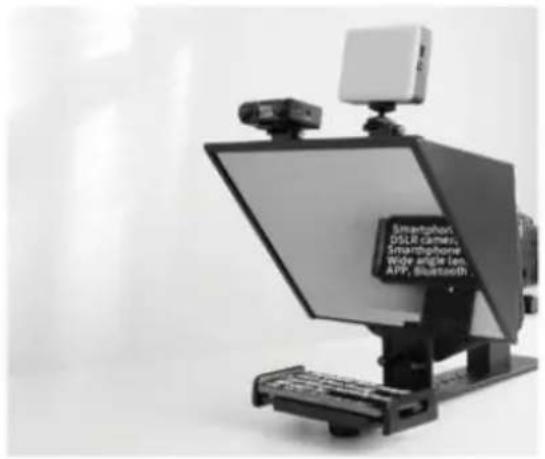

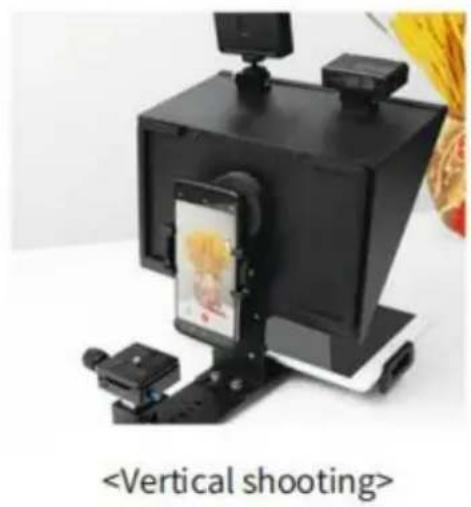

4 Install the prompting devices (cellphone or tablet under 11")

Smartp DSLR cam. Smartpho: Wide angle in. APP, Bluetooth Smartphone/Tat. DSLR camera shis. Smartphone horizs.

Smartphone DSLRCamers, Smartphone Wide-angle lamp, APP, Bluetooth

APP DOWNLOAD

iOS APP Download

iOS user search "VEVOR TELEPROMPTER" in App Store to download

Android APP Download

Android user search “VEVOR TELEPROMPTER” in Google Play to download

APP INSTRUCTION

After installed app and enter app

Tap “+” to enter Edit dialogue

My Lines whole

You can edit the title and content directly or click “open” to import the text from the phone, then click save

Click "whole", you can manage the whole files

Edit dialogue Title Content whole Open Save

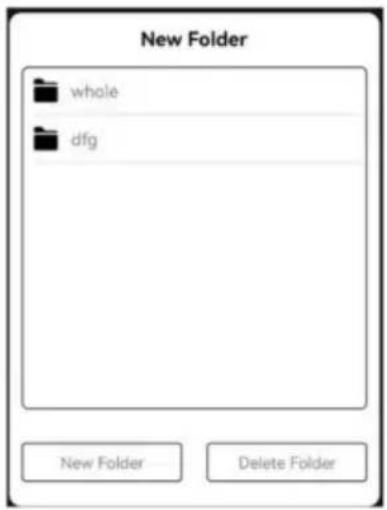

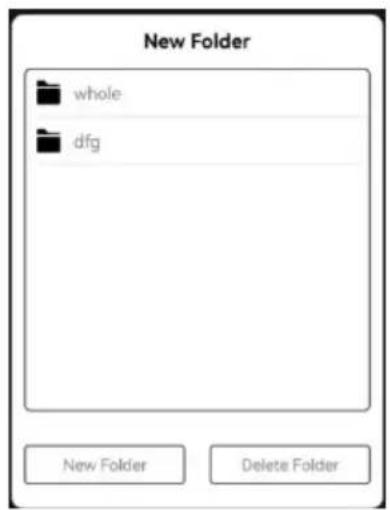

Click "Folder Management", you can set new folder or delete folder

whole dfg Folder Management

New Folder whole dfg New Folder Delete Folder

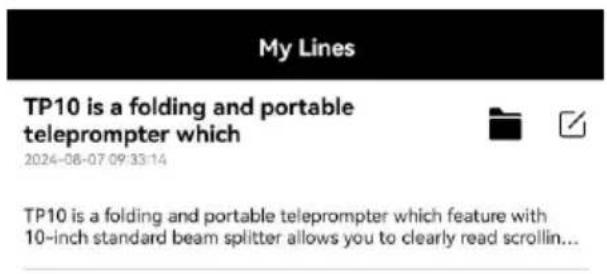

After saved, click the text to enter play interface.

You can also tap icon to edit the text or tap icon to manage the file

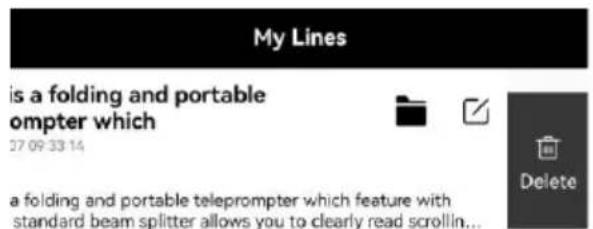

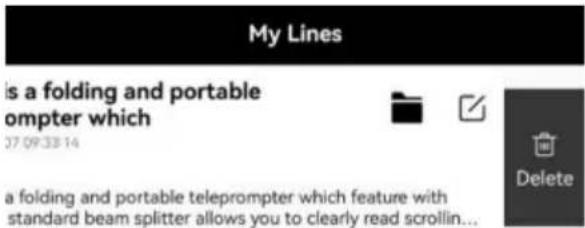

If you want to delete the file, plea swipe left at the corresponding file location and tap "Delete"

My Lines TP10 is a folding and portable teleprompter which 2024-08-07 09:33:14 TP10 is a folding and portable teleprompter which feature with 10-inch standard beam splitter allows you to clearly read scrollin...

My Lines is a folding and portable ompter which 27 09 33 14 a folding and portable teleprompter which feature with standard beam splitter allows you to clearly read scrollin... Delete

After entered the play interface and tap position, the function menu will show on the bottom, tap again hide the function menu

Play/Pause

Adjust font size, word space, space Color, background.

Adjust browse speed

Loop play

Vertical/horizontal screen switch

Mirror

Pure black background with a small white arrow symbol in the bottom-left corner (no text or numbers)

TP10 is a folding and portable teleprompter which feature with 10-inch standard beam splitter allows you to clearly read scrolling text while looking directly into the camera, perfect for vlog, live broadcast, online class, video recording, interviews, video studio, news and presentation. No need to recite the script, confidence and charming! It can be prompted via smartphone or tablet while DSLR camera or phone is shooting. Supports wide angle lens, Android/iOS app, Bluetooth remote control, easy to operate, make the video production more efficient. Use with exquisite special storage case, more convenient to carry. It is ideal for video, program creator.

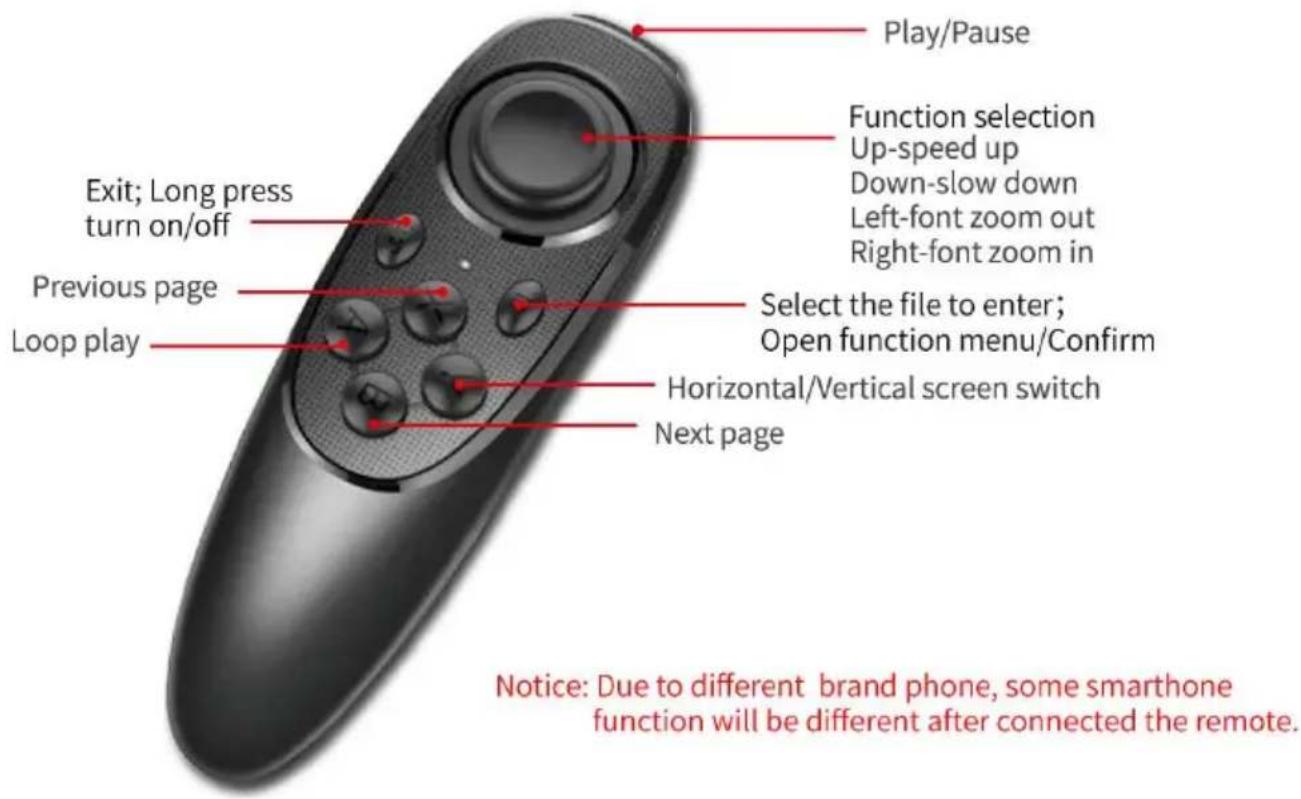

REMOTE CONTROLLER

Remote Button Instruction

Play/Pause Function selection Up-speed up Down-slow down Left-font zoom out Right-font zoom in Exit; Long press turn on/off Previous page Loop play Select the file to enter; Open function menu/Confirm Horizontal/Vertical screen switch Next page Notice: Due to different brand phone, some smarthone function will be different after connected the remote.

Remote Use Instruction

1. Power on: Keep press power button, until the light on (about 2 second
2. Power off: Keep press power button, until the light off (about 5 second

Notice: if power on without connect anything, it will power off after 5 min if connected the phone, it will power off after 30 minutes.

3. iOS Connection

Turn on the Bluetooth of the phone first, then turn on APP, and power remote controller last. LED lights on, auto into paring mode, allowing the Bluetooth pair. The APP will show automatically connected to VEVOR-xx, the connection is successful.

What can I do if my iPhone can not connect with remote controller?

Please go to Bluetooth connection of your phone, check if remote control had been connected by iphone;

then follow below steps to reconnect: 1) disconnect iphone Bluetooth , an

switch off remote controller; 2) turn on iPhone Bluetooth, open APP and switch on remote controller.

4. Android Connect

After power on, LED light on, auto into paring mode. Turn on the Bluetooth the phone, then turn on APP, will show the Bluetooth connected automati

FAQ

FAQ: The remote controller can not connect the Android phone, how can

1. Please check Location Permission on your phone, the connection need on permission.
2. Please check if the remote controller has been connected with your pl
3. Please check if there is Bluetooth signal from remote controller.(check other app to detect the Bluetooth)
4. Reboot the remote controller, reopen the app.

FAQ: The remote controller has been connected my Android phone, but it is not control the app.

1. Please close other app at background on your phone.
2. Please turn of Bluetooth on other phones on worksite, to make sure Android phone is the only device to connect the remote controller.
3. Please make sure that every time to connect with your phone is by setting on you phone.

★ As we are improving product features and product performance, so if there is an on the specification without prior notice

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4
