USER MANUAL DCLZ01 Vevor
Affordable. Reliable. Home Improvement.
SHELF TRACK
MODEL:DCLZ01
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR
Affordable. Reliable. Home Improvement.

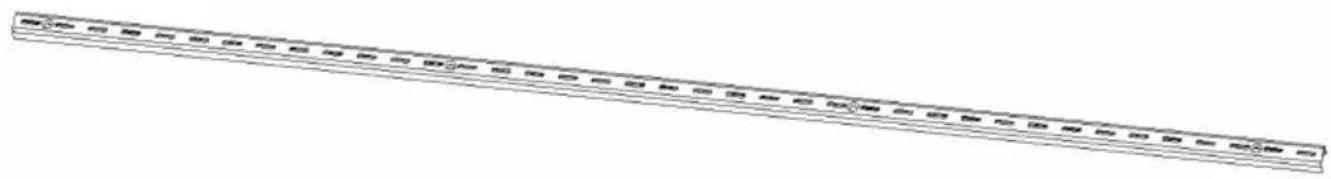

SHELF TRACK
| 2 | Packing Quantity | 10 PCS |
| 3 | Colour | Bright Silver |
| 4 | Length of guide | 990 mm |
Accessories
 Screw (x 40) |  Expansion sleeve(x40) |  Aircraft expansion sleeve(x40) |
This is the original instruction; please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us for not informing you again if there are a technology or software updates on our product.
Thank you very much for choosing this product. Shelf track is an installation accessory. Please select the appropriate shelf support to w with it before installation.
Please read all of the instructions before using it. The information will you achieve the best possible results.

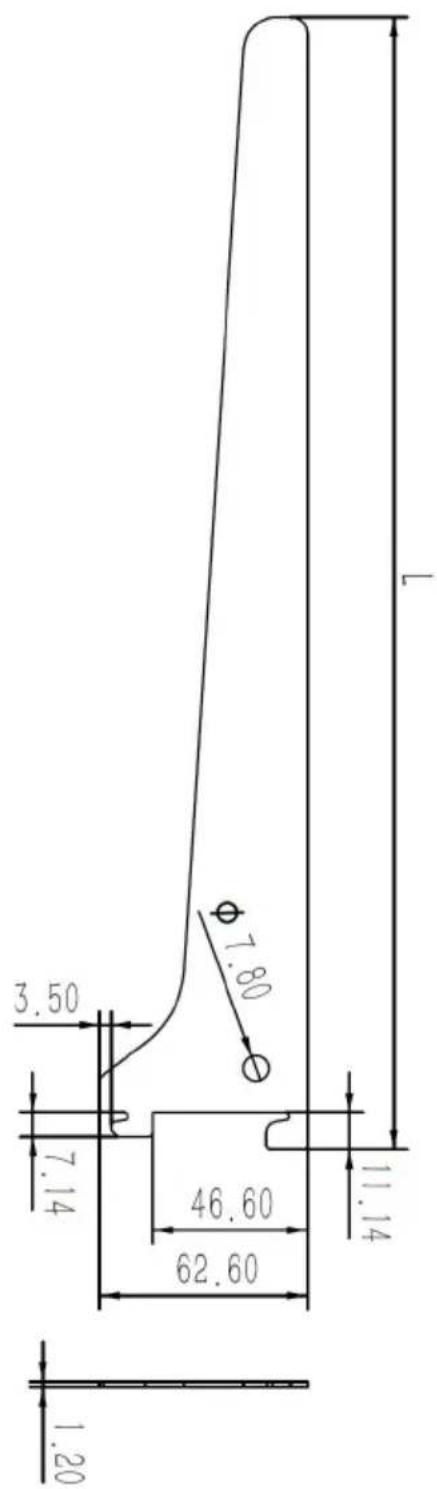

Product Structure

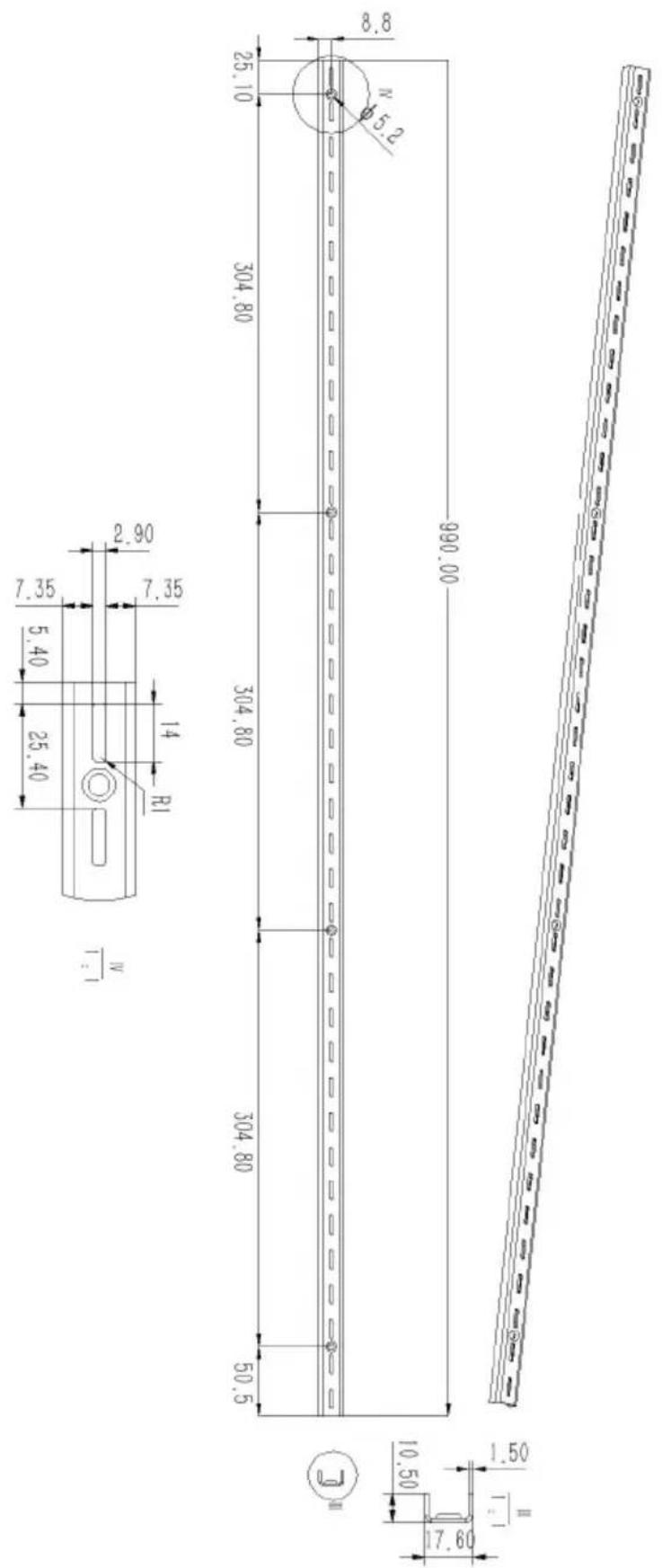

Dimension Figure
(Note: This product only includes shelf track; other accessories are to provided by the customer.)

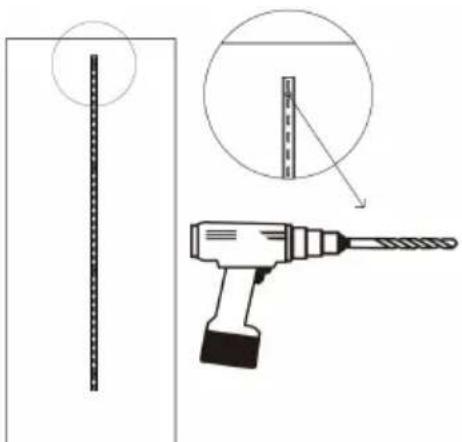

- Use guide rail positioning punch holes in the wall.
- Fasten the guide rail to the wall with screw (1) If the wall is a board, screw directly into the box (2) If the wall is a brick wall, first knock the expansion sleeve into the wall hole, and then tighten the screw expansion sleeve (3) If the wall is drywall, first screw the aircraft expands sleeve into the drywall, and then install the screw to aircraft expansion sleeve.


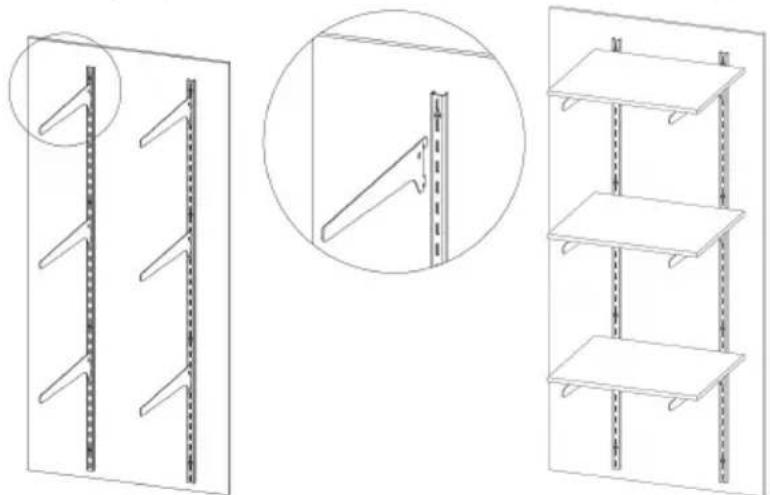

- Install shelf support in an appropriate position as required.
- Finally, place the board on the shelf support.

