USER MANUAL LZ02 Vevor

Affordable. Reliable. Home Improvement.

SHELF TRACK

MODEL: LZ02

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

SHELF TRACK

Pure horizontal line with no text, numbers, or symbols.

1	Model	LZ02
2	Packing Quantity	5 PCS
3	Colour	Bright Silver
4	Length of guide	1536mm

Hardware Fitting

Screw (x 30)

Expansion sleeve(x30)

Aircraft expansion sleeve(x30)

This is the original instruction; please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us for not informing you again if there are technology or software updates on our product.

Thank you very much for choosing this product. Shelf track is an installation accessory. Please select the appropriate shelf support to use with it before installation.

Please read all of the instructions before using it. The information will help you achieve the best possible results.

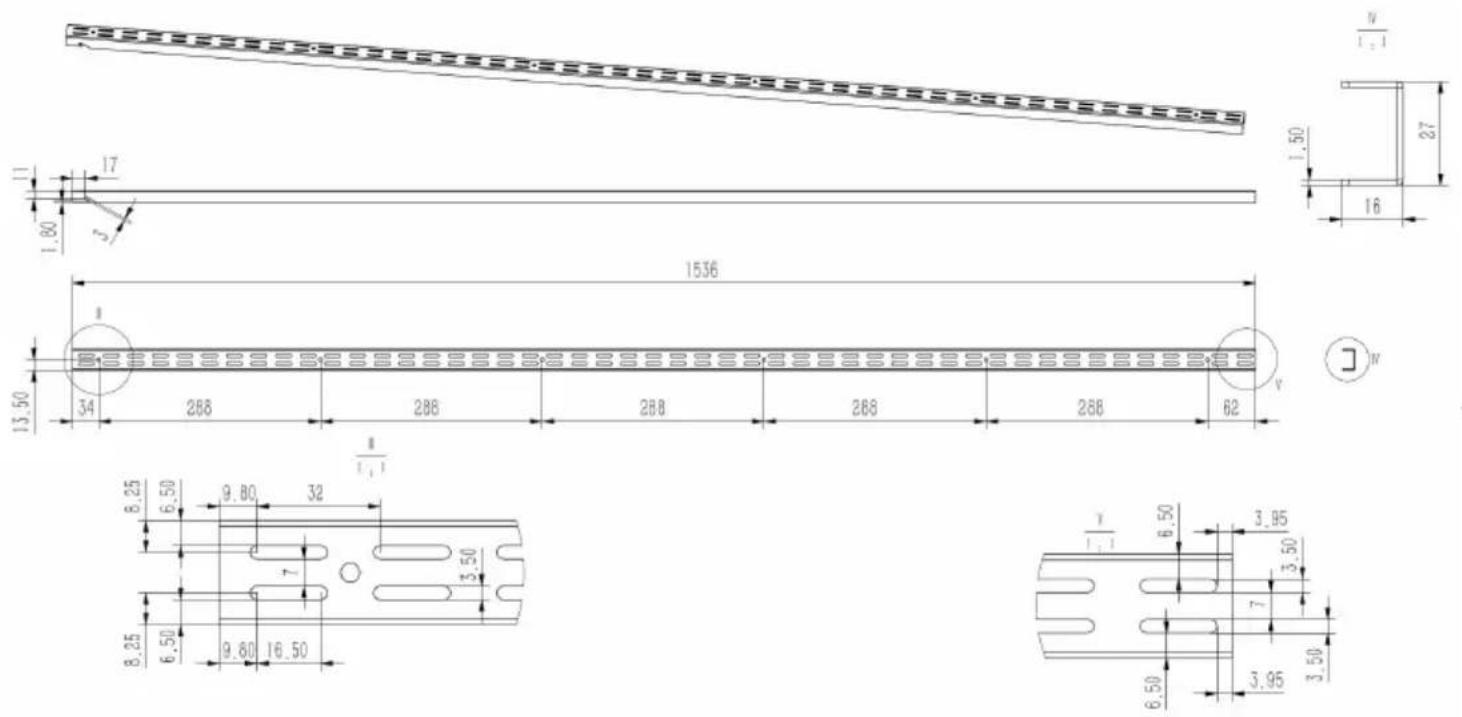

Product Structure

Dimension Figure 17, 1.80, 3, 1536, 13.50, 34, 288, 288, 288, 288, 62, II, 8.25, 6.50, 9.80, 32, 7, 3.50, 8.25, 6.50, 9.60, 16.50, I, II, III, IV, V, VI, VII, 1.50, 1.60, 27, N, V, W, 6.50, 3.95, 3.50, 7, 3.95, 3.50

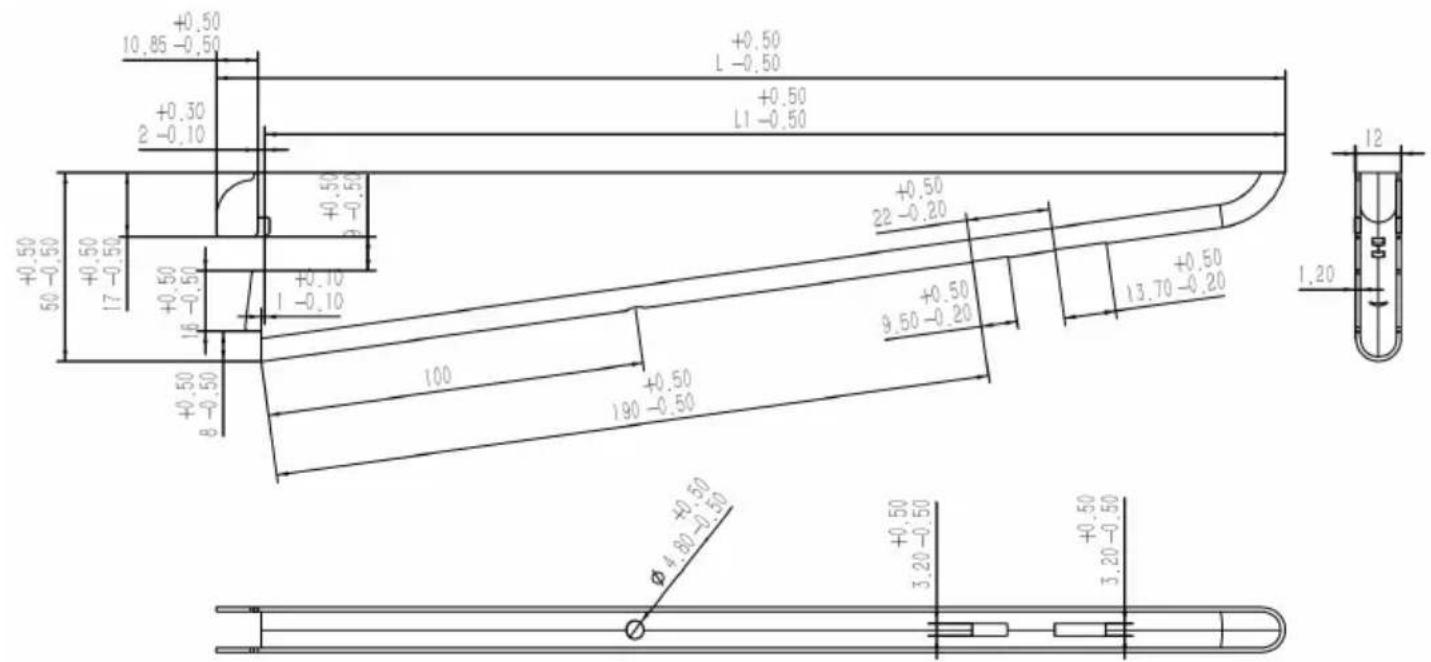

Fit shelf support +0.50, 10.85 -0.50, +0.30, 2 -0.10, +0.50, L -0.50, +0.50, L1 -0.50, +0.50, 22 -0.20, +0.50, 9.50 -0.20, +0.50, 13.70 -0.20, 12, 1.20, +0.50, -0.50, +0.50, -0.50, +0.50, -0.50, +0.50, -0.50, +0.50, -0.50, +0.50, -0.50, +0.50, -0.50, +0.50, -0.50, +4.60 -0.30, +0.50, 3.20 -0.50, +0.50, 3.20 -0.50

(Note: Shelf support is not included)

Installation introduction

(Note: This product only includes shelf track; other accessories are to be provided by the customer.)

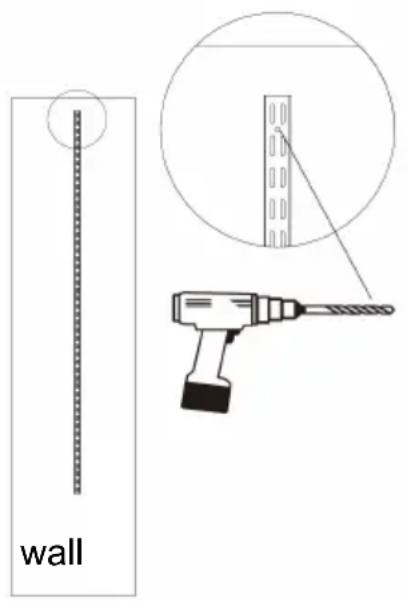

Use guide rail positioning to punch holes in the wall.

Wall

Fasten the guide rail to the wall with screws. (1) If the wall is a board, screw directly into the board. (2) If the wall is a brick wall, first knock the expansion sleeve into the wall hole, and then tighten the screw into the expansion sleeve.

(3) If the wall is drywall, first screw the aircraft expansion sleeve into the drywall, and then install the screw to the aircraft expansion sleeve.

Technical line drawing showing a hand holding a tool near a wall-mounted door, with an inset close-up of the tool (no text or symbols present).

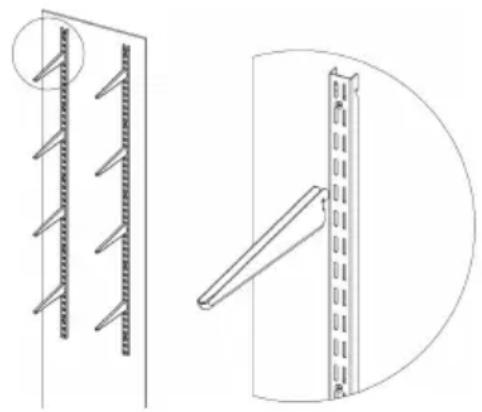

Repeat steps 1 and 2 to install the remaining shelf track and shelf support (Note: All shelf tracks must be of the same height).
Install shelf support in an appropriate position as required.
Finally, place the board on the shelf support.

Technical line drawing of a mechanical assembly with two views: one showing a vertical strip and the other showing a horizontal rod (no text or symbols).

Diagram of a multi-tiered shelving unit with vertical supports (no text or symbols).
