USER MANUAL BT-E01 Vevor

Affordable. Reliable. Home Improvement.

SWINGING DOORS

MODEL:BT-E01

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL:BT-E01

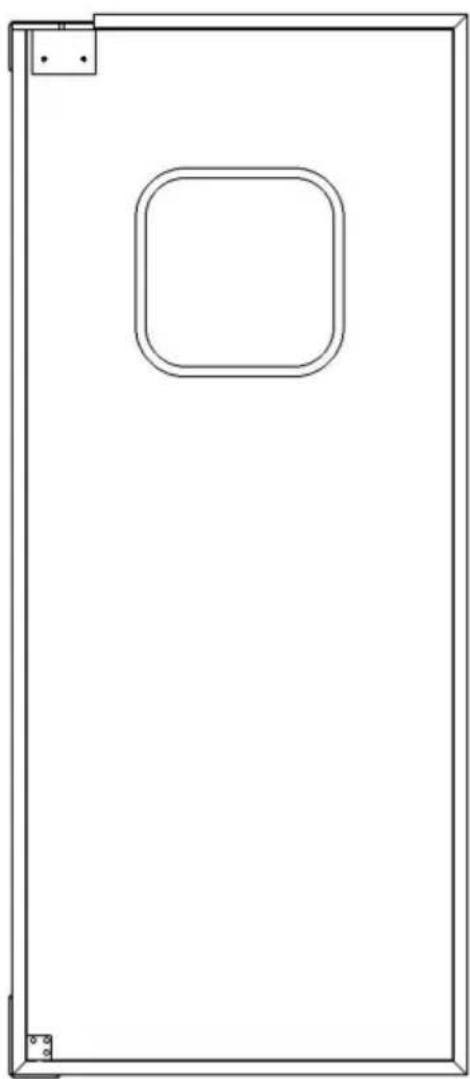

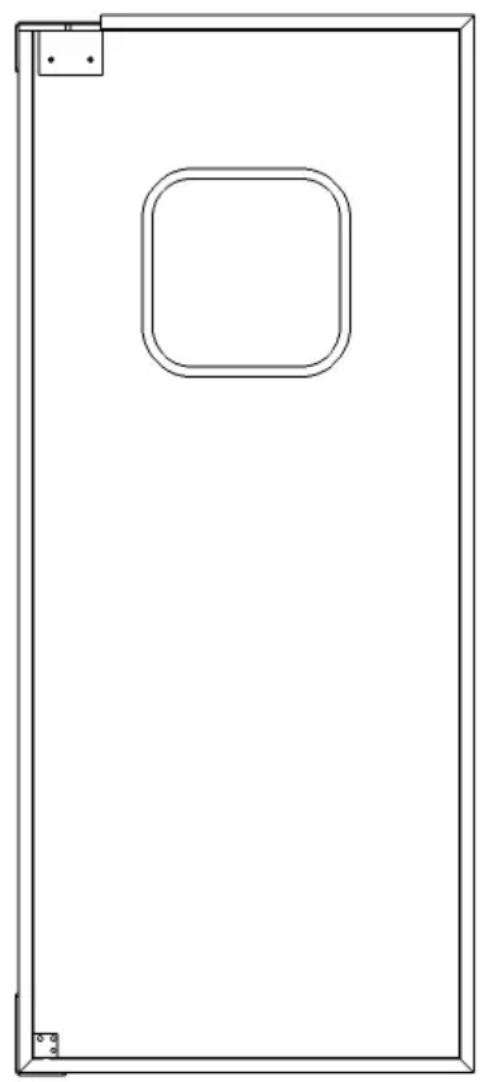

Simple line drawing of a rectangular door with a rounded square cutout on the top side (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Safety Instructions

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions cause personal injury or damage to valuable property.

WARNING:

1. Do not draw, cut, or use sharp objects on the swinging doors to damage.
2. If you need to disassemble the swinging doors, please follow the steps to disassemble it and store it properly.
3. Clean the swinging doors regularly to keep it clean and fresh, you use a vacuum cleaner or damp cloth to gently wipe the swinging do

Maintenance Guide

1. Regularly clean the swinging doors, use a damp cloth to wipe the surface, and remove dust and dirt.
2. Avoid using corrosive cleaning agents or chemical solvents to clear swinging doors.
3. If the swinging doors is found to be damaged, please replace the swinging doors handles piece in time to ensure its normal use.

SAVE THESE INSTRUCTIONS

Part List
A		1
B		1
C		12
D		2
E		2
F		5
G		1
H		12

Product Installation

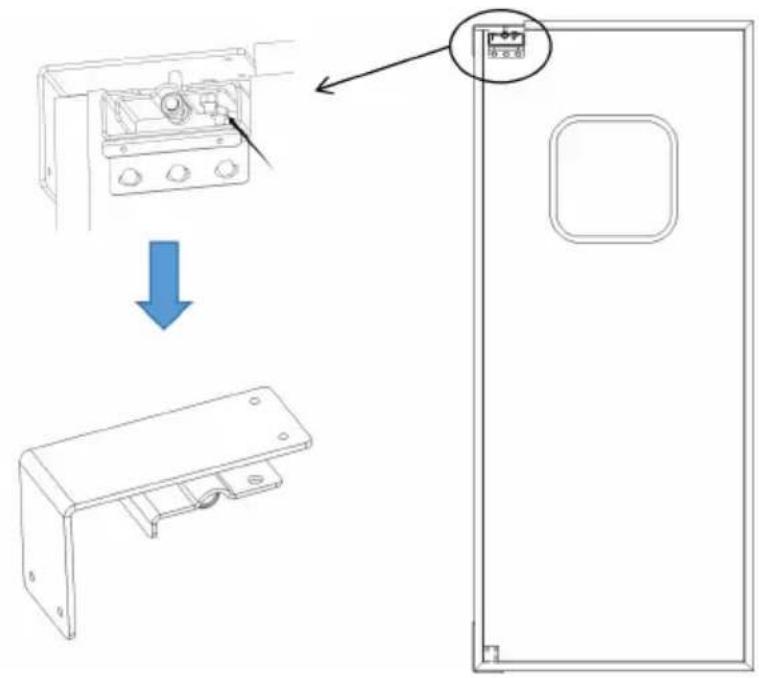

Step1: Remove the upper hinge first.

Diagram showing a door panel installation process with labeled components and a blue arrow indicating direction.

Technical line drawing of a mechanical bracket with a labeled component 'C' (no text or symbols beyond label)

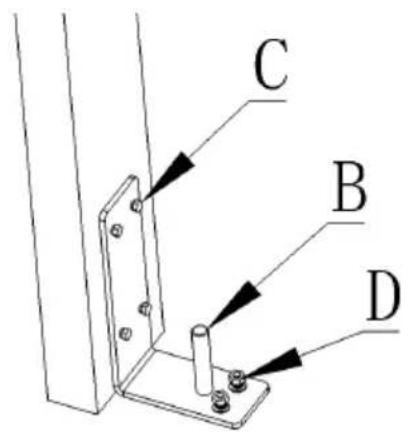

Step3: Install lower hinges and tighten expansion bolts.

C B D

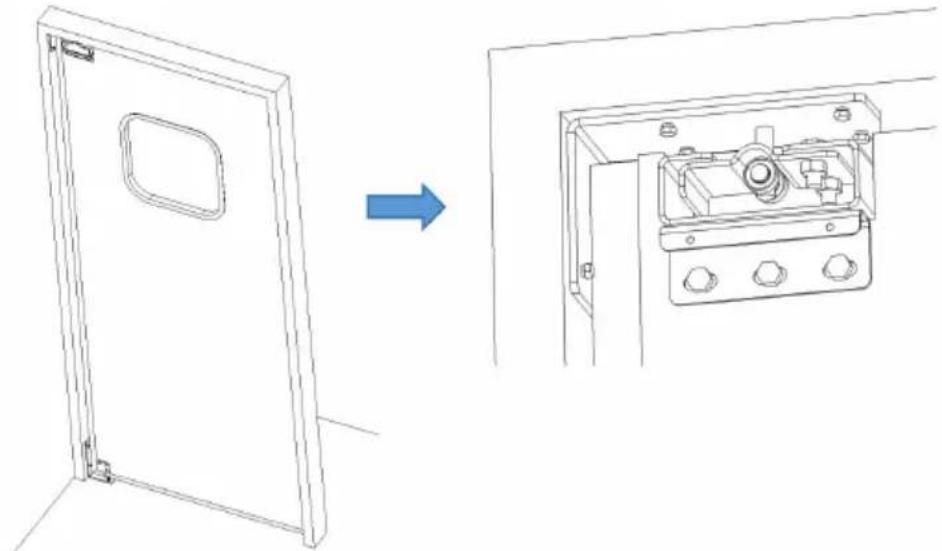

Step4:Put in the door panels and lock the hinges.

Line drawing of a door opening and internal electrical enclosure, showing a blue arrow indicating transformation (no text or symbols)

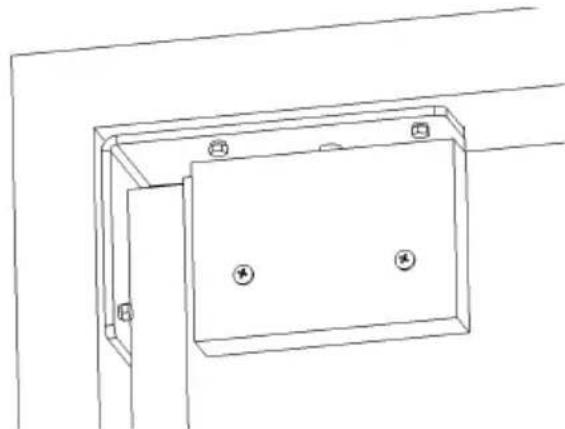

Step5: Install decorative covers before and after door panels.

Technical line drawing of a rectangular enclosure or panel with mounting holes and mounting points (no text or symbols)

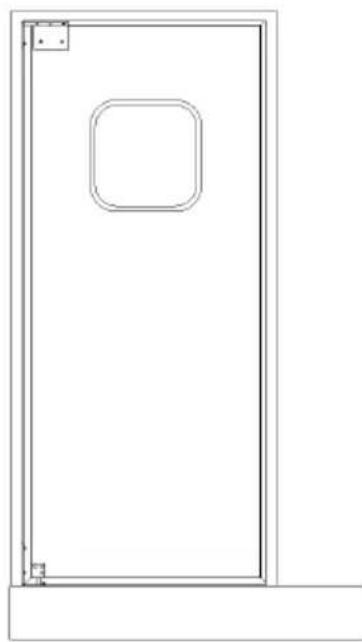

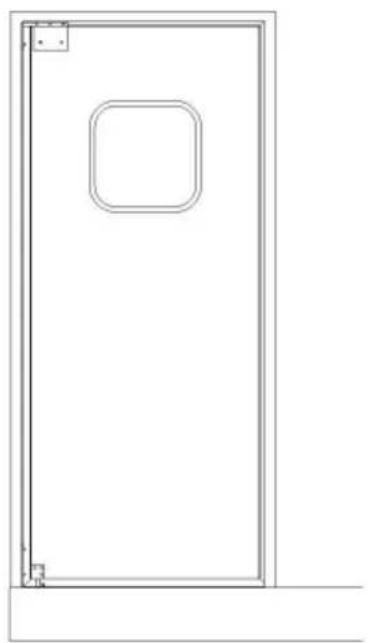

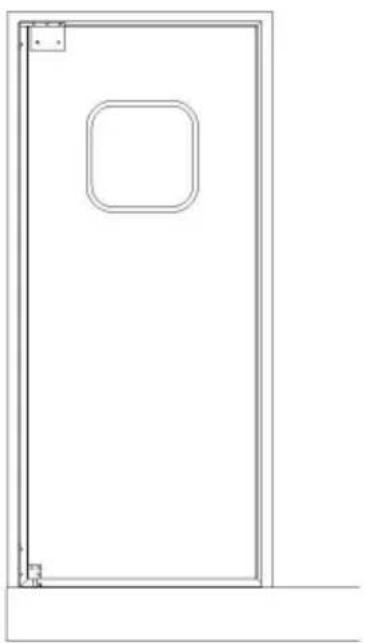

Step6:Done!

Simple line drawing of a door with a square cutout on the top panel (no text or symbols)
