Product Type	Aquarium vacuum water changer (gravel cleaner)
Brand	Vevor
Model	ASC-75
PVC Hose Length	25 / 30 / 33 / 50 feet (depending on version)
Gravel Tube Length	12.6 inches (approx. 32 cm)
Power Type	Manual (tap water pressure)
Minimum Required Water Pressure	0.07 MPa
Main Functions	Siphoning debris and waste from gravel, draining and refilling aquarium water, cleaning substrate
Included Components	Water flow assembly, gravel tube connector assembly, gravel tube, PVC hose, 3/4" GHT quick connect fittings, faucet adapters (15/16" and 55/64"), thread seal tape, instruction manual
Maintenance and Cleaning	Rinse all components with clean water after each use; store in a dry and cool place
Safety	Do not use with flammable or corrosive liquids; do not leave unattended; turn off aquarium equipment before water change
Repairability / Spare Parts	Spare parts available via Vevor customer service (www.vevor.com/support)
General Information	Made in China; technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - ASC-75 Vevor

How to install the faucet adapter?

Choose the adapter suitable for your faucet (15/16" or 55/64"). Make sure the sealing washer is correctly placed. You can also use the thread seal tape for a better seal.

How to connect the quick connect fitting?

Assemble the female connector to the water inlet with the gasket. Then, grasp the sliding collar, slide it down, and push the female end onto the male end. The collar locks automatically.

How to prevent sand from entering the gravel tube?

If sand enters, adjust the gravel tube valve to reduce water flow. This allows cleaning debris without sucking up the substrate.

Why is the water not flowing well?

Check that the PVC hose is not bent or blocked, and that the filter screen is clean. Ensure the water outlet is lower than the aquarium surface to create a siphon.

How to refill the aquarium after draining?

Close the gravel tube valve, push the outlet to 'fill' position (upward), open the gravel tube valve, then open the faucet to fill to the desired level.

What is the recommended frequency of water changes?

Change 10% of the water weekly or 25% monthly. Use a water conditioner with each addition of fresh tap water.

What to do if the water level drops too fast?

Reduce the flow by partially closing the gravel tube valve. This slows the suction and prevents too rapid a drop.

The faucet adapter leaks, what to do?

Check that the sealing washer is properly installed and use the thread seal tape to reinforce the connection.

Can I use this device with hot or cold water?

No, do not use water that is too hot or too cold as it may damage the device and stress the fish. Ensure the replacement water temperature is similar to the aquarium.

How to maintain the device?

Rinse all components with clean water after each use and store them in a dry, cool place to prolong their lifespan.

USER MANUAL ASC-75 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Aquarium Siphon Vacuum Water Change

MODEL:ASC-75/ASC-90/ASC-100/ASC-150

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:ASC-75/ASC-90/ASC-100/ASC-150

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

©

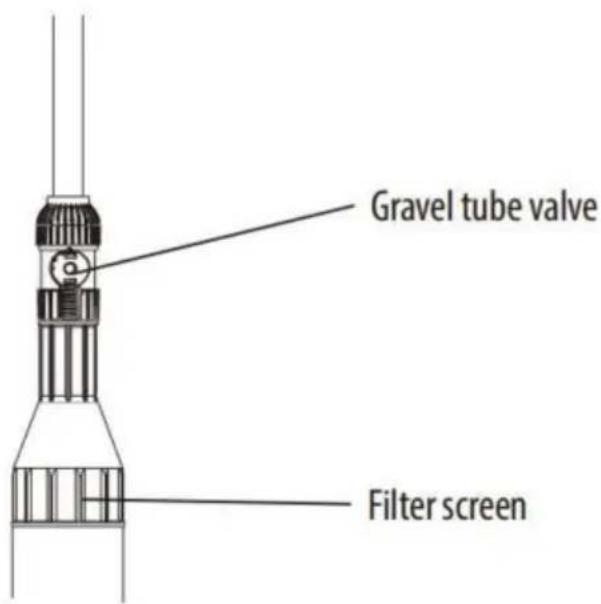

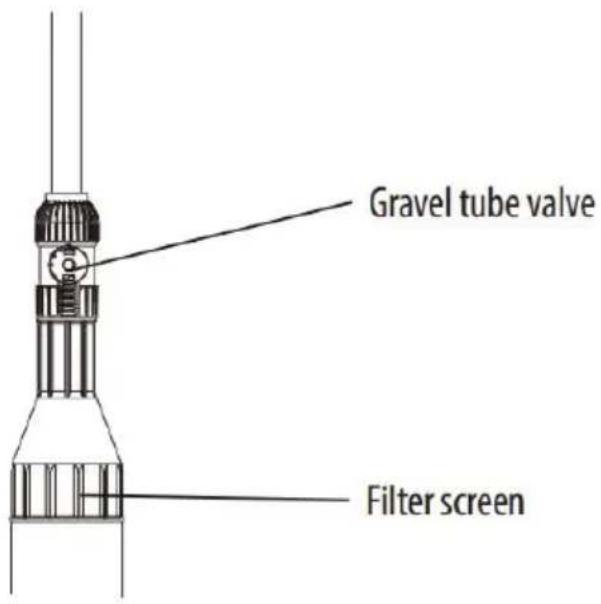

Gravel Tube Connector Assembly

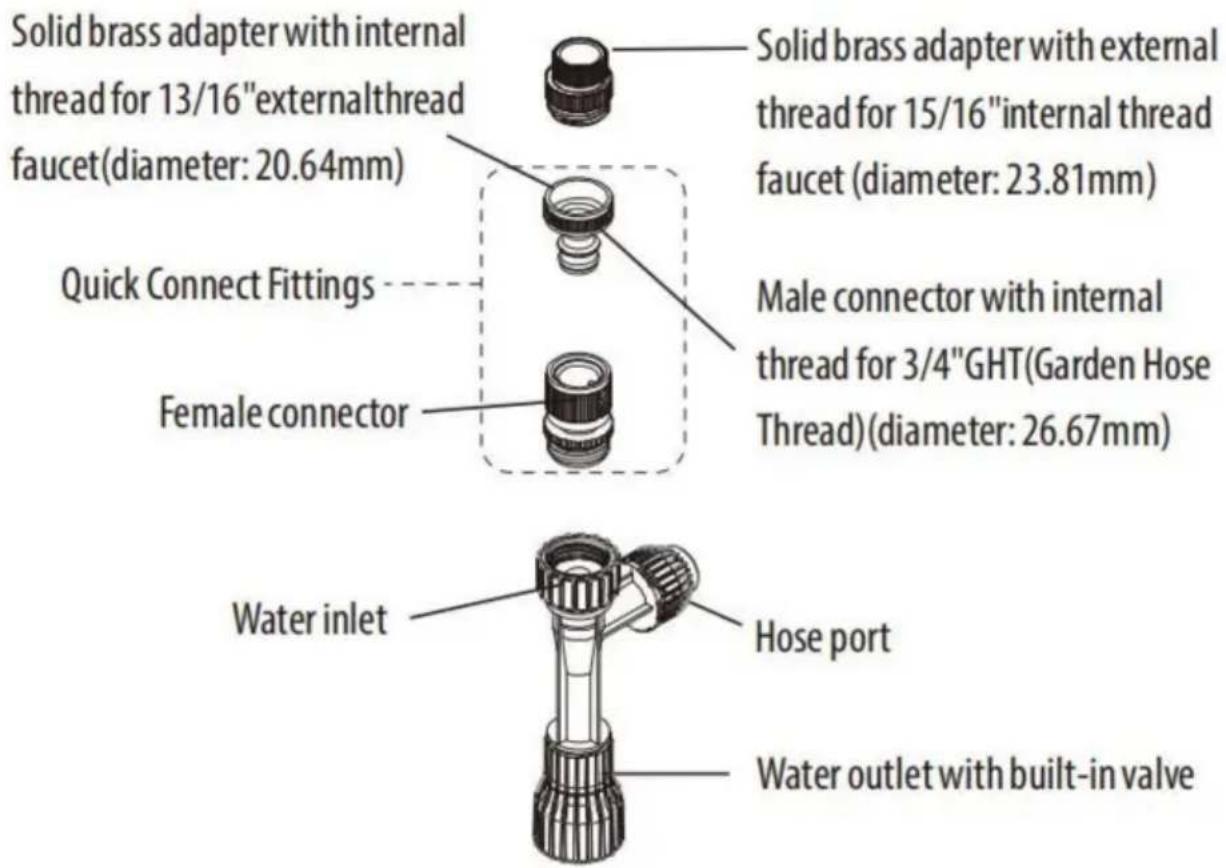

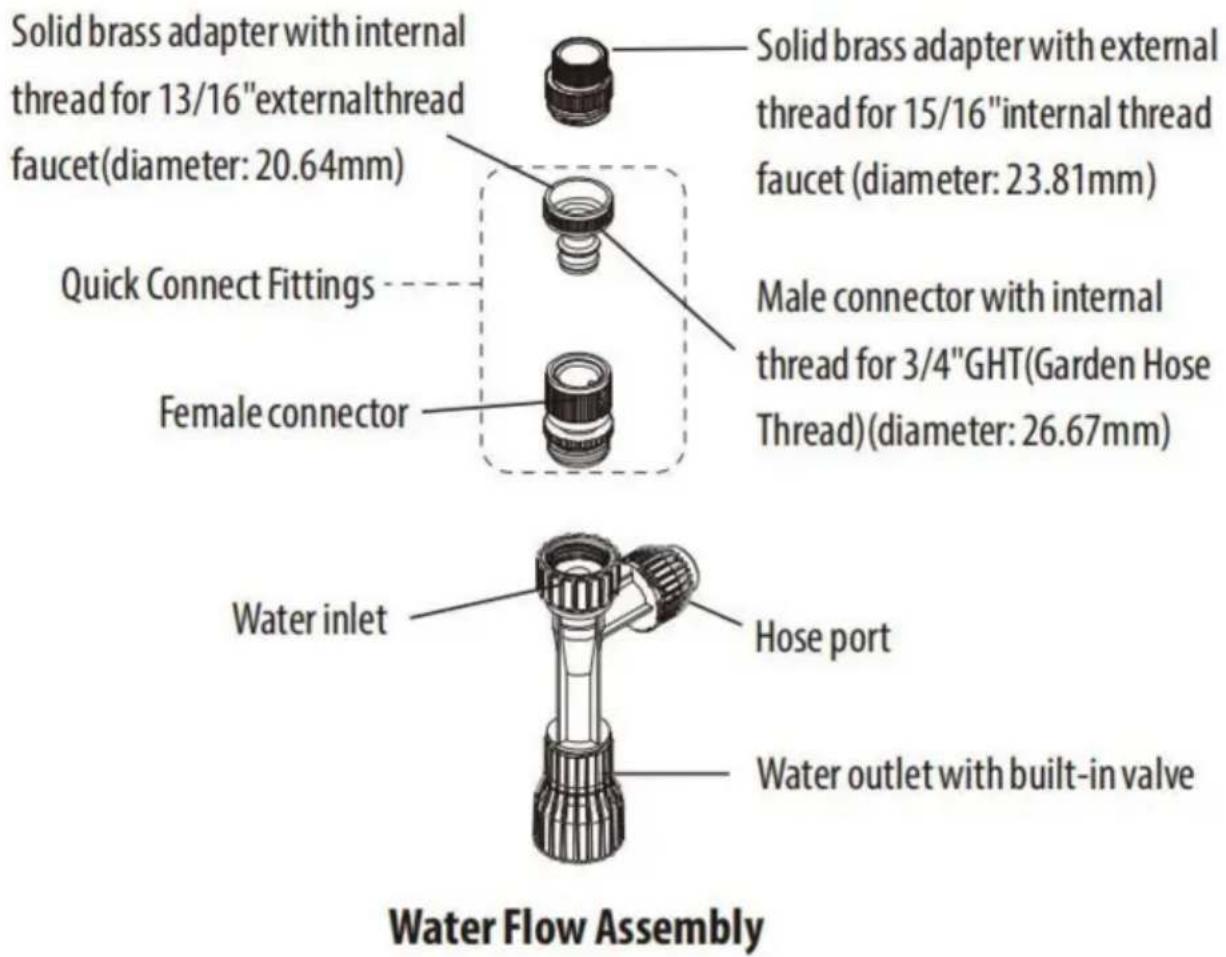

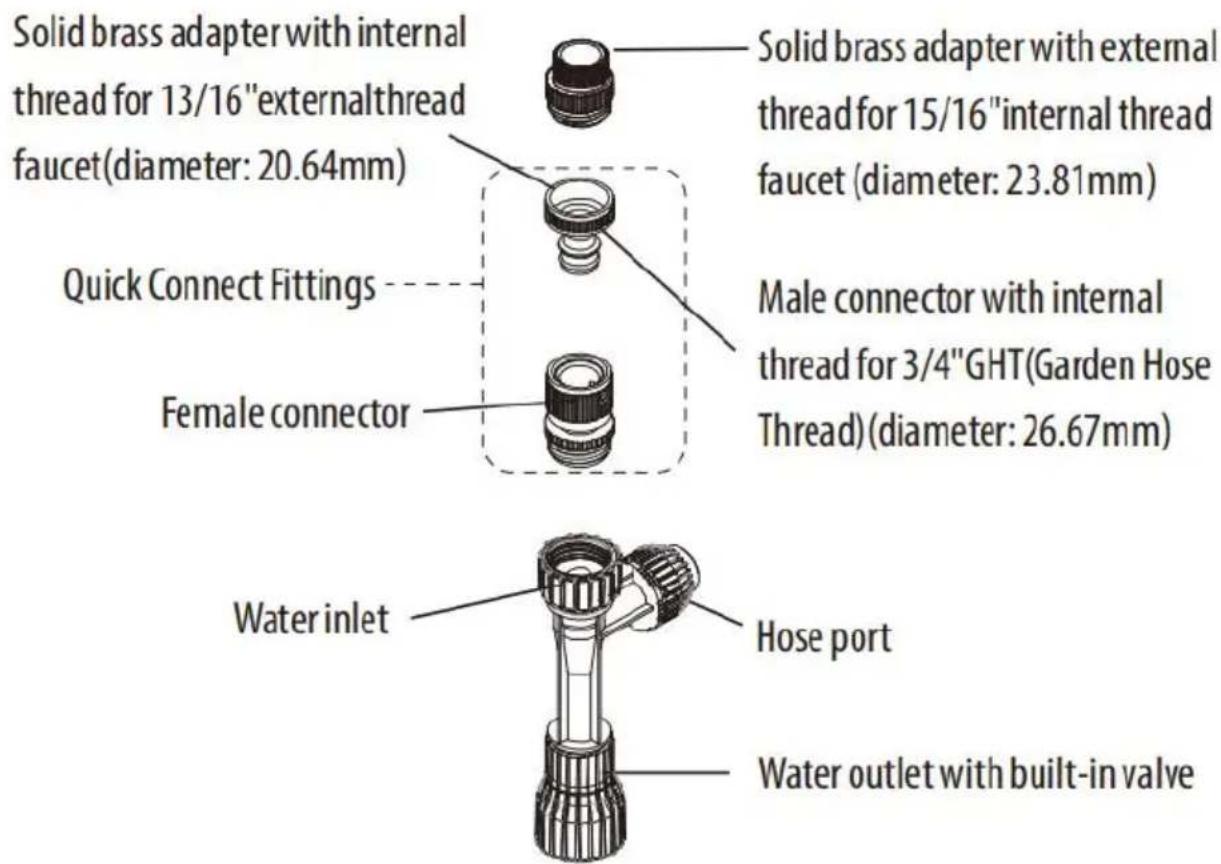

Water Flow Assembly

Setup:

1. Adapter installation:

Choose the right adapter to fit your faucet. Make sure washer has been properly fitted, and you may also use thread

seal tape for a better sealing.

The seal washer is very important!

2. Quick Connection:

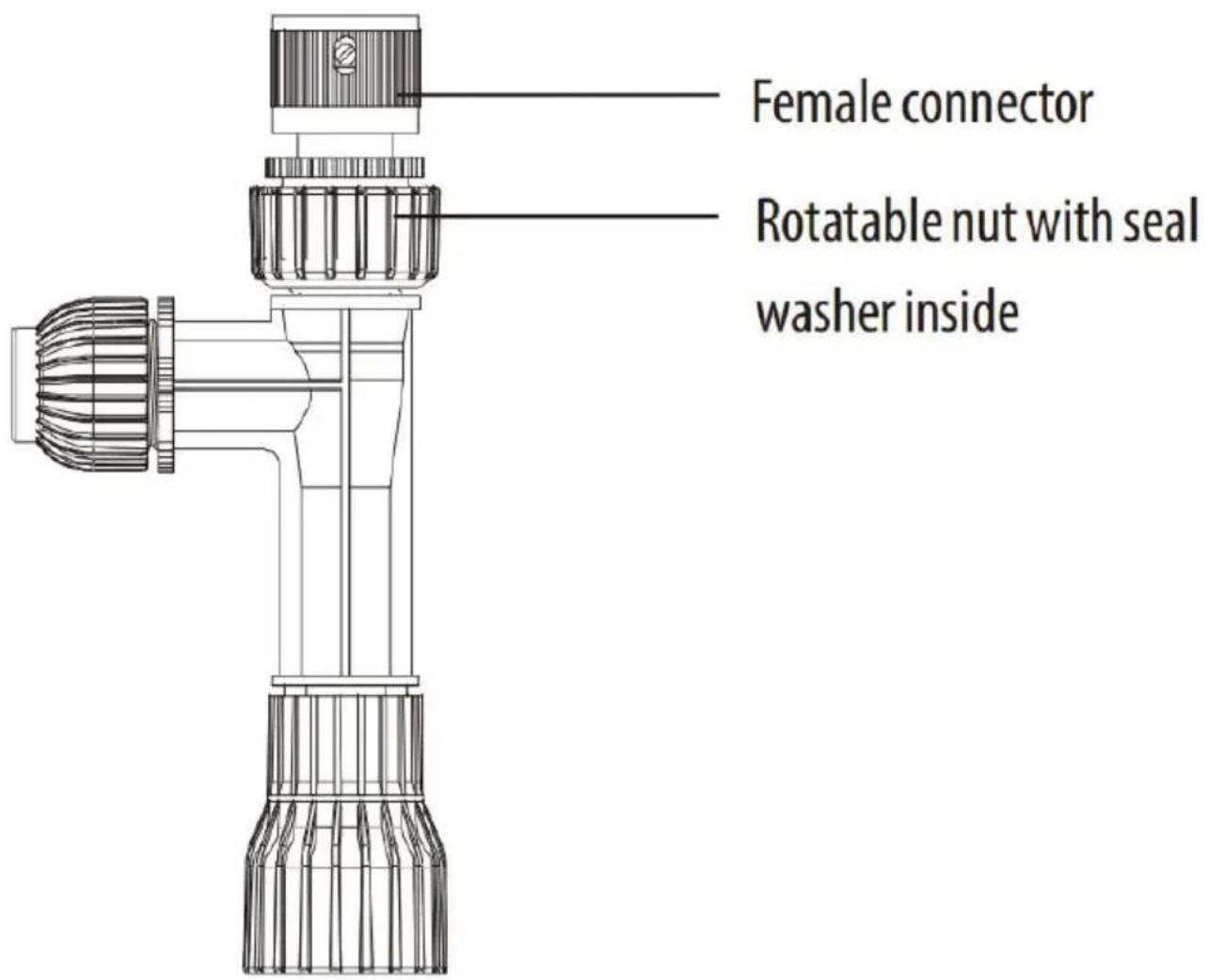

a. Assemble the female connector to the water inlet. Make sure the washer has

been properly fitted.

b. Connect the female end to the male end of the Quick Connect F

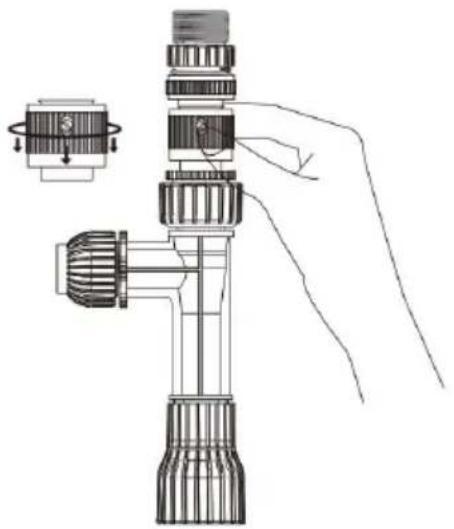

Step 1: Grip the sliding collar

Step 2: Slide down the collar

Step 3: Push up the female end to connect

Note: after connection, the sliding collar will lock automatically.

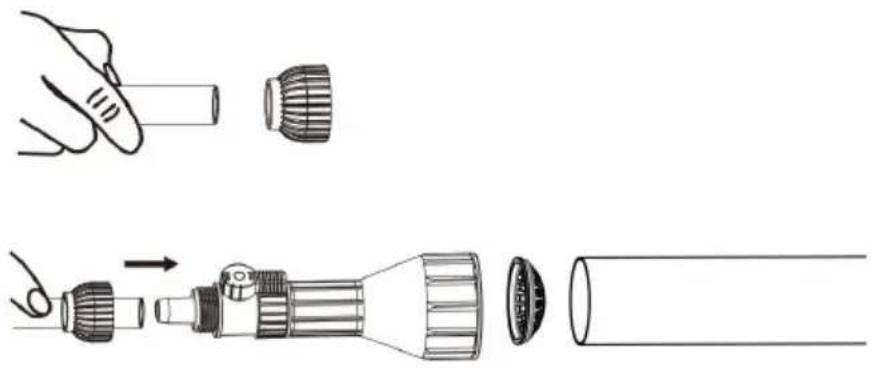

3. Hose connection:

Unscrew the nut, thread the hose through the nut, securely connect in the hose barb, and then tighten the nut to secure connection.

Firmly attaches as possible as you can

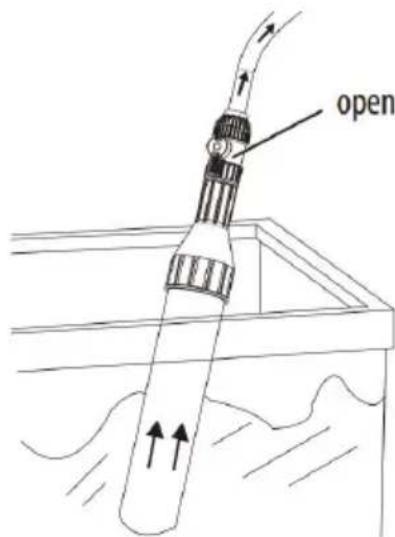

Cleaning

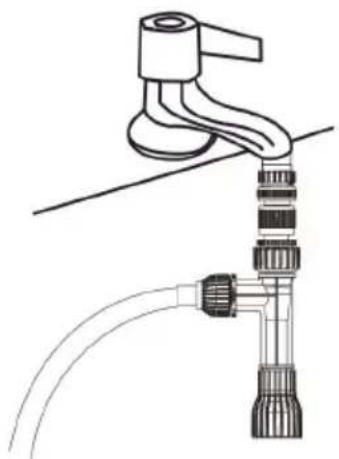

a. Install waterfall assembly to faucet using the included faucet adapto

b. Close the gravel tube valve.

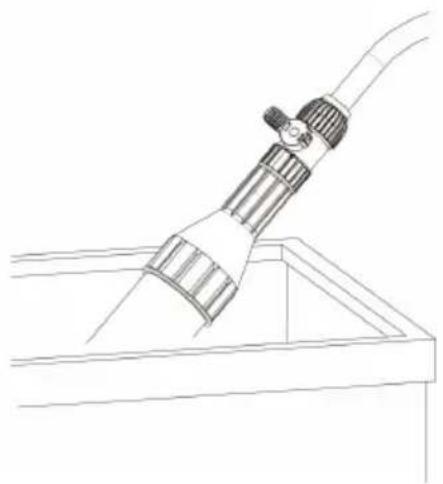

c. Submerge the gravel tube in the aquarium water. (Tip: do not bend the hose; keep it smooth, otherwise it may cause slow water flow.)

d. Open the gravel tube valve and turn on the faucet.

e. Open the gravel tube valve to begin vacuuming. If sand enters the gravel tube, adjust the valve on the gravel tube to reduce water flow. As water is being removed, you can use the water changer to siphon dirt and waste from the gravel or substrate in the aquarium. Move the gravel tube around the tank, allowing the suction to pick up any unwanted materials. (Tip: Make sure the water flow is strong enough to agitate the gravel to suck out debris.)

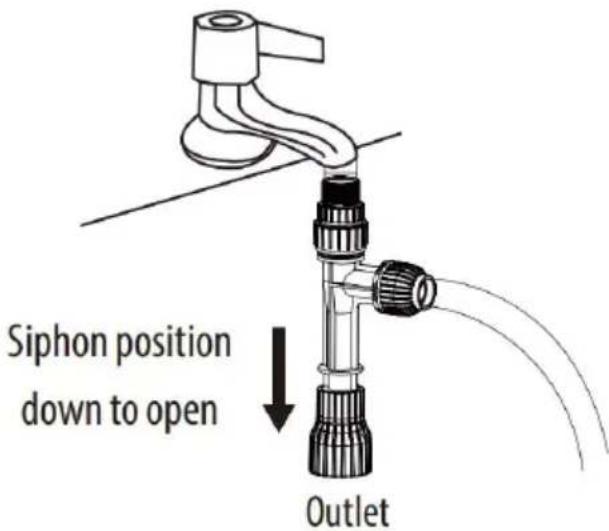

Note: To effectively create a siphon effect, the water outlet should be positioned lower than the water surface of the aquarium. The height difference creates the necessary pressure differential for the siphoning process to occur, as gravity will pull the water from the higher point (aquarium) to the lower point (the outlet).

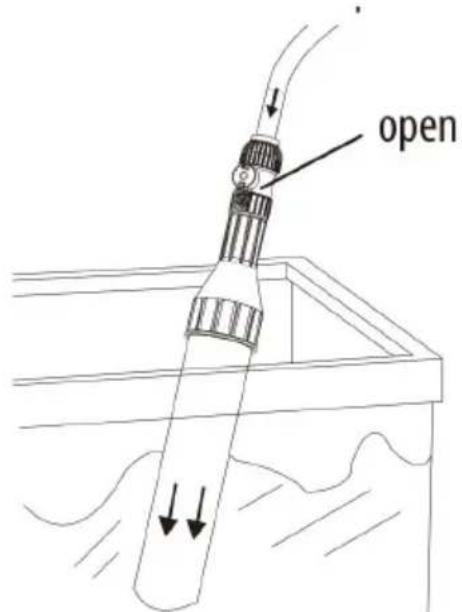

Filling

a. Securely lay the gravel tube inside the aquarium, close the gravel valve.

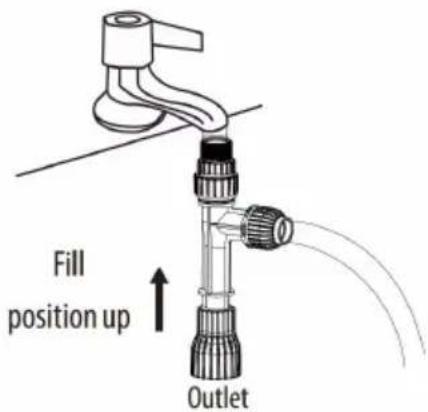

b. Push up and rotate the outlet (i.e., close the valve).

c. Open the gravel tube valve, turn on the faucet to fill the aquarium to the appropriate water level.

Tips for Efficient Use:

a. Regularly Clean the Filter Screen: Prevent clogging and maintain proper water flow by routinely cleaning the filter screen. b. Adjust the Flow Control: If the water flow is too fast, adjust the tube valve to a lower setting. c. Avoid Disturbing the Substrate: Prevent clouding the water by avoiding substrate disturbance while using the vacuum. d. Healthy Water Change Routine: To maintain a healthy aquarium, change 10% of the water weekly or 25% monthly. Use a water conditioner (sold separately) each time you add fresh tap water to your aquarium. e. The water pressure should not be lower than 0.07 MPa. f. The water surface of the aquarium should not be lower than the 1

Package Contents:

1 * Water Flow Assembly, 1 * Gravel Tube Connector Assembly, 1 * Gravel Tube (12.6 inch), 1 * PVC Hose (25FT/30FT/33FT/50FT), 1 * Quick Connect Fittings with 3/4" GHT (Garden Hose Thread), 1 * 15/16" Faucet Adapter, 1 * 55/64" Faucet Adapter, 1 * Thread Seal Tape, 1 * Instruction Manual

P.S.: FAUCET IS NOT INCLUDED.

Maintenance:

a. Rinse all components thoroughly with clean water after each use. b. Store the device and components in a dry and cool place to prolong lifespan.

Troubleshooting:

a. If water flow is weak, check for kinks or blockages in the PVC filter screen.

b. If the faucet adapter leaks, check if the seal washer has been properly fitted, and try using the thread seal tape to ensure a better sealing connection. c. If the water level in the aquarium decreases rapidly, reduce the flow using the Gravel Tube Valve.

For any further assistance or inquiries, please contact our customer support.

Note: If there is any technical change, please refer to the nameplate product without further notice.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
