USER MANUAL ASC-100 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Aquarium Siphon Vacuum Water Change

MODEL:ASC-75/ASC-90/ASC-100/ASC-150

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:ASC-75/ASC-90/ASC-100/ASC-150

Line drawing of a gas washing bottle with tubing and valve (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Warning-To reduce the risk of injury, user must read instructic manual carefully. Always follow basic safety precautions when using these devices. These include:

a) Before starting, ensure that the aquarium water temperature matches the temperature of the replacement water to prevent shocking the aqu life.
b) Avoid splashing water onto electrical outlets or equipment to prevent damage or accidents.
c) Make sure power is shut off to the heater, lights and other plug-i accessories before water changing.
d) Do not use the water changer in flammable or corrosive liquid.
e) Do not use it to change water that is too hot or too cold as it damage.
f) Do not leave the device unattended while in use. Keep it away from children.

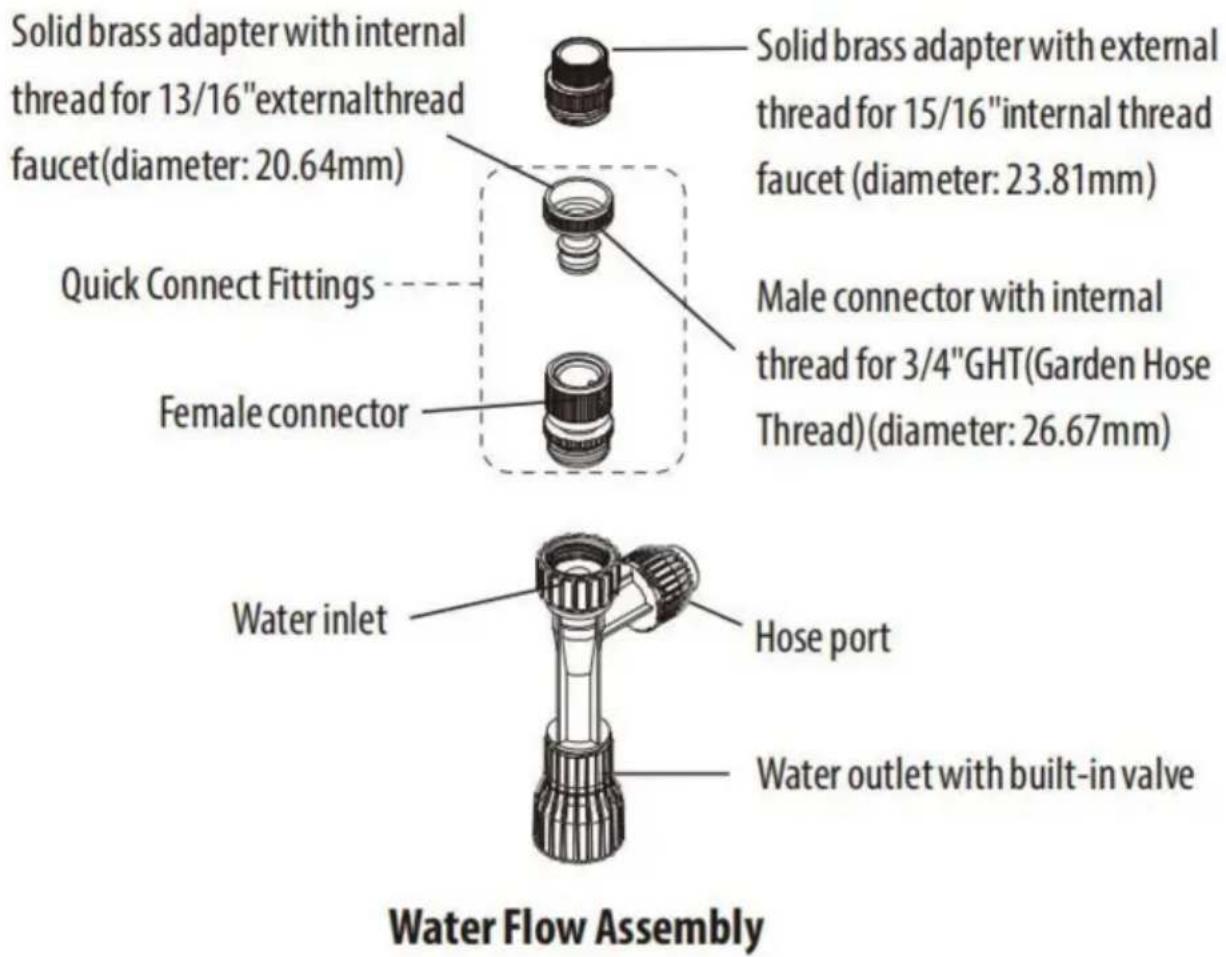

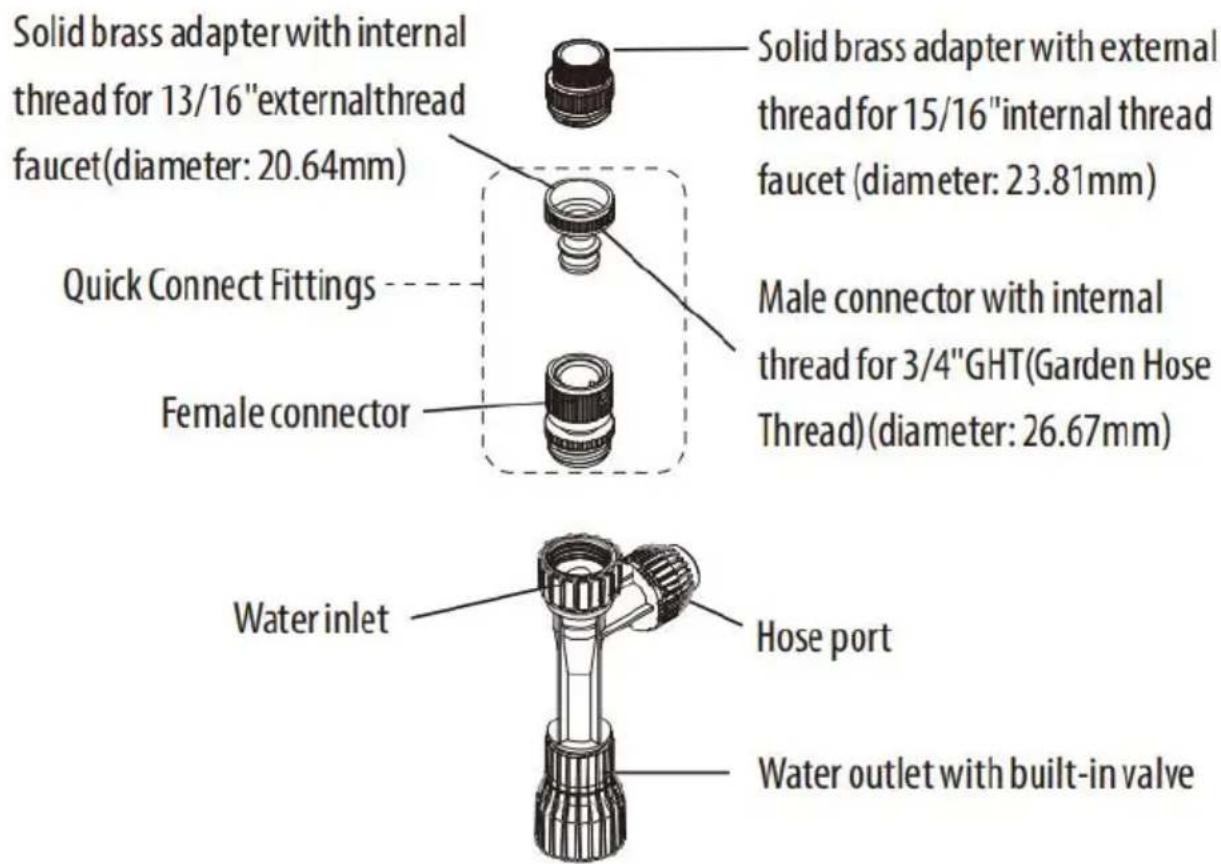

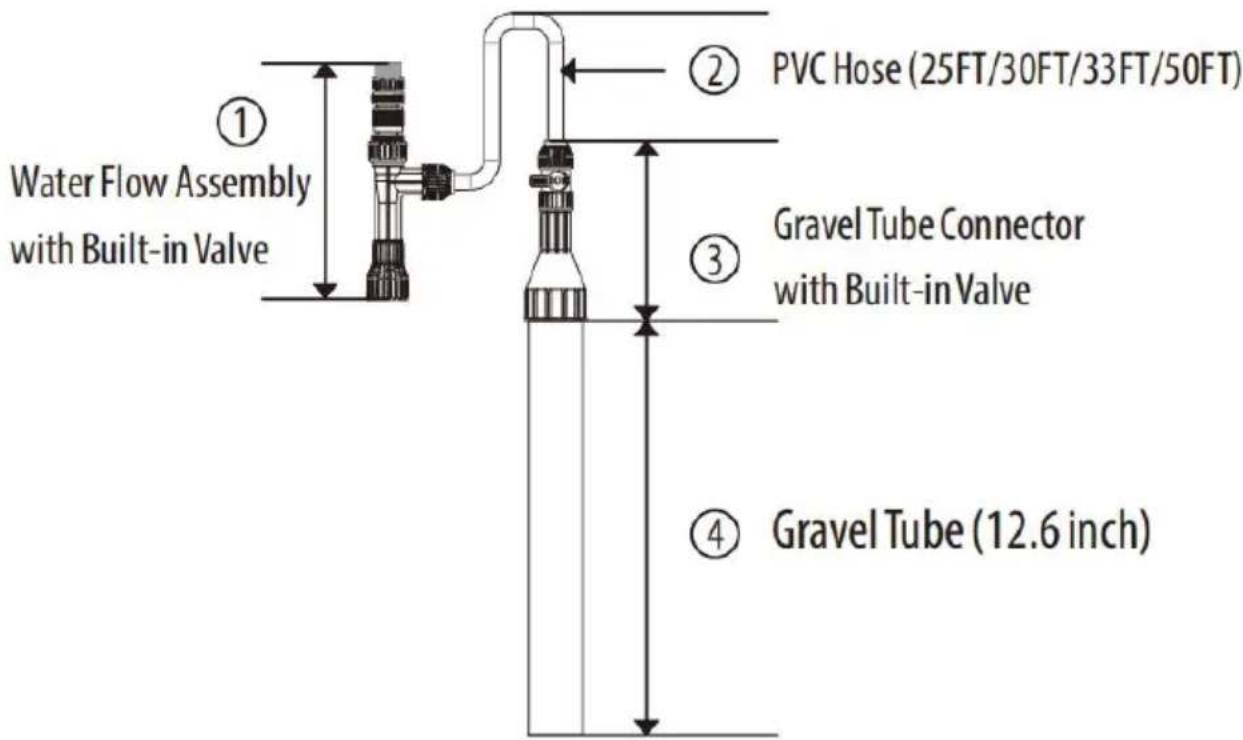

Components

Water Flow Assembly with Built-in Valve ① ② PVC Hose (25FT/30FT/33FT/50FT) ③ Gravel Tube Connector with Built-in Valve ④ Gravel Tube (12.6 inch)

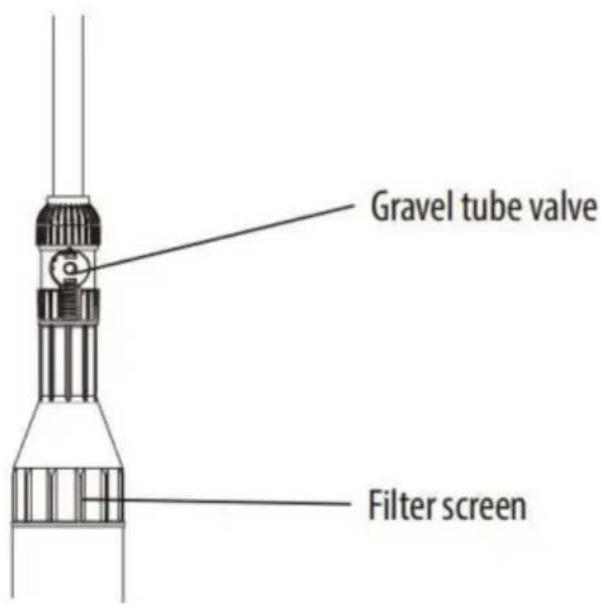

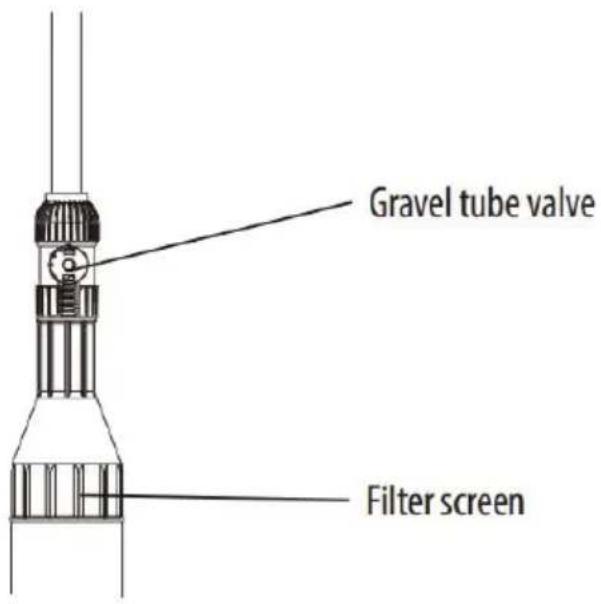

Gravel tube valve Filter screen

Gravel Tube Connector Assembly

Solid brass adapter with internal thread for 13/16"externalthread faucet(diameter: 20.64mm) Quick Connect Fittings Female connector Solid brass adapter with external thread for 15/16"internal thread faucet (diameter: 23.81mm) Male connector with internal thread for 3/4"GHT(Garden Hose Thread) (diameter: 26.67mm) Water inlet Hose port Water outlet with built-in valve

Water Flow Assembly

Setup:

1. Adapter installation:

Choose the right adapter to öt your faucet. Make sure washer has been properly ötted, and you may also use thread

seal tape for a better sealing.

The seal washer is very important!

2. Quick Connection:

a. Assemble the female connector to the water inlet. Make sure the washer has

been properly fitted.

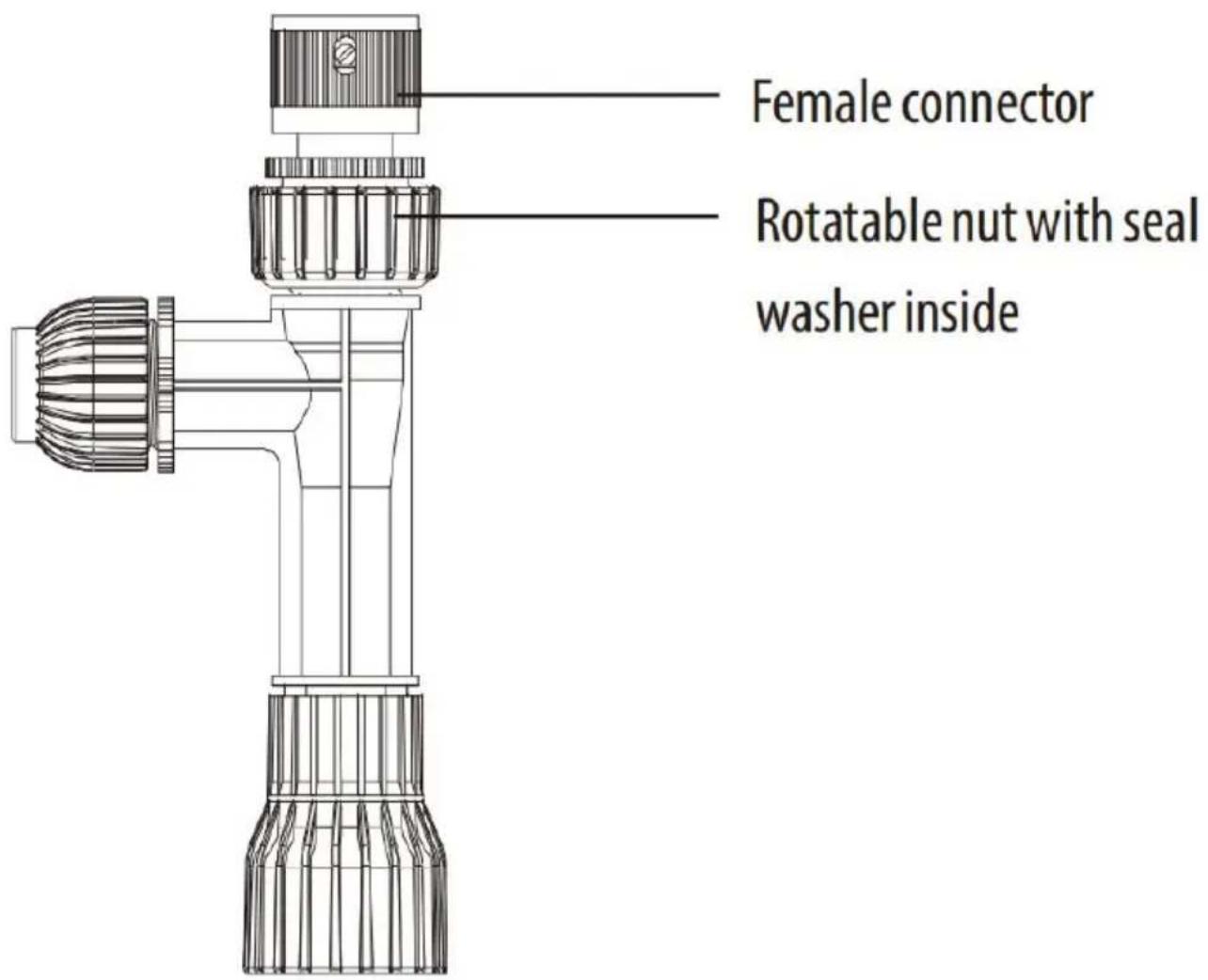

Female connector Rotatable nut with seal washer inside

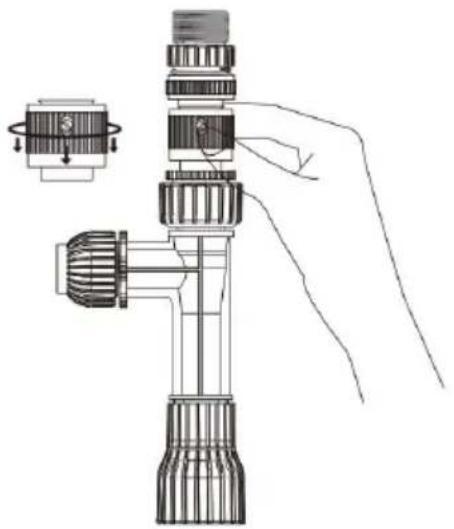

b. Connect the female end to the male end of the Quick Connect F

Technical line drawing of a mechanical assembly with a hand holding a cylindrical component (no text or symbols present)

Step 1: Grip the sliding collar

Step 2: Slide down the collar

Step 3: Push up the female end to connect

Note: after connection, the sliding collar will lock automatically.

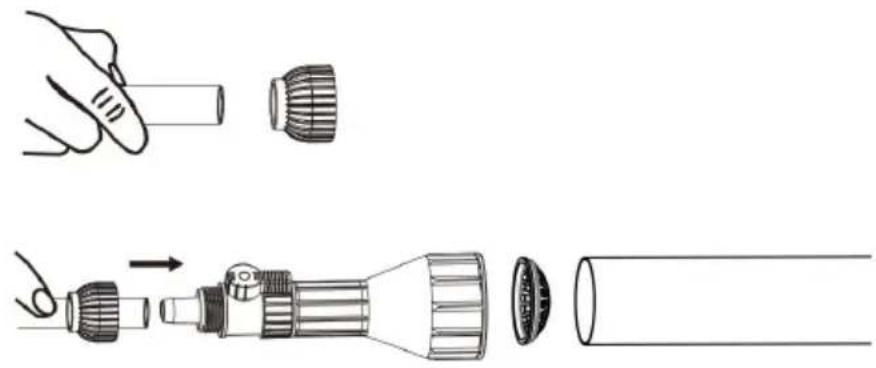

3. Hose connection:

Unscrew the nut, thread the hose through the nut, securely connect in the hose barb, and then tighten the nut to secure connection.

Illustration of a hand holding a cylindrical device with a separate close-up of its internal components (no text or symbols)

Firmly attaches as possible as you can

Diagram showing a mechanical assembly with a coiled spring and a multi-tiered pipe fitting (no text or symbols)

Cleaning

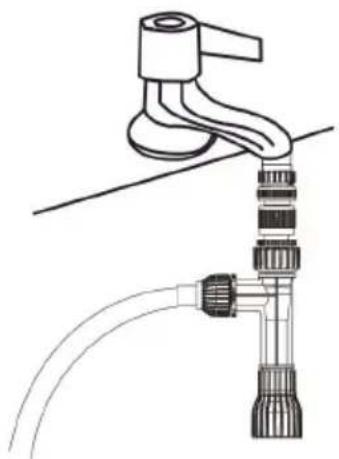

a. Install waterfall assembly to faucet using the included faucet adapto

Technical line drawing of a faucet and tubing assembly (no text or symbols)

b. Close the gravel tube valve.

closed

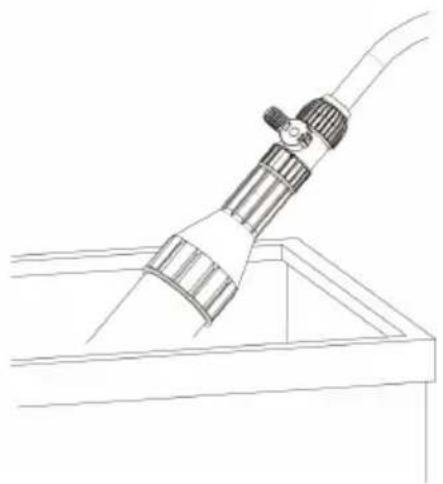

c. Submerge gravel tube in aquarium water.(Tips: do not bend the ho keep it smooth, otherwise it may cause slow water flow.)

Line drawing of a mechanical device with a lever and handle, mounted on a frame (no text or symbols)

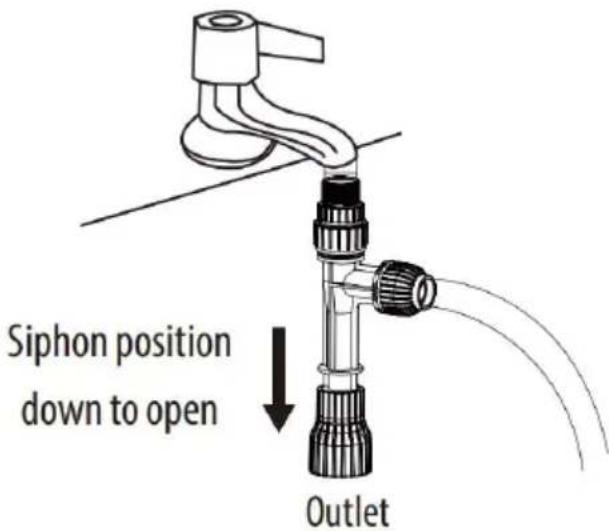

d.Open the gravel tube valve and turn on faucet.

Siphon position down to open Outlet

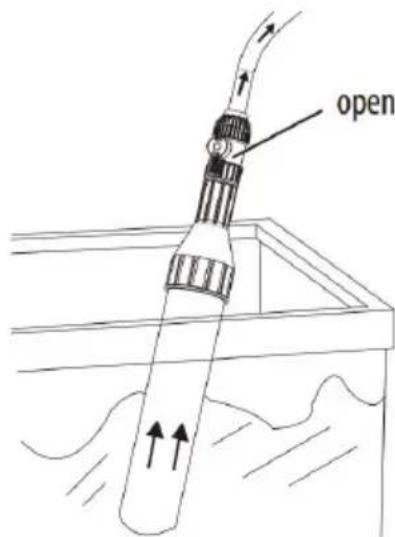

e. Open gravel tube valve to begin vacuuming. If sand enters the gravel tube, pls adjust the valve on the gravel tube to reduce water flow. A water is being removed, you can use the water changer to siphon d and waste from the gravel or substrate in the aquarium.Move the Gra Tube around the tank, allowing the suction to pick up any unwanted materials.(Tips: Pls make sure water flow is strong enough to agitate gravel to suck out debris.)

open

Note: To effectively create a siphon effect, the water outlet should be positioned lower than the water surface of the aquarium, the height difference creates the necessary pressure differential for the siphoning process to occur, as gravity will pull the water from the higher point (aquarium) to the lower point (the outlet).

Filling

a. Securely lay the gravel tube inside the aquarium, close the Gravel Valve.

closed

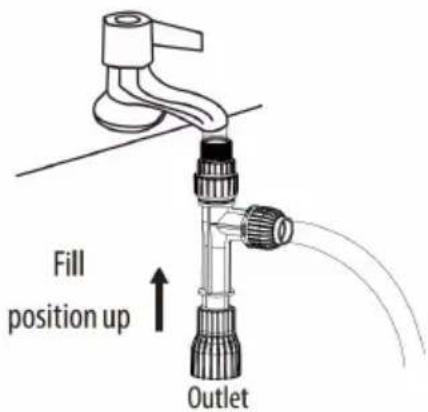

b.Push up and rotate the Outlet (i.e. close the Valve)

Fill position up Outlet

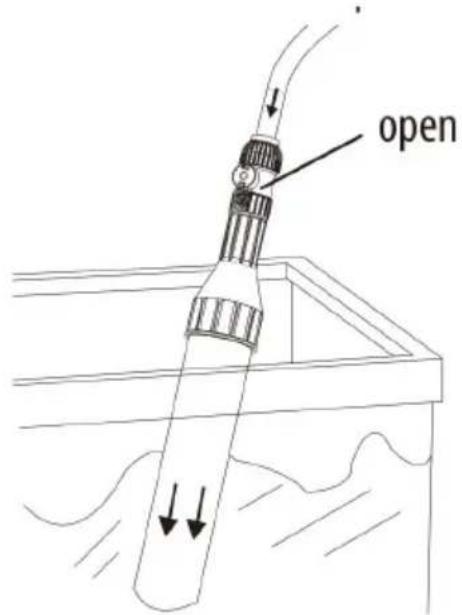

c.Open the gravel tube valve, turn on the faucet to öll the aquarium appropriate water level.

open

Tips for Efficient Use:

a. Regularly Clean the Filter Screen: Prevent clogging and maintain p water flow by routinely cleaning the filter screen.
b. Adjust the Flow Control: If the water flow is too fast, adjust the Tube Valve to a lower setting.
c. Avoid Disturbing the Substrate: Prevent clouding the water by avoiding substrate disturbance while using the vacuum.
d. Healthy Water Change Routine: To maintain a healthy aquarium, cl 10% of the water weekly or 25% monthly. Use a water conditioner (separately) each time you add fresh tap water to your aquarium.
e. The water pressure should not be lower than 0.07Mpa.
f. The water surface of the aquarium should not be lower than the 1

Package Contents:

1 * Water Flow Assembly
1* Gravel Tube Connector Assembly
1* Gravel Tube (12.6 inch)
1* PVC Hose ((25FT/30FT/33FT/50FT)
1 * Quick Connect Fittings with 3/4"GHT (Garden Hose Thread)
1 * 15/16" Faucet Adapter
1 * 55/64" Faucet Adapter
1* Thread Seal Tape
1* Instruction Manual

P.S.: FAUCET IS NOT INCLUDED.

Maintenance:

a. Rinse all components thoroughly with clean water after each use.
b. Store the device and components in a dry and cool place to prol lifespan.

Troubleshooting:

a. If water flow is weak, check for kinks or blockages in the PVC filter screen.

b. If the faucet adapter leaks, check if the seal washer has been prfitted, and try using the thread seal tape to ensure a better sealing connection.
c. If the water level in the aquarium decreases rapidly, reduce the flow using the Gravel Tube Valve.

For any further assistance or inquiries, please contact our custom support.

Note: If there is any technical change, please refer to the nameplate product without further notice.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE
