ROOF RACK USER'S MANUAL

MODEL: BYCD-004

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

ROOF RACK

BYCD-004

BYCD-004

3D rendering of two parallel metal beams with support posts, no text or symbols present

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

[e-mail]

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Read the instructions carefully before using the device

【Catalogue】

1. Technical parameters
2. Safety precautions
3. Product structure diagram
4. Instructions of use
5. Scope of application
6. Common fault analysis

1. Technical parameters

Brand	VEVOR
Model	BYCD-004
Maximum load bearing (lbs)	500
Product size (mm)	1250×130×370 (single)
Product weight (kg)	8.9

2. Safety precautions

WARNING

• Read and understand this entire manual before assembling, installing operating, or servicing this product. Failure to follow these warnings instructions can cause death, personal injury or damage to valuable property.
• Adhere to all Department of Transportation (D.O.T.) requirements when

using this product. Use ropes and tie downs (not included) to secu hold all cargo in place.

• Do not overload the Ladder Rack. Never exceed the maximum weight capacity of 500 Lbs. (this is front and back rack combined capacity)
• Make sure the vehicle is in a safe place for loading ladders and cargo. Make sure the vehicle’s engine is OFF, with parking brake before loading or unloading the Ladder Rack.
• Do not use to hold or restrain human or animal weight in any ma
• When assembly is complete, check and test all vehicle systems including lights and brakes; make sure no damage occurred during product installation.
• This Ladder Rack is designed to carry ladders, lumber, piping, rebarsports equipment and other long materials. Do not modify the Ladder Rack and do not use this product for purposes that it was not defor.
• Before and after each use, check to make sure that all hardware is tightly secured. Regularly inspect for damage. If fraying or distortion found, immediately discontinue use.
• Use common sense when working. Stay alert and concentrate when setting up and using the Ladder Rack. Never work while under the influence of alcohol, drugs or medications.
• While assembling and using the Ladder Rack keep work area clean well lighted. Keep spectators and children out of the work area.
• Dress appropriately. Never wear loose fitting clothing or jewelry when working. Contain long hair, and keep hair, clothing and gloves away from moving parts.

SAVE THESE INSTRUCTIONS

3. Product structure diagram

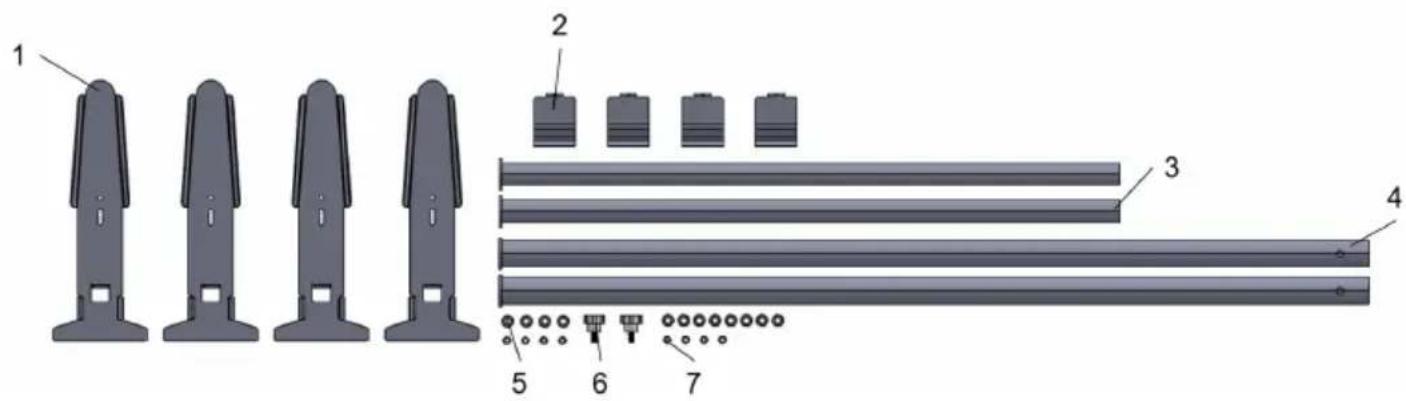

1 2 3 4 5 6 7

NO.	NAME	QTY	TYPE
1	support plate	4
2	clip	4
3	thin tube	2
4	thick tube	2
5	plain washer	12	M6
6	plum flower head screw	2	M8X15
7	hex bolt	8	M6X30

4. Instructions of use

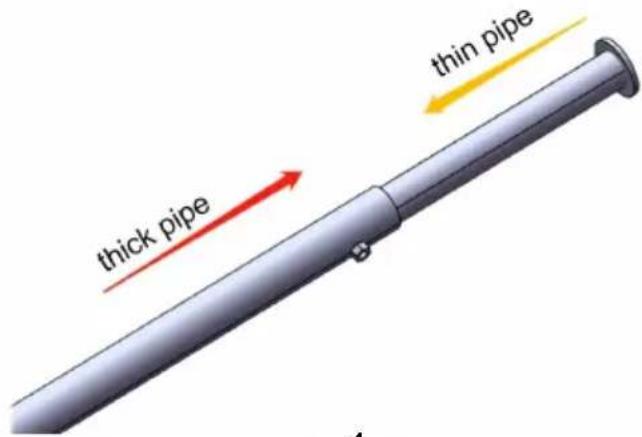

a. First, connect the thin pipe and the thick pipe together, as shown figure.

thin pipe thick pipe

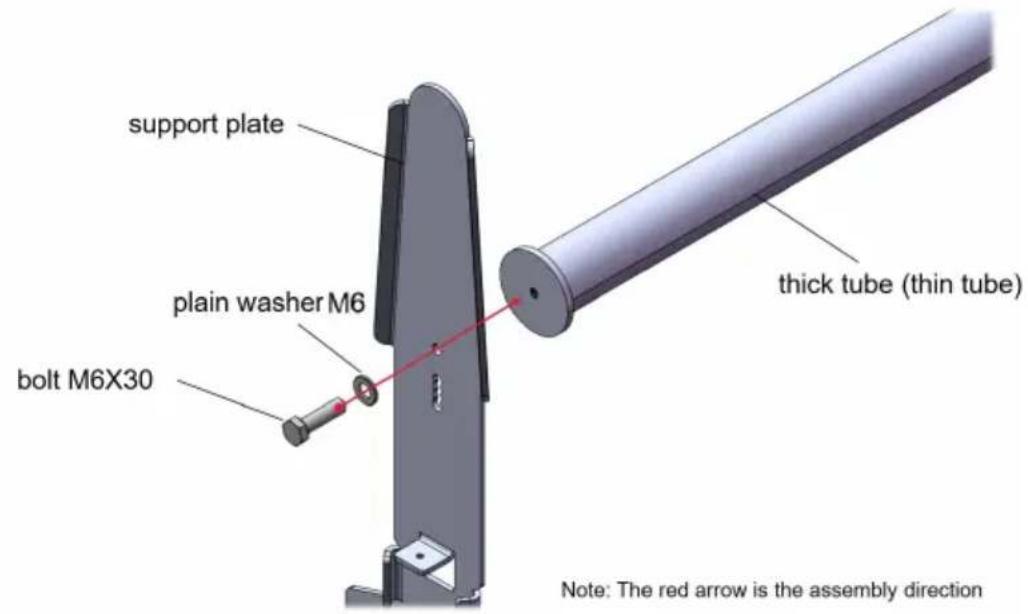

b. Support assembly partAssemble in the order of bolt - washer - sup plate - thick tube (thin tube).

support plate plain washer M6 bolt M6X30 thick tube (thin tube) Note: The red arrow is the assembly direction

c. Assembly part:

1. of th clip 2. th fix

car roof drain

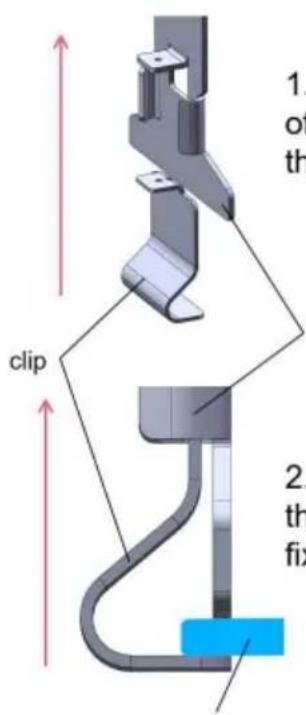

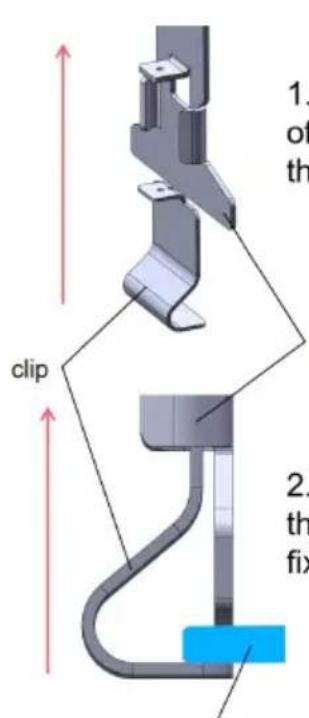

1. Align the clip with the bent part of the support frame, and push the clip from bottom to top.

support plate

1. The support frame is placed in the car roof drain, clamped and fixed by the clip.

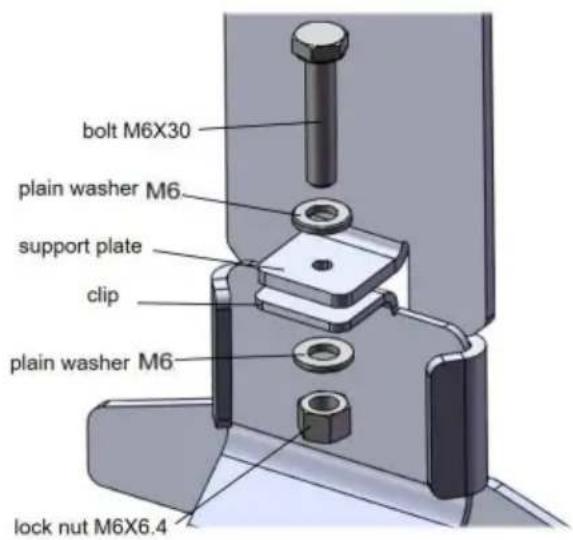

bolt M6X30 plain washer M6 support plate clip plain washer M6 lock nut M6X6.4

1. After clamping, clamp it in the sequence of bolt-washer-support frame-clip-washers - lock nut.

Note: The installation method of thick pipe and thin pipe is the same.

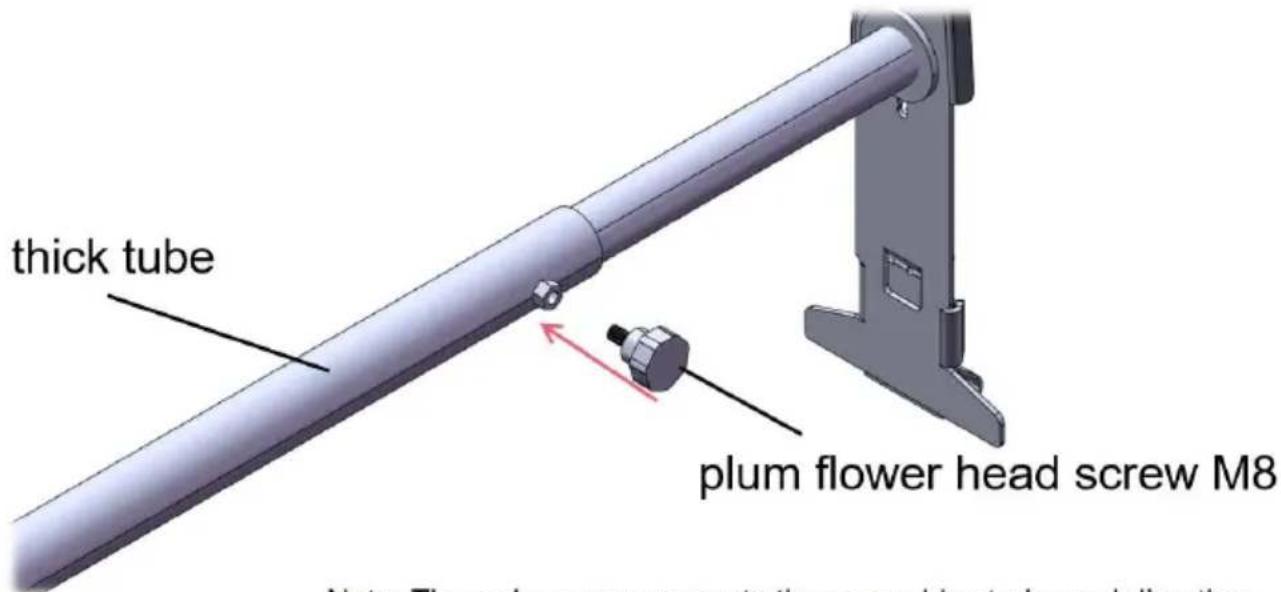

d. After installation on the van, screw plum flower head screw into the welding nut of the thick pipe and tighten it.

thick tube plum flower head screw M8

Note: The red arrow represents the assembly stroke and direction

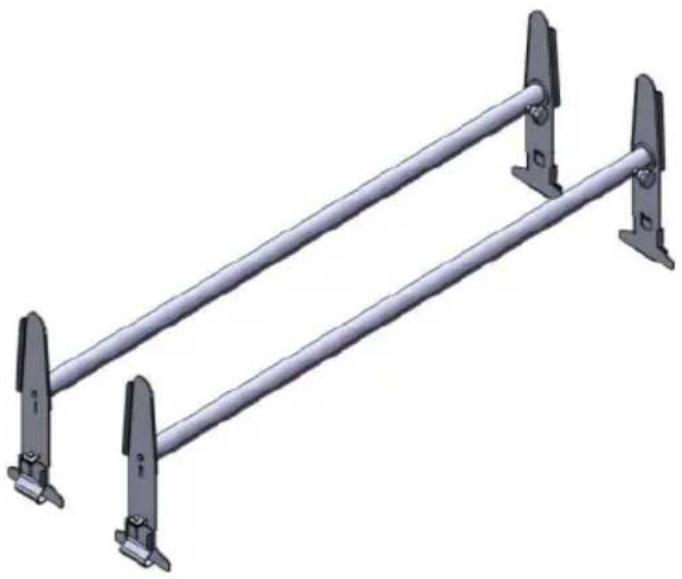

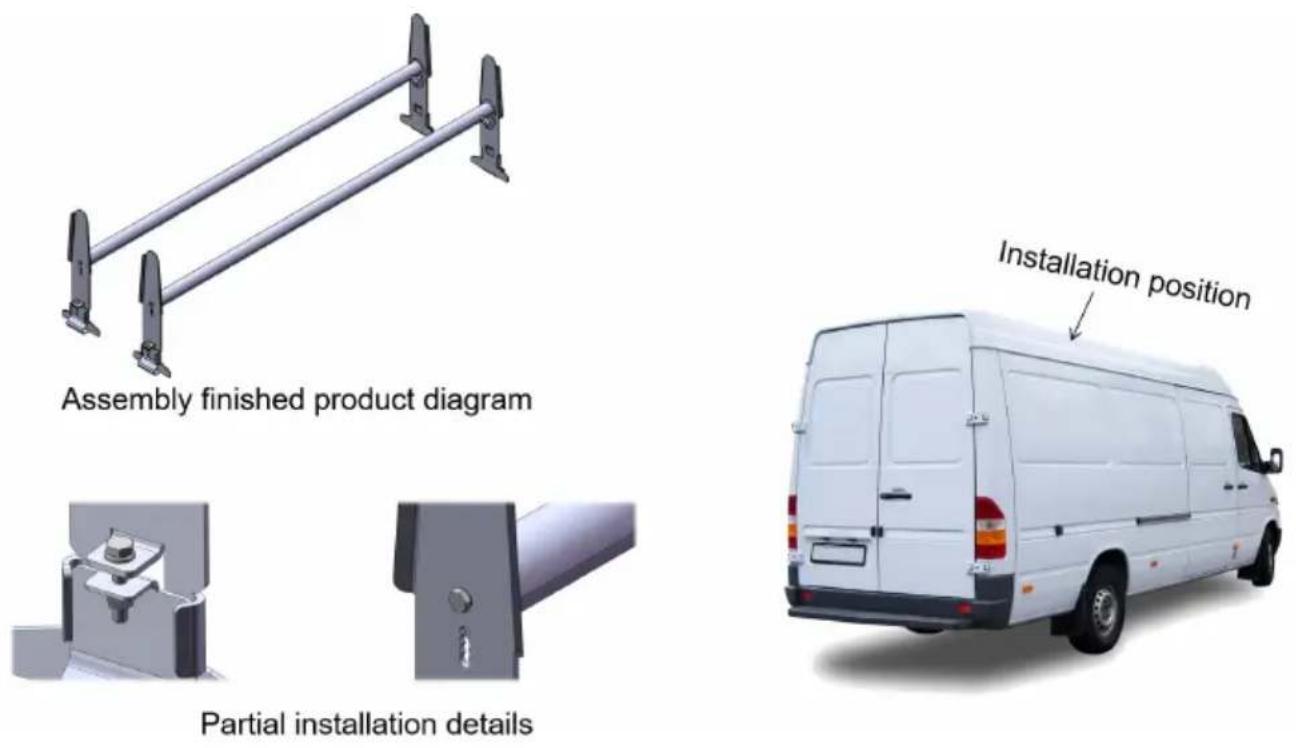

e. Assembly finished product diagram

5.Scopeofapplication

Van roof

6.Commonfaultanalysis

faultphenomenon	failure cause solution
Roof rackdeformation	The actual load weight exceeds the maximum product load	In use, the actual load weight does not exceed the maximum product load

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu

803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA

STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,

9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX
