USER MANUAL AR-Universal-019 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

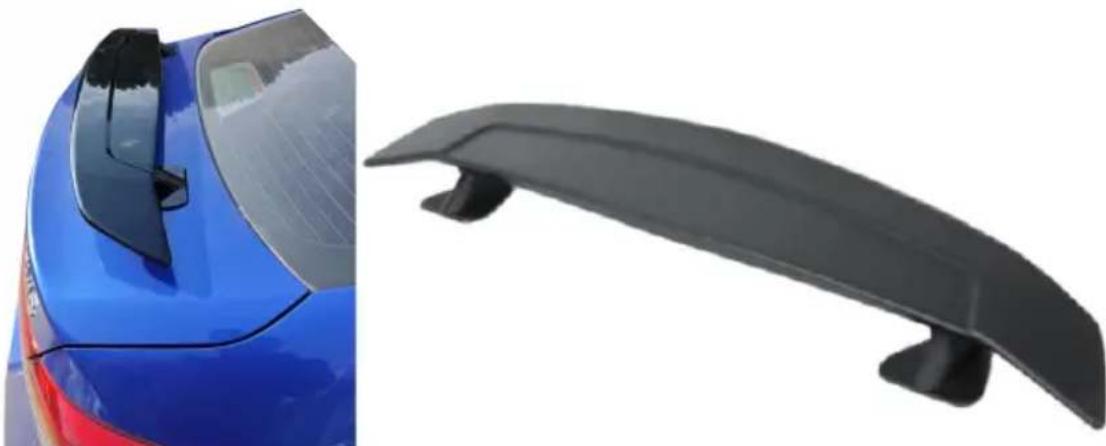

WING SPOILER
MODEL:AR-UNIVERSAL-019
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel from contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.
- Avoid children using the product. And this product is not a toy. Do allow children to play.
ASSEMBLY PRECAUTIONS
- Assemble only according to these instructions. Improper assembly can create hazards.
- Keep the assembly area clean and well-lit.
- Keep bystanders out of the area during assembly.
SAVE THESE INSTRUCTIONS
SPECIFICATION
| Material | Color | Length(mm) | Picture |
| ABS | Black | 1175 |  |
PACKAGE LIST
| No. | Name | Picture | QTY |
| 1 | Wing Spoiler |  | 1 |
| 2 | Bracket | 2 | |
| 3 | Decorative cover |  | 1 |
| 4 | Screw(ST4.2*18) |  | 2 |
| 5 | Screw(ST4.2*10) |  | 8 |
| 6 | Double-sided tape |  | 2 |
| 7 | Manual | 1 |
INSTALLATION
Caution: Avoid humid weather and installation done in temperature of 72 F/22 C or above is recommended.
STEP1:Mounting of bracket components

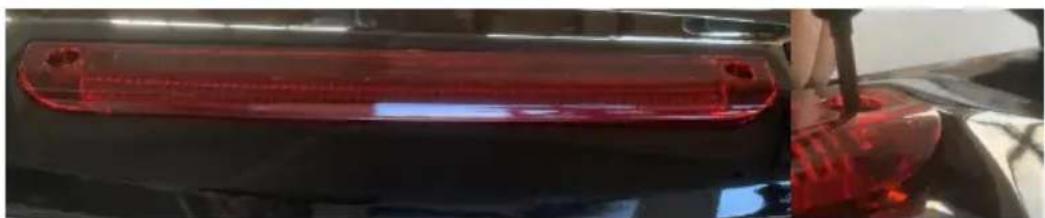

(1). Install the trim cover to the lower middle of the spoiler and sec with screws (No.4).


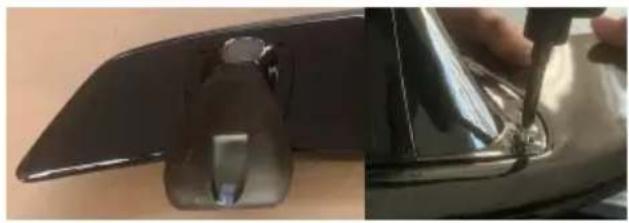

Close-up of a red transparent plastic object with a hole, partially visible in a container (no text or symbols)(2). Align the support with the installation area on both sides, align the holes, and secure the support using screws (No.5).


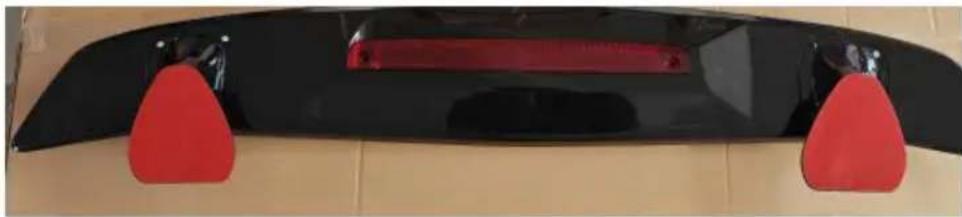

Close-up of a hand using a tool to adjust or repair a black plastic component (no visible text or symbols)(3). Attach double-sided tape to the mounting area on the bottom of bracket.
STEP2: Clean the car surface and make sure it's clean and oil-free. Apply adhesion promoter(Not included) on the install area.
STEP3: Use hair dryer to warm up the tape and car surface. And the tear off the double-sided tape at support.
STEP4: Gently install the spoiler in the proper area and tear off the the tape.
STEP5: Press two sides of the spoiler evenly when you finish the installation.(please press on the upper position of the bracket.)
Caution:
It is highly recommended to press the position of the spoiler bra with an appropriate weight for more than 12 hours and keep the vehicle remain undisturbed.
