USER MANUAL CHQ03-07 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
CATALYTIC CONVERTER
MODEL:CHQ03-07
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
CATALYTIC
CONVERTER
MODEL: CHQ03-07


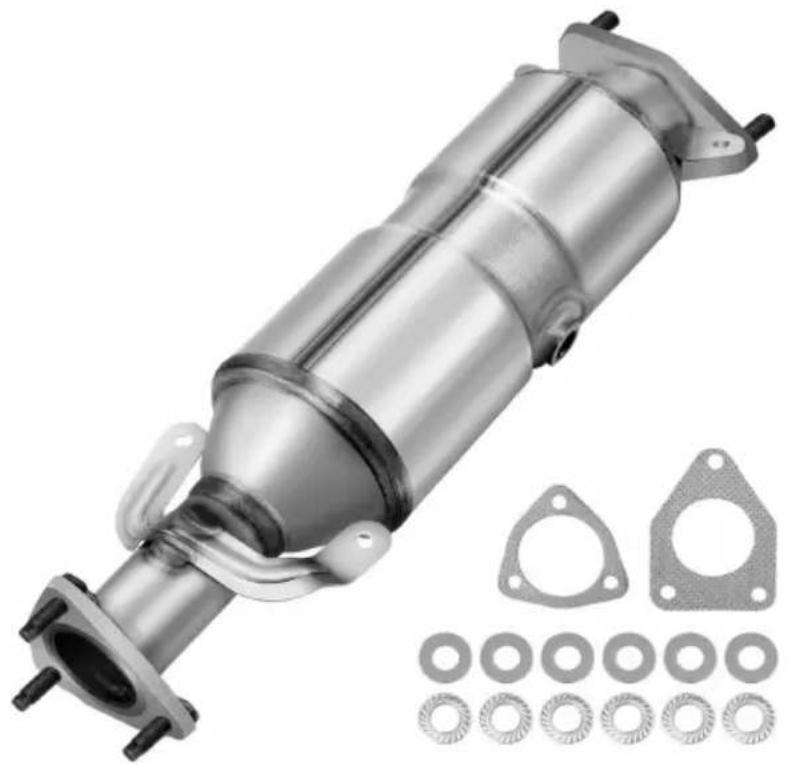

Exterior view of a carmpeller assembly with mounting flanges and gasket components (no text or symbols visible)NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
WARNING:
After receiving our product, you need to find a repair shop to put the car shelf, then remove the old catalytic converter, install the new catalytic convert its original position, and install the gasket and washer, tighten the screws! You now drive and use it normally!
After installing the catalyst, the following two situations will occur, both of which normal phenomena!
Firstly, the surface of the catalytic converter is coated with rust proof oil. After car starts and the catalytic converter is at high temperature, the rust proof of the surface will evaporate due to heat, and white smoke will emerge. After a 30 minutes of use, it will disappear on its own. This is a normal phenomenon please do not worry!
Secondly, after the installation of the new catalyst, when the car starts to us burnt odor will be emitted from the exhaust gas. This is because the cerami carrier part of the catalyst's internal structure is wrapped in a fireproof cotton with transparent tape, also known as an insulation cotton pad. It wraps arour ceramic carrier, and the transparent gelatin belt will burn when exposed to hi temperatures. At this time, the exhaust pipe will discharge this odor, so you smell a burnt odor! It will disappear on its own after using about 50 kilometer is a normal phenomenon! Don't worry!
Friendly Note: This part cannot be used for California-registered vehicles. (Due to the increased emissions standards, this converter is NOT legal f use in CA.)
SAVE THESE INSTRUCTION
PRODUCT PAREMETERS
| Model | CHQ03-07 |
| Body Material | Stainless Steel |
| Substrate Material | Ceramic |
| Cell Count | 600 Cells |
| Standard | OBD III Compliant, Non-CARB Compliant |
| Restricted States | California |
| Vehicle Fitment | Compatible with 2003-2007 Honda Accord DX/EX/LX 2.4L L4 |
| Inlet Inner Diameter | 2.2"/5.5 cm |
| Outlet Inner Diameter | 1.9"/4.7 cm |
PART LIST
When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.
| NO | PICTURE | NAME | QTY | NO | PICTURE | NAME | QTY | |
| 1 |  | Catalytic converter | 1 | 2 |  | Carrier Ring B | 1 | |
| 3 |  | Carrier Ring A | 1 | 4 |  | Nut | 6 | |
| 5 |  | Washer | 6 |
INTERNAL HONEYCOMB STRUCTURE
OEM High Flow Design: This catalytic converter is constructed to meet even exceed OEM quality. Its high flow design provides more oxygen your engine, dramatically improving your exhaust system. Further, an internal honeycomb structure effectively purifies the waste gases, converting CO, HC, and NOx into CO₂, H₂O, and N₂.

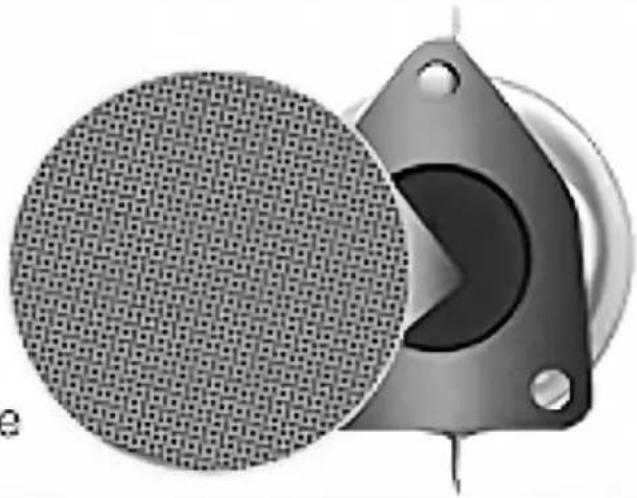

OURS
Bigger Hole
Higher Flow Rate
Longer Service Life


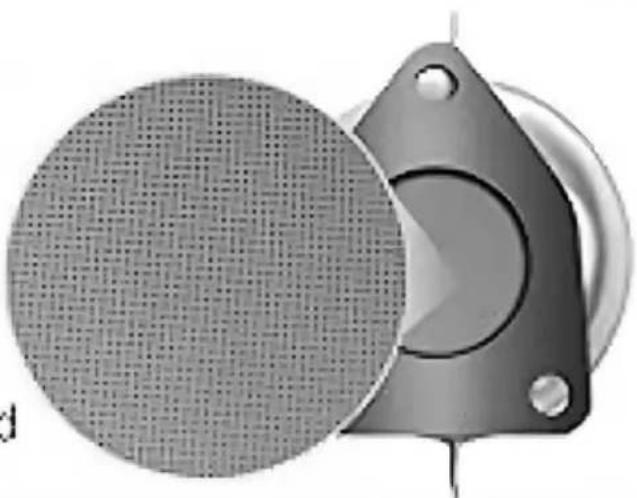

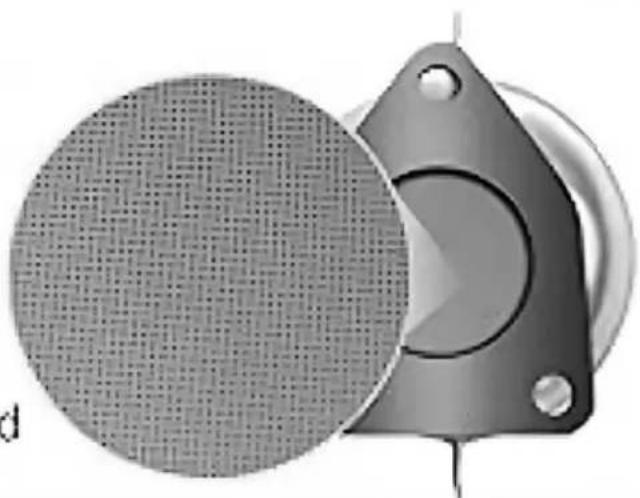

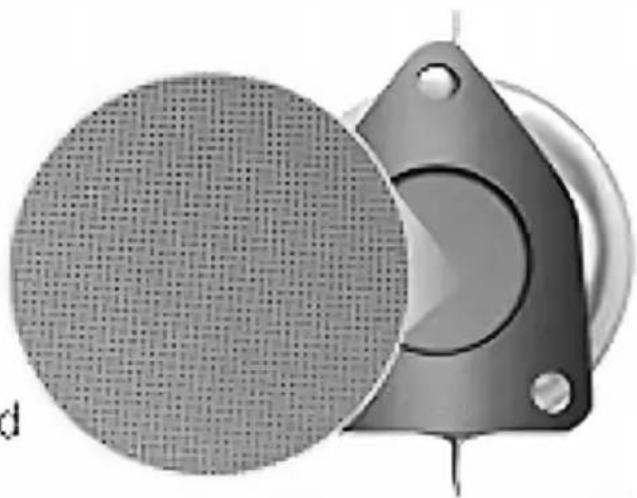

Close-up of a circular mesh filter component and a mechanical clamp (no text or symbols visible)OTHERS
Small Hole
Low Flow Rate
Easy to be Blocked
Hassle-Free Installation: Our free-flow catalytic converter has standard specification flanges designed for easy installation. Direct bolts exist in exhaust system without extra modification. The kit also comes with ga and hardware for replacement. Professional installation is highly recommended for exerting its max capability.
Standard OBD III Compliant: This high flow converter complies with O III Standards, ensuring the exhaust emissions meet the Federal Emissi Standards. However, it is illegal to be used in California as the NON compliant. With this high-quality converter, you have no worry about M code issues in your driving.
For 2003-2007 Honda Accord
| 2003 | DX L4 2.4L | LX L4 2.4L | EX L4 2.4L |
| 2004 | DX L4 2.4L | LX L4 2.4L | EX L4 2.4L |
| 2005 | DX L4 2.4L | LX L4 2.4L | EX L4 2.4L |
| 2006 | DX L4 2.4L | LX L4 2.4L | EX L4 2.4L |
| 2007 | DX L4 2.4L | LX L4 2.4L | EX L4 2.4L |

