USER MANUAL BCP0182 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BASKETBALL HOOP STAND MODEL:BCP0182

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and dose not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BASKETBALL HOOP STAND

MODEL:BCP0182

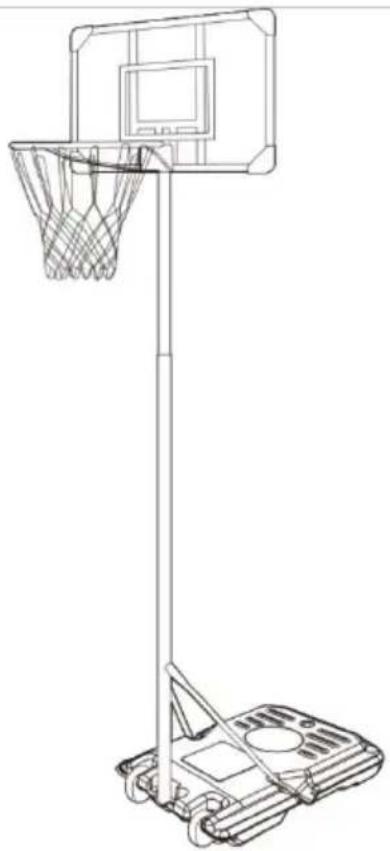

Line drawing of a basketball hoop with basket and support structure (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

INSTRUCTIONS

Thank you very much for choosing this Basketball Hoop Stand. Please read all of the instructions before using it. The information will help you achieve the best possible results.

WARNING:

Please read this manual carefully before using the product. Failure to may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or under the influence of alcohol, drug medication.
4. Weight capacity and other product capabilities only apply to a who correctly assembled product.
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. The weight of plate is heavy; pay attention to the installation to a hurting it, and if necessary, find someone to assist with the installation
8. When installing the bracket, it is best to put some water in the ba to avoid the collapse of the backboard.
9. Assembly should be done by adults only.
10. Do not hang from the rim or climb on the pole. Do not climb on base or structure in general, as this could result in serious injuries.
11. WARNING: This product contains small parts. If swallowed, it will a choking hazard. Keep these small parts away from children when assembling!

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

1. Use as intended only. Do not sit or stand on the product.
2. Inspect before every use. Do not use it if parts are loose or dan
3. Use on flat, level, and hard surfaces only.
4. If any parts are missing, broken, damaged, or worn, stop using this until repairs are made and actory replacement parts are installed.
5. Adjustment and moving of the basketball set must be carried out by adults.
6. Always check the unit to ensure the base is full of water or sand, all fittings and hardware are tight before each use.
7. Do not allow water to freeze in the base.

WARNING:

For your safety, please do not dunk or hang from the basketball SAVE THESE INSTRUCTIONS

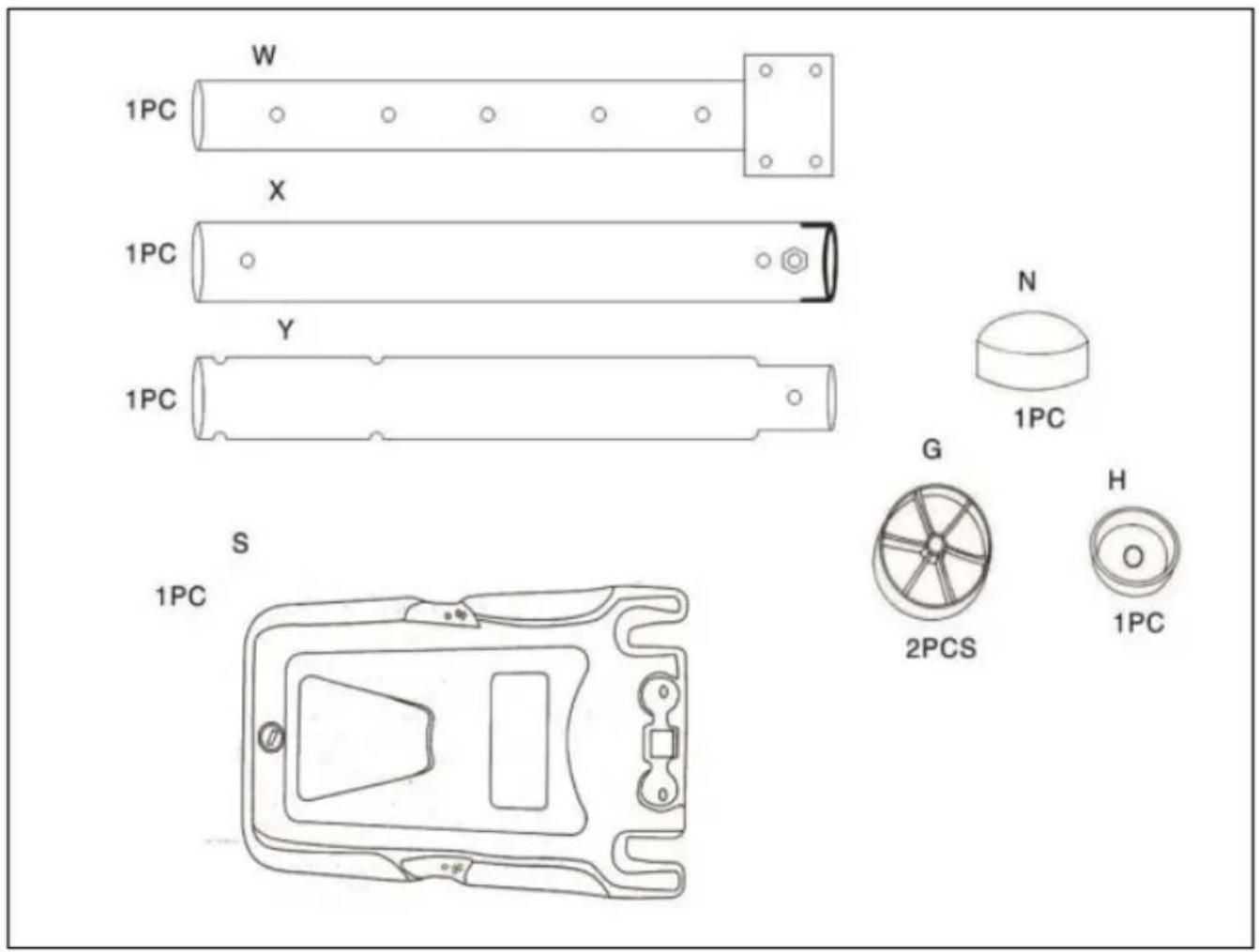

PART LIST

Part No	Name&Specification	Qty	Remarks
A	Plastic head knob	1	Fix Top Pole(W) On Middle Pole(
B1,B2, B3	Bolt,M8*45MM	4	Connect Rim(I)&backboard(K),& Top Pole(W)
C1,C2, C3	Bolt,M8*20MM	2	Connect base(S)&Base Brace(L1),(L2)
D1,D2, D3	Bolt,M8*55MM	2	Connect middle pole (X)& Bottom Pole(Y),And connect Top pole(W)&Middle Pole(X)
E1,E2, E3	Bolt,M8*60MM	1	Connect Bottom pole (Y)& Base brace(L1),(L2)
G	Wheel	2
H	Water Cap	1
I	Rim	1
J	Net	1
K	Backboard	1
L1	Right Brace	1
L2	Left Brace	1
M	Wheel Shaft	1
N	Pole Cap	1
W	Top Pole	1
X	Middle Pole	1
Y	Bottom Pole	1
S	Base	1

1 PCS 2

4 PCS 1

B1 B2 B3 PCS M8 × 45 MM

2 PCS

C1 C2 C3 M8 × 20 MM

D1 D2 D3 M8 × 55 MM

E1 E2 E3 M8 × 60 MM

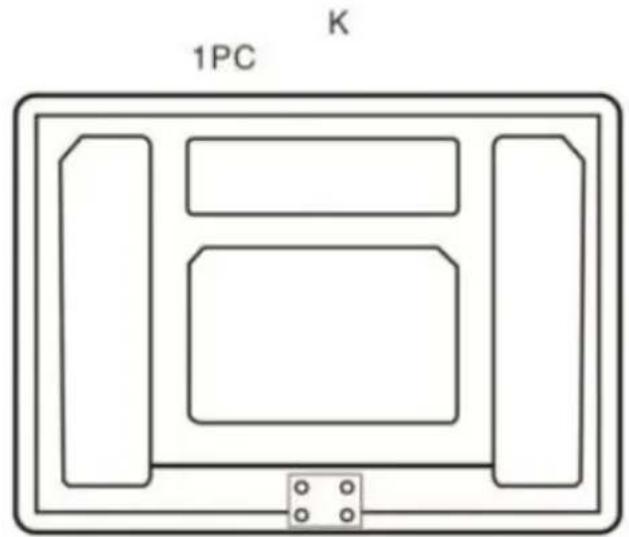

1PC K

L1 1PC L2 1PC M 1PC

1 1PC

J 1PC

W 1PC X 1PC Y 1PC S 1PC N 1PC G 2PCS H 1PC

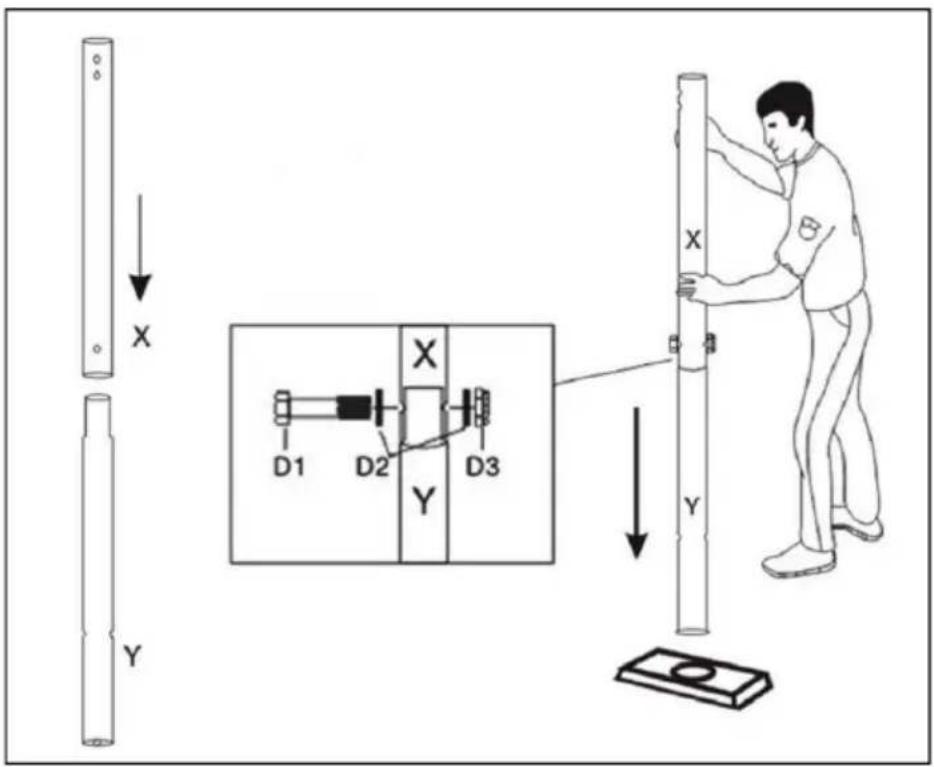

Connect the Middle Pole(X)&Bottom Pole(Y) as shown, Fix them by Boll Set(D1), (D2) &(D3).

X D1 D2 D3 Y X Y

S Y G M

Technical line drawing of a mechanical component with no visible text or symbols

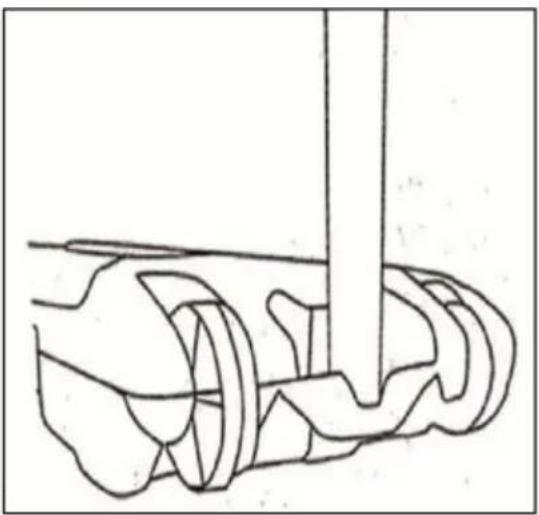

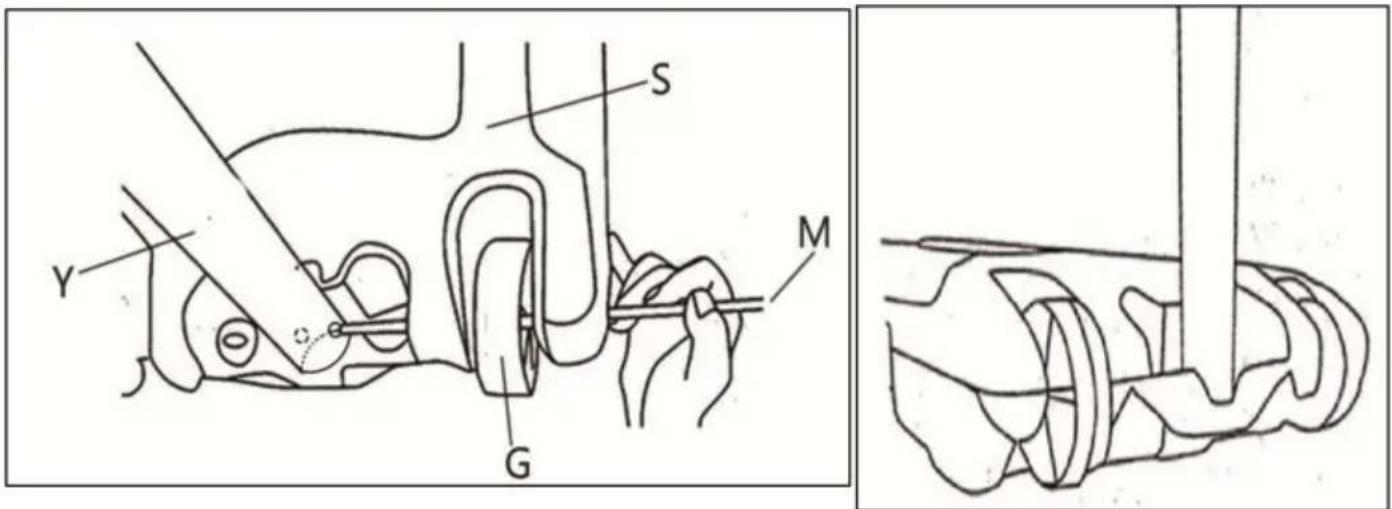

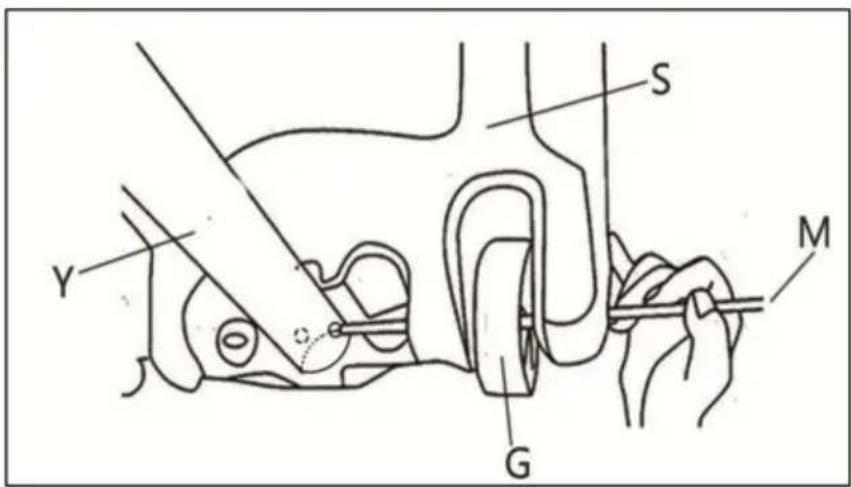

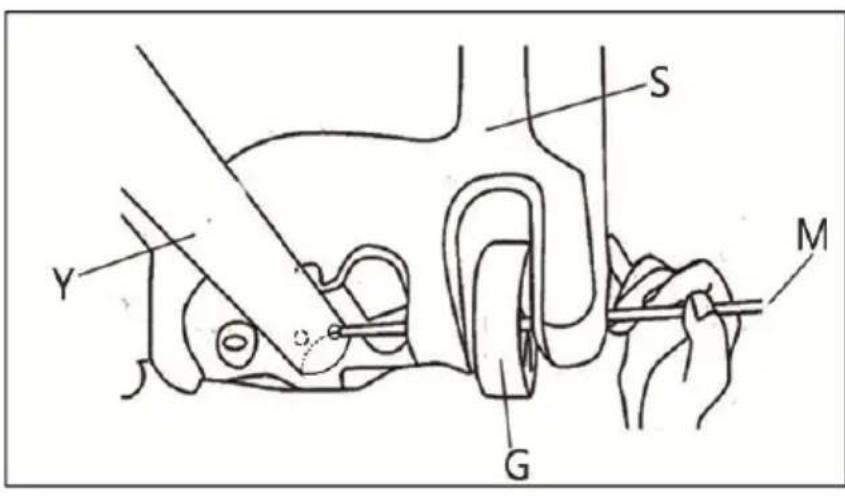

Insert the Wheel Shaft(M) into Wheel(G),Base(S) and end of Bottom Pole(Y) as shown.

Y E1 E2 E3 L1 L2 S

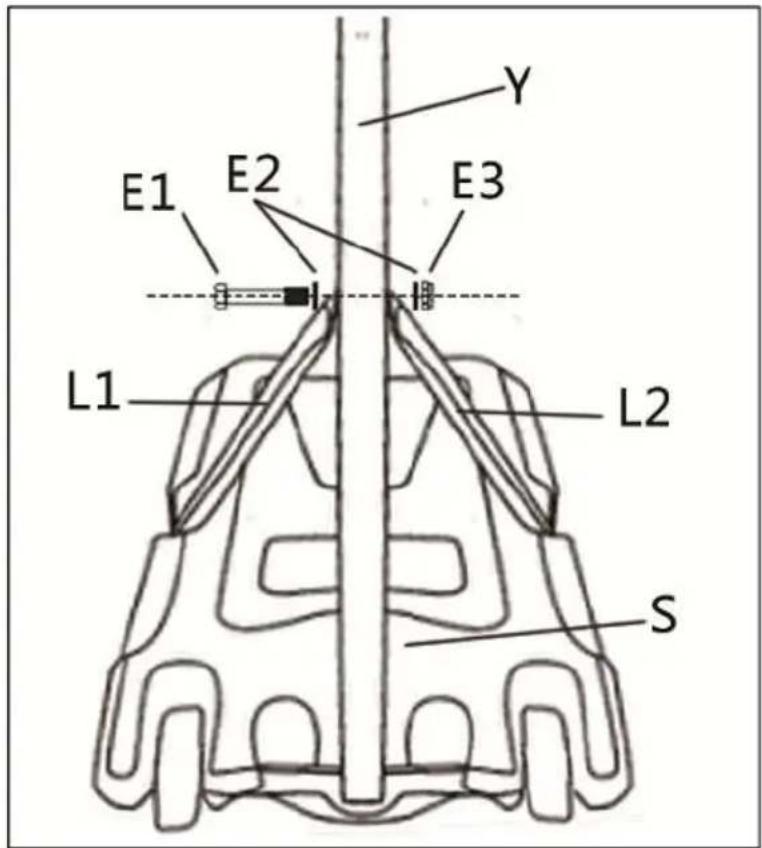

Fix one end of Pole Brace(L1)&(L2) on Bottom Pole(Y) by Bolt Set(E1),(E2)&(E3) as shown

C1 L1 C2 C3

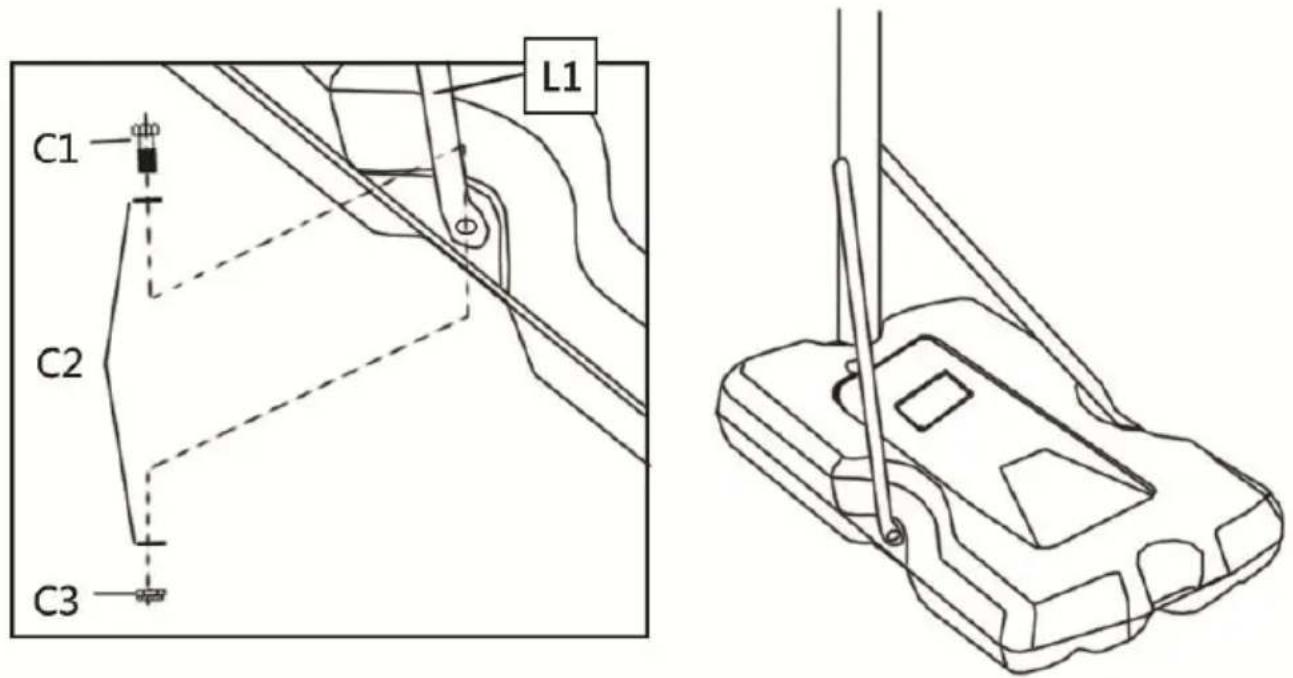

Fix the other end of Pole Brace(L1)&(L2) on two sides of Base(S) by Set(C1),(C2)&(C3) as shown.

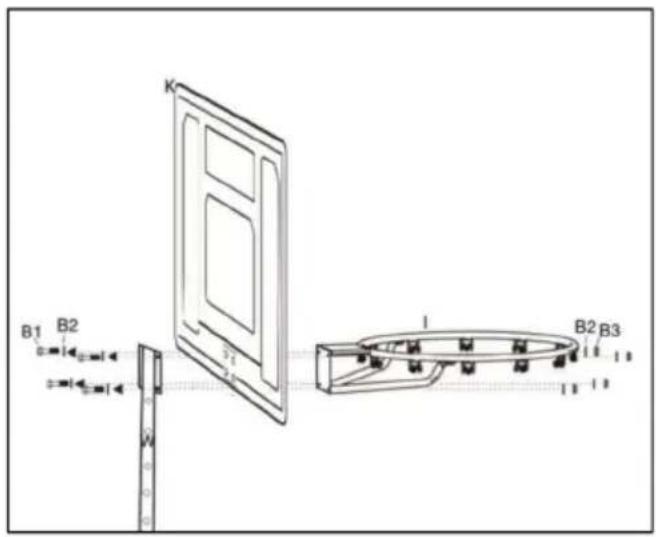

Install Rim(I)&Top Pole(W) on Backboard(K) by Bolt Set (B1),(B2)&(B3) shown.

B1 B2 W K I B2 B3

Diagram illustrating a basketball diving technique with labeled components and directional arrows, including inset images of the ball and a scale.

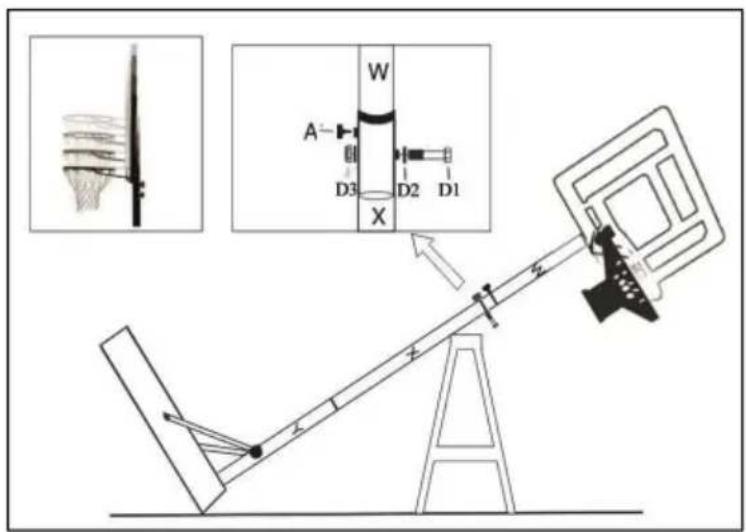

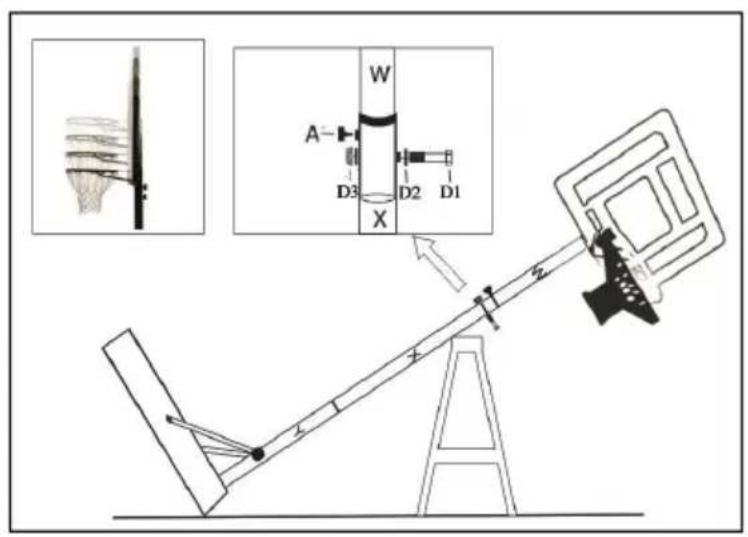

Insert the Top Pole(W) into Middle Pole (X),adjust it to required height fix them by Plastic Head Knob(A)&Bolt Set(D1),(D2)&(D3) as shown.Adj the height by change the Bolt Set(D1),(D2)&(D3) in different holes on Pole(W).

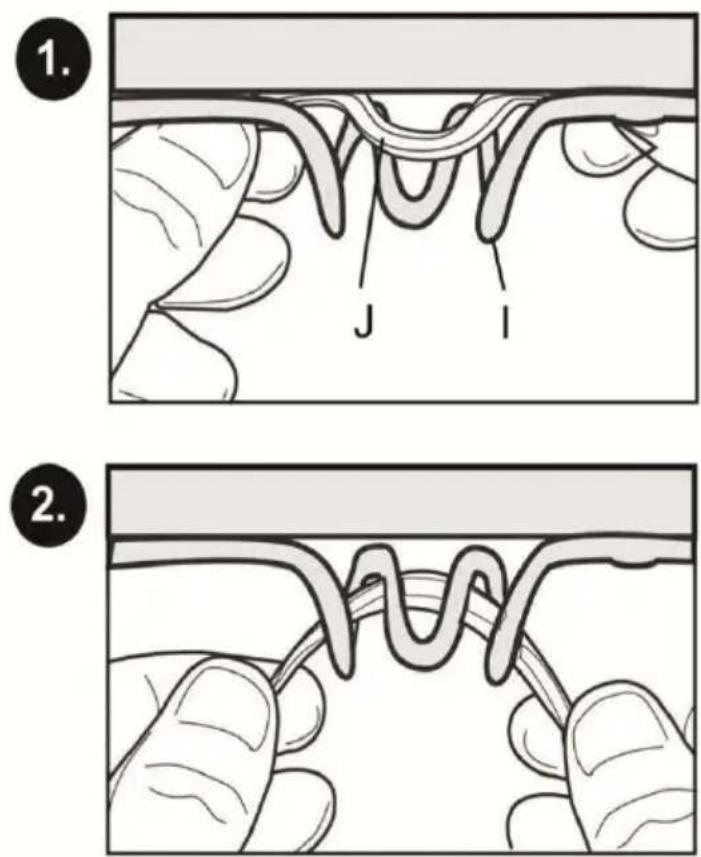

Install Net (J) on Rim (I) as shown.

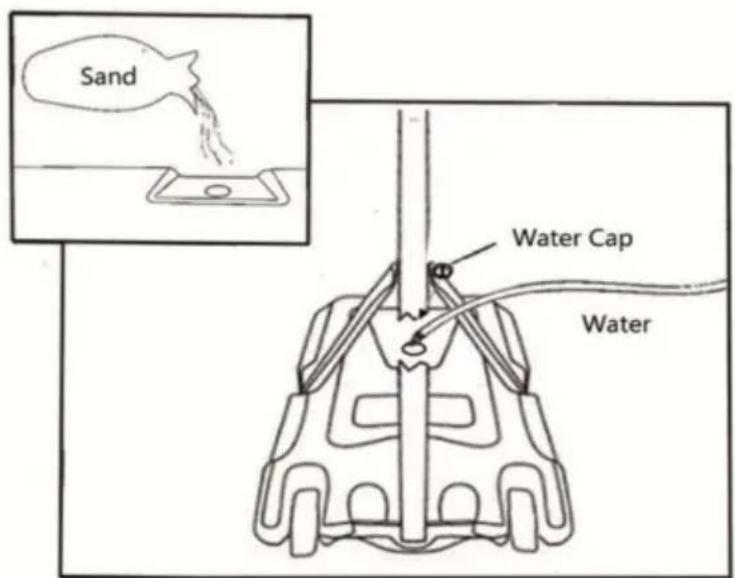

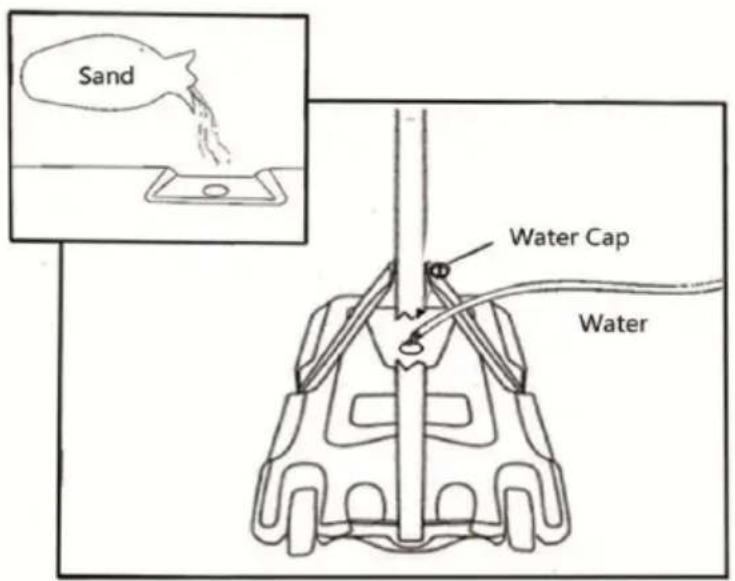

Filling the base(S) with water or sand to keep steady.

Sand Water Cap Water

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China
