AH627 - Toys Vevor - Free user manual and instructions

Product Type	Air Hockey Table
Model	AH627
Brand	Vevor
Dimensions (L x W x H)	1830 x 1020 x 812 mm
Materials	Medium-density fiberboard (MDF), polyvinyl chloride (PVC)
Power Supply	AC 100-120 V / AC 220-240 V, 50/60 Hz
Maximum Power	50 W
Electronic Scoring	Yes, built-in electronic scoring system
Assembly Required	Yes, assembly required
Approximate Weight	Approximately 60 kg
Sport	Air hockey
Safety	Adult supervision recommended during assembly and use; do not climb on the table; use safety gloves and goggles during assembly
Maintenance and Cleaning	Clean dust regularly with a clean dry cloth; avoid dusty, humid, or corrosive environments
Spare Parts and Repairability	Use only identical replacement parts; contact technical support via www.vevor.com/support for any repairs
Warranty	Warranty valid subject to no modification, proper use, and regular maintenance; any unauthorized opening voids the warranty
Regulatory Information	Complies with FCC Part 15; European Directive 2012/19/EU (WEEE) - do not dispose with household waste

Frequently Asked Questions - AH627 Vevor

How to assemble the AH627 air hockey table?

Assembly must be done on a flat, hard surface. Follow the step-by-step instructions in the manual. Use sturdy work gloves and safety goggles. Make sure all parts are present before starting. Do not assemble the table when tired or under the influence of substances.

What is the required power supply voltage?

The table operates on either AC 100-120 V (model AH627) or AC 220-240 V (model AH627-EU), with a frequency of 50/60 Hz and a maximum power of 50 W. Check the model before plugging in.

What is the maximum weight the table can support?

While the exact weight is not specified, a table of this size generally supports up to 100 kg. Do not climb or sit on the table to avoid damage or injury.

How to clean the air hockey table?

Clean dust regularly with a clean dry cloth. Avoid dusty, humid, or corrosive environments. Do not use harsh chemicals that could damage the PVC surface.

What to do if the electronic display does not work?

First check that the table is properly plugged in and the outlet works. If the problem persists, contact customer service via www.vevor.com/support. Do not attempt to repair the electronic components yourself, as this will void the warranty.

Is the table suitable for children?

Yes, but adult supervision is recommended during assembly and use. Children should be supervised to avoid falls or injuries from mallets or pucks.

Can I use the table without the legs?

No, the table must be assembled with all legs and secured to the floor to ensure stability. Use without legs or on an unstable surface may cause damage or injury.

How to contact Vevor technical support?

Visit www.vevor.com/support to access technical support and the electronic warranty certificate. You will find contact information to ask questions or request spare parts.

What to do if a part is missing or damaged in the package?

Check all parts against the list in the manual. If a part is missing or damaged, contact Vevor customer service at www.vevor.com/support with a photo of the packaging and the product reference.

Are there any special safety precautions to follow?

Yes, read the entire manual before use. Never climb on the table, regularly check the condition of the goal and net, use gloves and goggles during assembly, and keep the playing area clear. Follow FCC and WEEE guidelines.

USER MANUAL AH627 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRONIC SCORING - AIR HOCKEY TABLE

MODEL: AH627;AH627-EU

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: AH627; AH627-EU

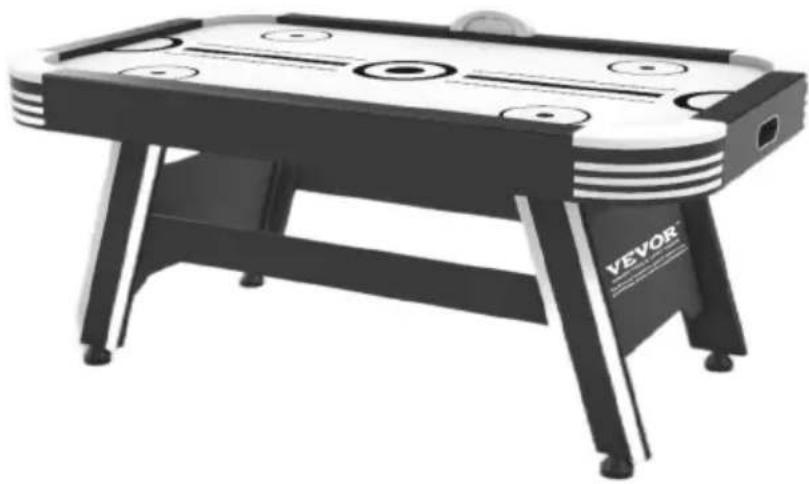

Black and white photo of an indoor VEVOR air hockey game with a round table and wheels (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this Air Hockey Table . Please re of the instructions before using it.The information will help you achieve best possible results.

SAFETY ADVICE

SAFE WORKING PRACTICE

▶ Always inspect the goal post and net for defects before use and replace damaged parts.
▶ Do not use the goal with faulty parts.
▶ The goal must always be secured to the ground. Weights to be on hard surfaces.
▶ Never climb onto the table. Please always follow the safety instructions.
▶ We recommend that adults supervise the assembly and use process. Do not drop any heavy objects on the desktop.
▶ When dismantling the goal ensure that all fittings are packed away and none are left on the playing surface.

WARNING:

Loose pegs may cause injury. Care should be taken when using a r as misuse may cause injury.

SPECIFICATIONS

Model	AH627
Product size L x W x	1830*1020*812mm
Materials	medium density fiberboard, polyvinyl chlor
Scoring Model	Electronic scoring
Assembly Required	Yes
Sports	air hockey
Rating	AC100~120V 60Hz Max.50W

Model	AH627-EU
Product size L x W x	1830*1020*812mm
Materials	medium density fiberboard, polyvinyl chlor
Scoring Model	Electronic scoring
Assembly Required	Yes
Sports	air hockey
Rating	AC220~240V 50Hz Max.50W

PART LIST

Note: Refer to part numbers and be sure all parts are in

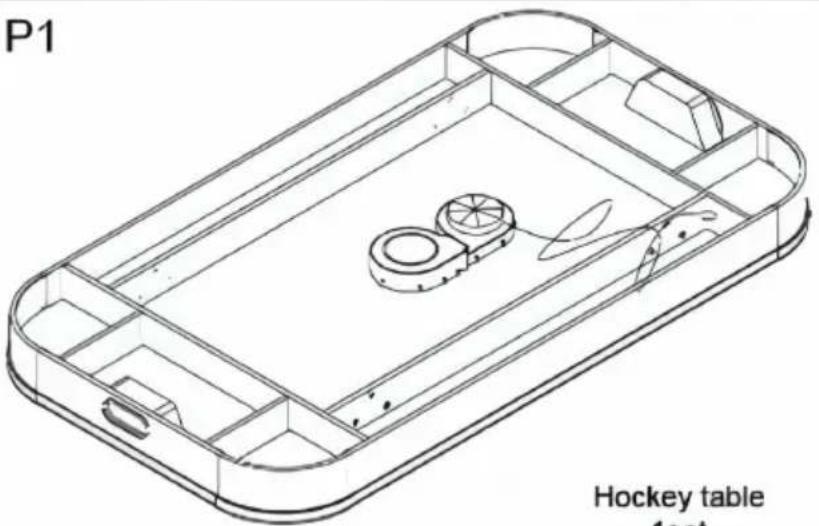

			P2Leg (L)2pcs
			F2Leg (R)2pcs
F1Leg end panels2pcs	FLeg side panels2pcs	P6Leg levelers4pcs	P7Electronic scorer1set
H11/4"x1-3/4" Bolts8pcs	H21/4"x2-1/4" Bolts8pcs	H35/16"x2" Bolts12pcs	H41/4" Washer24pcs
H55/16" Washer12pcs	H61/4" Lock nut8pcs	H71/4" Nut8pcs	H825mm Screw2pcs
A1Hex wrench1pc	A2Open end wrench1pc	A3Hockey Puck2pcs	A4Hockey striker2pcs

Figure 1

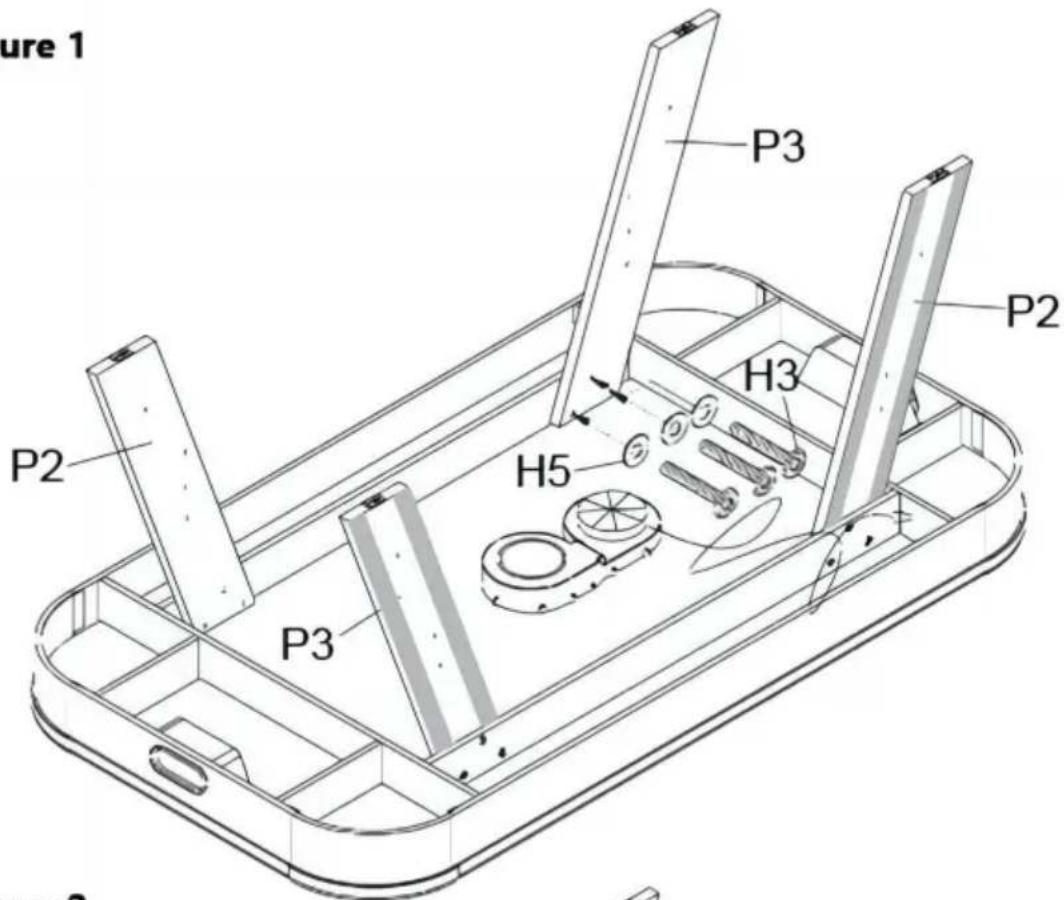

Figure 1 P3 P2 P2 H3 H5 P3 Figure 2

Figure 2

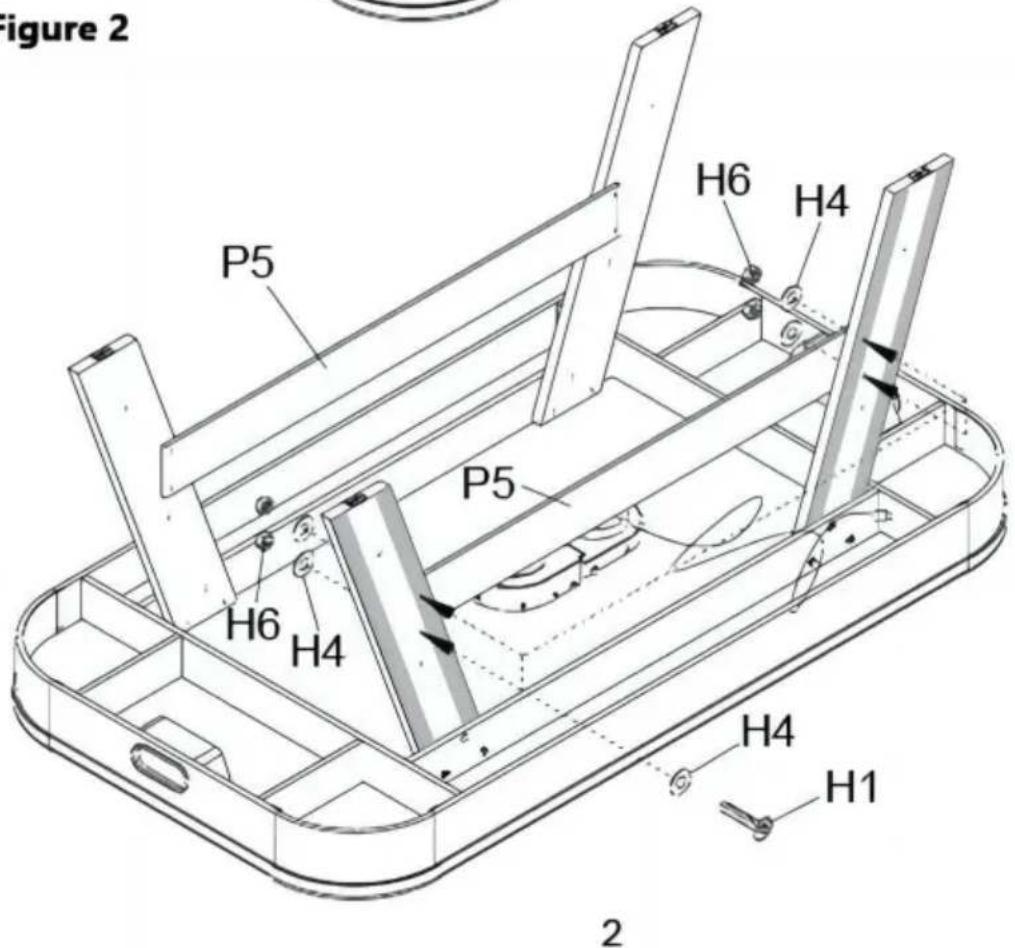

Figure 2 P5 H6 H4 P5 H6 H4 H4 H1

2

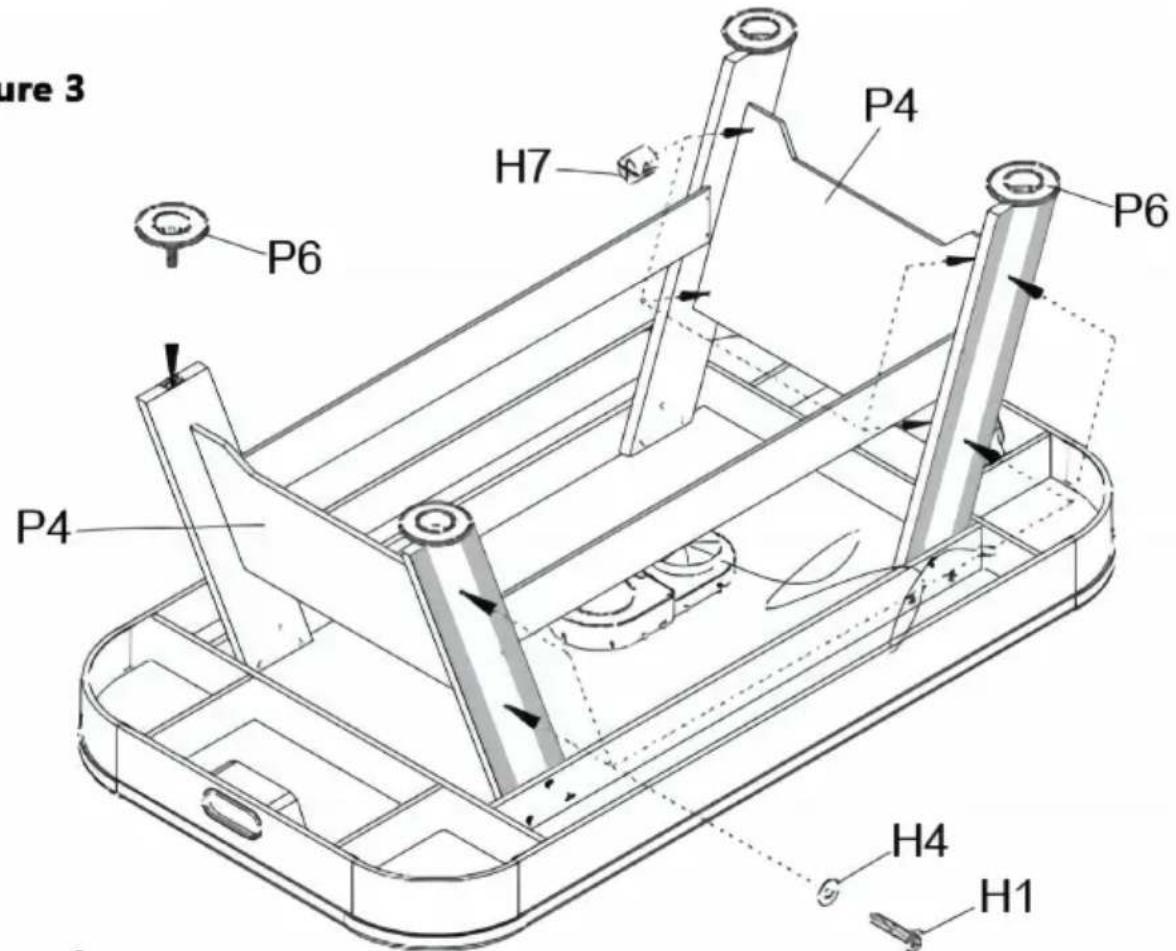

Figure 3

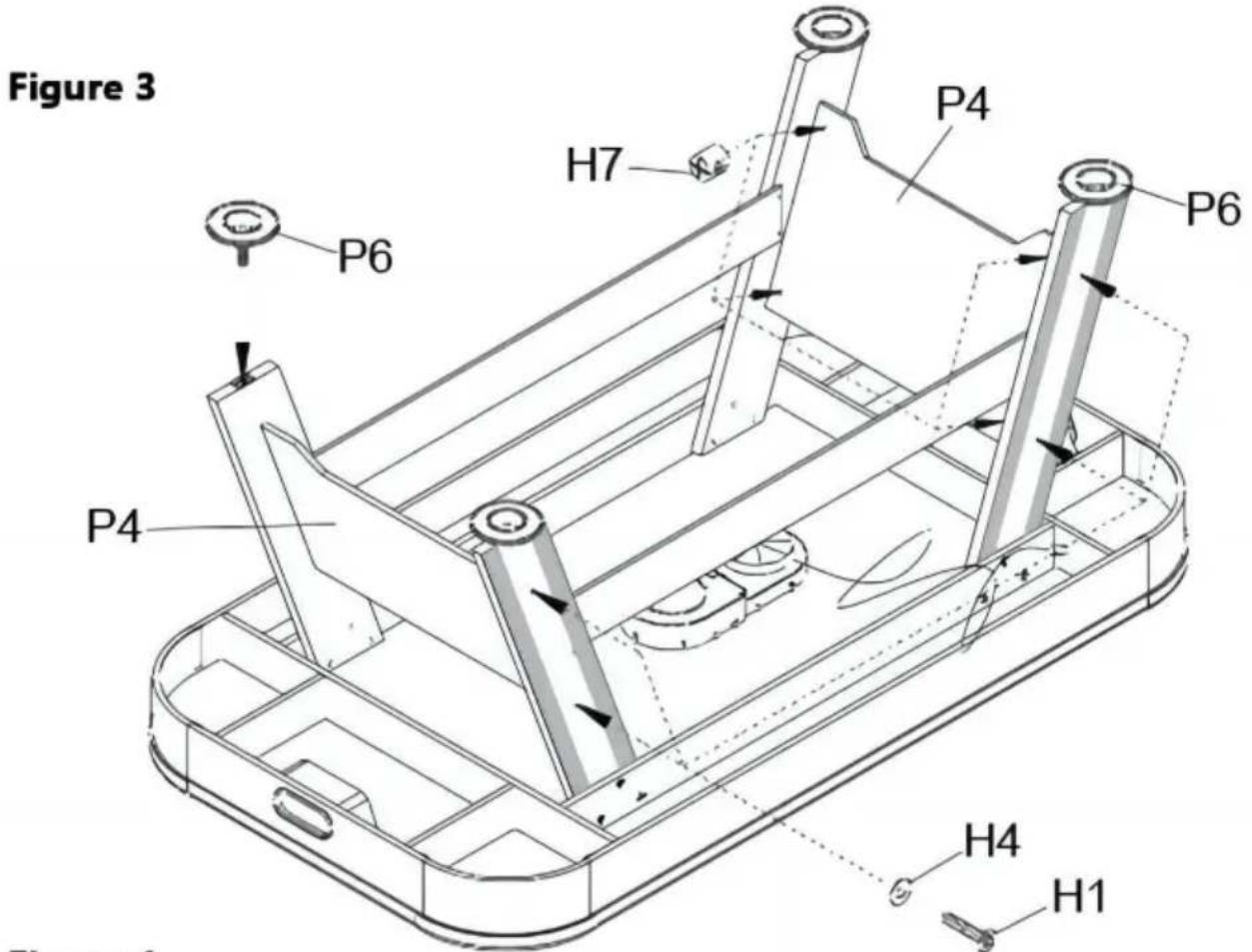

Figure 3 P4 P6 H7 P4 P6 H4 H1

Figure 4

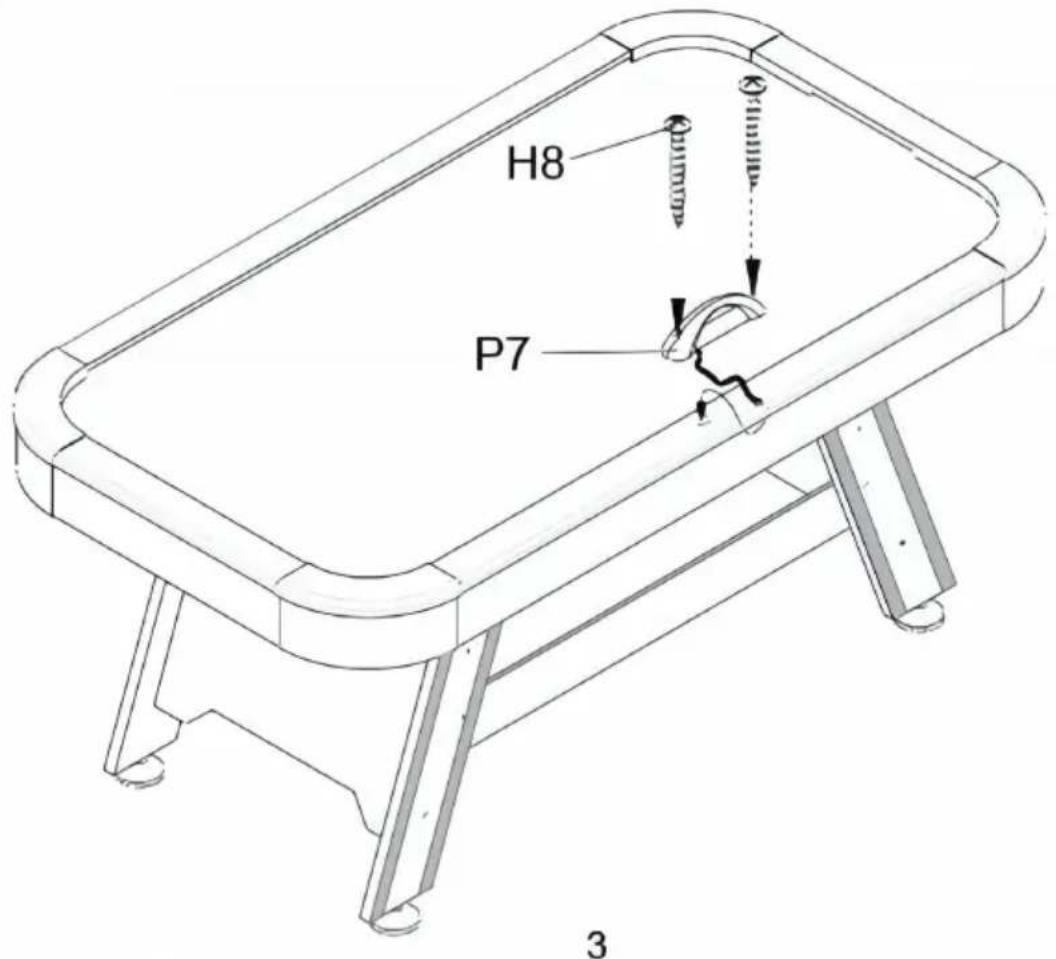

H8 P7 3

Installation:

1. Choose a relatively flat lawn or ground.
2. Check for any missing or damaged accessories according to the a diagram.
3. Connect the product and lock the screws according to the splicing method shown in Figure.

WARNING!

Read and understand all instructions before using this Air Hockey Tab. The operator must follow basic precautions to reduce the risk of pers injury and/or damage to the equipment.

Keep this manual for safety warnings, precautions, operating or inspect and maintenance instructions.

Please familiarize yourself with the hazard notices found in this manual notice is an alert that there is a possibility of property damage, injury death if certain instructions are not followed.

WARNING!

DO NOT let comfort or familiarity with product (gained from repeated replace strict adherence to the tool safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves duri assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Weight capacity and other product capabilities apply to properly and completely assembled product only.
7. Assemble on a flat, level, hard and smooth surface capable of safe supporting a fully loaded Wine Cabinet.

MAINTENANCE/ Service

Have your air hockey table repaired by qualified personnel using only same replacement parts. This will ensure the safety of the air hockey is maintained. A dusty, humid, or corrosive environment can cause data to an air hockey table. To prevent malfunctions in the air hockey tab regularly clean the dust with a clean dry cleaning cloth. Please note

lack of maintenance may result in the cancellation of the warranty pe the air hockey table has been modified, or if you attempt to open the hockey table without the consent of the manufacturer's authorized representative, the warranty of this wine cabinet will be invalid.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

● Reorient or relocate the receiving antenna.
- Increase the distance between the product and receiver.
- Connect the product to an outlet on a circuit different from that 1 the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for assistance.

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as suc may not be discarded with normal domestic waste, but must be taker acollection point for recycling electrical and electronic devices.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black and white photo of an indoor VEVOR air hockey game table with visible buttons and legs (no text or symbols on the table itself)

BESOIN D'AIDE ? CONTACTEZ-NOUS !

			P2Leg (L)2pcs
			F2Leg (R)2pcs
P4Leg end panels2pcs	FLeg side panels2pcs	P6Leg levelers4pcs	P7Electronic scorer1set
H11/4"x1-3/4" Bolts8pcs	H21/4"x2-1/4" Bolts8pcs	H35/16"x2" Bolts12pcs	H41/4" Washer24pcs
H55/16" Washer12pcs	H61/4" Lock nut8pcs	H71/4" Nut8pcs	H825mm Screw2pcs
A1Hex wrench1pc	A2Open end wrench1pc	A3Hockey Puck2pcs	A4Hockey striker2pcs

Figure 1

Figure 1 P3 P2 P2 H3 H5 P3

Figure 2

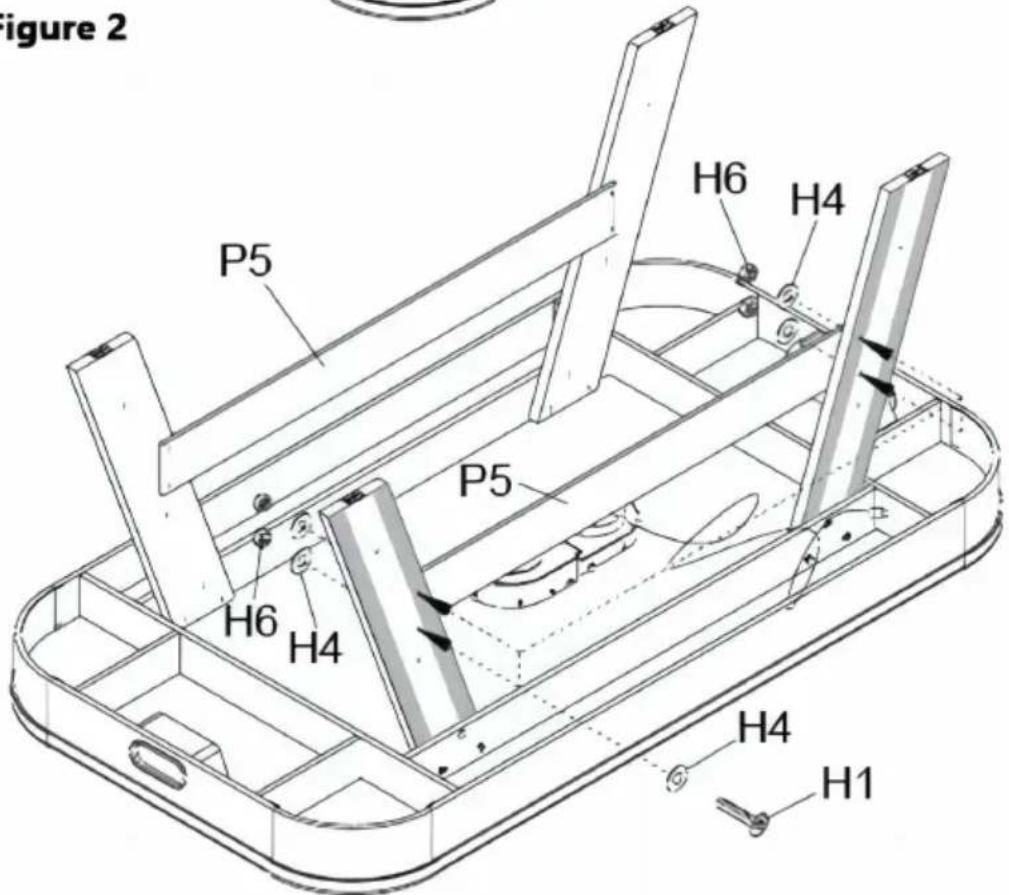

Figure 2 P5 H6 H4 P5 H6 H4 H4 H1 2

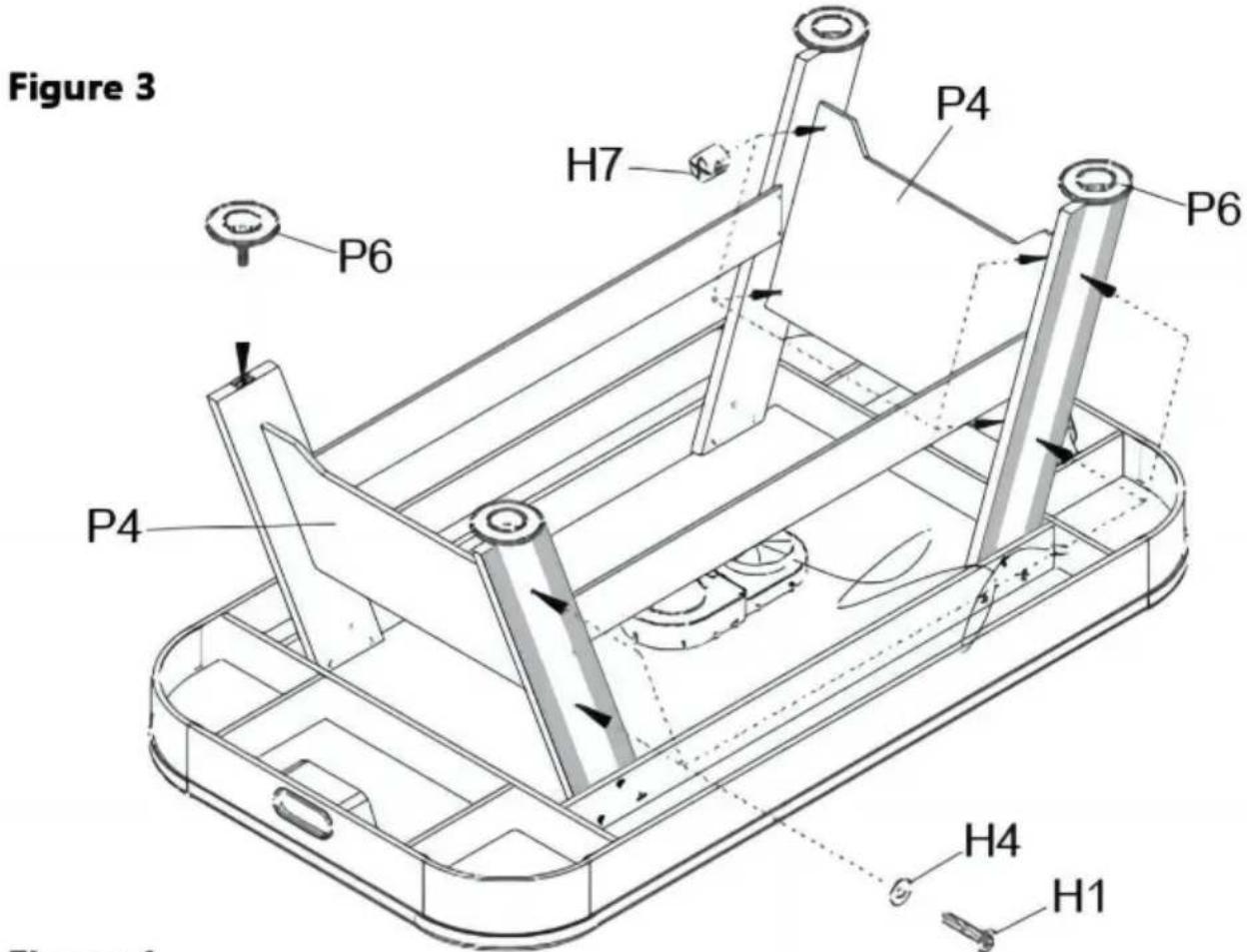

Figure 3 P4 P6 H7 P4 P6 H4 H1
