USER MANUAL 6550-6550-CT-106-07 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WHEEL SPACERS

MODEL: 6550-6550-CT-106-07

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 6550-6550-CT-106-07

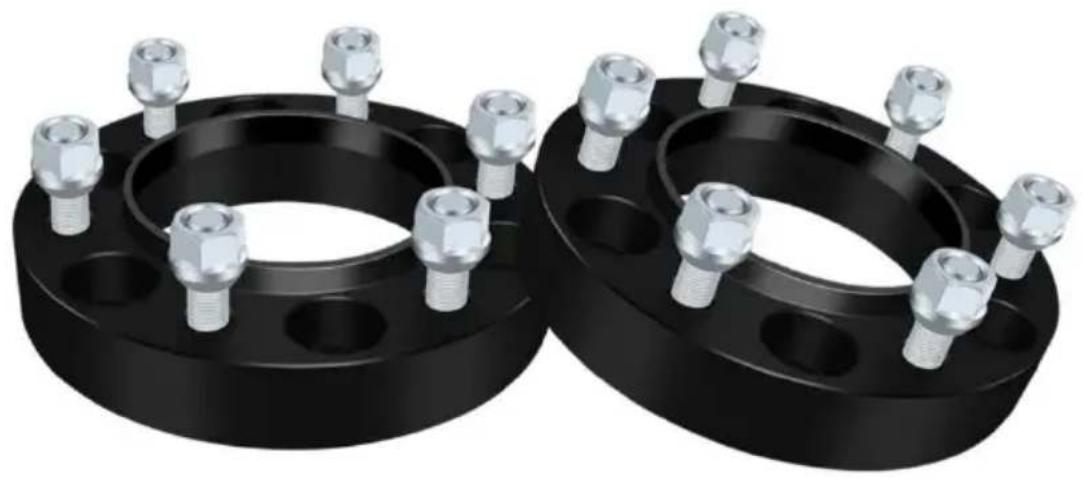

Two black flange components with metallic bolts and threaded fasteners, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

In Order To Avoid Wobble And Break Studs Problems, Please Read These Important Safety Information As Follows:

• Never modify the wheel adapters/spacers.
• Never remove the factory-installed studs on the wheel adapters/spacers.
  ● Never use an impact wrench.

- Do not stack multiple adapters/spacers on a single wheel.

● Make sure that mating flange on the vehicle's rotor is completely clean.

- Re-torque all lug nuts on the spacer/adapter after 25-50 miles of driving, t again after 1-2,000 miles, use the thread locker to ensure the nuts are secu enough, avoid taking off.

- Carefully follow the installation instructions included in this package.

INSTALLATION INSTRUCTIONS

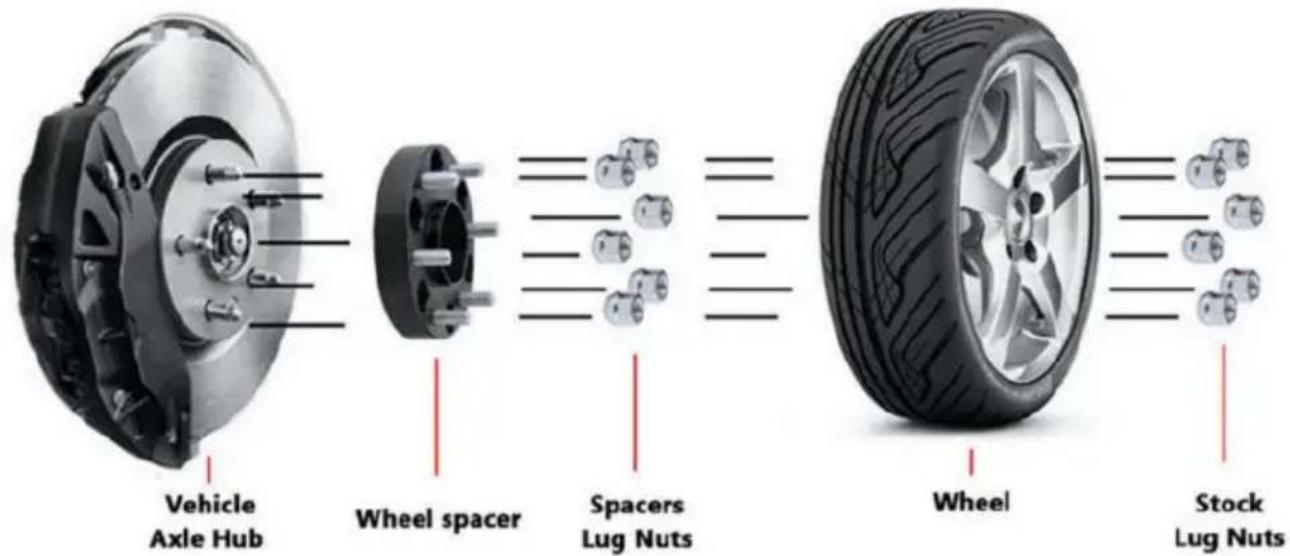

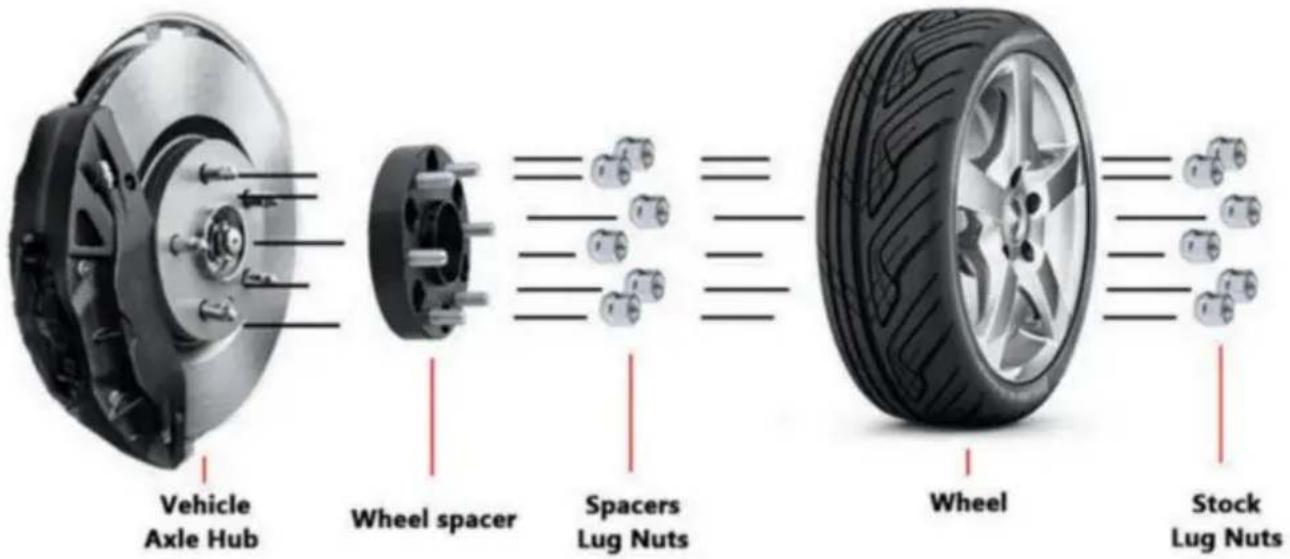

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

1. Following your vehicle owner's manual, properly raise the vehicle and supp using adequately load-rated jack stands. Never work on a raised vehicle that supported with a factory emergency, floor or bottle jack. Remove wheels and inspect rotors for any damageor cracks. If any damage is identified, do not continue with this installation.

2. Remove any visible rust from the mating flange on the vehicle's rotor. Ins, both the rotor and wheel mounting flanges for burns, rivet heads, or other obstruction that would preventa flush seating of the vehicle rotor's mounting flange to both the inner and outer side of the spacers. Improperly seated spacers are hazardous and may cause adapter failure, resulting in the loss of a wheel which driving the vehicle.

3. If proper seating can be achieved, mount the wheel spacer onto the vehicle studs until it sits flush with the rotor's flange. Thread glue on the studs is recommended to reduce vibration risk. Install with open-end lug nuts (included with this kit) as the specs below, follow the star pattern by hand wrench. Do impact or it will damage the nuts.

4. Place wheel on the wheel adapter studs until the wheel mounting flange is flush on the adapter's outer flange. Install the nuts provided onto the lugs.
5. Check for proper tire clearance in the wheel well.making certain there is sufficient wheel and tire clearance for full steering (lock-to-lock). If there is no interference,vehicle may belowered. Once vehicle is on the ground under full recheck for adequate tire and wheel clearance and unobstructed lock-to-lock steering.

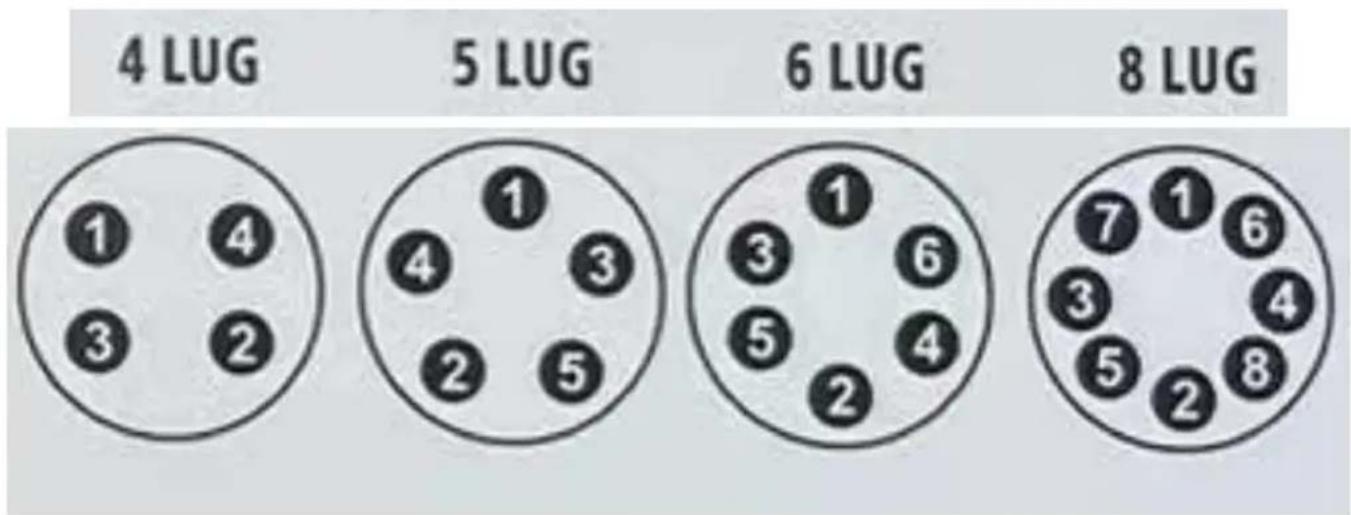

Standard torque of Nuts or bolts:

4 LUG 5 LUG 6 LUG 8 LUG

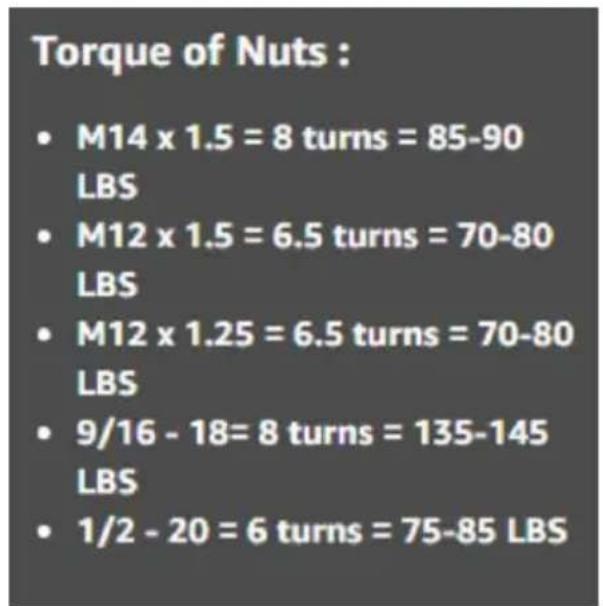

Torque of Nuts : • M14 x 1.5 = 8 turns = 85-90 LBS • M12 x 1.5 = 6.5 turns = 70-80 LBS • M12 x 1.25 = 6.5 turns = 70-80 LBS • 9/16 - 18= 8 turns = 135-145 LBS • 1/2 - 20 = 6 turns = 75-85 LBS

Model	6550-6550-CT-106-07
Thickness(inch)	1.5
Wheel Bolt Pattern	6 x 5.5 in
Center Bore	106.1 mm
Thread Pitch	M12x1.5
Qty.	4

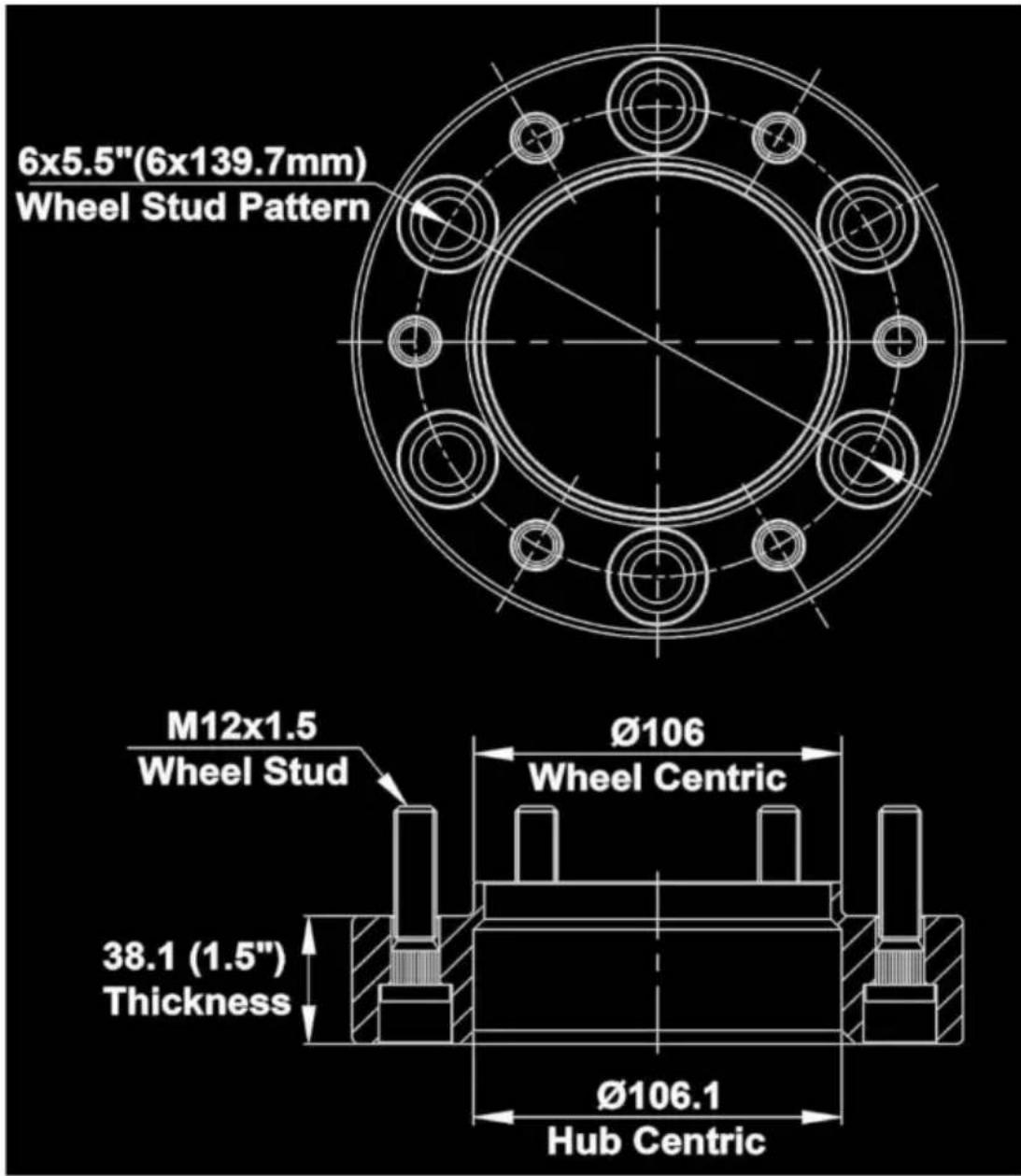

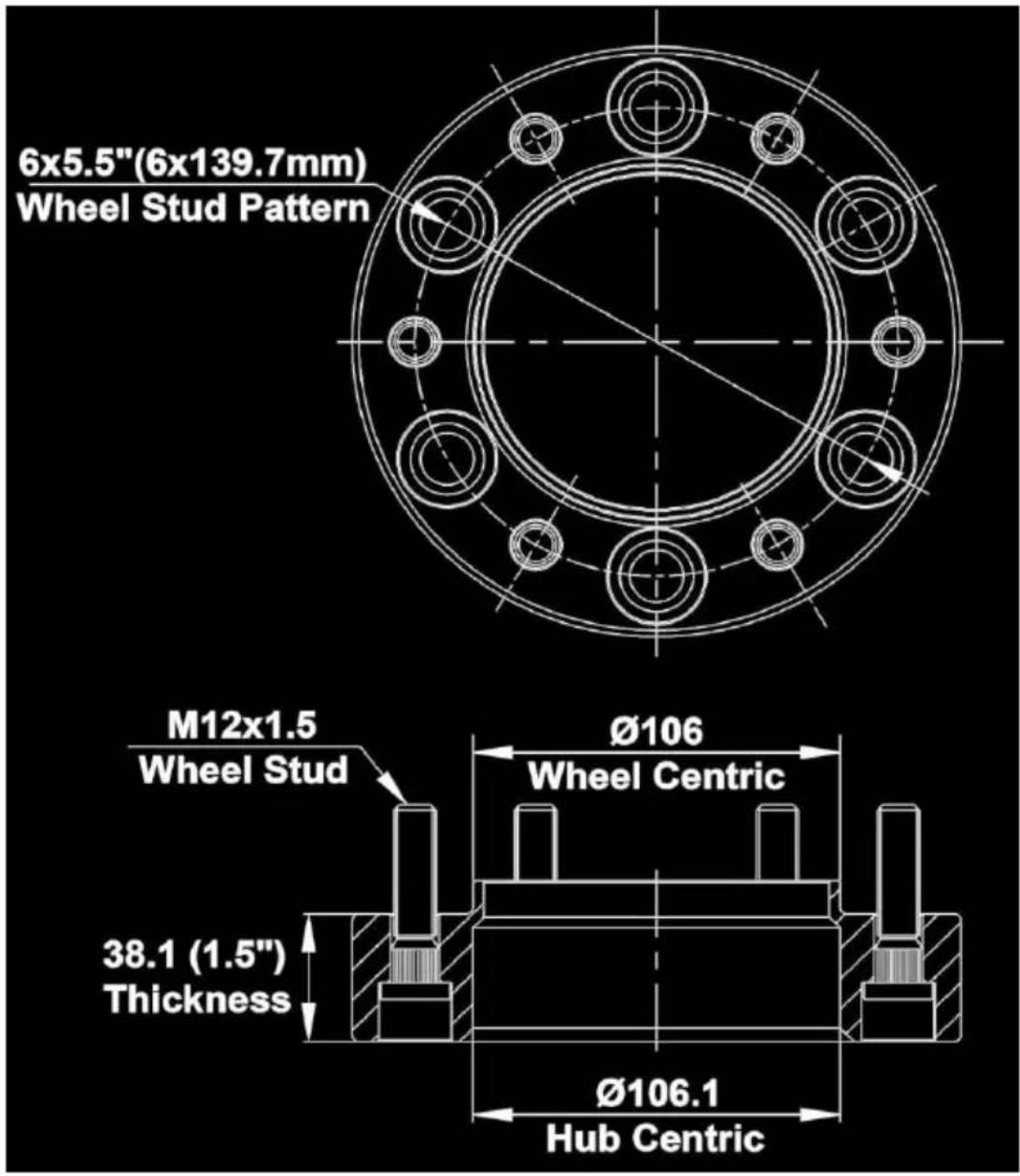

6x5.5"(6x139.7mm) Wheel Stud Pattern M12x1.5 Wheel Stud 38.1 (1.5") Thickness Ø106 Wheel Centric Ø106.1 Hub Centric

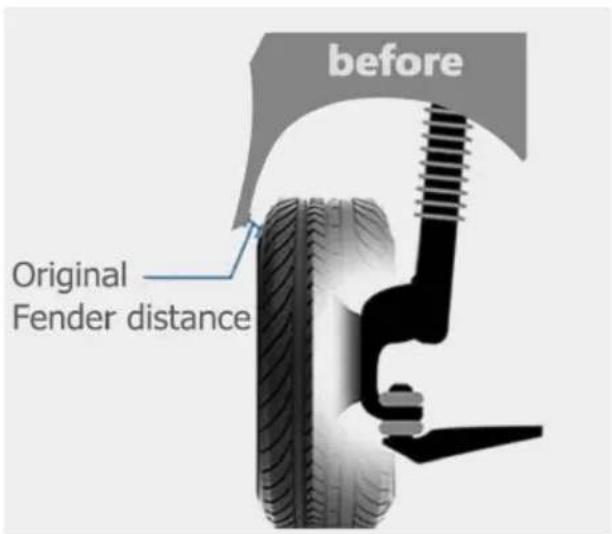

before Original Fender distance

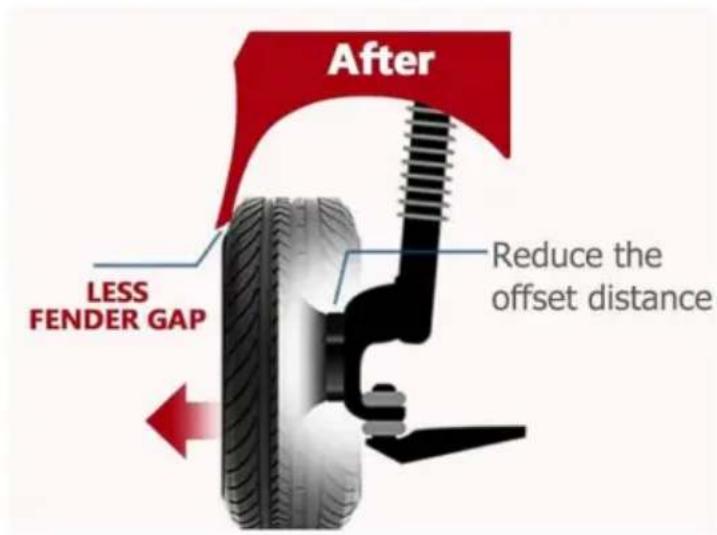

After LESS FENDER GAP Reduce the offset distance

Adaptive Model
TOYOTA	2002-2021	Tacoma 4WD/Pre-Runner/VVT-i(not fit 2WD S-Runner or X-Runner)
	1996-2022	4Runner
	2000-2006	Tundra
	2005-2022	Fortuner
	2001-2007	Sequoia
	2004-2019	Ventury H200
	1998-2013	Land Cruiser(Only Fit For 6 lugs)
	2007-2022	FJ Cruiser
Lexus	2002-2021	GX460 470 400 J120 J150 Series

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

BESOIN D'AIDE? CONTACTEZ-NOUS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

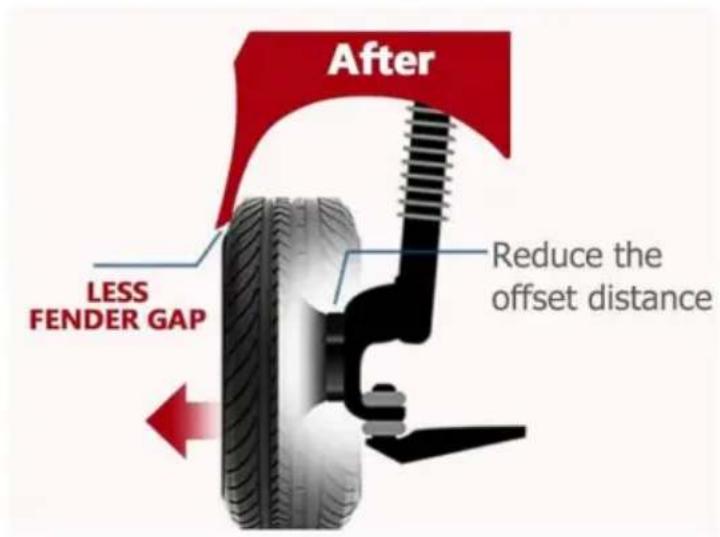

After LESS FENDER GAP Reduce the offset distance

Adaptives Modell
Toyota	2002–2021	Tacoma 4WD/Pre-Runner/VVT-i (nicht passend 2WD S-Runner oder X-Runner)
	1996-2022	4Läufer
	2000-2006	Tundra
	2005-2022	Fortuner
	2001-2007	Mammutbaum
	2004-2019	Ventury H200
	1998-2013	Land Cruiser (nur passend für 6 Laschen)
	2007–2022	FJ Cruiser
Lexus	2002–2021	GX460 470 400 J120 J150 Serie

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Büro 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

HO BISOGNO DI AIUTO? CONTATTACI!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

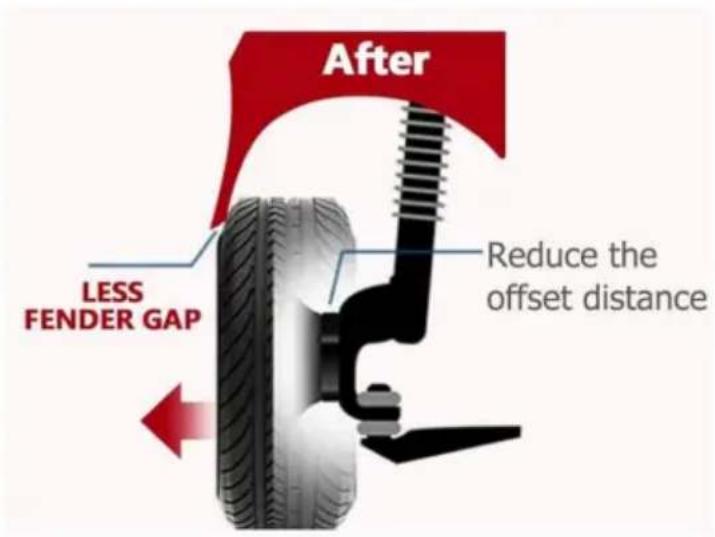

After LESS FENDER GAP Reduce the offset distance

Modello adattivo
TOYOTA	2002-2021	Tacoma 4WD/Pre-Runner/VVT-i (non adatto 2WD S-Runner o X-Runner)
	1996-2022	4Corridore
	2000-2006	Tundra
	2005-2022	Fortunatore
	2001-2007	Sequoia
	2004-2019	Venture H200
	1998-2013	Land Cruiser (adatto solo per 6 alette)
	2007-2022	Incrociatore FJ
Lexus	2002-2021	Serie GX460 470 400 J120 J150

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122Australia

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
- M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Modelo	6550-6550-CT-106-07
Grosor (pulgadas)	1.5
Patrón de pernos de rueda	6 x 5,5 pulgadas
Orificio central	106,1 milímetros
Paso de rosca	M12x1.5
Cant.	4

6x5.5"(6x139.7mm) Wheel Stud Pattern M12x1.5 Wheel Stud 38.1 (1.5") Thickness Ø106 Wheel Centric Ø106.1 Hub Centric

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Modelo adaptativo
Toyota	2002-2021	Tacoma 4WD/Pre-Runner/VVT-i (no compatible 2WD S-Runner o X-Runner)
	1996-2022	4 corredores
	2000-2006	Tundra
	2005-2022	fortuna
	2001-2007	Secoya
	2004-2019	Venturi H200
	1998-2013	Land Cruiser (solo apto para 6 terminales)
	2007-2022	crucero fj
lexus	2002-2021	Serie GX460 470 400 J120 J150

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA CALLE ASTWOOD

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

HULP NODIG? NEEM CONTACT MET ONS OP!

INSTALLATIE INSTRUCTIES

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
- M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Model	6550-6550-CT-106-07
Dikte (inch)	1.5
Patroon van wielbouten	6 x 5,5 inch
Centrum boring	106,1 mm
Draadafstand	M12x1,5
Aantal	4

6x5.5"(6x139.7mm) Wheel Stud Pattern M12x1.5 Wheel Stud 38.1 (1.5") Thickness Ø106 Wheel Centric Ø106.1 Hub Centric

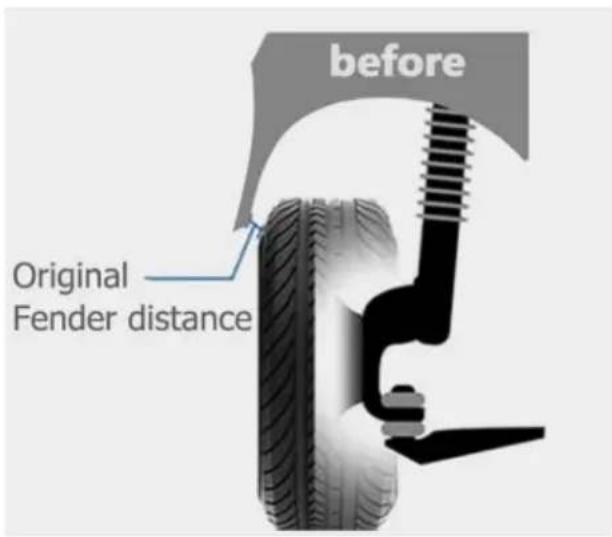

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptief model
TOYOTA	2002-2021	Tacoma 4WD/Pre-Runner/VVT-i (niet geschikt 2WD S-Runner of X-Runner)
	1996-2022	4 Loper
	2000-2006	Toendra
	2005-2022	Fortuner
	2001-2007	Sequoia
	2004-2019	Venturi H200
	1998-2013	Landcruiser (alleen geschikt voor 6 nokken)
	2007-2022	FJ Kruiser
Lexus GX460	470 2002-2020 J150-serie

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

BEHÖVS HJÄLP? KONTAKTA OSS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
- M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Modell	6550-6550-CT-106-07
Tjocklek (tum)	1.5
Hjulbultsmönster	6 x 5,5 tum
Center Bore	106,1 mm
Trådtäthet	M12x1,5
Antal.	4

6x5.5"(6x139.7mm) Wheel Stud Pattern M12x1.5 Wheel Stud 38.1 (1.5") Thickness Ø106 Wheel Centric Ø106.1 Hub Centric

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptiv modell
TOYOTA	2002-2021	Tacoma 4WD/Pre-Runner/VVT-i (passar inte 2WD S-Runner eller X-Runner)
	1996-2022	4Löpare
	2000-2006	Tundra
	2005-2022	Fortuner
	2001-2007	Sequoia
	2004-2019	Ventury H200
	1998-2013	Land Cruiser (passar endast för 6 luggar)
	2007-2022	FJ Cruiser
Lexus GX460	470 4002J2021J150-serien

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
