ABS-6UM - Storage case Vevor - Free user manual and instructions

Product Type	Rack storage case (storage case)
Brand	Vevor
Model	ABS-6UM
Main Material	ABS (Acrylonitrile Butadiene Styrene)
Height	6U (26.67 cm)
Width	48.26 cm (19 inches)
Depth	36.2 cm (14.25 inches)
Estimated Net Weight	Approximately 6.5 kg
Estimated Load Capacity	Up to 30 kg
Included Accessories	24 screws and 24 plastic washers
Main Functions	Storage and protection of electronic equipment (servers, network, audio/video)
Installation	Rack mounting with doors and snap latches
Security	Lockable doors, uniform weight distribution, safety latches
Maintenance and Cleaning	Regular cleaning with soft cloth, inspection of locks and hinges
Cable Management	Organized cable paths with ties and integrated management systems
Operating Conditions	Controlled temperature and humidity, avoid overheating
Technical Support	Available at www.vevor.com/support
Warranty	Electronic warranty certificate available online
Country of Manufacture	China (Shanghai)
Repairability	Spare parts available through technical support (screws, washers, latches)

Frequently Asked Questions - ABS-6UM Vevor

How to install the doors of the ABS-6UM case?

Open the packaging, then insert the latches into the corresponding slots, aligning the parts correctly. Ensure the latch clicks into place with an audible click to confirm locking.

How to lock and unlock the latches?

To unlock, pull the raised central part of the latch (butterfly wing shape) outward. To lock, push it into place until you hear a click. Check stability by gently shaking.

What is the maximum weight the case can support?

The estimated load capacity is 30 kg. It is important to distribute the weight evenly and place the heaviest equipment at the bottom to prevent tipping.

What equipment can I store in this rack case?

This case is designed for storage and protection of standard 19-inch electronic equipment, such as servers, network equipment, audio/video devices, and industrial control systems.

How to clean the ABS-6UM case?

Use a soft, dry cloth to remove dust. For stains, a slightly damp cloth with mild soapy water is suitable. Avoid abrasive products that could damage the ABS surface.

Is the case compatible with non-standard equipment?

The case is designed for standard 19-inch rack equipment. For non-standard equipment, adapters or mounting plates may be required.

Are the screws and washers included for mounting?

Yes, the ABS-6UM model comes with 24 screws and 24 plastic washers for mounting equipment in the rack.

Can I mount this case on the wall?

This case is designed to be placed on a flat surface or installed in a rack. It is not intended for wall mounting. Use it on a shelf or stable surface.

Where can I get technical support for this product?

Technical support is available on the website www.vevor.com/support. You will also find the electronic warranty certificate and answers to frequently asked questions.

What are the exact dimensions of the ABS-6UM case?

The dimensions are: height 26.67 cm (6U), width 48.26 cm (19 inches), depth 36.2 cm (14.25 inches).

USER MANUAL ABS-6UM Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RACK CASE USER MANUAL

MODEL:ABS-2UL / ABS-4UM / ABS-4UL / ABS-6UM / ABS-6UL / ABS-8UL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rack case

ABS-2UL	ABS-4UM	ABS-4UL
ABS-6UM	ABS-6UL	ABS-8UL

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Warning-To reduce the risk of injury, user must read in manual carefully.

NOTICE:

Environmental Conditions

- Temperature and Humidity: Ensure the cabinet is placed in an environment with controlled temperature and humidity. Avoid overheating or excessive cooling, which could affect the performance of the internal equipment.

Power Management

1. Stable Power Supply: Ensure all equipment in the cabinet is connected to a stable and interference-free power supply. Using an uninterruptible power supply (UPS) can protect equipment from damage in case of failures.
2. Cable Management: Properly plan cable paths, use cable ties or ca management systems to keep them tidy, preventing faults or safety hazards caused by disorganized cables.

Weight Distribution

1. Evenly Distribute Weight: When placing equipment in the cabinet, be mindful of balancing the weight. Heavier equipment should be placed the bottom of the cabinet to prevent tipping or tilting.
2. Check Load Capacity: Ensure not to exceed the maximum load capacity of the cabinet to maintain structural stability and safety.

Security and Access

1. Lock Doors: If the cabinet has locking features, keep it locked when in use, especially in restricted access areas.
2. Regular Inspections: Regularly check the locks and hinges of the cabi to ensure they are intact and that only authorized personnel can accept internal equipment.

Cleaning and Maintenance

1. Regular Cleaning: Regularly clean the cabinet and its internal equipment to prevent dust accumulation that could lead to overheating short-circuiting.
2. Inspection and Maintenance: Regularly conduct integrity checks on cabinet, ensuring all fixtures, screws, and components are securely fastened and undamaged.

PERFORMANCE PARAMETER

Model	Specifications	Main materials
ABS-2UL	2U 19.25"	ABS
ABS-4UM	4U 14.25"	ABS
ABS-4UL	4U 19.25"	ABS
ABS-6UM	6U 14.25"	ABS
ABS-6UL	6U 19.25"	ABS
ABS-8UL	8U 19.25"	ABS

Product availability

• Server Installation
  ● Network Equipment Storage
  ● Communication Equipment Protection
• Industrial Control Systems
  ● Audio and Video Equipment Installation
  ● Laboratories and R&D Environments
  ● Power Management
  ● Security and Protection
  ● Data Centers and Server Rooms

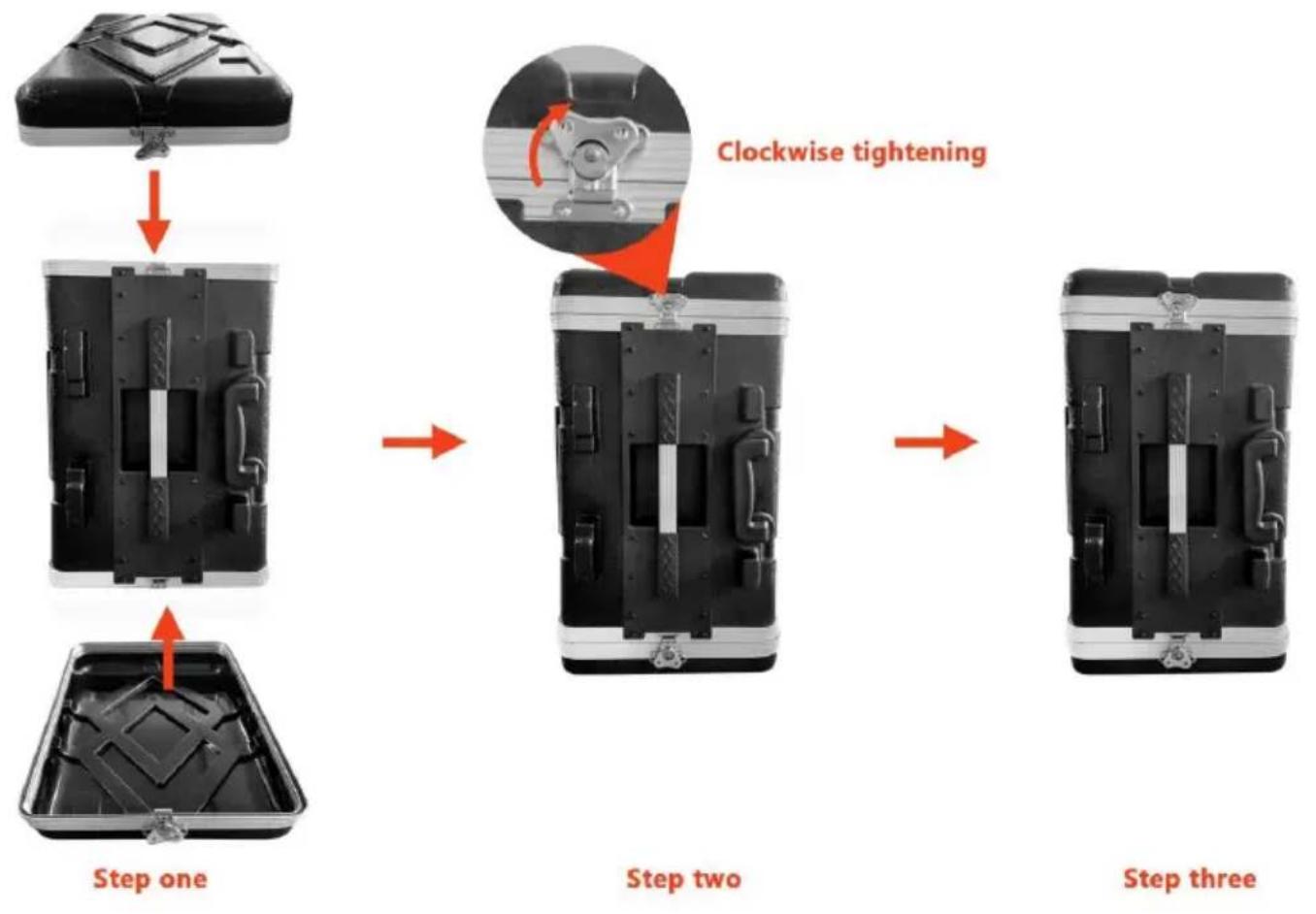

Installation Steps

Open the package and ensure all components and accessories are complete and undamaged.

- Install Doors:

1. Check the Latch:

Ensure the latch and corresponding catch are correctly aligned and free obstructions.

1. Open the Latch:

Locate the central raised part of the latch (usually looks like butterfly wings).

Pull the central raised part outward until the latch pops open.

1. Insert the Catch:

Insert the catch or locking piece into the corresponding slot, making it is fully inserted.

1. Lock the Latch:

Push the central raised part back into place until you hear a "click," indicating the latch is securely locked.

1. Check Stability:

Gently shake the latch to ensure it is fully locked and cannot be ea opened.

ACCESSORIES LIST

Model	Accessories list
ABS-2UL	Screw *8、Plastic gasket *8
ABS-4UM	Screw *16、Plastic gasket *16
ABS-4UL	Screw *16、Plastic gasket *16
ABS-6UM	Screw *24、Plastic gasket*24
ABS-6UL	Screw *24、Plastic gasket*24
ABS-8UL	Screw *32、Plastic gasket*32
