Product Type	Rack Enclosure
Brand	Vevor
Model	ABS-4UM
Height	4U (17.78 cm)
Width	48.26 cm (19 inches)
Depth	36.2 cm (14.25 inches)
Main Material	ABS (durable plastic)
Rack Units	4U
Maximum Load Capacity	Approx 15 kg (estimated)
Color	Black (standard)
Lock	Yes, with safety latch
Accessories Included	16 screws + 16 plastic gaskets
Application Areas	Servers, network equipment, audio/video, laboratories
Installation	19-inch rack mount, screw fixation
Maintenance	Regular cleaning with dry cloth, lock inspection
Safety	Door locking, weight distribution, stability
Repairability	Spare parts available: screws, gaskets, latches
Warranty	Technical support and certificate at www.vevor.com/support
Approximate Weight	2.5 kg (estimated)
Standards	Compliant with 19-inch rack standards

Frequently Asked Questions - ABS-4UM Vevor

What are the exact dimensions of the ABS-4UM enclosure?

The enclosure measures 4U in height (17.78 cm), 48.26 cm in width (19 inches), and 36.2 cm in depth (14.25 inches).

What is the maximum weight supported by this rack?

The maximum load capacity is estimated at approximately 15 kg. It is recommended to distribute the weight evenly and place the heaviest equipment at the bottom.

Is the enclosure delivered with mounting accessories?

Yes, it comes with 16 screws and 16 plastic gaskets for securing equipment.

How do I install the doors and latch?

Open the package, install the doors by aligning the hinges, then attach the latch by inserting the central part into the slot and pushing until it clicks.

Is this enclosure suitable for mounting a server?

Yes, it is designed to accommodate servers, network equipment, audio/video devices, and any standard 19-inch rack equipment.

How do I maintain the storage enclosure?

Clean regularly with a soft, dry cloth to avoid dust accumulation. Periodically check the locks, hinges, and screws to ensure they are in good condition.

Is the rack secure?

Yes, it has a locking latch. It is advisable to keep the doors locked in restricted access areas and perform regular inspections.

What types of equipment can I install?

The enclosure is suitable for servers, network equipment, industrial control systems, audio/video devices, and any equipment requiring a 4U 19-inch rack.

Where can I get technical support or a spare part?

Visit www.vevor.com/support for technical support and warranty certificates. Screws and gaskets are available as spare parts.

What precautions should be taken during installation?

Ensure stable power supply and controlled temperature. Distribute weight evenly and do not exceed maximum load. Use cable ties to manage cables.

USER MANUAL ABS-4UM Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

RACK CASE USER MANUAL

MODEL: ABS-2UL / ABS-4UM / ABS-4UL / ABS-6UM / ABS-6UL / ABS-8UL

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rack case

ABS-2UL	ABS-4UM	ABS-4UL
ABS-6UM	ABS-6UL	ABS-8UL

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

INSTRUCTIONS

Warning - To reduce the risk of injury, the user must read the manual carefully.

NOTICE:

Environmental Conditions

- Temperature and Humidity: Ensure the cabinet is placed in an environment with controlled temperature and humidity. Avoid overheating or excessive cooling, which could affect the performance of the internal equipment.

Power Management

1. Stable Power Supply: Ensure all equipment in the cabinet is connected to a stable and interference-free power supply. Using an uninterruptible power supply (UPS) can protect equipment from damage in case of failures.
2. Cable Management: Properly plan cable paths, use cable ties or cable management systems to keep them tidy, preventing faults or safety hazards caused by disorganized cables.

Weight Distribution

1. Evenly Distribute Weight: When placing equipment in the cabinet, be mindful of balancing the weight. Heavier equipment should be placed at the bottom of the cabinet to prevent tipping or tilting.
2. Check Load Capacity: Ensure not to exceed the maximum load capacity of the cabinet to maintain structural stability and safety.

Security and Access

1. Lock Doors: If the cabinet has locking features, keep it locked when in use, especially in restricted access areas.
2. Regular Inspections: Regularly check the locks and hinges of the cabinet to ensure they are intact and that only authorized personnel can access internal equipment.

Cleaning and Maintenance

1. Regular Cleaning: Regularly clean the cabinet and its internal equipment to prevent dust accumulation that could lead to overheating or short-circuiting.
2. Inspection and Maintenance: Regularly conduct integrity checks on the cabinet, ensuring all fixtures, screws, and components are securely fastened and undamaged.

PERFORMANCE PARAMETER

Model	Specifications	Main materials
ABS-2UL	2U 19.25"	ABS
ABS-4UM	4U 14.25"	ABS
ABS-4UL	4U 19.25"	ABS
ABS-6UM	6U 14.25"	ABS
ABS-6UL	6U 19.25"	ABS
ABS-8UL	8U 19.25"	ABS

Product availability

• Server Installation ● Network Equipment Storage ● Communication Equipment Protection
• Industrial Control Systems ● Audio and Video Equipment Installation ● Laboratories and R&D Environments ● Power Management ● Security and Protection ● Data Centers and Server Rooms

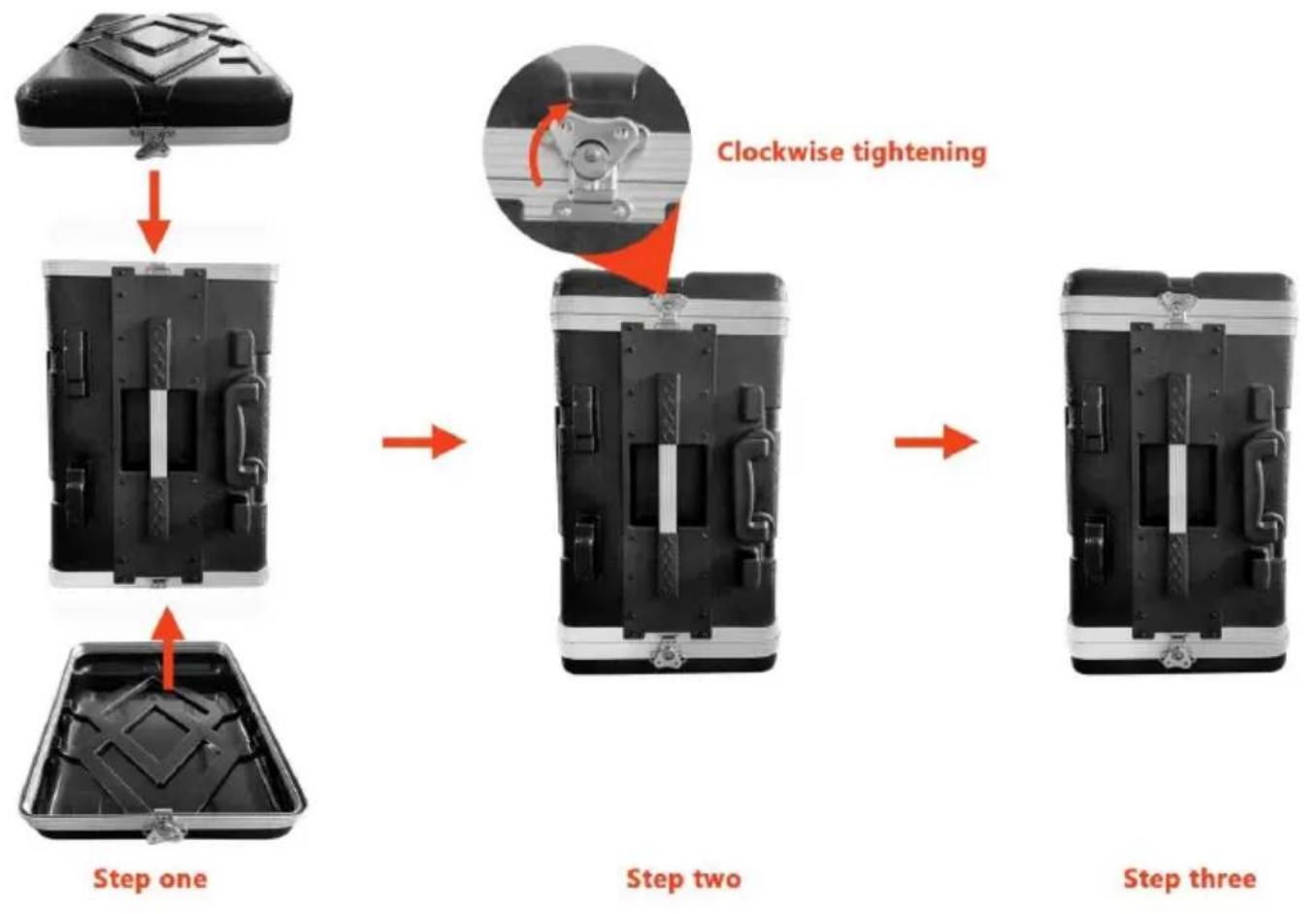

Installation Steps

Open the package and ensure all components and accessories are complete and undamaged.

- Install Doors:

1. Check the Latch:

Ensure the latch and corresponding catch are correctly aligned and free of obstructions.

1. Open the Latch:

Locate the central raised part of the latch (usually looks like butterfly wings).

Pull the central raised part outward until the latch pops open.

1. Insert the Catch:

Insert the catch or locking piece into the corresponding slot, making sure it is fully inserted.

1. Lock the Latch:

Push the central raised part back into place until you hear a "click," indicating the latch is securely locked.

1. Check Stability:

Gently shake the latch to ensure it is fully locked and cannot be easily opened.

ACCESSORIES LIST

Model	Accessories list
ABS-2UL	Screw *8、Plastic gasket *8
ABS-4UM	Screw *16、Plastic gasket *16
ABS-4UL	Screw *16、Plastic gasket *16
ABS-6UM	Screw *24、Plastic gasket*24
ABS-6UL	Screw *24、Plastic gasket*24
ABS-8UL	Screw *32、Plastic gasket*32
