ABS-2UL - Storage case Vevor - Free user manual and instructions

Product Type	2U Rack Enclosure
Brand	Vevor
Model	ABS-2UL
Main Material	ABS (durable plastic)
Dimensions (width x height x depth)	48.9 cm x 8.9 cm x 50 cm (approx.)
Weight	3.5 kg (approx.)
Capacity	2U (standard rack height)
Maximum Load Capacity	From the manual: distribute evenly, do not exceed
Included Accessories	8 screws + 8 plastic gaskets
Main Functions	Storage and protection of network equipment, servers, audio/video
Installation	Mounting in 19-inch rack, screw fixing
Closure	Butterfly latch openings
Maintenance and Cleaning	Clean regularly to prevent dust accumulation
Safety	Lock the doors, regular inspections of locks
Spare Parts and Repairability	Contact Vevor support for screws and gaskets
General Information	Brand Vevor, model ABS-2UL, made in China

Frequently Asked Questions - ABS-2UL Vevor

What is the material of the ABS-2UL case?

The case is made of ABS (impact-resistant plastic), ideal for transport and rack installation.

What are the exact dimensions of the ABS-2UL?

The case occupies a height of 2U (approx. 8.9 cm) and a width of 19.25 inches (48.9 cm). The depth is not specified, but it matches rack standards.

What accessories are included with the case?

The kit includes 8 screws and 8 plastic gaskets for equipment mounting.

How to install the case in a rack?

Open the packaging, check the components, then insert the case into the rack and secure it with the provided screws. The latches must be properly aligned and locked.

What are the safety tips for use?

Ensure even weight distribution (heavy equipment at the bottom), use a stable power supply (UPS), manage cables neatly, lock the doors, and inspect locks regularly.

How to clean and maintain the case?

Clean the interior and exterior regularly with a soft cloth to prevent dust accumulation. Check that all screws and fastenings are tight.

What is the maximum load capacity?

The manual does not provide an exact value but recommends not exceeding the capacity indicated on the case and distributing the weight to maintain stability.

Can I use this case for audio and video equipment?

Yes, it is suitable for installing audio/video equipment, servers, network equipment, and industrial control systems.

How to contact technical support?

Visit www.vevor.com/support for technical assistance or a warranty certificate.

Where is the ABS-2UL case manufactured?

It is manufactured by Shanghaimuxinmuyeyouxiangongsi in Shanghai, China, and imported by various partners depending on the region.

USER MANUAL ABS-2UL Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RACK CASE USER MANUAL

MODEL: ABS-2UL / ABS-4UM / ABS-4UL / ABS-6UM / ABS-6UL / ABS-8UL

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Rack case

ABS-2UL	ABS-4UM	ABS-4UL
ABS-6UM	ABS-6UL	ABS-8UL

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

INSTRUCTIONS

Warning - To reduce the risk of injury, the user must read the manual carefully.

NOTICE:

Environmental Conditions

- Temperature and Humidity: Ensure the cabinet is placed in an environment with controlled temperature and humidity. Avoid overheating or excessive cooling, which could affect the performance of the internal equipment.

Power Management

1. Stable Power Supply: Ensure all equipment in the cabinet is connected to a stable and interference-free power supply. Using an uninterruptible power supply (UPS) can protect equipment from damage in case of failures.
2. Cable Management: Properly plan cable paths, use cable ties or cable management systems to keep them tidy, preventing faults or safety hazards caused by disorganized cables.

Weight Distribution

1. Evenly Distribute Weight: When placing equipment in the cabinet, be mindful of balancing the weight. Heavier equipment should be placed at the bottom of the cabinet to prevent tipping or tilting.
2. Check Load Capacity: Ensure not to exceed the maximum load capacity of the cabinet to maintain structural stability and safety.

Security and Access

1. Lock Doors: If the cabinet has locking features, keep it locked when in use, especially in restricted access areas.
2. Regular Inspections: Regularly check the locks and hinges of the cabinet to ensure they are intact and that only authorized personnel can access internal equipment.

Cleaning and Maintenance

1. Regular Cleaning: Regularly clean the cabinet and its internal equipment to prevent dust accumulation that could lead to overheating or short-circuiting.
2. Inspection and Maintenance: Regularly conduct integrity checks on the cabinet, ensuring all fixtures, screws, and components are securely fastened and undamaged.

PERFORMANCE PARAMETER

Model	Specifications	Main materials
ABS-2UL	2U 19.25"	ABS
ABS-4UM	4U 14.25"	ABS
ABS-4UL	4U 19.25"	ABS
ABS-6UM	6U 14.25"	ABS
ABS-6UL	6U 19.25"	ABS
ABS-8UL	8U 19.25"	ABS

Product availability

• Server Installation ● Network Equipment Storage ● Communication Equipment Protection
• Industrial Control Systems ● Audio and Video Equipment Installation ● Laboratories and R&D Environments ● Power Management ● Security and Protection ● Data Centers and Server Rooms

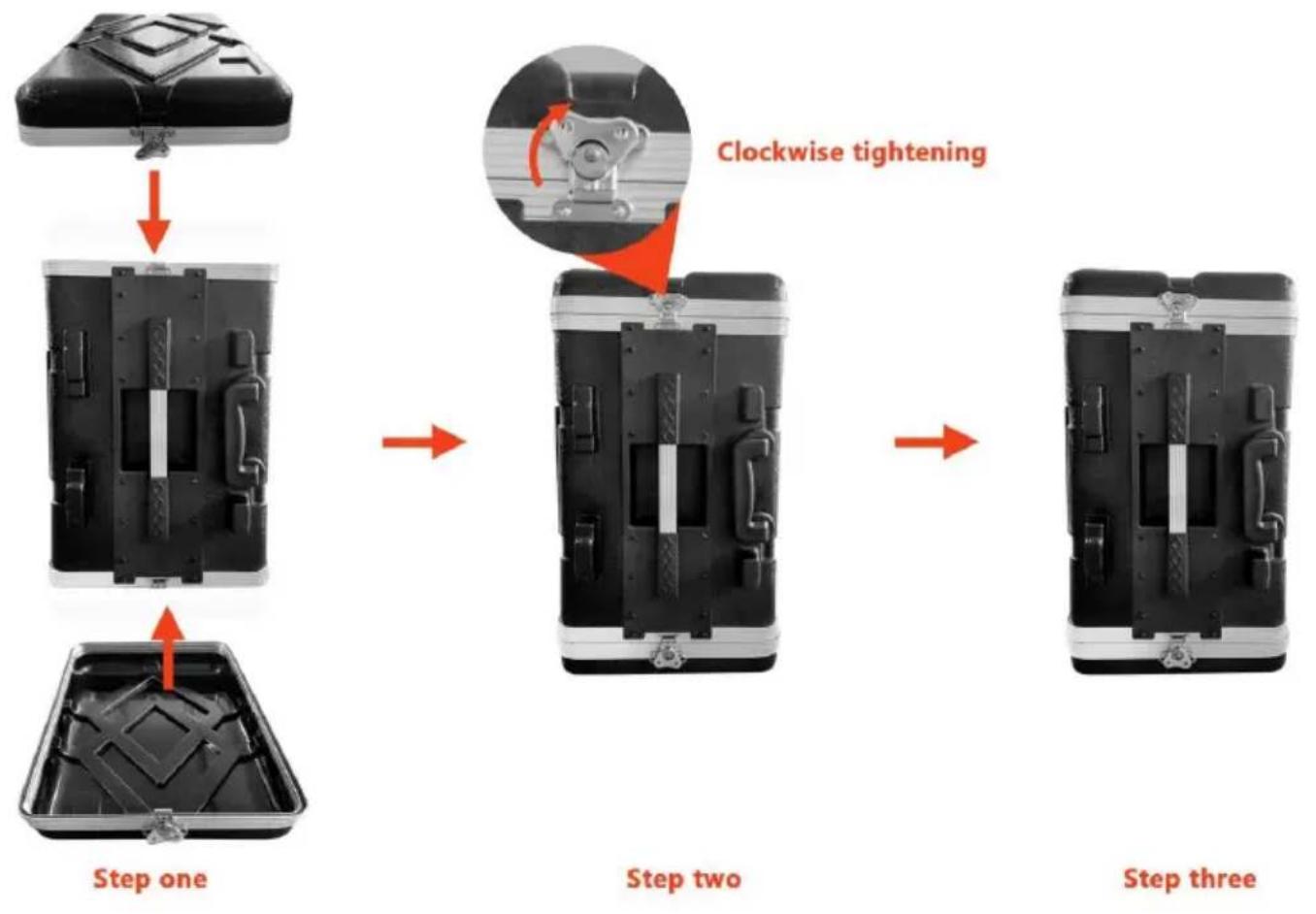

Installation Steps

Open the package and ensure all components and accessories are complete and undamaged.

- Install Doors:

1. Check the Latch:

Ensure the latch and corresponding catch are correctly aligned and free of obstructions.

1. Open the Latch:

Locate the central raised part of the latch (usually looks like butterfly wings).

Pull the central raised part outward until the latch pops open.

1. Insert the Catch:

Insert the catch or locking piece into the corresponding slot, making sure it is fully inserted.

1. Lock the Latch:

Push the central raised part back into place until you hear a "click," indicating the latch is securely locked.

1. Check Stability:

Gently shake the latch to ensure it is fully locked and cannot be easily opened.

ACCESSORIES LIST

Model	Accessories list
ABS-2UL	Screw *8 ·Plastic gasket *8
ABS-4UM	Screw *16 ·Plastic gasket *16
ABS-4UL	Screw *16 ·Plastic gasket *16
ABS-6UM	Screw *24 ·Plastic gasket *24
ABS-6UL	Screw *24 ·Plastic gasket *24
ABS-8UL	Screw *32 ·Plastic gasket *32

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, China.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
