USER MANUAL RGXPS90 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

LightSoftbox Instructions

MODEL:SH-90SP

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: SH-90SP

(The picture is for reference only, please refer to the actual object)

NEEDHELP?CONTACTUS!

Have product questions? Need technical support? Please feel free to contact us:

TechnicalSupportandE-WarrantyCertificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

▲IMPORTANT

• Please follow the installation steps when installing the deep parabolic softbox.
• Please make sure the deep parabolic softbox is secured to the video light to prevent it from falling.
• Due to the long shipping time, if accessories are lost or damaged, please contact us through Amazon for replacement.
• To extend the life of your deep parabolic softbox, keep the product away from corrosive chemicals, liquids and heat sources.
• Keep it away from children while using(unless accompanied by adults).
• Please note that drops and external impacts may damage the product.

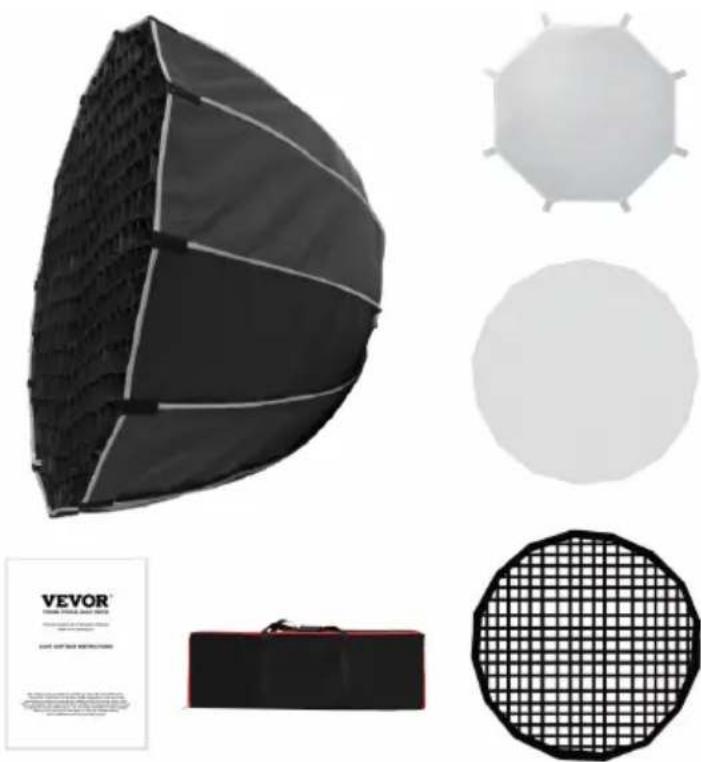

■ Package Contents:

Black and white photo of a folded, dome-shaped object with grid pattern (no text or symbols)

1xParabolic Softbox

Simple octagonal shape with six arms, no text or symbols present

1xDiffusion Cloth (Inner)

Circular grid pattern with uniform squares, no text or symbols present

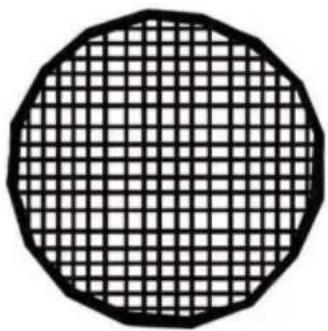

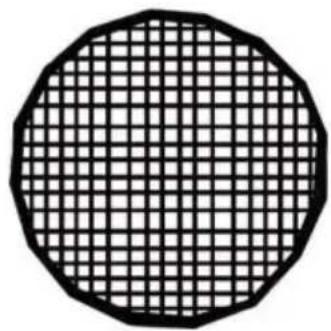

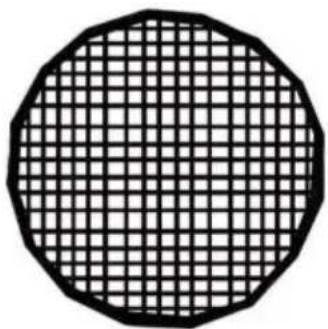

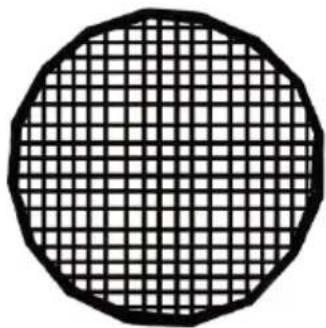

1xHoneycomb Grid

1xCarrying Bag

Plain white circular shape with no text, symbols, or markings

Warm reminder: All data are measured manually and there is a certain error (error range: 2-5cm).

■ Installation Steps

Person using a power tool to lift a black dome-shaped object with white trim (no text or symbols visible)

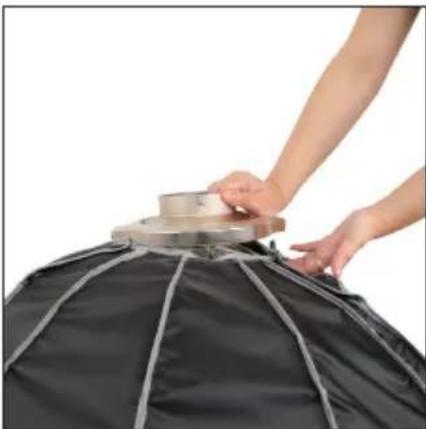

1. Place the deep parabolic softbox fat on the ground and open the Velcro on it.

Close-up of hands assembling a metallic mechanical component with a cylindrical housing (no visible text or symbols)

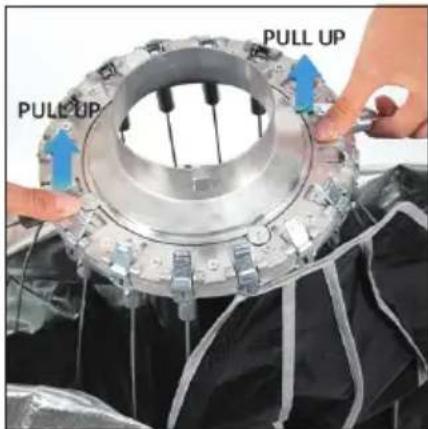

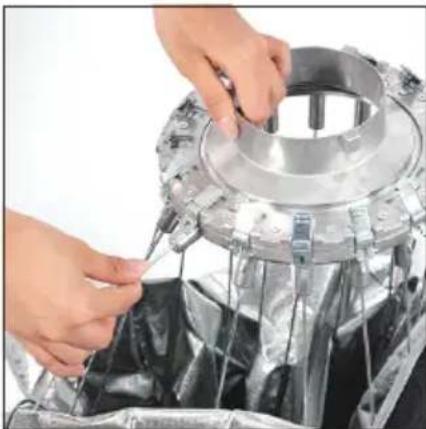

1. Hold any support rod and pull it to the right to hang it on the hook.

PULL UP PULL UP

1. You can also follow the numerical instructions on the chuck to lift the two support rods at the same time to improve installation efficiency.

Close-up of hands installing a metallic cable on a black circular object with radial lines (no text or symbols visible)

1. After the support rod is installed, glue the Velcro.

Person adjusting a metallic foil or plastic sheet with a small tool (no visible text or symbols)

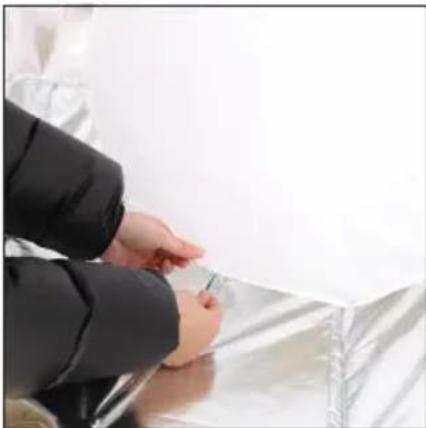

1. Turn the deep parabolic softbox upside down and connect the inner diffusion cloth to the softbox with Velcro.

Hand holding a black octagonal frame with a white background, partially covered by a metallic sheet (no text or symbols visible)

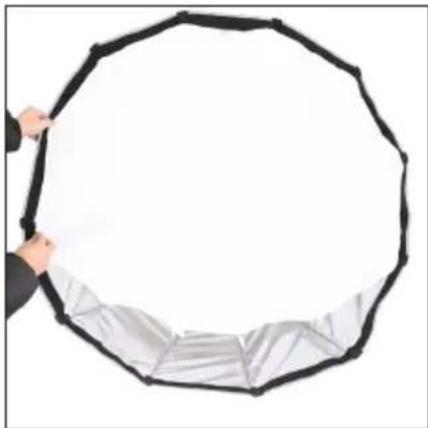

1. Attach the outer diffusion cloth to the deep parabolic softbox.

Person adjusting a black plastic bag with white patterned covers (no text or symbols visible)

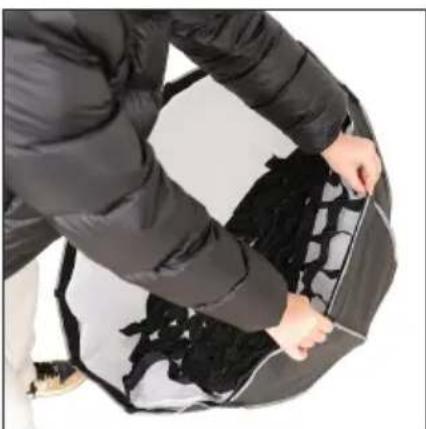

1. Attach the honeycomb grid to the deep parabolic softbox.

Person adjusting a black cylindrical device on a dome-shaped object (no text or symbols visible)

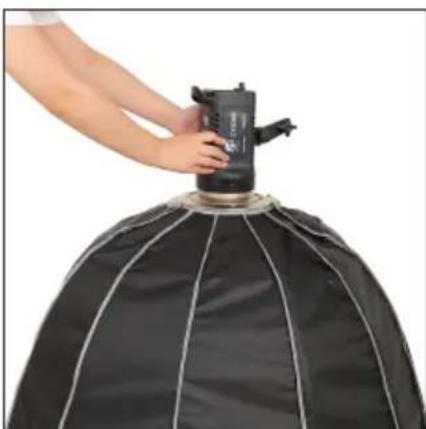

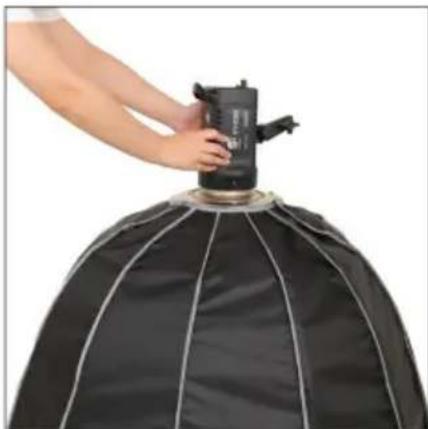

1. Attach video lights to deep parabolic softbox.(The product does not include video lights and is for installation display only.)

Black studio lighting setup with a white and black band, mounted on a stand (no text or symbols visible)

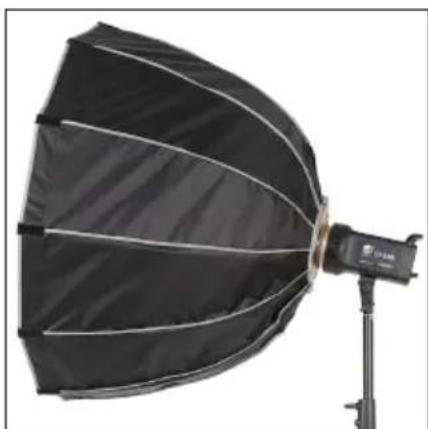

1. The installation is complete.

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPE

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

REPU

YH CONSULTING LIMITED.

K/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
