Product Type	LED Softbox Studio Lighting Kit
Brand	Vevor
Model	YX-RGX03EU (compatible with SH-LT-016/017/018)
Softbox Dimensions	40×40 cm (models SH-LT-016/017) or 50×71 cm (model SH-LT-018)
Tripod Height	40-150 cm (SH-LT-016/017) or 68-200 cm (SH-LT-018)
LED Bulb Power	45 W
Color Temperature (CCT)	3000-6500 K (adjustable)
Power Supply Voltage	AC 220-240 V, 50/60 Hz
Socket Type	E27
Bulb Base Type	E27
Remote Control Range	Up to 10 m (recommended 8 m), angle ≤60°
Remote Control Power	2 AAA batteries (not included)
Number of Softboxes Included	1 (SH-LT-016) or 2 (SH-LT-017/018)
Accessories Included	White diffuser(s), LED bulb(s), remote control(s), tripod(s), carrying bag
Maintenance and Cleaning	Store in a cool, dry place away from dust. Do not expose to water or liquids.
Safety	Do not touch the bulb after prolonged use. Keep out of reach of unsupervised children. Use only with the specified voltage.

Frequently Asked Questions - YX-RGX03EU Vevor

How to install the softbox on the tripod?

Open the softbox and attach the elastic ring to the lamp holder. Mount the softbox onto the tripod by tightening the knob clockwise. Ensure the softbox is securely installed before use.

How to adjust the tripod height?

Loosen the knob on the pole counterclockwise, extend to the desired section, then tighten the knob to secure the height.

How to use the remote control?

Insert 2 AAA batteries into the remote control (not included). First, turn on the switch on the softbox cable, then press 'ON' on the remote control. Point the remote control at the LED lights within an angle of less than 60° and within 10 m.

Can I control each softbox separately with the remote control?

No, the remote control is universal: one remote controls all softboxes simultaneously. The two remote controls provided are identical and can serve as backups.

What is the required power supply voltage?

The operating voltage is 220-240 V AC, 50/60 Hz. Please plug the device into a compatible mains outlet.

Can I replace the LED bulb?

Yes, the LED bulb screws into an E27 socket. Unscrew it gently after cooling and replace it with a compatible bulb of the same power (45 W) and E27 base.

How to clean the softbox?

Use a soft, dry cloth to dust. Never use water or liquid. Store the softbox in a clean, dry place.

What to do if the remote control does not work?

Check that the switch on the softbox cable is on. Replace the remote control batteries. Ensure there are no obstacles between the remote and the lights and that you are within range (recommended ≤8 m).

Can the softbox be used with other bulbs?

Yes, any bulb with E27 base and suitable power can be used. However, for optimal performance, use the supplied 45 W LED bulb.

How to disassemble the softbox for storage?

Turn off and unplug the device. Remove the bulb once cooled. Detach the diffuser and fold the softbox. Loosen the tripod knobs to retract it. Place everything in the carrying bag.

USER MANUAL YX-RGX03EU Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Light Softbox Instructions

MODEL: SH-LT-016, SH-LT-017, SH-LT-018

We continue to be committed to providing you with tools at competitive prices.

"Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

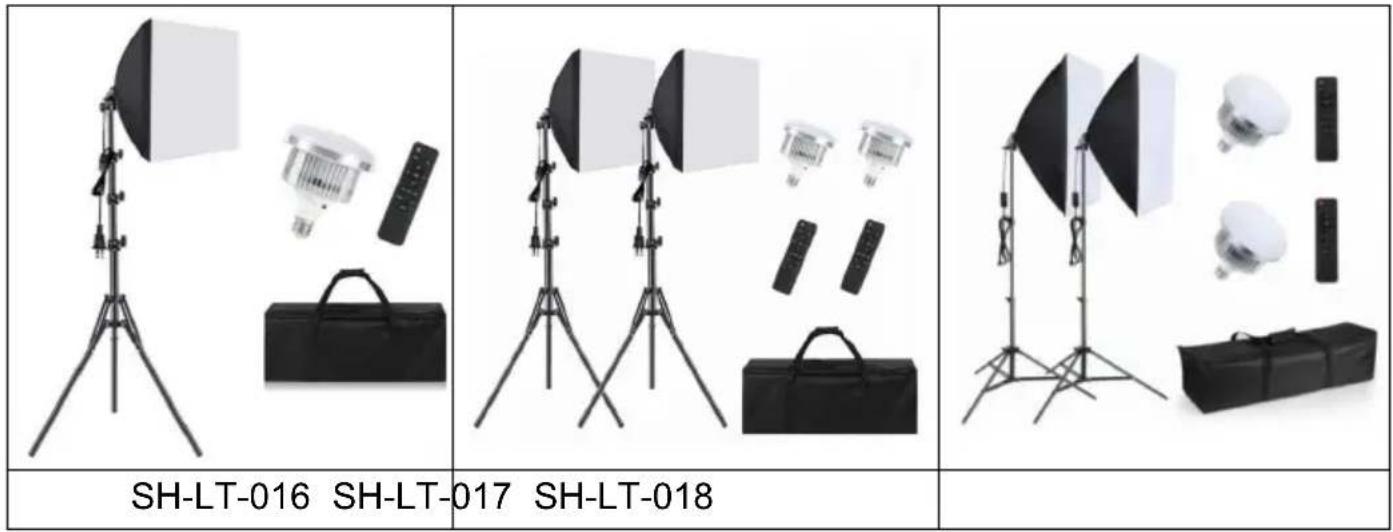

Light Softbox

(The picture is for reference only, please refer to the actual object.)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Correct Disposal

This product is subject to the provisions of European Directive 2012/19/EU. The symbol showing a crossed-out wheelie bin indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

IMPORTANT

• Please purchase the battery yourself (there is no battery in the remote control).
• Keep the bulbs safe from falling and dropping.
• Keep the softbox lighting kits away from water and liquids to protect the products and extend their service life.
• Keep it away from children while in use (unless accompanied by adults).
• Please do not touch the bulbs directly after prolonged use.
• Please do not touch the socket with wet hands. Remember to remove the bulbs when you need to package the softbox lighting kits.
• Please store the kits in a cool, dry, and dust-free location. Do not place heavy items on them.
• Please follow the correct instructions when removing the bulbs, or the bulbs may malfunction.
• Some accessories may be damaged during long-distance transportation; please contact us for replacement in a timely manner.
• Please turn on the switch on the cable after plugging it in. AC220V-240V voltage is the working voltage for the LED softbox lighting kits.

MODEL: SH-LT-016Components ListPlease make sure all accessories listed below are completed before using. If not, please contact us immediately.
40*40cm Softbox	White Diffuser
45W Adjustable LED Bulb	Remote Control
40cm-150cm Light Stand	Carrying Bag

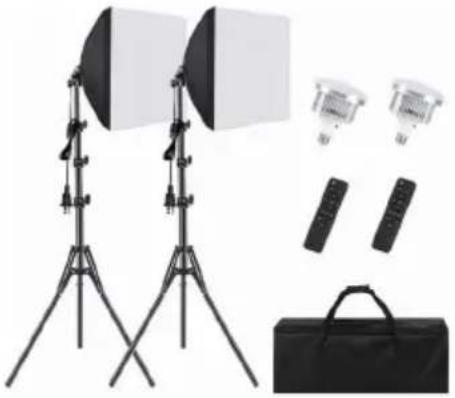

MODEL: SH-LT-017Components ListPlease make sure all accessories listed below are completed before using. If not, please contact us immediately.
40*40cm Softbox*2		White Diffuser*2
45W Adjustable LED Bulb*2		Remote Control*2
40cm-150cm Light Stand*2		Carrying Bag*1

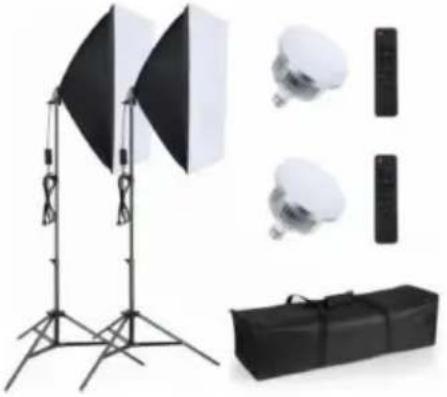

MODEL: SH-LT-018Components ListPlease make sure all accessories listed below are completed before using. If not, please contact us immediately.
50*71cm Softbox*2	White Diffuser*2
45W Adjustable LED Bulb*2	Remote Control*2
68cm-200cm Light Stand*2	Carrying Bag*1

SOFTBOX INSTALLATION

MODEL: SH-LT-016, SH-LT-017. Section 1: Install the light stand

1.Remove the screw cap protecting the screw	2.Loosen the knob on the bottom of the light stand counterclockwise	3.Open the stand outwards
4.Fully extend the stand	5.Tighten the knob on the bracket clockwise	6.Turn the knob on the pole counterclockwise to adjust the height of the stand
7.Pull out the second section the pole upwards	8.Tighten the knob on the bracket clockwise	9.Pull out the third section of pole upwards
10.Tighten the knob on the bracket clockwise	11.The bracket is installed as shown in the picture

MODEL: SH-LT-018. Section 1: Install the light stand

1.Remove the screw cap protecting the screw	2.Loosen the knob at the bottom of the light stand	3.Pull the legs of the stand, push the stand from top to bottom
4.The tripod's connect piece is perpendicular to the vertical pole	5.Tighten the knob on the bracket clockwise	6.Turn the knob on the pole counterclockwise to adjust the height of the stand
7.Pull out the second section the pole upwards	& Tighten the knob to fix the position	9.The bracket is installed as shown in the picture

Section 2: install the softbox

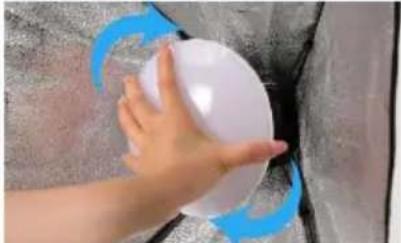

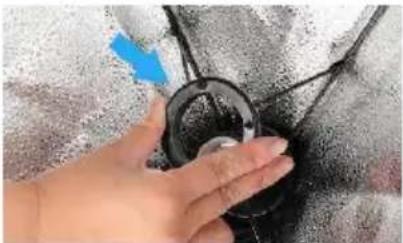

1.Open the softbox and press the snap ring onto the lamp holder	2.Rotate the LED bulb into t E27 holder	3.Cover the four corners with front diffuser

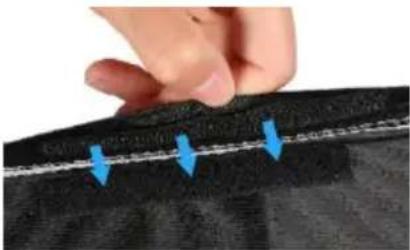

4.Glue the Velcro on the fou sides	5.Loosen the knob of the softbox	6.Install the softbox to the lig stand
7.Tighten the softbox knob clockwise(please install the softbox completely onto the li stand, as shown in the pictu	8.Loosen the upper knob of softbox	9.Adjust the head of the soft upward to adjust the soft box 210%
10.Adjust the softbox downwa to the angle you want to sh	11.Plug in socket and press switch button	12.Put the 2 AAA batteries in the remote control, press "ON"
		13.Completely mount the softbox on the light stand as shown in the picture

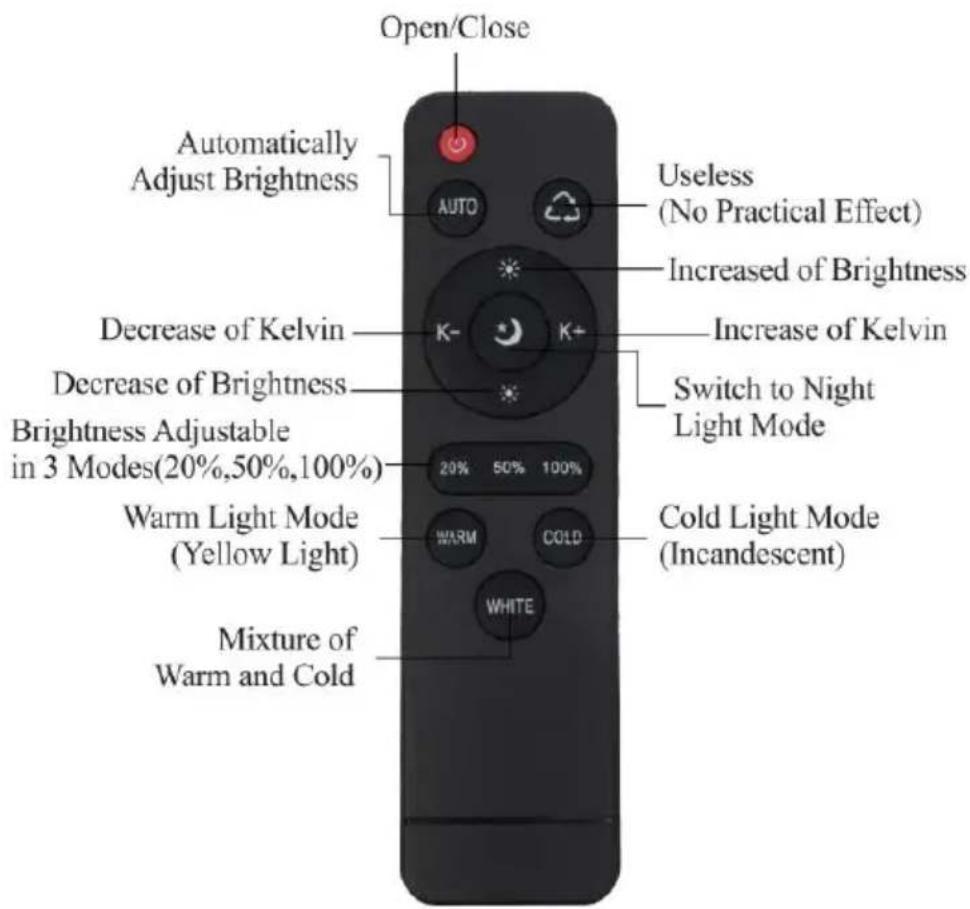

IMPORTANT TIPS :

1. Before using the remote control, please remember to open the on/off button on the softbox cable first. Then you can operate the remote control to control the softbox.
2. During use, the remote control should be pointed at the LED lamp to ensure that there are no large obstacles in the signal path. (Deviation from the signal path will result in slower response speed or control error).
3. The remote control is universal, one remote control can control two softboxes at the same time. We provide two remotes and the other can be used as a spare. The remote cannot control the softbox set.
4. Please note that the angle of the remote cannot exceed 60 degrees.
5. The effective remote control distance does not exceed 10m, preferably within 8 meters.

Note: the battery is not included, (Customers need to buy 2 AAA batteries).

INSTALLATION:

It's very easy to install, you can search FGen led softbox and browse YouTube or read the video on the Amazon product page for more information. In addition, here are the steps for you:

1. Open the softbox umbrella. Press the snap ring onto the lamp holder until you hear a click.
2. Rotate the LED E27 light bulb into the softbox.
3. Cover the four corners with the front diffuser and then glue the four sides.
4. Pull the legs of the stand, push the stand from top to bottom, place the bottom of the softbox perpendicular to the tripod feet, it becomes more stable.
5. Connect the softbox umbrella to the stand. Before assembly, you should remove the plastic sleeve which protects the thread on the 1/4" thread of the stand. 6. Plug in and open the control button on the cable to turn on the softbox.

Model	SH-LT-016 SH	H-LT-017 SH-LT	-018
Input	AC 220-240V, 50/60Hz
Softbox Size	40*40 cm 40	40*40 cm 50*71 cm
Tripod Height	40-150 cm	40-150 cm	68-200 cm
Bulb Power	45W
CCT	3000-6500K
Light Socket	E27
Bulb Base	E27
Remote Operating	8 m
