USER MANUAL YX-RGXB02EU Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Light Soft box Instructions

MODEL:SH-LT-019, SH-LT-020

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Light Soft box

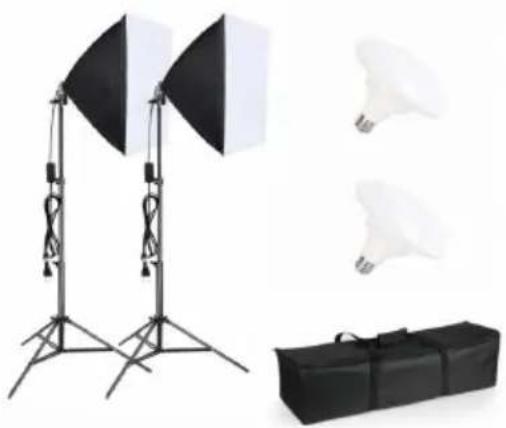

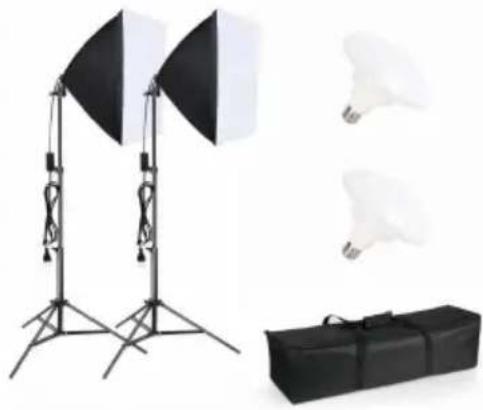

Photography setup with two black studio lighting units and a black box containing a white light bulb (no text or symbols visible)

SH-LT-019 SH-LT-020

Photography setup with two black studio lighting units and a black box, accompanied by two white shooting tips (no text or symbols visible)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Correct Disposal

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

IMPORTANT

• Please buy the battery by yourself(There is no battery in remote control).
• Keep the bulbs safe from falling and dropping.
• Keep the softbox lighting kits away from water and liquids to protect products and extend service life.
• Keep it away from children while using(unless accompanied by adults).
• Please do not touch the bulbs directly after a long time of use.
• Please do not touch the socket when your hands are wet. Remember to takeout the bulbs when you need to package the softbox lighting kits.
• Please store the kits in a cool, dry, and dust-free location. And do not put heavy things on it.
• Please follow the correct instruction when taking out the bulbs or the bulbs may be malfunctioning.
• Some accessories may be damaged during long-time transportation, please contact us for replacement in time.
• Please turn on the switch on the cable after plugging it in. AC220V-240V voltage is the working voltage for the LED softbox lighting kits.

MODEL: SH-LT-019Components ListPlease make sure all accessories listed below are completed before using. If not, please contact us immediately.
61*61cm Softbox*2	White Diffuser*2
30W Adjustable LED Bulb*2
68cm-200cm Light Stand*2	Carrying Bag*1
MODEL: SH-LT-020 Components List Please make sure all accessories listed below are completed before using. If not, please contact us immediately.
50*71cm Softbox*2	White Diffuser*2
30W Adjustable LED Bulb*2
68cm-200cm Light Stand*2	Carrying Bag*1

SOFTBOX INSTALLATION

Section 1: install the light stand

1.Remove the screw cap protecting the screw	2.Loosen the knob at the bottom of the light stand	3.Pull the legs of the stand, push the stand from top to bottom
4.The tripod's connect piece is perpendicular to the vertical pole	5.Tighten the knob on the bracket clockwise	6.Turn the knob on the pole counterclockwise to adjust the height of the stand
7.Pull out the second section the pole upwards	& Tighten the knob to fix the position	9.The bracket is installed as shown in the picture

Section 2: install the softbox

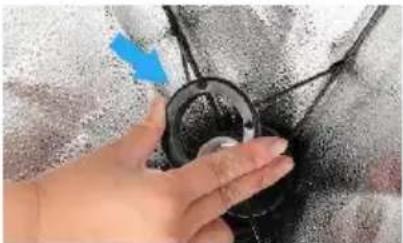

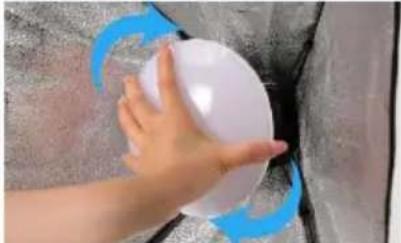

1.Open the softbox and press the snap ring onto the lamp holder		2.Rotate the LED bulb into t E27 holder	3.Cover the four corners with front diffuser

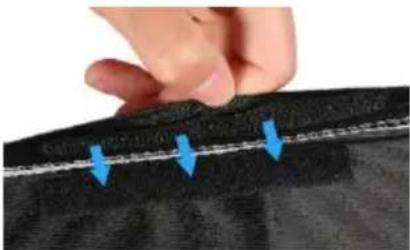

4.Glue the Velcro on the fou sides		5.Loosen the knob of the softbox	6.Install the softbox to the lig stand
7.Tighten the softbox knob clockwise(please install the softbox completely onto the li stand, as shown in the pictu)		8.Loosen the upper knob of softbox	9.Adjust the head of the soft upward to adjust the soft box 210%
10.Adjust the softbox downwa to the angle you want to sh		11.Plug in socket and press switch button
12.Completely mount the softbox on the light stand as shown in the picture

INSTALLATION:

It's very easy to install, you can search FGen led softbox and brows YouTube or read the video on the amazon product page for more information. In addition, here are the steps for you:

1. Open the softbox umbrella. Press the snap ring onto the lamp hot until you hear a click.
2. Rotate the LED E27 light bulb into the softbox.
3. Cover the four corners with the front diffuser and then glue the \ the four sides.
4. Pull the legs of the stand, push the stand from top to bottom, Pl bottom of the softbox perpendicular to the tripod feet, It becomes mo stable.
5. Connect the softbox umbrella to the stand. Before assembly, you remove the plastic sleeve which protects the thread on the 1/4 "thread the stand.
   6.Plug in and open the control button on the cable to turn on the s

Model	SH-LT-019 SH-LT-020
Input	AC 220-240V, 60Hz
Softbox Size	61*61 cm 50*71	cm
Tripod Height	68-200 cm	68-200 cm
Bulb Power	30W
CCT	5500K
Light Socket	E27
Bulb Base	E27

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road. Staines-upon-Thames. Surrey. TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Assistance technique et certificat garantie

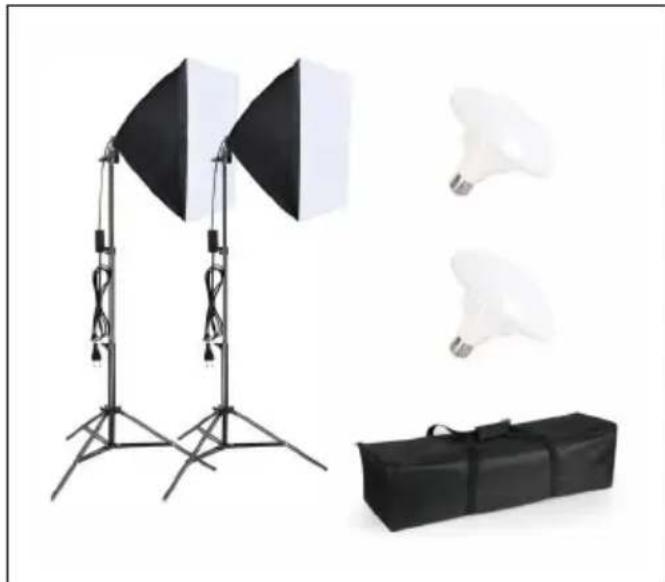

Photography setup with two black studio lighting units and a black box containing a white light bulb (no text or symbols visible)

SH- SH-LT-020LT-019

Photography setup with two black studio lighting units and two white lightbulbs, one lying on a black box (no text or symbols visible)

www.vevor.com/support

Section 2: installer laoftbox

A/S YH Consulting Limited Bureau 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

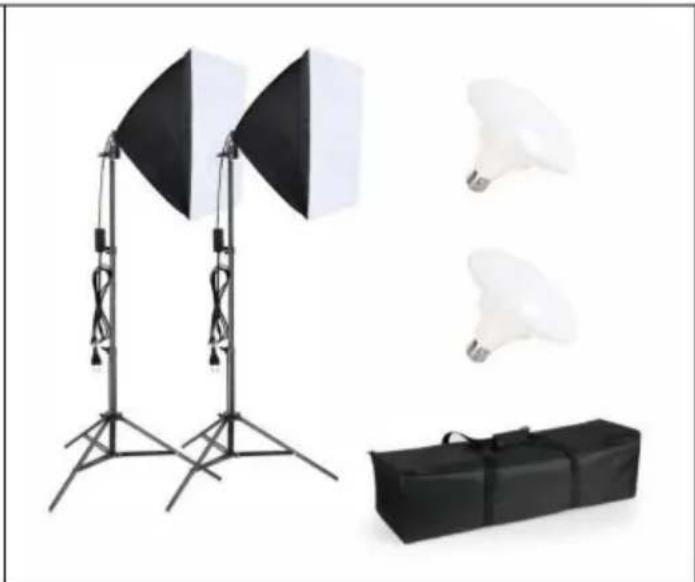

Photography setup with two black studio lighting units and a black box containing two white lightbulbs (no text or symbols visible)

SH-SH-

Photography setup with two black studio lighting units and two white lightbulb cases (no text or symbols visible)

LT-020LT-019

Photography setup with two black studio lighting units and two white conical headsets, one lying on a black box (no text or symbols visible)

Black hardcover or flat-screen device with attached cables and connectors (no visible text or symbols)

Stack of blank or folded paper sheets with no visible text or symbols

White LED light bulb with bulb-shaped body and screw base (no text or symbols visible)

Simple line drawing of a tripod structure with no text or symbols

68 cm - 200 cm Lichtstativ * 2

Black rectangular object with a handle, resembling a briefcase or cargo bag (no text or symbols visible)

Tragetasche * 1

C/O YH Consulting Limited, Büro 147, Centurhouse,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

Photography setup with two black studio lighting units and two white lightbulb designs, next to a black box (no text or symbols visible)

Black hardcover with cable and connector, no visible text or symbols

Stack of blank or folded paper sheets with no visible text or symbols

bianco*2cm

White LED light bulb with bulb-shaped body and screw base (no text or symbols visible)

Simple line drawing of a tripod structure with no text or symbols

Black rectangular object with a handle, resembling a briefcase or cargo bag (no text or symbols visible)

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

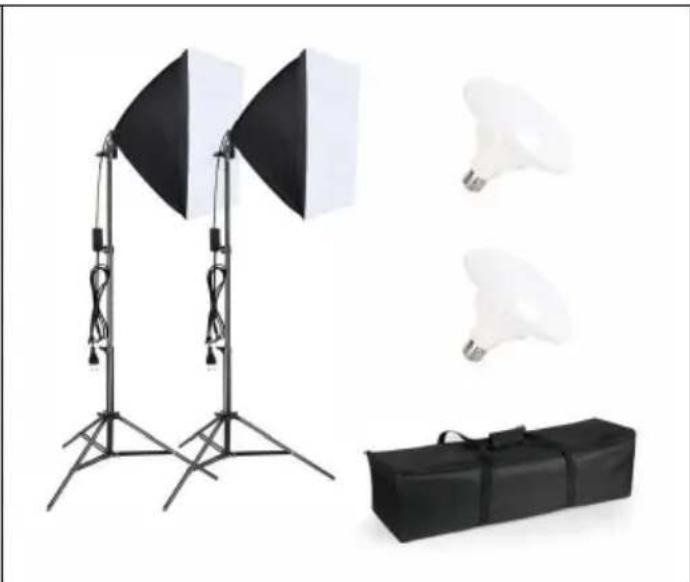

Photography setup with two black studio lighting units and a black box containing two white lightbulbs (no text or symbols visible)

SH-LT-019

Photography setup with two black studio lighting units and two white lightbulb designs, no text or symbols visible.

SH-LT-020

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Representante de laCE

E-CrossStu GmbH

C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Photography setup with two black studio lighting units and two white lightbulbs, one lying on a black box (no text or symbols visible)

SH-SH-

Photography setup with two studio lighting units and two white lightbulbs, one lying on a black box (no text or symbols visible)

LT-020LT-019

Importowane do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Przedstaw ciel WE

REP WIELKIEJ BRYTANII

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt namenem.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Biuro 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

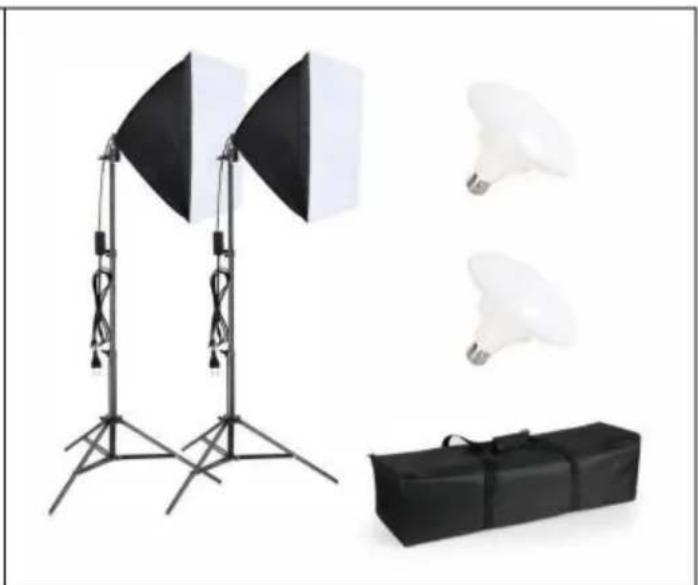

Photography setup with two black studio lighting units and two white lightbulbs, one lying on a black box (no text or symbols visible)
