Light Soft box instructions

MODEL:SH-LT-016, SH-LT-017, SH-LT-018

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

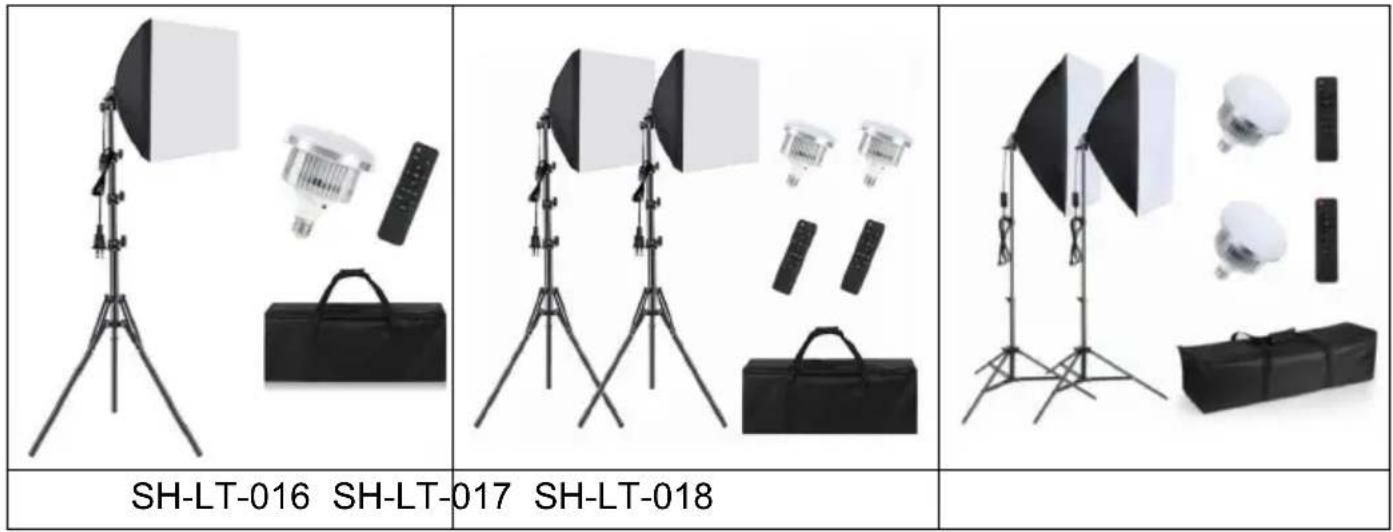

Light Soft box

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Correct Disposal

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

IMPORTANT

• Please buy the battery by yourself(There is no battery in remote control).
• Keep the bulbs safe from falling and dropping.
• Keep the softbox lighting kits away from water and liquids to protect products and extend service life.
• Keep it away from children while using(unless accompanied by adults).
• Please do not touch the bulbs directly after a long time of use.
• Please do not touch the socket when your hands are wet. Remember to takeout the bulbs when you need to package the softbox lighting kits.
• Please store the kits in a cool, dry, and dust-free location. And do not put heavy things on it.
• Please follow the correct instruction when taking out the bulbs or the bulbs may be malfunctioning.
• Some accessories may be damaged during long-time transportation, please contact us for replacement in time.
• Please turn on the switch on the cable after plugging it in. AC220V-240V voltage is the working voltage for the LED softbox lighting kits.

MODEL: SH-LT-016Components ListPlease make sure all accessories listed below are completed before using. If not, please contact us immediately.
40*40cm Softbox	White Diffuser
45W Adjustable LED Bulb	Remote Control
[wzt7]
40cm-150cm Light Stand	Carrying Bag
MODEL: SH-LT-017Components ListPlease make sure all accessories listed below are completed before using. If not, please contact us immediately.
40*40cm Softbox*2	White Diffuser*2
45W Adjustable LED Bulb*2	Remote Control*2
40cm-150cm Light Stand*2	Carrying Bag*1

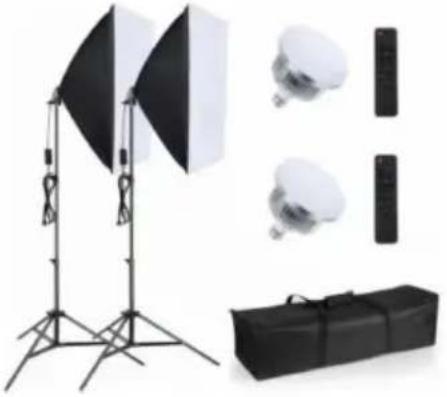

MODEL: SH-LT-018Components ListPlease make sure all accessories listed below are completed before using. If not, please contact us immediately.
50*71cm Softbox*2	White Diffuser*2
45W Adjustable LED Bulb*2	Remote Control*2
68cm-200cm Light Stand*2	Carrying Bag*1

SOFTBOX INSTALLATION

MODEL:SH-LT-016,SH-LT-017. Section 1:install the light stand

1.Remove the screw cap protecting the screw	2.Loosen the knob on the bottom of the light stand counterclockwise	3.Open the stand outwards
4.Fully extend the stand	5.Tighten the knob on the bracket clockwise	6.Turn the knob on the pole counterclockwise to adjust the height of the stand
7.Pull out the second section the pole upwards	8.Tighten the knob on the bracket clockwise	9.Pull out the third section of pole upwards
10.Tighten the knob on the bracket clockwise	11.The bracket is installed as shown in the picture

MODEL:SH-LT-018. Section 1:install the light stand

1.Remove the screw cap protecting the screw	2.Loosen the knob at the bottom of the light stand	3.Pull the legs of the stand, push the stand from top to bottom
4.The tripod's connect piece is perpendicular to the vertical pole	5.Tighten the knob on the bracket clockwise	6.Turn the knob on the pole counterclockwise to adjust the height of the stand
7.Pull out the second section the pole upwards	& Tighten the knob to fix the position	9.The bracket is installed as shown in the picture

Section 2: install the softbox

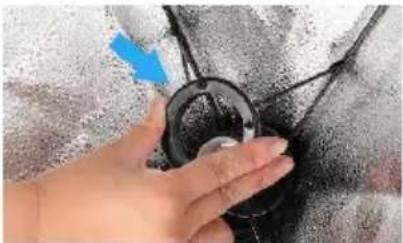

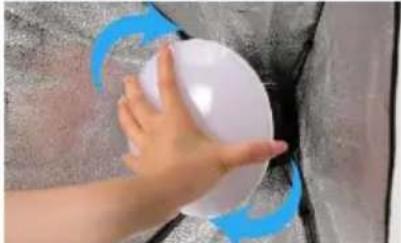

1.Open the softbox and press the snap ring onto the lamp holder	2.Rotate the LED bulb into t E27 holder	3.Cover the four corners with front diffuser

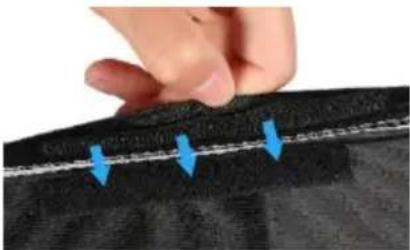

4.Glue the Velcro on the fou sides	5.Loosen the knob of the softbox	6.Install the softbox to the lig stand
7.Tighten the softbox knob clockwise(please install the softbox completely onto the li stand, as shown in the pictu	8.Loosen the upper knob of softbox	9.Adjust the head of the soft upward to adjust the soft box 210%
10.Adjust the softbox downwa to the angle you want to sh	11.Plug in socket and press switch button	12.Put the 2 AAA batteries in the remote control, press "ON"
		13.Completely mount the softbox on the light stand as shown in the picture

IMPORTANT TIPS :

1. Before using the remote control, please remember to open the on/ button on the softbox cable first. Then you can operate the remote c to control the softbox.
2. During use, the remote control should be pointed at the LED lamp ensure that there are no large obstacles in the signal path. (deviation the signal path will result in slower response speed or control error).
3. The remote control is universal, one remote control can control two softboxes at the same time. We provide two remotes and the other can be used as a spare. The remote can not control the softbox set
4. Please note that the angle of the remote can not exceed 60^
5. The effective remote control distance does not exceed 10m, prefer within 8 meters.

Note: the battery is not included, (Customers need to buy 2 AAA ba

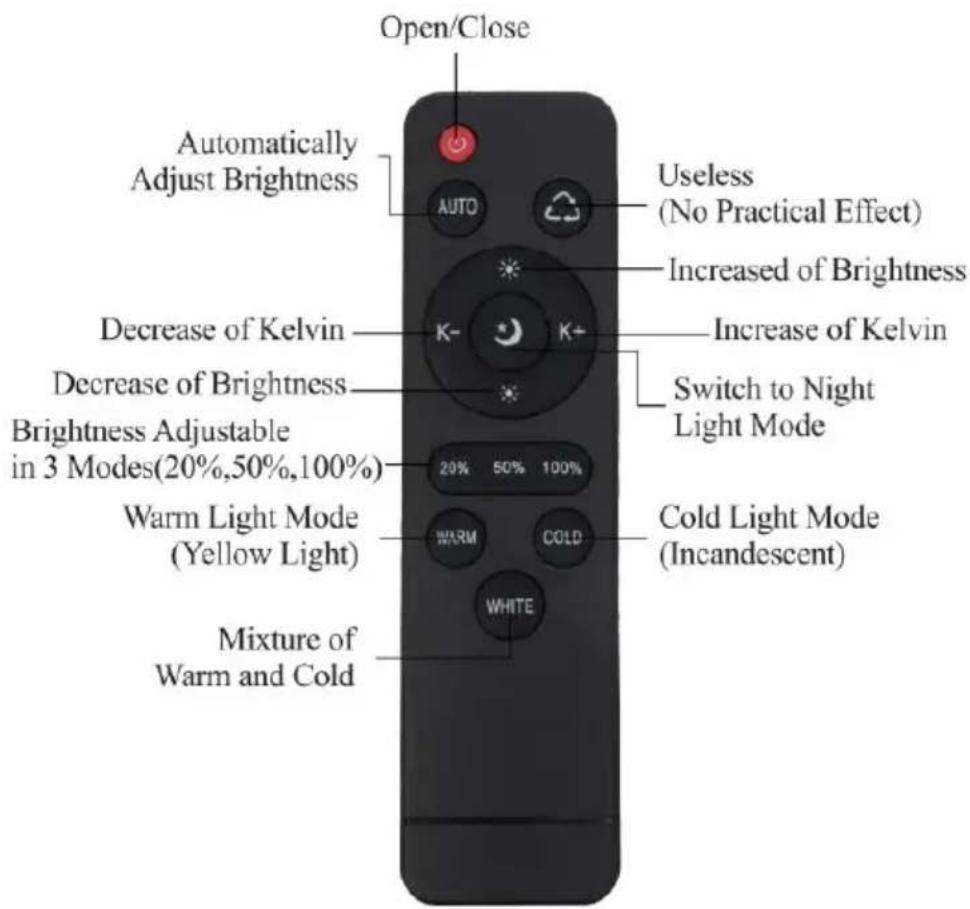

Open/Close Automatically Adjust Brightness Useless (No Practical Effect) Increased of Brightness Decrease of Kelvin Increase of Kelvin Decrease of Brightness Brightness Adjustable in 3 Modes(20%,50%,100%) Switch to Night Light Mode Warm Light Mode (Yellow Light) Cold Light Mode (Incandescent) Mixture of Warm and Cold WHITE

INSTALLATION:

It's very easy to install, you can search FGen led softbox and brows YouTube or read the video on the amazon product page for more information. In addition, here are the steps for you:

1. Open the softbox umbrella. Press the snap ring onto the lamp hot until you hear a click.
2. Rotate the LED E27 light bulb into the softbox.
3. Cover the four corners with the front diffuser and then glue the \ the four sides.
4. Pull the legs of the stand, push the stand from top to bottom, Pl bottom of the softbox perpendicular to the tripod feet, It becomes mo stable.
5. Connect the softbox umbrella to the stand. Before assembly, you remove the plastic sleeve which protects the thread on the 1/4 "thread the stand.
   6.Plug in and open the control button on the cable to turn on the s

Model	SH-LT-016 SH	H-LT-017 SH-LT	-018
Input	AC 220-240V, 50/60Hz
Softbox Size	40*40 cm 40	40*40 cm 50*71 cm
Tripod Height	40-150 cm	40-150 cm	68-200 cm
Bulb Power	45W
CCT	3000-6500K
Light Socket	E27
Bulb Base	E27
Remote Operating	8 m
