YX-RGX002EU - Studio lighting Vevor - Free user manual and instructions

Product Type	Studio softbox lighting kit
Brand	Vevor
Model	YX-RGX002EU
Compatible softbox models	SH-LT-016, SH-LT-017, SH-LT-018
Input voltage	AC 220-240 V, 50/60 Hz
Bulb power	45 W (adjustable LED)
Color temperature (CCT)	3000-6500 K
Socket	E27
Light box size (model SH-LT-016/017)	40 x 40 cm
Light box size (model SH-LT-018)	50 x 71 cm
Tripod height (SH-LT-016/017)	40-150 cm
Tripod height (SH-LT-018)	68-200 cm
Remote control range	Up to 10 m (ideally 8 m)
Remote control batteries	2 AAA batteries (not included)
Kit contents	Depending on model: 1 or 2 softboxes, diffusers, LED bulbs, remote controls, supports, carry bag
Diffuser material	White, fabric
Remote control angle	≤ 60°
Main functions	Studio lighting adjustable in height and angle, dimming via remote control, variable color temperature
Maintenance and cleaning	Clean with a dry cloth, store in a cool, dry place, away from dust
Safety instructions	Do not touch the bulb after use, keep out of reach of children, avoid water and liquids, unplug before handling
Warranty and support	www.vevor.com/support
Manufacturer information	Shanghai Muxin Muye Youxiangongsi, Shanghai, China
Disposal	Compliant with WEEE directive 2012/19/EU, selective recycling

Frequently Asked Questions - YX-RGX002EU Vevor

How to install the softbox tripod?

Unscrew the locking knob, unfold the legs, then extend the pole sections by locking them. For model SH-LT-018, the legs pull out directly. See the manual for detailed steps.

The remote control doesn't work, what should I do?

Check that the softbox is turned on via the cable switch. Insert new AAA batteries in the remote (not included). Point the remote at the LED lamps within an angle ≤60° and less than 8 meters.

What is the power and color temperature of the bulbs?

The LED bulbs provide 45 W and an adjustable color temperature from 3000K (warm) to 6500K (cold). They screw into an E27 socket.

Can I control each softbox separately?

No, the remote is universal: one remote controls all softboxes in the kit simultaneously. A backup remote is provided.

What safety precautions should be followed?

Do not touch the bulb after prolonged use (burn risk). Keep the device out of reach of unsupervised children. Avoid any contact with water or liquids. Unplug before changing the bulb.

How to maintain the softbox?

Store the kit in a cool, dry place away from dust. Clean the diffuser with a dry cloth. Do not place heavy objects on it. Remove the bulb before storing the softbox.

Which models are included in this YX-RGX002EU kit?

The kit may contain models SH-LT-016 (1 softbox 40x40cm), SH-LT-017 (2 softboxes 40x40cm), or SH-LT-018 (2 softboxes 50x71cm). Check your package contents.

How to replace the bulb?

Unplug the device, remove the diffuser, unscrew the defective bulb counterclockwise, and screw in a new E27 bulb of 45W max. Reattach the diffuser.

Why doesn't the light turn on?

Make sure the cable is plugged into a 220-240V outlet and the cable switch is ON. Check that the bulb is screwed in properly. If using the remote, the cable switch must be on.

Where can I find technical support?

Visit www.vevor.com/support for technical support and the electronic warranty certificate.

USER MANUAL YX-RGX002EU Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Light Softbox Instructions

MODEL: SH-LT-016, SH-LT-017, SH-LT-018

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

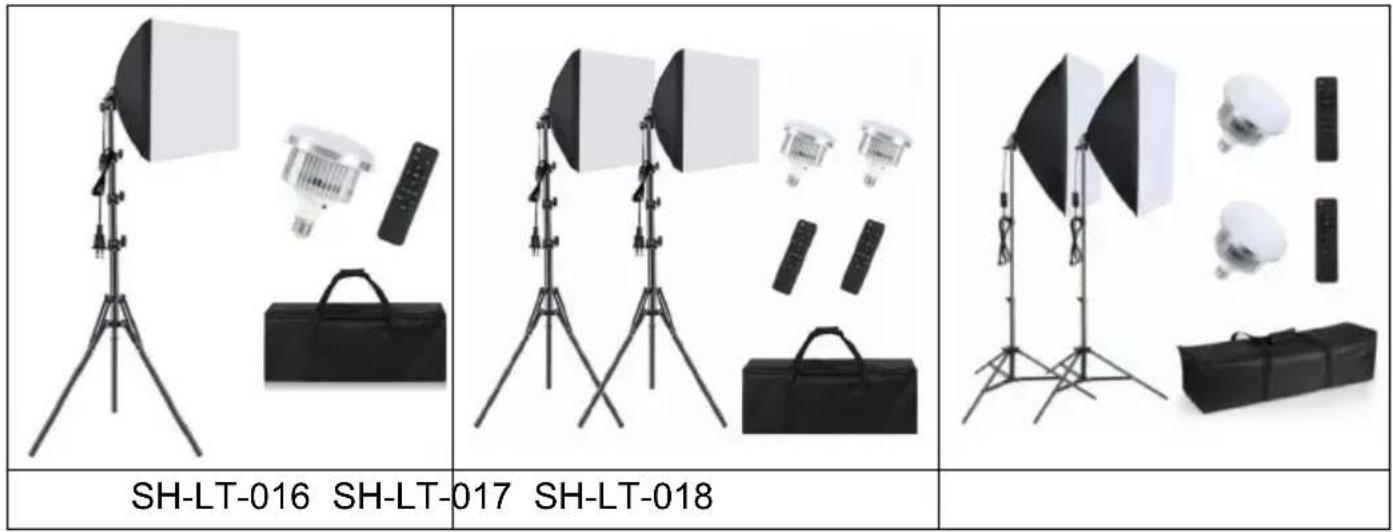

Light Softbox

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Correct Disposal

This product is subject to the provisions of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

IMPORTANT

• Please buy the battery by yourself (there is no battery in the remote control).
• Keep the bulbs safe from falling and dropping.
• Keep the softbox lighting kits away from water and liquids to protect the products and extend service life.
• Keep it away from children while using (unless accompanied by adults).
• Please do not touch the bulbs directly after a long time of use.
• Please do not touch the socket when your hands are wet. Remember to take out the bulbs when you need to package the softbox lighting kits.
• Please store the kits in a cool, dry, and dust-free location. And do not put heavy things on it.
• Please follow the correct instructions when taking out the bulbs, or the bulbs may malfunction.
• Some accessories may be damaged during long-time transportation; please contact us for replacement in time.
• Please turn on the switch on the cable after plugging it in. AC220V-240V voltage is the working voltage for the LED softbox lighting kits.

MODEL: SH-LT-016Components ListPlease make sure all accessories listed below are completed before using. If not, please contact us immediately.
40*40cm Softbox	White Diffuser
45W Adjustable LED Bulb	Remote Control
40cm-150cm Light Stand	Carrying Bag

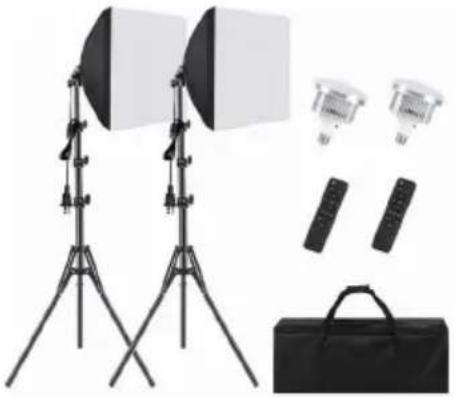

MODEL: SH-LT-017Components ListPlease make sure all accessories listed below are completed before using. If not, please contact us immediately.
40*40cm Softbox*2		White Diffuser*2
45W Adjustable LED Bulb*2		Remote Control*2
40cm-150cm Light Stand*2		Carrying Bag*1

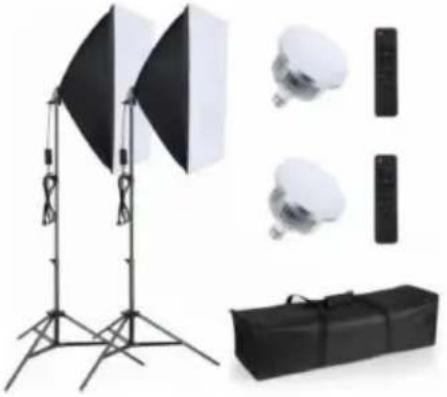

MODEL: SH-LT-018Components ListPlease make sure all accessories listed below are completed before using. If not, please contact us immediately.
50*71cm Softbox*2	White Diffuser*2
45W Adjustable LED Bulb*2	Remote Control*2
68cm-200cm Light Stand*2	Carrying Bag*1

SOFTBOX INSTALLATION

MODEL: SH-LT-016, SH-LT-017. Section 1: Install the light stand

1.Remove the screw cap protecting the screw	2.Loosen the knob on the bottom of the light stand counterclockwise	3.Open the stand outwards
4.Fully extend the stand	5.Tighten the knob on the bracket clockwise	6.Turn the knob on the pole counterclockwise to adjust the height of the stand
7.Pull out the second section the pole upwards	8.Tighten the knob on the bracket clockwise	9.Pull out the third section of pole upwards
10.Tighten the knob on the bracket clockwise	11.The bracket is installed as shown in the picture

MODEL: SH-LT-018. Section 1: Install the light stand

1.Remove the screw cap protecting the screw	2.Loosen the knob at the bottom of the light stand	3.Pull the legs of the stand, push the stand from top to bottom
4.The tripod's connect piece is perpendicular to the vertical pole	5.Tighten the knob on the bracket clockwise	6.Turn the knob on the pole counterclockwise to adjust the height of the stand
7.Pull out the second section the pole upwards	& Tighten the knob to fix the position	9.The bracket is installed as shown in the picture

Section 2: Install the softbox

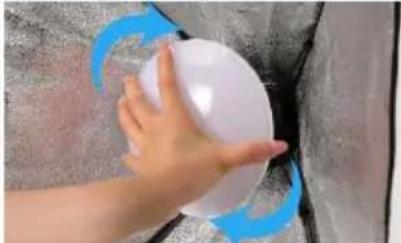

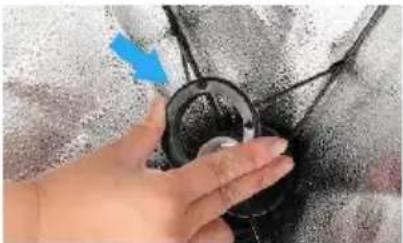

1.Open the softbox and press the snap ring onto the lamp holder	2.Rotate the LED bulb into t E27 holder	3.Cover the four corners with front diffuser

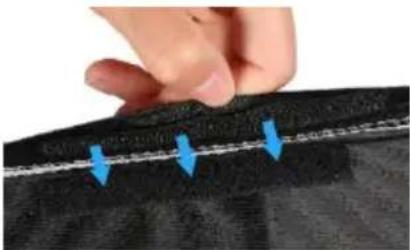

4.Glue the Velcro on the fou sides	5.Loosen the knob of the softbox	6.Install the softbox to the lig stand
7.Tighten the softbox knob clockwise(please install the softbox completely onto the li stand, as shown in the pictu	8.Loosen the upper knob of softbox	9.Adjust the head of the soft upward to adjust the soft box 210%
10.Adjust the softbox downwa to the angle you want to sh	11.Plug in socket and press switch button	12.Put the 2 AAA batteries in the remote control, press "ON"
		13.Completely mount the softbox on the light stand as shown in the picture

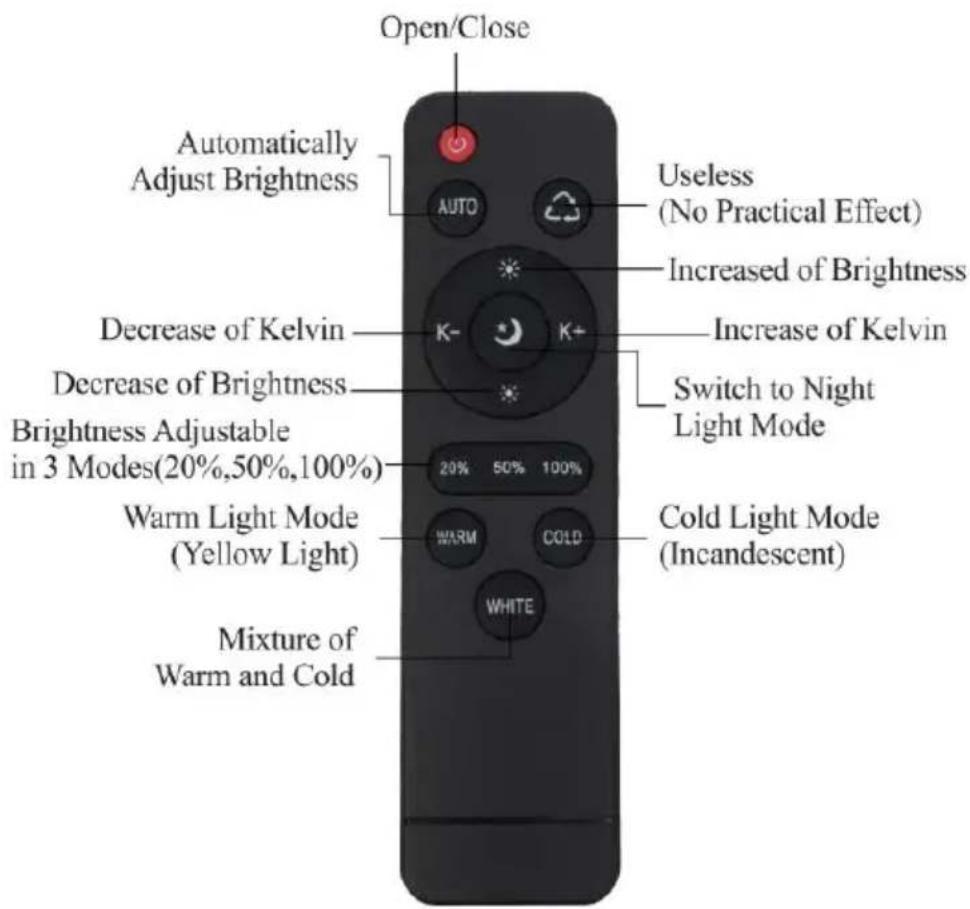

IMPORTANT TIPS:

1. Before using the remote control, please remember to open the on/off button on the softbox cable first. Then you can operate the remote control to control the softbox.
2. During use, the remote control should be pointed at the LED lamp to ensure that there are no large obstacles in the signal path. (Deviation from the signal path will result in slower response speed or control error).
3. The remote control is universal; one remote control can control two softboxes at the same time. We provide two remotes, and the other can be used as a spare. The remote cannot control the softbox set.
4. Please note that the angle of the remote cannot exceed 60 degrees.
5. The effective remote control distance does not exceed 10m, preferably within 8 meters.

Note: the battery is not included. (Customers need to buy 2 AAA batteries.)

INSTALLATION:

It's very easy to install. You can search for 'FGen LED softbox' and browse YouTube or watch the video on the Amazon product page for more information. In addition, here are the steps for you:

1. Open the softbox umbrella. Press the snap ring onto the lamp holder until you hear a click.
2. Rotate the LED E27 light bulb into the softbox.
3. Cover the four corners with the front diffuser and then glue the four sides.
4. Pull the legs of the stand, push the stand from top to bottom, place the bottom of the softbox perpendicular to the tripod feet. It becomes more stable.
5. Connect the softbox umbrella to the stand. Before assembly, remove the plastic sleeve which protects the thread on the 1/4" thread of the stand. 6. Plug in and open the control button on the cable to turn on the softbox.

Model	SH-LT-016 SH	H-LT-017 SH-LT	-018
Input	AC 220-240V, 50/60Hz
Softbox Size	40*40 cm 40	40*40 cm 50*71 cm
Tripod Height	40-150 cm	40-150 cm	68-200 cm
Bulb Power	45W
CCT	3000-6500K
Light Socket	E27
Bulb Base	E27
Remote Operating	8 m

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road. Staines-upon-Thames. Surrey. TW18 4
