USER MANUAL TS-103 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

HANDHELD METAL DETECTOR INSTRUCTIONS

MODEL: TS-103

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: TS-103

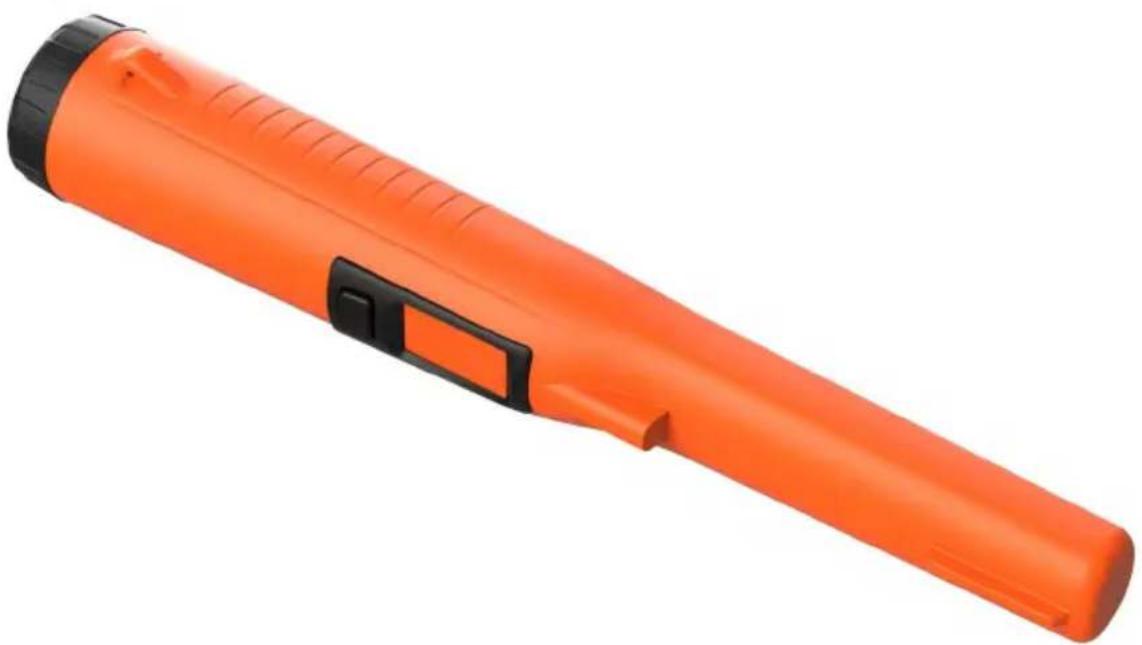

Vevor TS-103 - MODEL: TS-103 - 1

natural_image Orange handheld device with black handle and grip, isolated on white background (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Vevor TS-103 - NEED HELP? CONTACT US! - 1Warning-To reduce the risk of injury, user must read instructions manual carefully.
Vevor TS-103 - NEED HELP? CONTACT US! - 2This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device cause harmful interference, and (2)this device must acce interference received, including interference that may cau undesired operation.
Vevor TS-103 - NEED HELP? CONTACT US! - 3This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic w must be taken to a collection point for recycling electric electronic devices

FEATURES

  • Detect metal objects in all directions.
    ● High precision identifying system.
    ● Auto power off.
  • Low power consumption.
  • Shock resistance.
  • Small size, light weight.
    ● Waterproof design, IP degree of IP68.

SPECIFICATIONS

● Sensitivity: 40mm ( for one dollar coin )
- Alarm Mode:
Mode 1: Vibration and buzzer sound alarm mode
Mode 2: Buzzer sound alarm mode
Mode 3: Vibration alarm mode

  • Operating Environment:
    Temperature: -20C to 60C
    Relative Humidity: <90%
    ● Battery: 9V battery, 6F22 or equivalent, 1 piece
    ● Dimensions: 250mm x 45mm x 42mm
    ● Weight: About 250g (including battery)

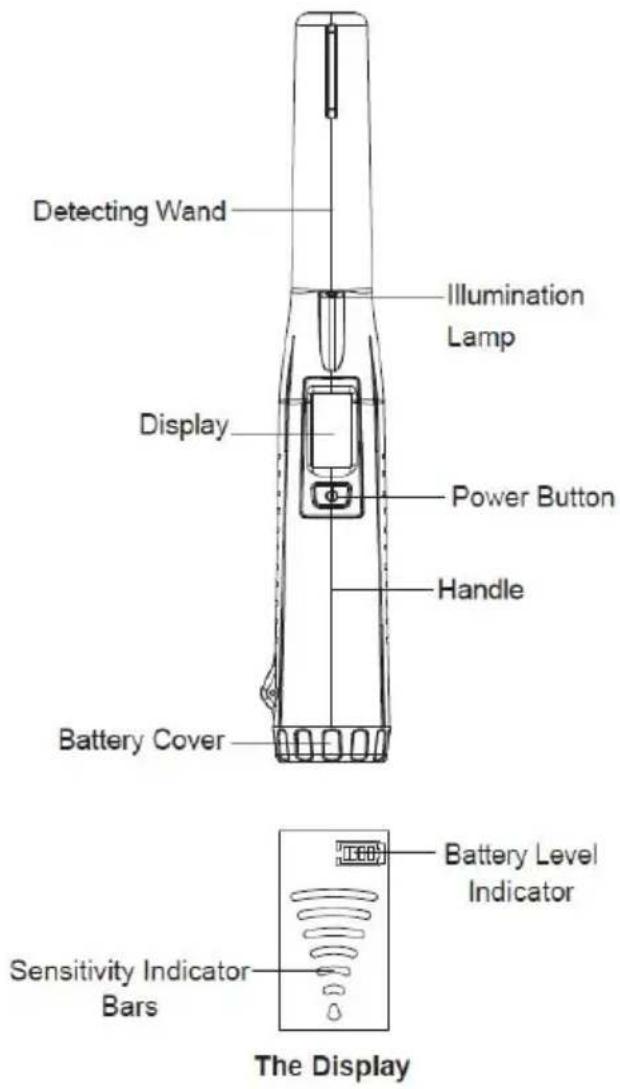

STRUCTURE
Vevor TS-103 - SPECIFICATIONS - 1

text_image Detecting Wand Illumination Lamp Display Power Button Handle Battery Cover Battery Level Indicator Sensitivity Indicator Bars The Display

INSTALLING BATTERY

  1. Remove the battery cover by turning it counterclockwise.

  2. Install a new 9V battery (6F22 or equivalent) into the battery compartment, make sure the polarity connections are correct(see Figure 2); otherwisethe metal detector may be damaged.

  3. Reinstall the battery cover, turn it clockwise to secure it in pla

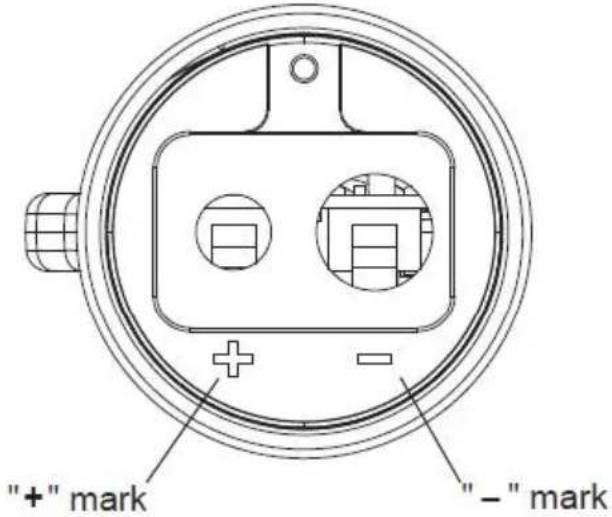

Vevor TS-103 - INSTALLING BATTERY - 1

text_image "+" mark "- " mark

Battery Terminal Polarity Marks for Correct Placement of Battery

Note:

  1. Never leave an exhausted battery in the detector
  2. If you do not use the detector in a long period of time, remove the battery from the detector to avoid corrosion.
  1. Hold the detector by the handle. Make sure that the detector is from any metal object, and then press the power button briefly to the detector. The green power indicator LED and the illumination light up, and the detector vibrates once and/or the buzzer sounds a indicating that the detector has been turned on.
  2. The detector starts calibration automatically. Thecalibration takes abc 2 to 4 secs.When thecalibration is completed, the detector vibrates briefly two times and/or the buzzer sounds two beeps.

Note: If you want to use this detector to detect metal objects buried in mineralized soil, salt water or wet salt sand, you must hold the tip of detector to mineralized soil! salt water or wet salt sand and turn the detector to let it perform auto calibration there.

  1. Move the detecting wand smoothly along the surface of the object checked. As the detectorgets close to a metal object, it will start to vibrate and/or the built-in buzzer will sound. The vibration and/or the b

sound will intensify as the detectorgets closer to the metal.

  1. After the detector is turned on and calibrated, you can press and power button for about 2 seconds to enter the alarm-mode-switching state. The illumination light will flash as an indication. The detector defa to enter the alarm mode with vibration and buzzer sound. Press the power button once to switch to the buzzer sound alarm mode. and pr again to switch to the vibration alarmmode. After selecting the desir mode, press and hold the power button for about 2 seconds to confirm it, or wait for about 5 seconds for the detector to automatically confirm Note: After the next power-up, the detector will default to the alarm m confirmed in the previous use.

  2. After finishing using the detector, press the powerbutton once to touch the detector; the detector will vibrate three times and/or the buzzer with soundthree beeps

Note:

  • Before each use, verify the detector's operation by detecting a known metal object. Do not use the detector if it operates abnormally.
  • If the display shows the symbol " ", the battery is not high enough and you must replace the battery immediately; otherwise tl detector may not operate or detect metal normally.When the batter too low, the detector will turnoff automatically.
  • When the battery is too low, the detector will turn off automatically
  • To save battery charge, turn off the detector whennot in use.

AUTOMATIC POWER OFF

If you have not pressed the power button and the detector has not done any metal object for about 5 minutes, the detector will start to prompt with vibration and/or buzzer sound every 12 secs. And after six prompts, detector will turn off automatically.

Note: If any metal object is detected or the powerbutton is pressed, prompt will be cancelled and the timer will reset.

DECLARATION

  1. This Instruction Sheet is subject to change without notice.
  2. Our company will not take the other responsibilities for any loss.
  3. The contents of this Instruction Sheet can not be used as the result use the detector for any special application.

LIST OF ACCESSORIES

● 9V carbon tandem battery (6F22)*1
- Waist hanging cover*1
- Telescopic lanyard*1
- Instructions*1

DISPOSAL OF THIS ARTICLE

Dear Customer,

If you at some point intend to dispose of this article, keep in mind that many of its components consist of materials, which can be recycled.

Please do not discharge it in the garbage bin, but ch your local council for recycling facilities in your area.

Vevor TS-103 - DISPOSAL OF THIS ARTICLE - 1

natural_image Pure electrical circuit lines without any symbols

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 21 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP
UKREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, Th

Pavilions Preston. United Kinadon

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODÈLE: TS-103

Vevor TS-103 - MODÈLE: TS-103 - 1

natural_image Orange handheld device with black handle and black grip, isolated on white background (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

text_image Detecting Wand Illumination Lamp Display Power Button Handle Battery Cover Battery Level Indicator Sensitivity Indicator Bars The Display

INSTALLING BATTERY

text_image "+" mark "- " mark

Battery Terminal Polarity Marks for Correct Placement of Battery

Note:

natural_image Symbol of a trash bin with crossed lines indicating no waste or plastic (no text or labels)

Vevor TS-103 - Note: - 1

Unit 5 Albert Edward House, Th

Pavilions Preston. United Kinadon

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

HANDMETALLDETEKTOR

ANWEISUNGEN

MODELL: TS-103

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: TS-103

Vevor TS-103 - MODELL: TS-103 - 1

natural_image Orange handheld device with black handle and black grip, isolated on white background (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

text_image Detecting Wand Illumination Lamp Display Power Button Handle Battery Cover Battery Level Indicator Sensitivity Indicator Bars The Display

INSTALLING BATTERY

text_image "+" mark "- " mark

Battery Terminal Polarity Marks for Correct Placement of Battery

Notiz:

natural_image Symbol of a trash bin with crossed lines indicating no waste or plastic (no text or labels)

Unit 5 Albert Edward House, Th

Pavilions Preston. United Kinadon

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELLO: TS-103

Vevor TS-103 - MODELLO: TS-103 - 1

natural_image Orange handheld device with black handle and black grip, isolated on white background (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

text_image Detecting Wand Illumination Lamp Display Power Button Handle Battery Cover Battery Level Indicator Sensitivity Indicator Bars The Display

INSTALLING BATTERY

text_image "+" mark "- " mark

Battery Terminal Polarity Marks for Correct Placement of Battery

Nota:

natural_image Symbol of a trash bin with crossed lines and a blank rectangular base (no text or labels)

Unit 5 Albert Edward House, Th

Pavilions Preston. United Kinadon

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELO: TS-103

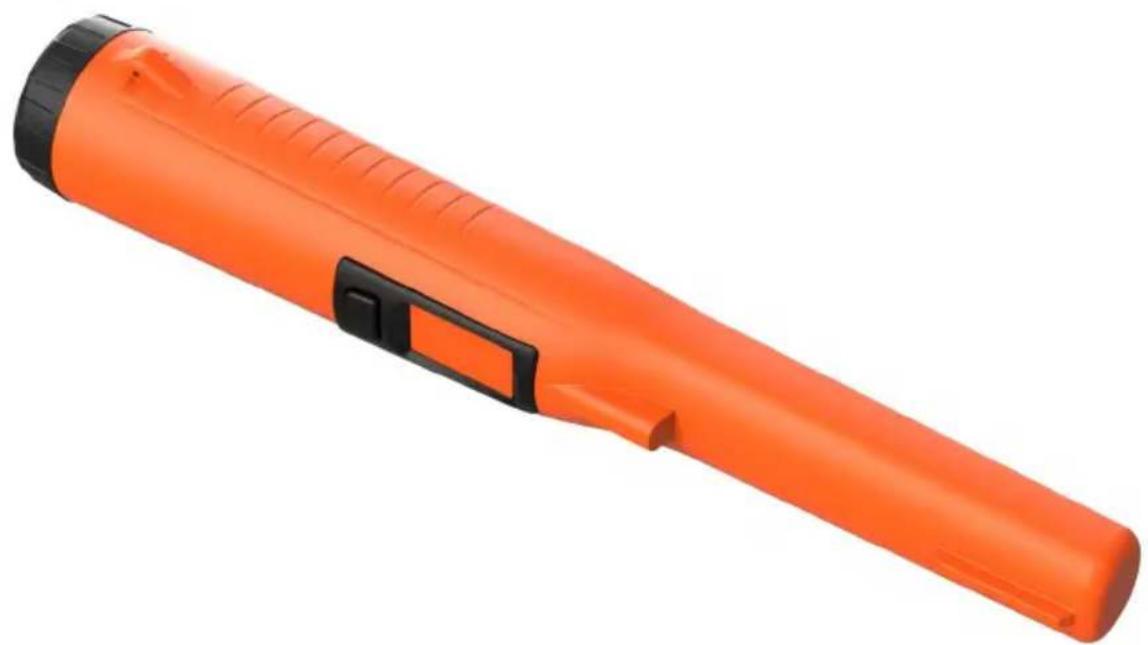

Vevor TS-103 - MODELO: TS-103 - 1
