FUEL LINE HOSE

MODEL:PTFE-6AN-25ft

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FUEL LINE HOSE

MODEL:PTFE-6AN-25ft

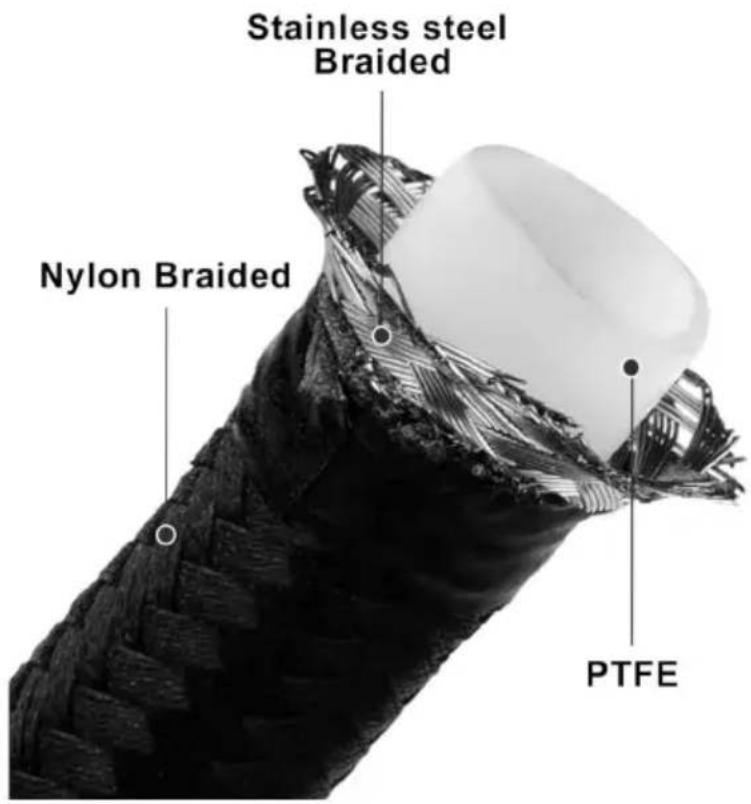

Stainless steel Braided Nylon Braided PTFE

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT INTRODUCTION

PTFE: The PTFE hose end only work with PTFE fuel line.

Compatibility and durability: PTFE nylon braided fuel line kit mostly used in EFI LS system and can be used as fuel injection hose, ls engine swap and EFI co fuel line, turbo oil feed and boost line, transmission oil cooler line, carb fuel fuel return line, vapor return line, vacu line, fuel supply line, turbocharger fuel and other high temperature high press applications.

Applicable medium: AN-6 nylon braided high pressure PTFE fuel line holds up stronger to heat and extreme circumstances.

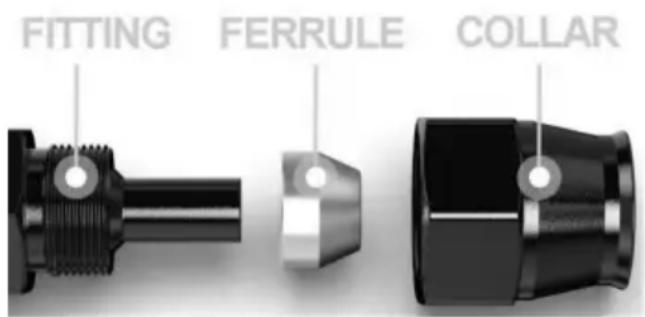

FITTING FERRULE COLLAR

WARNING Tips:

1. PTFE fuel hose can be compatible with all automot fuels, lubricants, and coolant.

2. PTFE hose relatively hard, it can't be bend and fo half. Professional installation is highly recommended

3. The surface is sharp, please wear gloves when ins

4. It is strictly prohibited to mix the hose with acid, alkane organic solvent, inflammable and explosive materials. Hose body should not be in direct contact with good sharp edges.

5. When handling hoses, they should not be dragged anywhere. For heavy hoses, lifting equipment or specialized machinery should be used for load and unloading, and accidental damage to the hoses should be prevented.

6. Keep away from open flame. This product will ignite and burn if brought contact with an open flame.

7. Keep away from sharp points, blades and other items, so as not to scratch product.

8. This product is not a toy, Dump truck mesh tarp cannot be used as toys children to play with.

avoid folding

SAVE THESE INSTRUCTIONS

PRODUCT PAREMETERS

Model	PTFE-6AN-25ft
Fuel Hose Size	6AN
Length	25ft
Max working pressure	3000psi
Burst Pressure	10000 psi
Working Temp	-76°F~+446°F
Material	Stainless Steel & Nylon & PTFE
Colour	Black

INSTALLATION INSTRUCTIONS

Name	Picture	Number
Straight Adapters		6 PCS
45 Degree Adapters		2 PCS
6AN To 1/4 NPT Fuel Pump Adap		2 PCS
6AN To 3/8” 5/16” Hose Adapte Fitting		3 PCS
Two-Way Reaming Tool		1 PCS
6AN To 3/8” Quick Disconnect M	[ASKW]	1 PCS
Sealing Ring		8 PCS

Application

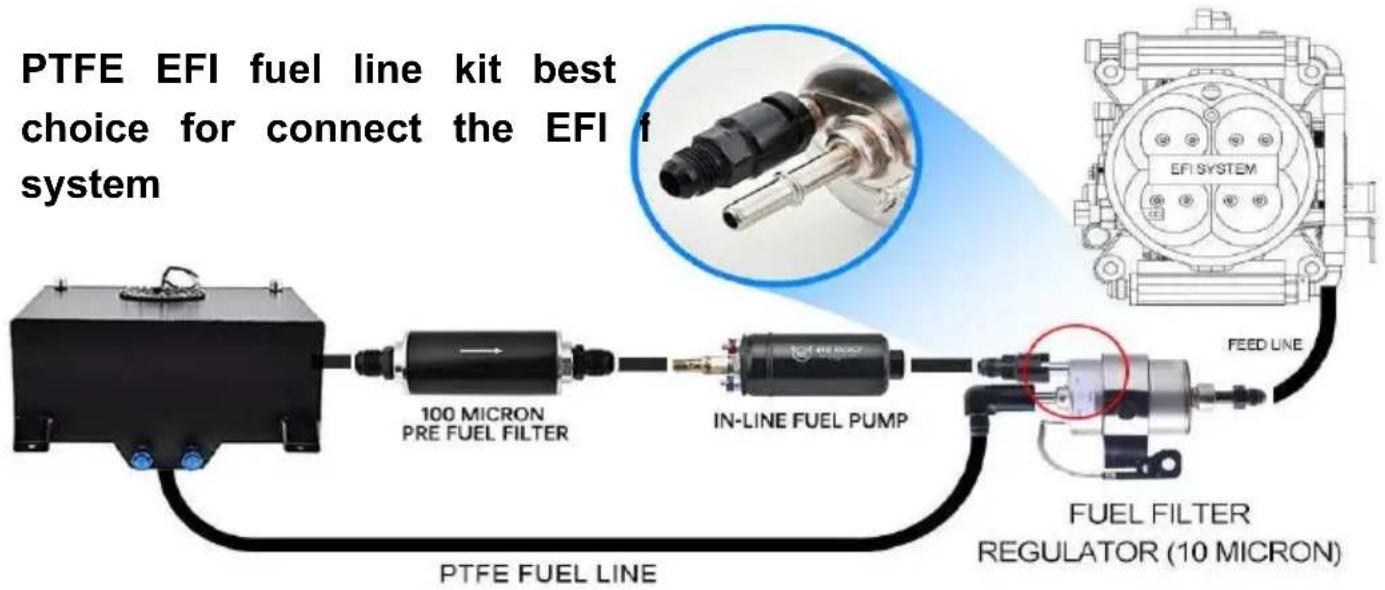

Please check the working pressure and temperature of your system before purchase.

PTFE Stainless Steel Nylon Braided

1. The PTFE hose end only with PTFE fuel line.

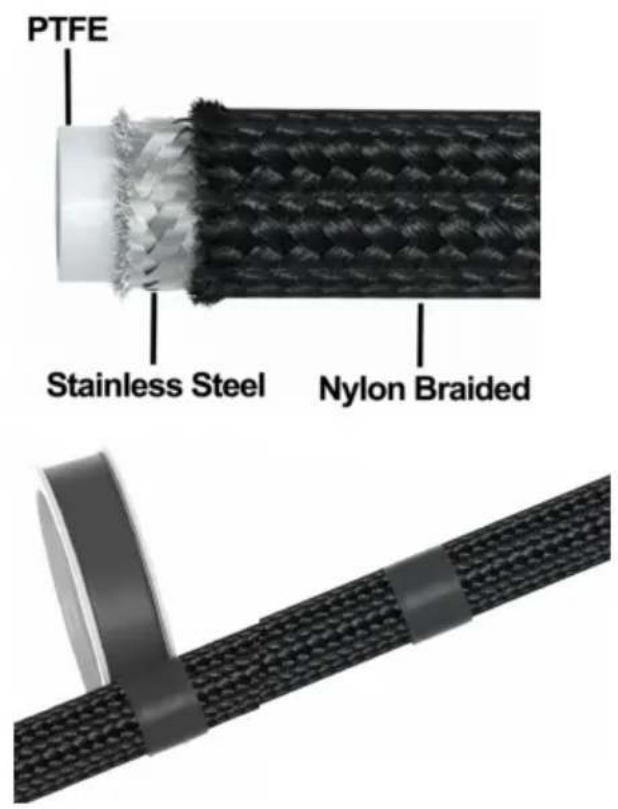

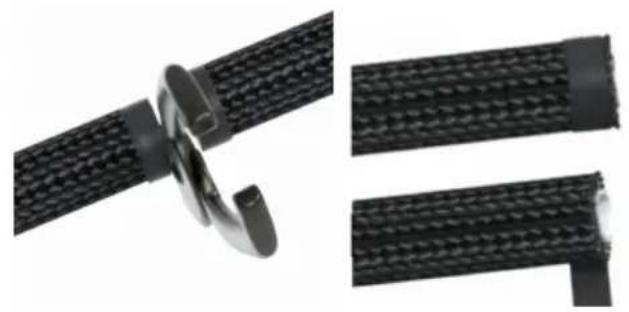

2. When installation, please take care of these details. Use electrical tape to reduce wear.

Close-up of a black textured cable clip with metal clasp, shown from two different angles (no text or symbols visible)

Three-step illustration of a cable being twisted, showing wire connection and rotation (no text or symbols)

Close-up of two black plastic connectors with threaded ends and metallic fittings (no text or symbols visible)

Close-up of a hand using a black tool to adjust or install a mechanical component (no visible text or symbols)

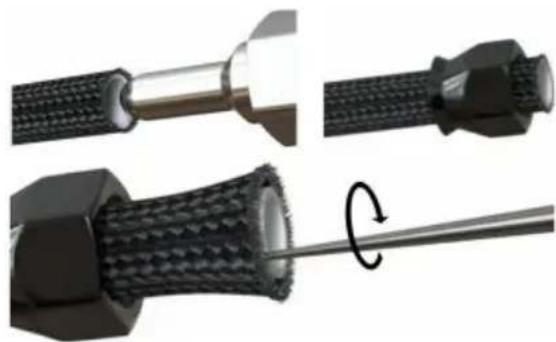

1. Clean up debris after cutting a recover the PTFE hose.

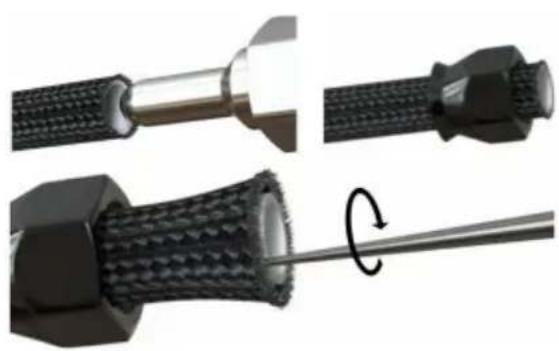

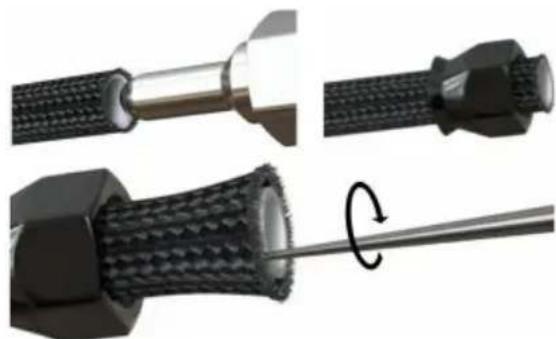

2. Correct the roundness of the porifice and separate out PTFE.ONL work with PTFE hose end fitting

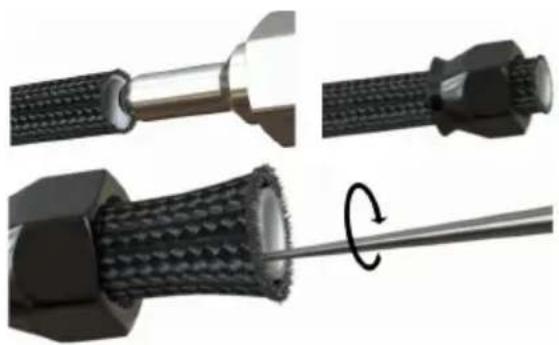

3. Screw the PTFE in the ferrule put the collar near ferrule.

Close-up of a black automotive hose connector with threaded cable and connector (no text or symbols visible)

Close-up of a hand pressing down on a mechanical component with spring and housing (no visible text or symbols)

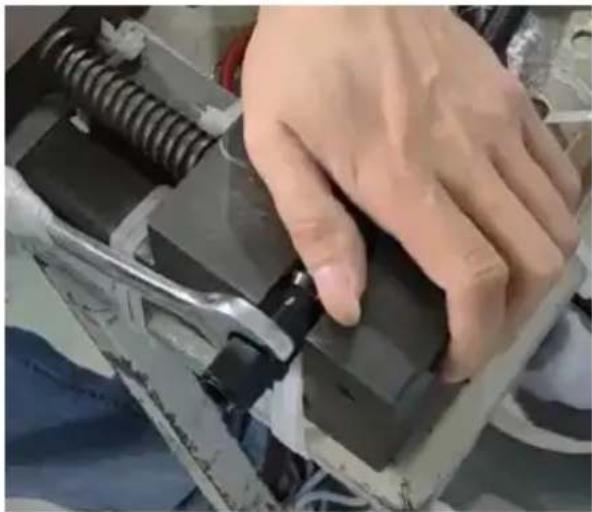

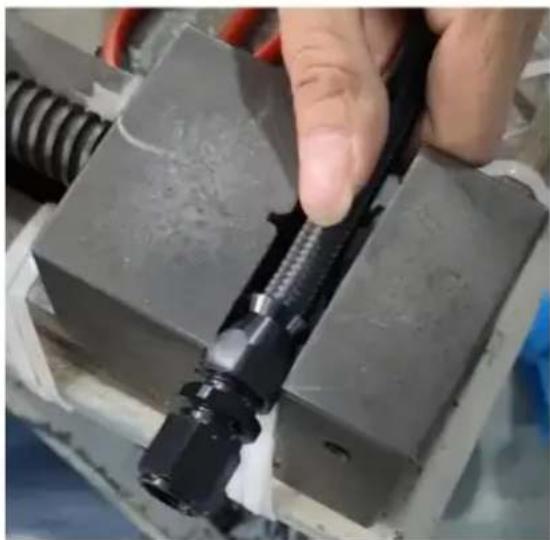

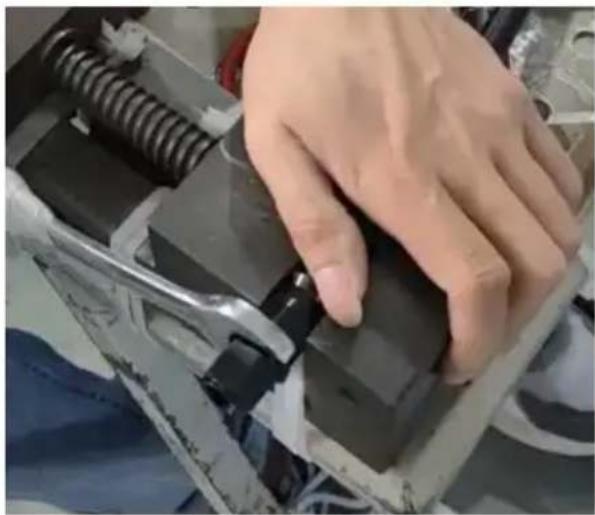

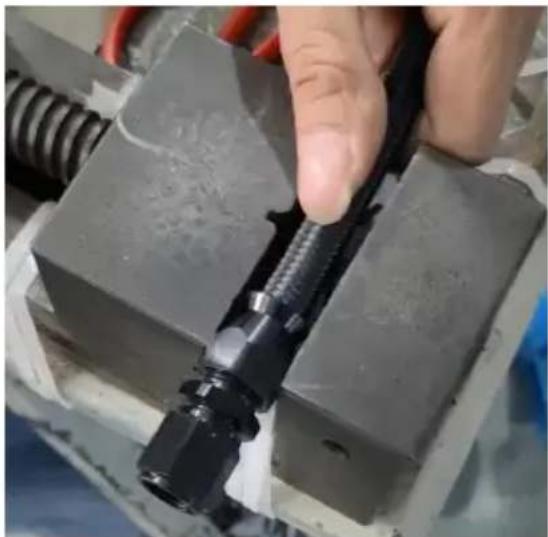

1. Use a vise to clamp one side then use the wrench to screw in joint.
