CPE-6AN-20ft - Flexible hose Vevor - Free user manual and instructions

Product Type	Flexible Fuel Line Hose
Brand	Vevor
Model	CPE-6AN-20ft
Size	6AN (3/8 inch inner diameter)
Length	20 feet (approx. 6.1 m)
Maximum Working Pressure	500 psi (34.5 bar)
Burst Pressure	2000 psi (138 bar)
Temperature Range	-40 °F to +257 °F (-40 °C to +125 °C)
Material	Stainless Steel, Nylon, CPE (synthetic rubber)
Color	Black
Main Uses	Fuel line, oil return, transmission oil cooler, vacuum line, gauge line, etc.
Package Contents	4 straight adapters, 2 45° adapters, 2 90° adapters, 2 180° adapters, 2 hose separators, 10 sealing washers
Compatibility	Works only with CPE stainless steel braided nylon hose
Installation	Clean debris after cutting, grease threads, use a wrench to tighten
Safety Precautions	Wear gloves, avoid open flames, do not use in corrosive environment, keep out of reach of children
Maintenance	Clean residual debris after cutting, avoid contact with acids, alkalis, solvents
Warranty	Electronic warranty via www.vevor.com/support

Frequently Asked Questions - CPE-6AN-20ft Vevor

Is this hose compatible with gasoline?

Yes, it is designed for fuel and oil lines. Use it with gasoline, diesel, or oil, but avoid acids, alkalis, and organic solvents.

What is the maximum working pressure?

The maximum working pressure is 500 psi. Do not exceed this limit to avoid risk of rupture.

How to install the fittings?

Cut the hose cleanly, clean debris, mark the fitting position, lubricate threads with oil, and tighten with a wrench. Use electrical tape to reduce wear if necessary.

What is the maximum operating temperature?

The temperature range is -40 °F to +257 °F (-40 °C to +125 °C). Do not use it outside this range.

Can I use this hose for coolant?

Yes, it can be used as coolant hose, but check the pressure and temperature of your system before purchase.

Is this hose suitable for outdoor use?

It can be used outdoors, but avoid corrosive environments and contact with sharp edges. Protect it from UV rays if possible.

How to maintain the hose?

Clean debris regularly, avoid harsh chemicals, and store it away from direct sunlight. Visually inspect before each use.

Does the hose come with all necessary fittings?

Yes, the kit includes 4 straight adapters, 2 45° adapters, 2 90° adapters, 2 180° adapters, 2 hose separators, and 10 sealing washers.

Where can I find technical support?

Visit the website www.vevor.com/support for technical support and electronic warranty certificate.

What are the important safety precautions?

Wear gloves during installation, keep the hose away from open flames, do not use it as a toy, and avoid contact with sharp objects.

USER MANUAL CPE-6AN-20ft Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FUEL LINE HOSE

MODEL:CPE-6AN-20ft/CPE-8AN-20ft/CPE-10AN-10ft

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FUEL LINE HOSE

MODEL:CPE-6AN-20ft / CPE-8AN-20ft / CPE-10AN-10ft

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT INTRODUCTION

CPE: Only work with CPE stainless braided nylon braided hose.

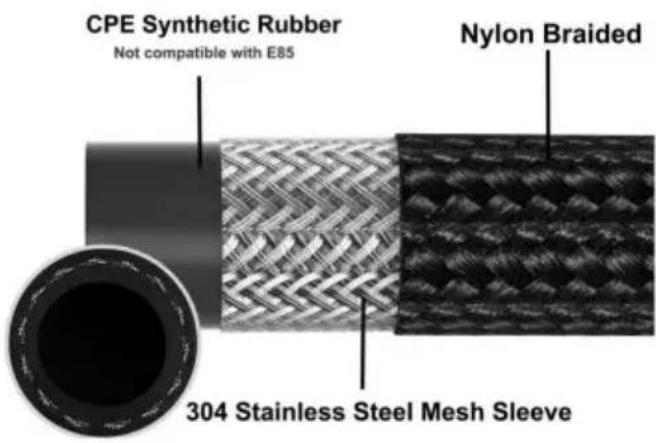

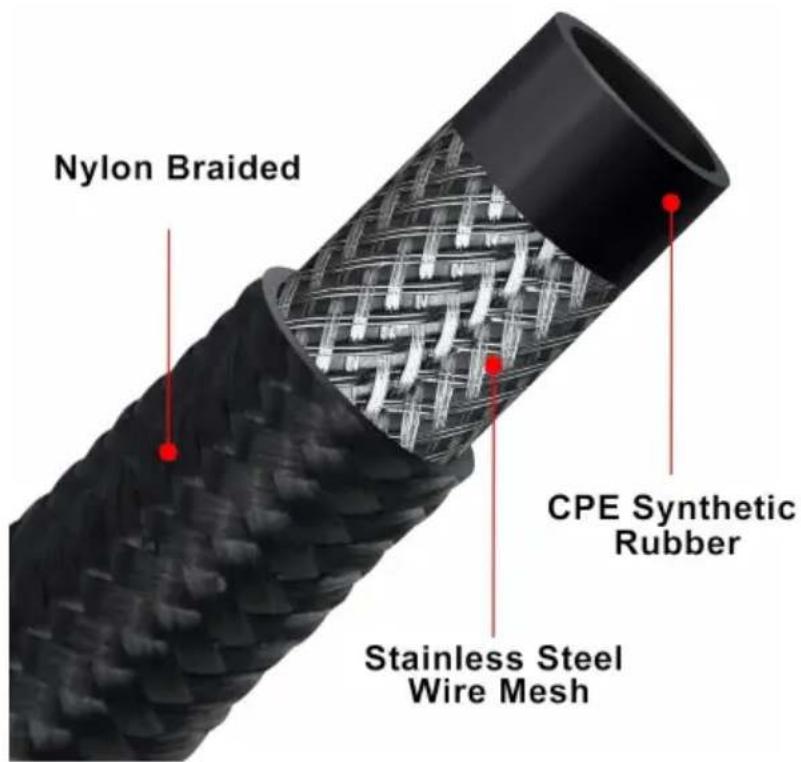

Compatibility and durability: Braided fuel hose made of CPE synthetic rubber. stainless steel in the middle layer which achieves the desired flexibility and mechanical bond between the braiding layer. Applicable medium: fuel line kit widely using transmission oil cooler line, fuel return line, fuel supply line, coolant fluid hose, fuel gauges line, vacuum line, turbo cooler line, feed line. Please check the pressure of application before perchase.

Warning Tips:

1. Professional installation is strongly recommended, but it is recommended to install in a corrosive environment, as affect the service life of the 6AN/8AN/10AN braided fuel
2. The surface is sharp, please wear gloves when installing
3. It is strictly prohibited to mix the hose with acid, alkali, oil, organic solver inflammable and explosive materials. The hose body should not be in dir contact with goods with sharp edges.
4. When handling hoses, they should not be dragged anywhere. For heavy hoses, lifting equipment or specialized machinery should be used for load and unloading, and accidental damage to the hoses should be prevented.
5. Keep away from open flame. This product will ignite and burn if brought contact with an open flame.
6. Keep away from sharp points, blades and other items, so as not to scratch product.
7. This product is not a toy, Dump truck mesh tarp cannot be used as toys children to play with.

SAVE THESE INSTRUCTIONS

PRODUCT PAREMETERS

Model	CPE-6AN-20ft	CPE-8AN-20ft	CPE-10AN-10ft
Fuel Hose Size	6AN	8AN	10AN
Length	20ft	20ft	10ft
Max working pressure	500psi	500psi	500psi
Burst Pressure	2000 psi	2000 psi	2000 psi
Working Temp	-40°F~+257°F	-40°F~+257°F	-40°F~+257°F
Material	Stainless Steel & Nylon&CPE	Stainless Steel & Nylon&CPE	Stainless Steel & Nylon&CPE
Colour	Black	Black	Black

INSTALLATION INSTRUCTIONS

Model		CPE-6AN-20ft	CPE-8AN-20ft	CPE-10AN-10ft
Straight Adapters		4 PCS	4 PCS	2 PCS
45 Degree Adapters		2 PCS	2 PCS	2 PCS
90 Degree Adapters		2 PCS	2 PCS	2 PCS
180 Degree Adapters		2 PCS	2 PCS	0 PCS
Hose Separator		2 PCS	2 PCS	1 PCS
Sealing Ring		10 PCS	10 PCS	6 PCS

Application

Please check the working pressure and temperature of your system before purchase

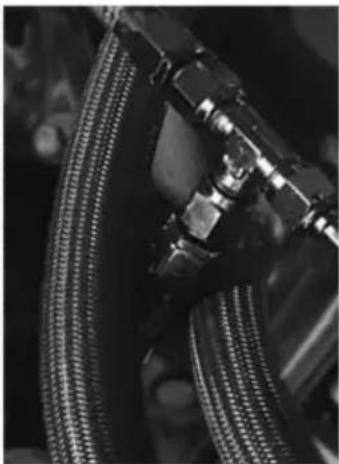

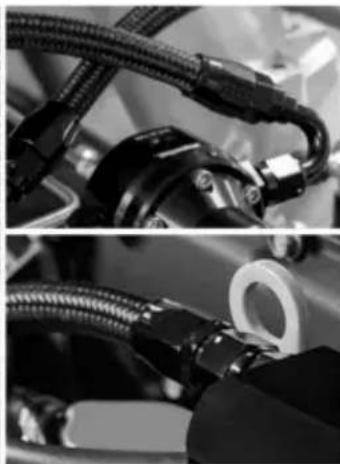

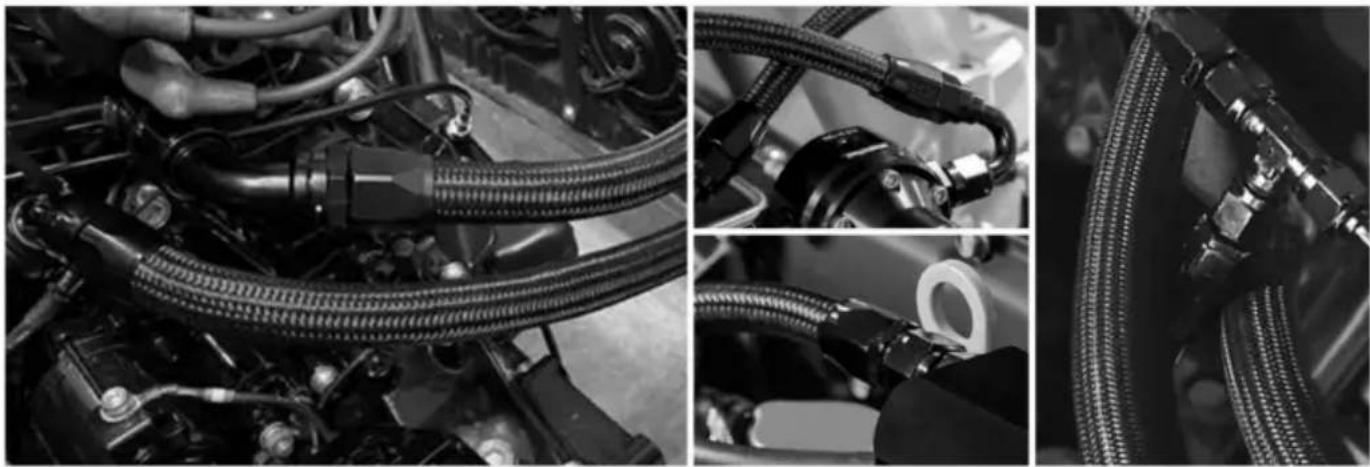

Close-up of automotive engine hoses and connectors in action (no visible text or symbols)

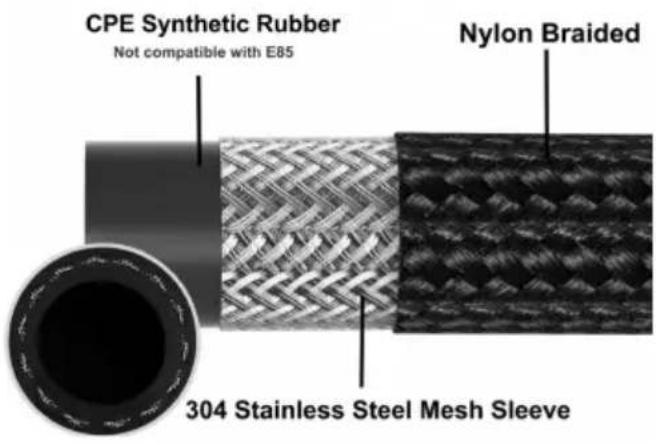

1. Only work with CPE stainless braided nylon braided hose.

Close-up of a black textured cable with a Y-shaped clip attached, no visible text or symbols

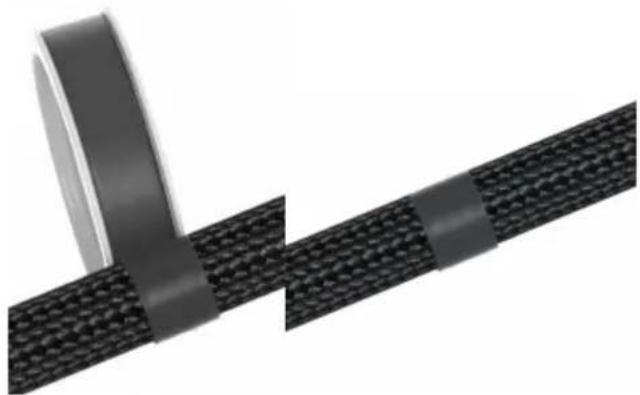

1. When installation, please take care of these details. Use electric tape to reduce wear.

Collection of black mesh cable connectors and fasteners, no text or symbols visible

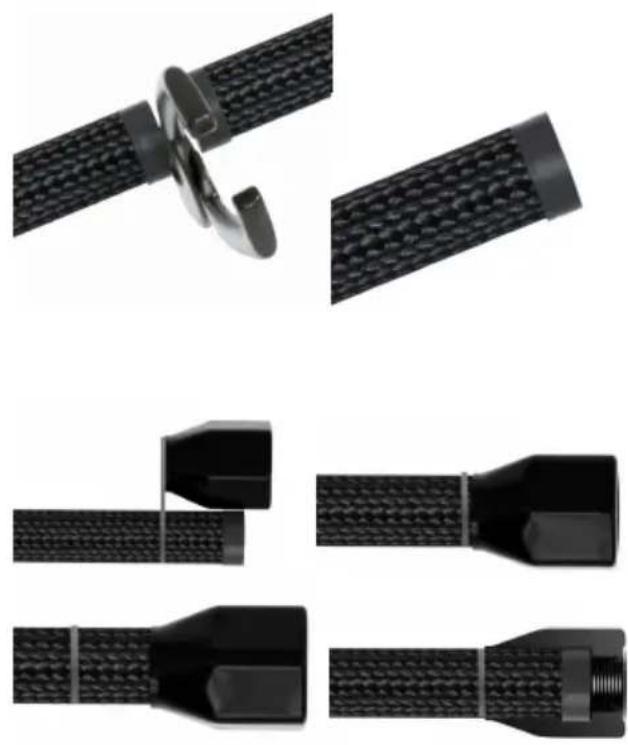

1. After completing cut, cleanup residual debris. Trimming of hose edges after cutting

2. Confirm the installation position.Mark and confirm the installed position of fitting during.

Two black plastic pipe fittings with connectors and fittings, shown against a white background (no text or symbols visible)

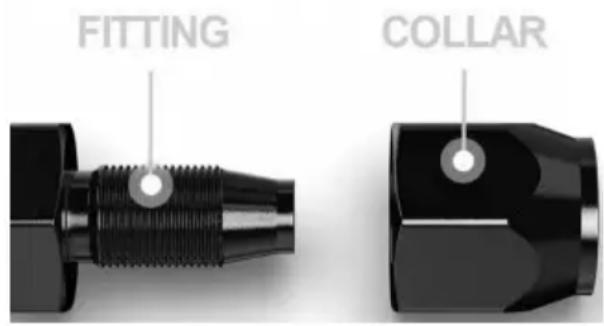

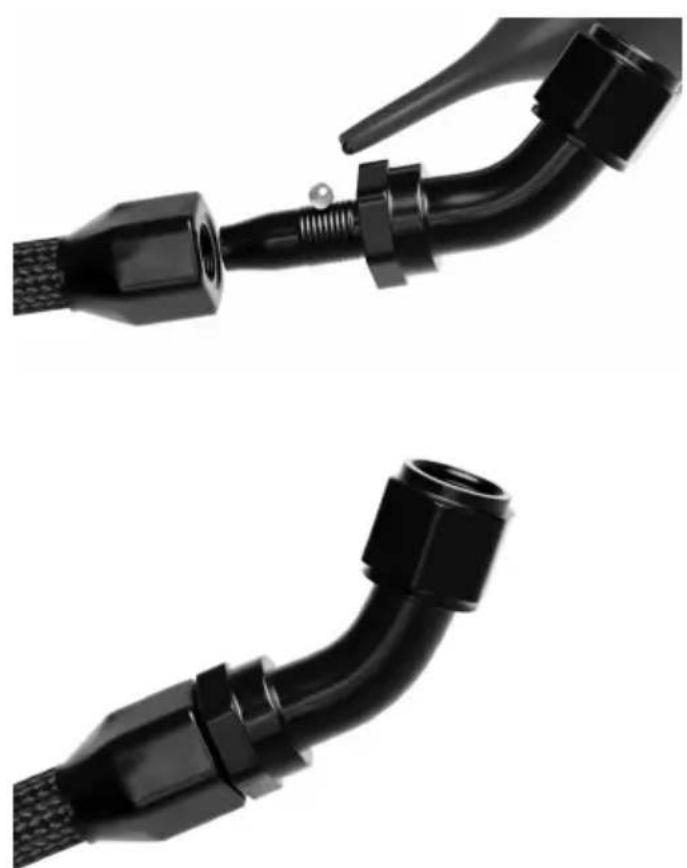

1. Installation, Put fue lubricating on its threads to effectively reduce thread wear.

2. Use a wrench to clamp one and then use the wrench to scn the joint.
