CPE-8AN-20ft - Flexible hose Vevor - Free user manual and instructions

Product Type	Flexible fuel line hose
Brand	Vevor
Model	CPE-8AN-20ft
Length	20 feet (approx. 6.1 m)
Diameter (AN size)	8AN (1/2 inch inner diameter)
Maximum working pressure	500 psi
Burst pressure	2000 psi
Operating temperature	-40 °F to +257 °F
Material	304 stainless steel, nylon, CPE (chlorinated polyethylene)
Color	Black
Applications	Fuel line, transmission oil cooler, fuel return, coolant, vacuum, turbo, etc.
Compatibility	Works only with nylon CPE braided hose with stainless steel
Package contents	4 straight adapters, 2 45° adapters, 2 90° adapters, 2 180° adapters, 2 hose separators, 10 sealing rings
Maintenance and cleaning	Clean with a soft cloth; avoid harsh solvents. Check regularly for leaks or wear.
Safety	Wear gloves during installation; keep away from flames, sharp edges and children; do not mix with acids, alkalis, solvents.
Spare parts and repairability	Fittings and sealing rings are replaceable; the hose is not repairable, must be replaced.
Warranty	Electronic warranty available at www.vevor.com/support

Frequently Asked Questions - CPE-8AN-20ft Vevor

What is the maximum working pressure of the CPE-8AN-20ft hose?

The maximum working pressure is 500 psi, with a burst pressure of 2000 psi.

What fluids can flow through this hose?

This hose is designed for fuel, transmission oil, coolant, and other fluids compatible with CPE and stainless steel.

How to properly install the fittings?

It is recommended to call a professional. Apply lubricating oil to the threads, tighten by hand then with a wrench. Use electrical tape to reduce wear.

Can I cut the hose to the desired length?

Yes, the hose can be cut. After cutting, clean the debris and smooth the edges to prevent leaks.

What is the operating temperature?

The temperature range is -40 °F to +257 °F.

Is the hose compatible with ethanol?

The CPE and nylon material offer good resistance to ethanol, but check compatibility with your specific fluid.

What are the safety risks to be aware of?

The hose can ignite when in contact with a flame. Wear gloves, avoid sharp edges and do not use as a toy. Keep away from acids and solvents.

How to maintain the hose?

Clean it with a soft cloth and inspect it regularly for cracks, leaks or wear. Replace if necessary.

Are the supplied fittings size 8AN?

Yes, the included fittings (straight, 45°, 90°, 180°) are designed for 8AN hose.

Where can I find the complete user manual?

The manual is available for free download on notice-facile.com or on the website www.vevor.com/support.

USER MANUAL CPE-8AN-20ft Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FUEL LINE HOSE

MODEL:CPE-6AN-20ft/CPE-8AN-20ft/CPE-10AN-10ft

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FUEL LINE HOSE

MODEL:CPE-6AN-20ft / CPE-8AN-20ft / CPE-10AN-10ft

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT INTRODUCTION

CPE: Only work with CPE stainless braided nylon braided hose.

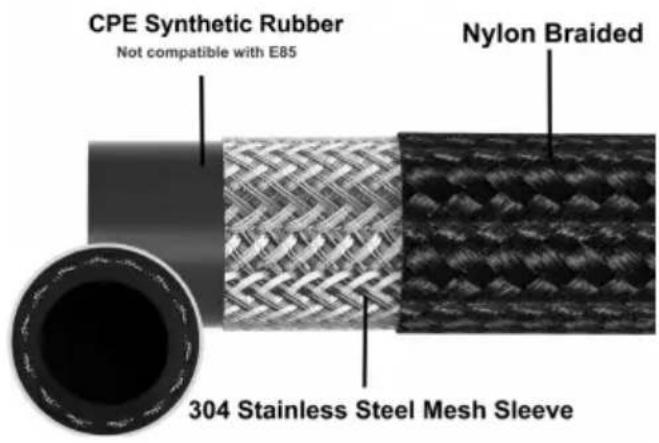

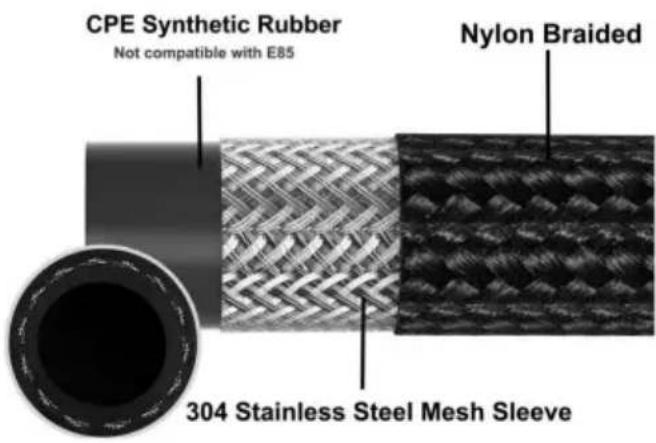

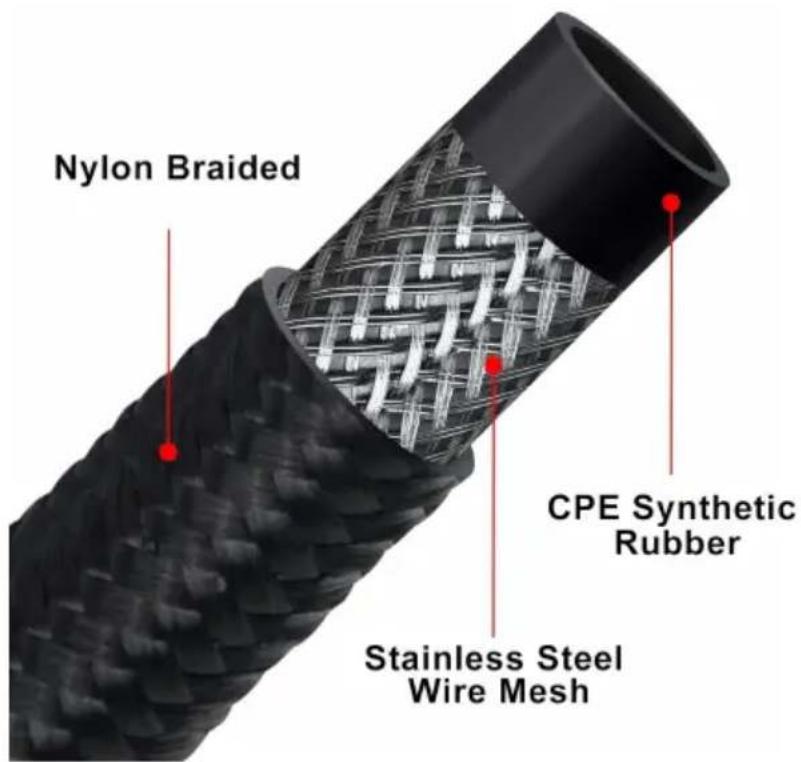

Compatibility and durability: Braided fuel hose made of CPE synthetic rubber. stainless steel in the middle layer which achieves the desired flexibility and mechanical bond between the braiding layer. Applicable medium: fuel line kit widely using transmission oil cooler line, fuel return line, fuel supply line, coolant fluid hose, fuel gauges line, vacuum line, turbo cooler line feed line. Please check the pressure of application before perchase.

Warning Tips:

1. Professional installation is strongly recommended, but it is recommended to install in a corrosive environment, as affect the service life of the 6AN/8AN/10AN braided fuel
2. The surface is sharp, please wear gloves when installing
3. It is strictly prohibited to mix the hose with acid, alkali, oil, organic solver inflammable and explosive materials. The hose body should not be in dir contact with goods with sharp edges.
4. When handling hoses, they should not be dragged anywhere. For heavy hoses, lifting equipment or specialized machinery should be used for load and unloading, and accidental damage to the hoses should be prevented.
5. Keep away from open flame. This product will ignite and burn if brought contact with an open flame.
6. Keep away from sharp points, blades and other items, so as not to scratch product.
7. This product is not a toy, Dump truck mesh tarp cannot be used as toys children to play with.

SAVE THESE INSTRUCTIONS

PRODUCT PAREMETERS

Model	CPE-6AN-20ft	CPE-8AN-20ft	CPE-10AN-10ft
Fuel Hose Size	6AN	8AN	10AN
Length	20ft	20ft	10ft
Max working pressure	500psi	500psi	500psi
Burst Pressure	2000 psi	2000 psi	2000 psi
Working Temp	-40°F~+257°F	-40°F~+257°F	-40°F~+257°F
Material	Stainless Steel & Nylon&CPE	Stainless Steel & Nylon&CPE	Stainless Steel & Nylon&CPE
Colour	Black	Black	Black

INSTALLATION INSTRUCTIONS

Model		CPE-6AN-20ft	CPE-8AN-20ft	CPE-10AN-10ft
Straight Adapters		4 PCS	4 PCS	2 PCS
45 Degree Adapters		2 PCS	2 PCS	2 PCS
90 Degree Adapters		2 PCS	2 PCS	2 PCS
180 Degree Adapters		2 PCS	2 PCS	0 PCS
Hose Separator		2 PCS	2 PCS	1 PCS
Sealing Ring		10 PCS	10 PCS	6 PCS

Application

Please check the working pressure and temperature of your system before purchase

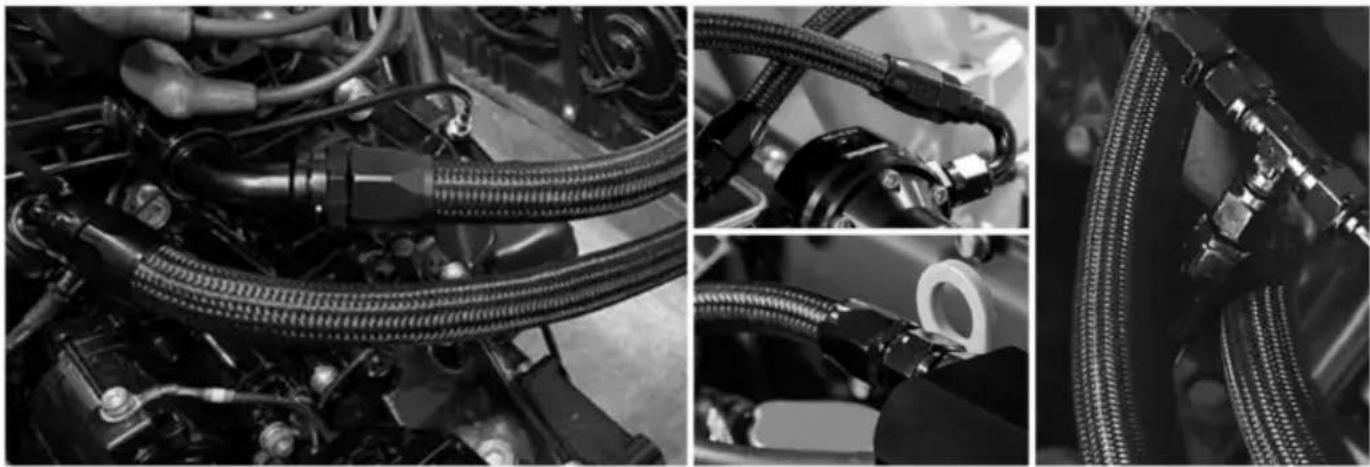

Close-up of automotive engine hoses and connectors in action (no visible text or symbols)

1. Only work with CPE stainless braided nylon braided hose.

Close-up of a black textured cable with a Y-shaped clip attached, no visible text or symbols

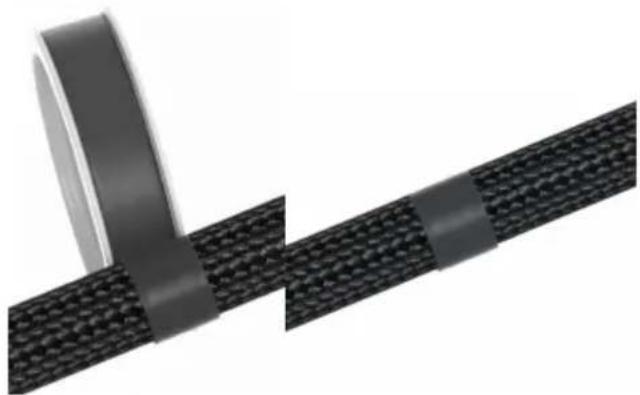

1. When installation, please take care of these details. Use electric tape to reduce wear.

Product assembly of black mesh cable connectors with various connector designs (no text or symbols visible)

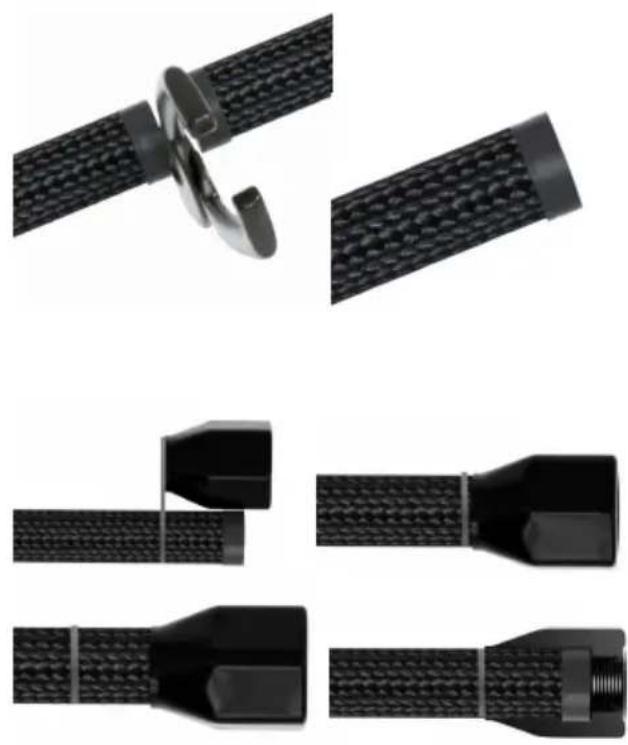

1. After completing cut, cleanup residual debris. Trimming of hose edges after cutting

2. Confirm the installation position.Mark and confirm the installed position of fitting during.

Two black plastic pipe fittings with connectors and fittings, shown against a white background (no text or symbols visible)

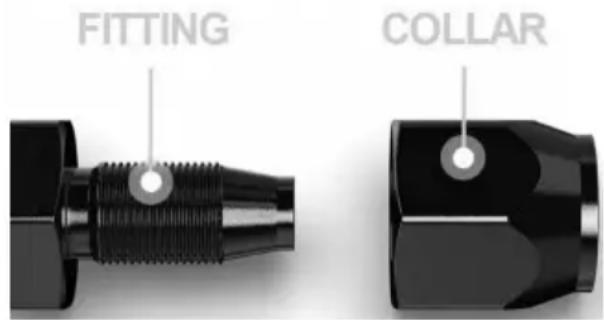

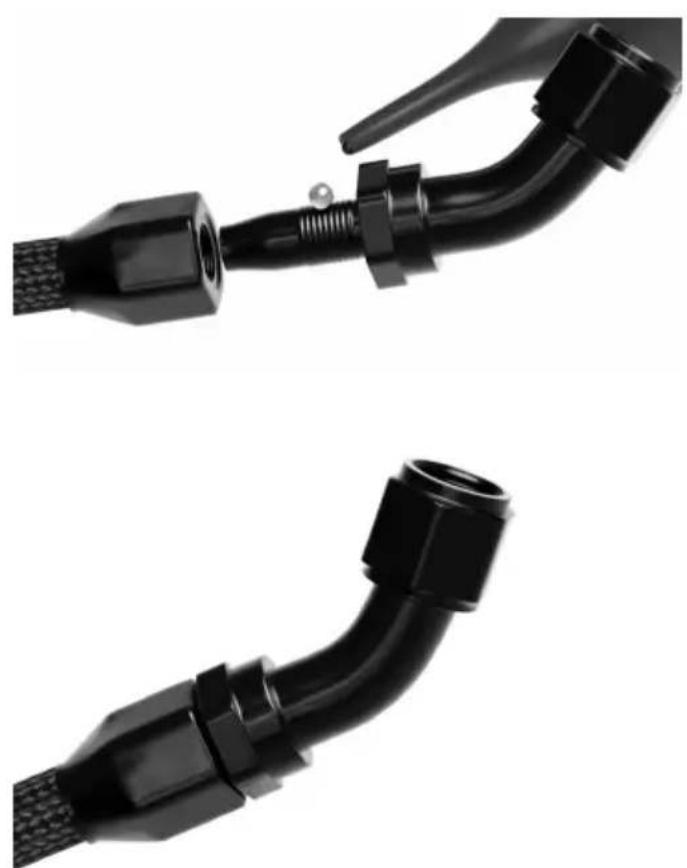

1. Installation, Put fue lubricating on its threads to effectively reduce thread wear.

2. Use a wrench to clamp one and then use the wrench to scn the joint.
