USER MANUAL CPE-10AN-10ft Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FUEL LINE HOSE

MODEL:CPE-6AN-20ft/CPE-8AN-20ft/CPE-10AN-10ft

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FUEL LINE HOSE

MODEL:CPE-6AN-20ft / CPE-8AN-20ft / CPE-10AN-10ft

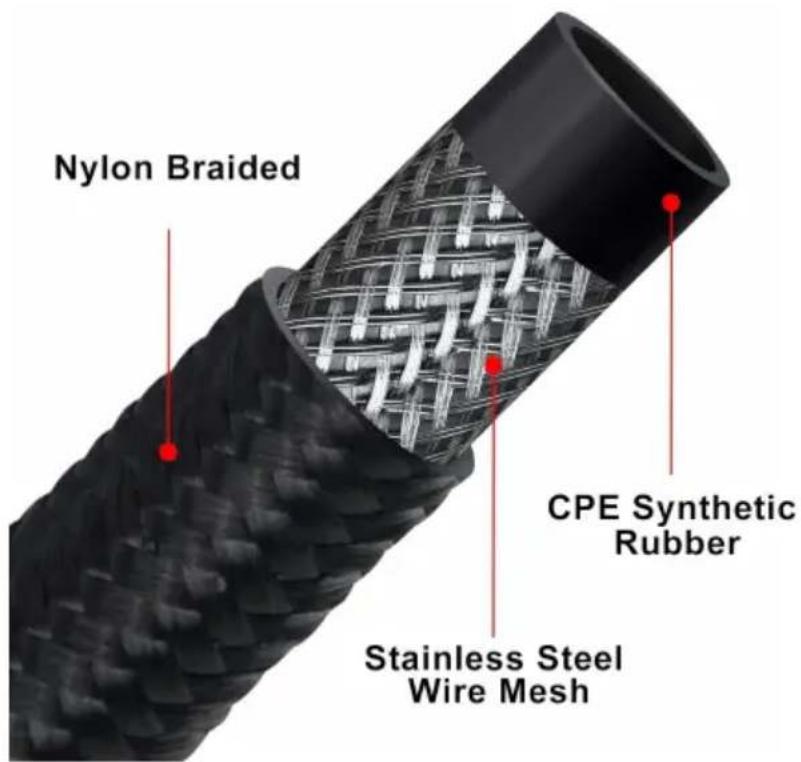

Nylon Braided CPE Synthetic Rubber Stainless Steel Wire Mesh

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT INTRODUCTION

CPE: Only work with CPE stainless braided nylon braided hose.

Compatibility and durability: Braided fuel hose made of CPE synthetic rubber. stainless steel in the middle layer which achieves the desired flexibility and mechanical bond between the braiding layer. Applicable medium: fuel line kit widely using transmission oil cooler line, fuel return line, fuel supply line, coolant fluid hose, fuel gauges line, vacuum line, turbo cooler line, feed line. Please check the pressure of application before perchase.

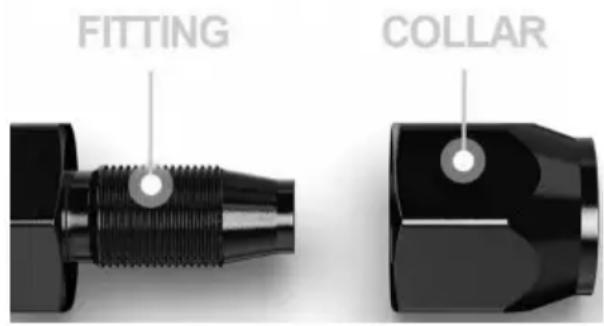

FITTING COLLAR

Warning Tips:

1. Professional installation is strongly recommended, but it is recommended to install in a corrosive environment, as affect the service life of the 6AN/8AN/10AN braided fuel
2. The surface is sharp, please wear gloves when installing
3. It is strictly prohibited to mix the hose with acid, alkali, oil, organic solver inflammable and explosive materials. The hose body should not be in dir contact with goods with sharp edges.
4. When handling hoses, they should not be dragged anywhere. For heavy hoses, lifting equipment or specialized machinery should be used for load and unloading, and accidental damage to the hoses should be prevented.
5. Keep away from open flame. This product will ignite and burn if brought contact with an open flame.
6. Keep away from sharp points, blades and other items, so as not to scratch product.
7. This product is not a toy, Dump truck mesh tarp cannot be used as toys children to play with.

SAVE THESE INSTRUCTIONS

PRODUCT PAREMETERS

Model	CPE-6AN-20ft	CPE-8AN-20ft	CPE-10AN-10ft
Fuel Hose Size	6AN	8AN	10AN
Length	20ft	20ft	10ft
Max working pressure	500psi	500psi	500psi
Burst Pressure	2000 psi	2000 psi	2000 psi
Working Temp	-40°F~+257°F	-40°F~+257°F	-40°F~+257°F
Material	Stainless Steel & Nylon&CPE	Stainless Steel & Nylon&CPE	Stainless Steel & Nylon&CPE
Colour	Black	Black	Black

INSTALLATION INSTRUCTIONS

Model		CPE-6AN-20ft	CPE-8AN-20ft	CPE-10AN-10ft
Straight Adapters		4 PCS	4 PCS	2 PCS
45 Degree Adapters		2 PCS	2 PCS	2 PCS
90 Degree Adapters		2 PCS	2 PCS	2 PCS
180 Degree Adapters		2 PCS	2 PCS	0 PCS
Hose Separator		2 PCS	2 PCS	1 PCS
Sealing Ring		10 PCS	10 PCS	6 PCS

Application

Please check the working pressure and temperature of your system before purchase

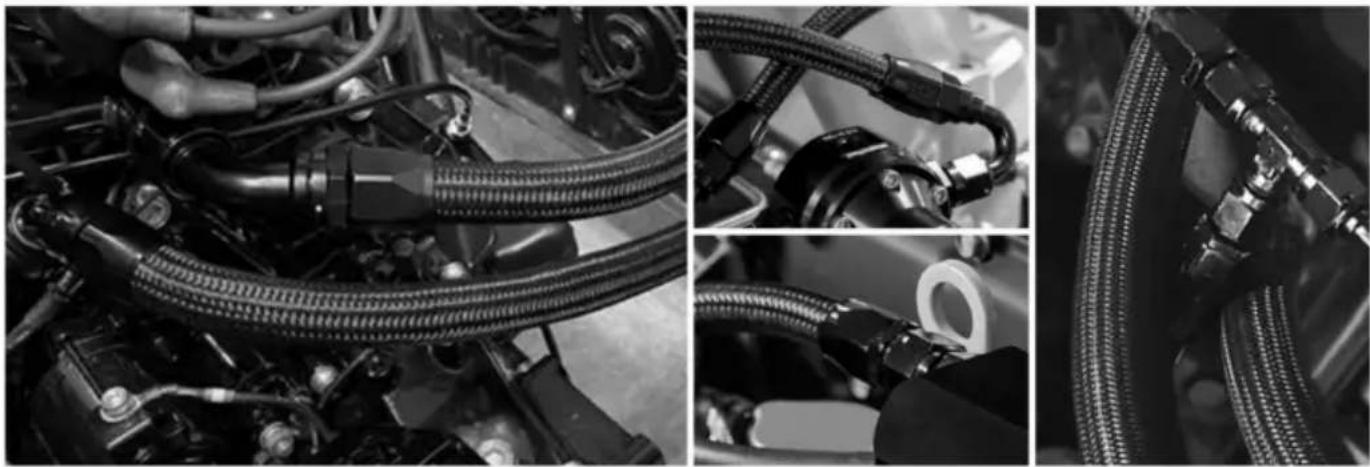

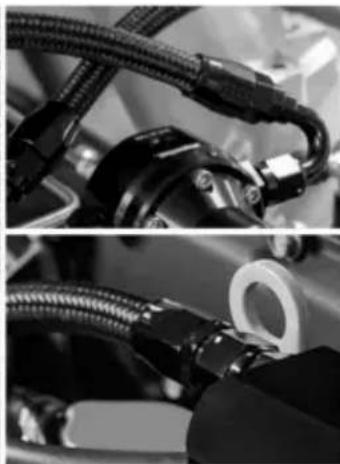

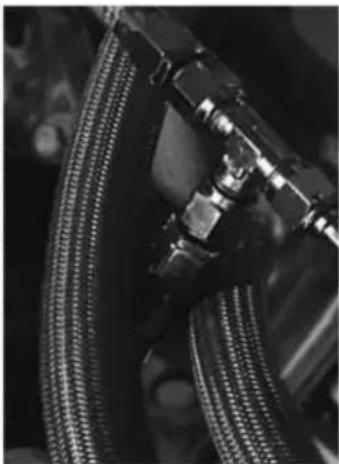

Close-up of automotive engine hoses and connectors in action (no visible text or symbols)

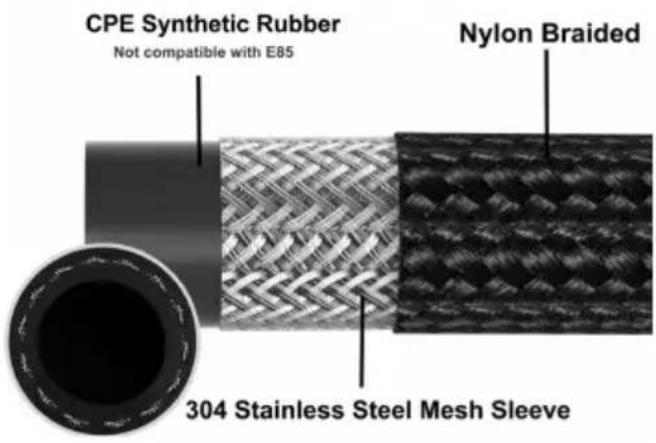

CPE Synthetic Rubber Not compatible with E85 Nylon Braided 304 Stainless Steel Mesh Sleeve

1. Only work with CPE stainless braided nylon braided hose.

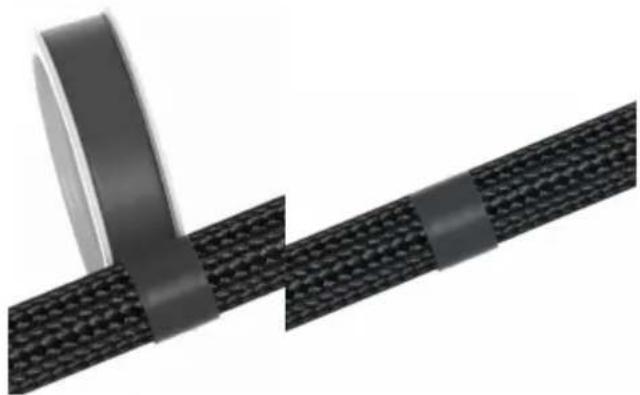

Close-up of a black textured cable with a V-shaped clip attached, no visible text or symbols

1. When installation, please take care of these details. Use electric tape to reduce wear.

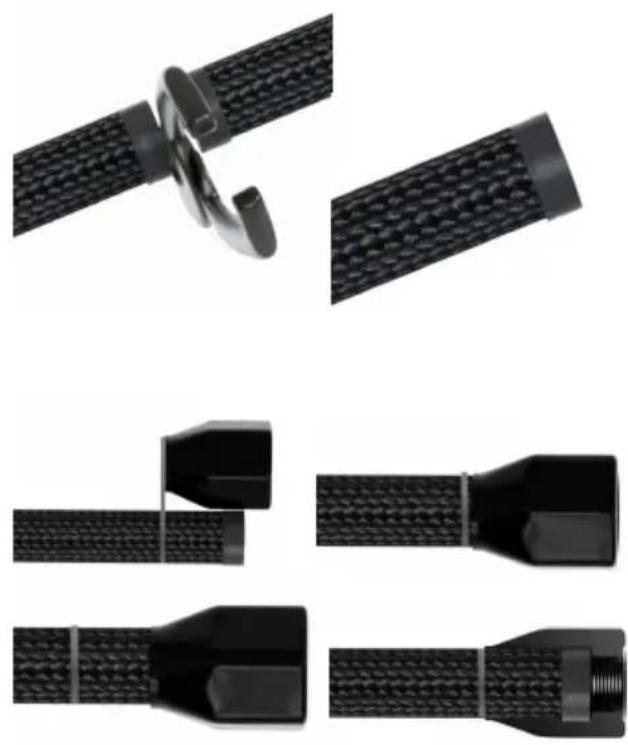

Product assembly of black mesh cable connectors with various connector designs (no text or symbols visible)

1. After completing cut, cleanup residual debris. Trimming of hose edges after cutting

2. Confirm the installation position.Mark and confirm the installed position of fitting during.

Two black plastic pipe fittings with connectors and fittings, shown against a white background (no text or symbols visible)

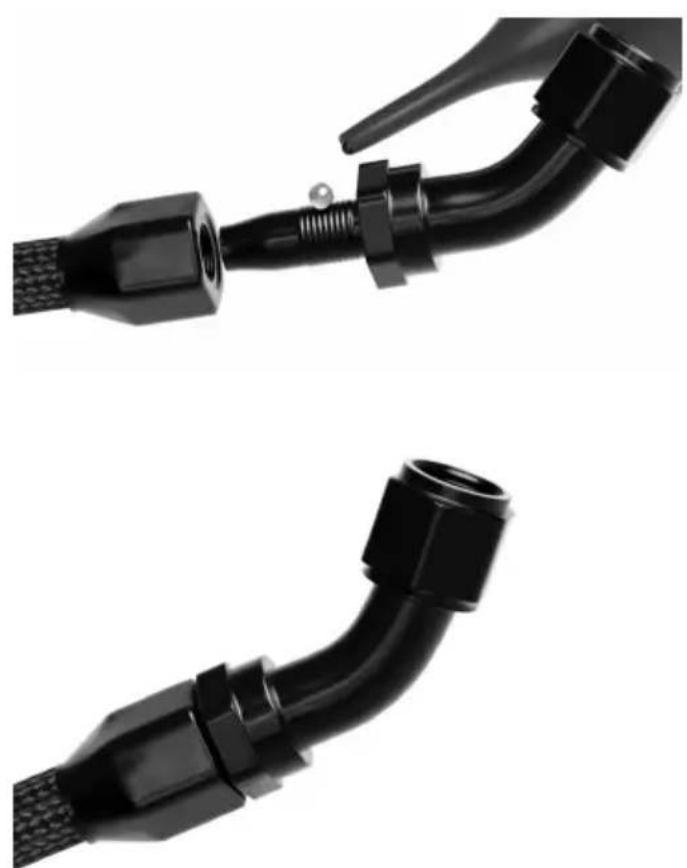

1. Installation, Put fue lubricating on its threads to effectively reduce thread wear.

2. Use a wrench to clamp one and then use the wrench to scn the joint.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

EC

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Nylon Braided CPE Synthetic Rubber Stainless Steel Wire Mesh

BESOIN D'AIDE? CONTACTEZ-NOUS!

Close-up of two black mechanical connectors with threaded shafts, shown from front and side views (no text or symbols visible)

PARAMÈTRES DU PRODUIT

Close-up of automotive engine hoses and hoses in a vehicle (no visible text or symbols)

Close-up of mechanical components with hoses and connectors, no visible text or symbols

Close-up of a mechanical component with coiled black cables and metallic fittings (no visible text or symbols)

CPE Synthetic Rubber Not compatible with E85 Nylon Braided 304 Stainless Steel Mesh Sleeve

Close-up of a black mesh cable with a metallic clip attached, showing two different material sections (no text or symbols visible)

Close-up of various black plastic cable connectors with textured surfaces, shown from different angles (no text or symbols visible)

Two black plastic pipe fittings with connectors and fittings, shown against a white background (no text or symbols visible)

Nylon Braided CPE Synthetic Rubber Stainless Steel Wire Mesh

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Close-up of automotive engine hoses and hoses in black-and-white, showing mechanical components and wiring (no visible text or symbols)

CPE Synthetic Rubber Not compatible with E85 Nylon Braided 304 Stainless Steel Mesh Sleeve

Close-up of a black mesh cable with a metallic clip attached, showing two different configurations (no text or symbols visible)

Close-up of various black plastic cable connectors with textured surfaces, shown from different angles (no text or symbols visible)

Two black plastic pipe fittings with connectors and fittings, shown against a white background (no text or symbols visible)

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Nylon Braided CPE Synthetic Rubber Stainless Steel Wire Mesh

HO BISOGNO DI AIUTO? CONTATTACI!

Close-up of two black mechanical connectors with threaded shafts, shown from front and side views (no text or symbols visible)

Close-up of automotive engine hoses and hoses in black-and-white, showing mechanical components and wiring (no visible text or symbols)

CPE Synthetic Rubber Not compatible with E85 Nylon Braided 304 Stainless Steel Mesh Sleeve

Close-up of a black mesh cable with a white tape strap, showing two different configurations (no text or symbols)

Close-up of various black plastic cable connectors with textured surfaces, shown from different angles (no text or symbols visible)

Two black plastic pipe fittings with connectors and fittings, shown against a white background (no text or symbols visible)

Importato in Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Place, Rancho Cucamonga, CA 91730

REP. DEL REGNO UNITO

Gruppo Pooledas Ltd

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Nylon Braided CPE Synthetic Rubber Stainless Steel Wire Mesh

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Close-up of automotive engine hoses and connectors in action (no visible text or symbols)

CPE Synthetic Rubber Not compatible with E85 Nylon Braided 304 Stainless Steel Mesh Sleeve

Close-up of a black cable with coiled and textured fibers, no text or symbols visible

Close-up of various black plastic cable connectors with textured surfaces, shown from different angles (no text or symbols visible)

Two black plastic pipe fittings with connectors and fittings, shown against a white background (no text or symbols visible)

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

BRANDSTOFLEIDINGSSLANG

MODEL:CPE-6AN-20ft/CPE-8AN-20ft/CPE-10AN-10ft

Nylon Braided CPE Synthetic Rubber Stainless Steel Wire Mesh

HULP NODIG? NEEM CONTACT MET ONS OP!

INSTALLATIE INSTRUCTIES

Model		CPE-6AN-20ft CPE-8AN-20ft CPE-10AN-10ft
Direct Adapters		4 STUKS	4 STUKS	2 STUKS
45 graden Adapters		2 STUKS	2 STUKS	2 STUKS
90 graden Adapters		2 STUKS	2 STUKS	2 STUKS
180 graden Adapters		2 STUKS	2 STUKS	0 STUKS
Slang Scheidingsteken		2 STUKS	2 STUKS	1 stuk
Afsluitring		10 STUKS	10 STUKS	6 STUKS

Sollicitatie

Close-up of automotive engine hoses and hoses in black-and-white, showing mechanical components and wiring (no visible text or symbols)

CPE Synthetic Rubber Not compatible with E85 Nylon Braided 304 Stainless Steel Mesh Sleeve

Close-up of a black mesh cable with a white tape strap, showing two different configurations (no text or symbols)

Close-up of various black plastic cable connectors with textured surfaces, shown from different angles (no text or symbols visible)

Two black plastic pipe fittings with connectors and fittings, shown against a white background (no text or symbols visible)

Rancho Cucamonga, CA 91730

Britse REP

Pooledas Group Ltd

Eenheid 5 Albert Edward House, The

Nylon Braided CPE Synthetic Rubber Stainless Steel Wire Mesh

BEHÖVS HJÄLP? KONTAKTA OSS!

PRODUKT INTRODUKTION

Close-up of automotive engine hoses and hoses in black-and-white, showing mechanical components and wiring (no visible text or symbols)

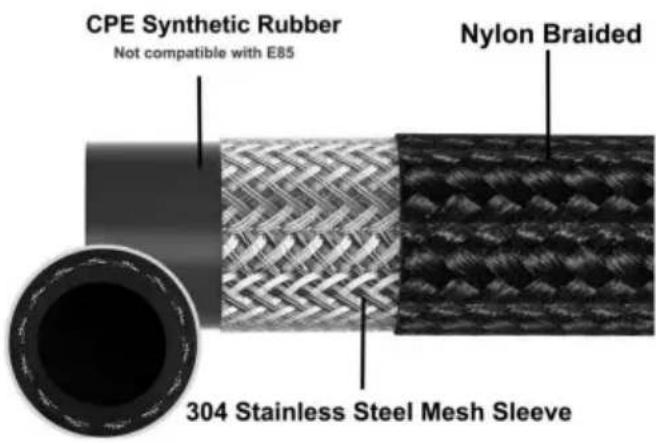

CPE Synthetic Rubber Not compatible with E85 Nylon Braided 304 Stainless Steel Mesh Sleeve
