SPIT ROTISSERIE GRILL

MODEL: JY-MY-SKJ-46-01-120

JY-MY-SKJ-46-01-220

JY-MY-SKJ-46-02-120

JY-MY-SKJ-46-02-220

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: JY-MY-SKJ-46-01-120 / JY-MY-SKJ-46-02-120

JY-MY-SKJ-46-01-220 / JY-MY-SKJ-46-02-220

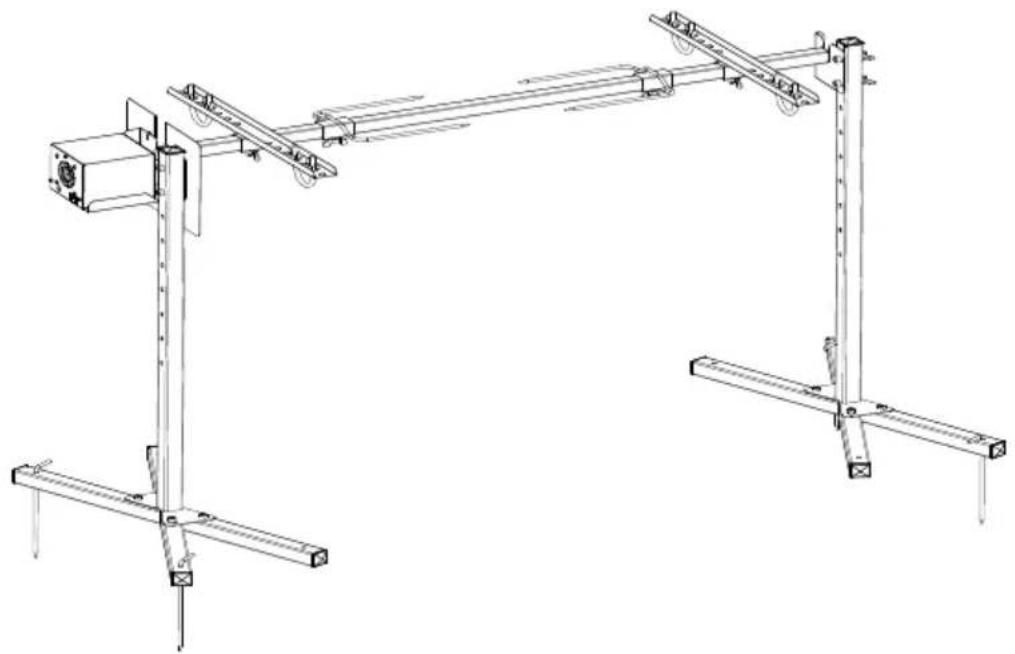

Technical line drawing of a mechanical frame assembly with vertical supports and horizontal beams (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instruct manual carefully.
	Pay attention to high temperatures to prevent burns.
	CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices
	Compliance is a EC & UK security certification.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules, These limits are des provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

IMPORTANT SAFEGUARDS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operating it and keep it properly for future reference. Please read this page's precautions and safety r to ensure your safe use. This manual will outline safety warnings, precautions operating, maintenance, and cleaning. The warnings and instructions reviewed this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product since the uses wi comply with these codes. Please consult a doctor before starting a training program or engaging in strenuous endurance activity on the device.

Please read ALL the instructions before using your machine.

1. Make sure the voltage in your outlet is the same as the voltage indicated by appliance's rating label.
2. Do not let children and minors get close to or touch the machine.
3. Do not touch the hot surface directly with your hands. Always operate with handle or knob.
4. To prevent electrical shock, do not immerse the cord or plug into water of liquids.
5. Do not immerse the appliance in water or any other liquid.
6. Unplug the machine from the outlet when not in use and before cleaning. the appliance before installing or removing parts and before cleaning.
7. Cool down the HOT parts before operation.
8. Do not operate the device with damaged cord or plug, malfunction or with mechanical damage. Send it to your nearest authorized service centre for examination and repair (ONLY technicians should open up the unit).
9. Using any accessories or attachments that are not provided or recommend by the manufacturer may cause injury.
10. If the machine is not to be used for a long period of time, unplug it, cover it and store it in a dry and safe place.
11. Do not leave the power cord hanging over the edge of table or counter come into contact with any hot surfaces.

12. Do not place the unit on or near hot air, electric burners or heaters.

13. Always switch off the power before plugging in or unplugging. Hold the instead of pulling on the cord.

14. Do not apply this unit to any other purposes than the indicated usage.
15. Do not use it indoor.
16. KEEP IT OUT OF CHILDREN'S REACH.
17. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
18. Never leave it unattended while in use.
19. Always check that this machine is plugged into a grounded outlet with the appropriate electrical supply. Ensure that the wall outlet being used is properly grounded. If not, you must install a grounded outlet. Have the work performed by a certified electrician who is properly qualified to meet local safety and el codes.
20. Ensure that the power outlet, plug and cord being used are in good work condition. Damaged components should be repaired by a certified electrician with is qualified to meet local safety and electrical codes. Even if your power core functioning properly, keep it away from water and avoid letting it run over car or heating devices.
21. Avoid using it in the presence of flammable liquids, gases, dust or other explosive situations.
22. Extreme caution must be taken when moving an appliance containing hot other hot liquids.
23. Do not operate the machine in an appliance garage or under a wall cat Always unplug the unit from the electrical outlet when storing in an appliance garage. Otherwise, it would cause a risk of fire, especially if the machine took the garage wall or the door touches it as it closes.
24. Type Y attachment: If the supply cord is damaged, it must be replaced special cord or assembly available from the manufacturer or its service agent.
25. This appliance can be used by children aged from 8 years and above a persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the machine alone. Cleaning and user

maintenance shall not be made by children without supervision.Pets should stay away from the product.

ATTENTION!

This article is intended for outdoor use. Do not use indoors!

PRODUCT PARAMETERS

Model No.	Region	Voltage	Power	Plug Type
JY-MY-SKJ-46-01-120	North America	AC120 60Hz	52W	American PLUG
JY-MY-SKJ-46-01-220	Europe	AC220V 50Hz	52W	Europe PLUG
JY-MY-SKJ-46-02-120	North America	AC120V 60Hz	42W	American PLUG
JY-MY-SKJ-46-02-220	Europe	AC220V 50Hz	42W	Europe PLUG

ATTENTION!

1. The voltage used for this device must be the same as the power supply

LOADING CAPACITY

Model No.	Loading Capacity
JY-MY-SKJ-01-120	Max 132 lb (60Kg)
JY-MY-SKJ-01-220	Max 132 lb (60Kg)
JY-MY-SKJ-02-120	Max 90 lb (40.8Kg)
JY-MY-SKJ-02-220	Max 90 lb (40.8Kg)

ATTENTION!

1. Do not exceed the listed weight capacity. Be aware of dynamic loading! I sudden load movement may briefly create an excess load, causing product fa

PRODUCT COMPONENTS

1. Check all parts for completeness before beginning assembly.
2. To avoid accidents or sharp edges injuries please assemble and use care. For assembly you need a screwdriver and different screw wrenches. 2 person needed to assemble the product. Wear safety work gloves during assembly.
   Note: the quantity of parts shown in the manual is the actual usage and the unused parts are spare parts.

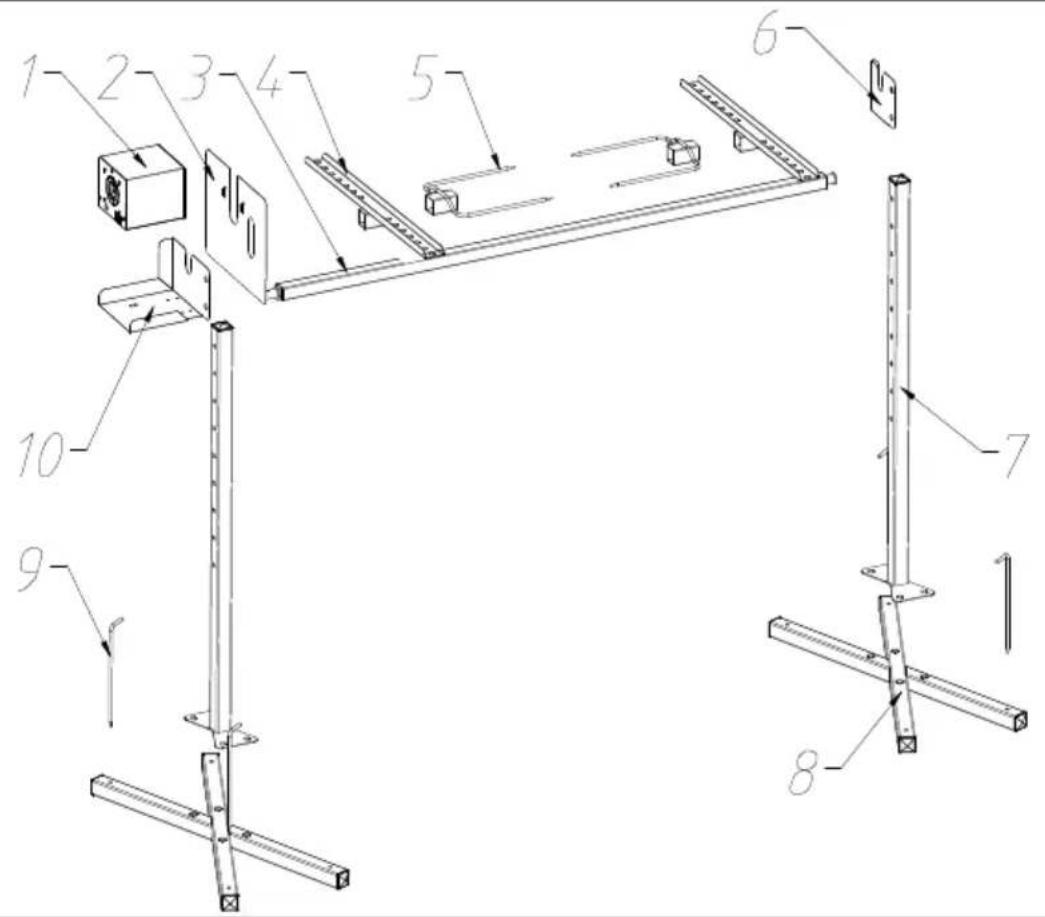

Technical diagram of a mechanical assembly with numbered components for identification

No.	Part name	Qty	No.	Part name	Qty
1	Motor	1	6	Fork lift	1
2	Fire deflector	1	7	Support plate	2
3	Spit	1	8	Bottom support plate	2
4	Locating plate	2	9	Ground nail	4
5	Roasting fork	2	10	Motor support plate	1

No.	Part name		Qty	No.	Part name	Qty
A	M8*51		4	E	M8*16	8
B	M8*15		4	E	M6*16	2
C	M8*40		4	F	Allen driver	1
D	M8		12

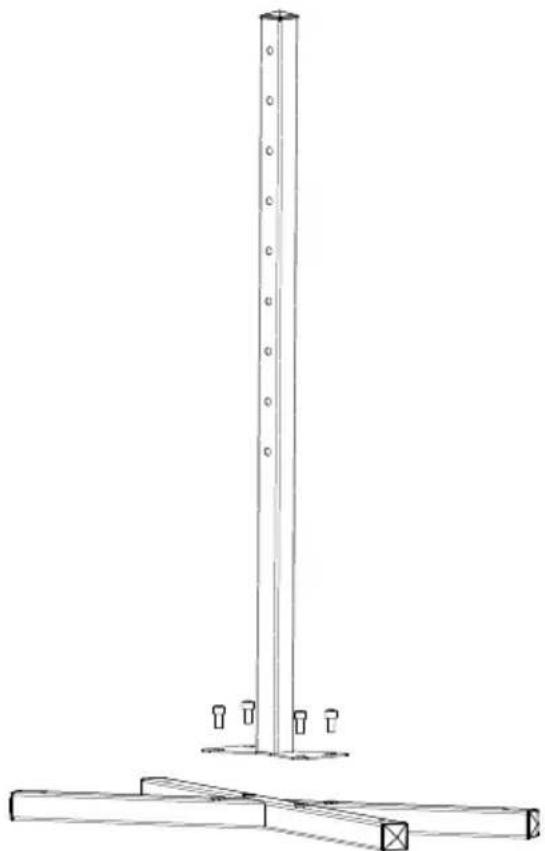

STEP1 E:M8*16-8PCS

7 E 8

Technical line drawing of a pole structure with mounting base and support feet (no text or symbols)

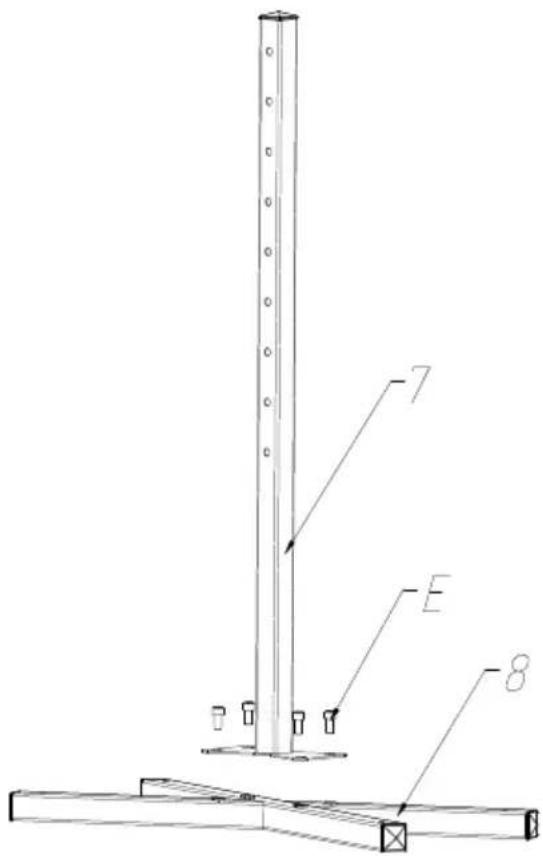

Fix the support frame and the bottom support frame with M8 * 16 hexag screws and L-type hexagon socket wrench, and then place them on the

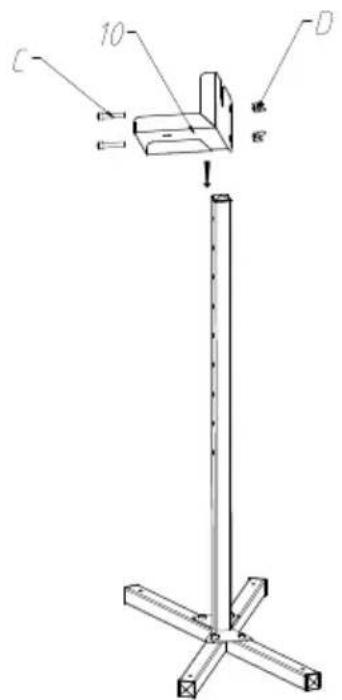

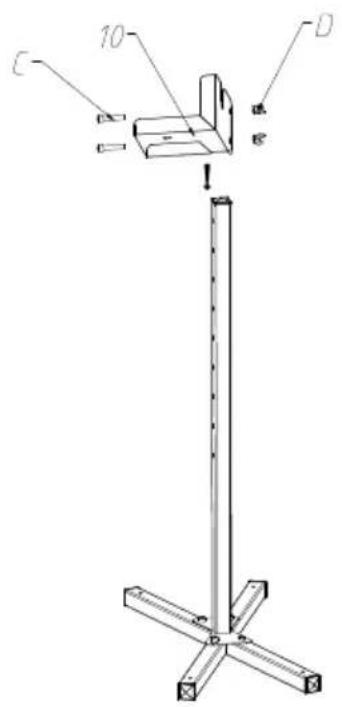

STEP2 C:M8*40-4PCS D:M8-4PCS

C 10 D 螺纹

Technical diagram of a pole assembly with labeled parts and directional arrows indicating assembly steps

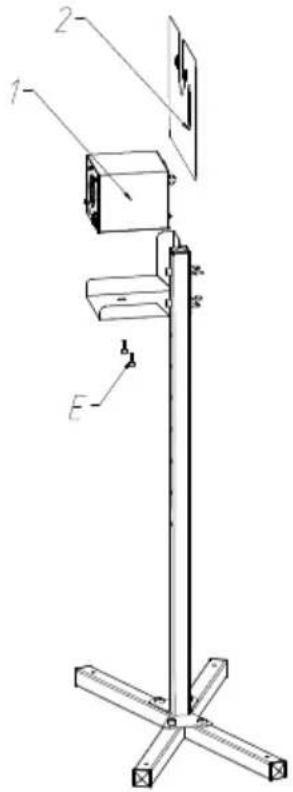

Align the motor support plate and fork base with the round hole of the bra to a proper height, and fix it with M8*40 hexagon socket screws and M8 b

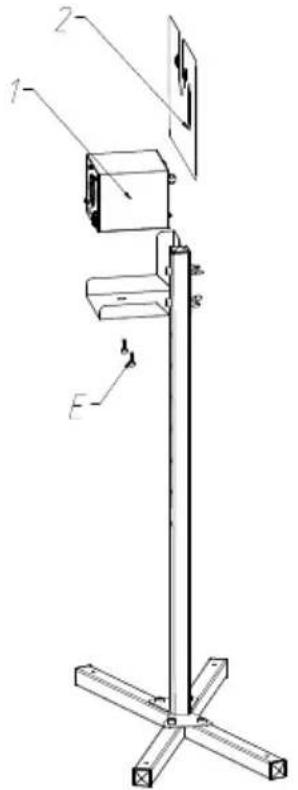

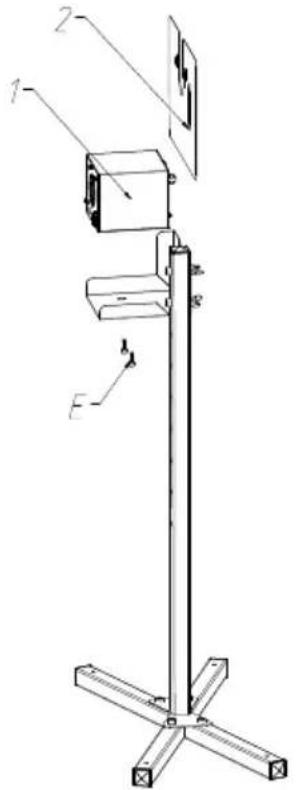

STEP3 D:M6*16-2PCS

Technical diagram of a mechanical device with labeled components and directional arrows

Technical line drawing of a vertical pole with three cross-bracing supports (no text or symbols)

Place the motor on the motor support plate and secure it with M6 * 16 screws; Place the fire deflector at the corresponding limit of the motor sup

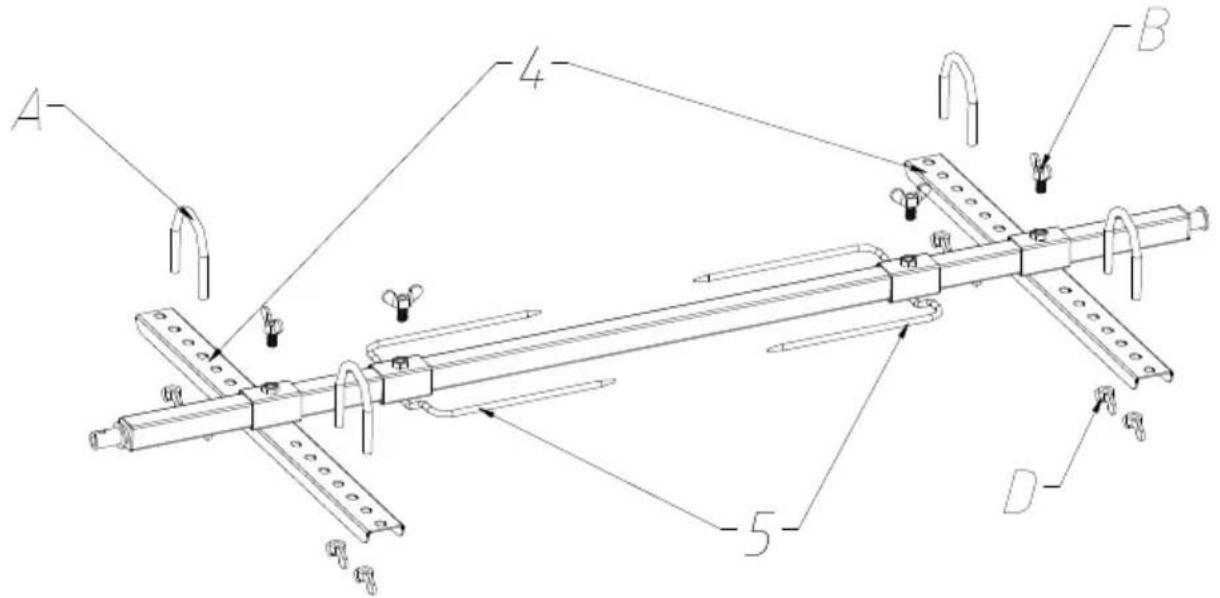

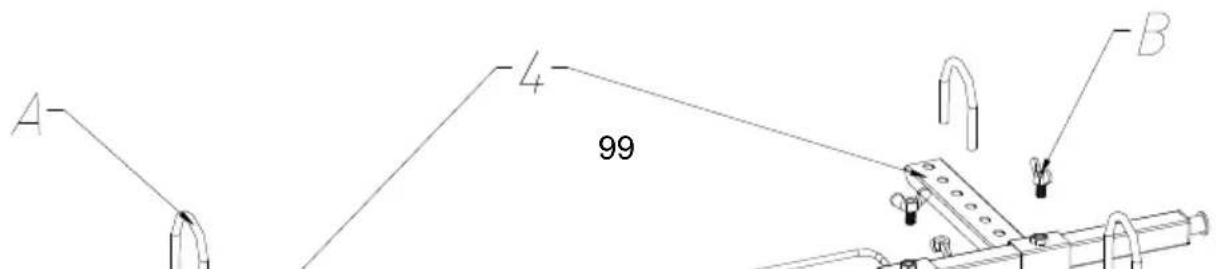

STEP4 A:M8*51-4PCS B:M8*15-4PCS D:M8-8PCS

A 4 B 5 D

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

STEP5

Technical line drawing of a mechanical assembly with two vertical supports and a horizontal bar, no text or symbols present.

Put the food and barbecue fork together on the motor support plate and for base; Then insert the ground nail into the bottom support plate to fix it.

STEP6

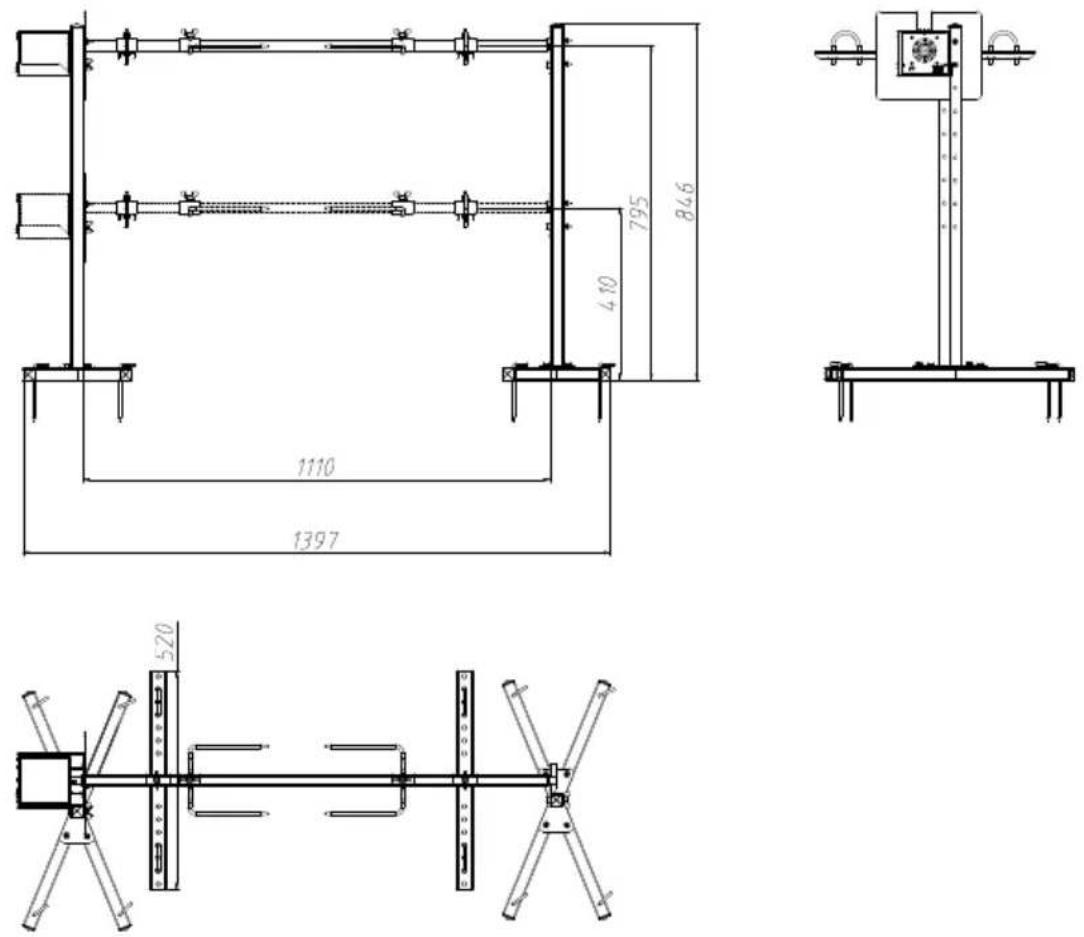

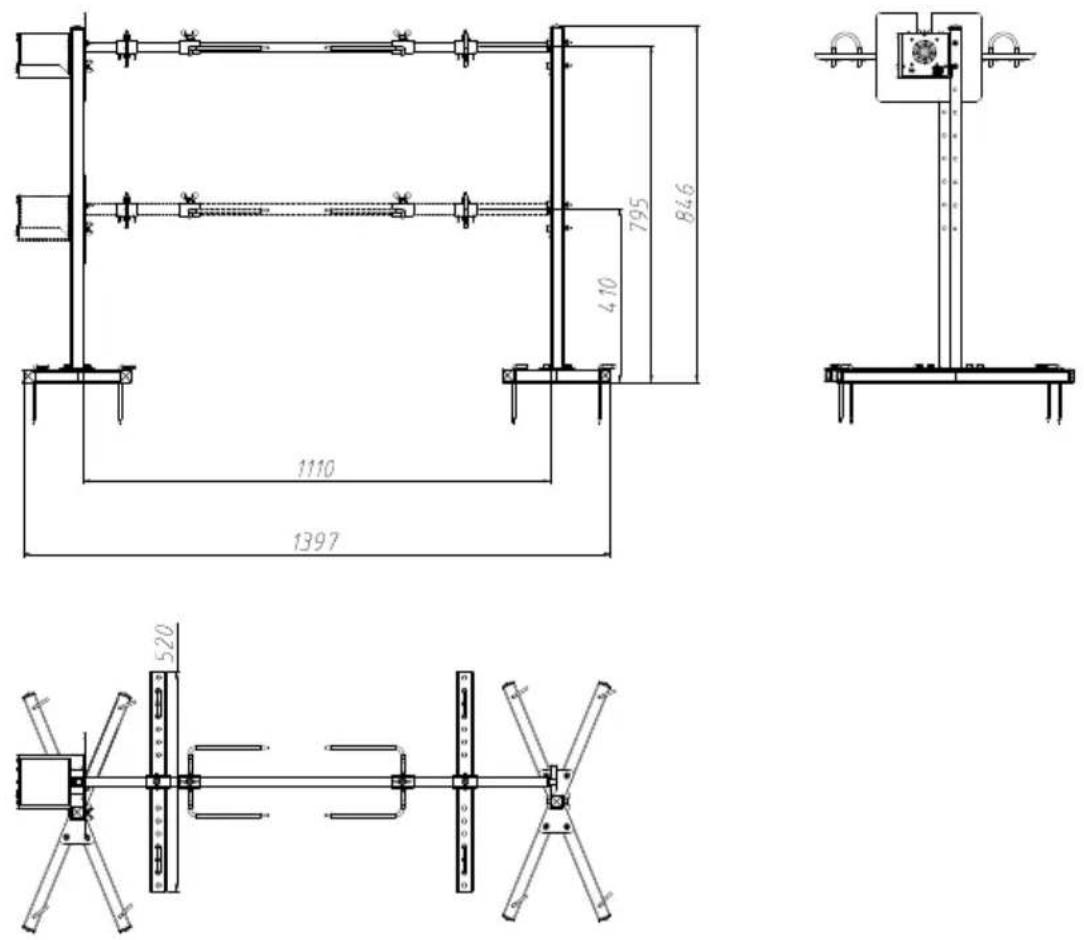

There are 8 levels of the product, each with a height of 55mm Minimum height 410mm, maximum 795mm The maximum length of food is 1110mm

Installation is complete. Place charcoal or other combustibles at the bottom and ignite the barbecue. Press the weight on the support frame at the bottom of both sides to prevent the barbecue frame from toppling during the barbecue process.

OPERATING INSTRUCTIONS

Before using the appliance for the first time, peel off any promotional material packaging materials, and check that the cooking plates are clean and free of. If necessary, wipe them over with a damp cloth. Spread over with an absorb kitchen towel and wipe off any excess oil. When your product is heated for time, it may emit slight smoke or odor, which is normal for many heating appliances, and will not affect the safety of your appliance.

1. Place the machine on a clean, dry, level surface near a plug base outlet
2. Distribute the solid firelighters in the center of the fire box.
3. Stack up the charcoal in a pyramid above the firelighters.
4. Light the solid firelighters with a match.
5. Grease the grill with some vegetable oil and start grilling.
6. Only place food on the grill after the fuel is covered with an ash layer.
7. Plug the cord into the wall outlet.
8. Use the ventilation slider to control the amount of air supplied to fuel from bottom.(Only applicable for appliance with ventilation slider)

ATTENTION!

1. Do not move while the appliance is hot.
2. Due to safety reasons do not use this appliance with liquid fuels.
3. We strongly recommend that the bbq rotisserie grill shall be heated up ar fuel kept red-hot for at least 30 min prior to the first cooking;
4. Do not leave the appliance unattended during use.
5. Do not use the appliance near flammable objects (keep at a safe distance least 3 meters).
6. Do not leave the appliance unattended during use.
7. Do not cook before the fuel has a coating of ash.
8. If the motor is suddenly stuck, abnormal noise, smoke and other undesirable phenomena are found during the barbecue process, immediately cut off the supply, and restart it after the maintenance is completed.
9. Always turn the rotisserie motor to "OFF" before opening the grill.

WARNING! This product rotisserie grill will become very hot, do not it during operation.

WARNING! Keep children and pets away.

WARNING! In case of the danger of carbon monoxide poisoning, do not use product rotisserie grill indoors.

WARNING! Do not use the barbecue in a confined and/or habitable space e houses, tents, caravans, motor homes, boats.

WARNING! Remove all packaging materials and keep them for future use. Packaging materials are not a toy.

WARNING! Don't let children play with the packaging materials. If they swallow the packaging materials, they will suffocate!

ATTENTION! Always wear gloves when adjusting the grill, the handles of the can become very hot during the grilling process.

IMPORTANT! Do not pour water into the appliance while it is still hot.

IMPORTANT! Close the ventilation slider to extinguish the appliance. (Only applicable for appliance with ventilation slider)

COOKING TIPS & HINTS

1. Always wash your hands before and after handling uncooked meat and be eating.
2. Always keep raw meat away from cooked meat and other foods.
3. Before cooking, ensure grill surfaces and tools are clean and free of old residues.
4. DO NOT use the same utensils to handle cooked and uncooked foods.
5. Ensure all meat is cooked thoroughly before eating.

CAUTION:

1. Eating raw or under cooked meat will cause food poisoning (e.g. bacteria strains such as Escherichia coli).
2. To reduce the risk of under cooked meat, cut the meat to ensure it is 1 cooked.
3. If the meat is fully cooked, its juice should be clear and there should be red juice or traces of meat color.
4. Cooking larger pieces of meat and joints is recommended before finally cc on the grill.
5. After cooking on your grill always clean the cooking surfaces and utensils.

CLEAING MAINTENANCE AND STORAGE

1. For cleaning, wipe the surface with a damp (not wet) cloth or wipe dry clean lint free cotton cloth.
2. Window cleaning liquid or a similar cleaning liquid can be used to clean surface.
3. Always unplug the machine before storage.
4. Always make sure the machine is cool and dry before string.
5. Store the appliance in a dry and clean area.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical frame assembly with vertical supports and horizontal beams (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram showing two structural supports with labeled components, including vertical and horizontal beams and a base support.

Fix the support frame and the bottom support frame with M8 * 16 hexag screws and L-type hexagon socket wrench, and then place them on the

ÉTAPE 2 C:M8*40-4 PIÈCES D:M8-4 PIÈCES

C 10 D

6 5 5

Align the motor support plate and fork base with the round hole of the bra to a proper height, and fix it with M8*40 hexagon socket screws and M8 t

ÉTAPE 3D :M6*16-2 PIÈCES

Technical diagram of a mechanical device with labeled components and directional arrows

Technical line drawing of a vertical metal support structure with three X-bracing (no text or symbols)

Place the motor on the motor support plate and secure it with M6 * 16 screws; Place the fire deflector at the corresponding limit of the motor sup

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

ÉTAPE5

Put the food and barbecue fork together on the motor support plate and f base; Then insert the ground nail into the bottom support plate to fix it.

ÉTAPE6

There are 8 levels of the product, each with a height of 55mm Minimum height 410mm, maximum 795mm The maximum length of food is 1110mm

Installation is complete. Place charcoal or other combustibles at the bottom and ignite the barbecue. Press the weight on the support frame at the bottom of both sides to prevent the barbecue frame from toppling during the barbecue process.

CLEAING MAINTENANCE AND STORAGE

Technical line drawing of a mechanical frame assembly with vertical supports and horizontal railings (no text or symbols)

www.vevor.com/support

Technical diagram of a mechanical assembly with numbered components for identification

Technical line drawing of a pole structure with mounting base and support feet (no text or symbols)

Fix the support frame and the bottom support frame with M8 * 16 hexag screws and L-type hexagon socket wrench, and then place them on the

SCHRITT 2 C: M8 * 40-4 STK. D: M8-4 STK.

C 10 D E

Diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating movement or force.

Align the motor support plate and fork base with the round hole of the bra to a proper height, and fix it with M8*40 hexagon socket screws and M8 t

SCHRITT 3 D: M6 * 16-2 STK

Technical diagram of a mechanical device with labeled components and directional arrows

Technical line drawing of a vertical metal support structure with three X-bracing (no text or symbols)

Place the motor on the motor support plate and secure it with M6 * 16 screws; Place the fire deflector at the corresponding limit of the motor sup

SCHRITT 4 A: M8*51-4 STK. B: M8*15-4 STK. D: M8-8 STK.

A 4 45 B

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

SCHRITT 5

Put the food and barbecue fork together on the motor support plate and f base;Then insert the ground nail into the bottom support plate to fix it.

SCHRITT6

There are 8 levels of the product, each with a height of 55mm Minimum height 410mm, maximum 795mm The maximum length of food is 1110mm

Installation is complete. Place charcoal or other combustibles at the bottom and ignite the barbecue. Press the weight on the support frame at the bottom of both sides to prevent the barbecue frame from toppling during the barbecue process.

CLEAING MAINTENANCE AND STORAGE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical frame assembly with vertical supports and horizontal railings (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram showing two structural supports with labeled components, including vertical and horizontal beams and a base support.

Fix the support frame and the bottom support frame with M8 * 16 hexag screws and L-type hexagon socket wrench, and then place them on the

PASSO2 C:M8*40-4PZ D:M8-4PZ

C 10 D B'

Technical diagram showing a mechanical assembly with labeled parts and directional arrows

Align the motor support plate and fork base with the round hole of the bra to a proper height, and fix it with M8*40 hexagon socket screws and M8 t

PASSO3 D:M6*16-2PZ

Technical diagram of a mechanical device with labeled components and directional arrows

Technical line drawing of a vertical metal support structure with three X-bracing (no text or symbols)

Place the motor on the motor support plate and secure it with M6 * 16 screws; Place the fire deflector at the corresponding limit of the motor sup

PASSO4 A:M8*51-4PZ B:M8*15-4PZ D:M8-8PZ

A 4 63 B

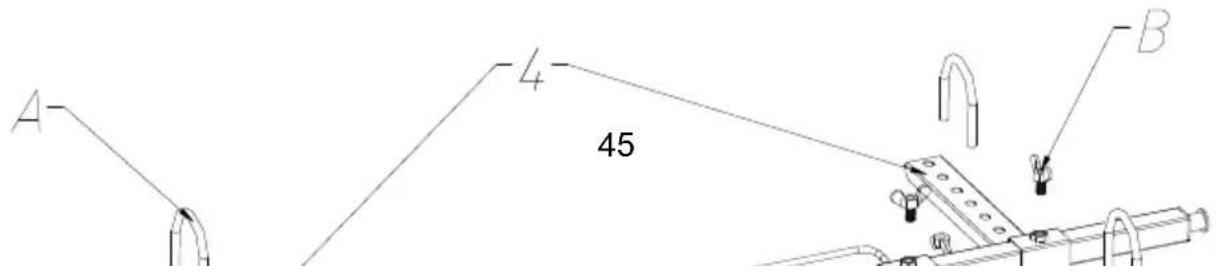

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

PASSO5

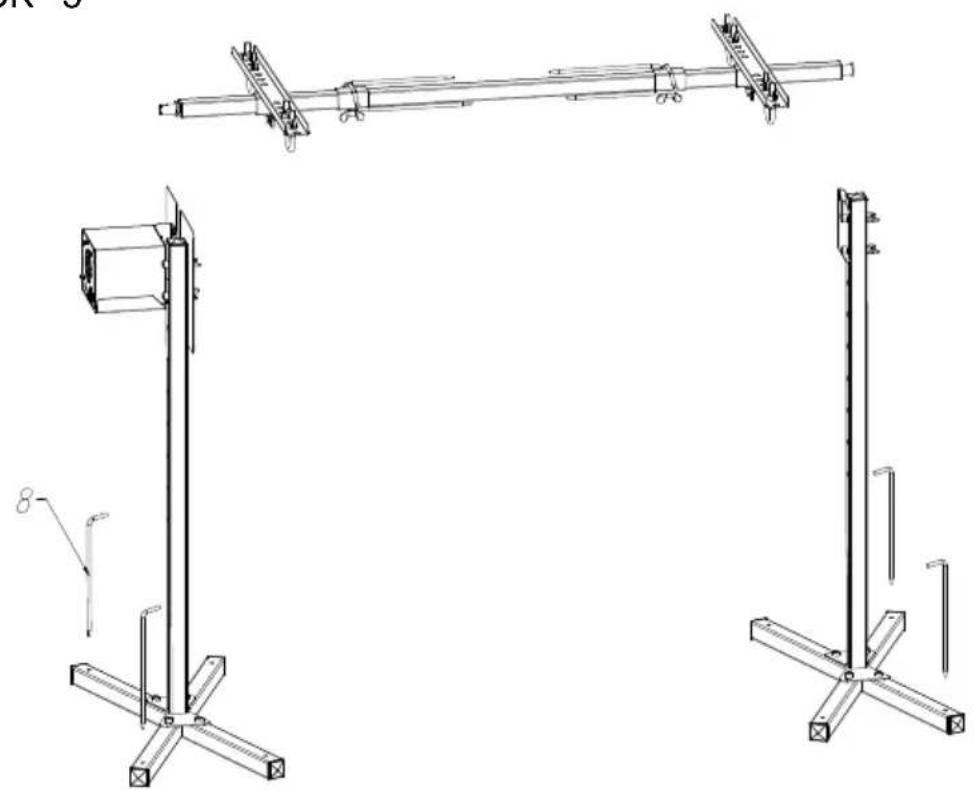

Put the food and barbecue fork together on the motor support plate and f base; Then insert the ground nail into the bottom support plate to fix it.

PASSO6

There are 8 levels of the product, each with a height of 55mm Minimum height 410mm, maximum 795mm The maximum length of food is 1110mm

Installation is complete. Place charcoal or other combustibles at the bottom and ignite the barbecue. Press the weight on the support frame at the bottom of both sides to prevent the barbecue frame from toppling during the barbecue process.

CLEAING MAINTENANCE AND STORAGE

Technical line drawing of a mechanical frame assembly with vertical supports and horizontal railings (no text or symbols)

www.vevor.com/support

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram showing two structural supports with labeled components, including vertical and horizontal beams and a base support.

Fix the support frame and the bottom support frame with M8 * 16 hexag screws and L-type hexagon socket wrench, and then place them on the

PASO 2 C:M8*40-4PCS D:M8-4PCS

C 10 D 螺纹

Technical diagram of a pole assembly with labeled parts and directional arrows indicating assembly steps

Align the motor support plate and fork base with the round hole of the bra to a proper height, and fix it with M8*40 hexagon socket screws and M8 b

PASO 3 D:M6*16-2PCS

Technical diagram of a mechanical device with labeled components and directional indicators

Technical line drawing of a vertical pole with three cross-bracing supports (no text or symbols)

Place the motor on the motor support plate and secure it with M6 * 16 screws; Place the fire deflector at the corresponding limit of the motor sup

PASO4 A:M8*51-4PCS B:M8*15-4PCS D:M8-8PCS

A 4 B 5 D

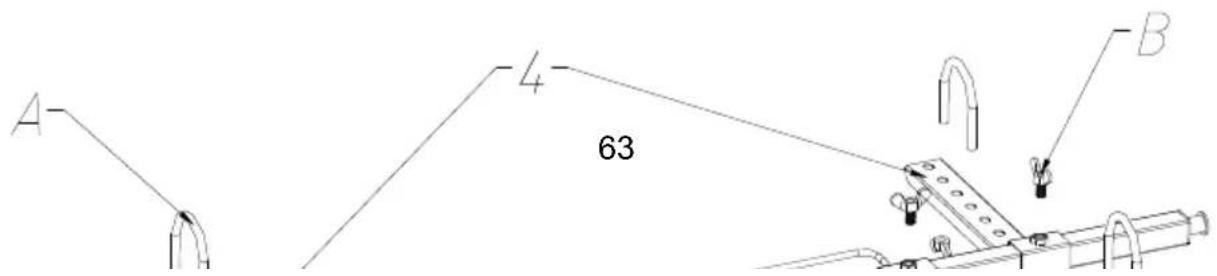

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

PASO 5

Technical line drawing of a mechanical support structure with two views (top and side), no text or symbols present.

Put the food and barbecue fork together on the motor support plate and for base; Then insert the ground nail into the bottom support plate to fix it.

PASO 6

There are 8 levels of the product, each with a height of 55mm Minimum height 410mm, maximum 795mm The maximum length of food is 1110mm

Installation is complete. Place charcoal or other combustibles at the bottom and ignite the barbecue. Press the weight on the support frame at the bottom of both sides to prevent the barbecue frame from toppling during the barbecue process.

OPERATING INSTRUCTIONS

CLEAING MAINTENANCE AND STORAGE

Technical line drawing of a mechanical frame assembly with vertical supports and horizontal railings (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIE Z NAMI!

Technical diagram of a mechanical assembly with numbered components for identification

Technical line drawing of a pole structure with mounting feet and support beams (no text or symbols)

Fix the support frame and the bottom support frame with M8 * 16 hexag screws and L-type hexagon socket wrench, and then place them on the

KROK 2 C:M8*40-4SZT D:M8-4SZT

C 10 D E

Technical diagram showing a mechanical assembly with labeled parts and directional arrows

Align the motor support plate and fork base with the round hole of the bra to a proper height, and fix it with M8*40 hexagon socket screws and M8 t

KROK 3 D:M6*16-2 SZT

Technical diagram of a mechanical device with labeled components and directional arrows

Technical line drawing of a vertical metal support structure with three X-bracing (no text or symbols)

Place the motor on the motor support plate and secure it with M6 * 16 screws; Place the fire deflector at the corresponding limit of the motor sup

KROK 4 A:M8*51-4szt B:M8*15-4szt D:M8-8szt

A 4 99 B

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

KROK 5

Put the food and barbecue fork together on the motor support plate and f base;Then insert the ground nail into the bottom support plate to fix it.

KROK 6

There are 8 levels of the product, each with a height of 55mm Minimum height 410mm, maximum 795mm The maximum length of food is 1110mm

Installation is complete. Place charcoal or other combustibles at the bottom and ignite the barbecue. Press the weight on the support frame at the bottom of both sides to prevent the barbecue frame from toppling during the barbecue process.

CLEAING MAINTENANCE AND STORAGE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

SPIT-ROTISSERIEGRILL

MODEL: JY-MY-SKJ-46-01-120

JY-MY-SKJ-46-01-220

JY-MY-SKJ-46-02-120

JY-MY-SKJ-46-02-220

Technical line drawing of a mechanical frame assembly with vertical supports and horizontal beams (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

www.vevor.com/support

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram showing two structural supports with labeled components, including vertical and horizontal beams and a base support.

Fix the support frame and the bottom support frame with M8 * 16 hexag screws and L-type hexagon socket wrench, and then place them on the

STAP2 C: M8 * 40-4 STUKS D: M8-4 STUKS

C 10 D 螺纹

6 R 8 R 6

Align the motor support plate and fork base with the round hole of the bra to a proper height, and fix it with M8*40 hexagon socket screws and M8 t

STAP3 D:M6*16-2 STUKS

Technical diagram of a mechanical device with labeled components and directional indicators

Technical line drawing of a vertical pole with four legs and cross-shaped base (no text or symbols)

Place the motor on the motor support plate and secure it with M6 * 16 screws; Place the fire deflector at the corresponding limit of the motor sup

STAP4 A:M8*51-4STUKS B:M8*15-4STUKS D:M8-8STUKS

A 4 B 117

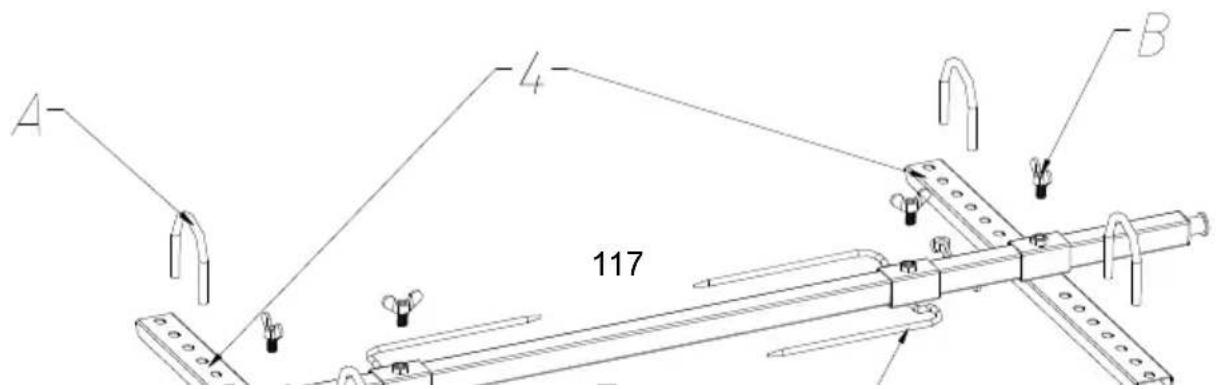

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

STAP 5

Put the food and barbecue fork together on the motor support plate and f base;Then insert the ground nail into the bottom support plate to fix it.

STAP6

There are 8 levels of the product, each with a height of 55mm Minimum height 410mm, maximum 795mm The maximum length of food is 1110mm

Installation is complete. Place charcoal or other combustibles at the bottom and ignite the barbecue. Press the weight on the support frame at the bottom of both sides to prevent the barbecue frame from toppling during the barbecue process.

CLEAING MAINTENANCE AND STORAGE

Technical line drawing of a mechanical frame assembly with vertical supports and horizontal railings (no text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram showing two structural supports with labeled components, including vertical and horizontal beams and support fixtures.

Fix the support frame and the bottom support frame with M8 * 16 hexag screws and L-type hexagon socket wrench, and then place them on the

STEG 2 C:M8*40-4ST D:M8-4ST

C 10 D B

6 规格

Align the motor support plate and fork base with the round hole of the bra to a proper height, and fix it with M8*40 hexagon socket screws and M8 b

STEG3 D:M6*16-2ST

Technical diagram of a mechanical device with labeled components and assembly parts

Technical line drawing of a vertical metal frame with four X-shaped supports (no text or symbols)

Place the motor on the motor support plate and secure it with M6 * 16 screws; Place the fire deflector at the corresponding limit of the motor sup

STEG4 A:M8*51-4PCS B:M8*15-4PCS D:M8-8PCS

A 4 B 5 D

As shown in the above figure, fix the food on the barbecue fork or positio. When using the positioning plate, use U-bolts to fix the food and M8 butte fix it; Then use M8 * 15 butterfly screws to fix the barbecue fork or positio the barbecue fork rod.

STEG 5

Technical line drawing of two vertical support structures with metal supports and a horizontal beam, no text or symbols present

Put the food and barbecue fork together on the motor support plate and fork base; Then insert the ground nail into the bottom support plate to fix it.

STEG 6

There are 8 levels of the product, each with a height of 55mm Minimum height 410mm, maximum 795mm The maximum length of food is 1110mm

Installation is complete. Place charcoal or other combustibles at the bottom and ignite the barbecue. Press the weight on the support frame at the bottom of both sides to prevent the barbecue frame from toppling during the barbecue process.

OPERATING INSTRUCTIONS

CLEAING MAINTENANCE AND STORAGE

www.vevor.com/support
