Pool Pump Motor

Model: HM14065LCb/HM14095LCb/HM16075LCb

HM14075LCb/HM16058LCb/HM16085ECb

We continue to be committed to provide you tools with competitive price. "Sa "Half Price" or any other similar expressions used by us only represents an savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Pool Pump Mot

Model: HM14065LCb/HM14095LCb/HM16075LCb

HM14075LCb/HM16058LCb/HM16085ECb

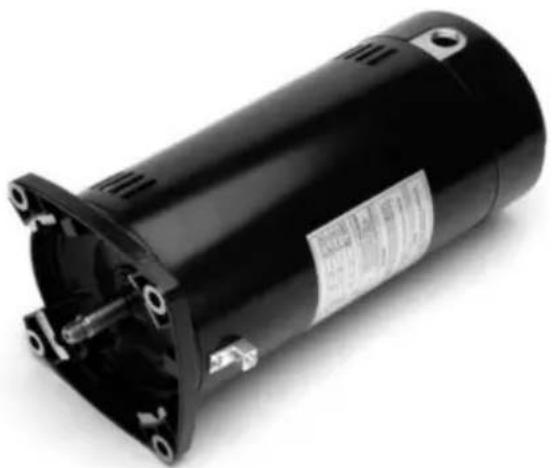

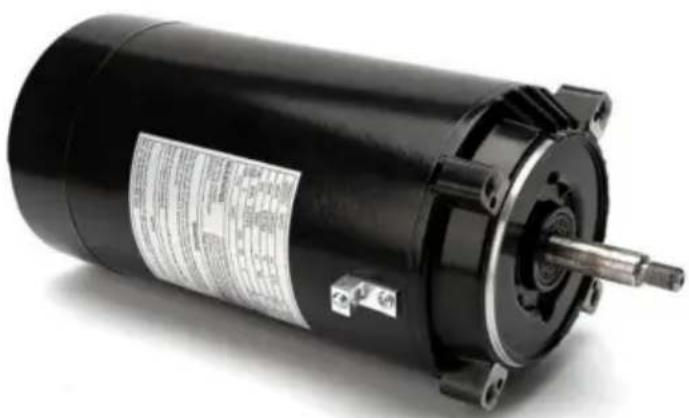

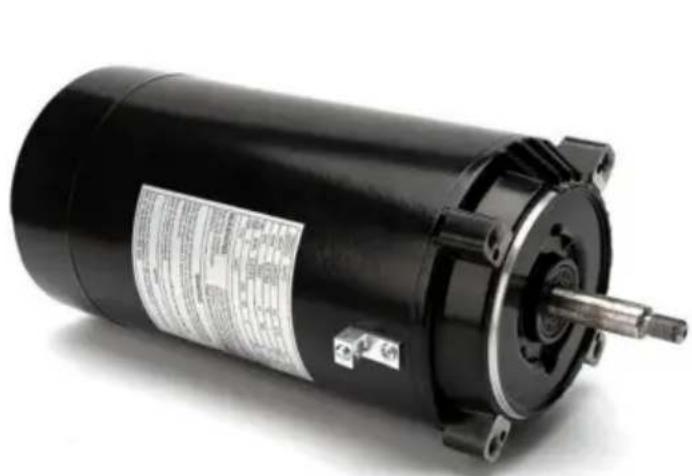

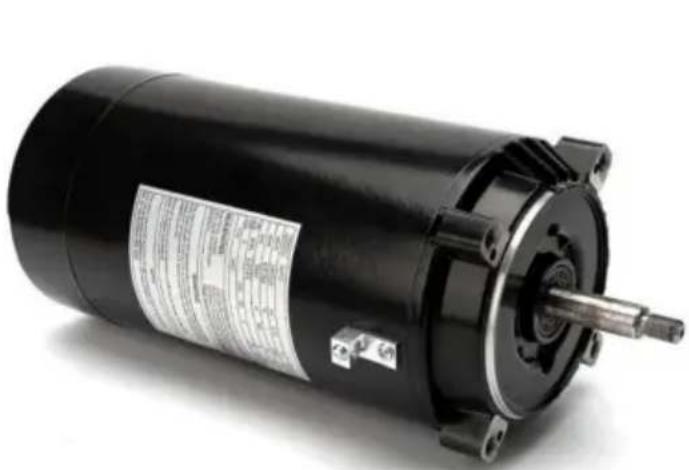

Two black electric motors with visible shafts and mounting flanges, shown from front and side views (no text or symbols)

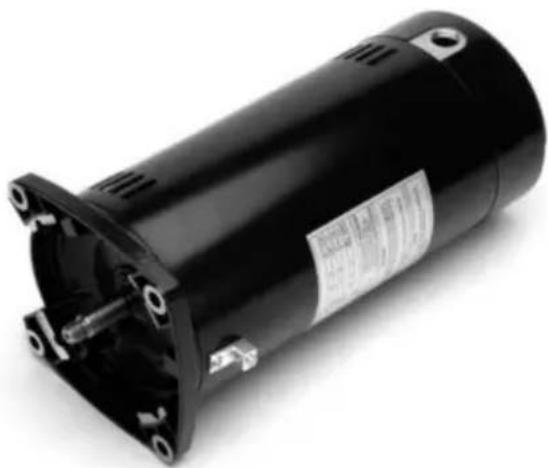

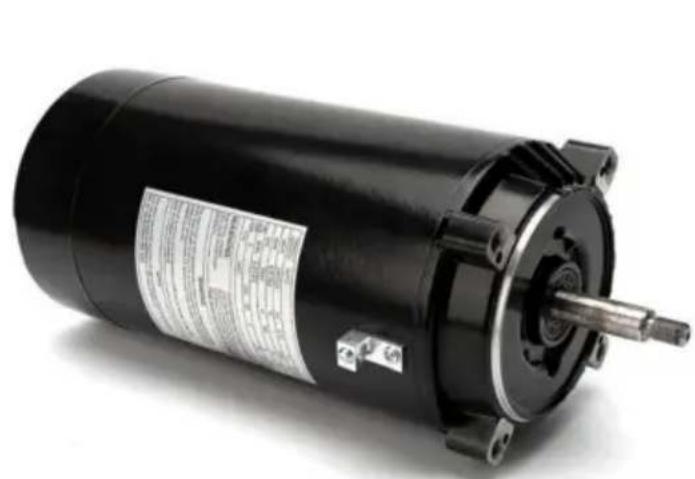

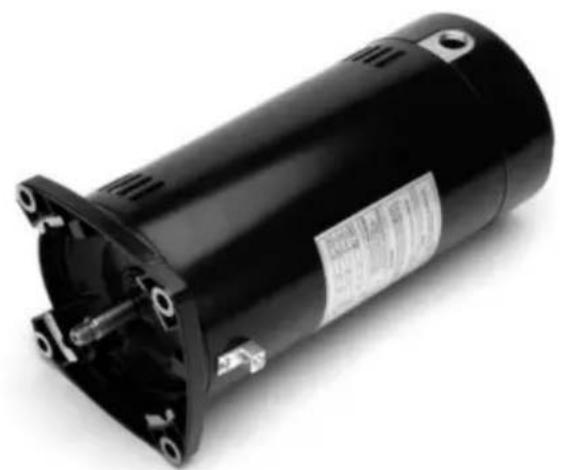

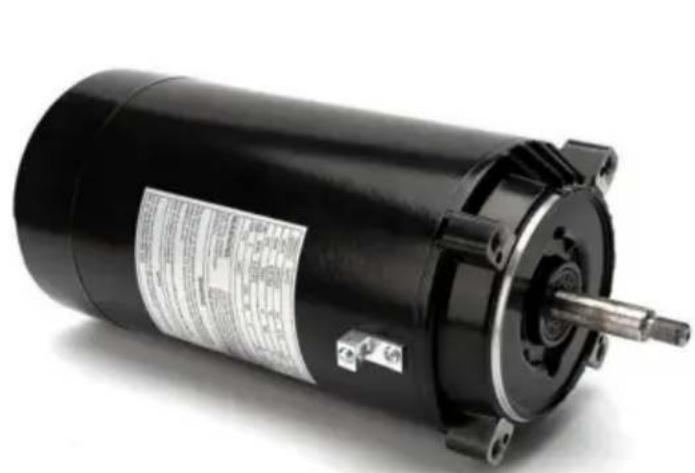

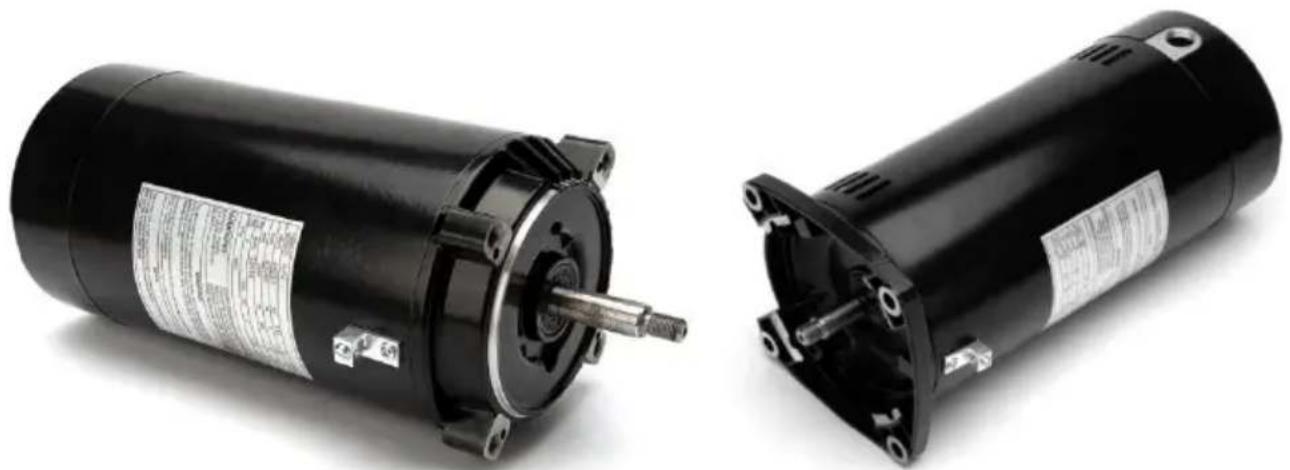

56J 56Y

Please read these operating instructions carefully before starting to work.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

1. Voltage, frequency and the wiring style should be consistent with the motor nameplate, power supply voltage should be maintained at plus 0 minus 5% of the rated operating range.

2. No more than 1000 meters above sea level.

3. Ambient air temperature not exceeding. 40

4. The motor must have a good grounding device

5. Before option must measure 500-volt megohm table winding insulation resistance to ground, and its value should be more than 0.2 megohm be dried.

6. Before starting pull action shaft, it should be flexible rotation, no fi and collisions, running should be smooth and lightly, without stagnation and the noise, if found the strange noise, overheating, burning smell, smoke or slow speed of the phenomenon, should immediately turn off power, shutdown inspection, repair it.

7. The surrounding environment should keep clean and dry and well ventilated.

8. Check whether the motor fastening is fasten.

9. Motor routine maintenance: Electrical outlet box part of the electric contacts should be kept clean and good contacts, whether the motor inlet plug, so as not to affect the motor life. Regular maintenance shall be a half a year, check the motor remove dust and oil, grease and abrasion.

10. The motor running check: When motor is operated it should also be paid attention to whether the load data in current with requirement whether the bearing has phenomena of heat and leakage, if found abnormal or sound, should be stopped immediately for inspection. Until fault is identified, do not do Starting test.

GENERAL INFORMATION

Pool Pump Motor are all fully factory tested and inspected before shipping. Damage during shipment and storage can occur. Motors not correctly matched to the power supply and/or the load will not operate

properly. These instructions are intended as a guide to identify and eliminate these problems before they are overlooked or cause further damage.

ACCEPTANCE

Check carefully for any damage that may have occurred in transit. damage or shortage is discovered, do not accept until an appropriate notation on the freight bill is made. Any damage discovered after receipt equipment should be immediately reported to the carrier.

STORAGE

A. Keep motors clean

1. Store indoors
2. Keep covered to eliminate airborne dust and dirt.
3. Cover openings for ventilation, conduit connections, etc. to prevent entry of rodents, snakes, birds, and insects, etc.

B. Keep motors dry

1. Store in a dry area indoors
2. Temperature swings should be minimal to prevent condensation.
3. Space heaters are recommended to prevent condensation.
4. Treat unpainted flanges, shafts, and fittings with a rust inhibitor.
5. Check insulation resistance before putting motor into service.

(Consult manufacturer for guidelines).

INSTALLATION

UNCRATING AND INSPECTION

After uncrating, check for any damage which may have been incurred handling. The motor shaft should turn freely by hand. Repair or replace any loose or broken parts before attempting to use the motor.

Check to be sure that motor has not been exposed to dirt, grit, or excessive moisture in shipment or storage before installation.

Measure insulation resistance (see operation). Clean and dry the windings as required.

Never start a motor which has been wet without having it thoroughly dried.

SAFETY

Motors should be installed, protected and fused in accordance with latest issue of National Electrical Code, NEMA Standard Publication No. MG 2 and local codes.

TECHNICAL INFO:

Model No	HM14065LCb	HM14095LCb	HM16075LCb	HM14075LCb	HM16058LCb	HM16085ECb
Model flange	56J	56J	56Y	56J	56Y	56Y
Horsepower	0.75HP	1.5HP	1.5HP	1.0HP	1HP	2.0HP
no-load power	≤460W	≤460W	≤350W	≤460W	≤350W	≤460W
ATM	40°C	40°C	40°C	40°C	40°C	40°C
SF	1.5	1.3	1.1	1.4	1.25	1.3
AMPS	8A(115V)/4A(230V)	13.6A(115V)/6.8A(230V)	12.8A(115V)/6.4A(230V)	9.8A(115V)/4.9A(230V)	9.0A(115V)/4.5A(230V)	7.8A(230V)
AMPS(MAX LOAD)	10A(115V)/5A(230V)	17A(115V)/8.5A(230V)	14A(115V)/7A(230V)	12.4A(115V)/6.2A(230V)	11.0A(115V)/5.5A(230V)	10.2A(230V)
shaft extension	47.5-47.75mm	47.5-47.75mm	23.01±0.86mm	47.5-47.75mm	23.01±0.86mm	23.01±0.86mm
Rated Speed	3450RPM	3450RPM	3450RPM	3450RPM	3450RPM	3450RPM
Voltage	AC115/230V	AC115/230V	AC115/230V	AC115/230V	AC115/230V	AC230V
Frequency	60 Hz	60 Hz	60 Hz	60 Hz	60 Hz	60 Hz
Rotation	CCW	CCW	CCW	CCW	CCW	CCW
Insulation	F	F	F	F	F	F
Noise	≤65dB	≤65dB	≤70dB	≤65dB	≤70dB	≤70dB
Thread size	3/8-16UNC	3/8-16UNC	4-φ10.8±0.38mm	3/8-16UNC	4-φ10.8±0.38mm	4-φ10.8±0.38mm
outside diameter	φ142.5mm	φ142.5mm	φ164.0mm	φ142.5mm	φ164.0mm	φ164.0mm
Output screw teeth	7/16-20UNF-2A	7/16-20UNF-2A	1/2-20UNF-2A	7/16-20UNF-2A	1/2-20UNF-2A	1/2-20UNF-2A
Screw tooth length	14.3-17.85m m	14.3-17.85m m	12.7±0.51mm	14.3-17.85m m	12.7±0.51mm	12.7±0.51mm

Product wiring diagram

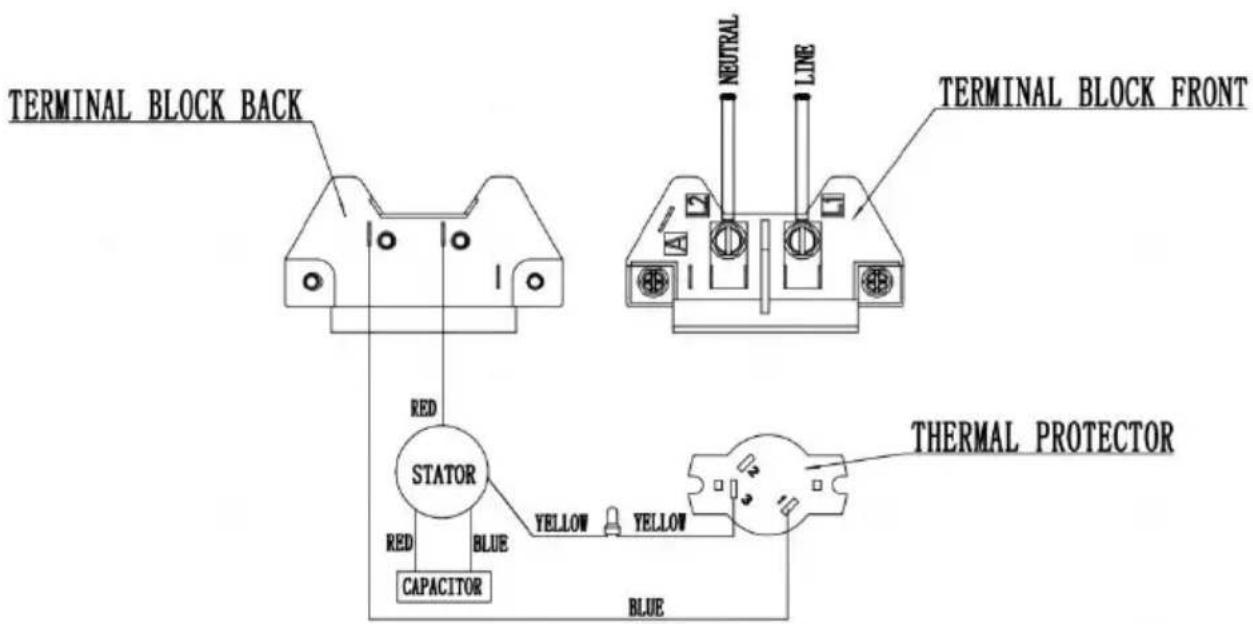

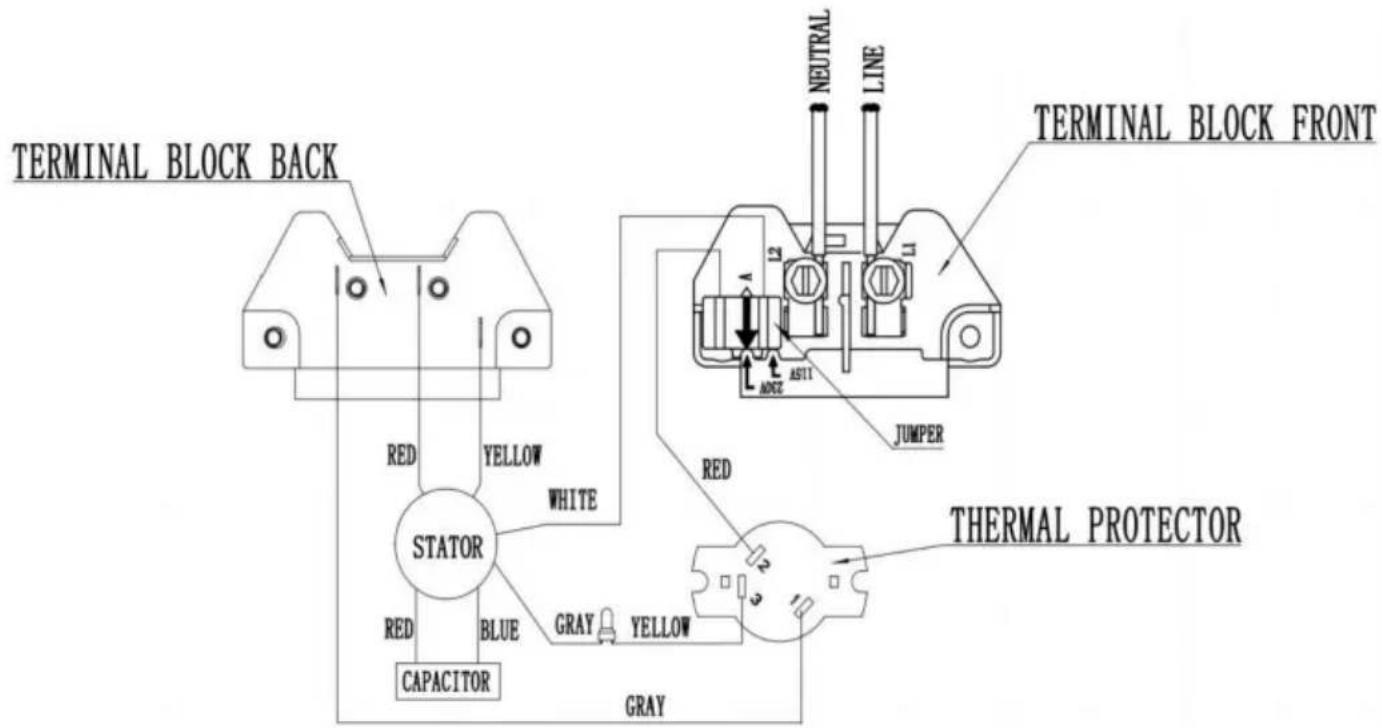

Single voltage(HM16085ECb)

WIRING DIAGRAM-230V

TERMINAL BLOCK BACK RED STATOR RED CAPACITOR BLUE YELLOW YELLOW YELLOW YELLOW BLUE NEUTRAL LINE TERMINAL BLOCK FRONT THERMAL PROTECTOR

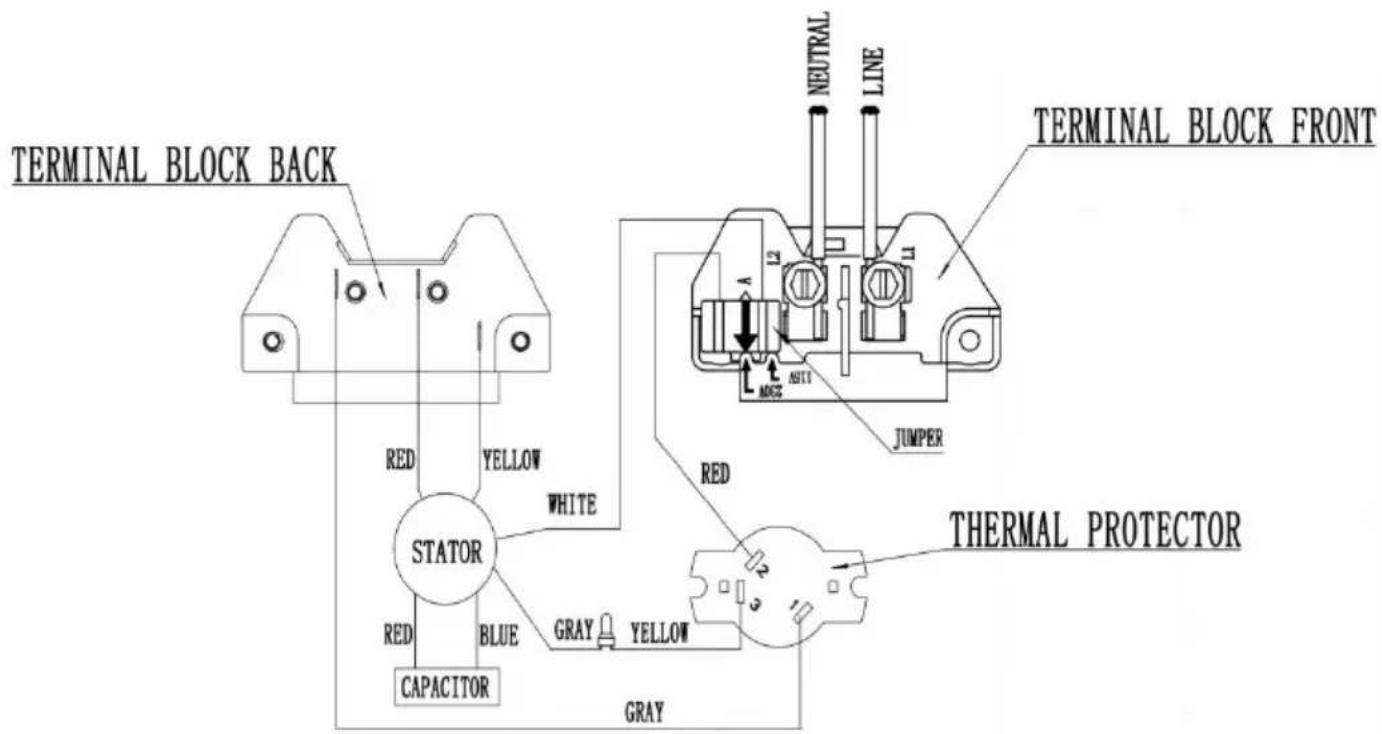

Dual voltage specification wiring

diagram(HM14065LCb/HM14095LCb/HM16075LCb/HM14075LCb/HM16058LCb)

WIRING DIAGRAM-115/230V

TERMINAL BLOCK BACK RED YELLOW WHITE STATOR RED BLUE CAPACITOR GRAY YELLOW GRAY RED NEUTRAL LINE JUMPER THERMAL PROTECTOR

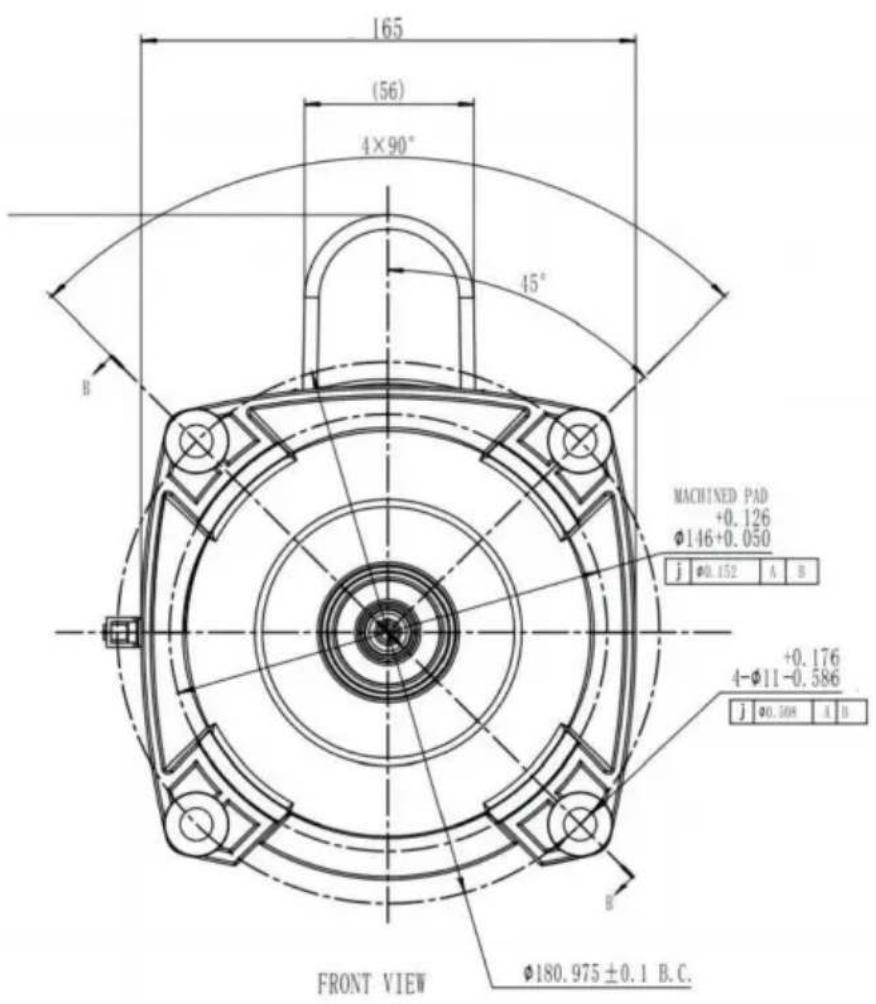

Planing

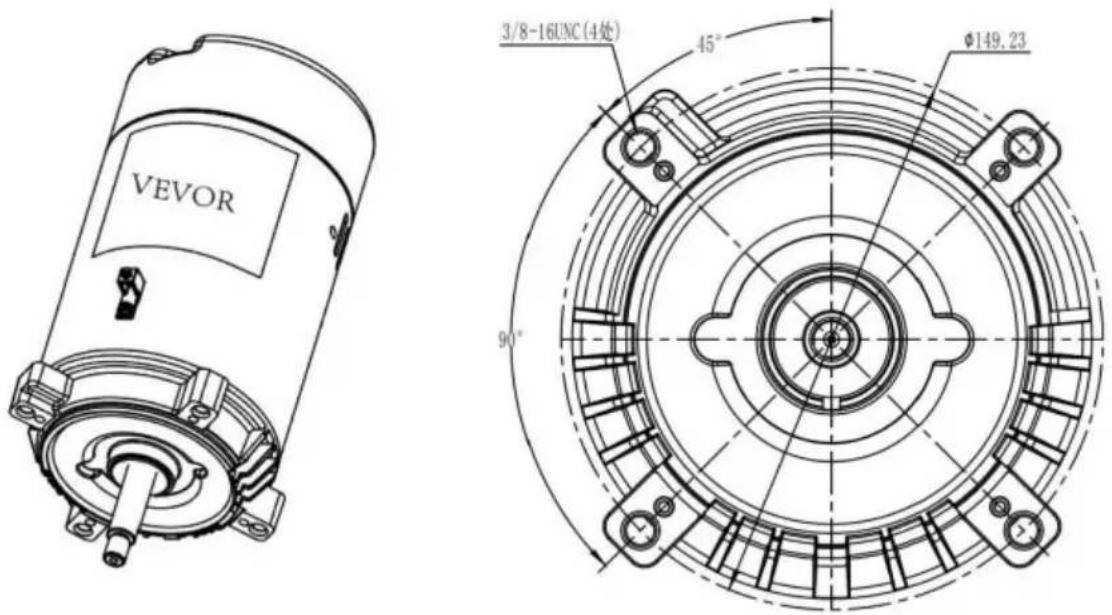

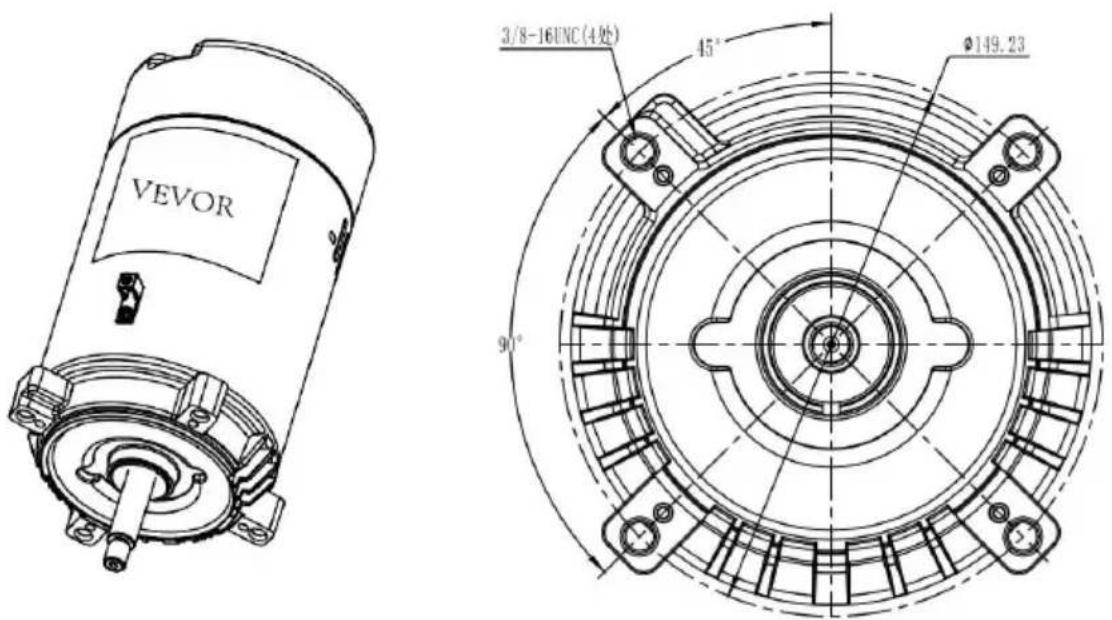

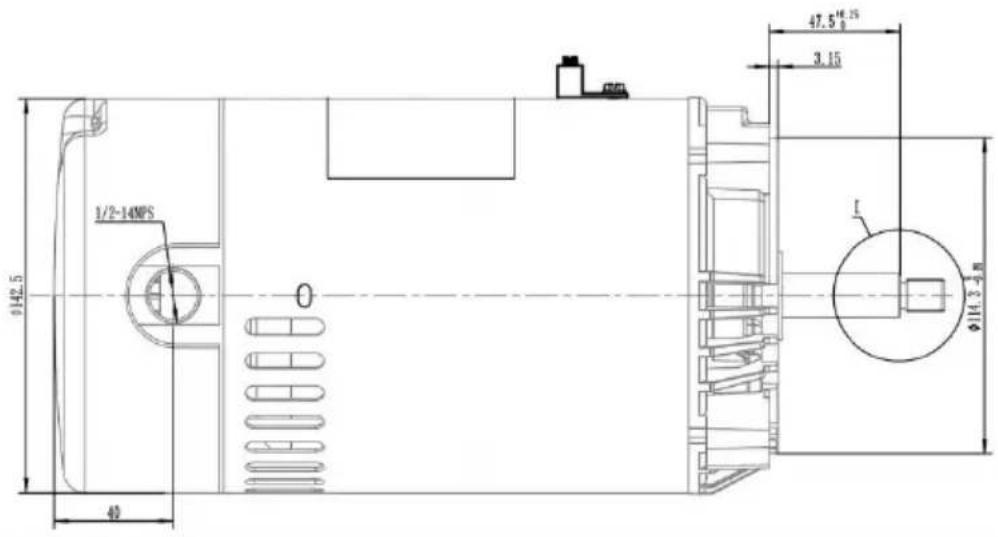

VEVOR 3/8-16UNC(4处) 45° Ø149.23 90°

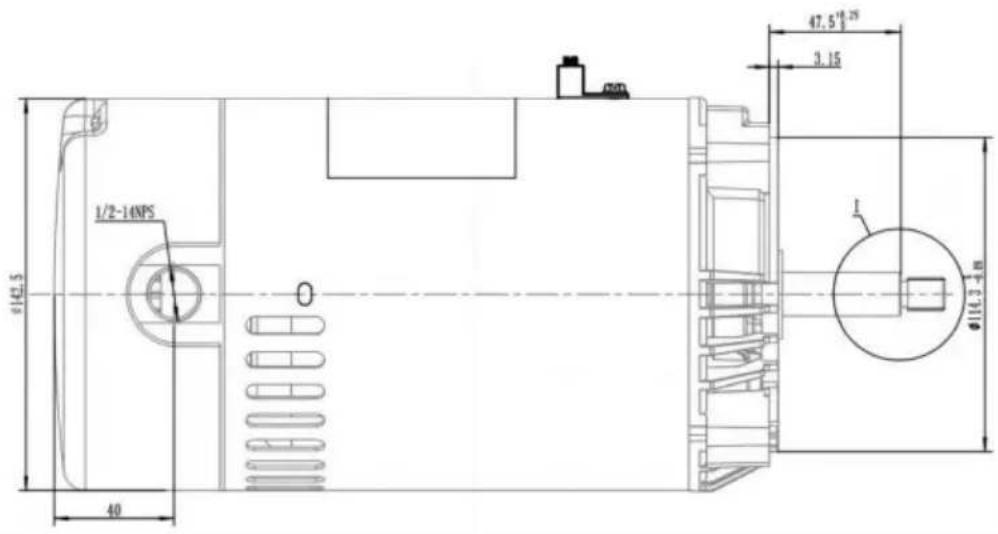

0/42.5 1/2-14MPS 40 47.5 16.25 3.15 Ø14.3-5.8

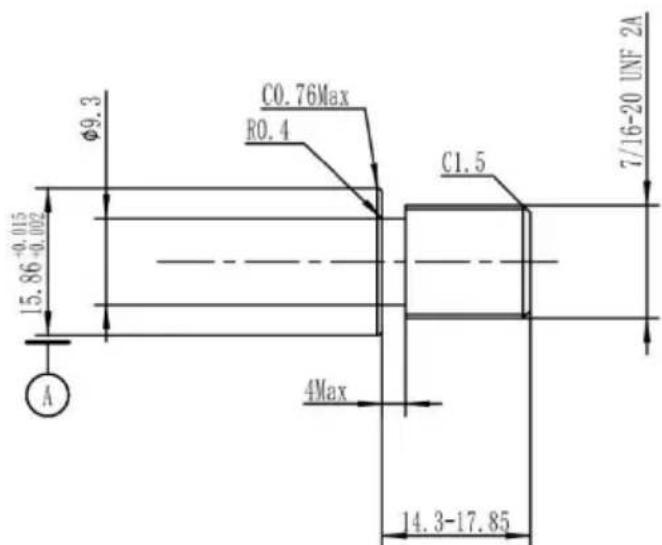

C0.76Max R0.4 Φ9.3 15.86-0.015 -0.002 A 4Max C1.5 7/16-20 UNF 2A 14.3-17.85

56J(HM14065LCb/HM14095LCb/HM14075LCb)

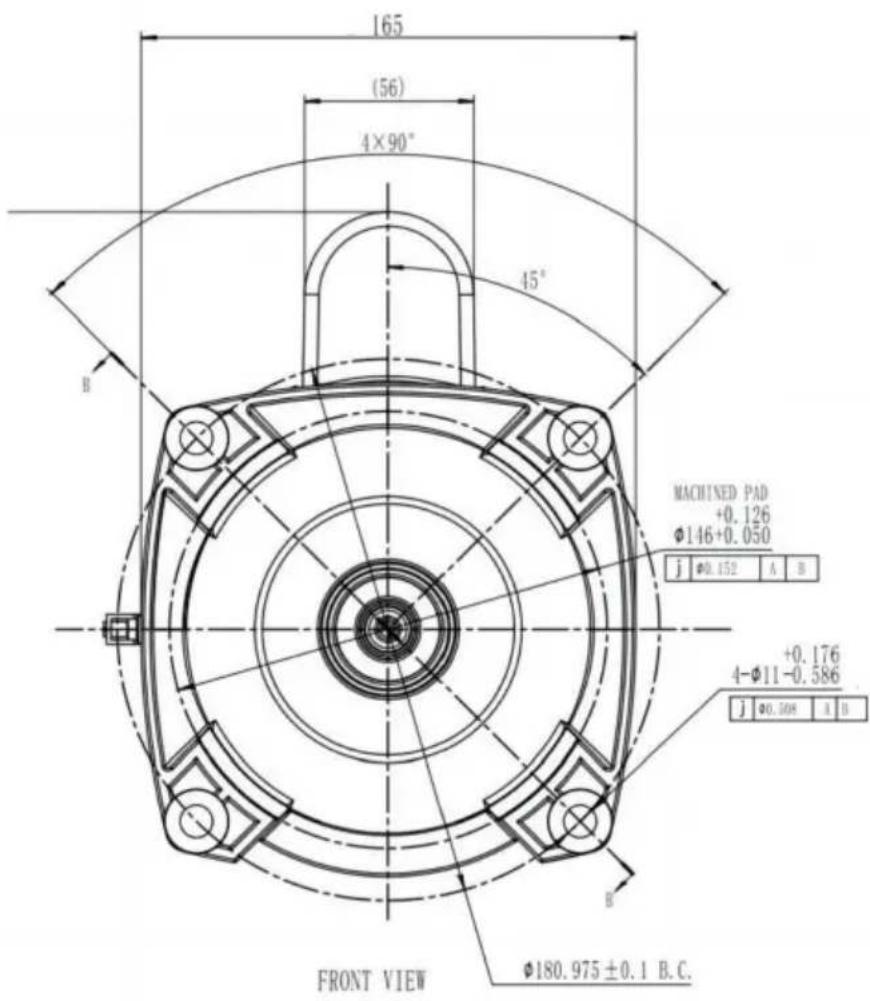

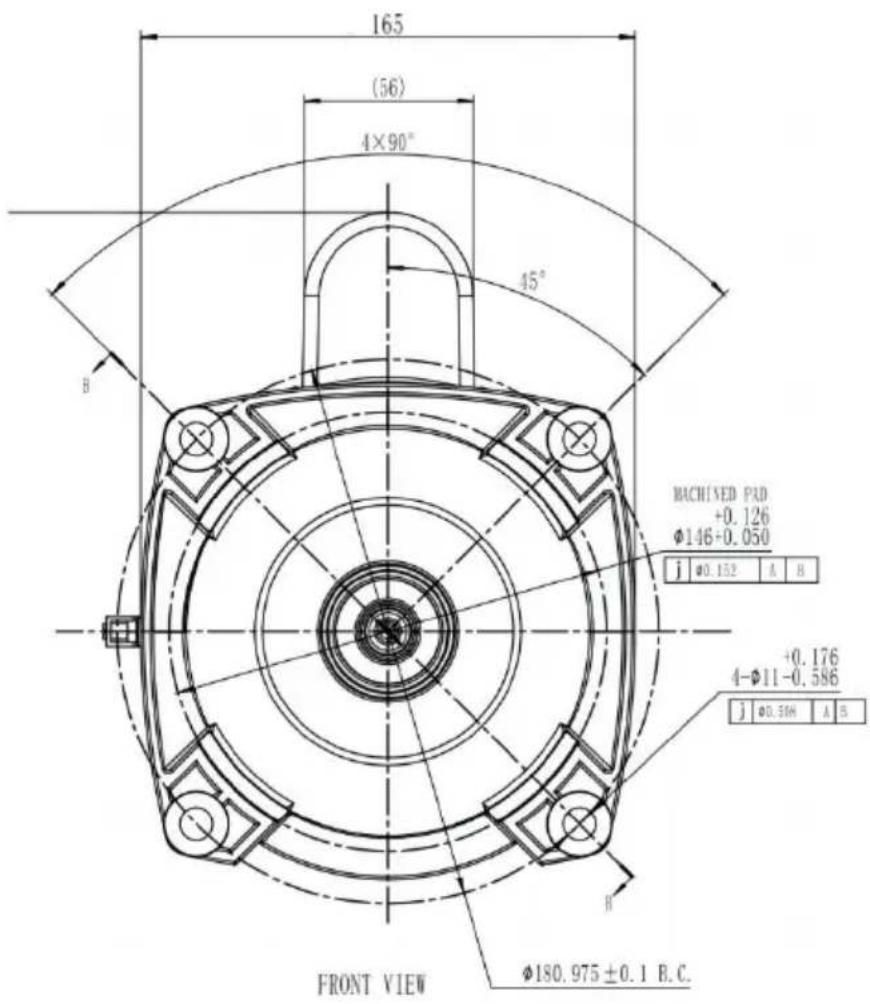

165 (56) 4×90° 45° B MACHINED PXD +0.126 Φ146+0.050 j φ0.152 A B +0.176 4-Φ11-0.586 j φ0.50H A B FRONT VIEW Φ180.975±0.1 B.C.

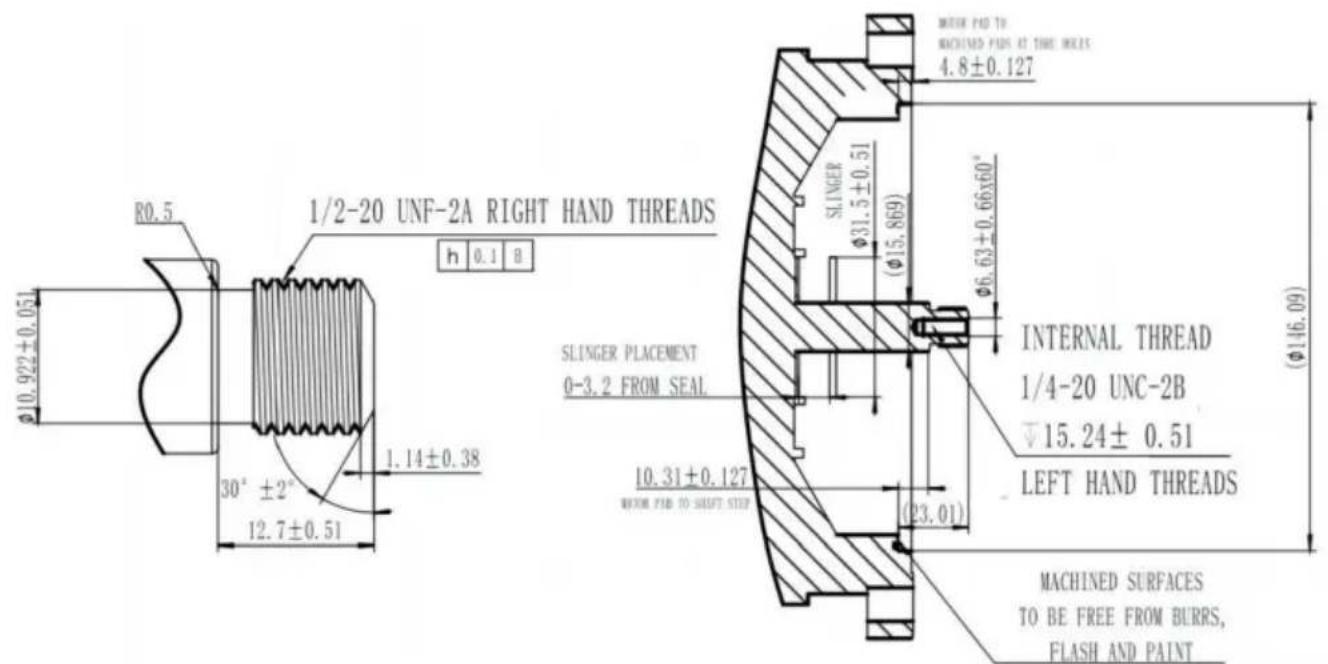

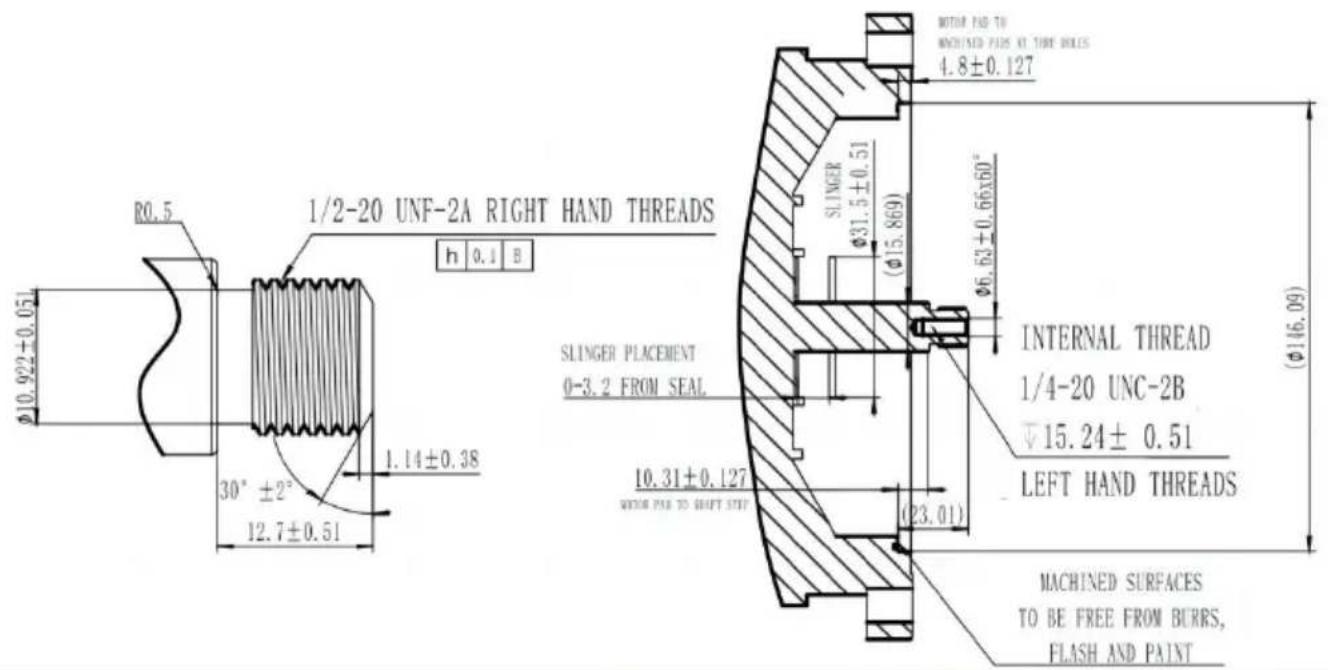

R0.5 1/2-20 UNF-2A RIGHT HAND THREADS h 0.1 B Φ10.922±0.05 30° ±2° 12.7±0.51 1.14±0.38 SLINGER PLACEMENT 0-3.2 FROM SEAL SLINGER Φ31.5±0.51 (Φ15.869) Φ6.63±0.66x60° INTERNAL THREAD 1/4-20 UNC-2B ▽15.24± 0.51 LEFT HAND THREADS MACHINED SURFACES TO BE FREE FROM BURRS, FLASH AND PAINT

56Y(HM16075LCb/HM16058LCb/HM16085ECb)

Product installation precautions

1. After receiving the product, open the packaging and remove it to its appearance for any damage caused by transportation. If the package is damaged or the product is damaged, please contact customer service transportation company urgently. Do not install it voluntarily.
2. If the product is intact, please open the rear cover of the motor shown in the diagram.

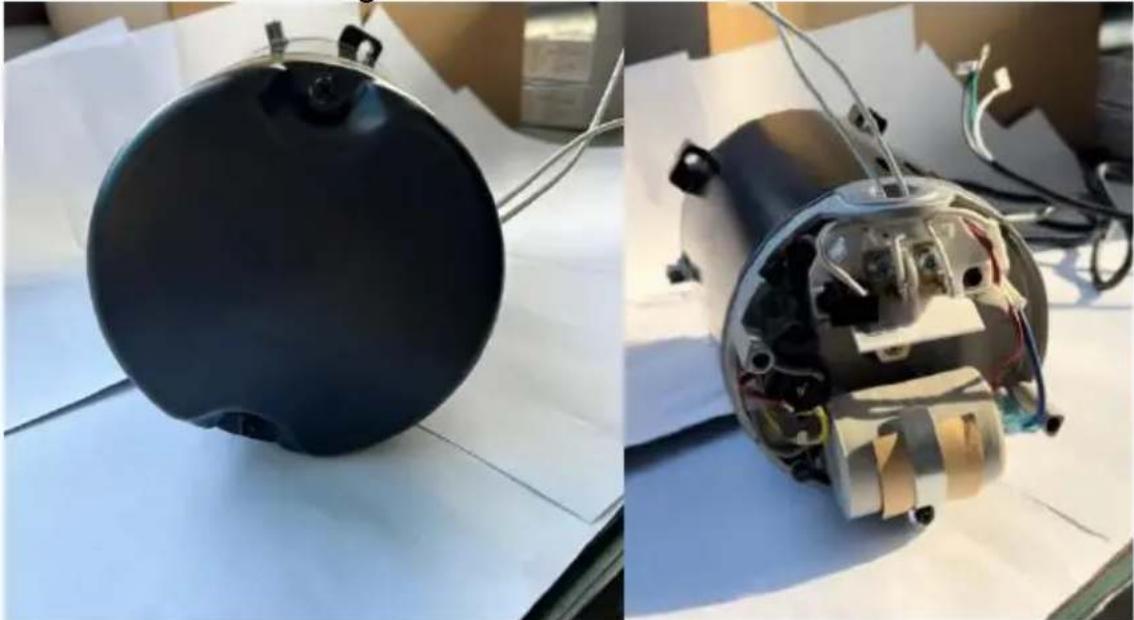

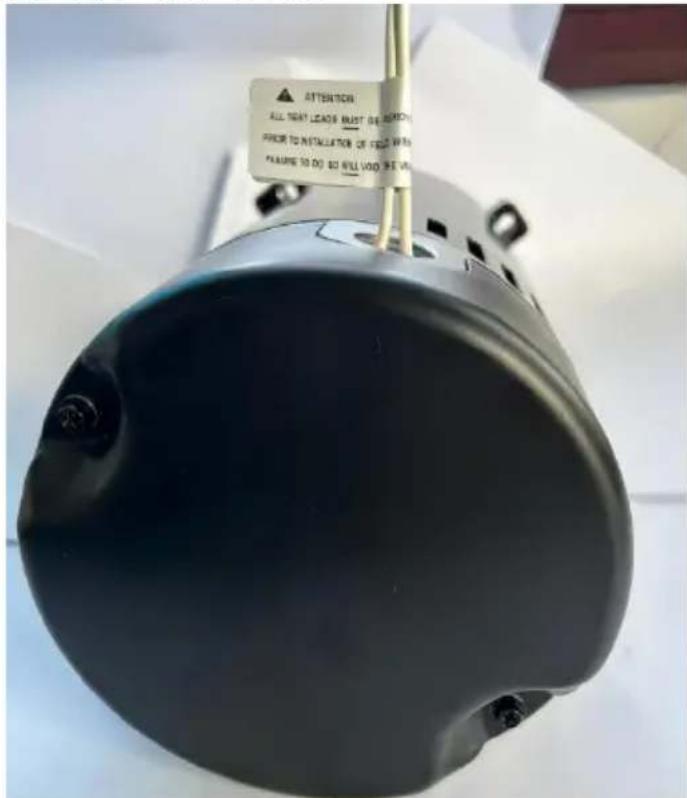

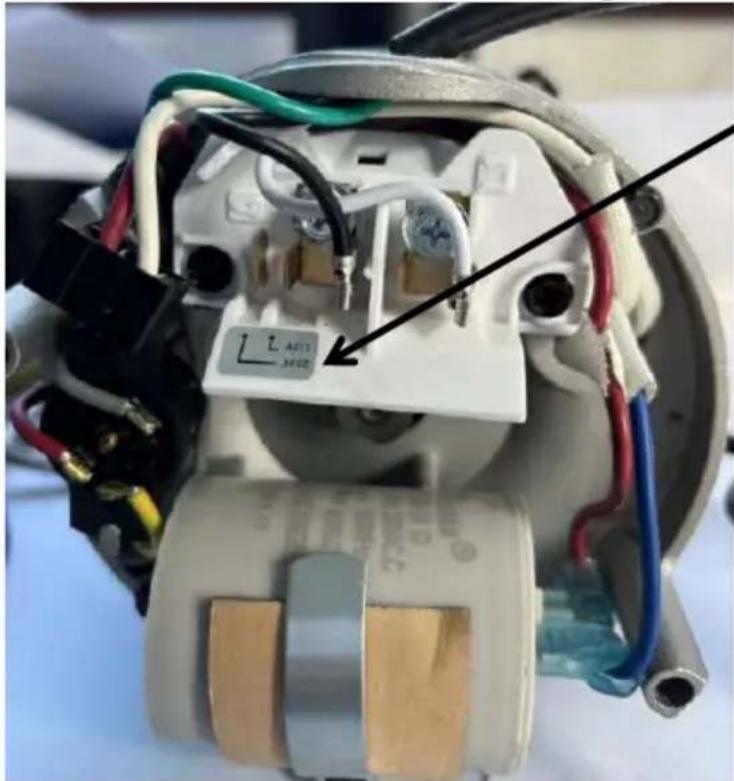

Two views of a device with exposed internal components, one showing a circular body and the other a transparent cylindrical housing (no text or symbols visible)

1. Remove the exposed test wire and select a voltage specification suitable for your own use. Connect the 120/230 terminals as shown in diagram. Except for HM16085ECb, all other motors are dual voltage motors, suitable for different household voltages.

Close-up of an electrical component with wiring and a labeled component (no readable text or symbols)

Be careful when choosing to ensure correct wiring, otherwise the motor may burn out

1. To install the impeller of the swimming pool pump, it is necessary to remove the back cover of the motor and use a wrench to clamp the main motor shaft (to prevent the motor shaft from rotating when installing the impeller). On the other side, rotate and lock the impeller the screw thread of the motor shaft.

Close-up of a hand using a wrench to adjust internal components of an electric motor (no visible text or symbols)

1. The two white output power lines are for the convenience of testing and have practical use. After receiving the product, installing the swimming pool pump requires removing the two test leads.

ATTENTION ALL NEAT LEADS MUST DO WORK? FORCER TO INSTALLATOR OF FOOD WE PLEASE TO DO $0 WILL VIND WE VIND

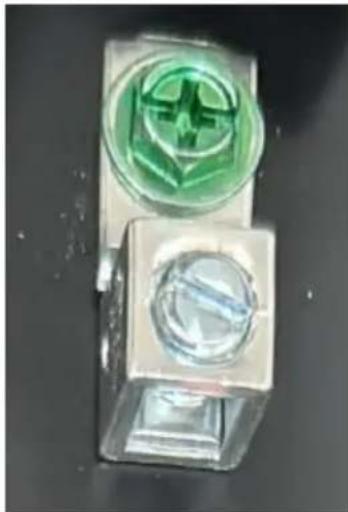

1. Motor grounding indication, connect a grounding wire to the motor grounding device.

Close-up of two transparent plastic electronic components with green and white markings (no visible text or symbols)

Special attention: All motor models are wired with a default voltage of 230V before leaving the factory. Please adjust according to your own power supply specifications upon receipt. (If your own power supply is 230V voltage, there is no need to adjust it).

OMMON PROBLEMS AND REMEDIES

Problem 1:

When you receive the motor, please check whether the front shaft of motor can rotate. if you find that manual rotation is not possible.

Solution:

The concentricity of the motor may be damaged during transportation. Please contact the after-sales for processing

Problem 2:

The motor does not work when it is powered on.

Solution:

1) Please check the power supply to make sure the output voltage is correct.
2) Please check the wiring carefully to make sure it's the same as t wiring diagram.

Problem 3:

After the motor is powered on, it rotates slowly and cannot be started normally.

Solution:

1) Please check the power supply to make sure the output voltage is correct.
2) Please check the wiring carefully to make sure it's the same as wiring diagram.
3) Check whether the motor protector is intact and there is no open

Problem 4:

After running for a period of time, the motor heats up and stops wo

Solution:

Motor overloaded running, protector function. After half an hour of coo try again.

Made In China

anufacturer:Changzhou Honest Electric CO.,LTD

Address: No. 60, Yinxing Road, Zhonglou, Changzhou, Jiangsu, China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

HM14075LCb/HM16058LCb/HM16085ECb

HM14075LCb/HM16058LCb/HM16085ECb

Exterior view of a black electric motor with visible shaft and mounting flange (no text or symbols)

56J

Black industrial electric motor with visible shaft and mounting flange (no text or symbols)

56 ans

schéma (HM14065LCb/HM14095LCb/HM16075LCb/HM14075LCb/HM16058LCb)

SCHÉMA DE CÂBLAGE-115/230V

TERMINAL BLOCK BACK RED YELLOW WHITE STATOR RED BLUE CAPACITOR GRAY YELLOW GRAY RED NEUTRAL LINE JUMPER AS11 A THERMAL PROTECTOR

Rabotage

VEVOR 3/8-16UNC(4处) 45° Φ149.23 90°

1/2-14NPS Ø142,5 40 Ø16,3-48 47,5" 19.25" 3,15 1

Ø9.3 C0.76Max R0.4 15.86+0.002 A 4Max C1.5 7/16-20 UNF 2A 14.3-17.85

56J(HM14065LCb/HM14095LCb/HM14075LCb)

165 (56) 4×90° 45° B MACHINED PAD +0.126 Φ146+0.050 j Ø0.152 A B +0.176 4-Φ11-0.586 j Ø0.308 A B FRONT VIEW Φ180.975 ± 0.1 B.C.

R0.5 1/2-20 UNF-2A RIGHT HAND THREADS h 0.1 B φ10.922±0.051 30° ±2° 12.7±0.51 SLINGER PLACEMENT 0-3.2 FROM SEAL 10.31±0.127 WITH PAD TO SHAFT STEP SLINGER φ31.5±0.51 (φ15.869) φ6.63±0.66x60° INTERNAL THREAD 1/4-20 UNC-2B ▽15.24± 0.51 LEFT HAND THREADS MACHINED SURFACES TO BE FREE FROM BURRS, FLASH AND PAINT

56Y(HM16075LCb/HM16058LCb/HM16085ECb)

Two views of a black circular device with visible internal components and wiring, placed on a white surface (no text or symbols)

Close-up of an electrical switch assembly with wires and components, no visible text or symbols

Close-up of a hand using a wrench to adjust internal components of an electric motor (no visible text or symbols)

Close-up of two transparent plastic electronic components with green and white spherical features (no visible text or symbols)

Adresse : n° 60, Yinxing Road, Zhonglou, Changzhou, Jiangsu, Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

Modell: HM14065LCb/HM14095LCb/HM16075LCb

HM14075LCb/HM16058LCb/HM16085ECb

Modell: HM14065LCb/HM14095LCb/HM16075LCb HM14075LCb/HM16058LCb/HM16085ECb

Exterior view of a black electric motor with visible shaft and mounting bracket (no text or symbols)

56J

Black electric motor with visible shaft and mounting flange (no text or symbols)

56J

Diagramm (HM14065LCb/HM14095LCb/HM16075LCb/HM14075LCb/HM16058LCb)

SCHALTPLAN - 115/230 V

TERMINAL BLOCK BACK RED YELLOW WHITE STATOR RED BLUE CAPACITOR GRAY YELLOW GRAY RED NEUTRAL LINE JUMPER AS11 A THERMAL PROTECTOR

Hobeln

VEVOR 3/8-16UNC(4处) 45° Φ149.23 90°

1/2-14NPS Ø142.5 40 Ø16.3-48 47.5" 19.25" 3.15 1

Ø9.3 C0.76Max R0.4 15.86+0.002 A 4Max C1.5 7/16-20 UNF 2A 14.3-17.85

56J (HM14065LCb/HM14095LCb/HM14075LCb)

165 (56) 4×90° 45° B MACHINED PAD +0.126 Φ146+0.050 j Φ0.152 A B +0.176 4-Φ11-0.586 j Φ0.308 A B FRONT VIEW Φ180.975 ± 0.1 B.C.

R0.5 1/2-20 UNF-2A RIGHT HAND THREADS h 0.1 B φ10.922±0.051 30° ±2° 12.7±0.51 SLINGER PLACEMENT 0-3.2 FROM SEAL 10.31±0.127 WITH PAD TO SHAFT STEP SLINGER φ31.5±0.51 (φ15.869) φ6.63±0.66x60° INTERNAL THREAD 1/4-20 UNC-2B ▽15.24± 0.51 LEFT HAND THREADS MACHINED SURFACES TO BE FREE FROM BURRS, FLASH AND PAINT

56 Jahre (HM16075LCb/HM16058LCb/HM16085ECb)

Two views of a black circular device with visible internal components and wiring, placed on a white surface (no text or symbols)

Close-up of an electrical switchgear with visible wiring and components (no text or symbols)

Close-up of a hand using a wrench to adjust internal components of an electric motor (no visible text or symbols)

Close-up of two small electronic components with green and white markings, no visible text or symbols.

Adresse: № 60, Yinxing Road, Zhonglou, Changzhou, Jiangsu, China

VEVOR®

TOUGH TOOLS, HALF PRICE

Modello:HM14065LCb/HM14095LCb/HM16075LCb

HM14075LCb/HM16058LCb/HM16085ECb

Modello:HM14065LCb/HM14095LCb/HM16075LCb HM14075LCb/HM16058LCb/HM16085ECb

Exterior view of a black electric motor with visible shaft and mounting flange (no text or symbols)

56J

Black industrial electric motor with visible shaft and mounting flange (no text or symbols)

56Y

diagramma (HM14065LCb/HM14095LCb/HM16075LCb/HM14075LCb/HM16058LCb)

SCHEMA ELETTRICO-115/230V

TERMINAL BLOCK BACK RED YELLOW WHITE STATOR RED BLUE CAPACITOR GRAY YELLOW GRAY RED NEUTRAL LINE JUMPER AS11 A THERMAL PROTECTOR

Pianificazione

VEVOR 3/8-16UNC(4处) 45° Φ149.23 90°

1/2-14NPS Ø142.5 40 Ø16.3-48 47.5" 19.25" 3.15 1

Ø9.3 C0.76Max R0.4 15.86+0.002 A 4Max C1.5 7/16-20 UNF 2A 14.3-17.85

56J(HM14065LCb/HM14095LCb/HM14075LCb)

165 (56) 4×90° 45° B MACHINED PAD +0.126 Φ146+0.050 j Φ0.152 A B +0.176 4-Φ11-0.586 j Φ0.308 A B FRONT VIEW Φ180.975 ± 0.1 B.C.

R0.5 1/2-20 UNF-2A RIGHT HAND THREADS h 0.1 B φ10.922±0.051 30° ±2° 12.7±0.51 SLINGER PLACEMENT 0-3.2 FROM SEAL 10.31±0.127 WITH PAD TO SHAFT STEP 4.8±0.127 SLINGER φ31.5±0.51 (φ15.869) φ6.63±0.66x60° INTERNAL THREAD 1/4-20 UNC-2B ▽15.24± 0.51 LEFT HAND THREADS (φ146.09) MACHINED SURFACES TO BE FREE FROM BURRS, FLASH AND PAINT

56Y(HM16075LCb/HM16058LCb/HM16085ECb)

Two views of a black circular device with visible internal components and wiring, placed on a white surface (no text or symbols)

Close-up of an electrical socket with wiring and components, no visible text or symbols

Close-up of a hand using a wrench to adjust internal components of an electric motor (no visible text or symbols)

Close-up of two small electronic components with green and white markings, no visible text or symbols.

Modelo: HM14065LCb/HM14095LCb/HM16075LCb

HM14075LCb/HM16058LCb/HM16085ECb

Modelo: HM14065LCb/HM14095LCb/HM16075LCb

HM14075LCb/HM16058LCb/HM16085ECb

Exterior view of a black electric motor with visible shaft and mounting flange (no text or symbols)

56J

Black electric motor with visible shaft and mounting flange (no text or symbols)

56 años

diagrama (HM14065LCb/HM14095LCb/HM16075LCb/HM14075LCb/HM16058LCb)

DIAGRAMA DE CABLEADO-115/230V

TERMINAL BLOCK BACK RED YELLOW WHITE STATOR RED BLUE CAPACITOR GRAY YELLOW GRAY RED NEUTRAL LINE JUMPER AS11 A THERMAL PROTECTOR

Cepillado

VEVOR 3/8-16UNC(4处) 45° Φ149.23 90°

1/2-14NPS Ø142,5 40 Ø16,3-48 47.5" 19.25" 3.15 1

Ø9.3 C0.76Max R0.4 15.86+0.002 A 4Max C1.5 7/16-20 UNF 2A 14.3-17.85

56J(HM14065LCb/HM14095LCb/HM14075LCb)

165 (56) 4×90° 45° B MACHINED PAD +0.126 Φ146+0.050 j Φ0.152 A B +0.176 4-Φ11 -0.586 j Φ0.308 A B FRONT VIEW Φ180.975 ± 0.1 B.C.

R0.5 1/2-20 UNF-2A RIGHT HAND THREADS h 0.1 B φ10.922±0.051 30° ±2° 12.7±0.51 SLINGER PLACEMENT 0-3.2 FROM SEAL 10.31±0.127 WITH PAD TO SHAFT STEP SLINGER φ31.5±0.51 (φ15.869) φ6.63±0.66x60° INTERNAL THREAD 1/4-20 UNC-2B ▽15.24± 0.51 LEFT HAND THREADS MACHINED SURFACES TO BE FREE FROM BURRS, FLASH AND PAINT

56Y(HM16075LCb/HM16058LCb/HM16085ECb)

Two views of a black circular device on a workbench, showing internal components and wiring (no visible text or symbols)

Close-up of an electrical switch assembly with wires and components, no visible text or symbols

Close-up of a hand using a wrench to adjust internal components of an electric motor (no visible text or symbols)

Close-up of two small electronic components with green and white markings, no visible text or symbols.

Modelu:HM14065LCb/HM14095LCb/HM16075LCb

HM14075LCb/HM16058LCb/HM16085ECb

Modelu:HM14065LCb/HM14095LCb/HM16075LCb

HM14075LCb/HM16058LCb/HM16085ECb

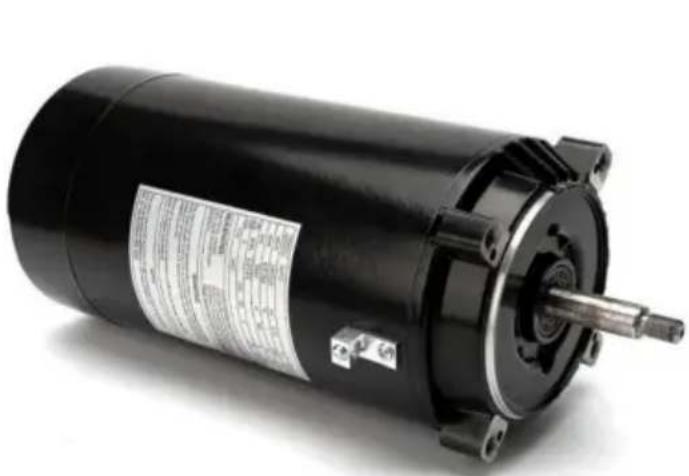

Exterior view of a black electric motor with visible shaft and mounting bracket (no text or symbols)

56J

Black electric motor with visible shaft and mounting flange (no text or symbols)

56 lat

schemat (HM14065LCb/HM14095LCb/HM16075LCb/HM14075LCb/HM16058LCb)

SCHEMAT POŁĄCZEŃ -115/230V

TERMINAL BLOCK BACK RED YELLOW WHITE STATOR RED BLUE CAPACITOR GRAY YELLOW GRAY RED JUMPER NEUTRAL LINE A AS11 ADCZ THERMAL PROTECTOR

Struganie

VEVOR 3/8-16UNC(4处) 45° Φ149.23 90°

1/2-14NPS Ø142,5 40 Ø16,3-48 47.5" 19.25" 3.15 1

Ø9.3 C0.76Max R0.4 15.86+0.002 A 4Max C1.5 7/16-20 UNF 2A 14.3-17.85

56J(HM14065LCb/HM14095LCb/HM14075LCb)

165 (56) 4×90° 45° B MACHINED PAD +0.126 Φ146+0.050 j Φ0.152 A B +0.176 4-Φ11-0.586 j Φ0.308 A B FRONT VIEW Φ180.975 ± 0.1 B.C.

R0.5 1/2-20 UNF-2A RIGHT HAND THREADS h 0.1 B φ10.922±0.051 30° ±2° 12.7±0.51 SLINGER PLACEMENT 0-3.2 FROM SEAL 10.31±0.127 WITH PAD TO SHAFT STEP 4.8±0.127 SLINGER φ31.5±0.51 (φ15.869) φ6.63±0.66x60° INTERNAL THREAD 1/4-20 UNC-2B ▽15.24± 0.51 LEFT HAND THREADS (φ146.09) MACHINED SURFACES TO BE FREE FROM BURRS, FLASH AND PAINT

56Y(HM16075LCb/HM16058LCb/HM16085ECb)

Two views of a black circular device with visible internal components and wiring, placed on a white surface (no text or symbols)

Close-up of an electrical switch assembly with wires and components, no visible text or symbols

Close-up of a hand using a wrench to adjust internal components of an electric motor (no visible text or symbols)

Close-up of two small electronic components with green and white markings, no visible text or symbols.

Adres: nr 60, Yinxing Road, Zhonglou, Changzhou, Jiangsu, Chiny

VEVOR®

TOUGH TOOLS, HALF PRICE

Model:HM14065LCb/HM14095LCb/HM16075LCb

HM14075LCb/HM16058LCb/HM16085ECb

Model: HM14065LCb/HM14095LCb/HM16075LCb

HM14075LCb/HM16058LCb/HM16085ECb

Exterior view of a black electric motor with visible shaft and mounting flange (no text or symbols)

56J

Black electric motor with visible shaft and mounting flange (no text or symbols)

56J

HULP NODIG? NEEM CONTACT MET ONS OP!

diagram(HM14065LCb/HM14095LCb/HM16075LCb/HM14075LCb/HM16058LCb)

BEDRADINGSSCHEMA-115/230V

TERMINAL BLOCK BACK RED YELLOW WHITE STATOR RED BLUE CAPACITOR GRAY YELLOW GRAY RED JUMPER NEUTRAL LINE A AS11 ADCZ THERMAL PROTECTOR

Schaven

VEVOR 3/8-16UNC(4处) 45° Φ149.23 90°

1/2-14NPS Ø142.5 40 Ø16.3-48 47.5" 19.25" 3.15 1

Ø9.3 C0.76Max R0.4 15.86+0.002 A 4Max C1.5 7/16-20 UNF 2A 14.3-17.85

56J(HM14065LCb/HM14095LCb/HM14075LCb)

165 (56) 4×90° 45° B MACHINED PAD +0.126 Φ146+0.050 j Φ0.152 A B +0.176 4-Φ11-0.586 j Φ0.308 A B FRONT VIEW Φ180.975 ± 0.1 B.C.

R0.5 1/2-20 UNF-2A RIGHT HAND THREADS h 0.1 B φ10.922±0.051 30° ±2° 12.7±0.51 SLINGER PLACEMENT 0-3.2 FROM SEAL 10.31±0.127 WITH PAD TO SHAFT STEP 4.8±0.127 SLINGER φ31.5±0.51 (φ15.869) φ6.63±0.66x60° INTERNAL THREAD 1/4-20 UNC-2B ▽15.24± 0.51 LEFT HAND THREADS (φ146.09) MACHINED SURFACES TO BE FREE FROM BURRS, FLASH AND PAINT

56Y(HM16075LCb/HM16058LCb/HM16085ECb)

Two views of a black circular device with visible internal components and wiring, placed on a white surface (no text or symbols)

Close-up of an electrical switch assembly with wires and components, no visible text or symbols

Close-up of a hand using a wrench to adjust internal components of an electric motor (no visible text or symbols)

Close-up of two small electronic components with green and white markings, no visible text or symbols.

Adres: № 60, Yinxing Road, Zhonglou, Changzhou, Jiangsu, China

VEVOR®

TOUGH TOOLS, HALF PRICE

Modell: HM14065LCb/HM14095LCb/HM16075LCb

HM14075LCb/HM16058LCb/HM16085ECb

Modell: HM14065LCb/HM14095LCb/HM16075LCb HM14075LCb/HM16058LCb/HM16085ECb

Exterior view of a black electric motor with visible shaft and mounting flange (no text or symbols)

56J

Black industrial electric motor with visible shaft and mounting flange (no text or symbols)

56Y

56J(HM14065LCb/HM14095LCb/HM14075LCb)

165 (56) 4×90° 45° B MACHINED PAD +0.126 Φ146+0.050 j Φ0.152 A B +0.176 4-Φ11-0.586 j Φ0.308 A B FRONT VIEW Φ180.975 ± 0.1 B.C.

R0.5 1/2-20 UNF-2A RIGHT HAND THREADS h 0.1 B φ10.922±0.051 30° ±2° 12.7±0.51 SLINGER PLACEMENT 0-3.2 FROM SEAL 10.31±0.127 WITH PAD TO SHAFT STEP 4.8±0.127 SLINGER φ31.5±0.51 (φ15.869) φ6.63±0.66x60° INTERNAL THREAD 1/4-20 UNC-2B ▽15.24± 0.51 LEFT HAND THREADS (φ146.09) MACHINED SURFACES TO BE FREE FROM BURRS, FLASH AND PAINT

56Y(HM16075LCb/HM16058LCb/HM16085ECb)

Two views of a black circular device with exposed internal components, placed on a white surface (no text or symbols visible)

Close-up of an electrical switch assembly with wires and components, no visible text or symbols

Var försiktig när

välja att

säkerställa

korrekt

kabeldragning,

annars kan motorn

bri

Close-up of a hand using a wrench to adjust internal components of an electric motor (no visible text or symbols)

Close-up of two small electronic components with green and white markings, no visible text or symbols.

Adress: nr 60, Yinxing Road, Zhonglou, Changzhou, Jiangsu, Kina
